ZnCdTe/ZnTe W ë s – ¤ö n Ú  Œ º8 ý  ¹ ÅM X ì Ä — ¤V R Ë

ZnCdTe/ZnTe W ë s – ¤ö n Ú  Œ º8 ý  ¹ ÅM X ì Ä — ¤V R Ë

ƒ

‘

šŠ û BZ 9 

@

/½¨d¦aË:@/†<Ɠ§ „/BN†<Æõ, âíߖ 712-702

(2010¸ 12Z4 22{9 ~ÃÎ6£§, 2011¸ 1Z4 5{9 ú&ñ‘:r ~ÃÎ6£§, 2011¸ 3Z4 8{9 >F SX‰&ñ)

‘ :

r ƒ½¨\"fH zinc-blende ZnxCd1−xTe/ZnTe €ªœĺÓüt ½¨›¸\ @/ôÇ „l&h:£¤$í`¦ ½™×¼ Ä»´ò

| 9

|¾Ó s:r`¦ 6 x #Œ ĺÓüt?/ Cd $íìr_ †<Êú–Ð ›¸ %i. x=0.2 \"f 0.8 t_ Zn $íìr %ò%i\

"

f ©œ“Ér 0lqҐo\"f &hҐot_ rFg\ 5Åq H 550 \"f 700 nm t o÷&%3. Zn $íìrs 7£x

†<Ê\  ±p 0A ¿º ÂÒ½™×¼[þt s_ \-t çߖs &h&h yŒ™™è†<Ê`¦ ˜Ð#ŒÅÒ%3ܼ 9, ¨îçH &ñ/BNÄ»´ò

| 9

|¾Ó“Ér Zn $íìrs 7£x†<Ê\  &h&h 7£x %i. ½™×¼ ©œo (k||=0) H%ƒ\"f_ Fg†<Æ&h BàÔ a

Ë

:Û¼ כ¹™èH Zn $íìrs 7£x†<Ê\  yŒ™™è %i.

Ù þ

˜d”#Q: ZnCdTe, ZnTe, €ªœĺÓüt, YUs$, éߖ©œ

Electronic Properties of ZnCdTe/ZnTe Quantum-well Structures

Seoung-Hwan Park

Department of Electronics Engineering, Catholic University of Daegu, Gyeongsan, 712-702 (Received 22 December 2010 : revised 5 January 2011 : accepted 8 March 2011)

The electronic properties of zinc-blende ZnCdTe/ZnTe quantum-well (QW) structures were stud- ied as a function of the Zn composition by using multiband effective mass theory. The transition wavelength changed from 550 to 700 nm in the range of Zn composition from 0.2 to 0.8. The energy separation between the first two subbands gradually decreased with increasing Zn composition.

Also, the average effective mass of holes increased with increasing Zn composition. The rate of increase of the hole’s effective mass below x = 0.6 was larger than that above x = 0.6. The optical matrix element near the band edge was shown to decrease with increasing Zn composition.

PACS numbers: 42.55.Px, 42.60.-v, 71.22.+i, 72.80.Ey

Keywords: ZnCdTe, ZnTe, quantum well, laser, short wavelength

I. " e  ] Ø

F 

g nۼ߼, nÛ¼e¦YUs 1pxõ °ú “Ér #ŒQt íߖ\Oܼ–Ð _

 6£x6 x`¦ 0AK rFg YUs$ sš¸×¼
 µ1ÏFgsš¸

×

¼H Bĺ ×æכ¹ . 650 nm %ò%i_ &hҐo AlGaInP ü<

440 nm %ò%i_ 'õAҐo AlGaInN III-V 7ᤠYUs$ sš¸×¼





H ©œ\Oo÷&%3ܼ 9, 570 nm _ ©œ`¦ ” ”¸êøÍҐo YUs

∗E-mail: [email protected]

$

 sš¸×¼H e¦AÛ¼hË: Fg$3Ä» :Ÿx’_ Fg"é¶Ü¼–Ð"f l@/

÷

&“¦ e”. ÕªQ
, III-V 7ᤠìø͕¸^‰\¦ 6 x #Œ 500-630 nm ©œ%ò%i_ YUs$ sš¸×¼\¦ z´‰&³ H X<H f”

´ ú

§“Ér ëH]j&h[þts e”.s[þt ×æçߖ ©œ%ò%i@/_ ìø͕¸^‰ Y

Us$ sš¸×¼\¦ >hµ1Ï l 0AK II-VI ìø͕¸^‰ Õª Êê

˜

ЖÐ"f ´ú§“Ér |ÃÐ[þt_ ƒ½¨_ @/©œs ÷&#Q M®o [1–3].

Õ

ª ×æ\"f ZnTe ›'aº II-VI Óüt|9s éߖ©œ %ò%i_ Fg„



 ™è 6£x6 x`¦ 0AK ]jîߖ÷&#Q M®o [1,4]. ½™×¼Ì“ss 300 K \"f 2.26 eV sl M:ëH\ íHú œí2Ÿ¤ %ò%i_ µ1ÏFg™è -272-

 Fg›¸l >hµ1Ï\ &h]XôÇ כ ܼ–Ð ·ú˜94R M®o. ÕªQ
,

“

¦¾¡§|9_ ZnTe 8£x`¦ %3HX< #Q9¹¡§s e”l M:ëH\ éߖt

™

èú_ ÕªÒ¨\"fëߖ ƒ½¨÷&#Q M®otëߖ, &ñ$큩œlÕüt_ µ1Ï

„



õ †<Êa ˜Ð þjH\H €ªœ|9_ ZnTe 8£xs modlecular beam expitaxy (MBE)
 metalorganic chemical vapor deposition (MOCVD) –Ð $í2[÷&%3 [5, 6]. sQôÇ >h µ

1

Ï\ qÆÒ#Q, ZnTe ›'aº €ªœĺÓüt (quantum well) ½¨›¸

\

 @/ôÇ :£¤$í ƒ½¨H †¾ÓÊê µ1ÏFgsš¸×¼ >hµ1Ï`¦ 0AK B Ä

º ×æכ¹½+É כ ܼ–Ð ÒqtyŒ•)a. ÕªQ
, s[þt ½¨›¸\ @/ôÇ

ƒ



½¨H f” œíl éߖ>sl M:ëH\, ´ú§“Ér Óüto&h $í|9[þt s

 ·ú˜94R e”t ·ú§Ü¼ 9, s[þt €ªœĺÓüt ½¨›¸\ @/ôÇ :£¤

$ í

ƒ½¨H †¾ÓÊê éߖ©œ YUs$_ [O>ü< ]jŒ•\ ×æכ¹ôÇ



«Ñ |¨c כ s.

‘ :

r ƒ½¨\"fH zinc-blende ZnCdTe/ZnTe €ªœĺÓüt ½¨

›

¸\ @/ôÇ „l&h:£¤$í`¦ ½™×¼ Ä»´ò|9|¾Ó s:r`¦ 6 x

#Œ ĺÓüt?/ Cd $íìr_ †<Êú–Ð ›¸ “¦ ôÇ. „



{ü< 1lx†<ÊúH &ñ/BN\ @/ôÇ block @/yŒ•o)a 3x3  x

9

žÐmîߖ`¦ Û¦#Q"f ½¨ %i [7,8].

II. T  Â ] Ø

(001) &ñ$큩œ`¦ ” zinc-blende (ZB) block @/yŒ•o

 )

a x9žÐmîߖ“Ér 6£§õ °ú s ÅÒ#Q” [9]. 7£¤,

H =

µH^U 0 0 H^L

¶

(1)



©

œ0A block H^U\ @/ôÇ 3x3 x9žÐmîߖ“Ér

H^U =





P + Q St −iRt

St P + Q −²₃∆so ∆so− iRt

iRt ∆so+ iRt P − 2Q −¹₃∆so





|1 > (2)

|2 >

|3 >

s

 9, 0A block H^U\ @/ôÇ 3x3 x9žÐmîߖ“Ér

H^L=





P + Q S_t iR_t

St P + Q −²₃∆so ∆so+ iRt

−iRt ∆so− iRt P − 2Q −¹₃∆so





|4 >

|5 >

|6 >

(3)

–

Ð ÅÒ#Q”. #Œl"f,

P = − ~²

2moγ1(k_x²+ k²_y+ k_z²) + av(²xx+ ²yy+ ²zz),

Q = ~²

2moγ2(k²_x+ k_y²− 2k²_z) +b

2(²xx+ ²yy− 2²zz),

St = ~²

2mo

·

−3

2(γ2+ γ3)

¸ k_t²,

Rt = ~²

2mo

h

−3√ 2γ3

i

ktkz. (4)

¢

¸ôÇ kt = q

k²_x+ k_y² H kx-ky ¨î€\"f_ 1lx 7˜' ß¼ l

s“¦, ²ij H @/gA&h“ Û¼àÔYU“ J$™"f, γ2, γ2, x9 γ3 H À

ÒhA B>hú, av ü< b H +þA ŸíJ$™[>(deformation potential), Õªo“¦ ∆so H spin-orbit split-off \-ts



. d” (3) õ (3) \"f_ base [þt“Ér 6£§õ °ú s &ñ_)a



. 7£¤,

|1 > = α^∗

¯¯

¯¯− 1

√2(X + iY ) ↑ À

+ α

¯¯

¯¯ 1

√2(X − iY ) ↓ À

,

|2 > = β

¯¯

¯¯ 1

√2(X − iY ) ↑ À

+ β^∗

¯¯

¯¯− 1

√2(X + iY ) ↓ À

,

|3 > = β^∗|Z ↑i + β |Z ↓i ,

|4 > = α^∗

¯¯

¯¯− 1

√2(X + iY ) ↑ À

− α

¯¯

¯¯ 1

√2(X − iY ) ↓ À

,

|5 > = β

¯¯

¯¯ 1

√2(X − iY ) ↑ À

− β^∗

¯¯

¯¯− 1

√2(X + iY ) ↓ À

,

|6 > = −β^∗|Z ↑i + β |Z ↓i , (5)

#

Œl"f

α = 1

√2exp

· i

µ3π 4 +3φ

2

¶¸

,

β = 1

√2exp

· i

µπ 4 +φ

2

¶¸

. (6)

Õ

ªo“¦ φ = tan⁻¹(kx/ky) H kx-ky ¨î€?/\"f_ ~½Ó0A y

Œ

•s“¦ 0 \"f 2π t_ #30A\¦ ”.

H^U ü< H^L\ @/ôÇ Ÿí|ÃÌ †<Êú(envelope functio)[þt“Ér  6

£

§d”?/\"f &ñ_)a.

Ψ^vσ_mkk(r) =X

ν

g^(ν)_m (k_k, z)e^ikk·rk|ν >, (7)

#

Œl"f g^(ν)m (kk, z) “Ér Ÿí|Ã̆<Êús 9, m “Ér €ªœĺÓüt ÂÒ



½

™×¼ tús. k_k = kxx + kˆ yy, rˆ _k= xˆx + yˆy , Õªo“¦

σ = U (or L) “Ér ©œ0A (<ʓÉr 0A) block`¦
·p. ¢¸ ô



Ç, σ = U \ @/K ν=1, 2, 3 Õªo“¦ σ=L \ @/K ν=4, 5, 6 _ ½+Ë_ °úכ`¦ ”. #Œl"f, biaxial Û¼àÔYU“`¦

”



 z »¡¤ ~½Ó†¾Óܼ–Ð $큩œ)a €ªœĺÓüt ½¨›¸\¦ “¦9ôÇ. „

•

¸{\ @/ôÇ 1lx†<ÊúH 6£§õ °ú s ÅÒ#Q”.

Ψ^cη_lk

k(r) = φl(z)e^ikk·rk|S, η >, (8)

#

Œl"f, η H 0pxôÇ Û¼—2; ©œI\¦
?/ 9 φl(z) “Ér Ÿí

| Ã

̆<Êú\¦
·p. Block @/yŒ•o)a Ÿí|Ã̆<Êú {g^(ν)m } “Ér



6£§`¦ ëߖ7á¤ôÇ [10]. 7£¤,

X

ν⁰

· H_νν^σ0

µ

k_k, −i ∂

∂z

¶

+ Vv(z)δνν⁰

¸

g_m^(ν0)(k_k, z) = E^σ_m(k_k)g^(ν_m⁰⁾(k_k, z). (9)

#

Œl"f ν = 1, 2 <ʓÉr 5, 6 \ @/K Vv(z) = Vh(z), Õªo

“

¦ ν=3, 4 \ @/K"fH Vv(z) = Vso(z) s.

F 

g†<Æ&h BàÔaË:Û¼ כ¹™èH 6£§õ °ú s ÅÒ#Q”. 7£¤,

|ˆ² · M^ησ_lm(k_k)|²= | < Ψ^cη_lk

k|ˆ² · p|Ψ^vσ_mkk> |², (10)

#

Œl"f Ψ^cη_lk

k ü< Ψ^vσ_mk

k H „•¸{ü< „{_ 1lx†<Êú [

þ

ts“¦ η = ↑ ü< ↓ H „ Û¼—2;s. yŒ• φ \ @/ôÇ &hìr

`



¦ “¦9½+É M: BàÔaË:Û¼ כ¹™èH 6£§õ °ú .

TE-polarization ( ˆ² = x or y ):

|ˆ² · M^↑σ_lm(k_k)|² = 1

4| < S|px|X > |²n

< g⁽¹⁾_m|φl>²+ < g_m⁽²⁾|φl>²o

for σ = U

|ˆ² · M^↓σ_lm(k_k)|² = 1

4| < S|p_x|X > |²n

< g⁽⁴⁾_m|φ_l>²+ < g_m⁽⁵⁾|φ_l>²o

for σ = L (11)

TM-polarization ( ˆ² = z ):

|ˆ² · M^↑σ_lm(k_k)|²=1

4| < S|pz|Z > |²< g_m⁽³⁾|φl>² for σ = U

|ˆ² · M^↓σ_lm(k_k)|²= 1

4| < S|pz|Z > |²< g_m⁽⁶⁾|φl>² for σ = L (12)

#

Œl"f

| < S|px|X > |²= | < S|pz|Z > |²=mo

2 µmo

me − 1

¶ (Eg+ ∆)Eg

(Eg+ 2∆/3), (13)

0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 500

550 600 650 700 750 800

Zn

xCd

1-xTe/ZnTe L

w

= 5 nm

Transition Wavelength (nm)

Zn Composition

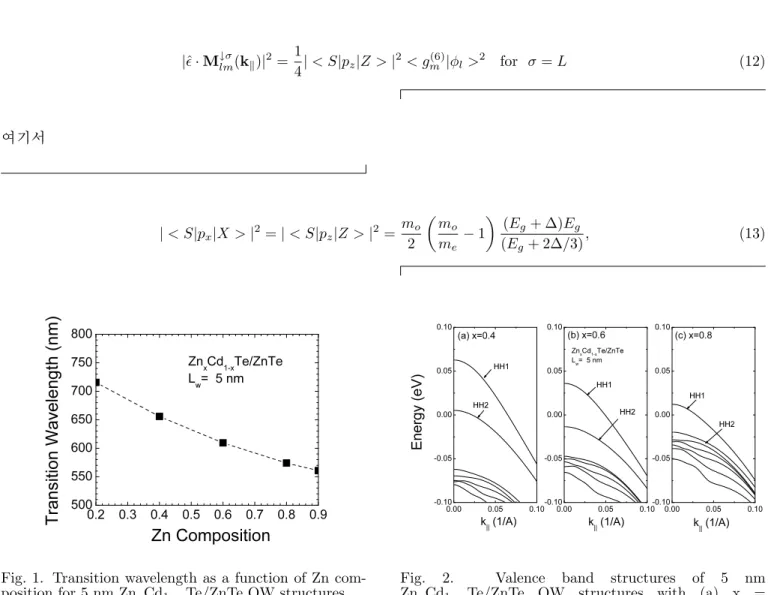

Fig. 1. Transition wavelength as a function of Zn com- position for 5 nm ZnxCd1−xTe/ZnTe QW structures.

meH „•¸{_ Ä»´ò|9|¾Ó, EgH ½™×¼Ì“s, ∆ H spin-orbit splitting \-ts.

III. + s ÇÊ Ý õ m Í w Š²  o

Õ

ªaË> 1 “Ér 5 nm ¿ºa_ ZnxCd1−xTe/ZnTe €ªœĺÓüt

½

¨›¸\ @/ôÇ Zn $íìr_ †<Êú–Ð ÅÒ#Q” …;s ©œ`¦ ˜Ð

#

Œïr. Interband …;s ©œ“Ér 'Í P: „•¸ ÂÒ½™×¼(C1) õ

 'Í P: „ ÂÒ½™×¼ (HH1) s_ \-t \ K {

©

œôÇ. Zn $íìrs 7£x†<Ê\  …;s ©œs yŒ™™è†<Ê`¦

˜

Ð#ŒÅÒ 9, s yŒ™™èH ÅҖР½™×¼Ì“ss 7£x†<Ê\ Ér כ s

. ›¸)a Zn $íìr_ %ò%i\"f ©œ“Ér 550 \"f 700 nm t o 9 0lqҐo\"f &hҐot_ rFg µ1ÏFg™è

\



¦ ]jŒ•s 0px†<Ê`¦ ·ú˜ ú e”. €ªœĺÓüt_ ¿ºa\¦ Œ•>

½ +

É âĺ µ1ÏFg©œ`¦ 7᧠8 ±úØ¦ ú e”tëߖ, „ü< &ñ/BN _

 …;sSX‰Ò¦\ %ò†¾Ó`¦ ÅÒl M:ëH\ þj&h ›¸| \ @/ôÇ ƒ

0.00 0.05 0.10

-0.10 -0.05 0.00 0.05 0.10

k|| (1/A) k|| (1/A)

k|| (1/A)

Energy (eV)

HH2 HH1 (a) x=0.4

0.00 0.05 0.10

-0.10 -0.05 0.00 0.05 0.10

HH2 Zn

xCd 1-xTe/ZnTe L

w= 5 nm

HH1 (b) x=0.6

0.00 0.05 0.10

-0.10 -0.05 0.00 0.05 0.10

HH2 HH1 (c) x=0.8

Fig. 2. Valence band structures of 5 nm ZnxCd1−xTe/ZnTe QW structures with (a) x = 0.4, (b) x = 0.6, and (c) x = 0.8.

½

¨ €9כ¹ . Type I ½¨›¸sl M:ëH\ îrìøÍ x9•¸\



Ér band-bending ´òõ\ _ôÇ µ1ÏFg©œ_ oH Áº r

0px  9, ¢¸ôÇ wurtzite GaN ›'aº €ªœĺÓüt ½¨›¸\

"

f ›'a8£¤÷&H ·úš„ìrFGõ µ1ÏìrFG\ _ôÇ ?/Âҁ©œ´òõ

\ O

#Q ©œ@/&hܼ–Ð „ü< &ñ/BN_ …;sSX‰Ò¦s Z} Fg†<Æ

&

h

 s1pqs 9þt כ ܼ–Ð l@/)a. Zn $íìrs 7£x†<Ê\



 €ªœĺÓüt?/_ ·úš»¡¤ Û¼àÔYU“_ ]X@/°úכ“Ér &h&h yŒ™™è

HX<, x = 0.4 ü< 0.8 _ âĺ\ @/K Õª °úכ“Ér yŒ•yŒ• -3.8 ü

< -1.3 % s. Û¼àÔYU“\ _K"f ©œs 7£x  9, Û¼ à

ÔYU“s \O`¦ âĺü<_ sH yŒ•yŒ• x = 0.4 ü< 0.8 _

 â

ĺ\ @/K 7 ü< 15 nm s.

Õ

ªaË> 2 H (a) x = 0.4, (b) x = 0.6, Õªo“¦ (c) x = 0.8 _

 $íìr`¦ ” 5 nm ¿ºa_ ZnxCd1−xTe/ZnTe €ªœĺ Ó

ü

t ½¨›¸\ @/ôÇ „{ ½¨›¸\¦ ˜Ð#Œïr. ±p 0A ÂÒ½™

×

¼\ @/ôÇ \-t °úכs Zn $íìrs 7£x†<Ê\  A

–

Ð s1lx†<Ê`¦ ^¦ ú e”ܼ 9, sכ “Ér ÅҖР½™×¼Ì“ss 7£x

0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 0.0

0.1 0.2 0.3 0.4 0.5 0.6

Zn x

Cd 1-x

Te/ZnTe

L w

= 5 nm

m v

*

ZnTe Composition

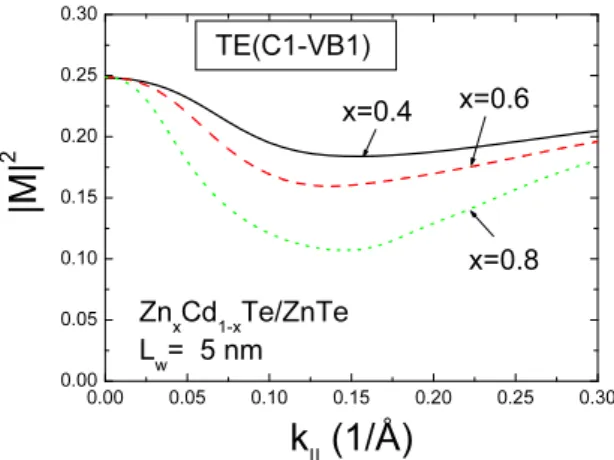

Fig. 3. Average hole effective mass of the first va- lence subband as a function of Zn composition for 5 nm ZnxCd1−xTe/ZnTe QW structures.

†

<

Ê\ Ér õs. ¢¸ôÇ, Zn $íìrs 7£x†<Ê\  ±p 0

A ¿º ÂÒ½™×¼[þt s_ \-t çߖs &h&h yŒ™™è†<Ê`¦ ˜Ð

#

Œïr. \V\¦ [þt€, x = 0.5 ü< x = 0.8 `¦ ” €ªœĺ Ó

ü

t ½¨›¸[þt\ @/ôÇ ¿º ÂÒ½™×¼[þt s_ \-t sH yŒ• y

Œ

• 58 õ 32 meV s. Õªo“¦, A_ ÂÒ½™×¼[þtõ•¸ &h

&

h

 \-t s צ#Q[þUs ˜Ð#Œ”. sכ “Ér €ªœĺÓüt _

 U·s ĺÓüt_ Zn $íìrs 7£x†<Ê\  &h&h צ#Q [

þ

tl M:ëH“ כ ܼ–Ð [O"îs 0px . {9ìøÍ&hܼ–Ð, ÂÒ½™

×

¼çߖ_ \-t çߖs a%vt€ Z}“Ér ÂÒ½™×¼[þt\ îrìøÍ



[þts G0>|9 SX‰Ò¦s 7£x l M:ëH\, ïr`…ØÔp ïr0A

 yŒ™™è > )a. ïr`…ØÔp ïr0A_ yŒ™™èH Fg†<Æ&h µ1ÏFg

\

H ÂÒ&ñ&h“ %ò†¾Ó`¦ ÅÒl M:ëH\, Zn $íìrs 7£x†<Ê\



 Fg†<Æ&h µ1ÏFg y©œ•¸ yŒ™™è½+É כ ܼ–Ð \V8£¤)a. „•¸ {

_ âĺ ŸíÓüt /BG‚ —¸€ªœ_ ½™×¼\¦ &ñ %iܼ 9, Zn$í ì

rs 7£x†<Ê\  „_ Ä»´ò|9|¾Ós 7£x l M:ëH

\

 /BG‚_ lÖ¦l &h&h yŒ™™è > )a. ¢¸ôÇ, Zn$íìr s

 7£x†<Ê\  ½™×¼Ì“ss 7£x #Œ ŸíJ$™[> ĺÓüt_ U· s

 ·û f”\  ìr½™×¼[þtçߖ_ \-t  &h&h צ

#

Q[þt> )a.

Õ

ªaË> 3 “Ér 5 nm ¿ºa_ ZnxCd1−xTe/ZnTe €ªœĺÓüt

½

¨›¸\ @/ôÇ Zn $íìr_ †<Êú–Ð ÅÒ#Q” ±p 0A ÂÒ½™×¼\

@

/ôÇ ¨îçH &ñ/BNÄ»´ò|9|¾Ó`¦ ˜Ð#Œïr. ¨îçH &ñ/BNÄ»´ò|9

|

¾

ӓÉr, ÅÒ#Q” îrìøÍ x9•¸\ @/K, ½™×¼½¨›¸ ŸíÓüt‚s



“¦ &ñ “¦ ½¨ôÇ ïr`…ØÔp ïr0A°úכõ ÕªaË> 2 _ „



{ ½¨›¸–Ð ÂÒ' ½¨ôÇ ïr`…ØÔp ïr0A°úכs °ú >
š¸•¸ 2

Ÿ

¤ H ›¸| ܼ–ÐÂÒ' ½¨ %i. s âĺ ŸíÓüt‚ —¸€ªœ_

„{\ @/ôÇ Ä»´ò|9|¾Ó“Ér ¨îçH&h“ ©œIx9•¸\¦ ìøÍ%ò ô



Ç. &ñ/BNÄ»´ò|9|¾Ó“Ér Zn $íìrs 7£x†<Ê\  &h&h 7£x

†<Ê`¦ ˜Ð#Œïr. x = 0.6 A_ %ò%i\"fH Õª 7£xÖ¦

0.00 0.05 0.10 0.15 0.20 0.25 0.30

0.00 0.05 0.10 0.15 0.20 0.25 0.30

x=0.8 x=0.6 x=0.4

ZnxCd

1-xTe/ZnTe Lw= 5 nm

|M|2

k|| (1/Å)

TE(C1-VB1)

Fig. 4. Optical matrix elements as a function of in-plane wave vector for 5 nm ZnxCd1−xTe/ZnTe QW structures with several Zn compositions.

s

 Œ•tëߖ, x = 0.6 s©œ_ %ò%i\"fH 7£xÖ¦s ß¼f”`¦

^

¦ ú e”. sכ “Ér Ä»´ò|9|¾Ós ÂÒ½™×¼_ curvature \ ì

ø

ÍqYV  9, ÕªaË> 2 _ „{\"f ˜Ð#ŒtH כ %ƒ!3 Zn $íìrs ©œ@/&hܼ–Ð &h“Ér x = 0.6 A_ %ò%i\"fH

Ÿ

íJ$™[> ĺÓüt_ U·s U·#Q „{_ lÖ¦l Zn $í ì

r\  o &h. ìø̀, x = 0.6 s©œ_ %ò%i\"f





H ŸíJ$™[> ĺÓüts U·s ·û f”\  ÂÒ½™×¼[þtçߖ_

\

-t çߖs a%v4R ÂÒ½™×¼[þtçߖ_ coupling ´òõ M:ëH

\

 Ä»´ò|9|¾Óo ©œ@/&hܼ–Ð ß¼t> )a. Ä»´ò|9|¾Ó

“ É

r ›¸)a %ò%i\"f 0.25\"f 0.45mo_ °úכ`¦ t 9, s

° ú

כ[þt“Ér wurtzite GaN ›'aº ìø͕¸^‰\"f ›'a8£¤÷&H °úכ[þt\ (∼1.0 mo)qK ©œ@/&hܼ–Ð &h6£§`¦ ·ú˜ ú e”.

Õ

ªaË> 4 H #ŒQt Zn $íìr`¦ ” 5 nm ¿ºa_ ZnxCd1−xTe/ZnTe €ªœĺÓüt ½¨›¸\ @/ôÇ in-plane wave vector †<Êú–Ð ÅÒ#Q” Fg†<Æ&h BàÔaË:Û¼ כ¹™è\¦ ˜Ð#Œïr.

F 

g†<Æ&h BàÔaË:Û¼ כ¹™èH in-plane 1lx 7˜' (k||)  7£x

†

<

Ê\  yŒ™™è  0.15 _ °úכ`¦ Å#Q€ r 7£x

H ↾Ó`¦ ˜Ð#ŒÅғ¦ e”. ½™×¼ ©œo (k|| = 0) H

%

ƒ\"f_ Fg†<Æ&h BàÔaË:Û¼ כ¹™èH Zn $íìrs ß¼f”\



 Õª yŒ™™èÖ¦s 7£x†<Ê`¦ ˜Ð#Œïr. YUs$_ âĺ ½™×¼

©œo H%ƒ\ „
 &ñ/BNs ´ú§s —¸#Œ e”ܼ 9 s[þt ç

ß

–_ …;sSX‰Ò¦“Ér ½™×¼ ©œo H%ƒ_ Fg†<Æ&h BàÔaË: Û

¼ כ¹™è\ _K &ñ)a. "f, Zn $íìrs ß¼f”\



 Fg†<Æ&h BàÔaË:Û¼ כ¹™è yŒ™™è l M:ëH\ Zn $íìrs



Œ

•“Ér €ªœĺÓüt ™è_ Fg†<Æ&h :£¤$í“Ér Zn $íìrs H âĺ

\

 qK ĺú½+É כ ܼ–Ð l@/)a. Zn $íìrs ß¼f”\

 É

r Fg†<Æ&h BàÔaË:Û¼ כ¹™è yŒ™™è_ "鶓“Ér ŸíJ$™[> ĺÓüt_ U



·s ·û f”\  1lx†<Êú ©œ#4%ò%iܼ–Ð (f”\



 „ü< &ñ/BN1lx†<Êú_ /BNçߖ&h overlap s yŒ™™è  l

 M:ëH“ כ ܼ–Ð ÒqtyŒ•)a.

IV. + s Ç Â ] Ø

‘ :

r ƒ½¨\"fH zinc-blende ZnCdTe/ZnTe €ªœĺÓüt ½¨

›

¸\ @/ôÇ „l&h:£¤$í`¦ ĺÓüt?/ Cd $íìr_ †<Êú–Ð ›¸

%i. x = 0.2 \"f 0.8 t_ Zn $íìr %ò%i\"f ©œ

“ É

r 0lqҐo\"f &hҐot_ rFg\ 5Åq H 550 \"f 700 nm t o÷&%3. Zn $íìrs 7£x†<Ê\  ±p 0A ¿º Â

Ò½™×¼[þt s_ \-t çߖs &h&h yŒ™™è†<Ê`¦ ˜Ð#ŒÅÒ

% 3

ܼ 9, ¨îçH &ñ/BNÄ»´ò|9|¾Ó“Ér Zn $íìrs 7£x†<Ê\

&

h

&h 7£x %i. ½™×¼ ©œo (k_|| = 0) H%ƒ\"f_ F

g†<Æ&h BàÔaË:Û¼ כ¹™èH Zn $íìrs ß¼f”\  Õª yŒ™

™

èÖ¦s 7£x†<Ê`¦ ˜Ð#ŒÅÒ%3. YUs$_ âĺ ½™×¼ ©œ



o H%ƒ\ „
 &ñ/BNs ´ú§s —¸#Œ e”ܼ 9 s[þtçߖ_ …

;sSX‰Ò¦“Ér ½™×¼ ©œo H%ƒ_ Fg†<Æ&h BàÔaË:Û¼ כ¹

™

è\ _K &ñ)a. "f, Zn $íìrs ß¼f”\  Fg

†

<

Æ&h BàÔaË:Û¼ כ¹™è yŒ™™è l M:ëH\ Zn $íìrs Œ•“Ér

€ ª

œĺÓüt ™è_ Fg†<Æ&h :£¤$í“Ér Zn $íìrs H âĺ\ q K

 ĺú½+É כ ܼ–Ð l@/)a.

P c

p 8 ý ò k >

‘ :

r 7HëH“Ér 2011¸•¸ @/½¨d¦aË:@/†<Ɠ§_ “§?/ƒ½¨q t

"é¶\ _ôÇ כ e”.

Y c

p w Š à U Ø ”  ô

[1] J. H. Chang, J. S. Song, K. Godo, M. Y. Shen, T.

Goto and T. Yao, Appl. Phys. Lett. 78, 566 (2001) [2] F. Tinjod, S. Moehl, K. Kheng, B. Gilles and H.

Mariette, J. Appl. Phys. 95, 102 (2004).

[3] S. Tomimoto1, S. Nozawa1, Y. Terai, S. Kuroda, K.

Takita and Y. Masumoto, Phys. Rev. B 73, 195202 (2006).

[4] L. V. Borkovska, N. O. Korsunska, Y. G. Sadofyev, R. Beyer, J. Weber, T. Kryshtab, J. A. Andraca- Adame, I. P. Kazakov, V. I. Kushnirenko, phys. stat.

sol. (b) 244, 1700 (2007).

[5] K. Kishino, I. Nomura, Y. Ochiai and S.-B. Che, phys. stat. sol. (b) 229, 991 (2002).

[6] I. Nomura, A. Manoshiro, A. Kikuchi and K.

Kishino, phys. stat. sol. (b) 229, 955 (2002).

[7] S. L. Chuang and C. S. Chang, Phys. Rev. B 54, 2491 (1996).

[8] S. H. Park and S. L. Chuang, Appl. Phys. Lett. 72, 3103 (1998).

[9] C. Y.-P. Chao and S. L. Chuang, Phys. Rev. B 46, 4110 (1992).

[10] D. Ahn, S. J. Yoon, S. L. Chuang and C. S. Chang, J. Appl. Phys. 78, 2489 (1995).
