Š„ Çù o Ú 440 nm dip-shaped InGaN/GaN W ë s – ¤ö n Ú  Œ º8 ý ° Ë Ñ] K ¡X ì Ä — ¤V R Ë

Volume 60, Number 11, 2010¸ 11Z4, pp. 1220∼1223

New Physics: Sae Mulli (The Korean Physical Society), DOI: 10.3938/NPSM.60.1220

w

Š„ Çù o Ú 440 nm dip-shaped InGaN/GaN W ë s – ¤ö n Ú  Œ º8 ý ° Ë Ñ] K ¡X ì Ä — ¤V R Ë

ƒ

‘

šŠ û BZ 9 

@

/½¨d¦aË:@/†<Ɠ§ „/BN†<Æõ, âíߖ 712-702

(2010¸ 9Z4 1{9 ~ÃÎ6£§, 2010¸ 10Z4 4{9 ú&ñ‘:r ~ÃÎ6£§, 2010¸ 11Z4 15{9 >F SX‰&ñ)

‘ :

r ƒ½¨\"fH 440 nm _ ©œ`¦ ” dip-shaped InGaN/GaN €ªœĺÓüt ½¨›¸\ @/ôÇ Fg†<Æ&h :£¤

$ í

`¦ ›¸ “¦ sכ `¦ l”>r_ éߖ{9 €ªœĺÓüt ½¨›¸\¦ ” âĺü< q“§ŽžÐ %i. îrìøÍ x9•¸ 7£x

†<Ê\  …;s ©œ“Ér &h &hܼ–Ð yŒ™™è†<Ê`¦ ˜Ð#ŒÅÒ%3ܼ 9, sQôÇ ©œ_ yŒ™™èÒ¦“Ér dip-shaped InGaN/GaN €ªœĺÓüt ½¨›¸_ âĺ éߖ{9 €ªœĺÓüt ½¨›¸\ qK Œ•>
zŒ¤. ¢¸ôÇ, dip-shaped InGaN/GaN €ªœĺÓüt ½¨›¸H µ1ÏFgy©œ•¸ €• 20 % &ñ•¸ l”>r_ €ªœĺÓüt ½¨›¸\ qK 7£x†<Ê`¦ ˜Ð

#

ŒÅғ¦ e”. sכ “Ér dip-shaped InGaN/GaN €ªœĺÓüt ½¨›¸_ âĺ Fg†<Æ&h BàÔaË:Û¼ כ¹™è éߖ{9

€ ª

œĺÓüt ½¨›¸\ qK ß¼l

l M:ëH“ כ ܼ–Ð K$3s 0px .

Ù þ

˜d”#Q: InGaN, GaN, €ªœĺÓüt, 440 nm, Dip-shaped €ªœĺÓüt

Optical Characteristics of High-efficiency 440 nm Dip-shaped InGaN/GaN Quantum Well Structures

Seoung-Hwan Park

^∗

Department of Electronics Engineering, Catholic Univ. of Daegu, Gyeongsan 712-702 (Received 1 September, 2010 : revised 4 October, 2010 : accepted 15 November, 2010)

The optical characteristics of 440 nm dip-shaped InGaN/GaN quantum well (QW) structures were studied using multi-band effective mass theory. The results were compared with those of con- ventional single InGaN/GaN QW structures. The transition wavelength gradually decreases with increasing carrier density due to the screening effect. The rate of decrease of the transition wave- length for the dip-shaped InGaN/GaN QW structure is smaller than that of the single InGaN/GaN QW structure. Also, the spontaneous emission peak of the dip-shaped InGaN/GaN QW structure increases by about 20 %, compared to that of the single InGaN/GaN QW structure. This can be explained by the fact that optical matrix element for the dip-shaped InGaN/GaN QW structure is enhanced due to a reduction in the internal field effect.

PACS numbers: 42.55.Px, 42.60.-v, 71.22.+i, 72.80.Ey

Keywords: InGaN, GaN, Quantum well, 440 nm, Dip-shaped quantum well

∗E-mail: [email protected]

-1220-

“

¦´òÖ¦ 440 nm dip-shaped InGaN/GaN €ªœĺÓüt ½¨›¸_ Fg†<Æ&h :£¤$í – ~ÃÌ5px¨8Š · Seoung-Hwan Park -1221-

I. " e  ] Ø

GaN \ „½Ó`¦ éH €ªœĺÓüt (Quantum-well)½¨›¸H éߖ 

©œ µ1ÏFgsš¸×¼ü< YUs$–Ð_ 6£x6 x$í M:ëH\ ´ú§“Ér

| Ã

Ð[þt_ ›'ad”_ @/©œs ÷&“¦ e” [1]. ‰&³F InGaN/GaN

€ ª

œĺÓüt ½¨›¸ü< ›'aº÷&#Q ©œ H ëH]j&h×æ_
H



H ·úš„ìrFGõ µ1ÏìrFG\ _ôÇ ?/Âҁ©œs Bĺ ß¼H

 כ

s [2, 3]. sכ M:ëH\ „ü< &ñ/BN_ 1lx†<ÊúH /

B

Nçߖ&hܼ–Ð YO#Qt> ÷&#Q „ü< &ñ/BNs F½+˽+É SX‰ Ò



¦s ©œ{©œy צ#Q[þt> ÷& 9, s\  ?/ÂÒ´òÖ¦s /åL





y yŒ™™è > )a. sQôÇ ëH]j&h[þt`¦ K l 0AK (0001) õ &ñ$큩œ~½Ó†¾Ós Ér lóøÍ`¦ s6 x H ~½ÓZO1px õ

 °ú s #ŒQt ~½ÓZO[þts ]jr÷&#Q M®o [4,5].

þ

jH\H ?/Âҁ©œs צsl 0AôÇ ~½Óîߖܼ–Ð l”>r_  y

Œ

•+þA—¸€ªœ`¦ ” ŸíJ$™[> ĺÓüt`¦ »1ÏxôÇ non-square €ªœ



ĺÓüt ½¨›¸\ @/ôÇ ƒ½¨ ]jr)a  e”. \V\¦ [þt€, Arif ÕªÒ¨\"fH [6] >éߖ—¸€ªœ_ (staggered) €ªœĺÓüt ½¨

›

¸\¦ ]jîߖ “¦, s ½¨›¸ l”>r_ ½¨›¸\ @/K µ1Ï~½Ó Ø



¦s
 Fg†<Æ&h s1pqs 7£x)aH כ `¦ ˜Ð#ŒÅÒ%3. 8 Ô



¦#Q, InGaN ĺÓüt?/\ [j >h_ InGaN 8£x`¦ ” dip- shaped InGaN/GaN €ªœĺÓüt ½¨›¸ “¦´òÖ¦ µ1ÏFgs

š

¸×¼ ]jŒ•`¦ 0AK ]jr)a  e” [7, 8]. :£¤y, 530 nm ©œ`¦ ” œí2Ÿ¤ dip-shaped InGaN/GaN µ1ÏFg s

š¸×¼\ @/ôÇ Fg†<Æ&h :£¤$ís ƒ½¨ ÷&%3ܼ 9, l”>r_ µ 1

ÏFgsš¸×¼\ qK µ1ÏFg:£¤$ís Bĺ ĺú†<Ês ˜Ð“¦)a



 e” [8]. ÕªQ
, 440 nm ©œ`¦ ” dip-shaped InGaN/GaN €ªœĺÓüt ½¨›¸\ @/ôÇ ƒ½¨H f” _ ˜Ð

“

¦)a  \Oܼ 9, 'õAҐo µ1ÏFg™è\ @/ôÇ ›'ad”s Bĺ ß¼ l

 M:ëH\, s[þt „l&h x9 Fg†<Æ&h $í|9[þt\ @/ôÇ ƒ½¨





H †¾ÓÊê “¦´òÖ¦ µ1ÏFg™è_ ]jŒ•\ ×æכ¹ôÇ lœí«Ñ

|

¨

c כ s.

‘ :

r ƒ½¨\"fH 440 nm _ ©œ`¦ ” dip-shaped In- GaN/GaN €ªœĺÓüt ½¨›¸\ @/ôÇ Fg†<Æ&h :£¤$í`¦ ›¸

“

¦ sכ `¦ l”>r_ éߖ{9 €ªœĺÓüt ½¨›¸\¦ ” âĺü< q

“

§ “¦ ôÇ. |9oÓüt ìø͕¸^‰_ âĺ ?/Âҁ©œs ”>rF  l

 M:ëH\, „{ ½¨›¸ü< 1lx†<ÊúH self-consistent (SC) ~½ÓZOܼ–Ð Û¦#Q  9, „\ @/ôÇ /'ø@`ç ~½Ó&ñ d

”

, &ñ/BN\ @/ôÇ 6 × 6 x9žÐmîߖ, Õªo“¦ Ÿí5Åx ~½Ó&ñd”

`



¦ 1lxr\ Û¦#Q"f ½¨ %i [9,10]. #Œl"f, lóø͓Ér GaN



“¦ &ñ  9 s âĺ InGaN ĺÓüt“Ér ·úš»¡¤“©œ (com- pressive strain)`¦ ~ÃΓ¦ e”ܼ 9, GaN ©œ#4 (barrier)H 



&ñ½+Ë÷&#Q e”.

II. T  Â ] Ø



^‰´òõ\¦ ” non-Markovian s1pq Û¼&7˜àÔ!3“Ér  6

£

§õ °ú s ÅÒ#Q” [11,12]. 7£¤,

g(ω) = rµo

² X

σ=U,L

X

l,m

µ e² m²_oω

¶ Z _∞

0

dk||

k||

πL^{ef f}w

|ˆ² · M^σ_lm(kk)|²[f_l^c(k||) − f_m^v(k||)]

· (1 − ReQ(k_k, ~ω))ReL(E_lm(k_k, ~ω)) − ImQ(k_k, ~ω)ImL(E_lm(k_k, ~ω))

(1 − ReQ(kk, ~ω))²+ (ImQ(kk, ~ω))² , (1)

#

Œl"f ω H yŒ•”1lxú, µo H ”/BN\"f_ ÈÒ Ö



¦(permeability), k_|| H €ªœĺÓüt ¨î€\"f_ in-plane wave vector _ ß¼l, |Mlm|² H €ªœĺÓüt_ —¸F'pàÔ B

àÔaË:Û¼ כ¹™è, f_l^c õ f_m^v “Ér „•¸{ü< „{\"f _

 `…ØÔp †<Êú[þt, ~ H Planck ©œÃºs. ² H Ä»„



©

œÃºs. ^‰´òõH áÔݼ ۼ߼o_ç, ½™×¼Ì“s F

½

©o, ½™×¼çߖ(interband) …;sSX‰Ò¦_ "lor—:r <ʓÉr Ùüt 2

Ÿ

x 7£xy©œ(enhancement)`¦ Ÿí†<ÊôÇ. ½™×¼Ì“s F½©oH screened exchange (SX) self-energy ÂÒìrõ Coulomb-hole (CH) ÂÒìr_ ½+Ëܼ–Ð ÅÒ#Q”. tú[þt l õ m “Ér „•¸ {

_ „©œIü< „{_ heavy-hole (light-hole) ÂÒ



½

™×¼ ©œI\¦
·p. ¢¸ôÇ, Elm(k_k, ~ω) = E_l^c(k_k) − E_m^v(k_k) +Eg + ∆ESX+∆ECH− ~ω “Ér „ü< &ñ/BN s

_ F½©o)a …;s \-ts. #Œl"f, Eg H Óüt|9 _

 ½™×¼Ì“s \-t, ∆ESX õ ∆ECH“Ér ½™×¼Ì“s F½©o _

 screened exchange ü< Coulomb-hole l#Œ ÂÒìr`¦


·p. Q(k_k, ~ω) “H interband …;sSX‰Ò¦_ "lor—:r

<



ʓÉr Ùüt2Ÿx enhancement \¦
·p [13, 14]. ‚;Ÿ¤†<Ê Ã

º (line-shape) H ©œ çߖéߖôÇ non-Markovian quantum kinetics \ @/K Gaussian —¸€ªœs 9 ‚ÃГ¦ëH‰³ [11,12]\ Å

Ò#Q”.

-1222- ôDzDGÓüto†<Ært “DhÓüto”, Volume 60, Number 11, 2010¸ 11Z4

0 50 100

-1.0 -0.5 0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5

0 50 100

Length (Å) Length (Å)

λ= 440 nm

Lb

GaN L

w=3 nm InGaN In=0.11

HH1 C1

(a) Conventional

P o te n ti a l (e V )

HH1 C1

L

w1=L

w3=1 nm InGaN In=0.05

Lw2=1 nm InGaN In=0.09 (b) Dip

Fig. 1. Potential profiles and the wave functions of the first conduction subband (C1) and the first valence sub- band (HH1) at zone center for the ground state of 440 nm (a) conventional single InGaN/GaN QW structure and (b)dip-shaped InGaN/GaN QW structure.

III. + s ÇÊ Ý õ m Í w Š²  o

Figure 1 “Ér 440 nm ©œ`¦ ” (a) l”>r_ éߖ{9

€ ª

œĺÓüt ½¨›¸ü< (b) dip-shaped InGaN/GaN €ªœĺ Ó

ü

t ½¨›¸\ @/ôÇ ŸíJ$™[> —¸€ªœõ zone center \"f_ 'Í





P: „•¸{ (C1) ü< 'Í P: „{ (HH1)\ @/ôÇ 

1lx†<Êú\¦ ˜Ð#Œïr. yŒ• 8£x[þt\ @/ôÇ ?/Âҁ©œ“Ér ÅÒl

&

h

“ ›¸| , P

ql^(q)F^(q) = 0 –Ð ÂÒ' ½¨ %iܼ 9, #Œl

"

f ½+˓Ér —¸ŽH 8£x[þt\ @/K ÅÒ#Qt 9, l“Ér yŒ• 8£x_ ¿º a

, F H ?/Âҁ©œ`¦
·p. Dip-shaped InGaN/GaN

€ ª

œĺÓüt\"f ¢,aAᤠĺÓüt_ ¿ºa(Lw1) ü< In $íìr“Ér š¸

 É

rAá¤ÄºÓüt_ כ [þtõ °ú > ¿º%3. Õªo“¦ „^‰_ ¿ºa





H l”>r_ éߖ{9 €ªœĺÓüt_ ¿ºaü< °ú > %iܼ 9, yŒ• y

Œ

• ½¨›¸_ ĺÓüt?/ In $íìr“Ér #Q*‹ôÇ injection •¸ \O

`



¦ âĺ\ 440 nm _ ©œs ÷&•¸2Ÿ¤ ‚×þ˜÷&%3. n P

: 8£x_ ?/Âҁ©œ F H F⁽ⁿ⁾ = [P

ql^(q)P^(q)/²⁽ⁿ⁾ − P⁽ⁿ⁾P

ql^(q)/²⁽ⁿ⁾]/[²⁽ⁿ⁾P

ql^(q)/²⁽ⁿ⁾] –Ð ÅÒ#Qt 9, #Œl"f

² “Ér yŒ•8£x_ Ä»„©œÃºs. l”>r_ éߖ{9 €ªœĺÓüt_ â Ä

º „ü< &ñ/BN\ @/ôÇ 1lx†<Êú_ /BNçߖ&h o Bĺ ß

¼>
zŒ™`¦ ·ú˜ ú e”. sכ “Ér ĺÓütõ ©œ#4?/_ ·úš

„



ìrFGõ µ1ÏìrFG_ ½+Ë\ @/ôÇ  Bĺ ß¼l M:ëHs



. ìø̀, dip-shaped InGaN 8£x`¦ V,“Ér âĺ, „ü< &ñ /

B

N\ @/ôÇ 1lx†<Êú_ /BNçߖ&h o ß¼> צ#Q[þU`¦ ·ú˜ Ã

º e”.

Figure 2 H 440 nm ©œ`¦ ” l”>r_ éߖ{9 €ªœĺÓüt

½

¨›¸ü< dip-shaped InGaN/GaN €ªœĺÓüt ½¨›¸\ @/K î



rìøÍx9•¸_ †<Êú–Ð ÅÒ#Q” …;s ©œs. Interband …



;s ©œ“Ér 'Í P: „•¸ ÂÒ½™×¼(C1) õ 'Í P: „ Â

Ò½™×¼ (HH1) s_ \-t \ K{©œôÇ. îrìøÍ x9

5 10 15 20

410 420 430 440 450

Dip

Conventional

Transition Wavelength (nm)

Carrier Density (x10

¹²

cm

^-2

)

Fig. 2. Transition wavelengths as a function of the sheet carrier density for 440 nm conventional single In- GaN/GaN QW and dip-shaped InGaN/GaN QW struc- tures.

0.0 0.1 0.2 0.3

0.00 0.05 0.10 0.15 0.20 0.25 0.30

0.42 0.44 0.46 0.48 0

2000 4000 6000 8000 10000

(a)

Lw=3 nm λ= 440 nm

N_2D=10x10¹²cm^-2

|M|2

Dip

Conventional

k|| (1/Å) Wavelength (µm)

Conventional Dip

(b)

Spontaneous emission coefficient (1/cm)

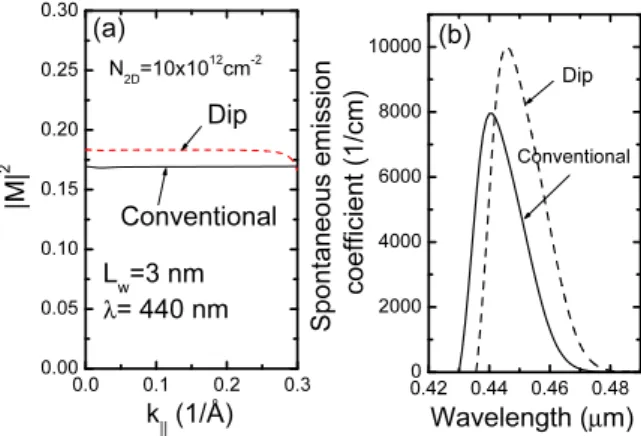

Fig. 3. (a) Optical matrix elements as a function of the in-plane wave vector and (b) spontaneous emission spec- tra for 440 nm conventional single InGaN/GaN QW and dip-shaped InGaN/GaN QW structures.

•

¸ 7£x†<Ê\  …;s ©œ“Ér &h &hܼ–Ð yŒ™™è†<Ê`¦

˜

Ð#Œïr. sכ “Ér ·úš„ìrFGõ µ1ÏìrFG\ _ôÇ ÄºÓüt ?/

?

/Âҁ©œs @/„)a îrìøÍ\ _ôÇ Û¼ß¼o_ç ŸíJ$™[> M:ëH

\

 îrìøÍ 7£x†<Ê\  &h&h צ#Q[þtl M:ëHs. s



QôÇ ©œ_ yŒ™™èÒ¦“Ér dip-shaped InGaN/GaN €ªœĺÓüt

½

¨›¸_ âĺ éߖ{9 €ªœĺÓüt ½¨›¸\ qK &h6£§`¦ ·ú˜ ú e”



. sכ “Ér dip-shaped InGaN/GaN €ªœĺÓüt ½¨›¸_ â Ä

º ?/Âҁ©œs éߖ{9 €ªœĺÓüt ½¨›¸\ qK Œ•l M:ëH“ כ Ü

¼–Ð K$3s 0px . "f, dip-shaped InGaN/GaN

€ ª

œĺÓüt ½¨›¸H éߖ{9 €ªœĺÓüt ½¨›¸˜Ð ?/Âҁ©œ ´òõ

 צ#Q[þt#Q 8 a%~“Ér :£¤$í`¦ |9 כ ܼ–Ð \V©œ)a.

Figure 3 “Ér 440 nm ©œ`¦ ” l”>r_ éߖ{9 €ªœĺÓüt

½

¨›¸ü< dip-shaped InGaN/GaN €ªœĺÓüt ½¨›¸\ @/K (a) in-plane 1lx 7˜' (k||) _ †<Êú–Ð ÅÒ#Q” Fg†<Æ&h B à

ÔaË:Û¼ כ¹™èü< (b) µ1Ï ~½Óئ Û¼&7˜àÔ!3`¦ ˜Ð#Œïr. Fg†<Æ

“

¦´òÖ¦ 440 nm dip-shaped InGaN/GaN €ªœĺÓüt ½¨›¸_ Fg†<Æ&h :£¤$í – ~ÃÌ5px¨8Š · Seoung-Hwan Park -1223-

&

h

 BàÔaË:Û¼ כ¹™èü< Û¼&7˜àÔ!3“Ér N2D= 10×10¹²cm⁻²_

€



 îrìøÍx9•¸\"f >íߖ÷&%3. Fg†<Æ&h BàÔaË:Û¼ כ¹™è





H ¿º ½¨›¸ —¸¿º\ @/K ›¸)a in-plane 1lx 7˜'_ #3 0

A?/\"f _ {9&ñôÇ °úכ`¦ ˜Ð#ŒÅғ¦ e”. Fg†<Æ&h BàÔ a

Ë

:Û¼ כ¹™èH „ü< &ñ/BN_ F½+Ë SX‰Ò¦õ ›'aºs e”ܼ 9, µ1ÏFg™è_ âĺ ½™×¼ ©œo (k||=0) H%ƒ\"f_

° ú

כ[þts Bĺ ×æכ¹ . =
 €, îrìøÍ[þts ÅҖР½™×¼

©œo\ QÓütl M:ëHs. Dip-shaped InGaN/GaN

€ ª

œĺÓüt ½¨›¸_ âĺ Fg†<Æ&h BàÔaË:Û¼ כ¹™è éߖ{9 €ªœ



ĺÓüt ½¨›¸\ qK ™è ß¼>
zŒ™`¦ ·ú˜ ú e”. s

 כ

“Ér ·ú¡\"f 7H_ôÇ ü< °ú s ?/Âҁ©œ ´òõ ©œ@/&hܼ

–

Рצ#Q[þt%3l M:ëHs. l@/ôÇ ü< °ú s dip-shaped InGaN/GaN €ªœĺÓüt ½¨›¸H µ1ÏFgy©œ•¸ €• 20 % &ñ•¸ l

”>r_ €ªœĺÓüt ½¨›¸\ qK 7£x†<Ê`¦ ˜Ð#ŒÅғ¦ e”.

s

כ “Ér dip-shaped InGaN/GaN €ªœĺÓüt ½¨›¸_ âĺ

° ú

 “Ér ©œ`¦ ÅҍH In $íìrs צ#Q[þt#Q ›'aº Fg†<Æ&h BàÔ a

Ë

:Û¼ כ¹™è éߖ{9 €ªœĺÓüt ½¨›¸\ qK ß¼>

l M

:ëH“ כ ܼ–Ð K$3s 0px  [8].

IV. + s Ç Â ] Ø

‘ :

r ƒ½¨\"fH 440 nm _ ©œ`¦ ” 'õAҐo dip-shaped InGaN/GaN €ªœĺÓüt ½¨›¸\ @/ôÇ Fg†<Æ&h :£¤$í`¦ ›¸

“¦ sכ `¦ l”>r_ éߖ{9 €ªœĺÓüt ½¨›¸\¦ ” âĺü<

q

“§ŽžÐ %i. Dip-shaped InGaN/GaN €ªœĺÓüt ½¨

›

¸_ âĺ éߖ{9 €ªœĺÓüt ½¨›¸\ qK, îrìøÍx9•¸\ @/ ô



Ç ©œ_ o &h>
zŒ¤Ü¼ 9, sכ “Ér :£¤&ñôÇ 



©

œ`¦ ” µ1ÏFg™è_ [O>›¸| `¦ ½¨ H כ s „_

 â

ĺ q“§&h 6 xs H כ `¦ _p “¦ e”. 8Ô¦#Q, dip-shaped InGaN/GaN €ªœĺÓüt ½¨›¸H µ1ÏFgy©œ•¸ €• 20 % &ñ•¸ l”>r_ €ªœĺÓüt ½¨›¸\ qK 7£x†<Ê`¦ ˜Ð#Œ Å

ғ¦ e”. sכ “Ér ²DG ·úš„õ µ1ÏìrFG\ _ôÇ ?/Âҁ©œ

´

òõ yŒ™™è)a õs 9, ©œ©œ œí2Ÿ¤ µ1ÏFg™è_ âĺ

\

 qK µ1ÏFgy©œ•¸_ 7£x ©œ@/&hܼ–Ð ±útëߖ, †¾ÓÊê 'õA Ò



o>:Ÿx_ µ1ÏFgsš¸×¼_ ?/ÂÒ´òÖ¦`¦ Z}sH ~½ÓZOܼ–Ð l

@/÷&H ½¨›¸\¦ _pôÇ.

P c

p 8 ý ò k >

‘ :

r 7HëH“Ér 2010¸•¸ @/½¨d¦aË:@/†<Ɠ§_ “§?/ƒ½¨q t

"é¶\ _ôÇ כ e”.

Y c

p w Š à U Ø ”  ô

[1] S. Nakamura and G. Fasol, The Blue Laser Diode (Springer, Berlin, 1997).

[2] G. Martin, A. Botchkarev, A. Rockett and H. Morko¸c, Appl. Phys. Lett. 68, 2541 (1996).

[3] F. Bernardini, V. Fiorentini and D. Vanderbilt, Phys. Rev. B 56, 10024 (1997).

[4] S. H. Park and S. L. Chuang, Phys. Rev. B 59, 4725 (1999).

[5] T. Takeuchi, H. Amano and I. Akasaki, Japan. J. Appl. Phys. 39, 413 (2000).

[6] R. A. Arif, Y.-K. Ee and N. Tansu, Appl. Phys. Lett.

91, 091110 (2007).

[7] H. Zhao, R. A. Arif and N. Tansu, IEEE J. Sel. Top.

Quantum Electron 15, 1104 (2009).

[8] S.-H. Park, D. Ahn, B.-H. Koo and J.-W Kim, Appl.

Phys. Lett. 95, 063507 (2009).

[9] S. L. Chuang and C .S. Chang, Phys. Rev. B 54, 2491 (1996).

[10] S.-H. Park and S. L. Chuang, Appl. Phys. Lett. 72, 3103 (1998).

[11] D. Ahn, Prog. Quantum Electron 21, 249 (1997).

[12] S.-H. Park, S. L. Chuang, J. Minch and D. Ahn, Semicond. Sci. Technol. 15, 203 (2000).

[13] W. W. Chow, S. W. Koch and M. Sergent III, Semiconductor-Laser Physics (Springer, Berlin, 1994).

[14] H. Haug and S. W. Koch, Quantum Theory of the Optical and Electronic Properties of Semiconductors (World Scientific, Singapore, 1993).
