The whole-genome sequence of Bacillus velezensis strain KMUS1 from kimchi was analyzed with the Illumina HiSeq 4000 platform. The genome comprises a 3,810,818-bp chromo- some with a G + C content of 46.63%. Strain KMUS1 encodes 20 protease and 61 peptidase genes, as well as nattokinase.
Therefore, the genetic background of strain KMUS1 potentially confers the functional properties of a starter or probiotic candidate.
Keywords: Bacillus velezensis, genome, kimchi, probiotic, starter
The genus Bacillus contains Gram-positive, spore-forming, aerobic or facultatively anaerobic bacteria and is divided into two groups, the B. subtilis group and B. cereus group. The B.
subtilis group contains not only the dominant bacteria in fermented foods, but also bacteria widely used in traditional and industrial fermentation (Jung et al., 2016). Bacillus velezensis belongs to the B. subtilis group and produces exoenzymes such as proteases and amylases, and is pre- dominantly detected in several fermented foods (Jang et al., 2019; Lee et al., 2020). Exoenzymes from B. velezensis are
involved in protein and starch degradation and contribute to the sensory properties of fermented foods by producing aromatic compounds (Moon et al., 2018). Based on these properties, B.
velezensis has been suggested as a starter candidate for fermented foods. Here, B. velezensis strain KMUS01 was isolated from kimchi as a candidate starter strain. Strain KMUS1 displayed proteolytic activities on tryptic soy agar (BD Diagnostic Systems), and its genome sequence was determined to confirm its genetic background.
The genomic DNA of strain KMUS1 was extracted with the Maxwell RSC Tissue DNA Kit (Promega), and the draft genome was sequenced with 100-bp paired-end reads on the Illumina HiSeq 4000 platform (Macrogen, Inc.). The DNA library was prepared with the TruSeq DNA PCR-Free kit, according to the instructions of the manufacturer (Macrogen, Inc.). The DNA quality checks of the sequencing data were made with FastQC (ver. 0.11.7) and the data were assembled with SPAdes (ver. 3.10.0). The NCBI Prokaryotic Genome Annotation Pipeline was used for genome annotation and then a search against the Clusters of Orthologous Groups (COG) database was performed to determine the putative protein functions (Tatusov et al., 2016). Additional prediction of genes and functional roles was performed with the RAST server in USA (https://rast.nmpdr.org/rast.cgi) and the SEED database
Korean Journal of Microbiology (2021) Vol. 57, No. 2, pp. 122-124 pISSN 0440-2413
DOI https://doi.org/10.7845/kjm.2021.1015 eISSN 2383-9902
Copyright ⓒ 2021, The Microbiological Society of Korea

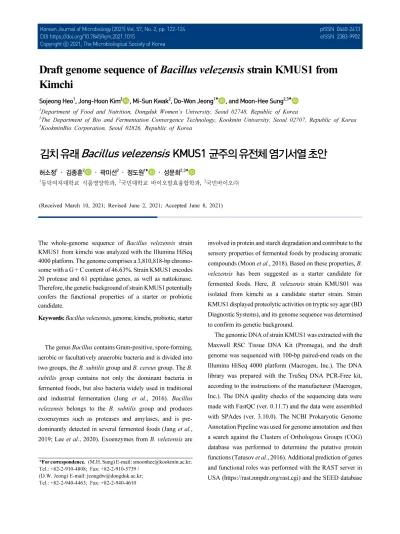

Draft genome sequence of Bacillus velezensis strain KMUS1 from Kimchi
Sojeong Heo
1, Jong-Hoon Kim
2, Mi-Sun Kwak
2, Do-Won Jeong
1* , and Moon-Hee Sung
2,3*
1
Department of Food and Nutrition, Dongduk Women’s University, Seoul 02748, Republic of Korea
2
The Department of Bio and Fermentation Convergence Technology, Kookmin University, Seoul 02707, Republic of Korea
3
KookminBio Corporation, Seoul 02826, Republic of Korea
김치 유래 Bacillus velezensis KMUS1 균주의 유전체 염기서열 초안
허소정
1･ 김종훈
2･ 곽미선
2･ 정도원
1* ･ 성문희
2,3*
1
동덕여자대학교 식품영양학과,
2국민대학교 바이오발효융합학과,
3국민바이오㈜
(Received March 10, 2021; Revised June 2, 2021; Accepted June 8, 2021)
*For correspondence. (M.H. Sung) E-mail: [email protected];
Tel.: +82-2-910-4808; Fax: +82-2-910-5739 / (D.W. Jeong) E-mail: [email protected];
Tel.: +82-2-940-4463; Fax: +82-2-940-4610
Genome sequence of Bacillus velezensis KMUS1∙
123
Korean Journal of Microbiology, Vol. 57, No. 2 (Aziz et al., 2008).
It has been known for many years that Bacillus species are difficult to distinguish with traditional phenotypic methods or by their entire 16S rRNA genes (Freitas et al., 2008). Strain KMUS1 was isolated as B. amyloliquefaciens in 2018 on the basis of its 16S rRNA gene sequence. The average nucleotide identity (ANI) of the KMUS1 genomic sequence showed 98.6%, 94.4%, and 94.1% similarity with B. velezensis GH1-13, B. siamensis SCSIO 05746, and B. amyloliquefaciens DSM7
T, respectively. Therefore, strain KMUS1 was redefined as B.
velezensis.
The draft genome of strain KMUS1 consists of 14 contigs with a total length of 3,810,818 bp (Table 1). The depth of sequencing coverage was 228.12× and the G + C content of the genome is 46.63%. The genome was predicted to contain 3,765 open reading frames and 3,497 genes were functionally assigned to categories on the basis of the COG results. The fractions of the genome related to the COG categories amino acid transport and metabolism, transcription, and carbohydrate transport and metabolism were 8.41% (294 genes), 7.43% (260 genes), and 6.72% (235 genes), respectively. Strain KMUS1 contains 20 protease genes and 61 peptidase genes, and a leucine aminopeptidase gene (KMUS1_02911; EC 3.4.11.1) was detected among them. Bacterial protease activity confers unique characteristic upon fermented foods by breaking down proteins to peptides and various amino acids during fermen- tation. In particular, leucine aminopeptidases contribute to the flavor development in soybean fermentation products (Zhao et al., 2018). These enzymes also reduce the bitterness of soybean
fermentation products by hydrolyzing hydrophobic amino acid residues, such as leucine, at the amino termini of proteins and/or peptides (Kim et al., 2017). The KMUS1 genome also contains a subtilisin gene (KMUS1_00971; EC 3.4.21.62), which encodes a well-known nattokinase. Nattokinase has shown therapeutic pharmacological effects, including anti- thrombotic and antihypertensive properties (Fujita et al., 2011). Therefore, KMUS1 may be a potential probiotic strain for the production of pharmaceutical products. The draft genome sequence of strain KMUS1 provides further genetic insight into its strain-specific properties and its utility as a starter and probiotic.
Nucleotide sequence accession number
The draft genome sequence of B. velezensis KMUS1 has been deposited in DDBJ/ENA/GenBank under accession number JAEIJC000000000. The strain has been deposited in the Korean Collection for Type Cultures under accession number KCTC 13635BP.
적 요
Bacillus velezensis KMUS1 균주를 김치로부터 분리하여 유전체를 분석하였다. 균주 KMUS1은 유전체는 약 3.8-Mb 크 기로 GC 함량은 46.63%였다. 유전체 분석 결과 단백질 분해 효소 및 펩타이드 분해효소 유전자를 다양하게 보유하고 있었 으며, 나토키나이제 유전자 또한 보유하고 있었다. 이는 KMUS1 균주의 단백질 분해 활성과 프로바이오틱 특성에 대 한 유전적 배경을 이해하는데 활용될 수 있음을 제공한다.
Acknowledgments
This work was supported by the Innopolis Korea innovation Foundation 2020 grant funded by the Korea government (MEST) (No. 2020-JB-RD-0218) and Basic Science Research Program through the National Research Foundation of Korea (NRF) funded by the Ministry of Education (No. 2020R1 A6A3A13077341). We thank Janine Miller, PhD, from Edanz Group (https://en-author-services.edanz.com/ac) for editing a draft of this manuscript.
Table 1. Genome features of Bacillus velezensis strain KMUS1
Features Value
No. contigs 14
Depth (×) 228.1
Genome size (bp) 3,810,818
G + C content (%) 46.63
Open reading frames 3,765
tRNA genes 35
rRNA genes -
CDSs assigned with COG 3,497
GenBank accession no. JAEIJC000000000 Abbreviations: CDS, DNA coding sequence; COG, Cluster of Orthologous Groups (of proteins).
124
∙ Heo et al.미생물학회지 제57권 제2호
Conflict of Interest
The authors have no conflicts of interest to report.
References
Aziz RK, Bartels D, Best AA, DeJongh M, Disz T, Edwards RA, Formsma K, Gerdes S, Glass EM, Kubal M, et al. 2008. The RAST Server: rapid annotations using subsystems technology.
BMC Genomics 9, 75.
Freitas DB, Reis MP, Lima-Bittencourt CI, Costa PS, Assis PS, Chartone-Souza E, and Nascimento AMA. 2008. Gentopic and phenotypic diversity of Bacillus spp. isolated from steel plant waste. BMC Res. Notes 1, 92.
Fujita M, Ohnishi K, Takaoka S, Ogasawara K, Fukuyama R, and Nakamuta H. 2011. Antihypertensive effects of continuous oral administration of nattokinase and its fragments in spontaneously hypertensive rats. Biol. Pharm. Bull. 34, 1696–1701.
Jang M, Jeong DW, and Lee JH. 2019. Identification of the pre- dominant Bacillus, Enterococcus, and Staphylococcus species in Meju, a spontaneously fermented soybean product. Microbiol.
Biotechnol. Lett. 47, 359–363.
Jung WY, Jung JY, Lee HJ, and Jeon CO. 2016. Functional characteri- zation of bacterial communities responsible for fermentation of doenjang: a traditional Korean fermented soybean paste. Front.
Microbiol. 7, 827.
Kim KM, Lim J, Lee JJ, Hurh BS, and Lee I. 2017. Characterization of Aspergillus sojae isolated from meju, Korean traditional fermented soybean brick. J. Microbiol. Biotechnol. 27, 251–261.
Lee JM, Heo S, Kim YS, Lee JH, and Jeong DW. 2020. Culture- dependent and -independent investigations of bacterial migration into doenjang from its components meju and solar salt. PLoS ONE 15, e0239971.
Moon S, Park Y, Kim I, and Chang H. 2018. Isolation and characterization of Bacillus velezensis SS360-1 from seed soy sauce. Korean J. Community Living Sci. 29, 49–58.
Tatusova T, DiCuccio M, Badretdin A, Chetvernin V, Nawrocki EP, Zaslavsky L, Lomsadze A, Pruitt KD, Borodovsky M, and Ostell J. 2016. NCBI prokaryotic genome annotation pipeline. Nucleic Acids Res. 44, 6614–6624.
Zhao G, Ding LL, Yao Y, Cao Y, Pan ZH, and Kong DH. 2018.
Extracellular proteome analysis and flavor formation during soy sauce fermentation. Front. Microbiol. 9, 1872.
