• 검색 결과가 없습니다.

GaAsV ê s; c V R ËX ê sc Ü R Al 0.21 Ga 0.79 As/GaAs • «8 ý ì Å º Ä k È8 ý : gM ; c 6 ” X ¢ Photoreflectance — ¤V R Ë Ž ì ŏ Œ

N/A
N/A
Protected

Academic year: 2021

Share "GaAsV ê s; c V R ËX ê sc Ü R Al 0.21 Ga 0.79 As/GaAs • «8 ý ì Å º Ä k È8 ý : gM ; c 6 ” X ¢ Photoreflectance — ¤V R Ë Ž ì ŏ Œ"

Copied!
4
0
0

로드 중.... (전체 텍스트 보기)

전체 글

(1)

 ƒ  ½ ¨ 7 Hë  H  Sae Mulli (The Korean Physical Society), Volume 58, Number 3, 2009¸   3 Z 4, pp. 392∼395

GaAsV ê s; c V R ËX ê sc Ü R Al 0.21 Ga 0.79 As/GaAs • «8 ý  ì Å º Ä k È8 ý : gM ; c 6 ” X ¢ Photoreflectance — ¤V R Ë Ž ì ŏ Œ

­

¤<  - > · 9  - > ‡ Ú

% ò

z Œ ™@ /† < Ɠ § Ó ü t o † < Æõ ,  â í ß – 712-749

(2008¸   10 Z 4 6{ 9  ~ à Î6 £ §, þ j7 á x‘ : r 2009¸   1 Z 4 29{ 9  ~ à Î6 £ §)

‘ :

r ƒ  ½ ¨\ " f  H Al

0.21

Ga

0.79

As/GaAs \  @ /ô  Ç  © œ“ : r photoreflectance (PR) _    › ¸c ”  [ jl \    É r F g :

£ ¤$ í \  @ /K  › ¸  % i  .   › ¸ c ”  [ jl  7 £ x † < Ê\    , 1.49 ∼ 1.53 eV ½ ¨ç ß –\ " fPR Û ¼& 7 ˜à Ô _  … ô a _

 ß ¼l  7 £ x    H  ⠆ ¾ Ó`  ¦ › ' a ¹ 1 Ï % i  . „  l  © œ[ jl  & f ” \    É r % ò † ¾ ӓ    כ `  ¦ S X ‰ “  ½ + É Ã º e ” % 3  .

PACS numbers: 78.20.-e

Keywords: F g ì ø Í ,  o½ + ËÓ ü t ì ø ͕ ¸^ ‰, „  l  © œ, F g [ jl

I. " e  ] Ø

3−57 á ¤  o½ + ËÓ ü t ì ø ͕ ¸^ ‰_  F g : £ ¤$ í `  ¦ 8 £ ¤& ñ   H ~ ½ ÓZ O “ É r photoluminescence, x-ray, spectrometer 1 p x # Œ Q t  ~ ½ Ó Z O

s  e ”  . Photoreflectance (PR) Z O “ É r  o½ + ËÓ ü t ì ø ͕ ¸^ ‰ _

 s 7 á x] X ½ + ˽ ¨› ¸\ " f { ç ß –_  „  s  \  -t , ³ ð€   x 9 > €

\

" f „  l  © œ_  ì  r Ÿ í 1 p x F g † < Æ& h  : £ ¤$ í `  ¦ ¨ î    H X < ´ ú §s  s

6   x ÷ &  H ~ ½ ÓZ O s   [1–3]. PRZ O “ É r Y Us $  F g \  _ K  Ò q t

$ í

 ) a ™ èà º H o # Q ³ ð€   © œI _  „   ü < F   ½ + ËÜ ¼– Ð “   ô

 Ç „  l  © œ_    › ¸\  _ ô  Ç  כ Ü ¼– Ð electroreflectance (ER)

\

 q K  $ “ : r õ  “ ¦“ : r \ " f_  s 6   x s  ˜ Ð  ¼ # o     H  © œ

&

h s  e ”  . s  Qô  Ç s Ä »– Ð r « Ñ ³ ð€  _  q ] X 8 ú ¤, q  õ

&

h

 : £ ¤$ í Ü ¼– Ð ì ø ͕ ¸^ ‰_  p [ j½ ¨› ¸ 1 p x`  ¦ ƒ  ½ ¨   H X < 6   x s

 9, ì ø ͕ ¸^ ‰_  Fermi ï  r 0 A_  0 Au \  ¦   & ñ “ ¦ F g † < Æ& h Ü ¼

–

Ð ³ ð€   „   © œ`  ¦   & ñ ½ + É Ã º e ” Ü ¼Ù ¼– Ð z  ´] j ì ø ͕ ¸^ ‰ ™ è  ½ ¨

›

¸_  › ¸ \  e ” # Q" f Ä »6   x ô  Ç z  ´+ « >Z O s  ÷ &“ ¦ e ”  . PR ~ ½ Ó Z O

\ " f  H ×  æ כ ¹ô  Ç “    ” > r F    H X <, 7 £ ¤ „   @ /\ " f

„

 • ¸@ /– Ð # Œl  r v   H * 3 á Ôc ” _  % i ½ + És  . * 3 á Ôc ” “ É r ˜ Ð :

Ÿ

x r « Ñ t   H  ½ ™× ¼Ì “ s \  -t  s  © œ_  \  -t \  ¦ › ¸  r

†   . t ë ß – s  Qô  Ç ×  æ כ ¹ô  Ç % i ½ + É\ • ¸ Ô  ¦ ½ ¨ “ ¦ s \ 

@

/ô  Ç ƒ  ½ ¨  H  _  \ O   H z  ´& ñ s  .   " f ‘ : r ƒ  ½ ¨\ " f  H Al 0.21 Ga 0.79 As/GaAs s 7 á x] X ½ + ˽ ¨› ¸\ " f_  * 3 á Ô c ”  [ jl  7

£

¤   › ¸ c ”  [ jl \    É r r « Ñ : £ ¤$ í `  ¦ ƒ  ½ ¨ “ ¦  ô  Ç .

II. ÷ m Ç ] M ö

‘

: r ƒ  ½ ¨\   6   x ) a r « э  H ì ø Í] X ƒ  $ í GaAs l ó ø Í0 A\  molecular beam epitaxy (MBE)Z O \  _ K  Al 0.21 Ga 0.79 As

E-mail: [email protected]

\

x 8 £ x`  ¦ 5000 ˚ A $ í  © œ r (   . z  ´+ « > ~ ½ ÓZ O “ É r PR 8 £ ¤& ñ `  ¦

% i  . Al 0.21 Ga 0.79 As/GaAs s 7 á x] X ½ + Ë ½ ¨› ¸_    › ¸ c ”

\

 @ /ô  Ç _ ” > r$ í `  ¦ › ' a ¹ 1 Ï l  0 A # Œ   › ¸ c ”  [ jl \  ¦ 1 − 40 mW  t     or &  z  ´+ « >`  ¦ à º' Ÿ  % i  . PR 8 £ ¤& ñ “ É r



 › ¸ c ”  (pump beam)Ü ¼– Ð He-Ne laser (6328 ˚ A)\  ¦  6   x

% i Ü ¼ 9 probe beamÜ ¼– Ѝ  H 240 W ) í Û ¼J $ ™-½ + ɖ Ð  p F g " é ¶

`

 ¦  6   x % i  . y Œ •  © œZ >  é ß –Ò  oF g`  ¦ % 3 l  0 AK   6   x ô  Ç ì  r F

g l   H œ í& h  o  0.75 m“   l l  (Spex 750)\  ¦  6   x

%

i  . Õ ªo “ ¦ — ¸Ž  H z  ´+ « >“ É r  © œ“ : r (300 K) \ " f à º' Ÿ  % i  .

Fig. 1. The PR spectrum of Al 0.21 Ga 0.79 As/GaAs in room temperature.

-392-

(2)

 ƒ  ½ ¨ 7 Hë  H  GaAs  © œ\  $ í  © œ  ) a Al

0.21

Ga

0.79

As/GaAs 8 £ x _ · · · – Ä »F “   · C “    ñ -393-

Fig. 2. The fitting graph of TDFF method in GaAs layer.

III. + s ÇÊ Ý õ m Í ‚ ºÂ ] Ø

Fig. 1“ É r Al 0.21 Ga 0.79 As/GaAs r « Ñ\  ¦ 300 K \ " f 8 £ ¤

&

ñ ô  Ç PR Û ¼& 7 ˜à Ô! 3 s  . s M :   › ¸ c ” _  [ jl   H 1 mW

%

i  . Õ ªa Ë >\ " f ˜ Ѝ  H  ü < ° ú  s  Å Ò  ) a ’    ñ ß ¼>  ¿ º > h

–

Ð      H X <, 1.4 eV Â Ò   H \ " f      H ’    ñ_    H" é ¶

“

É r GaAs \  _ ô  Ç ’    ñ– Ð · ú ˜ 94 R e ” “ ¦, 1.7 eV Â Ò   H \ " f



 è ß – ’    ñ  H Al 0.21 Ga 0.79 As \  _ ô  Ç ’    ñ– Ð · ú ˜ 94 R e ”



.

Fig. 3. The dependence of modulation beam intensity in Al 0.21 Ga 0.79 As/GaAs sample.

s

 ¿ º ’    ñ_  & ñ S X ‰ ô  Ç  ½ ™× ¼Ì “ s \  -t \  ¦ · ú ˜ ? /l  0 A

#

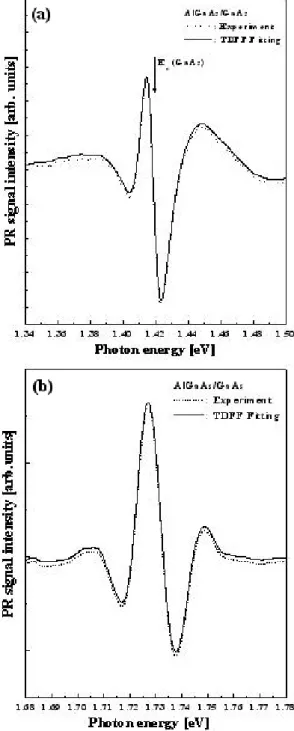

Œ Fig. 2(a), 2(b)\ " f ˜ Ѝ  H  ü < ° ú  s , third derivative function form (TDFF) – Ð x h A (fitting)ô  Ç   õ  GaAs  H 1.42 eV, Al 0.21 Ga 0.79 As  H 1.73 eV _   ½ ™× ¼Ì “ s \  -t \  ¦  t

  H  כ `  ¦ · ú ˜€ Œ ¤ . ˜ Ð: Ÿ x TDFF d ” “ É r  A d ”  (1)õ  ° ú  s

³

ð‰ & ³ ) a   [4].

∆R

R (E) = Re[Ce (E − E g + iΓ) −n ] (1)

#

Œl " f C, θ, E g ü < Í  H y Œ •y Œ • ”  ; Ÿ ¤ (amplitude), 0 A



© œ (phase), e ” > & h \  -t  (critical point energy) x 9

¨ î

ò ø ͓    (broadening parameter)\  ¦ o †   . Õ ªo “ ¦ Al 0.21 Ga 0.79 As \ x 8 £ x \ " f Al_  › ¸$ í q \  ¦ ½ ¨ l  0 A

#

Œ  A  d ”  (2)\  ¦  6   x # Œ ½ ¨ô  Ç   õ  › ¸$ í q   H 21 % % i



 [5–7].

E gAl

x

Ga

1−x

A

8

(x) = 1.424 + 1.427x + 0.041x 2 (0 < x < 0.45) (2) Fig. 3“ É r   › ¸c ”  [ jl \    É r Al 0.21 Ga 0.79 As/GaAs r

«

Ñ_  PR Û ¼& 7 ˜à Ô \  ¦   ? /% 3  . Õ ªa Ë >\ " f  H ˜ Ѝ  H   ü

< ° ú  s    › ¸ c ”  [ jl  7 £ x ½ + Éà º2 Ÿ ¤ ’    ñ_  + þ AI   H 



o \ O   H ì ø ̀  \  ß ¼l   H & t   H X <, s   H   › ¸ c ” s  9 þ t Ã

º2 Ÿ ¤ ³ ð€  \ " f ? / Җ Ð S X ‰ í ß –÷ &  H „    ´ ú §l  M :ë  H s  .

¢

¸ô  Ç   › ¸ c ” _  [ jl \  ¦ 7 £ x r ( ” \     E o (GaAs) ü <

(3)

-394- ô  Dz D GÓ ü t o † < Æ rt  “D hÓ ü t o ”, Volume 58, Number 3, 2009¸   3 Z 4

Fig. 4. The graph of relationship beam intensity and amplitude.

E o (Al 0.21 Ga 0.79 As) _  ’    ñ_  ß ¼l   H ‚  + þ A& h Ü ¼– Ð 7 £ x

†

< Ê`  ¦ ˜ Ð# Œï  r  . s   H   › ¸ c ”  [ jl  (I)ü < ”  ; Ÿ ¤ ( ∆R R )  s  _

 › ' a >   A  d ”  (3)õ  ° ú  s  Å Ò# Qt l  M :ë  H s  .

∆R

R ∝ I

n1

(3)

#

Œl " f 1 n “ É r   › ¸ c ”  [ jl \  @ /ô  Ç ”  ; Ÿ ¤ õ _  › ' a > \ " f l  Ö

 ¦ l \  ¦   ? /  H   à º– Ð" f e ” > & h  + þ AI \  ¦    · p . Õ ª o

“ ¦ A ½ ¨ç ß – (1.49 ∼ 1.53 eV)\ " f ˜ Ðs   H … ô a_  ß ¼l



 › ¸ c ” _  [ jl \     7 £ x ÷ &  H  ⠆ ¾ Ó`  ¦ ^  ¦ à º e ”  . s



 H   › ¸ c ” _  [ jl  & | 9 à º2 Ÿ ¤ „   @ /\ " f „  • ¸@ /– Ð

#

Œl ÷ &  H „   _  à º  8 ´ ú §l  M :ë  H Ü ¼– Ð  « Ñ  ) a  . 7 £ ¤ 

›

¸ c ” _  ß ¼l   H H o # Q 0 l x • ¸\  % ò † ¾ Ó`  ¦ Šғ ¦ s   H „  l  © œ _

 ß ¼l \  ¦ ß ¼>  K Šҍ  H % i ½ + É`  ¦ ô  Ç “ ¦ ½ + É Ã º e ”   [8–11].

Fig. 4  H   › ¸ c ”  [ jl  (I)ü < ”  ; Ÿ ¤ ( ∆R R )  s _  › ' a > \  ¦ Õ ª A

á Ԗ Ð   ? /% 3 Ü ¼ 9, 0 A d ” `  ¦ t “ ¦ x h Aô  Ç   õ ü < ¸ ú ˜ { 9

u  % i   [12–14].

IV. + s Ç Â ] Ø

Al 0.21 Ga 0.79 As/GaAs \ x 8 £ x \  @ /ô  Ç PR 8 £ ¤& ñ `  ¦ : Ÿ x K

% 3

“ É r Al 0.21 Ga 0.79 As x 9 GaAs_   ½ ™× ¼Ì “ s \  -t   H y Œ • y

Œ

• 1.42, 1.73 eV s % i  . ¢ ¸ô  Ç Al 0.21 Ga 0.79 As \  x

8 £ x _  Al › ¸$ í q \  ¦ ½ ¨ô  Ç   õ  21 %% i  . Õ ªo “ ¦ Al 0.21 Ga 0.79 As/GaAs _    › ¸ c ”  [ jl  _ ” > r$ í `  ¦ 8 £ ¤& ñ ô  Ç



õ , A ½ ¨ç ß – (1.49 ∼ 1.53 eV)\ " f ˜ Ðs   H … ô a_  ß ¼l



 › ¸ c ” _  [ jl \     7 £ x ÷ &  H  ⠆ ¾ Ó`  ¦ ^  ¦ à º e ”  . s



 H „  l  © œ_  ß ¼l  7 £ x  l  M :ë  H s  .

Y

c p w Š à U Ø ”  ô

[1] D. Y. Lin, Y. S. Huang, T. S. Shou, K. K. Tiong and Fred H. Pollak, J. Appl. Phys. 90, 6421 (2001).

[2] T. S. Moss, Photoconductivity in The Elements (Butterworths, London, 1952).

[3] B. Jogai, P. W. Yu and D. C. Streit, Appl. Phys.

Lett. 75, 1586 (1994).

[4] D. E. Aspence, Surf. Sci. 37, 418 (1973).

[5] J. Misiewicz, P. Sitarek and G. Sek, Opto-Electron.

Rev. 8, 1 (2000).

[6] M. De Vittorio, M. T. Todaro, V. Vitale, A. Pas- saseo, T. K. Johal, R. Rinaldi, R. Cingolani and S.

Bernardi, Microelectron. Eng. 61, 651 (2002).

[7] S. Adachi, J. Appl. Phys. 58, R1 (1985).

[8] P. Chen, Z. Miao and W. Lu, J. Cryst. Growth 227 - 228, 108 (2001).

[9] D. E. Aspnes and A. A. Studna, Phys. Rev. B 7, 4605 (1973).

[10] L. Zamora, A. Guill´ en, Z. Rivera, M. L´ opez, A. G.

Rodr´ıguez and V. H. M´ endez, Microelectron. J. 30, 521 (2003).

[11] J. Misiewicz, P. Sitarek and G. Sek, Opto-Electron.

Rev. 8, 1 (2000).

[12] Y. T. Oh, T. W. Kang and T. W. Kim, Thin Solid Films 265, 92 (1995).

[13] E. Estacio, M. Bailon, A. Somintac, R. Sarmiento and A. Salvador, J. Appl. Phys. 91, 3717 (2002).

[14] I. Hwang, J. E. Kim, H. Y. Park and S. K. Noh,

Solid State Commun. 103, 1 (1997).

(4)

 ƒ  ½ ¨ 7 Hë  H  GaAs  © œ\  $ í  © œ  ) a Al

0.21

Ga

0.79

As/GaAs 8 £ x _ · · · – Ä »F “   · C “    ñ -395-

The Study of the Photoreflectance Characteristics in Al 0.21 Ga 0.79 As grown on GaAs for a Variable Pumping Intensity

Jae-In Yu and In-Ho Bae

Department of Physics, Yeungnam University, Gyeongsan 712-749 (Received 6 October 2008, in final form 29 January 2009)

We study of the photoreflectance characteristics of an Al

0.21

Ga

0.79

As/GaAs heterostructure.

We observed 1.49 ∼ 1.53 eV from the PR spectra for various pumping intensition. The room- temperature PR spectra exhibited A-region oscillations due to the increasing intensity of the electric field.

PACS numbers: 78.20.-e

Keywords: Photoreflectance, AlGaAs, Heterostructure

E-mail: [email protected]

수치

Fig. 1. The PR spectrum of Al 0.21 Ga 0.79 As/GaAs in room temperature.
Fig. 3. The dependence of modulation beam intensity in Al 0.21 Ga 0.79 As/GaAs sample.
Fig. 4. The graph of relationship beam intensity and amplitude.

참조

관련 문서

The results showed that the absorption was enhanced by crystallization of the films, and the transmittance and the PL intensity were reduced due to strong surface scattering caused

In conclusion, we propose that the systems explored in our studies can be utilized to describe the probability density and the mode of wave formation in quantum mechanics..

Hyuntae Jung, Yongmin Kim, Kyooho Jung, Hyunsik Im ∗ and Woong Jung † Department of Semiconductor Science, Dongguk University, Seoul 100-715.. Hyungsang

Photoluminescence (PL) measurement show the high optical quality of the samples in terms of the narrow linewidth, the strong luminescence intensity of band edge emission, and

Steering effect enhances deposition flux near descending step edge and these increased number of deposit atoms are likely to adhere to the protruding parts of ascending step

The solutions of the Tomimatsu-Sato class have five parameters: the mass, the dilatonic charge, the electromagnetic charges, and a parameter for the dipole moments.. PACS

Dae-Jung Kim, Young-Moon Yu, Kwang-Jae Lee and Yong Dae Choi ∗ Department of Optical &amp; Electronic Physics, Mokwon University, Daejeon 302-729..

Our results showed that HgCdTe layers with a very small hillock density of 150/cm 2 were obtained by optimizing the Cd/Te mole fraction. PACS
