Received: July 25, 2018 Revised: October 23, 2018 Accepted:October 23, 2018
OPEN ACCESS
HORTICULTURAL SCIENCE and TECHNOLOGY 37(1):108-118, 2019
URL: http://www.kjhst.org pISSN : 1226-8763 eISSN : 2465-8588
This is an Open Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.
Copyrightⓒ2019 Korean Society for Horticultural Science.
This work was carried out with the support of
“Cooperative research Program for Agriculture Science & Technology Development (Project title: Development of stable production technic of tissue culture transplants in a bright prospect varieties, PJ011863022016)” Rural Development Administration, Republic of Korea
Genetic Diversity and Population Structure Analysis of Ever-Bearing and June-Bearing Strawberry
Cultivars Using SSR Markers
Hye Jin Kim*, Jong Nam Lee, Kwang Soo Cho, Hong Sik Won, and Jong Taek Suh
Highland Agricultural Research Institute, National Institute of Crop Science, RDA, Pyeongchang 25342, Korea
*Corresponding author: [email protected]
Abstract
This study was carried out to select simple sequence repeat markers (SSR), to identify a DNA profile database, and to analyze the population structure of 28 strawberry cultivars (Fragaria × ananassa Duch.) including 22 cultivars of Ever-bearing and 6 of June-bearing strawberry types using SSR markers. We used 10 SSR markers to analyze the genetic diversity and population structure of 28 strawberry cultivars. A total 135 alleles were detected with an average of 13.5 per locus. The genetic diversity (1-D) of 28 strawberry cultivars ranged from 0.53 (EMFn226) to 0.89 (FxaHGA02P13), with an average of 0.79. Indices of evenness ranged from 0.57 to 0.83 (average 0.71). Analysis of the distribution of 28 strawberry genetic groups with different K values was performed. With K = 2, it was confirmed that the 28 strawberry genetic groups were divided into two. These 10 SSR makers will be useful to identify and differentiate between Ever-bearing and June-bearing strawberry cultivar.
Additional key words: DNA profile, Fragaria × ananassa, genetic distance, indices of evenness, simple sequence repeat
Introduction
Strawberries are one of the world's most widely consumed fruits and are divided into June-bearing type and Ever-bearing type according to the flowering pattern. Flower buds of the June-bearing type differentiate at low temperatures and under short-day condition, and flower buds of the Ever-bearing type differentiate at high temperatures and under long-day conditions. In addition, the day-neutral type, which can differentiate regardless of the day length, is included in the Ever-bearing type.
Breeding of these cultivated strawberries is accomplished through the selection of excellent seedlings by a single cross; the use of various species or genetic resources during breeding is insufficient, because most genes that derive from several genetic sources are genetically vulnerable (Sjulin and Dale, 1987; Daubeny, 1990; Dale and Sjulin, 1990). Particularly, it is not easy to collect genetic resources for Ever-bearing strawberry, and it is not easy to distinguish it from similar varieties because there are few differences among varieties when cultivating new ones.
It is essential to have information on genetic diversity and population structure of the target crops for breeding.
Therefore, many researchers develop molecular markers for genetic diversity and population structure analysis for various plants, such as rice (Chung and Park, 2010; Cui et al., 2010), millet (Cho et al., 2010a), Cymbidium (Moe et al., 2010), garlic (Zhao et al., 2010), and strawberry (Davis et al., 2006; Shimomura and Hirashima, 2006; Govan et al., 2008;
Gil-Ariza et al., 2009), and use them to characterize the germplasm. Random amplified polymorphic DNA (RAPD), amplified fragment length polymorphism (AFLP), cleaved amplified polymorphic sequence (CAPS), and simple sequence repeat (SSR) markers are widely used for the identification of crop varieties and genetic diversity (Nehra et al., 1990; Congju et al., 2000; Tyrka et al., 2002; Bernet et al., 2003; Kunihisa et al., 2005; Cho et al., 2010a, 2010b; Honjo et al., 2011). In complex genomic species, SSR markers are used in genetic and breeding researches because SSR markers are highly polymorphic and highly reproducible and have a high number of alleles and co-dominant inheritance (Zorrilla-Fontanesi et al., 2011).
SSR markers are more effective in evaluating genetic diversity and flexibility than previously developed DNA markers and are therefore widely used for the identification of unisexual propagated crops, such as grapes, apples, pears, potatoes, carnations, turf grass species, Ramie, and strawberries (Bowers et al., 1996; Guilford et al., 1997; Ashkenazi et al., 2001;
Dangl et al., 2001, 2005; Kimura et al., 2002, 2009; Smulders et al., 2003; Yamamoto et al., 2006; Wang et al., 2010; Kim et al., 2016). Shimomura and Hirashima (2006) and Govan et al. (2008) selected 4 and 10 SSR suitable markers, respectively, for strawberry genetic mapping. Brunings et al. (2010) selected EMFv104 and EMFvi136 markers, and Hong et al. (2014) selected strawberry SSR markers in Korea. However, knowledge of the genetic diversity of Ever-bearing strawberry cultivars has been limited by the use of SSR markers, and most of them are June-bearing strawberry cultivars.
Thus, this study evaluated the genetic diversity and population structure of 22 Ever-bearing strawberry cultivars and 6 June-bearing strawberry cultivars using 10 selected SSR markers.
Materials and Methods
Plant Materials and DNA Extraction
We used 28 strawberry genotypes preserved at the Highland Agricultural Research Institute of RDA, 22 cultivars of Ever-bearing strawberry, and six cultivars of June-bearing strawberry (Table 1). Genomic DNA was extracted from young leaves of each cultivar using the NucleoSpin®Plant II Kit (Macherey-Nagel, Cat. 740770.250, Germany). The extracted DNA was quantitated with a spectrophotometer (DS-11 + Spectrophotometer, DeNovix, USA) at 10 ng·uL-1 for analysis.
SSR Analysis
In this experiment, 37 markers (related to strawberry) were selected (Sargent et al., 2006; Lewers et al., 2005; Bassil et al., 2006; Govan et al., 2008; Hosseini et al., 2013; Hong et al., 2014); then, primers were constructed and polymorphisms were tested using these primers among 28 cultivars. PCR products were confirmed by polymorphism using an automated capillary electrophoresis system (Advanced Analytical Technologies, Inc., USA). In the SSR primer selection, 10 markers with high polymorphism and reproducibility were selected, and fluorescent markers were labeled with FAM (Bioneer,
Korea) in the forward primers. SSR analysis was performed on 28 cultivars (Table 1).
The PCR reaction was performed by adding 20 ng of genomic DNA, 10 µL of 2X TOPsimple™ PreMix-nTaq (Enzynomics), and 1 µL of each forward and reverse primer (10 µM·µL-1) and then adjusting the total volume to 20 µL by adding distilled water. The PCR conditions depended on the SSR marker type. Conditions of PCR amplification for markers 1-4 were as follows: 95°C (15 min), 25 cycles at 95°C (30 s), 65°C (30 s, 1°C decrease per repeat), and 72°C (30 s);
30 cycles at 95°C (30 s), 55°C (30 s), and 72°C (30 s); and a final extension at 72°C for 5 min. Conditions of PCR amplification for markers 5 and 6 were as follows: 94°C (15 min), 10 cycles at 94°C (30 s), 65°C (40 s, 0.5°C decrease per repeat), and 72°C (60 s); 25 cycles at 94°C (30 s), 55°C (45 s), and 72°C (60 s); and a final extension at 72°C for 5 min.
Conditions of PCR amplification for markers 7-10 were as follows: 94°C (15 min), 30 cycles at 95°C (40 s), the appropriate annealing temperature (52°C-58°C, 40 s), 72°C (40 s), and a final extension at 72°C for 10 min (Table 2). After PCR completion, 5 µL of the amplified product was electrophoresed on 1.5%(w/v) agarose gel to confirm Table 1. The Ever-bearing and June-bearing strawberry cultivars used in this study and their origins
No. Cultivar name Scientific name Parentage Origin Ecotype
1 Gangha Fragaria × ananassa Summerberry × Elan Korea Ever-bearing
2 Goha Fragaria × ananassa Elan × Flamenco Korea Ever-bearing
3 Gwanha Fragaria × ananassa Sucambodiaberry × Selva Korea Ever-bearing
4 Saebong 3 Fragaria × ananassa Maehyang × Selva Korea Ever-bearing
5 Yeolha Fragaria × ananassa Goha × Elsinore Korea Ever-bearing
6 Jangha Fragaria × ananassa Goha × Elsinore Korea Ever-bearing
7 Albion Fragaria × ananassa Diamante × Cal 94.16-1 USA Ever-bearing
8 Monterey Fragaria × ananassa Albion × Cal 97.85-6 USA Ever-bearing
9 San Andreas Fragaria × ananassa Albion × Cal 97.86-1 USA Ever-bearing
10 Portola Fragaria × ananassa Cal 97.93-7 × Cal 97.209-1 USA Ever-bearing
11 Selva Fragaria × ananassa Cal 70.3-117 × Cal 71.98-605(Tufts × Cal 63.7-101) USA Ever-bearing
12 Bolero Fragaria × ananassa LA0988 × Selva UK Ever-bearing
13 Evie Fragaria × ananassa Everglade × J92D12 UK Ever-bearing
14 Flamenco Fragaria × ananassa Evita × EMR77 UK Ever-bearing
15 Pink Panda (Frel) Fragaria × comarum Fragaria × Comarum hybrid involving Fragaria chiloensis UK Ever-bearing
16 Charlotte Fragaria × ananassa Mara des bois × Cal 19412 France Ever-bearing
17 Pechika Fragaria × ananassa Daeseoksagyeseong 2 × Summerberry Japan Ever-bearing
18 Sucambodiaberry Fragaria × ananassa - Japan Ever-bearing
19 Elsinore Fragaria × ananassa (Elsanta × Muir) × Sweet Charlie Italy Ever-bearing
20 Elan Fragaria × ananassa Fern × Rapella (F1 hybrid) Netherlands Ever-bearing
21 Tristan deep-rose Fragaria × ananassa F1 hybrid Netherlands Ever-bearing
22 Florina Fragaria × ananassa - Netherlands Ever-bearing
23 Daewang Fragaria × ananassa Maehyang × Wongyo 3111 Korea June-bearing
24 Seolhyang Fragaria × ananassa Akihime × Red Pearl Korea June-bearing
25 Maehyang Fragaria × ananassa Tochinomine × Akihime Korea June-bearing
26 Jukhyang Fragaria × ananassa Red Pearl × Maehyang Korea June-bearing
27 Akihime Fragaria × ananassa Kunowase × Nyoho Japan June-bearing
28 Red Pearl Fragaria × ananassa Aiberry × Toyonoka Japan June-bearing
amplification. Then, 0.5 µL (50 ng·µL-1) of the PCR product was mixed with 0.5 µL of GeneScan 500 LIZ dye Size Standard (Applied Biosystems, USA) and 9 µL of Hi-Di formamide (Applied Biosystems, USA). Then, it was denatured at 95°C for 3 min and stabilized at 4°C for 1 min. The denatured PCR product was electrophoresed using an automated sequencer (DNA Analyzer 3730xl, Applied Biosystems, USA) and analyzed by a marker using the Gene Mapper program (Applied Biosystems, USA).
Genetic Diversity and Population Structure Analysis
The data from multiple allelic SSRs were used for population statistical analysis with the R package Poppr 2.4.1 (Kamvar et al., 2014) to identify the number of observed alleles (NA), 1-D (Simpson index) (Simpson, 1949), Hexp (Nei’s genetic diversity) (Nei, 1978), and indices of evenness (Grünwald et al., 2003). The pair-wise genetic distances were calculated by Nei’s formula (Nei and Le, 1979) as binary representation of the presence (1) or absence (0) of alleles.
The phylogenetic tree of the results was prepared using the phylogenetic software package PAUP 4.0 based on the genetic matrix with neighbor-joining (Saitou and Nei, 1978).
STRUCTURE V.2.3.3 was used to infer population structure with the Bayesian clustering method (Pritchard et al., 2000). The admixture model was applied with 20 runs for each K value from 2 to 5, and each run was performed with a burn-in period of 250000 generations and 500000 Markov Chain Monte Carlo (MCMC) replications. The optimal statistic K was determined by and calculated with STRUCTURE HARVESTER (http://taylor0.biology.ucla.edu/struct_
harvest/) based on the method of Evanno et al. (2005).

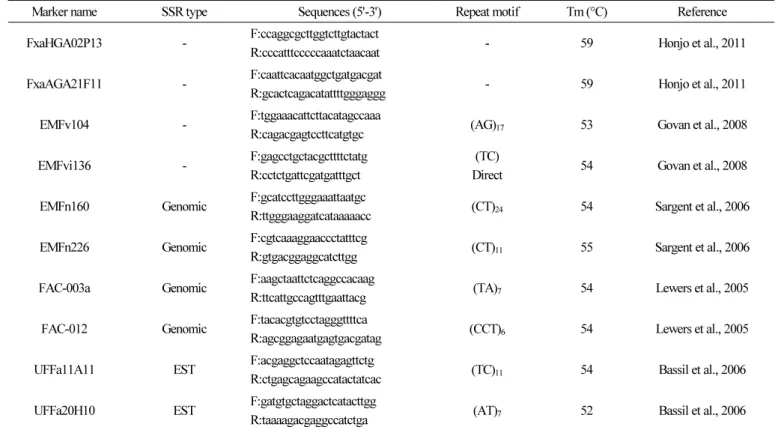

Table 2. The primer sequences, repeat motifs, and annealing temperatures of 10 SSR markers used in the analysis of 28 strawberry cultivars
Marker name SSR type Sequences (5'-3') Repeat motif Tm (°C) Reference
FxaHGA02P13 - F:ccaggcgcttggtcttgtactact
R:cccatttcccccaaatctaacaat - 59 Honjo et al., 2011
FxaAGA21F11 - F:caattcacaatggctgatgacgat
R:gcactcagacatattttgggaggg - 59 Honjo et al., 2011
EMFv104 - F:tggaaacattcttacatagccaaa
R:cagacgagtccttcatgtgc (AG)17 53 Govan et al., 2008
EMFvi136 - F:gagcctgctacgcttttctatg
R:cctctgattcgatgatttgct
(TC)
Direct 54 Govan et al., 2008
EMFn160 Genomic F:gcatccttgggaaattaatgc
R:ttgggaaggatcataaaaacc (CT)24 54 Sargent et al., 2006
EMFn226 Genomic F:cgtcaaaggaaccctatttcg
R:gtgacggaggcatcttgg (CT)11 55 Sargent et al., 2006
FAC-003a Genomic F:aagctaattctcaggccacaag
R:ttcattgccagtttgaattacg (TA)7 54 Lewers et al., 2005
FAC-012 Genomic F:tacacgtgtcctagggttttca
R:agcggagaatgagtgacgatag (CCT)6 54 Lewers et al., 2005
UFFa11A11 EST F:acgaggctccaatagagttctg
R:ctgagcagaagccatactatcac (TC)11 54 Bassil et al., 2006
UFFa20H10 EST F:gatgtgctaggactcatacttgg
R:taaaagacgaggccatctga (AT)7 52 Bassil et al., 2006
Results SSR Analysis
Using SSR analysis, a minimum of 7 (EMFn226) alleles and up to 21 (FxaHGA02P13) were identified by a marker, and the total number of alleles was 135 (average 13.5) (Table 3). The values of indicators of genetic diversity 1-D and Hexp were the lowest in EMFn226, 0.53 and 0.54, and the highest in FxaHGA02P13; the mean values were 0.79 and 0.80, respectively. In this study, 1-D and Hexp values were high either because the genetic diversity of the analytical material was high or the marker with high breed identification was selected first. However, the number of alleles was 7.0, 1-D was 0.53, and Hexp was 0.54 in EMFn226. EMFn226 markers were found to be less effective than other markers for comparing the genetic diversity of strawberries. Indices of evenness indicate a single genotype as the value approaches zero (Grünwald et al., 2003). Indices of evenness ranged from 0.57 to 0.83, and the average value in this study was 0.71.
Among the 10 SSR markers, 9 showed a high evenness value of ≥0.60. Therefore, the SSR markers selected in this study could be used to identify strawberry cultivars.
Table 3. Total number of alleles and genetic diversity index for 10 SSR loci in the 28 strawberry cultivars
Marker NAz 1-Dy Hexpx Evennessw
FxaAGA21F11 15.0 0.87 0.88 0.77
FxaHGA02P13 21.0 0.89 0.90 0.74
EMFv104 19.0 0.86 0.87 0.72
EMFvi136 16.0 0.86 0.87 0.74
EMFn226 7.0 0.53 0.54 0.62
FAC-012 10.0 0.68 0.69 0.57
UFFa20H10 14.0 0.81 0.82 0.64
UFFa11A11 9.0 0.79 0.80 0.83
FAC-003a 13.0 0.80 0.81 0.68
EMFn160 11.0 0.81 0.82 0.77
Mean 13.5 0.79 0.80 0.71
zNA, number of observed alleles.
y1-D, Simpson index.
xHexp, expected heterozygosity (Nei’s gene diversity).
wEvenness, indices of evenness.
Genetic Diversity and Discrimination of Korean Ever-Bearing Strawberry
Based on the 135 alleles generated using the selected 10 SSR markers, the genetic relationships of 28 cultivars were examined, and the results of the dendrogram are shown in Fig. 1. The 28 strawberry cultivars are divided into five groups.
Groups I to IV are all Ever-bearing strawberry cultivars, and Group V includes both Ever-bearing and June-bearing cultivars. Group I includes ‘Saebong 3’ and ‘Selva’; there is little genetic distance between the two cultivars because
‘Saeabong 3’ is bred as a crossbreed from ‘Selva’ (Table 1). Group II includes ‘San Andreas’, ‘Albion’, and ‘Monterey’.
All three cultivars were bred at Strawberry Breeding & Research of UC Davis (University of California, Davis). The genetic distance among the three cultivars is small since ‘San Andreas’ and ‘Monterey’ are bred as a crossbreed from
‘Albion’ (Table 1). Group III contains ‘Sucambodiaberry’, ‘Pink Panda’, ‘Florina’, ‘Portola’, and ‘Gwanha’; among
them, ‘Sucambodiaberry’, ‘Pink Panda’, and ‘Gwanha’ are cultivars that bear pink flowers. Because ‘Pink Panda’ of Group III is a cultivar of the species F. comarum, it was distinguished and was the most genetically distant from the remaining 27 cultivars (F. × ananassa) based on the genetic relationship analysis. Group IV includes ‘Bolero’, ‘Pechika’,
‘Jangha’, ‘Elsinore’, ‘Elan’, ‘Yeolha’, and ‘Goha’; the genetic distances of Group IV-2 are close to each other because
‘Jangha’ and ‘Yeolha’ were bred as a crossbreed of ‘Goha’ × ‘Elsinore’ (Table 1). Group V was divided into two groups:
Group V-1 included only Ever-bearing cultivars, whereas Group V-2 included June-bearing cultivars.
Discrimination of domestic Ever-bearing strawberry cultivars using the three selected SSR markers (UFFa20H10, FAC-012, and EMFvi136) is shown in Fig. 2. Using UFFa20H10, we distinguished between ‘Gangha’ and ‘Jangha’ (Fig.
2A). The amplified fragments of ‘Gangha’ measured 255 bp and 259 bp, while those of ‘Jangha’ measured 215, 217, and 219 bp. Using FAC-012, we distinguished between ‘Gwanha’ and ‘Saebong 3’ (Fig. 2B). The amplified fragments of
‘Gwanha’ measured 167 and 184 bp, while that of ‘Saebong 3’ measured only 184 bp. Using EMFvi136, we distinguished
Fig. 1. Dendrogram of genetic distance among the 28 strawberry cultivars constructed using neighbor-joining (NJ) analysis based on SSR markers.
A B C
Fig. 2. Amplified fragment patterns of three SSR markers of six Korean Ever-bearing strawberry cultivars. The number under each peak indicates the fragment size. A, UFFa20H10 marker; B, FAC-012 marker; C, EMFvi136 marker.
between ‘Goha’ and ‘Yeolha’ (Fig. 2C). The amplified fragments of ‘Goha’ measured 121, 142, 155, 161, and 163 bp, while those of ‘Yeolha’ measured 121, 134, 156, 161, and 163 bp. Using these three SSR markers, we were able to identify six Ever-bearing strawberry cultivars bred in Korea.
Population Structure Analysis
Population structure analysis of 28 strawberry cultivars was performed using a model-based approach (Pritchard et al., 2000) using STRUCTURE V.2.3.3 software. Because it is difficult to deduce the exact value of K, Pritchard and Wen (2003) suggested the selection of the lowest value representing the major structure of the data. By analyzing the distribution of 28 strawberry genetic groups with different K values, it was confirmed with K = 2 that the 28 strawberry genetic groups were divided into two (Fig. 3).
Fig. 3. Delta K values; estimating a true K of the two groups by model-based value (K=2).
In case of ΔK = 2, population was divided into two groups of P1 (June-bearing cultivars that comprised a part of Ever-bearing cultivars) and P2 (only Ever-bearing cultivars), based on ‘Pink Panda’ (Fig. 4, K = 2). P1 contained June-bearing cultivars, such as ‘Daewang’, ‘Seolhyang’, ‘Maehyang, Jukhyang’, ‘Akihime’, and ‘Red Pear’, and some of the Ever-bearing cultivars, such as ‘Saebong 3’, ‘Albion’, ‘Selva’, ‘Gwanha’, and ‘Portola’. ‘Saebong 3’ (unpublished) was bred as a crossbreed from ‘Maehyang’ (June-bearing); ‘Albion’ (Shaw and Larson, 2006) was bred as a crossbreed from Cal 94.16-1(June-bearing); Cal 71.98-605 (father of ‘Selva’) (Bringhurst and Voth, 1984) was bred as a crossbreed from June-bearing resources; and ‘Gwanha’ (Lee et al., 2012) was bred as a crossbreed from ‘Selva’. All four cultivars are of the Ever-bearing type, but they are derived from June-bearing ancestors and are classified as P1. Although ‘Portola’
(Shaw and Larson, 2009) is a day-neutral cultivar, it first fruited around winters. Thus, ‘Portola’ has characteristics similar to those of June-bearing cultivars and is considered to belong to the P1 group (Table 1, Fig. 4). When analyzing ΔK value from 3 to 5, June-bearing cultivars (‘Daewang’, ‘Seolhyang’, ‘Maehyang’, ‘Jukhyang’, ‘Akihime’, and ‘Red Pearl’) and
‘Saebong 3’ showed a tendency to be grouped together (Group V-2 in Fig. 1).

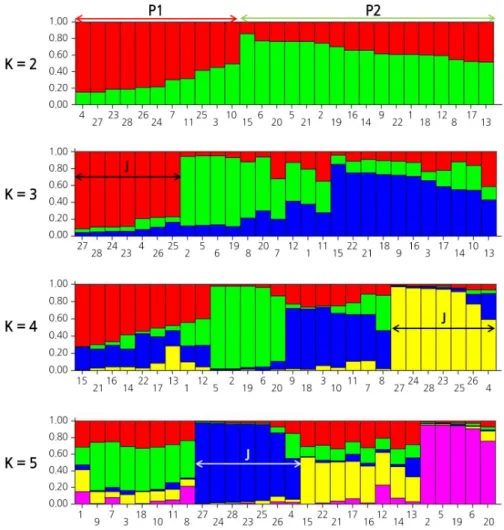

Fig. 4. Model-based ancestry for each of the 28 cultivars based on the 10 SSR markers used to build the Q-matrix. The numbers are cultivar IDs (Table 1). P1 and P2 are populations 1 and 2, respectively. J indicates June-bearing strawberry among the 28 cultivars.
Discussion
Strawberry plants are a vegetative propagation crop and are difficult to distinguish because of their morphological characteristics (Bassil et al., 2006). Cultivated strawberries are genetically complex octoploids (2n = 8x = 56) and have different parentages; however, most of the alleles are shared among cultivated strawberries. Because the polyploidy of strawberries has been a significant obstacle in revealing the genetic characteristics of the cultivated strawberry, there is limited information about the genome structure.
SSR markers have been used for the identification of varieties and genetic diversity in various crops, such as cucumber (Kwon and Choi, 2013), corn (Wang et al., 2011), tomato (Bredemeijer et al., 2002), wheat (Röder et al., 2002), and potato (Reid et al., 2011). Seventy-five genotypes and cultivars of strawberry have been identified using four SSR markers in Japan (Honjo et al., 2011). In the United States, Chambers et al. (2013) identified 219 genetic resources using eight SSR markers. In addition, Yoon et al. (2012) have identified 59 cultivated strawberries and Hong et al. (2014) identified 100 strawberry genetic resources and cultivars in Korea. However, most studies have focused on June-bearing
cultivars and have rarely identified and contributed to the database on Ever-bearing strawberry genotypes and cultivars.
Strawberries, such as June-bearing and Ever-bearing cultivars, are ecologically diverse, and recently, the importance of Ever-bearing strawberry breeding has been growing due to their increased cultivation area. This study was conducted to investigate the genetic differences between Ever-bearing and June-bearing strawberries using 10 SSR markers (Figs. 1 and 4). Therefore, it is meaningful that 10 SSR markers were selected to identify the Ever-bearing type. Using these markers, it is possible to identify the species of Korean Ever-bearing strawberries (Fig. 2). Regarding the breeding of Ever-bearing strawberries, it is possible to distinguish between June-bearing and Ever-bearing strawberries using 10 selected markers and to increase the efficiency of breeding.
The results of distance- and model-based analyses are not clearly distinguished and are slightly different for Ever-bearing and June-bearing types (Figs. 1 and 4). This is because most strawberry cultivars used in this study were mixed with the mother group and the cultivated strawberries have high ploidy. Evanno et al. (2005) reported that the K value in most cases depends on the type of marker, the number of samples, and the number of non-identifiers entered in each sample. In this study, the number of SSR markers and the number of populations in the sample were small and could not be clearly distinguished. Therefore, it will be necessary to carry out the experiment again by increasing the number of markers and the number of populations.
Here, we report significant information pertaining to genetic diversity and population structure of Ever-bearing and June-bearing strawberry cultivars using SSR markers. Through genetic diversity and population structure analyses, we found that Ever-bearing and June-bearing strawberries are structurally different, which will help efforts to breed a new cultivar.
Literature Cited
Ashkenazi V, Chani E, Lavi U, Levy D, Hillel J, Veilleux RE (2001) Development of microsatellite markers in potato and their use in phylogenetic and fingerprinting analyses. Genome 44:50-62. doi:10.1139/g00-096
Bassil NV, Gunn M, Folta K, Lewers K (2006) Microsatellite markers for Fragaria from ‘Strawberry Festival’ expressed sequence tags. Mol Ecol Notes 6:473-476. doi:10.1111/j.1471-8286.2006.01278.x
Bernet G, Bramardi S, Calvache D, Carbonell E, Asins M (2003) Applicablility of molecular markers in the context of protection of new varieties of cucumber. Plant Breed 122:146-152. doi:10.1046/j.1439-0523.2003.00838.x
Bowers JE, Dangl GS, Vignani R, Meredith CP (1996) Isolation and characterization of new polymorphic simple sequence repeat loci in grape (Vitis vinifera L.). Genome 39:628-633. doi:10.1139/g96-080
Bredemeijer GMM, Cooke RJ, Ganal MW, Peeters R, Isaac P, Noordijk Y, Rendell S, Jackson J, Röder MS, et al (2001) Construction and testing of a microsatellite database containing more than 500 tomato varieties. Theor Appl Genet 105:1019-1026. doi:10.1007/
s00122-002-1038-6
Bringhurst RS, Voth V July 31, 1984. Strawberry plant ‘Selva’. US Patent Application No. 452,696
Brunings AM, Moyer C, Peres N, Folta KM (2010) Implementation of simple sequence repeat markers to genotype Florida strawberry varieties. Euphytica 173:63-75. doi:10.1007/s10681-009-0112-4
Chambers A, Carle S, Njuguna W, Chamala S, Bassil N, Whitaker MVW, Brad Barbazuk W, Folta KM (2013) A genome-enabled, high-throughput, and multiplexed fingerprinting platform for strawberry (Fragaria L.). Mol Breed 31:615-629. doi:10.1007/s11032- 012-9819-3
Cho YI, Chung JW, Lee GA, Ma KH, Dixit A, Gwag JG, Park YJ (2010a) Development and characterization of twenty-five new polymorphic microsatellite markers in proso millet (Panicum miliaceum L.) Genes Genom 32:267-273. doi:10.1007/s13258-010-0007-8 Cho YI, Park JH, Lee CW, Ra WH, Chung JW, Lee JR, Ma KH, Lee SY, Lee KS, Park YJ (2010b) Evaluation of the genetic diversity and
population structure of sesame (Sesamum indicum L.) using microsatellite marker. Genes Genom 33:187-195. doi:10.1007/
s13258-010-0130-6
Chung JW, Park YJ (2010) Population structure analysis reveals the maintenance of isolated sub-populations of weedy rice. Weed Res 50:606-620. doi:10.1111/j.1365-3180.2010.00810.x
Congju L, Chicca M, Cella R, Rossi R, Bernacchia G (2000) The use of random amplified polymorphic DNA (RAPD) markers to identify strawberry varieties: a forensic application. Mol Ecol 9:229-232. doi:10.1046/j.1365-294x.2000.00811.x
Cui H, Moe KT, Chung JW, Cho YI, Lee GA, Park YJ (2010) Genetic diversity and population structure of rice accessions from South Asia using SSR markers. Korean J Breeding Sci 42:11-22
Dale A, Sjulin TM (1990) Few cytoplasms contribute to North American strawberry cultivars. HortScience 25:1341-1342
Dangl GS, Mendum ML, Prins BH, Walker MA, Meredith CP, Simon CJ (2001) Simple sequence repeat analysis of a clonally propagated species: A tool for managing a grape germplasm collection. Genome 44:432-438. doi:10.1139/g01-026
Dangl GS, Woeste K, Aradhya MK, Koehmstedt A, Simon C, Potter D, Leslie CA, McGranahan G (2005) Characterization of fourteen microsatellite markers for genetic analysis and cultivar identification of walnut. J Am Soc Hortic Sci 130:348-354
Daubeny HA (1990) Strawberry breeding in Canada. HortScience 25:893-894
Davis TM, Dimeglio LM, Yang RH, Styan SMN, Lewers KS (2006) Assessment of SSR marker transfer from the cultivated strawberry diploid strawberry species: Functionality, linkage group assignment, and use in diversity analysis. J Am Soc Hortic Sci 131:506-512 Evanno G, Regnaut S, Goudet J (2005) Detecting the number of clusters of individuals using the software STRUCTURE: A simulation
study. Mol Ecol 14:2611-2620. doi:10.1111/j.1365-294X.2005.02553.x
Gil-Ariza D, Amaya I, Lopez-Aranda JM Sanchez-Sevilla JF, Botella MA, Valpuesta V (2009) Impact of plant breeding on the genetic diversity of cultivated strawberry as revealed by expressed sequence tag-derived simple repeat markers. J Am Soc Hortic Sci 134:337-347
Govan GL, Simpson DW, Johnson AW, Tobutt KR, Sargent DJ (2008) A reliable multiplexed microsatellite set for genotyping Fragaria and its use in a survey of 60 F. × ananassa cultivars. Mol Breed 22:649-661. doi:10.1007/s11032-008-9206-2
Grünwald NJ, Goodwin SB, Milgroom MG, Fry WE (2003) Analysis of genotypic diversity data for populations of microorganisms.
Phytopathology 93:738-746. doi:10.1094/PHYTO.2003.93.6.738
Guilford P, Prakash S, Zhu JM, Rikkerink E, Gardiner S, Bassett H, Forster R (1997) Microsatellites in Malus × domestica (apple):
abundance, polymorphism and cultivar identification. Theor Appl Genet 94:249-254. doi:10.1007/s001220050407
Hong JH, Choi KJ, Kwon YS (2014) Construction of DNA profile data base of strawberry cultivars using microsatellite markers. Korean J Hortic Sci Technol 32:853-863
Honjo M, Nunome T, Kataoka S, Yano T, Yamazaki H, Hamano M, Yui S, Morishita M (2011) Strawberry cultivar identification based on hypervariable SSR markers. Breed Sci 61:420-425. doi:10.1270/jsbbs.61.420
Hosseini SA, Karami E, Talebi R (2013) Molecular variation of Iranian local and exotic strawberry (Fragaria × ananassa Duch.) varieties using SSR markers. Biodivers J 4:243-252
Kamvar ZN, Tabima JF, Grünwald NJ (2014) Poppr : an R package for genetic analysis of populations with clonal, partially clonal, and/or sexual reproduction. PeerJ 2:e281. doi:10.7717/peerj.281
Kim HA, Uhm YK, Kim JJ, Lim S, Kim YM, Jung YS, Roh KH, Jang YS, Lee S, et al (2016) Development of novel simple sequence repeat markers from Ramie (Boehmeria nivea L. Gaudich) and analysis of genetic diversity in its genetic resources. Hortic Environ Biotechnol 57:519-528. doi:10.1007/s13580-016-0094-9
Kimura T, Shi YZ, Shoda M, Kotobuki K, Matsuta N, Hayashi T, Ban Y, Yamamoto T (2002) Identification of Asian pear varieties by SSR analysis. Breed Sci 52:115-121. doi:10.1270/jsbbs.52.115
Kimura T, Yagi M, Nishitani C, Onozaki T, Ban Y, Yamamoto T (2009) Development of SSR markers in carnation (Dianthus caryophyllus).
J Jpn Soc Hortic Sci 78:115-123. doi:10.2503/jjshs1.78.115
Kunihisa M, Fukino N, Matsumoto S (2005) CAPS markers improved by cluster-specific amplification for identification of octoploid strawberry (Fragaria × ananassa Duch.) cultivars, and their disomic inheritance. Theor Appl Genet 110:1410-1418. doi:10.1007/
s00122-005-1956-1
Kwon YS, Choi KJ (2013) Construction of a DNA profile database for commercial cucumber (Cucumis sativus L.) cultivars using microsatellite marker. Korean J Hortic Sci Technol 31:344-351
Lee JN, Kim HJ, Kim KD, Yoo DL, Suh JT (2012) Characteristics of new Ever-bearing strawberry ‘Gwanha’ cultivar for ornamental horticulture. Korean J Hortic Sci Technol 30:784-787
Lewers KS, Styan SMN, Hokanson SC (2005) Strawberry GenBank-derived and genomic simple sequence repeat (SSR) markers and their utility with strawberry, blackberry, and red and black raspberry. J Am Soc Hortic Sci 130:102-115
Moe KT, Zhao WG, Song HS, Kim YH, Chung JW, Cho YI, Park PH, Park HS, Chae SC, et al (2010) Development of SSR markers to study diversity in the genus Cymbidium. Biochem Syst Ecol 38:585-594. doi:10.1016/j.bse.2010.07.004
Nehra NS, Kartha KK, Stushnoff C (1990) Isozymes as markers for identification of tissue culture and greenhouse-grown strawberry cultivars. Can J Plant Sci 71:1195-1201. doi:10.4141/cjps91-167
Nei M (1978) Estimation of average heterozygosity and genetic distance from a small number of individuals. Genetics 89:583-590.
Nei M, Li WH (1979) Mathematical model for studying genetic variation in terms of restriction endonucleases. Genetics 76:5269-5273 Pritchard JK, Stephens M, Donnelly P (2000) Inference of population structure using multilocus genotype data. Genetics 155:945-959 Pritchard JK, Wen W (2003) Documentation for STRUCTURE Software: Version 2. http://pritch.bsd.uchicago.edu (last accessed 22 July
2010)
Reid A, Hof L, Felix G, Rücker B, Tams S, Milczynska E, Esselink D, Uenk G, Vosman B, et al (2011) Construction of an integrated microsatellite and key morphological characteristic database of potato varieties on the EU common catalogue. Euphytica
182:239-249. doi:10.1007/s10681-011-0462-6
Röder MS, Wendehake K, Korzun V, Bredemeijer G, Laborie D, Bertrand L, Isaac P, Rendell S, Jackson J, et al (2002) Construction and analysis of a microsatellite-based database of European wheat varieties. Theor Appl Genet 106:67-73. doi:10.1007/s00122- 002-1061-7
Saitou N, Nei M (1987) The neighbor-joining method: a new method for reconstructing phylogenetic trees. Mol Biol Evol 4:406-425 Sargent DJ, Clarke J, Simpson DW, Tobutt KR, Arus P, Monfort A, Vilanova S, Denoyes-Rothan B, Rousseau M, et al (2006). An enhanced
microsatellite map of diploid Fragaria. Theor Appl Genet 112:1349-1359. doi:10.1007/s00122-006-0237-y
Sargent DJ, Davis TM, Tobutt KR, Wilkinson MJ, Battey NH, Simpson DW (2004) A genetic linkage map of microsatellite, gene-specific and morphological markers in diploid Fragaria. Theor Appl Genet 109:1385-1391. doi:10.1007/s00122-004-1767-9
Shaw DV, Larson KD December 15, 2009. Strawberry plant named ‘Portola’. US Patent Application No.11/983,159 Shaw DV, Larson KD January 31, 2006. Strawberry plant named ‘Albion’. US Patent Application No.10/769,471
Shimomura K, Hirashima K (2006) Development and characterization of simple sequence repeats (SSR) as markers to identify strawberry cultivars (Fragaria × ananassa Duch.). J Jpn Soc Hortic Sci 75:399-402. doi:10.2503/jjshs.75.399
Simpson EH (1949) Measurement of diversity. Nature 163:688. doi:10.1038/163688a0
Sjulin TM, Dale A (1987) Genetic diversity of North American strawberry cultivars. J Am Soc Hortic Sci. 112:375-385
Smulder MJM, Noordijk Y, Rus-Kortekaas W, Bredemeijer GMM, Vosman B (2003) Microsatellite genotyping of carnation varieties.
Theor Appl Gent 106:1191-1195. doi:10.1007/s00122-002-1166-z
Tyrka M, Dziadczyk P, Hortynski JA (2002) Simplified AFLP procedure as a tool for identification of strawberry cultivars and advanced breeding lines. Euphytica 125:273-280. doi:10.1023/A:1015892313900
Wang FG, Tian HL, Zhao JR, Yi HM, Wang L, Song W (2011) Development and characterization of a core set of SSR markers for fingerprinting analysis of Chinese maize varieties. Maydica 56:7-17
Wang Z, Wu Y, Martin DL, Gao H, Samuels T, Tan C (2010) Identification of vegetatively propagated turf bermudagrass cultivars using simple sequence repeat markers. Crop Sci 50:2103-2111. doi:10.2135/cropsci2010.02.0116
Yamamo to T, Kimura T, Hayashi T, Ban Y (2006) DNA profiling of fresh and processed fruits in pear. Breed Sci 56:165-171.
doi:10.1270/jsbbs.56.165
Yoon MY, Moe KT, Kim DY, Rho IR, Kim S, Kim KT, Won MK, Chung JW, Park YJ (2012) Genetic diversity and population structure analysis of strawberry (Fragaria × ananassa Duch.) using SSR markers. Electron J Biotechnol 15:70-85
Zhao WG, Chung JW, Lee GA, Ma KH, Kim HH, Kim KT, Chung IM, Lee JK, Kim NS, et al (2010) Molecular genetic diversity and population structure of a selected core set in garlic and its relatives using novel SSR markers. Plant Breed 130:46-54. doi:10.1111/j.1439- 0523.2010.01805.x
Zorrilla-Fontanesi YZ, Cabeza A, Torres AM, Botella MA, Valpuesta V, Monfort A, Sanchez-Sevilla JF, Amaya I (2011) Development and bin mapping of strawberry genic-SSRs in diploid Fragaria and their transferability across the Rosoideae subfamily. Mol Breed 27:137-156. doi:10.1007/s11032-010-9417-1
