Anatomical Locking Plate with Additional K-wire Fixation for Distal Clavicle Fracture
Woo-Dong Nam, Sung-Hoon Moon , Ki-Yong Choi
Department of Orthopedic Surgery, Kangwon National University School of Medicine, Chuncheon, Korea
Background: Neer type II distal clavicle fractures have the drawback of coracoclavicular instability and insufficient distal bony fragment, thereby making it difficult to achieve adequate fixation. Although various surgical treatments have been described for Neer type II frac- ture, the optimal treatment remains controversial. This study reports the clinical results and usefulness of anatomical locking plate with additional K-wire fixation.
Methods: A totally of 21 patients with type II distal clavicle fracture were included in the study. The surgical procedure reduced the fracture temporarily; it included insertion of one or two K-wire from the lateral margin of the distal fragment to the proximal fragment through the fracture site, followed by application and fixation of the locking plate. The bony union and migration of K-wire was evalu- ated in the follow-up radiography. The coracoclavicular distance and acromioclavicular joint arthrosis were assessed at the final follow- up. The Constant Score (CS) and Korean Shoulder Score (KSS) were evaluated for clinical scoring.
Results: Bone union was achieved in all cases. At the final follow-up, coracoclavicular distance of the injured shoulder was increased, as compared to the intact shoulder (p=0.002), with no accompanying clinical symptoms. No K-wire migration was observed. At the final follow-up, K-wire irritation was observed in two cases and acromioclavicular arthrosis in one case, with no other adverse effects. Pain vi- sual analogue scale, CS, and KSS were improved in all cases.
Conclusions: The method of anatomical locking plate with additional K-wire fixation could be useful in achieving beneficial clinical re- sults.
(Clin Shoulder Elbow 2017;20(4):230-235)
Key Words: Type II distal clavicle fracture; Anatomical locking plate; K-wire; Coracoclavicular ligament; Acromioclavicular joint
Copyright © 2017 Korean Shoulder and Elbow Society. All Rights Reserved. pISSN 2383-8337
Clinics in Shoulder and Elbow Vol. 20, No. 4, December, 2017 https://doi.org/10.5397/cise.2017.20.4.230
Received October 20, 2017. Revised November 22, 2017. Accepted November 30, 2017.
Correspondence to: Sung-Hoon Moon
Department of Orthopedic Surgery, Kangwon National University School of Medicine, 1 Gangwondaehak-gil, Chuncheon 24341, Korea Tel: +82-33-258-9224, Fax: +82-33-258-2149, E-mail: [email protected]
IRB approval (No. KNUH-2017-09-012-003).
Financial support: None. Conflict of interests: None.
Introduction
Distal clavicle fractures account for approximately 21% of all clavicle fractures.1,2) The Neer3) classification has categorized distal clavicle fractures into 3 types, wherein the type II fracture have coracoclavicular (CC) ligament detachment. Such a dis- tal clavicle fracture with CC instability results in a high rate of nonunion (as high as 30%) in patients undergoing conservative management.1,4) Several authors have therefore recommended surgical treatment for type II distal clavicle fractures.
Several surgical techniques are reported with good clinical outcomes. These methods include the use of CC screws, ten-
sion bands, K-wire fixation, hook plates and locking plates.3,5-12) However, these methods have risks for complications, such as pin migration, acromioclavicular (AC) joint degeneration, loss of reduction, and subacromial impingement.13) In addition, type II fractures have a relatively small sized distal fragment which is insufficient to achieve stable fixation using a single method. Sev- eral authors therefore suggested modified combined techniques, such as tension band with transacromial K-wire, and CC liga- ment suture augmentation with locking plate, with satisfactory clinical results.14-16) However, the optimal treatment for type II fracture is still controversial.
Jou et al.17) reported a surgical technique using Knowels pin
as an extra-articular intramedullary fixation. The authors were of the opinion that additional K-wire extra-articular intramedullary fixation could support adequate stability in locking the plate with interfragmentary fixation.
The purpose of this study is to report the clinical results and effectiveness of interfragmentary fixation, using anatomical lock- ing plate with additional K-wire fixation.
Methods
Subjects of Study
This study was retrospective in nature and final approval of examption by the Institutional Review Board was obtained (IRB Approval No.: KNUH-2017-09-012-003). From March 2012 to May 2015, 21 patients who underwent surgical treatment for Neer type II distal clavicle fracture and were followed-up for at least 12 months, were enrolled in this retrospective study. These
included 1 case of Neer type IIa, and 20 cases of type IIb. The mean age of patients was 46 years (range, 19 to 79 years); 17 patients were male and 4 were female. The mean follow-up pe- riod was 15.4 months (range, 12 to 28 months).
Surgical Techniques
The patient was placed in a supine position, with a bean bag under the scapular. A transverse incision was made at the fracture site. After the fracture site was exposed and the AC joint stability was confirmed, a temporary reduction was done under fluoroscopy, using a bone clamp (Fig. 1A). The first K-wire was inserted at the posterolateral cortex of the distal fragment, and advanced to the anterior cortex of proximal fragment cross the fracture site. If the anterolateral cortex of the distal fragment was sufficient, a second K-wire was inserted from the anterolat- eral cortex of the distal fragment to the posterior cortex of the proximal fragment (Fig. 1B). After ensuring the maintenance of
Fig. 1. Clinical photographs of surgical technique. (A) Transverse incision was done, and the fracture site was exposed. Capsuloligament around acromioclavicu- lar joint was intact. (B) After temporary fixation using a bone clamp, K-wire were inserted from lateral margin of distal fragment to proximal fragment.
A B
A B

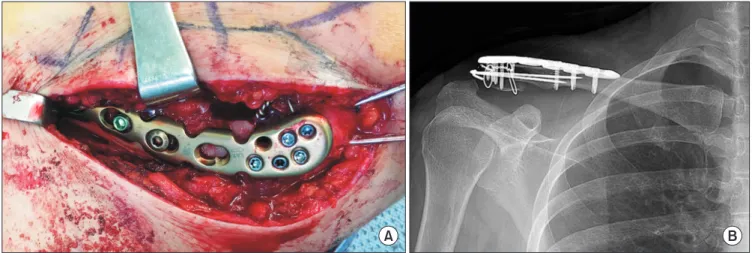

Fig. 2. (A) Final application and fixation of the anatomical locking plate. (B) Immediate postoperative radiograph showed appropriate reduction of fracture with adequate distal screw and K-wire fixation.
fracture reduction, a 3.5 mm locking compression plate (Depuy- Synthes, Paoli, PA, USA) was applied to the superior aspect of distal clavicle (Fig. 2). If the interference between the screw and K-wire caused inadequate screw fixation whilst inserting screws into the plate, one of the K-wire was removed. After the final confirmation of reduction of fracture, wound closure was per- formed.
Rehabilitation
An arm sling was applied for 6 weeks after surgery. The range of motion (ROM) exercise of hand and elbow was commenced immediate postoperatively. During the first 3 weeks, pendulum exercise and passive forward elevation to 90° were performed.
At 4 weeks after surgery, passive ROM exercise was initiated.
After 6 weeks, active ROM exercises were started.
Radiologic Evaluation
In all patients, follow-up x-ray was done at 2 weeks, 1 month, 3 months, 6 months and 1 year postoperatively. Both the clavi- cle anterior-posterior view and both clavicle 30° cephalic tilting view were evaluated at follow-up. Bony union was confirmed when callus was formed on three sides of the cortical bone (Fig.
3). At immediately after surgery and final follow-up, CC distance was measured, and the widening was compared to the intact side. Measurement of CC distances were defined as the shortest distance between the peak of coracoid process and the lower boundary of the clavicles.11) AC joint arthrosis was also exam- ined.
Clinical Evaluation
Pain visual analogue scale score (PVAS), Constant Score (CS), and Korean Shoulder Score (KSS) were evaluated at the final follow-up.
Statistical Analysis
Wilcoxon signed ranked test was used for comparing the CC distance between intact and injured side. IBM SPSS statistical package ver. 19.0 (IBM Co., Armonk, NY, USA) was used. Statis- tical significance was set at a p-value of < 0.05.
Results
Bony union was achieved in all cases (100% of union rate).
At the immediate postoperative x-ray, the mean CC distance of injured shoulder was 8.49 ± 1.15 mm. At final follow-up, mean CC distance of injured shoulder was 8.50 ± 1.66 mm and intact shoulder was 7.52 ± 1.26 mm. The progression of CC distance of injured shoulder from immediate postoperative time to fi- nal follow-up was minimal. The injured shoulder CC distance increased by 1.01 mm on average, as compared to the intact shoulder (p=0.002), with no clinical symptoms (Table 1).
No K-wire migration was observed. K-wire irritation was ob- served in 2 cases, of which 1 case showed asymptomatic AC joint arthrosis at the final follow-up.
Considering the clinical outcome, PVAS was improved in all cases (mean 1.33 ± 0.58). At the final follow-up, the mean for- ward elevation was 159.29° ± 19.45°, mean external rotation was 45.24° ± 10.43°, and mean internal rotation was T12. The mean CS was 81.05 ± 11.31 and KSS was 88.10 ± 9.77 (Table 2).
Assessing the number of K-wires used, one K-wire was used in 9 cases and two K-wires were used in 12 cases. No significant
Table 1. Comparison of the CC Distance between Injured and Intact Shoulder
Variable Injured
Intact p-value*
Immediate Final
CC distance (mm) 8.49 ± 1.15 8.50 ± 1.66 7.52 ± 1.26 0.002 Values are presented as mean ± standard deviation.
CC: coracoclavicular.
*p-value indicates the significance of comparison of the final CC distance be- tween the injured and intact shoulder.
Table 2. Clinical Outcomes at Final Follow-up
Variable Mean ± standard deviation
PVAS 1.33 ± 0.58
Range of motion
Forward elevation (°) 159.29 ± 19.45 External rotation (°) 45.24 ± 10.43
Internal rotation* T12 ± 2
Constant score 81.05 ± 11.31
Korean Shoulder Score 88.10 ± 9.77
PVAS: pain visual analogue scale.
*Internal rotation was measured on the back by checking the level where the thumb reached.
Fig. 3. Final follow-up radiograph showing the bony union of the fracture site.
differences were observed in the comparison of immediate and final CC distances, or in the clinical outcomes, between the two groups (Table 3, 4).
In one patient, the CC distance progressively increased to 14 mm (7.4 mm more than intact shoulder) at 6 months postopera- tively. In this case, revision surgery was done with anatomical CC ligament reconstruction using allograft. No other major compli- cations were encountered.
Discussion
In this study, the evaluation of clinical results of anatomi- cal locking plate with additional K-wire fixation in type II distal clavicle fracture revealed successful results.
Several surgical treatment methods have been reported for type II distal clavicle fracture.3,5-12) if the distal fragment is too small to achieve stable fixation, surgical methods focus on rigid fixation of the distal fragment or CC interval.
Previously, transacromial K-wire fixation has been classically used and had reported satisfactory results.3) However, this meth- od is associated with various complications, such as K-wire loos- ening, migration, back out, and breakage. Therefore, the K-wire needs to be removed before active mobilization. For maintain- ing the reduction after removal of K-wire, Rijal et al.14) suggested additional figure-eight tension band techniques.
Hook plate fixation was reported as a useful method for distal clavicle fracture, with good clinical results.9,10,13) Hook plate pro- vides angular stable fixation of the fragment. However, several complications of hook plate were reported, such as subacromial impingement, bursitis, rotator cuff injury, and clavicle fracture at the medial end of the plate.13,18,19)
Plate fixation is one of the treatment options, but it is hard to achieve rigid fixation with ordinary plates due to the small size of the distal fragment. Pre-contoured superior locking plates were developed, and they have multiple 2.7 mm or 2.3 mm locking screw holes at the lateral end of the plate. These distal locking screws are inserted in a diverging configuration. Some authors reported successful clinical results using this methods.20,21) In this method, early mobilization is possible, thereby reducing the risk of joint stiffness. Additionally, stable fixation can be achieved
without involving the subacromial space or AC joint that can lead to AC joint arthritis and rotator cuff injury. However, in some cases, the distal fragment is too small and comminuted with osteoporosis, making it difficult to insert enough number of distal screws.
Some authors reported additional CC ligament fixation with suture anchor in locking plate fixation with good clinical out- comes.11,16) Recent biomechanical studies also demonstrated that CC fixation provides improvement of stability in locking plate fixation for type II distal clavicle fracture.15) However, since this method requires more soft tissue dissection for CC fixation, it increases the possibility of nonunion. Besides, some possible complications like coracoid fracture also need to be considered.
Jou et al.17) reported good radiological and clinical outcomes in unstable distal clavicle fractures using intramedullary fixation with Knowels pin. The authors mentioned the advantage of this extraarticular intramedullary fixation is a smaller incision, and a reduced need for dissection and soft-tissue stripping. Anatomi- cally, the mean distances from the medial edge of the footprint of the trapezoid and conoid ligament to the AC joint were 28.2
± 5.7 mm and 49.7 ± 5.4 mm, respectively.22) Furthermore, AC capsuloligament is attached around the distal fragment, and the mean distance from the distal clavicle to the medial end of the capsuloligamentous insertion was about 5.4 to 6.6 mm.23) Harris et al.24) reported that the ultimate load of the trapezoid, conoid, and AC ligament was 440 ± 118 N, 394 ± 170 N, and 849 ± 297 N, respectively. This demonstrates the strength of the trapezoid and AC ligaments, and provides sufficient holding power to maintain the distal fragment. On account of these ana- tomical characteristics, most distal fragments of type II fracture can maintain stability despite the small size and comminution.
From this point of view, intramedullary fixation has the validity of stable fixation. However, isolated intramedullary extra-articular fixation such as Knowels pin fixation, should be considered with appropriate length of the pin to avoid proximal skin irritation, inadequate compression, implant migration or breakage.
In our study, we used the K-wire for intramedullary extra- articular fixation. It not only provides temporary fixation during reduction of fracture, but is also easy to apply regardless of the appropriate length, as seen in Knowels pin. Insertion of the K- Table 3. Comparison of CC Distance according to the Number of K-wires
Variable One K-wire
(n=9) Two K-wires (n=12) p-value CC (intact) (mm) 7.66 ± 1.46 7.41 ± 1.15 0.702 CC (immediate postop) (mm) 8.02 ± 1.32 8.85 ± 0.91 0.148 CC (final postop) (mm) 8.05 ± 1.32 8.83 ± 1.86 0.382 CC (widening) (mm) 0.39 ± 0.50 1.48 ± 2.01 0.058 Values are presented as mean ± standard deviation.
CC: coracoclavicular, postop: postoperative.
Table 4. Comparison of Clinical Outcomes according to the Number of K- wires
Variable One K-wire
(n=9) Two K-wires
(n=12) p-value
PVAS 1.33 ± 0.50 1.33 ± 0.65 0.862
Constant Score 82.11 ± 9.03 80.25 ± 13.09 1.000 Korean Shoulder Score 88.44 ± 6.65 87.83 ± 11.88 0.508 Values are presented as mean ± standard deviation.
PVAS: pain visual analogue scale.
wire was stopped as soon as we encountered penetration of the anterior or posterior cortex of the proximal clavicle. Finally, the number of residual K-wires was determined by number of possible distal screws inserted during plate fixation. If the distal screw was lesser than 3 due to interference with K-wire, we left just one K-wire for appropriate screw fixation. Immediately after surgery, the CC distance of the injured shoulder was increased, as compared to the intact shoulder. This result can be explained by the fact that our technique is an indirect reduction of CC liga- ment injury, and not a direct repair or augmentation of the CC ligament. However, no significant progression of CC distance was observed at the final follow-up; hence, we conclude that it has the appropriate strength for fixation. During surgery, cap- suloligament around the AC joint was assessed in all cases. The AC joint capsuloligament was intact in all but one patient, who showed mild attenuation of the AC joint ligament structure. In this patient, progressive widening of the CC interval and AC joint was observed during follow-up, although the bony union and re-surgery was done with anatomical CC ligament reconstruc- tion using allograft. This case suggested the importance of main- taining the integrity of the AC joint capsuloligament to achieve CC stability.
There are few limitations of our study. First, the study design was a retrospective case series. Second, the relatively small number of cases limits the statistical power of this study. A longer follow-up and larger series are therefore necessary.
Conclusion
In patients with type II distal clavicle fracture, the anatomical locking plate with additional k-wire fixation method was useful to achieve bony union, with good clinical results.
