Luminescence Properties of a Yellow GdSr

Luminescence Properties of a Yellow GdSr

AlO

:Ce

Phosphor for a White LED

Woo Tae Hong · Hyun Kyoung Yang

Department of LED Convergence Engineering, Pukyong National University, Busan 48547, Korea (Received 17 August 2015 : revised 6 October 2015 : accepted 6 October 2015)

GdSr2AlO5:Ce³⁺ phosphors were synthesized by using a high-energy ball-milling method. The crystal structure, surface morphology and luminescence properties of the GdSr2AlO5:Ce³⁺ phos- phors were measured in terms of the sintering temperature. The crystal structure and the crystal phase of the GdSr2AlO5:Ce³⁺phosphors were analyzed by using X-ray diffraction. The particle size of the GdSr2AlO5:Ce³⁺phosphor was found to increase with increasing sintering temperature. For the phosphor sintered at 1600^◦C, the luminescence properties were due to the f-d transition in the Ce³⁺ion while the phosphors sintered at temperatures less than 1500^◦C exhibit the luminescence properties of the Ce⁴⁺ ion. The phosphor sintered at 1600 ^◦C was excited at 439 nm, and its excitation spectrum exhibited an excitation region at wavelengths from 375 nm to 500 nm, with the maximum excitation intensity occurring at 439 nm. Also, the photoluminescence spectrum of the phosphor sintered at 1600^◦C showed a yellow luminescence region at wavelengths from 500 nm to 800 nm, with the maximum intensity occurring at 576 nm. These results from the GdSr2AlO5:Ce³⁺

phosphor can be used with blue light-emitting diodes (LEDs) to implement warm white LEDs.

PACS numbers: 78.20.-e, 78.55.-m

Keywords: GdSr2AlO5:Ce³⁺, White LED, Phosphor

s

œ t œ  LED“ Ó Þ GdSr

AlO

:Ce

½ Û
t  ] œ k ù° Ë Ñ= k8 ý ] k ù° Ë Ñ— ¤V R Ë

ý

— ¡­ £?  · … è ¡g ` @# Ü

Â

Òâ@/†<Ɠ§ õ†<ÆlÕütÖ6x½+˄ëH/†@<Æ"é¶ LEDÖ6x½+Ë/NB†<Ƅ/BN, ÂÒíߖ 48547 (2015¸ 8Z4 17{9 ~ÃÎ6§, 2015¸£  10Z4 6{9 ú&ñ‘:r~ÃÎ6£§, 2015¸ 104 6{Z 9 >FSX‰&ñ)

GdSr2AlO5:Ce³⁺ìr´ú˜ +þAFg^‰\¦“¦\-t^¦x9aAZO`¦s6 x #Œ ½+Ë$í %iܼ 9, ™è“:r•¸\ Ér+þA F

g^‰_ &ñ½¨›¸, {9_ ³ð€+þA©œ, +þAFg:£¤$í`¦›¸ %i. X-‚ r]X`¦ 8£¤&ñ #Œ ™è“:r•¸\ Ér



&ñ½¨›¸ü< &ñ_ ©œ o\¦ ìr$3 %i. FE-SEM`¦ 6s x #Œ ìr´ú˜{9_ ß¼lH ™è“:r•¸\ _

”>

r&he”`¦ SX‰“ %i. +þAFgÛ¼&7˜àÔ!3\"f 1500 ^◦Cs \"f ™èôÇ +þAFg‰^H Ce⁴⁺ s“:r\ @/ôÇ +þA F

g:£¤$ís
zŒ¤Ü¼
 1600 ^◦C\"f ™èôÇ +þAFg‰^H Ce³⁺ s“:r\ @/ôÇ +þAFg:£¤$ís
zŒ¤. 1600

◦C\"f ™èôÇ +þAFg^‰\¦ 576 nm_ µ1ÏFgœ\© @/K #Œl Û¼&7˜àÔ!3`¦›¸ôÇ õ, þj@/ #Œl ©œ s

 439 nms“¦, 375 nm\"f 500 nm %ò%i_ ÅÒ #Œl ©œ%ò%i`¦t“¦ e”6£§`¦˜ Ãú· º e”%3. ¢¸ôÇ 1600^◦C\"f ™èôÇ +AFþg^‰\¦ 439 nm©œ\ @/ôÇ ynCܼ–Ð #Œl r~´ âĺ, 576 nm\"f þj@/µ1ÏFg[j l

\¦t 9 500 nm\"f 800 nm\ sØԍHÒS!o_ µ1ÏFgÛ¼&˜à7Ô!3`¦SX‰“ %i. sQôÇ ƒ½¨õ–Ð

This is an Open Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/by-nc/3.0) which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.

#

Œ {9ìø͛¸"î, çߖóøÍ, ’ ñ©œu, backlighting,Fg:Ÿx’ 1px_

%ò

%i\"f l”>r ›_¸"î"é¶`¦@/^‰½+ÉFg"鶼–ÜÐ ƒ½¨÷&“¦ e”



 [1–3]. ©œ\Oo)a Ñþ˜Òo LEDH'õAҐo LEDü< YAG:Ce³⁺

S!

Ґo +þAFg^‰\¦›¸½+Ë #Œ Ñþ˜Òo`¦%3> ÷& 9, $§4ôÇ Òqtíߖ q

6 x, Z}“Ér´òÖ¦`¦ tH©œ&h`¦t“¦ e” [4–6]. Õª

Q
 sQôÇ Ñþ˜Òo LED_ Ñþ˜ÒoFg“Ér &hҐo%ò%i_ +þAFg[j l

_ ÂÒ7á¤Ü¼–Ð “ôÇ ±ú“ÉrƒҐo$íõ Z}“Éro“Ò:r•¸\¦t

>

 ÷&#Q “¦¾¡§|9_ Ñþ˜ÒoFg`¦½¨‰&³ H \כ @/K &h½+Ë  t

 ·ú§ [7, 8]. sQôÇ ëH]j&h[þt`¦ FG4Ÿ¤ l 0A #Œ l

”

>r_ YAG:Ce³⁺+þAFg^‰\ &hÒo +þAFg^‰\¦8 '‘
 [9–11], &hҐoµ1ÏFgs ˜Ðy©œ)aDh–ÐîrS!Ґo +þAFg^‰\¦6 x


 [12–14], UV LEDü< Õª ynC\ #Œl H&hҐo, 0lqҐo, 'õ

AҐo +þAFg‰\^¦6 x H~½ÓZO [15–17] 1px_ ƒ½¨ ”'Ÿ

÷

&“¦ e”.

GdSr₂AlO₅:Ce³⁺ +þAFg^‰H 375 nm\"f 500 nm s _

 #Œl Û¼&7˜àÔ!3`¦t“¦ eܔ¼ 9, þj@/ µ1ÏFg©œs 576 nms“¦, 500 nm\"f 800 nm %ò%i_ V,“Ér µ1ÏFgÛ¼&7˜àÔ

! 3

`¦ t“¦ e”#Q YAG:Ce³⁺ S!Ґo +þAFg^‰_ ÂÒ7á¤ôÇ &h Ґ

oµ1ÏFg[jl\¦ >h‚½+ÉÒ!So+þAFg^‰–Ð"f ƒ½¨ ”'Ÿ÷&“¦ e”

 [18].

‘

:r ƒ½¨\"f >pwôÇ Ñ˜Òþo LED\ &h6 xs 0pxôÇ GdSr2AlO5:Ce³⁺AFþ+g^‰\¦€ªœôÇ ™è“:r•¸\"f ½+Ë$í

#

Œ +þAFg:£¤$í`¦›¸ %i. ™è“r:•¸\ ÉrAF+þg^‰ ìr

´ ú

˜_ &ñ½¨›¸ü< {9_ &ñ$í Õªo“¦ +þAFg:£¤$í`¦ ìr

$

3 l 0A #Œ ìr˜_´ú &ñ½¨›¸ ìr$3, ³ð€+Aþ©œ, +þAFgÛ¼

&

7˜àÔ!3`¦ 8£¤&ñ %i.

II. ÷ m Ç ] M ö

GdSr₂AlO₅:Ce³⁺+þAFg‰^H“¦©œìøÍ6£xZO (solid-state re- action)ܼ–Ð ½+Ë$í %iܼ 9, "鶫ÑÓüt|9“ Gd₂O₃ (Sigma- Aldrich, 99.99%), SrCO₃(Sigma-Aldrich, 99.9%), Al₂O₃

∗E-mail: [email protected]

«

Ñ_ ìrW x9 ™¥D½+Ëõ&ñ`¦Ãº'Ÿ %i. ^¦ x9aAõ&ñs =åQ è

ߖ Êê 70 ^◦C_ “:r•¸\"f 24rç–1ßlxîߖ | ›¸ Êê ìrW #Œ ì

r´ú˜+þAI_ ™D¥½+Ër«Ñ\¦–[ßëþt%3. ™D¥Ër+½«Ñ\¦·ú˜ÀÒp


•

¸m\ {Œ™“ÉrÊê Ce⁴⁺s“:r`¦ Ce³⁺s“:rܼ–Ш8Š"é¶rv l

 0A #Œ òø͙èìr0Al\"f ™è`¦ ”'Ÿ %i. ™è õ

&

ñ“Ér 1200, 1300, 1400, 1500 Õªo“¦ 1600 ^◦C\"f yŒ•yŒ• ì

r{©œ 3^◦C_ 5px“:r5Åq¸–•Ð 4rçߖ 1lx– Ãßîº'Ÿ %i.

GdSr2AlO5:Ce³⁺ +þAFg^‰_ &ñ½¨›¸ü< {9_ &ñ

$í

, ©œo\¦ ›¸ l 0AK X-‚ r]Xl (Philips, X’pert)–Ð X-‚ r]X (X-Ray diffraction, XRD)`¦ ìr$3

%iܼ 9, s M: X-‚_ íߖêÍyøŒ• (2θ)“Ér 10^◦ ∼ 70^◦%ò%i\

"

f ìr{©œ 0.02^◦ Û_¼±p5Åq•¸–Ð 8£¤&ñ %i. „> ~½Ó+þA ÅÒ



„‰&³p (FE-SEM, JSM-6700F, JEOL)`â ¦ s6 x

#

Œ +þAFg^‰ {9 ³ð€_ p½¨›¸\¦ 8£¤&ñ %iܼ 9, 60 W _

 Xe-arcÏþ›áÔ\¦ Fg"é¶Ü¼–Ð 6 x H +þAFgFg•¸> (pho- ton technology international, PTI)\¦ s6 x #Œ +þAFg^‰ _

 #Œl x9 µ1ÏgFÛ¼&7˜àÔ!3`¦ z´“:r\"f 8¤&£ñ %i. ¢¸ôÇ, CIE 1pxҐo†<Êú (commission internationale de I’Eclairage chromaticity colour matching function)\¦s6 x #Œ +þAFg Û

¼&7˜àÔ!3`¦ CIE 1931 Ґo•¸•¸œ_© Ґo_ ýa³ð–Ð >íߖ %i



.

III. ÷ m Ç] M ö+ s ÇÊ Ý õ m Í w Š²  o

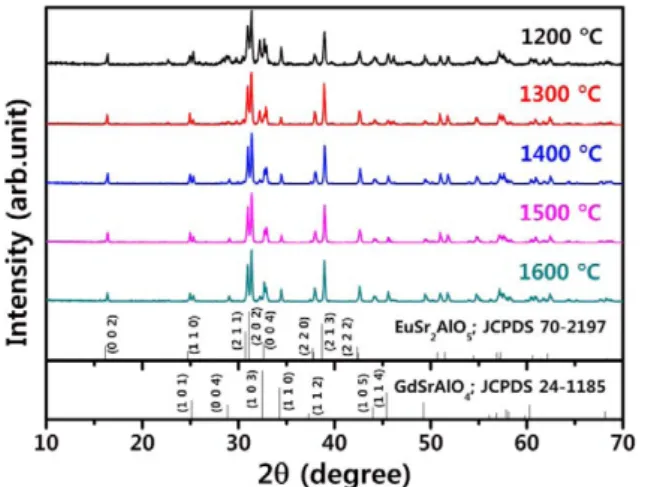

Fig. 1“Ér ™è“r:•¸ 1200 ∼ 1600 ^◦C\ Ér GdSr₂AlO₅:Ce³⁺ +þAFg^‰_ X-‚ r]XJ‡s. +þAFg

^

‰ ìr´ú˜_ X-‚ r]JX‡“Ér JCPDS ×¼ ñ 70- 2197_ EuSr²AlO5 &ñ©œõ JCPDS ×¼ ñ 24- 1185_ GdSrAlO⁴ &ñ©œ`¦ q“§ #Œ
?/%3. X-

‚

 r]XJ‡s &ñ~Ó&½ñ> (tetragonal)_ ½¨›¸\¦ tH GdSr2AlO5 &ñ©œõ GdSrAlO⁴ &ñ©œs ™D¥½+˝)a ©œÜ¼

–

Ð sÀÒ#Q4R e”ܼ 9, 1300^◦Cs _ “:r•¸\"fH±ú“ÉrìøÍ

Fig. 1. (Color online) XRD patterns of GdSr2AlO5:Ce³⁺

phosphors for various sintering temperatures from 1200 to 1600 ^◦C.

6

£

x“:r•¸\ _ #Œ SrGd2O₄&ñ©œ (JCPDS card No. 19- 0889)õ, Sr⁵Al2O8 &ñ©œ (JCPDS card No. 10-0065)s

”

>rF†<Ê`¦ ‰XS“ %i. ™è“:r•¸_ o\ Ér r]XJ

‡

[þt çߖ_ s1lx“Ér ˜Ðst ·ú§€Œ¤Ü¼ 9, ™è“:r•¸ 1400 ^◦C s

©œ\"fH íHúôÇ GdSr₂AlO5&ñs +þA$íHd`†¦SX‰“

%

i. GdSr²AlO5 &ñ_ ÅÒכ¹ &ñ~½Ó†¾Ó“Ér (2 1 1), (2 0 2)Õªo“¦ (2 1 3) ~½Ó†¾Ós 9, &ñ{9_ ß¼l (D)\¦ÅÒכ¹



&ñ~½Ó†¾Ó\ @/K Scherrer_ /BNd”; D = _{β cos θ}^Kλ ܼ–Ð >íߖ

#Œ ìøÍ6£x“:r•¸\ Ér&ñ{9_ ß¼l\¦ Fig. 2\


?

/%3. s M:, +þA©œ>ú\¦ K(0.9), X-‚_ ©œ(0.15406 nm), ÅÒכ¹ &ñ~½Ó†¾Ó\ @/ôÇ r]XJ‡_ ìøÍu;Ÿ¤`¦ β,r ]X

yŒ••¸_ ìøÍ°úכ`¦ θ–Ð #Œ >íߖ %i. ™è“:r•¸ 1200

◦C\"f 1400^◦Ct 7£x†<Ê\  &ñ{9_ ß¼lH 44 nm\"f 62 nm–Ð 7£x†<Ê`¦ ^¦Ãº e”ܼ 9, 1500^◦Cs



©œ_ “:r•¸\"fH&ñ{9_ ß¼l Ä»t÷&H†â¾Ó$í`¦

˜ Ð%i.

Fig. 3“Ér™è“r:•¸\ Ér³ð€ +þA©œ oü< ìr´ú˜ {9 _

 ß¼l\¦ ›'a¹1Ï l 0A #Œ yŒ•yŒ• (a) 1200 ^◦C, (b) 1300

◦C, (c) 1400 ^◦C, (d) 1500 ^◦C Õªo“¦ (e) 1600 ^◦C\"f

™

èôÇ GdSr₂AlO₅:Ce³⁺ ìr˜ +´ú þAFg^‰_ FE-SEM ” s

. Fig. 3 (a)_ âĺ, úÑþ˜ nm ß¼l_ ½¨+þA{9[þts

#

ŒQ >hm” Óüæ5g 1 µm ß¼l_ é#Qo {9–Ð ½¨$í÷&#Q e”

H כ `¦ ^¦ ú e”. ™è“:r•¸ 1500 <sup>◦</sup>C–Ð `¦€

"

f ìr´ú˜{9_ +þA©œ“Ér  t ·ú§Ü¼
 ½¨+þA{9_ ß¼l

 3 µm_ ß¼l–Ð &tH כ `¦ ^ ¦ ú e”ܼ 9, sQôÇ {9

[þts Óüæ5g e”H `כ¦ ^¦ ú e”. Fig. 3(e)ü< °ú s 1600 <sup>◦</sup>C\"f \P%ƒo\¦ %`i¦M:, ìr´ú˜{9_ ß¼l 5 µm_ ß¼l–Ð 7£x %iܼ 9, Z}“Ér™è“:r•¸\ _ #Œ ìr

´ ú

˜{9 0lq {9[þt çߖ_ â> \O“¦, Ô¦½©gË:ôÇ +þA



©œ`¦ `(“¦ {9 ³ð€\ Œ•“Ér {9[þts ´ú§s ·¡­#Q e”6£§

Fig. 2. Crystallite size of GdSr2AlO5:Ce³⁺phosphors as a function of the sintering temperatures.

Fig. 3. FE-SEM images of GdSr₂AlO₅:Ce³⁺ phosphors for sintering temperature at (a) 1200 ^◦C, (b) 1300 ^◦C, (c) 1400^◦C, (d) 1500^◦C and (e) 1600^◦C.

`

¦·ú˜ ú e”. Fig. 2\"f_ &ñ{9_ ß¼lü< Fig. 3_ FE-SEM ”`¦ :ŸxK, ™è“:r•¸ 1400 ^◦Ct 7£x†<Ê

\

  GdSr2AlO₅:Ce³⁺ +þAFg‰ ì^r´ú˜s š¸Û¼àÔµ1ÏàÔ ¸nq

$í

(Ostwald ripening)õ &ñwn_ 6£x|9s 1lxr\ {9#Q

 9 1500^◦Cs©œ_ “:r•¸\"fH&ñwn_ 6£x|9s 8 ” '

Ÿ÷&t ·ú§“¦ š¸Û¼àÔµ1ÏàÔ ¸nq$ís {9#Q
 {9 $큩œ†<Ê

`

¦·ú˜ ú e” [19].

GdSr2AlO5:Ce³⁺ ìr´ú˜ +þAFg^‰_ ™è“:r•¸\ Ér +þA F

gÛ¼&7˜àÔ!3“Ér Fig. 4
\?/%3. Fig. 4(a)H 1500^◦C s

 \"f ™èôÇ GdSr2AlO5:Ce³⁺ rì´ú˜ +þAFg^‰\¦ 520 nm\"f 8£¤&ñôÇ #Œl Û¼&7˜àÔ!3s 9, Fig. 4(b)H 1600^◦C

\

"f ™èôÇ GdSr2AlO5:Ce³⁺ rì´ú˜ +þAFg^‰\¦ 576 nm\

"

f 8£¤&ñôÇ #Œl Û¼&7˜àÔ!s3. 1300^◦Cs \"f ™èôÇ ì

r´ú˜\"f 241 nm, 339 nm\"f €•ôÇ #Œl {9#QzŒ™`¦ ^¦ Ã

º e”. ™è“:r¸ 1400• ^◦C{9 M:, 270 nm\"f #Œl x ß

¼ Òqtll rŒ• %iܼ 9, s Û¼&7˜àÔ!3“Ér 1500^◦C\"f

™

èôÇ +þAFg^‰\"f•¸ µ1Ï|÷&%3. ¢¸ôÇ #Œl “:r•¸ 7£x

†<Ê\  #Œl Û¼&7˜àÔ!3_ þj@/°úכs yŒ™™è %i. Õª

Q
 1600^◦C\"f ™èôÇ +þAFg^‰_ âĺ 1500^◦Cs \

Fig. 4. (Color online) PL excitation spectra of GdSr2AlO5:Ce³⁺ phosphors for sintering temperature.

"

f ™èôÇ +þAFg^‰_ #Œl Û¼&˜à7Ô!3[þtõ œs©ôÇ õ\¦

% 3

%3. 1600^◦C\"f ™èôÇ +þAFg^‰H 439 nm\"f þj@/

#

Œl ©œs ÷& 9, 375 ∼ 500 nm\ sØԍHÅÒ #Œl Û¼&7˜ à

Ô!3`¦ t“¦ e”. sH Ce³⁺ s“:r_ 4f ïr0A\ e”H

„

 5d ïr0A–Ð #Œl €"f GdSr2AlO₅ —¸^‰_ &ñ



©œ\ _ #Œ „_ #Œl \-t ïr0A °ú˜t 9 Òqt$í

)

a#Œl Û¼&7˜àÔ!3s. 1600^◦C"\f ™èôÇ +þAFg^‰_ â Ä

º, Ér™è“:r•¸\"f ú'ôŸÇ +þAFg^‰\ qK þj@/ #Œl F

g_ [jl €• 0.4C 7£x %i.

Fig. 5(a)H 1500 ^◦C s \"f ™èôÇ GdSr2AlO5:Ce³⁺ ìr´ú˜ +AFþg^‰_ 270 nm #Œl Fg\ _

ôÇ µ1ÏFgÛ¼&7˜àÔ!3s 9, Fig. 5(b)H 1600 ^◦C\"f ™è ô

Ç GdSr₂AlO₅:Ce³⁺ ìr´ú˜ +þAFg^‰_ 439 nm #Œl Fg\ _

ôÇ µ1ÏFgÛ¼&7˜àÔ!3s. 1500 ^◦C s \"f ™èôÇ +þA F

g^‰H 439 nm_ Fg\ #Œl ÷&#Q ÒS!o_ µ1ÏFg Û¼&7˜àÔ

! 3

`¦ t“¦ e”t ·ú§€Œ¤. sH CeO2_ îߖ\ ”>rF



H Ce⁴⁺ s“:r \sP&h ¨8Š¶é"\-t ÂÒ7á¤Ê܆<¼–Ð “ #Œ

¨8

Š"é¶÷&t ·ú§“¦ 4 s“:rܼ–Ð ”>rF†<Êܼ–Ð “ôÇ כ s.

Ce⁴⁺ s“:rs ¨8Š"é¶&t÷ ·ú§“¦ Õª@/–Ð GdSr²AlO5 —¸^‰Óüt

|9

\ u¨8ŠH†d\  Ce³⁺ s“r:\ @/ôÇ +þAFg:£¤$ís


Fig. 5. (Color online) PL spectra of GdSr2AlO5:Ce³⁺

phosphors for different sintering temperature.

š

¸t ·ú§“¦ Ce⁴⁺ s“:r_ +þAFg:£¤$ís

> )a. ¢¸ ô

Ç Ce⁴⁺ s“:rs Gd³⁺ s“:r\ u¨8ŠH†d\  „ Ô¦çH +þ

As {9#Q
> ÷&#Q #Œl x9 µÏ1Fg Û¼&7˜àÔ!3_ [jl

€



• > )a. Fig. 5(a)ü< °ú s, 1200 ∼ 1500 ^◦C\"f ™è



ôÇ GdSr₂AlO₅:Ce³⁺ +þAFg^‰H /BN:Ÿx&hܼ–Ð 411 nm ü<

439 nm\"f µ1ÏFgÛ¼&7˜àÔ!3`¦ t“¦ e”%3ܼ 9, ™è“:r

•

¸ 1500^◦Ct 7£x†<Ê\  þj@/ µ1ÏFg[jlHp€•

> yŒ™™è †<Ê`¦ ·ú˜ ú e”. ¢¸ôÇ, ™è“:r•¸ 1400 ^◦C {9

 M:, 520 nm ÂÒH\"f p€•ôÇ µÏ1Fg Û¼&7˜àÔ!3s Òqtl

>

 ÷& 9, ™è“:r•¸ 1500^◦C–Ð 7£x†<Ê\  520 nm Â

ÒH\"f_ µ1ÏFg[jl œ5©px %i. sH Ce³⁺ s“:rs GdSr2AlO5:Ce³⁺ +þAFg‰ ?^ /\ ”>rF H GdSrAlO4\

•

¸içH†dܼ–Ð"f µ1ÏÒqt H Ï1µFg Û¼&7˜àÔ!3s. 1600 ^◦C\

"

f ™èôÇ GdSr2AlO5:Ce³⁺ AFþ+g^‰H 576 nm\"f þj@/ 

©œ`¦ t“¦, 500 ∼ 800 nm_ %ò%i_ V,“Ér µ1ÏFg %ò

% i

`¦ f”`¦·ú˜ ú e”%3. sכ “Ér™è“:r•¸ 1500 ^◦C

\

"f 1600 ^◦C–Ð 7£x†<Ê\  r«Ñ\ KtH \P&h

\

-t 7£x > ÷&“¦, Õª\  Ce⁴⁺ s“:rs Ce³⁺

s

“:rܼ–Ð ¨8Š"é¶H†d\ _ôÇ כ s. Fig. 5(b)_ µ1ÏFg Û¼&7˜ à

Ô!3“Ér GdSr2AlO5:Ce³⁺ ?/\ e”H Ce³⁺ s“:r_ 5d ïr

Fig. 6. (Color online) CIE 1931 color coordinate of GdSr₂AlO₅:Ce³⁺ phosphors sintered at 1600 ^◦C.

The inset of figure 6 shows the photographs of yellow light emission from the combination of blue LED and GdSr2AlO5:Ce³⁺ phosphor sintered at 1600^◦C.

0

A–Ð #Œl)a „ 2>h_ 4f ïr0A–Ð …;s €"f
 è

ߖ ‰&³©œs 9, ™è“:r•¸ 1600^◦C“ +þAFg^‰_ þj@/µ1ÏFg [

jl Ér ™è“:r•¸\"f ½Ë$+íôÇ +þAFg^‰\ q #Œ €• 3C s©œ 7£x†<Ê`¦SX‰“ %i.

1600 ^◦C\"f ™èôÇ GdSr2AlO5:Ce³⁺ S!Ґo +þAFg^‰_ CIE Ґoýa³ðH+þAFgÛ¼&7˜àÔ!3`¦ CIE 1pxҐo†<Êú–Ð K$3

#

Œ Fig. 6\
?/%3. GdSr²AlO5:Ce³⁺ S!Ґo +þAFg^‰

\

 439 nm_ 'õAҐo_ #ŒlFg`¦›¸½+É M: 'õAҐo #ŒlFg õ

S!Ґo µ1ÏgFs ™D¥½+Ë÷&#Q >pwôÇ Ñþ˜Òos ½¨‰&³)a כ `¦·ú˜ Ã

º e”ܼ 9, Ґoýa³ð_ 0AuH (X = 0.45, Y = 0.517)ܼ–Ð

>

íߖ÷&%3.

IV. + s Ç Â ] Ø

‘

:r ƒ½¨\"fH “¦©œìøÍ6£xZO`¦ s6 x #Œ GdSr2AlO5:Ce³⁺ ìr´ú˜ +þAFg^‰\¦ ½+Ë$í %iܼ 9, ™è



“:r•¸\ Ér ³ð€½¨›¸ü< &ñ$í Õªo“¦ +AFþg:£¤$í`¦

›

¸ %i. X-‚ r]XJ‡`¦ :Ÿx #Œ 1200 ∼ 1600 ^◦C _

 “:r•¸\"f ™èôÇ GdSr₂AlO5:Ce³⁺ +þAFg^‰H &ñ~½Ó

&

ñ> (tetragonal)_ ½¨›¸\¦ tH GdSr2AlO5 &ñ



©œõ GdSrAlO4 &ñ©œs ™D¥Ë+½)a ©œÜ¼–Ð sÀÒ#Q4R e” 6

£

§`¦ ·ú˜ ú e”%3ܼ 9, ™è“r:•¸ 7£x½+Éú2Ÿ¤ +þAFg^‰ _

 ¨îçH {9_ ß¼l 7£x H כ `¦ a'›¹1Ï %i. ™è



“r:•¸\ @/ #Œ GdSr²AlO5:Ce³⁺ rì´ú˜ +þAFg^‰_ µ1Ï F

g Û¼&7˜àÔ!3`¦ ›¸ #Œ ‘:r õ 1500 ^◦C s _ “:r

•

¸ ™èôÇ +þAFg^‰\"f ¨8Š¶"é\-t_ ÂÒ7á¤Ü¼–Ð “ #Œ

Ce⁴⁺ s“:rs ¨8Š"é¶÷&t 3lw %iܼ 9, Õª\  Ce⁴⁺ s

“

:r\ @/ôÇ +þAFg:£¤$ís
zŒ¤. 1600 ^◦C\"f ™èôÇ GdSr2AlO5:Ce³⁺ ìr´ú˜ +þAFg‰_^ +þAFg:£¤$í“Ér Ce³⁺ s“:r _

 4f-5d…;s Ér +þAFg:¤$£ís
zŒ¤. 1600 ^◦C\"f

™

èôÇ GdSr₂AlO5:Ce³⁺ ìr˜ +ú´þAFg^‰H 439 nm_ 'õAҐo F

gŒl#\ _ #Œ 576 nm_ y©œôÇ µ1ÏgFÛ¼&7˜àÔ!3`¦f”

`

¦·ú˜ ú e”%3. 1600 ^◦C\"f ™èôÇ GdSr2AlO5:Ce³⁺

ì

r´ú˜ +þAFg^‰_ µ1ÏFg¼&Û7˜àÔ!3`¦ CIE Òo•¸•¸©œ_ ýa³ð–Ð

ÍÇx`¦âĺ Ґoýa³ð (X = 0.45, Y = 0.517)_S!Ґo\ K

{©œ H °úכ`¦ %3%3ܼ 9, 'AÒõo_ #Œl Fgõ S!Ґo_ µ1Ï F

g_ ™D¥½+Ëܼ–Ð >pwôÇ Ñþ˜Òos ½¨‰&³ H†d`¦ ^ ¦ ú e”%3.

s

\¦ :Ÿx #Œ GdSr2AlO₅:Ce³⁺ìr˜ +´úþAFg^‰H'õAҐo LED (blue LED)\¦ lìøÍܼ–Ð H >pwôÇ Ñþ˜Òo LED ½¨‰&³\ s

6 x|¨cú e”`¦כ s.

P

c p 8 ý ò k >

s

 7HëH ($"f)“Ér 2014¸ “§¹¢¤ÂÒü< ôDzDGƒ½¨Féߖ_ t

% i

+À:’‚½Ó_“§4€ªœ$í\O_ t"é¶`¦~ÃÎ ú'Ÿ)aƒ½¨{9 m

 (NRF-2014H1C1A1066586).

REFERENCES

[1] N. Narendran, Y. Gu, J. P. Freyssinier, H. Yu and L. Deng, J. Cryst. Growth 268, 449 (2004).

[2] J. Y. Park, H. C. Jung, G. S. R. Rasu, B. K. Moon and J. H. Jeong et al., Solid State Sci. 12, 719 (2010).

[3] E. F. Schubert and J. K. Kim, Science 308, 719 (2005).

[4] D. Chen and Y. Chen, Ceram. Int. 40, 15325 (2014).

[5] S. Nishiura, S. Tanabe, K. Fujioka and Y. Fujimoto, Opt. Mater. 33, 688 (2011).

[6] Z. Song, J. Liao, X. Ding, X. Liu and Q. Liu, J.

Cryst. Growth 365, 24 (2013).

[7] HS. Jang, Y-H. Won and DY. Jeon, Appl. Phys. B 95, 715 (2009).

[8] Q. Li, L. Gao and D. Yan, Mater. Chem. Phys. 64, 41 (2000).

[9] J-U. Kim, Y-S. Kim and H. Yang, Matter. Lett. 63, 614 (2009).

[10] M. Yamada, T. Naitou, K. Izuno, H. Tamaki and Y.

Murazaki et al., Jpn. J. Appl. Phys. 42, L20 (2003).
