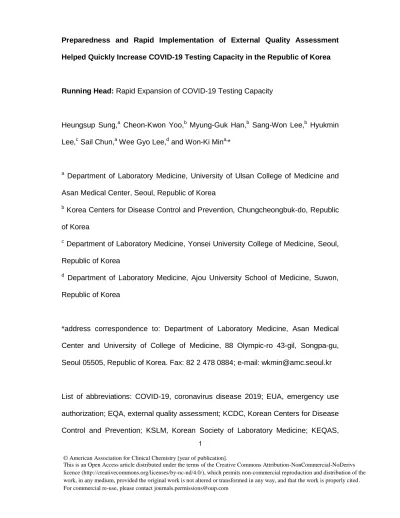

Preparedness and Rapid Implementation of External Quality Assessment Helped Quickly Increase COVID-19 Testing Capacity in the Republic of Korea
Running Head: Rapid Expansion of COVID-19 Testing Capacity
Heungsup Sung,a Cheon-Kwon Yoo,b Myung-Guk Han,b Sang-Won Lee,b Hyukmin Lee,c Sail Chun,a Wee Gyo Lee,d and Won-Ki Mina,*
a Department of Laboratory Medicine, University of Ulsan College of Medicine and Asan Medical Center, Seoul, Republic of Korea
b Korea Centers for Disease Control and Prevention, Chungcheongbuk-do, Republic of Korea
c Department of Laboratory Medicine, Yonsei University College of Medicine, Seoul, Republic of Korea
d Department of Laboratory Medicine, Ajou University School of Medicine, Suwon, Republic of Korea
*address correspondence to: Department of Laboratory Medicine, Asan Medical Center and University of College of Medicine, 88 Olympic-ro 43-gil, Songpa-gu, Seoul 05505, Republic of Korea. Fax: 82 2 478 0884; e-mail: wkmin@amc.seoul.kr
List of abbreviations: COVID-19, coronavirus disease 2019; EUA, emergency use authorization; EQA, external quality assessment; KCDC, Korean Centers for Disease Control and Prevention; KSLM, Korean Society of Laboratory Medicine; KEQAS,
© American Association for Clinical Chemistry [year of publication].
This is an Open Access article distributed under the terms of the Creative Commons Attribution-NonCommercial-NoDerivs licence (http://creativecommons.org/licenses/by-nc-nd/4.0/), which permits non-commercial reproduction and distribution of the work, in any medium, provided the original work is not altered or transformed in any way, and that the work is properly cited.
For commercial re-use, please contact journals.permissions@oup.com
2
Korean Association of External Quality Assessment Service; KFDA, Korean Food and Drug Administration; KLAP, Korean Laboratory Accreditation Program.
3
Preparedness and Rapid Implementation of External Quality Assessment Helped Quickly Increase COVID-19 Testing Capacity in the Republic of Korea
To the Editor:
The current outbreak of coronavirus disease 2019 (COVID-19), caused by the severe acute respiratory syndrome coronavirus 2, continues to spread, and as of March 31, 2020, it has reached 200 countries, with 785,219 cases and 37,797 deaths (1). Since the first case was reported in the Republic of Korea on January 19, 2020, more than 9,500 confirmed cases had been identified by March 31. Since March 2, the number of newly-reported cases appeared to have been declining, and the reported cases have been mostly related to certain provinces. As of March 31, the Republic of Korea (population of 51 million) was testing more than 20,000 patients per day. Clinical pathologists and microbiologists of other countries wonder how our nation rapidly expanded its capacity for COVID-19 testing in such a short period. The key factors in this rapid expansion of testing capacity were the establishment of an emergency use authorization (EUA) system, an external quality assessment (EQA), and the collaboration between the public and private sectors.
After the Korean outbreak of Middle East Respiratory Syndrome (MERS) in 2015, which involved 186 cases including 38 fatalities (2), the Korean Centers for Disease Control and Prevention (KCDC), the Korean Society of Laboratory Medicine (KSLM), and the Korean Association of External Quality Assessment Service (KEQAS) established the rapid response processes for emerging infectious diseases such as an EUA system, similar to that of the U.S.
FDA (3). In order to control future outbreaks of emerging infectious diseases, a KCDC- sponsored EQA molecular testing drill for Zika virus and MERS coronavirus was carried out by the KEQAS in 2016 in accordance to the established rapid response process (4). The
4
KEQAS developed a system to receive the proficiency test results at that time. On January 16, 2020, the KSLM launched a COVID-19 Laboratory Response Task Force (LR-TF) to facilitate clinical laboratories to establish the diagnostic testing of COVID-19 (Fig. 1). On the next day, the KCDC and the KSLM LR-TF had the first meeting on the expansion of COVID-19 testing by non-governmental clinical laboratories. The KCDC and the KSLM LR- TF agreed to cooperate on the training of laboratory personnel, the EQA program, and the evaluation of EUA kits for the diagnosis of COVID-19.
On January 27, the KCDC and the KSLM LR-TF met representatives from domestic molecular reagent manufacturers to explain our objective and the schedule of EUA approval for COVID-19 molecular diagnostics. By the time, three confirmed COVID-19 cases had been reported in Korea. On February 4, the KCDC and the Korean Food and Drug Administration (KFDA) approved the PowerChek 2019-nCoV Real-time PCR kit (Kogene Biotech, Seoul, Korea) for diagnosis of COVID-19 after co-evaluation by the KCDC and the KSLM. For evaluation materials, specimens from the three confirmed individuals were triplicated in blind and then serially diluted into four different concentrations. Plasmid DNAs containing the E gene and RdRp gene also served as evaluation specimens. The usual respiratory pathogen positive samples including coronavirus 229E, NL63, OC43, HKU1 were used as negative controls as well as respiratory virus negative specimens.
On February 5, the proficiency test panel comprised of six plasmid DNAs with varying concentrations (one E gene plasmid only, one RdRp gene plasmid only, and four concentrations from serial dilution of combined E gene and RdRp gene plasmids) and one negative control were shipped on dry ice to the Korean Laboratory Accreditation Program (KLAP)-accredited laboratories willing to participate in COVID-19 testing through molecular
5
diagnostics. Delivery to all laboratories including Jeju Island was completed within 10 hours.
The KEQAS was responsible for transporting the EQA material, collecting the EQA results, and judging the results. Only samples with an 80% or more agreement rate compared to the expected results were evaluated. Approval for COVID-19 molecular testing was given when a laboratory had correctly answered all the evaluable results. By February 6, the KEQAS had certified 46 out of the 47 laboratories that entered the results. Forty-six non-governmental clinical laboratories were able to begin COVID-19 testing using a commercial EUA kit from February 7. Due to high testing demand at the beginning, testing complied with the inclusion criteria. The COVID-19 real-time RT-PCR is indicated for confirmation of suspected COVID-19 patients who present with fever (37.5 or higher) and/or respiratory symptoms (cough, sore throat, etc.) and history of close contact with a confirmed individual within the previous 14 days. It is also indicated for screening of asymptomatic individuals in close contact with confirmed COVID-19 patients and for differential diagnosis of cases with unknown respiratory syndromes (5). There are no specific exclusion criteria for testing, although testing done outside the criteria are denied of national healthcare system reimbursement for the testing fee. Two more EQAs using the same plasmid DNAs were conducted and 49 additional non-governmental clinical laboratories were enrolled. We have finished the EQA using the inactivated cultured SARS-CoV-2 spiked into pooled respiratory samples.
As of March 31, a total of 95 non-governmental clinical laboratories are conducting more than 20,000 COVID-19 tests per day using five different EUA kits. The five EUA kits’ output reached 20,000 kits per week, covering a total of 350,000 clinical samples.
6
In conclusion, preparedness and rapid implementation of EQA have supported the rapid expansion of COVID-19 testing capacity in the Republic of Korea. Owing to the increasing diagnostic capacity, our nation was able to slow down the COVID-19 epidemic without enforcing city-wide lockdowns or collapse of the national healthcare system. The quality of COVID-19 diagnostic testing was ensured by the KLAP and the EQA programs.
Nonstandard abbreviations: EUA, emergency use authorization; EQA, external quality assessment; KCDC, Korean Centers for Disease Control and Prevention; KSLM, Korean Society of Laboratory Medicine; KEQAS, Korean Association of External Quality Assessment Service; KFDA, Korean Food and Drug Administration; KLAP, Korean Laboratory Accreditation Program.
Author Contributions: All authors confirmed they have contributed to the intellectual content
of this paper and have met the following 4 requirements: (a) significant contributions to the conception and design, acquisition of data, or analysis and interpretation of data; (b) drafting or revising the article for intellectual content; (c) final approval of the published article; and (d) agreement to be accountable for all aspects of the article thus ensuring that questions related to the accuracy or integrity of any part of the article are appropriately investigated and resolved.
All authors contributed to the conception of the correspondence. HS and WKM wrote the correspondence. All authors contributed to the review of the correspondence.
7
Author’s Disclosure or Potential Conflicts of Interest: Upon manuscript submission, all authors completed the author disclosure form. Disclosures and/or potential conflicts of interest:
Consultant or Advisory Role: None declared.
Stock Ownership: None declared.
Honoraria: None declared.
Research Funding: H. Sung, Korea Centers for Disease Control and Prevention and the Bio and Medical Technology Development Program of the National Research Foundation (NRT), Korea and funded by the Korean government (MSIP and MOHW, grant number NRF- 2016M3A9B6918716).
Expert Testimony: None declared.
Patents: None declared.
Role of Sponsors: The funding organizations played no role in the preparation of manuscript or final approval of manuscript.
References
1. https://www.worldometers.info/coronavirus/#countries (assessed Mar 31, 2020).
2. Korea Centers for Disease Control and Prevention. Middle East Respiratory Syndrome coronavirus outbreak in the Republic of Korea, 2015. Osong Public Health Res Perspect 2015;6:269-78.
3. U.S. Food & Drug Administration. Emergency Use Authorization.
https://www.fda.gov/emergency-preparedness-and-response/mcm-legal-regulatory-
8
and-policy-framework/emergency-use-authorization (accessed Mar 31, 2020).
4. Chang J, Lee HY, Seong MW, Kim MN, Sung H. External quality assessment of molecular diagnostics for Zika virus and Middle East Respiratory Syndrome coronavirus in Korea. Southeast Asian J Trop Med Public Health 2019;50:840-7.
5. Hong KH, Lee SW, Kim TS, Huh HJ, Lee J, Kim SY, et al. Guidelines for laboratory diagnosis of coronavirus disease 2019 (COVID-19) in Korea. Ann Lab Med 2020;40:351-60.
9
Figure legend
Figure 1. Timeline of COVID-19 testing-related collaborations between the public and the private sectors
Abbreviations: KSLM, Korean Society of Laboratory Medicine; KCDC, Korean Centers for Disease Control and Prevention; KFDA, Korean Food and Drug Administration; EQA, external quality assessment; LR-TF, Laboratory Response Task Force; Pan-CoV, pan-coronavirus; EUA, emergency use authorization.
Pan-CoV PCR and sequencing Real-time PCR (WHO) Commercial EUA kits
First case of COVID-19 in Korea Total 12 COVID-19 cases in
Korea Total 24 COVID-19 cases in
Korea Total 3 COVID-19 cases in
Korea
Jan.16 Feb.
Jan. 1
19 Feb.
4 Feb.
Jan. 7
26 Feb.
5 KSLM launched COVID-19 LR-
TF
First meeting of KSLM and
KCDC KCDC and KFDA approval of an
EUA kit First EQA samples were distributed
Began COVID-19 testing by 46 laboratories
First hearing between KCDC, KSLM and domestic manufacturers
