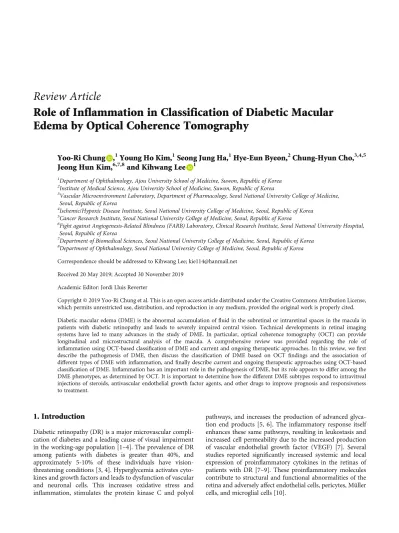

Role of Inflammation in Classification of Diabetic Macular Edema by Optical Coherence Tomography
Yoo-Ri Chung ,1Young Ho Kim,1Seong Jung Ha,1Hye-Eun Byeon,2Chung-Hyun Cho,3,4,5 Jeong Hun Kim,6,7,8and Kihwang Lee 1
1Department of Ophthalmology, Ajou University School of Medicine, Suwon, Republic of Korea
2Institute of Medical Science, Ajou University School of Medicine, Suwon, Republic of Korea
3Vascular Microenvironment Laboratory, Department of Pharmacology, Seoul National University College of Medicine, Seoul, Republic of Korea
4Ischemic/Hypoxic Disease Institute, Seoul National University College of Medicine, Seoul, Republic of Korea
5Cancer Research Institute, Seoul National University College of Medicine, Seoul, Republic of Korea
6Fight against Angiogenesis-Related Blindness (FARB) Laboratory, Clinical Research Institute, Seoul National University Hospital, Seoul, Republic of Korea
7Department of Biomedical Sciences, Seoul National University College of Medicine, Seoul, Republic of Korea
8Department of Ophthalmology, Seoul National University College of Medicine, Seoul, Republic of Korea
Correspondence should be addressed to Kihwang Lee; [email protected] Received 20 May 2019; Accepted 30 November 2019
Academic Editor: Jordi Lluis Reverter
Copyright © 2019 Yoo-Ri Chung et al. This is an open access article distributed under the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
Diabetic macular edema (DME) is the abnormal accumulation offluid in the subretinal or intraretinal spaces in the macula in patients with diabetic retinopathy and leads to severely impaired central vision. Technical developments in retinal imaging systems have led to many advances in the study of DME. In particular, optical coherence tomography (OCT) can provide longitudinal and microstructural analysis of the macula. A comprehensive review was provided regarding the role of inflammation using OCT-based classification of DME and current and ongoing therapeutic approaches. In this review, wefirst describe the pathogenesis of DME, then discuss the classification of DME based on OCT findings and the association of different types of DME with inflammation, andfinally describe current and ongoing therapeutic approaches using OCT-based classification of DME. Inflammation has an important role in the pathogenesis of DME, but its role appears to differ among the DME phenotypes, as determined by OCT. It is important to determine how the different DME subtypes respond to intravitreal injections of steroids, antivascular endothelial growth factor agents, and other drugs to improve prognosis and responsiveness to treatment.
1. Introduction
Diabetic retinopathy (DR) is a major microvascular compli- cation of diabetes and a leading cause of visual impairment in the working-age population [1–4]. The prevalence of DR among patients with diabetes is greater than 40%, and approximately 5-10% of these individuals have vision- threatening conditions [3, 4]. Hyperglycemia activates cyto- kines and growth factors and leads to dysfunction of vascular and neuronal cells. This increases oxidative stress and inflammation, stimulates the protein kinase C and polyol
pathways, and increases the production of advanced glyca- tion end products [5, 6]. The inflammatory response itself enhances these same pathways, resulting in leukostasis and increased cell permeability due to the increased production of vascular endothelial growth factor (VEGF) [7]. Several studies reported significantly increased systemic and local expression of proinflammatory cytokines in the retinas of patients with DR [7–9]. These proinflammatory molecules contribute to structural and functional abnormalities of the retina and adversely affect endothelial cells, pericytes, Müller cells, and microglial cells [10].
Diabetic macular edema (DME) is characterized by the abnormal accumulation offluid in the subretinal or intraret- inal spaces of the macula and leads to severely impaired cen- tral vision [11]. Technical developments in retinal imaging have greatly improved the study of DME. For example, opti- cal coherence tomography (OCT) provides longitudinal and microstructural analysis of the macula [11]. Several factors contribute to the pathogenesis of DME, including hypoxia and oxidative stress, upregulation of VEGF, alteration of the blood-retinal barrier (BRB), retinal vessel leukostasis, pericyte loss, and vascular hyperpermeability [12, 13]. In this review, we focus on the pathogenic effect of inflammation in DME as determined by OCT. Wefirst review the pathogene- sis of DME and then discuss the use of OCT for classification of DME and current and ongoing therapeutic approaches based on OCT classification.
2. Pathogenesis of DME
2.1. The Healthy Blood-Retinal Barrier.The healthy retina is an immune-privileged organ because of the BRB, which con- sists of inner and outer layers. Under normal physiological conditions, the BRB regulates fluid entry and drainage of molecules and maintains the retina in a dehydrated and transparent state [11]. Breakdown of the BRB occurs during early DR and leads to localized vascular hyperpermeability and retinal edema [10, 13].
The inner BRB has tight junctions (zonula occludens) between the endothelial cells of retinal vessels, allowing inter- actions with pericytes and smooth muscle cells [14]. Trans- membrane proteins, scaffolding proteins, and signaling proteins form endothelial tight junctions [11]. Adherens junctions connect the cytoskeleton of pericytes to endothelial cells, allowing molecular signaling between these different cells [11]. A pericyte-derived lipidic mediator modulates the inner BRB [15], so pericytes have a critical role in the maintenance of the BRB. The processes of glial cells also wrap around retinal capillaries [11]. Retinal Müller cells and astro- cytes ensheath vascular plexuses and stabilize the tight junc- tions between endothelial cells [16]. Microglia contribute to the maintenance of the inner BRB by producing soluble factors that are important for vesicular communication (Figure 1) [13, 17].
The intercellular junction complex of the retinal pigment epithelium (RPE) forms the outer layer of the BRB [18]. In particular, the basolateral membrane of the RPE faces Bruch’s membrane and separates the neurosensory retina from the fenestrated endothelium of the choriocapillaris [18, 19]. The RPE junction complex is formed by tight, adhe- rens, and gap junctions, which control the transport offluids and solutes and maintain the integrity of the retina [18, 19].
2.2. Glial Dysfunction in DR.Activation of Müller cells and microglia initiates retinal inflammation [20, 21]. Microglia constantly monitor the physiological microenvironment, and their activation is a hallmark of the inflammatory pro- cess during acute injury [22]. Microglia can detect early signs of hyperglycemia and seem to participate in all stages of DR after activation [20, 23].
Retinal Müller cells are specialized macroglial cells that regulate the tightness of the BRB by controlling the intercel- lular transport of ions, water, and bicarbonate [24]. Thus, they function as a structural backbone for the retina, regulate vascular homeostasis, and provide metabolic support for neural activity [24]. The role of Müller cells in controlling movement of water and ions allows them to buffer intraret- inal increases of potassium ions [25]. Ischemia and inflam- mation can alter the potassium channels of Müller cells and cause them to accumulate intracellularfluid [24, 26]. Retinal Müller cells also produce VEGF, tumor necrosis factor alpha (TNF-α), interleukin- (IL-) 1β, and prostaglandins in the presence of inflammation and hypoxia, all of which aggravate vascular hyperpermeability [12, 27]. In DR, Müller cells trig- ger retina inflammation through stimulation of cluster of dif- ferentiation (CD) 40 and indirectly promote inflammation of microglia through release of adenosine triphosphate [28].
2.3. Immune Cell Function and Inflammation in DR.Hyper- glycemia leads to upregulation of intercellular adhesion mol- ecule 1 (ICAM-1), which mediates leukocyte adhesion to the vascular endothelium, resulting in vascular damage and cap- illary nonperfusion [29]. Monocyte chemotactic protein 1 (MCP-1), a major chemotactic factor for monocytes, is also increased in the vitreous of patients with DR [29, 30]. The levels of several inflammatory markers, such as VEGF, sICAM-1, and MCP-1, are higher in the vitreous of patients with DME [30]. Noma et al. [30] reported that aqueousflare (an index of inflammation) correlated with the levels of inflammatory cytokines in the vitreous and suggested that inflammation increased vascular permeability and thereby disrupted the blood-aqueous barrier.
Leukocytes contribute to microvascular damage by releasing cytokines and superoxide and by physically block- ing the capillaries [10]. They interact with ICAM-1 and vas- cular cell adhesion molecule on the surface of endothelial cells, resulting in adherence of blood cells to the endothelial wall (leukostasis) [10]. These molecular changes during inflammation contribute to neurodegeneration of the retina, as indicated by the migration of subunits of nuclear factor kappa B, a proinflammatory transcription factor, into the nuclei of retinal neurons in the presence of diabetes [10, 31].
2.4. Retinal Pigment Epithelial Cells in DR. The RPE forms the outer layer of the BRB and regulates the movement of sol- utes between the capillaries of the choroid and the photore- ceptor layers [18]. RPE cells also play an important role in immune processes, in that they express major histocompati- bility complex molecules, adhesion molecules, and cytokines [19]. DME is associated with RPE dysfunction and impaired transport of water from the subretinal space into the chorio- capillaris [18, 19]. The healthy RPE also regulates the high oxidative stress of the retina, and DR impairs this function by reducing the levels of antioxidants [19].
3. Use of OCT to Classify and Characterize DME 3.1. Classification by OCT. Technical advances have increased the resolution of OCT, led to more precise
quantification of the thickness of the retina and choroid, and provided more detailed information about the individual layers. Clinicians now commonly use OCT to classify the dif- ferent types of DME: diffuse thickening type (sponge-like dif- fuse retinal thickening), cystoid macular edema (CME) type (thickening of fovea with intraretinal cystoid change), and serous retinal detachment (SRD) type (thickening of fovea with subretinal fluid) (Figure 2) [32, 33]. In DME, leakage from the deep capillary plexus inducesfluid migration into the outer plexiform layer; leakage from the superficial capil- lary plexus leads tofluid accumulation in the inner nuclear layer [34]. The accumulation of subretinal fluid suggests alteration of the outer BRB, probably due tofluid movement from the retina through weakened and permeable external limiting membrane or from the increased permeability of the choriocapillaris through the dysfunctional RPE [33].
The diffuse thickening type of DME results from break- down of the inner BRB due to inflammation and oxidative stress, which leads to increased vascular permeability [32, 35]. The intraretinal cysts present in the CME type of DME presumably originate from the liquefaction and necrosis of Müller cells and the production of prostaglandins and inflammatory cytokines [25, 32, 36]. However, leukostasis theory has been suggested by the development of OCT angi- ography which allows isolation of capillary plexi and visuali- zation of capillary flow [25]. Ischemia and inflammation both lead actions of integrins and adhesion molecules facili- tating migration of leukocytes. This would plug effectively capillary-sized vessels, which appear as decreased deep vas- cular plexusflow around cystoid spaces in OCT angiography
[25]. The presence of cystoid spaces in regions with decreased or absent deep plexus suggests that the fluid removal is potentially mediated by deep plexus, not by retinal Müller cells [25].
The subretinalfluid of the SRD type of DME might be due to the increased permeability of the choriocapillaris because of the dysfunctional RPE at an early stage of disease and then from the breakdown of the outer BRB through the permeable external limiting membrane [37, 38]. The SRD type is clinically significant because it is associated with poor prognosis for vision, probably because of disruption of the external limiting membrane [39]. Clinical studies investigat- ing the association of DME phenotypes with prognosis following intravitreal injections also use this OCT-based classification.
3.2. Evidence of Inflammation in Different Types of DME.
Numerous studies investigated the association of inflamma- tory cytokines with different DME phenotypes (as deter- mined by OCT) in an effort to better determine prognosis and to select the most appropriate drug for intravitreal injec- tions. In particular, the intraocular levels of potent proangio- genic cytokine (VEGF) and proinflammatory cytokine (IL-6) are both increased in DME, but they are modulated differ- ently, so intravitreal injections of anti-VEGF and steroids might lead to different responses [39, 40].
Analysis of the intravitreal concentrations of cytokines in the eyes with the SRD type of DME indicated elevated intravitreal concentrations of VEGF, IL-6, and IL-8 [41].
An elevated level of IL-6 had a strong association with the
Venous beading Capillary degeneration Microaneurysm
Cotton wool spots
“Activated” amoeboid microglia
“Resting” dendritic microglia
Exudate
Diabetic macular edema Normal retina
Neovascularization Diseased Müller cell
Photoreceptor damage Subretinal fluid
RPE damage (outer blood-retinal barrier) Choriocapillaris attenuation
Cysts (DME) Healthy Müller cell
Figure 1: Schematic illustration of the BRB of a healthy retina compared with DME. DME exhibits vascular changes including microaneurysms, capillary degeneration, venous beading, neovascularization, associated with activated microglia, Müller cell swelling, retinal pigment epithelium RPE damage, and choriocapillaris attenuation. Breakdown of BRB results in subretinalfluid and retinal cysts.
presence of the SRD type of DME, suggesting that inflamma- tion has an important role in the development of this pheno- type [39]. Disruption of the external limiting membrane in the SRD type of DME is accompanied by cellular damage, and this attracts scavenger cells to the retina, which in turn produce IL-6 [42]. Another possibility might be due to migration towards and accumulation of the activated microglia in the outer segments of the retinal layer, which could produce excess amount of IL-6 and lead to the collec- tion offluid in the subretinal space. Greater choroidal thick- ness is also present in the SRD type of DME, which suggests increased choriocapillaris permeability caused by excessive production of VEGF from dysfunctional RPE [33].
3.3. Hyperreflectivity in OCT and Microglial Activation.The increased image resolution provided by OCT allows detec- tion of hyperreflective foci (HF), which appear as discrete intraretinal spots but differ from hard exudates (Figure 3) [43]. Some reports hypothesized that these HF were extrava- sated lipoproteins that precede the formation of hard exudates [38, 44], and one study hypothesized that HF repre- sent microglial activation and migration [45]. Moreover, the number of HF is greater in patients with diabetes than in those without diabetes and greater in diabetic patients with DR than diabetic patients without DR [45]. This suggests that HF indicate the presence of microglial activation in the dia- betic retina and are associated with the progression of DR [45]. A recent study investigating soluble CD14, a cytokine released by microglia and macrophage, reported that DME patients with diffuse edema showed higher levels of soluble CD14 in the aqueous humor as well as more HF in the inner retina than those with focal edema [46]. This suggests that HF observed on OCT might be due to activated microglia, associated with severe inflammatory reaction [46].
The SRD type of DME is associated with an increased number of HF and significant functional impairment of the macula [42]. The presence of HF is associated with poorer
improvement of vision in patients with macular edema due to retinal vascular diseases, including DR [47, 48]. One study reported intraretinal HF in patients without detectable reti- nopathy, mainly in the inner retina initially, and this suggests an early alteration of microglia during pathogenesis of the diabetic retina [45]. The presence of more HF is also associ- ated with poorer glycemic control in patients without signif- icant DME, suggesting that HF could be useful as a marker for early-stage DR [49].
4. Therapy for Different Types of DME Based on OCT Classification
4.1. Conventional Treatment. Unfortunately, no available treatments target the early stages of DR (before the occur- rence of sight-threatening complications), except for strict glycemic control [50, 51]. Intensive treatment of dyslipid- emia with fenofibrate can reduce the rate of DR progression [50, 51], but there are controversies on the use of statin ther- apy, with some reports showing they had a protective effect [52, 53] and others reporting they increased the risk for development of diabetes [54–56].
Many clinicians have used focal/grid laser photocoagula- tion as a local treatment for DME to decrease the rate of severe vision loss, established in the Early Treatment Diabetic Retinopathy Study (ETDRS), the landmark randomized con- trolled trial [57, 58]. In a more recent clinical trial following ETDRS, focal/grid laser reduced moderate visual loss by 50% and led visual gain of≥10 letters improvement in 28%
of DME eyes receiving sham injection and prompt laser [59]. The exact therapeutic mechanism is unknown, but this procedure may destroy high-oxygen-consuming photorecep- tors and restore function of the RPE [60]. However, the eyes with the diffuse thickening type of DME are less responsive to this treatment, and these patients only have limited improve- ment in vision [61]. In diffuse type of DME, the response to laser photocoagulation was limited, with 61% showing
(a) (b)
(c) (d)
Figure2: Representative OCT images of the different types of DME: (a) diffuse retinal thickening, (b) cystoid macular edema, (c) serous retinal detachment, and (d) mixed type.
unchanged vision, 24% presenting visual deterioration, and only 15% showing visual improvement [61]. It is often insuf- ficient to restore already impaired vision due to the long- term atrophic changes from laser burns, and the resulting scotomas have led many clinicians to prefer intravitreal injec- tions [62]. Although the use of anti-VEGF agents is now the preferred and most effective treatment modality, laser photo- coagulation remains an important treatment in real-world clinical practice due to its low cost [58].
4.2. Anti-VEGF Agents.Intravitreal injections of anti-VEGF agents are replacing laser photocoagulation as the standard treatment for most patients with DME [63]. All currently available anti-VEGF agents (ranibizumab, bevacizumab, and aflibercept) provide improvements in vision, while rani- bizumab and aflibercept appear more effective for eyes with poorer baseline visual acuity [64–66]. These DME treatments also slow the progression of DR, and aflibercept provides more improvement in patients with proliferative DR at base- line [67].
In terms of OCT-based morphologicfindings, bevacizu- mab appears effective in the diffuse thickening type of DME [68, 69], and one study reported that it was also effective for the CME type of DME [70]. In SRD type which is associ- ated with external limiting membrane as well as RPE impair- ment, DME did not respond well to anti-VEGF agents [69, 71]. Ranibizumab is effective for the diffuse thickening type of DME, and fewer injections are needed [71]. Diffuse retinal
thickening may originate from increased vascular permeabil- ity due to breakdown of the inner BRB, and this may explain the efficacy of these anti-VEGF agents.
4.3. Steroid Drugs. Various studies have reported the use of steroids as a treatment for DME. Corticosteroids may improve DME by targeting different pathways than those tar- geted by anti-VEGF agents [62]. Intravitreal injection of tri- amcinolone and a dexamethasone injectable implant are widely used corticosteroid treatments for macular edema from retinal vascular diseases, including DR [62]. Intravitreal triamcinolone injections were effective for the resolution of cysts in the CME type of DME [72]. The intraretinal cysts in this type of DME arise from liquefaction and necrosis of Müller cells, related to the production of prostaglandins and inflammatory cytokines, so the greater efficacy of ste- roids may be because they more effectively reduce the swell- ing of Müller cells [21, 25, 73].
In a prospective case series, intravitreal injection of tri- amcinolone seemed to be also more effective than anti- VEGF therapy in reducing macular thickness and improving vision in patients with the SRD type of DME [74]. This result needs cautious interpretation due to relatively short-term follow-up (24 weeks) [74], as long-term complications such as cataract and elevated intraocular pressure exist with intra- vitreal injection of triamcinolone [75, 76]. A recent study reported a good response to an injectable dexamethasone implant in the eyes with SRD, no HF, and a continuous
(a) (b)
Figure3: Representative OCT images (black-and-white mode) of hyperreflective foci (HF) in a patient with the SRD type of DME. (a) HF appear as intraretinal dark dots (red arrow). (b) Resolution of SRD and reduction of HF in the same patient after intravitreal injection of bevacizumab.
Table1: Agents currently in clinical trials as treatments for inflammation in diabetic macular edema.
Drug class Molecule Administration Trial number Trial status
Steroid
Betamethasone microsphere Posterior sub-Tenon NCT01411254 Phase 2/3 completed
Dexamethasone-cyclodextrin Topical NCT01523314 Unknown
Danazol Oral NCT02002403 Phase 2 completed
NOVA63035 Intravitreal NCT00665106 Phase 1 completed
TNF alpha inhibitor Infliximab Intravitreal NCT00959725 Unknown
Tie-2 activator AKB-9778 Subcutaneous NCT02050828 Phase 2 completed
IGF-1 antagonist Teprotumumab Intravenous NCT02103283 Phase 1 completed
Integrin antagonist SF0166 Topical NCT02914613 Phase 1/2 completed
mTOR inhibitor Sirolimus Subconjunctival NCT00711490 Phase 1/2 completed
IGF = insulin-like growth factor; mTOR = mechanistic target of rapamycin; TNF = tumor necrosis factor.
ellipsoid zone at the fovea [48]. The SRD type of DME is also associated with hypoxia and inflammation, so this may explain the greater efficacy of steroids in this type of DME [74]. The SRD type of DME has higher concentrations of inflammatory cytokines in the aqueous humor and vitreous and also has increased levels of IL-6 [39]. Scavenger cells attracted by cellular damage to the external limiting mem- brane might be the source of IL-6 [42]. Thesefindings may explain the efficacy of steroids in treatment of DME.
Because of the abundant evidence that inflammation has a major role in the pathogenesis of DME, there are many ongoing clinical trials using novel drugs that target inflam- mation (Table 1) [77].
5. Conclusions
Inflammation has an important role in the pathogenesis of DME, but its exact role appears to differ among the different DME phenotypes, as determined by OCT. It is important to determine how the different DME subtypes respond to intra- vitreal injections of steroids, anti-VEGF, and other drugs to improve patient prognosis and responsiveness to treatment.
However, we are still far from a general consensus for OCT-based treatment regimens, so that further randomized controlled studies are needed to customize the best treatment for DME patients.
Conflicts of Interest
The authors declare that there are no conflicts of interest regarding the publication of this article.
Authors’Contributions
Yoo-Ri Chung and Young Ho Kim contributed equally to this work.
Acknowledgments
The authors are grateful to Ms. Hee Ra Lee of Medical Information and Media Center, Ajou University School of Medicine, for her assistance with the preparation of the figures. This work was supported by the Basic Science Research Program through the NRF funded by the Ministry of Education (NRF-2017R1D1A1A02018439).
