M.S. THESIS

Anti-Starvation Channel Allocation Algorithm in Dense 802.11 Networks

고밀도 802.11 네트워크를 위한 기아 방지 채널 할당

알고리즘

BY

DONGHYUK GWAK 곽 동 혁

FEBRUARY 2013

DEPARTMENT OF ELECTRICAL ENGINEERING AND COMPUTER SCIENCE

COLLEGE OF ENGINEERING

(3)

M.S. THESIS

알고리즘

BY

DONGHYUK GWAK 곽 동 혁

FEBRUARY 2013

DEPARTMENT OF ELECTRICAL ENGINEERING AND COMPUTER SCIENCE

COLLEGE OF ENGINEERING

(4)

알고리즘

지도교수 이 광 복

이 논문을 공학석사 학위논문으로 제출함

2013 년 2 월

서울대학교 대학원

전기 컴퓨터 공학부

곽 동 혁

곽동혁의 공학석사 학위논문을 인준함

2013 년 2 월

위 원 장 박세웅

(5)

Abstract

DONGHYUK GWAK DEPARTMENT OF ELECTRICAL ENGINEERING AND COMPUTER SCIENCE COLLEGE OF ENGINEERING SEOUL NATIONAL UNIVERSITY

Abstract - Since density of 802.11 devices has shown fast increase, starvation has become serious problem for 802.11 networks. Although there are several existing channel allocation algorithms for 802.11 networks, these algorithms still have difficulty in dealing with starvation problems. To improve user experience in dense environment, solution of starvation problem is essential. In this paper, we propose a new channel allocation algorithm which is able to relieve starvation problem efficiently. While LCCS and Hminmax set their main purpose as sum throughput maximization, this new algorithm has its aim on relieving nodes suffering from starvation. This new algorithm reduces the occurrence of the two types of starvation, carrier sense starvation and hidden node starvation,

(6)

and improves the system fairness.

Keywords: Wireless LAN, 802.11, Channel Allocation, Anti-Starvation, Fair- ness Enhancement

Student Number: 2010-23242

(7)

2.1 802.11 Orthogonal Channel Set . . . 3 2.2 Previous Works on Channel Assignment of 802.11 System . . . . 4 2.3 Carrier Sense Starvation Problem . . . 4 2.4 Hidden Node Problem . . . 5 Chapter 3 System Model and Proposed Algorithm 6 3.1 Notation conventions . . . 6 3.2 Problem Formulation . . . 7 3.3 Proposed Algorithm . . . 8

(8)

Chapter 4 Simulation Results 11

Chapter 5 Conclusion 20

Bibliography 21

Abstract in Korean 23

Acknowledgements 24

(9)

List of Figures

Figure 3.1 Notation conventions . . . 7

Figure 3.2 Flowchart . . . 9

Figure 3.3 Pseudocode of proposed algorithm . . . 10

Figure 3.4 Objective function of proposed algorithm . . . 10

Figure 4.1 Simulation environments . . . 11

Figure 4.2 Topology of situation 1 . . . 12

Figure 4.3 Goodput bar graph of situation 1 . . . 16

(10)

List of Tables

Table 4.1 Throughput and fairness comparison . . . 19

(11)

Chapter 1

Introduction

Owing to great success in industry, the density of 802.11 devices is getting higher. As the density increases, inter-802.11 interference also increases. Many channel allocation algorithms[1, 2, 5] have been devised to reduce these inter- 802.11 interference. Though existing channel allocation algorithms reduced inter- cell interference and brought improvement of sum throughput, those algorithms have possibility of letting devices suffer from starvation problems. In high density region, starvation can be main source of poor user experience. So to resolve harm of starvation, we designed novel 802.11 channel allocation algorithm.

The proposed algorithm has several features. First, it allocates orthogonal channels to nodes in order to avoid adjacent channel interference (ACI). ACI cannot be recognized as busy state of channel by receiver, so its effect on other

(12)

link is similar to that of the hidden node problem. As hidden nodes possibly induce starvation problem, algorithm proposed in this paper does not use non orthogonal channels[3]. Second, this algorithm operates in centralized manner.

It is essential to obtain the information of the whole graph to avoid carrier sense starvation. By using this information, the node recognizes which two neighbor APs are hidden to each other. Third, the AP running this algorithm receives assistance of clients associated with it. The clients send list of APs in their carrier sense range to make the AP aware of hidden APs. The proposed algorithm in this paper tries to mitigate starvation problem by utilizing assistance of other nodes as told above.

The rest of this paper is organized as follows. In Chapter 2, background knowledge about existing algorithms and starvation problems are mentioned.

Chapter 3 describes about system modeling and problem formulation. Simula- tion results are presented in Chapter 4, and conclusions are drawn in Chapter 5.

(13)

Chapter 2

Background

2.1 802.11 Orthogonal Channel Set

802.11 defines its available channel set in its standards. For some standards like 802.11a/n, all channels defined in the standards are orthogonal to other channels. But for some other standards like 802.11b/g, there are 11 to 13 non- orthogonal channels available. For these standards, orthogonal channel set can be obtained by collecting channels which have enough frequency spacing from other channels. So in 802.11b/g, 4 orthogonal channels are available to follow ISM band regulation in South Korea. And for some other region only 3 orthogonal channels are available. The proposed algorithm allocates channels in orthogonal channel set only.

(14)

2.2 Previous Works on Channel Assignment of 802.11 System

Least congested channel search (LCCS)[1] is one of most prevailing channel selection algorithm for WLAN. A WLAN AP running this algorithm detects APs in its range. Then the AP finds out which channel have the fewest number of APs operating in its range. Then the AP makes decision to operate on that least congested channel. For its simple and implementable characteristics, LCCS is widely used for WLAN devices.

Hminmax and Hsum[5] are coloring algorithms using weighted graph. These algorithm uses graph with weighted edges and the weights are determined by interference power and attenuation factor of ACI. But these algorithms should be criticized for the reason that they treat ACI as attenuated co-channel interference. Actually, harm of ACI is more serious than that of attenuated co-channel interference[4].

2.3 Carrier Sense Starvation Problem

Carrier sense starvation occurs when a node has multiple neighbor nodes which cannot sense each other. The word ”neighbor nodes” refers to nodes that are in carrier sense range of the node, so that they are in contention relationship.

If the neighbor nodes are not aware of each other, then there is possibility that

(15)

observed air is busy for a prolonged time due to channel occupation of neighbor nodes. It makes the node have much less channel access opportunity then it should be.

2.4 Hidden Node Problem

The word ”hidden node” refers to a node that is not sensible by other nodes. For contention mechanism to work in proper way, transmitters in conflict should be in sensing range of each other. If receiver is in range of interfering node and transmitter is hidden in a view of interfering node, then hidden node problem occurs. Because hidden nodes transmit traffic without knowing whether other transmitters are transmitting or not, packets collide and performance degrada- tion occurs.

(16)

Chapter 3

System Model and Proposed Algorithm

In this section, we define system model and describe detailed operation of novel anti-starvation algorithm.

3.1 Notation conventions

Notations used in this paper are described in Figure 3.1. The sets U and V are set of APs and STAs each. And V_k is a set of STAs associated with u_k. Edges are used to express carrier sense relationship between two nodes, and they are expressed as pairs of nodes. Set of the whole edges is defined as E.

C is the channel allocation map that assigns channels to element of U. I is an indicator function of edge which takes two nodes as input parameters. This

(17)

Figure 3.1: Notation conventions

function checks whether edge between the two nodes exists or not.

3.2 Problem Formulation

For the proposed algorithm, we allocate channels in orthogonal channel set as mentioned in Section 1. The usage of 802.11 non-orthogonal channels induces ACI and ACI possibly can induce problem similar to hidden node problem[4].

So we only consider channel maps allocating channels in orthogonal channel set.

And we take assumption that all APs in this system have the information of the whole carrier sense relationships. It is possible because the proposed algorithm targets client assisted enterprise environment. To collect and share

(18)

the information the system might use backhaul, control message, reporting or other methods.

The goal of this algorithm is finding a channel assignment map C which min- imizes starvation occurrence. To reach the minimum exhaustive search should be done. But exhaustive search has very high complexity here, so proposed algorithm use heuristic method to attain suboptimal result.

3.3 Proposed Algorithm

The proposed algorithm consists of three steps. Graph generation, generation of candidate channel allocation maps, calculation and comparison of objective function. The flowchart of this algorithm is exhibited in Figure 3.2. At first, generate the carrier sense relationship graph by using gathered carrier sense relationship information. Then, generate candidate channel allocation maps.

At the first time, it starts with random channel allocation map C. Then, pick an AP u_n and generate new channel allocation maps by altering channel of the AP. If there is any C^′ which has objective function value lower then that of C^′, then set the C^′ as new C. Same things will be done for every AP in the system sequentially. Order of picking AP is in descending order of degrees of those APs. Then, check whether there is any AP that changed its channel during processes. If exists, go back to the first AP picking procedure and do

(19)

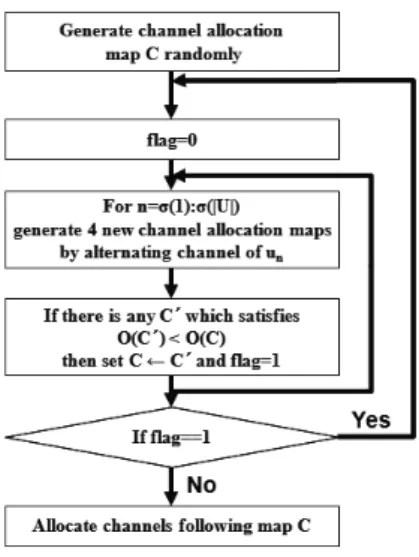

Figure 3.2: Flowchart

same things again and again. Pseudocode is presented in Figure 3.3. The σ function used here refers to permutation function {1, . . . ,|U|} → {1, . . . ,|U|}.

This function satisfies that if σ(i)< σ(j), then

|U|

X

k=1i̸=k

I(u_i, u_k). The permutation functionσ helps us to consider the high-degree nodes preferentially.

The objective function consists of summation of three terms and is shown in Figure 3.4.α(uk) is representing the occurrence of hidden node problem and β(u_k) is representing the occurrence of carrier sense starvation and γ(u_k) is representing the severity of contention. The variables w₁, w₂, w₃ are weighting factors. These values should be determined properly depending on the environment.

(20)

Figure 3.3: Pseudocode of proposed algorithm

Figure 3.4: Objective function of proposed algorithm

(21)

Chapter 4

Simulation Results

In this chapter, results of simulation are presented. Results of LCCS and Hmin- max in same environment is also presented for comparison. Following contents contain illustrative simulation results in 3 different situations. Simulations are done by NS-3 (Network Simulator 3) and the environment for simulations are briefly described in Figure 4.1. And topologies used in simulation are presented in Figure 4.2.

Figure 4.1: Simulation environments

(22)

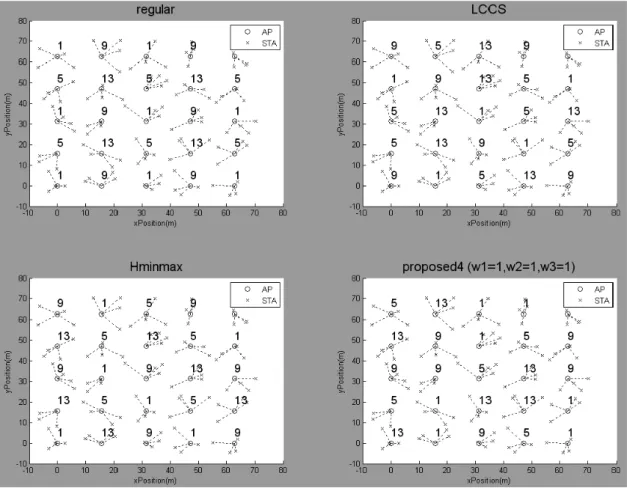

Figure 4.2: Topology of situation 1

(23)

(24)

(25)

Simulation 1, 2, 3 are performance comparison of LCCS, Hminmax and proposed algorithm. Proposed algorithm is conducted with 4 different weights {w₁, w2, w3, w4}. In situation 1 and 2, carrier sense relationship is fragile to hidden node starvation occurrence and carrier sense starvation each. In situation 3, STAs are randomly distributed in cell of its associated AP. Simulation topologies and goodput bar graphs are presented in Figure 4.3 and sum throughput and Jain’s index of simulation results are recorded in Table 4.1.

(26)

(27)

(28)

(29)

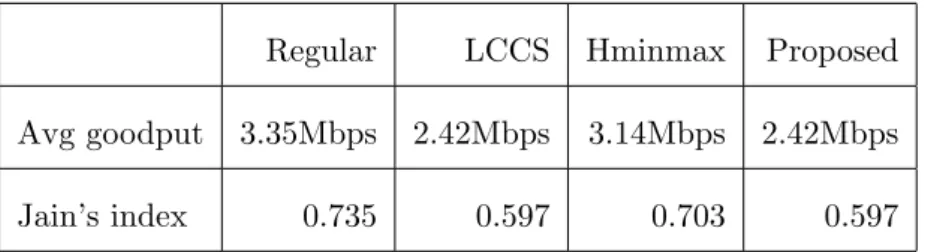

Regular LCCS Hminmax Proposed Avg goodput 3.35Mbps 2.42Mbps 3.14Mbps 2.42Mbps

Jain’s index 0.735 0.597 0.703 0.597

(a) Performance comparison of situation 1

Jain’s index 0.830 0.552 0.520 0.609

(b) Performance comparison of situation 2

Jain’s index 0.758 0.484 0.578 0.591

(c) Performance comparison of situation 3

Table 4.1: Throughput and fairness comparison

(30)

Chapter 5

Conclusion

In this paper, we have proposed novel anti-starvation channel allocation algorithm. With assistance of associated STAs and the information of carrier sense relationship, it is able to predict possible occurrence of starvation problems. By utilizing this information, this algorithm reduces the occurrence of starvation problems. In this way, the proposed algorithm enhances fairness of dense 802.11 enterprise system.

(31)

Bibliography

[1] M. Achanta, ”Method and apparatus for least congested channel scan for wireless access points,” U.S. Patent No. 20060072602, April 6, 2006.

[2] A. Mishra, V. Brik, S. Banerjee, A. Srinivasan and W. Arbaugh, “A client- driven approach for channel management in wireless LANs,” in Proceed- ings of IEEE International Conference on Computer Communications, Barcelona, Spain, Apr. 2006. pp. 1-12.

[3] C. Hua, “Starvation modeling and identification in dense 802.11 wireless community network,” inProceedings of IEEE International Conference on Computer Communications, Anchorage, Alaska, USA, May 2007. pp. 1022- 1030.

[4] J. Nachtigall, A. Zubow and J. Redlich, “The impact of adjacent channel interference in multi-radio systems using IEEE 802.11,” inProceedings of

(32)

IEEE International Conference on Wireless Communications and Mobile Computing, Crete Island, Greece, Aug. 2008. pp. 874-881.

[5] A. Mishra, S. Banerjee and W. Arbaugh, “Weighted coloring based channel assignment for WLANs,” Newsletter ACM Mobile Computing and Com- munications Review, vol. 9, no.3, pp.19-31, July 2005.
