• 검색 결과가 없습니다.

1 Ì ¦ R x ¢ Œ º ! a( a• «ù p § T “ Ó Þ # b V R ËX ê s” X ¢ GaN ; cY • «8 ý — ¤V R Ë Ä Z ØV Ä

N/A
N/A
Protected

Academic year: 2021

Share "1 Ì ¦ R x ¢ Œ º ! a( a• «ù p § T “ Ó Þ # b V R ËX ê s” X ¢ GaN ; cY • «8 ý — ¤V R Ë Ä Z ØV Ä"

Copied!
6
0
0

로드 중.... (전체 텍스트 보기)

전체 글

(1)

1 Ì ¦ R  x ¢ Œ º ! a( a• «ù p § T “ Ó Þ # b V R ËX ê s” X ¢ GaN ; cY • «8 ý — ¤V R Ë Ä Z ØV Ä

,

>

* > + ä  · - ! HA I ÷ 7 B · ' Ö < . > * å  · L |* × <+ ä  · ¼ ÿ ›0 ï F¬ £ · T „ ‘ ž$ ß

ô

 Dz D G K € ª œ@ /† < Ɠ § 6 £ x6   x õ † < Æõ ,  Òí ß – 606-791

 ò 6 BÂ 6 Ò

ô

 Dz D G ³ ðï  r õ † < ƃ  ½ ¨" é ¶ „  | Ä Ìl Õ ü t Â Ò  ” ¸™ è ƒ  ½ ¨é ß –, @ /„  , 305 (2009¸   11 Z 4 4{ 9  ~ à Î6 £ §)

Hydride vapor phase epitaxy (HVPE) ~ ½ ÓZ O Ü ¼– Ð { 9  " é ¶ GaN  ” ¸½ ¨› ¸\  ¦ + þ A$ í “ ¦, s \  ¦ ! Q( 8 £ x Ü ¼

–

Ð # Œ s  " é ¶ GaN \ x 8 £ x`  ¦ $ í  © œr (   . GaN  ” ¸m [ þ t õ   ” ¸– Ð× ¼ ! Q( 8 £ x“ É r 600, 650

C \ " f 2r  ç

ß –m ”  $ í  © œr (  Ü ¼ 9, HCl:NH

3

_  Ä »| ¾ Óq   H 1:40 < ʓ É r 1:50 Ü ¼– Ð › ¸] X  % i  . GaN \ x 8 £ x ¢ ¸ô  Ç HVPE

~

½ ÓZ O Ü ¼– Ð HCl:NH

3

= 1:50 _  Ä »| ¾ Óq \ " f 5ì  r, 20ì  r x 9 40ì  r ç ß – $ í  © œr (   . HCl:NH

3

= 1:50 _  Ä »| ¾ Ó q

\ " f $ í  © œô  Ç  ” ¸m [ þ t ! Q( 8 £ x 0 A\  $ í  © œô  Ç GaN \ x 8 £ x s  HCl:NH

3

= 1:50 \ " f $ í  © œô  Ç  ” ¸– Ð× ¼

!

Q( 8 £ x 0 A\  $ í  © œô  Ç GaN \ x 8 £ x ˜ Ð  ³ ð€  s   8¹ ¡ ¤ ¨ î ò ø Í % i  . Å Ò „   ‰ & ³p  â `  ¦ s 6   x # Œ GaN \  x

8 £ x _  + þ AI \  ¦ › ' a ¹ 1 Ï % i Ü ¼ 9, strain1 p x _    & ñ † < Æ& h  : £ ¤$ í “ É r X-‚    r] X , cathodoluminescence(CL)\  ¦ s

6   x # Œ ì  r$ 3  % i  .

PACS numbers: 73.61.Tm, 81.10.bk, 81.05.Ys Keywords:  ” ¸½ ¨› ¸, GaN \ x 8 £ x, HVPE

I. " e  ] Ø

GaN  H  © œ“ : r \ " f 3.39 eV_  f ” ] X …  ;s + þ A \  -t   ½ ™× ¼ Ì

“

s`  ¦ ° ú   H  o½ + ËÓ ü t ì ø ͕ ¸^ ‰– Ð" f, In < ʓ É r Al õ _   Œ ™" é ¶ ì ø ͕ ¸

^

‰  o½ + ËÓ ü t`  ¦ + þ A$ í ½ + É  â Ä º † < Ê| ¾ Ó    o\      ü @‚  \ " f

&

h ü @‚   t _  \  -t   ½ ™× ¼Ì “ s`  ¦ t • ¸2 Ÿ ¤ › ¸] X ½ + É Ã º e ”  Ü

¼Ù ¼– Ð µ 1 Ï F g  s š ¸× ¼, Y Us $  s š ¸× ¼ Õ ªo “ ¦ F g  s š ¸

×

¼ü < ° ú  “ É r  € ª œô  Ç F g ™ è – Ð 6 £ x6   x ½ + É Ã º e ”   [1,2]. ¢ ¸ô  Ç GaN  H \ P „  • ¸• ¸ ß ¼“ ¦ Ö 6 x& h s  Z  }   “ ¦“ : r \ " f î ß –& ñ  9, „   s 1 l x • ¸• ¸ ß ¼Ù ¼– Ð “ ¦“ : r x 9 “ ¦Ø  ¦§ 4  ™ è , hetero- junction field effect transistor, hetero-junction bipolar transistor ü < ° ú  “ É r [ j@ / „   ™ è – Е ¸ l @ /  ) a   [3–6].

Si“ É r „   s 1 l x • ¸ ß ¼“ ¦ q “ §& h  & h “ É r q 6   x, @ /€  & h Ü ¼

–

Ð s 6   x 0 p x    H s & h [ þ t – Ð “   # Œ Si l ó ø Í`  ¦ s 6   x ô  Ç GaN _  $ í  © œ“ É r  © œ{ © œô  Ç › ' a d ” `  ¦ = å J “ ¦ e ”  . Õ ª Q  Siõ  GaN  s _   H     Ô  ¦{ 9 u (17 %)ü < Z  }“ É r \ P ¨ î ‚ ½ Ó> à º _

 s (56 %)– Ð “  K  Si l ó ø Í 0 A\  GaN\  ¦ f ” ] X  $ í  © œ



 H  כ “ É r B Ä º j Ë µ[ þ t  . s  ¿ º Ó ü t| 9  ç ß –_     ü < \ P Ø Ÿ … ½ Ó>  Ã

º_  s [ þ t“ É r stress ü < ƒ  › ' a ) a ë  H ] j\  ¦  l r v  9, s  כ

“ É

r ¿ º î  r GaN \ x 8 £ x ? / Ò\ " f_  strain\  _ ô  Ç ì  rF G

E-mail: [email protected]

õ

 ç  H\ P `  ¦ Ô  ¦  Q { 9 Ü ¼v  9 ¢ ¸ô  Ç ™ è _  : £ ¤$ í `  ¦ y Œ ™™ èr †



. s  Qô  Ç ë  H ] j[ þ t`  ¦ F G4 Ÿ ¤ “ ¦, GaN_  ¾ ¡ §| 9 `  ¦ † ¾ Ó © œr v  l

 0 AK  GaAs, AlAs, AlN, ZnO, SiC 1 p x _  ! Q( 8 £ x`  ¦ s  6



x # Œ Si l ó ø Íõ  GaN \ x 8 £ x _  stress\  ¦ þ j™ è o l  0 A ô

 Ç  € ª œô  Ç ~ ½ ÓZ O [ þ t s  > hµ 1 Ï÷ &% 3   [7–10].

‘

: r ƒ  ½ ¨\ " f  H hydride vapor phase epitaxy(HVPE)  © œ u

\  ¦ s 6   x # Œ 1 " é ¶ GaN  ” ¸½ ¨› ¸ ! Q( 8 £ x`  ¦ ë ß –[ þ t “ ¦ Õ ª 0

A\  2 " é ¶ GaN \ x 8 £ x`  ¦ $ í  © œ½ + É  â Ä º, þ j& h _  ³ ð€   + þ A I

\  ¦ ° ú   H $ í  © œ› ¸| `  ¦ „ à ÐÒ  o “ ¦, $ í  © œr ç ß –\    É r GaN

\

x 8 £ x _  ¿ ºa ü < strain_  œ íl  s  ¢ - a  1 l x`  ¦ · ú ˜ ˜ Ѐ Œ ¤ .

II. ÷ m Ç] M ö U ê s0 n É

Ã

º¨ î + þ A HVPE\  ¦ s 6   x # Œ GaN  ” ¸½ ¨› ¸ ! Q( 8 £ x`  ¦ $ í



© œr †   Ê ê, Õ ª 0 A\  GaN \ x 8 £ x`  ¦ $ í  © œr v   H í  H Ü ¼– Ð r

¼

# `  ¦ ] j Œ • % i  . €  $  buffered oxide etchant(BOE) 6   x Ó 

o`  ¦ s 6   x # Œ Si(111) l ó ø Í 0 A_   ƒ  í ß – o} Œ •`  ¦ ] j

“

¦,  [ j— : r õ  B jò ø Í`  ¦ 5 Å q \ " f y Œ •y Œ • 5ì  rm ”  œ í6 £ § [ j' ‘ `  ¦

% i  . [ j' ‘ ô  Ç Si(111) l ó ø Í 0 A\  rf-Û ¼( ' a AÜ ¼– Ð AlN

\

 ¦ 25ì  r ç ß – €  • 50 nm & ñ • ¸ 7 £ x ‚ à Ìr (   . AlN 7 £ x ‚ Ã Ì r _  Û ¼ (

'  Õ þ ›! Q ? / Ò_  · ú š§ 4 “ É r 5 × 10

−3

torr, Ar Ä »| ¾ ӓ É r 50

-461-

(2)

sccm, e  ¦  Ý ¼  0 >  H 200 W – Ð Ä »t  % i  . Õ ª Ê ê à º

¨ î

+ þ A HVPE\  ¦ s 6   x # Œ GaN  ” ¸½ ¨› ¸– Ð s À Ò# Q”   ! Q (

8 £ x`  ¦ $ í  © œr (   . HVPE_  „  l – Ѝ  H ™ èÛ ¼% ò % i (source zone), ì ø Í6 £ x% ò % i (react zone), $ í  © œ% ò % i (growth zone)_  [

j Òì  r Ü ¼– Ð  ¾ º# Q y Œ •y Œ •_  “ : r • ¸\  ¦ 1 l qw n & h Ü ¼– Ð › ¸] X  % i



. ™ èÛ ¼% ò % i “ É r 850

C, ì ø Í6 £ x% ò % i “ É r 1050

C – Ð y Œ •y Œ • [ O & ñ

% i Ü ¼ 9, $ í  © œ% ò % i _  “ : r • ¸  H ì ø Í6 £ x% ò % i \ " f Y O # Q| 9 à º2 Ÿ ¤ y

Œ

™™ è   H “ : r • ¸ ° ú כ`  ¦ thermocouple – Ð 8 £ ¤& ñ ô  Ç Ê ê á Ԗ Ð { 9

`

 ¦ ë ß –[ þ t # Q Æ Ò& ñ % i  . $ í  © œ% ò % i _  “ : r • ¸ 600

C x 9 650

C{ 9  M : y Œ •y Œ •  ” ¸m [ þ t õ   ” ¸– Ð× ¼ + þ AI _  GaN  ” ¸½ ¨

›

¸ ! Q( 8 £ x s  $ í  © œ÷ &% 3   [11–13]. GaN ! Q( 8 £ x“ É r 2 r ç ß – 1

l

x î ß – $ í  © œr (  Ü ¼ 9, HCl:NH

3

Û ¼| ¾ Ó q Ö  ¦“ É r 1:40 < ʓ É r 1:50 s % 3  . s M : N

2

H o # Q Û ¼_  Ä »| ¾ ӓ É r 1140 sccm Ü ¼

–

Ð “ ¦& ñ % i  . AlN/Si(111), GaN ! Q( 8 £ x s  ” > r F    H AlN/Si(111), x 9 Al

2

O

3

l ó ø Í 0 A\  1 l x{ 9 ô  Ç › ¸| \ " f GaN

\

x 8 £ x`  ¦ $ í  © œr v “ ¦ Õ ª   õ \  ¦ q “ § % i  . 1050

C _

$ í

 © œ% ò % i  “ : r • ¸\ " f GaN \ x 8 £ x`  ¦ $ í  © œr (  Ü ¼ 9, s M : HCl õ  NH

3

Û ¼| ¾ Ó_  q Ö  ¦“ É r 1:50, H o # Q Û ¼_  Ä »| ¾ ӓ É r 500 sccm s % 3  . Ä º‚   GaN \ x 8 £ x`  ¦ 5ì  r ç ß – $ í  © œr v “ ¦

³

ð€  `  ¦ › ' a ¹ 1 Ïô  Ç Ê ê, Õ ª   õ \  ¦ ž Ð@ /– Ð  r  GaN  ” ¸m [ þ t x 9

 ” ¸– Ð× ¼ 0 A\  GaN \ x 8 £ x`  ¦ y Œ •y Œ • 20ì  r, 40ì  rm ”  $ í  © œ r

†   \ x 8 £ x _  ³ ð€  `  ¦ q “ § % i  . $ í  © œ  ) a GaN \ x 8 £ x

“ É

r Å Ò „   ‰ & ³p  â (scanning electron microscopy)`  ¦ s  6



x # Œ ³ ð€  õ  é ß –€  `  ¦ › ' a ¹ 1 Ï % i Ü ¼ 9, X-‚    r] X (X-ray diffraction) õ  cathodoluminescence(CL)\  ¦ s 6   x # Œ ½ ¨

›

¸& h  : £ ¤$ í `  ¦ ì  r$ 3  % i  .

III. ÷ m Ç] M ö + s ÇÊ Ý õ m Í À X Ø8 ý

Figure 1“ É r œ íl  $ í  © œ— ¸_ þ v`  ¦ › ' a ¹ 1 Ï l  0 A # Œ  ” ¸

½

¨› ¸ ! Q( 8 £ x 0 A\  5ì  r ç ß – $ í  © œr †   GaN \ x 8 £ x ³ ð€  _  Å

Ò „   ‰ & ³p  â  ”  s  . Fig. 1_  (a)  H HCl:NH

3

= 1:50 _  Ä »| ¾ Óq \ " f $ í  © œr †    ” ¸m [ þ t(inset Õ ªa Ë >) 0 A\ 

$ í

 © œ  ) a \ x 8 £ x, (b)  H HCl:NH

3

= 1:40 \ " f $ í  © œr †

”

¸m [ þ t(inset Õ ªa Ë >) 0 A\  $ í  © œ  ) a \ x 8 £ x, (c)  H HCl:NH

3

= 1:50 \ " f $ í  © œr †    ” ¸– Ð× ¼(inset Õ ªa Ë >) 0 A\  $ í  © œ  ) a

\

x 8 £ x, Õ ªo “ ¦ (d)  H HCl:NH

3

= 1:40 \ " fÜ ¼– Ð $ í  © œr

†

  ” ¸– Ð× ¼(inset Õ ªa Ë >) 0 A\  $ í  © œ  ) a GaN \ x 8 £ x`  ¦

 · p . Fig. 1(a)_  ³ ð€  s  1(b)_  ³ ð€  ˜ Ð   8¹ ¡ ¤ ¨ î ò ø Í

>  $ í  © œ  ) a  כ `  ¦ ^  ¦ à º e ”  . s   H  ” ¸m [ þ t`  ¦ ! Q( 8 £ x Ü

¼– Ð  6   x ½ + É  â Ä º\   H U  ´s   ú ª“ ¦ x 9 • ¸ Z  } >  $ í  © œô  Ç

½

¨› ¸(Fig. 1(b) inset)˜ Ð  U  ´s  U  ´“ ¦ x 9 • ¸ ± ú “ É r ½ ¨

›

¸(Fig. 1(a) inset)\  ¦ ! Q( 8 £ x Ü ¼– Ð  6   x   H  כ s  2 " é ¶

\

x 8 £ x _  $ í  © œ\   8¹ ¡ ¤ ´ òõ & h e ” `  ¦ ˜ Ð# Œï  r  . s   H GaN

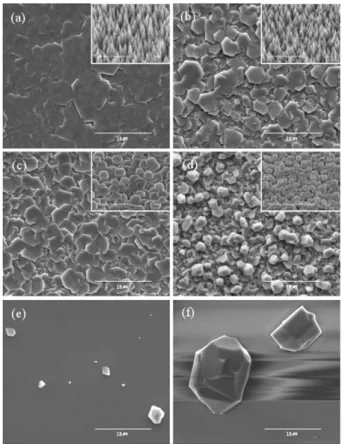

Fig. 1. Plane-view SEM images of GaN epi-layers grown for 5 min with nanoneedle buffer ((a) and (b)), nanorod buffer ((c) and (d)), and AlN buffer (e) on Si(111) sub- strates and an Al

2

O

3

substrate without buffer layer (f).

\

x 8 £ x s  $ í  © œ½ + É M : œ íl \   H GaN   ” ¸m [ þ t  s _  /

B

NF G`  ¦ G Ä º€  " f $ í  © œ   H X <, U  ´s  U  ´“ ¦ x 9 • ¸ ± ú “ É r



” ¸m [ þ t + þ AI _  ! Q( 8 £ x s  GaN \ x 8 £ x \ " f ç  H\ P s  µ 1 Ï Ò q

t   H  כ `  ¦ ´ òõ & h Ü ¼– Ð % 3 ] j  9 s   H / B I à º¨ î ~ ½ ӆ ¾ ÓÜ ¼

–

Ð_  $ í  © œ`  ¦  Ö ¸ µ 1 Ï >  l  M :ë  H Ü ¼– Ð Ò q ty Œ •  ) a  .   " f Ã

ºf ” ~ ½ ӆ ¾ ÓÜ ¼– Ð $ í  © œ† < Ê\     y Œ • GaN Õ ªA “  [ þ t _  €  & h  s

 / å L5 Å q y  & 4 R " f– Ð   ½ + Ë >  ÷ &Ù ¼– Ð „  ^ ‰& h Ü ¼– Ð  8 ¨ î ò ø

Íô  Ç ³ ð€  `  ¦ s À Ò>   ) a  . ô  Ǽ # ,  ” ¸m [ þ t ! Q( 8 £ x _   â Ä

ºü <  H  Ø Ô> ,  ” ¸– Ð× ¼ 0 A\  $ í  © œ  ) a GaN \ x 8 £ x“ É r – Ð

×

¼_  f ”  â s   H ! Q( 8 £ x 0 A\  $ í  © œ  ) a  כ (Fig. 1(c))s  – Ð

×

¼_  f ”  â s   Œ •“ É r ! Q( 8 £ x 0 A\  $ í  © œ  ) a  כ (Fig. 1(d))˜ Ð



 threading dislocation(TD)_  x 9 • ¸  © œ@ /& h Ü ¼– Ð  Œ •

"

f › ¸F K  8 ¨ î ò ø Í >  $ í  © œ  ) a  כ `  ¦ ^  ¦ à º e ”  . ì ø ̀  ,

”

¸m [ þ t s    ” ¸– Ð× ¼ü < ° ú  “ É r ! Q( 8 £ x s  \ O   H AlN/Si < Ê

“

É r Al

2

O

3

l ó ø Í 0 A\ " f  H GaN \ x 8 £ x s  ¸ ú ˜ $ í  © œ t  · ú §

€

Œ

¤  H X <, s  כ “ É r AlN/Si s   Al

2

O

3

l ó ø Í ³ ð€  \ " f  H $ í



© œ œ íl \  GaN_  Ù þ ˜ o ç  H{ 9  >  ¸ ú ˜ s À Ò# Q t t  · ú §

€

Œ

¤6 £ §`  ¦ _ p ô  Ç .   " f,  ” ¸½ ¨› ¸ ! Q( 8 £ x`  ¦  6   x ½ + É M : GaN \ x 8 £ x _  $ í  © œs   8¹ ¡ ¤ ¸ ú ˜ { 9 # Q z Œ ™`  ¦ · ú ˜ à º e ”  . ¢ ¸ ô

 Ç, HClõ  NH

3

_  Ä »| ¾ Óq  1:40{ 9  M : ˜ Ð  1:50{ 9  M : $ í

(3)

Fig. 2. Plane-view SEM images of GaN layers grown for 20 min (left-hand column) and 40 min (right-hand column) on ((a) and (b)) nanoneedles, and ((c) and (d)) nanorods.



© œô  Ç  ” ¸½ ¨› ¸ ! Q( 8 £ x 0 A\ " f  8¹ ¡ ¤ ¨ î ò ø Íô  Ç ³ ð€  _  GaN

\

x 8 £ x s  $ í  © œ H † d`  ¦ · ú ˜ à º e ”  .



 " f HClõ  NH

3

_  Ä »| ¾ Óq  1:50\ " f $ í  © œ  ) a  ” ¸ m

[ þ t x 9  ” ¸– Ð× ¼ 0 A\  GaN \ x 8 £ x`  ¦ y Œ •y Œ • 20ì  r, 40ì  r

$ í

 © œr †   Ê ê ³ ð€   + þ A © œ`  ¦ › ' a ¹ 1 Ï % i  . Fig. 2  H  ” ¸m  [

þ t((a), (b)) õ   ” ¸– Ð× ¼((c), (d)) 0 A\  y Œ •y Œ • 20ì  r((a), (c)) x 9

40ì  rm ” ((b), (d)) $ í  © œô  Ç GaN \ x 8 £ x ³ ð€  _  Å Ò „



‰ & ³p  â  ”  s  .  ” ¸m [ þ t 0 A\  $ í  © œ  ) a GaN \ x 8 £ x

“ É

r à º¨ î ~ ½ ӆ ¾ ÓÜ ¼– Ð_  $ í  © œs   Ö ¸ µ 1 Ï l  M :ë  H \  r ç ß –s  7 £ x

† < Ê\     ¹ ¢ ¤ y Œ •+ þ AI _  Õ ªA “  [ þ t s  ' ‘   ½ + Ë5 g4 R" f ¨ î ò ø Í ô

 Ç ³ ð€  `  ¦ s À ҍ  H  כ `  ¦ S X ‰ “  ½ + É Ã º e ”  . ì ø ̀  ,  ” ¸– Ð× ¼ 0

A\  $ í  © œ  ) a GaN \ x 8 £ x“ É r TD\  ¦ t “ ¦ $ í  © œ l  M : ë

 H \  r ç ß –s  7 £ x   8 • ¸ ¹ ¢ ¤ y Œ •+ þ AI _  Õ ªA “  [ þ t s  ¢ - a„   y

 ½ + Ë5 gt t  · ú §“ ¦, y Œ •y Œ •_  + þ AI \  ¦ Ä »t   9 $ í  © œ   H  כ

`

 ¦ · ú ˜ à º e ”  . 7 £ ¤, $ í  © œr ç ß –s  t ± ú ˜Ã º2 Ÿ ¤  ” ¸– Ð× ¼ ! Q(  8

£

x \ " f ˜ Ð   ” ¸m [ þ t ! Q( 8 £ x \ " f_  GaN \ x 8 £ x s   8

¹

¡

¤ ¨ î ò ø Íô  Ç €  `  ¦ ë ß –[ þ t # Q“ ¦ e ” 6 £ §`  ¦ · ú ˜ à º e ”  .

Figure 3“ É r  ” ¸m [ þ t 0 A\  y Œ •y Œ • 5ì  r, 20ì  r, 40ì  r $ í  © œ r

†   GaN \ x 8 £ x é ß –€  _  „   Å Ò ‰ & ³p  â  ”  s  .

”

¸m [ þ t 0 A\  5ì  r, 20ì  r, Õ ªo “ ¦ 40ì  r $ í  © œô  Ç \ x 8 £ x _  ¿ º a

  H y Œ •y Œ • 0.544 µm, 2.471 µm, 3.353 µm– Ð $ í  © œr ç ß –s  7

£

x † < Ê\     \ x 8 £ x _  ¿ ºa  ¢ ¸ô  Ç ‚  + þ A& h Ü ¼– Ð 7 £ x



 H Æ Ò[ j\  ¦ ˜ Г    (Fig. 5 ‚ à Г ¦).



” ¸m [ þ t 0 A\  $ í  © œô  Ç GaN_    & ñ $ í `  ¦ · ú ˜  ˜ Ðl  0 A K

 X-‚    r] X Á º] (\  ¦ 8 £ ¤& ñ % i  . Fig. 4\ " fü < ° ú  s  — ¸

Ž

 H \ x 8 £ x \ " f ¹ ¢ ¤ ~ ½ Ó    GaN_  (0002) x ß ¼     9, GaN \ x 8 £ x _  ¿ ºa  7 £ x ½ + Éà º2 Ÿ ¤ (0002) x ß ¼_  0 A

Fig. 3. Cross-sectional SEM images of GaN layers grown for (a) 5 min, (b) 20 min, and (c) 40 min on nanoneedles.

Table 1. Analysis results of (0002) calculated by mea- surement program.

Growth time 2θ FWHM d-spacing c-axis lattice (min) (degree) (degree) (˚ A) constant(˚ A)

5 34.6387 0.2040 2.58752 5.17504 20 34.6030 0.3000 2.59011 5.18022 40 34.5786 0.3600 2.59188 5.18376

u

  H & h & h   Œ •“ É r y Œ • A á ¤ Ü ¼– Ð s 1 l x   H  כ `  ¦ · ú ˜ à º e ”  . 8 £ ¤

&

ñ  ) a GaN (0002) x ß ¼_  2θ_  ° ú כõ  ì ø Íu ; Ÿ ¤ (full width at half maximum: FWHM)`  ¦ Table 1 \    ? /% 3  .

Figure 5  H $ í  © œr ç ß –\    É r GaN \ x 8 £ x _  ¿ ºa ü <

c-» ¡ ¤     © œÃ ºü <_  › ' a > \  ¦ ˜ Ð# ŒÅ ғ ¦ e ” Ü ¼ 9,  ” ¸m [ þ t

(4)

Fig. 4. XRD spectra of GaN layers grown for 5, 20, and 40 min on nanoneedles.

Fig. 5. Relationship between c-axis lattice constant and layer thickness according to the growth time.

0

A\  $ í  © œô  Ç GaN \ x 8 £ x \ " f_  ï ß –# Œ strain_     oü <

q

“ § l  0 AK  wurzite GaN\  @ /K  { 9 ì ø Í& h Ü ¼– Ð · ú ˜ 9”   c=5.1853˚ A ° ú כ`  ¦ † < Êa  ³ ðr  % i  . Õ ªa Ë >\ " f ˜ Ѝ  H  ü < ° ú   s

  ” ¸m [ þ t 0 A\  $ í  © œô  Ç GaN \ x 8 £ x“ É r ¿ ºa  7 £ x † < Ê

\

    compressive strains  & h   ¢ - a  o÷ &  H  כ `  ¦ S X ‰ “  ½ + É Ã

º e ”  . Hiramatsu 1 p x \  _  €   Al

2

O

3

0 A\  GaN \ x 8 £ x

`

 ¦ $ í  © œr ~  ´ M : ¿ ºa  100 µm\  ¦  Å # Q  c-» ¡ ¤     © œÃ º



 H free-standing  © œI _  ° ú כ“   5.1853˚ A \  • ¸² ú ˜ô  Ç  [14].

t ë ß – Kusakabe 1 p x“ É r radio-frequency plasma-assisted molecular beam epitaxyZ O Ü ¼– Ð   s # Q l ó ø Í 0 A_

”

¸– Ð× ¼ ! Q( 8 £ x`  ¦ s 6   x # Œ GaN \ x 8 £ x`  ¦ $ í  © œr ( ” Ü ¼– Ð

Fig. 6. CL spectra of GaN layers grown for 40 min on nanoneedles.

+

‹, 2.700 µm ¿ ºa \ " f free-standing  © œI \    H] X    H c=5.1848˚ A ° ú כ`  ¦ % 3 % 3   [15]. ‘ : r z  ´+ « >\ " f  H HVPE Z O Ü ¼

–

Ð Si l ó ø Í 0 A\  + þ A$ í  ) a  ” ¸m [ þ t`  ¦ s 6   x # Œ GaN \ x  8

£

x`  ¦ $ í  © œr (  “ ¦, $ í  © œr ç ß –s  40ì  r{ 9  M : 3.353 µm ¿ ºa 

\

" f free-standing  © œI \    H] X    H c=5.1838˚ A ° ú כ`  ¦ % 3

%

3  .  ” ¸m [ þ t _  + þ AI ü < ß ¼l \  ¦ & h ] X y  › ¸] X  €    8 · û ª

“

É r GaN \ x 8 £ x _  ¿ ºa \ " f• ¸ free-standing  © œI _   



© œÃ º\    H] X    H   õ \  ¦ % 3 `  ¦ à º e ” `  ¦  כ Ü ¼– Ð l @ / “ ¦ e ”

Ü ¼ 9 ‰ & ³F  › ' aº  z  ´+ « >“ É r ”  ' Ÿ  ×  æ \  e ”  .

Figure 6“ É r  ” ¸m [ þ t 0 A\  40ì  r ç ß – $ í  © œô  Ç GaN \ x  8

£

x _  CL 8 £ ¤& ñ   õ s  . 362 nm (∼3.425 eV)\ " f band edge emission õ  › ' aº   ) a Å Ò  ) a x ß ¼, 670-800 nm  s

\

" f  H Ô  ¦í  HÓ ü t < ʓ É r   † < Ê 1 p x \  l “  ô  Ç x ß ¼ y Œ •y Œ • › ' a8 £ ¤

÷

&% 3   [16]. { 9 ì ø Í& h Ü ¼– Ð GaN  H compressive strain`  ¦ ~ à Î

`

 ¦ M : \  -t   ½ ™× ¼Ì “ ss  V , # Qt “ ¦, tensile strain`  ¦ ~ à Î`  ¦ M

:  ½ ™× ¼Ì “ ss   Œ • ”   “ ¦ ˜ Г ¦ ÷ &% 3   [17–19]. ‘ : r z  ´+ « >\ 

"

f 8 £ ¤& ñ  ) a GaN \ x 8 £ x“ É r { 9 ì ø Í& h Ü ¼– Ð · ú ˜ 9”   GaN bulk _

 \  -t   ½ ™× ¼Ì “ s(∼3.39eV)˜ Ð   H ° ú כ`  ¦ t   H X <, s  כ

“ É

r  ” ¸m [ þ t 0 A\  40ì  r 1 l x î ß – $ í  © œô  Ç GaN \ x 8 £ x s  ¢ - a„   y

 s  ¢ - a ÷ &t  3 l w “ ¦ compressive strain \  e ” l  M :ë  H s

 “ ¦ Ò q ty Œ •ô  Ç .

IV. + s Ç Â ] Ø

‘

: r z  ´+ « >\ " f  H HVPE  © œu \  ¦ s 6   x # Œ 1 " é ¶ GaN

”

¸½ ¨› ¸\  ¦ + þ A$ í “ ¦ s \  ¦ ! Q( 8 £ x Ü ¼– Ð # Œ 2 " é ¶ GaN \  x

8 £ x`  ¦ $ í  © œ % i  .  ” ¸m [ þ t`  ¦ ! Q( 8 £ x Ü ¼– Ð  6   x ½ + É  â Ä

º U  ´s  U  ´“ ¦ x 9 • ¸ ± ú “ É r ½ ¨› ¸ 2 " é ¶ \ x 8 £ x _  $ í



© œ\   8¹ ¡ ¤ ´ òõ & h s % 3  . ô  Ǽ # ,  ” ¸– Ð× ¼ — ¸€ ª œ_  ! Q( 8 £ x

(5)

`

 ¦ s 6   x ½ + É  â Ä º\   H f ”  â s   H  ” ¸– Ð× ¼ 0 A\ " f ³ ð€  s

›

¸F K  8 ¨ î ò ø Íô  Ç GaN \ x 8 £ x s  $ í  © œ÷ &% 3  . ¢ ¸ô  Ç \ x  8

£

x`  ¦ 20ì  r, 40ì  r $ í  © œr &  \ x 8 £ x _  ³ ð€   + þ A © œ`  ¦ › ' a ¹ 1 Ïô  Ç



õ ,  ” ¸m [ þ t 0 A\ " f  H à º¨ î $ í  © œs   Ö ¸ µ 1 Ï Ù ¼– Ð $ í  © œ r

ç ß –s  7 £ x  H † d \     ¹ ¢ ¤ y Œ •+ þ AI _  GaN Õ ªA “  [ þ t s  " f

–

Ð ½ + Ë5 g4 R" f & h   ¨ î ò ø Íô  Ç ³ ð€  `  ¦ + þ A$ í >  ÷ &t ë ß –,  ” ¸

–

Ð× ¼ 0 A\  $ í  © œô  Ç GaN \ x 8 £ x“ É r TD\  ¦ t “ ¦ $ í  © œ  l

 M :ë  H \  ¹ ¢ ¤ y Œ •+ þ AI \  ¦ Ä »t   9 $ í  © œs  { 9 # Qz Œ ™`  ¦ · ú ˜ à º e ”

% 3  . 7 £ ¤  ” ¸– Ð× ¼ 0 A\ " f ˜ Ð   ” ¸m [ þ t 0 A\ " f GaN

\

x 8 £ x s   8 ¨ î ò ø Í >  $ í  © œ % i  . $ í  © œr ç ß –s  7 £ x † < Ê

\

    GaN \ x 8 £ x _  ¿ ºa   H ‚  + þ A& h Ü ¼– Ð 7 £ x  % i “ ¦ compressive strain“ É r & h   ¢ - a  o÷ &% 3 Ü ¼ 9, 40ì  r ç ß – $ í  © œô  Ç Ê

ê\  \ x 8 £ x _  ¿ ºa   H 3.353 µm – Ð c-» ¡ ¤     © œÃ º free- standing  © œI \    H] X    H 5.1838˚ A Ü ¼– Ð   z Œ ¤ . ¢ ¸ô  Ç CL X <s ' \ " f  ü @‚    © œ_  Å Ò  ) a x ß ¼ { 9 ì ø Í& h Ü ¼– Ð

· ú

˜ 9”   GaN bulk_  \  -t   ½ ™× ¼Ì “ s˜ Ð   H ° ú כ“   3.425eV

\

" f    Ù ¼– Ð GaN \ x 8 £ x s  ¢ - a„  y  s  ¢ - a ÷ &t  3 l w

“

¦ compressive strain \  e ”  “ ¦ Ò q ty Œ •  ) a  .

Y

c p w Š à U Ø ”  ô

[1] P. A. Donce and D. P. Bour, Nature 386, 27 (1997).

[2] S. Yamazaki, T. Yatsui, M. Ohtsu, T. W. Kim and H. Fujioka, Appl. Phys. Lett. 85, 3059 (2004).

[3] S. P. McAlister, Solid-State Electronics 51, 142 (2007).

[4] H. Tang, J. A. Bardwell, J. Lapointe, S. Raymond, J. Fraser, S. Haffouz and S. Rolfe, J. Cryst. Growth 301, 442 (2007).

[5] K. P. Lee, A. M. Dabiran, P. P. Chow, A. Osinsky, S. J. Pearton and F. Ren, Solid-State Electronics 48, 37 (2004).

[6] H. Morkoc, S. Strite, G. B. Gao, M. E. Lin, B.

Sverdlov and M. S. Burns, J. Appl. Phys. 76, 1363 (1994).

[7] L. Liu and J. H. Edgar, Mater. Sci. Eng. R 37, 61 (2002).

[8] M. K. Bae, D. H. Shin, S. N. Yi, J. H. Na, A. M.

Green, R. A. Taylor, S. H. Park and N. L. Kang, J.

Korean Phys. Soc. 49, 1092 (2006).

[9] W. Ju, D. A. Gulino and R. Higgins, J. Cryst.

Growth 263, 30 (2004).

[10] H. J. Choi, D. H. Kim, T. G. Kim and Y. M. Sung, Chem. Phys. Lett. 413, 479 (2005).

[11] J. Y. Moon, H. Y. Kwon, M. J. Shin, Y. J. Choi, H.

S. Ahn, J. H. Chang, S. N. Yi, Y. J. Yun, D. H. Ha and S. H. Park, Mater. Lett. 63, 2695 (2009).

[12] H. Y. Kwon, M. J. Shin, Y. J. Choi, J. Y. Moon, H.

S. Ahn, S. N. Yi, S. Kim, D. H. Ha and S. H. Park, J. Cryst. Growth, 311, 4146 (2009).

[13] J. Y. Moon, H. Y. Kwon, Y. J. Choi, M. J. Shin, S.

N. Yi, Y. J. Yun, S. Kim, D. H. Ha and J. Y. Sug, J. Alloys Comp. 480, 853 (2009).

[14] K. Hiramatsu, T. Detchprohm and I. Akasaki, Jpn.

J. Appl. Phys. 32, 1528 (1993).

[15] K. Kusakabe, A. Kikuchi and K. Kishino, Jpn. J.

Appl. Phys. 40, L192 (2001).

[16] S. M. Kang, T. I. Shin, Duc V. Dinh, J. H. Yang, S.-W. Kim and D.H. Yoon, Microelectronics Journal 40, 373 (2009).

[17] H. W. Seo, S. Y. Bae, J. Park, H. Yang, K. S. Park and S. Kim, J. Chem. Phys. 116, 9492 (2002).

[18] F. Ben Nasr, A. Matoussi, R. Salh, S. Guermazi, H.-J. Fitting and Z. Fakhfakh, Physica E 41, 454 (2009).

[19] S. Kamiyama, K. Ohnaka, M. Suzuki and T.

Uenoyama, Jpn. J. Appl. Phys. 34, L821 (1995).

(6)

Characteristic Analysis of a GaN Epilayer Grown on a GaN Buffer with One-dimensional Nanostructures

M. J. Shin, H. Y. Kwon, J. Y. Moon, Y. J. Choi, H. S. Ahn and S. N. Yi

Department of Applied Science, Korea Maritime University, Busan 606-791

D. H. Ha

Division of Advanced Technology, Korea Research Institute of Standards and Science, Daejeon 305 (Received 4 November 2009)

We studied a GaN epilayer grown on a GaN buffer with one-dimensional nanostructures by using a hydride vapor phase epitaxy (HVPE) facility. The nanoneedle- and nanorod-buffer layers were grown for 2 hours at growth temperatures of 600 and 650

C and under HCl:NH

3

gas flow rates of 1:40 and 1:50, respectively. GaN epilayers were grown for 5, 20, and 40 minutes under a HCl:NH

3

gas flow rate of 1:50. The GaN epilayer grown on a nanoneedle buffer was found to have better properties than that grown on a nanorod buffer. The morphologies of the GaN epilayers were analyzed by using scanning electron microscopy, and the crystal structures were examined by using X-ray diffraction and cathodoluminescence.

PACS numbers: 73.61.Tm, 81.10.bk, 81.05.Ys Keywords: Nanostructure, GaN epilayer, HVPE

E-mail: [email protected]

수치

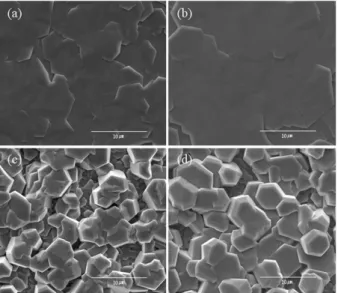

Fig. 1. Plane-view SEM images of GaN epi-layers grown for 5 min with nanoneedle buffer ((a) and (b)), nanorod buffer ((c) and (d)), and AlN buffer (e) on Si(111)  sub-strates and an Al 2 O 3 substrate without buffer layer (f).
Fig. 3. Cross-sectional SEM images of GaN layers grown for (a) 5 min, (b) 20 min, and (c) 40 min on nanoneedles.
Fig. 4. XRD spectra of GaN layers grown for 5, 20, and 40 min on nanoneedles.

참조

관련 문서

First, we study the synchronizability of the proteins in the same functional classes of the protein-protein interaction network (PIN).. In order to define the hierarchy among

The neutron beam distribution at the zero an- gle and reflection position of the vertical type neutron reflectometer,  : calculated beam distribution at the zero angle position ; •

We found that the simulation results without an estimate of the joint density of states yield a biased distribution of the order parameter.. PACS numbers: 05.20.-y, 05.70.Ln,

Abrasion-fission fragments with 200 MeV/u U beams allow radioactive isotopes to be available near the neutron drip line, and these RI-beams have large angular and

Thin Film Materials Research Center, Korea Institute of Science and Technology, Seoul 130-650 and Display and Nanosystem Laboratory, College of Engineering, Korea University,

We also measured the attenuation lengths to be 46 cm for the long component and 5.8 cm for the short component by using several GeV hadron beams at the KEK-PS π2 beamline, and we

We demonstrate improvement in a of 405-nm GaN-based light-emitting diode (LED) by intro- ducing an indium-tin-oxide (ITO) transparent metal electrode (TME) and lateral epitaxy on

The form of the prob- ability distribution of the guessed directions cannot be fixed without information on the concrete encoding/decoding method, but it is not arbitrary. We
