48 digital electronic gmbh Tel. +49 (0) 8221/708-0 Fax. +49 (0) 8221/708-80
All specifications subject to change without notice.
104.0±0.5
0.4 3.0 ± 0.3
64.0±0.374.0±0.397.0±0.2 2.5±0.3P2.54X19=48.26
13.74 ± 0.3
20
4- Φ 3.0
20-Φ1.0
1.8
1
1.6 ± 0.2
240X128 DOTS
107.95 128.0 ± 0.3 114.0 ± 0.3 138.0 ± 0.2 144.0 ± 0.5
57.55
4- Φ 7.0 MAX13.8
4.6 ± 0.3
49.0±0.3 19.0±0.360.0±0.3
5.0±0.2
K A A
0.05
0.05
0.4
A
4-Φ1.0
2- Φ 2.0

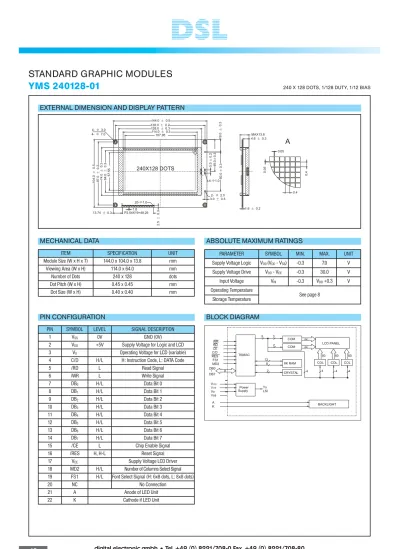

STANDARD GRAPHIC MODULES
YMS 240128-01
240 X 128 DOTS, 1/128 DUTY, 1/12 BIASEXTERNAL DIMENSION AND DISPLAY PATTERN
Vo Supply LSI
K A Vss
BACKLIGHT CRYSTAL
8K RAM CE
DB0
V V DB7~ 8
MD2 FS1 C/D RES
2
Power To
8 13 T6963C RD
WR
5 COM
2 COM
3
4 4 4 4
COL 80
COL COL
80 80
LCD PANEL 64
64
DD EE
PIN SYMBOL LEVEL SIGNAL DESCRIPTION
1 VSS 0V GND (0V)
2 VDD +5V Supply Voltage for Logic and LCD
3 VO Operating Voltage for LCD (variable)
4 C/D H/L H: Instruction Code, L: DATA Code
5 /RD L Read Signal
6 /WR L Write Signal
7 DB0 H/L Data Bit 0
8 DB1 H/L Data Bit 1
9 DB2 H/L Data Bit 2
10 DB3 H/L Data Bit 3
11 DB4 H/L Data Bit 4
12 DB5 H/L Data Bit 5
13 DB6 H/L Data Bit 6
14 DB7 H/L Data Bit 7
15 /CE L Chip Enable Signal
16 /RES H, H-L Reset Signal
17 VEE Supply Voltage LCD Driver
18 MD2 H/L Number of Columns Select Signal 19 FS1 H/L Font Select Signal (H: 6x8 dots, L: 8x8 dots)
20 NC No Connection
21 A Anode of LED Unit
22 K Cathode if LED Unit
PARAMETER SYMBOL MIN. MAX. UNIT
Supply Voltage Logic VDD (VDD- VSS) -0.3 7.0 V Supply Voltage Drive VDD- VEE -0.3 30.0 V
Input Voltage VIN -0.3 VDD+0.3 V
Operating Temperature
See page 8 Storage Temperature
ITEM SPECIFICATION UNIT
Module Size (W x H x T) 144.0 x 104.0 x 13.8 mm
Viewing Area (W x H) 114.0 x 64.0 mm
Number of Dots 240 x 128 dots
Dot Pitch (W x H) 0.45 x 0.45 mm
Dot Size (W x H) 0.40 x 0.40 mm
BLOCK DIAGRAM PIN CONFIGURATION
ABSOLUTE MAXIMUM RATINGS
MECHANICAL DATA
ITEM SYMBOL CONDITION
SPEC. VALUE
UNIT MIN. TYP. MAX.
Supply Voltage VLED 3.6 4.1 4.5 V
Power Consumption PLED IF =720mA 2950 mW
Luminous IV IF =720mA 133 190 cd/m2
PARAMETER SYMBOL MIN. MAX. UNIT
C/D Setup Time tCDS 100 ns
C/D Hold Time tCDH 10 ns
/CE,/RD,/WR Pulse Width tCE tRD tWR 80 ns
Data Setup Time tDS 80 ns
Data Hold Time tDH 40
Access Time tACC 150 ns
Output Hold Time tOH 10 50 ns
digital electronic gmbh Tel. +49 (0) 8221/708-0 Fax. +49 (0) 8221/708-80 49
All specifications subject to change without notice.
STANDARD GRAPHIC MODULES
YMS 240128-01
240 X 128 DOTS, 1/128 DUTY, 1/12 BIASBACKLIGHTING CHARACTERISTICS, Ta = 25°C, LED
Condition: VDD=+5.0V ±10%, VSS=0V, Ta=+25°C Note (1): Value is high reliability type. Note (2): Electro-Optical Characteristics: See page 5.
ITEM SYMBOL CONDITION
SPEC. VALUE
UNIT MIN. TYP. MAX.
Supply Voltage (Logic) VDD- VSS 4.5 5.0 5.5 V Supply Current (Logic) IDD VDD=5V 8.7 13.0 mA
Input Voltage
HIGH VIH VDD -2.2 VDD V
LOW VIL 0 0.8 V
Output Voltage
HIGH VOH IOH =3.0mA VDD -0.3 VDD V
LOW VOL IOL =3.0mA 0 0.3 V
LCD Operating Voltage VDD- VO VDD=5V Ta=+25°C
16.6 V
Supply Current LCD Drive IO 5.47 mA
INTERFACE TIMING CHARACTERISTICS
t CE
tDS
tACC
tOH
tDH
C/D
WR , RD
DB DB (Write)
(Read)
0```` 7
DB DB0```` 7
CE
t
tRDtWR
tCDS CDH
