Echocardiographic features of indirect Gerbode defect in a cat

pISSN 2466-1384 eISSN 2466-1392 Korean J Vet Res (2019) 59(3):161~163 https://doi.org/10.14405/kjvr.2019.59.3.161

161 CASE REPORT

Echocardiographic features of indirect Gerbode defect in a cat

Sang-Kwon Lee

, Namsoon Lee

, Kyoung-Oh Cho

, Mahmoud Soliman

, Munsu Yun

, Jihye Choi

*

1

College of Veterinary Medicine and BK 21 Plus Project Team, Chonnam National University, Gwangju 61186, Korea

2

College of Veterinary Medicine, Seoul National University, Seoul 08826, Korea

3

Time Animal Medical Center, Daejeon 35233, Korea

Abstract: This report describes the echocardiographic features of an indirect Gerbode defect in a young cat. Echocardiography revealed high-velocity, turbulent systolic flow directed from left ventricle to right ventricle through a ventricular septal defect. The flow immediately entered the right atrium through a tricuspid septal leaflet. The indirect-type Gerbode defect was confirmed through necropsy. When a high-velocity turbulent flow in the RA without pulmonary hypertension is observed on echocardiography, Gerbode defect should be considered.

Keywords: complex cardiac malformation, feline, perimembranous ventricular septal defect, tricuspid leaflet defect

Gerbode defect is a rare type of ventricular septal defect that results in com- munication between the left ventricle (LV) and the right atrium (RA). Because the tricuspid valve (TV) attaches to the membranous septum more apically than that of the mitral valve, a congenital defect involving the atrioventricular portion of interventricular septum can cause an abnormal communication between the LV and RA [1,2]. The TV malformation, such as a perforation, cleft, widened commissural space, or abnormal chordae, when accompanied by a ventricular septal defect (VSD), also permits the LV to communicate with the RA [1]. This report describes the first case of an indirect Gerbode defect in a young cat.

A 5-month-old, intact female, Korean short-haired cat weighing 1.4 kg pre- sented with depression, anorexia, and dyspnea for 3 days. Cardiac ausculta- tion was difficult because of tachypnea. One month prior, the cat was involved in a traffic accident, but its vital signs were within the normal range including a normal heart sound.

Thoracic radiography revealed mild cardiomegaly (vertebral heart score:

8.4; reference range: 6.7–8.1) with bilateral atrial dilation and widening of the cranial mediastinum (Fig. 1). Although there was no distinct pulmonary infil- tration on radiography, tachypnea was slightly improved and cardiomegaly and cranial mediastinal widening disappeared after intravenous infusion of furosemide (Lasix, Handok Pharm, Korea) at 0.4 mL/kg/h for 36 h. Systolic blood pressure was 95 mmHg.

On echocardiography, the RA and right ventricle (RV) were markedly dilated (Fig. 2). A turbulent jet from the base of the tricuspid septal leaflet and not between the TVs flowed into the RA (Fig. 3). Close observation revealed that the turbulent jet initially flowed from the LV to the RV through the upper membranous septum and then it immediately flowed into the RA through the tricuspid septal leaflet. The velocity of the turbulent flow was 3.77 m/sec and the pressure gradient was estimated to be 57 mmHg. There was no evidence of pulmonary hypertension including RV hypertrophy, pulmonary insuffi- ciency, or dilated pulmonary artery. The flow velocities and Doppler profile of the pulmonary arterial flow were normal. Interventricular septum flattening or paradoxical movement was not detected. LV to RA communication accompa- nied by a TV defect was tentatively diagnosed. The cat was monitored with- out medication at the owner's request because clinical signs had disappeared.

*Corresponding author Jihye Choi

College of Veterinary Medicine, Chonnam National University, 77 Yongbong-ro, Buk- gu, Gwangju 61186, Korea

Tel: +82-62-530-2821 Fax: +82-62-530-2809 E-mail: [email protected] Sang-Kwon Lee and Namsoon Lee contributed to this work equally as first authors.

ORCID:

Sang-Kwon Lee:

https://orcid.org/0000-0002-3097-0345 Namsoon Lee:

https://orcid.org/0000-0002-9091-6957 Kyoung-Oh Cho:

https://orcid.org/0000-0002-5477-7021 Mahmoud Soliman:

https://orcid.org/0000-0003-4110-3703 Munsu Yun:

https://orcid.org/0000-0002-0483-8084 Jihye Choi:

https://orcid.org/0000-0002-1258-7158 Conflict of Interest

The authors declare no conflicts of interest.

Received: March 5, 2019

Revised : May 9, 2019

Accepted: May 23, 2019

162 Sang-Kwon Lee, Namsoon Lee, Kyoung-Oh Cho, Mahmoud Soliman, Munsu Yun, Jihye Choi

Two months later, the cat died after exhibiting neurologic signs such as depression, hyperexcitability, and tremor. On necropsy, a membranous interventricular septum originating in the LV outflow tract just proximal to the aortic valve and a hole in the tricuspid septal leaflet were observed (Fig. 4). The diagnosis was confirmed as indirect-type (type 2) Gerbode defect.

In indirect-type Gerbode defect, blood flows from the LV through the VSD into the RV and then through a defect in the TV into the RA [1]. A Gerbode defect can occur congeni- tally or secondary to trauma, infective endocarditis, and other effects [1]. In humans, most indirect-type Gerbode defects are congenital defects [1]. Depending on the anatomical loca- tion of the shunt, Gerbode defect is classified into one of three types. Type 1 is a supravalvular defect, which occurs in the atrioventricular septum and forms between the LV and RA. Type 2 is an infravalvular defect that occurs between the ventricles. Type 3, an intermediate defect, combines both supravalvular and infravalvular defects. In humans, the type 1 defect is more likely to be acquired while types 2 and 3 are usually congenital [1,3].

In two dogs, Gerbode defects have been reported second- ary to infective endocarditis and, in another two dogs, sec- ondary to trauma [4-7]. All occurrences were classified as type 1 and direct. Our case is the first report of Gerbode defect in a cat, particularly an indirect type 2 defect accom- panying a TV perforation. The etiology in this cat could not be clearly identified. The cat had a history of trauma, but was Fig. 1. Right lateral (A) and ventrodorsal (B) radiographs

revealed cardiomegaly with bilateral atrial dilation and uniform cranial mediastinal widening.

Fig. 2. Right long axis view (A) and right short axis (B) echo- cardiographic views. RA and RV are markedly dilated. TV shows normal morphology and position in systole (B).

LA, left atrium; LV, left ventricle; RA, right atrium; RV, right ventricle.

Fig. 3. Color-Doppler (A and B) and spectral-Doppler (C) echocardiography images; right short axis view (A), left cranial long axis view (B), and left apical long axis view (C). There was systolic eccentric turbulent flow in the RA (A and B). The turbulent flow was directed from the LV to the RV through the upper membranous septum and then it immediately flowed into the RA through the tri- cuspid septal leaflet. Shunt flow velocity was 3.77 m/sec and the pressure gradient was 57 mmHg (D).

Ao, aorta; LA, left atrium; LV, left ventricle; RA, right atrium; RV, right ventricle.

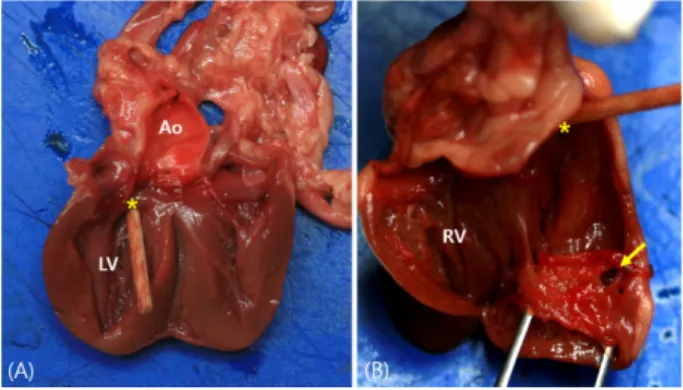

Fig. 4. Necropsy findings; LV (A) and RV (B) in the study cat.
