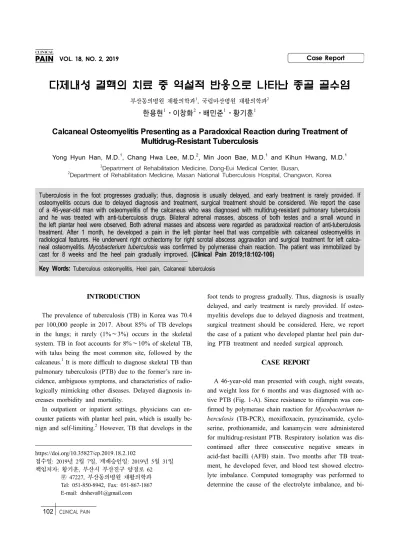

다제내성 결핵의 치료 중 역설적 반응으로 나타난 종골 골수염

(1)

https://doi.org/10.35827/cp.2019.18.2.102

접수일: 2019년 2월 7일, 게재승인일: 2019년 5월 31일 책임저자: 황기훈, 부산시 부산진구 양정로 62

󰂕 47227, 부산동의병원 재활의학과 Tel: 051-850-8942, Fax: 051-867-1867 E-mail: [email protected]

다제내성 결핵의 치료 중 역설적 반응으로 나타난 종골 골수염

부산동의병원 재활의학과¹, 국립마산병원 재활의학과²

한용현¹ㆍ이창화²ㆍ배민준¹ㆍ황기훈¹

Calcaneal Osteomyelitis Presenting as a Paradoxical Reaction during Treatment of Multidrug-Resistant Tuberculosis

Yong Hyun Han, M.D.¹, Chang Hwa Lee, M.D.², Min Joon Bae, M.D.¹and Kihun Hwang, M.D.¹

1Department of Rehabilitation Medicine, Dong-Eui Medical Center, Busan,

2Department of Rehabilitation Medicine, Masan National Tuberculosis Hospital, Changwon, Korea

Tuberculosis in the foot progresses gradually; thus, diagnosis is usually delayed, and early treatment is rarely provided. If osteomyelitis occurs due to delayed diagnosis and treatment, surgical treatment should be considered. We report the case of a 46-year-old man with osteomyelitis of the calcaneus who was diagnosed with multidrug-resistant pulmonary tuberculosis and he was treated with anti-tuberculosis drugs. Bilateral adrenal masses, abscess of both testes and a small wound in the left plantar heel were observed. Both adrenal masses and abscess were regarded as paradoxical reaction of anti-tuberculosis treatment. After 1 month, he developed a pain in the left plantar heel that was compatible with calcaneal osteomyelitis in radiological features. He underwent right orchiectomy for right scrotal abscess aggravation and surgical treatment for left calca- neal osteomyelitis. Mycobacterium tuberculosis was confirmed by polymerase chain reaction. The patient was immobilized by cast for 8 weeks and the heel pain gradually improved. (Clinical Pain 2019;18:102-106)

Key Words: Tuberculous osteomyelitis, Heel pain, Calcaneal tuberculosis

INTRODUCTION

The prevalence of tuberculosis (TB) in Korea was 70.4 per 100,000 people in 2017. About 85% of TB develops in the lungs; it rarely (1%∼3%) occurs in the skeletal system. TB in foot accounts for 8%∼10% of skeletal TB, with talus being the most common site, followed by the calcaneus.¹ It is more difficult to diagnose skeletal TB than pulmonary tuberculosis (PTB) due to the former’s rare in- cidence, ambiguous symptoms, and characteristics of radio- logically mimicking other diseases. Delayed diagnosis in- creases morbidity and mortality.

In outpatient or inpatient settings, physicians can en- counter patients with plantar heel pain, which is usually be- nign and self-limiting.² However, TB that develops in the

foot tends to progress gradually. Thus, diagnosis is usually delayed, and early treatment is rarely provided. If osteomyelitis develops due to delayed diagnosis and treatment, surgical treatment should be considered. Here, we report the case of a patient who developed plantar heel pain during PTB treatment and needed surgical approach.

CASE REPORT

A 46-year-old man presented with cough, night sweats, and weight loss for 6 months and was diagnosed with active PTB (Fig. 1-A). Since resistance to rifampin was con- firmed by polymerase chain reaction for Mycobacterium tu- berculosis (TB-PCR), moxifloxacin, pyrazinamide, cyclo- serine, prothionamide, and kanamycin were administered for multidrug-resistant PTB. Respiratory isolation was dis- continued after three consecutive negative smears in acid-fast bacilli (AFB) stain. Two months after TB treatment, he developed fever, and blood test showed electrolyte imbalance. Computed tomography was performed to determine the cause of the electrolyte imbalance, and bi-

(2)

Fig. 2. (A) Lateral view of the foot shows a well-marginated focal ra- diolucent lesion of irregular shape with a size of 2 × 2 cm (arrow).

(B) Six-month follow-up radiograph after surgery shows that the surgical site is filled with bone grafts (arrowhead).

Fig. 1. (A) Chest radiograph shows ill defined increased opacities in both upper and mid lung zone. (B, C) Wounds are observed in the left heel (arrow) and right scrotum (arrowhead).

lateral adrenal masses were observed. In addition, an abscess developed in both scrotal sacs and a small wound was observed in the left plantar heel. Incision and drainage was performed in the left scrotum to drain excess pus. The AFB stain results of the pus were negative, but histopathological examination showed chronic active inflammation. At that time, there was no history of minor trauma in the left heel that caused the wound, and because there were no particular symptoms, simple dressing was performed. His un- favorable economic status prevented further examination.

Bilateral adrenal masses and scrotal abscess were regarded as paradoxical reaction of anti-TB treatment. He was initially scheduled for multidrug-resistant TB treatment for 12 months. However, we were unable to exclude the possibility that extrapulmonary TB was caused by a hemato-

genic spread, so the duration of anti-TB therapy was modi- fied to 18 months. Thereafter, there was delayed recovery of the right scrotal abscess. However, since the left testis failed to function due to testicular atrophy during recovery, dressing alone was done, without orchiectomy. After 1 month, he complained of local pain with numeric rating scale (NRS) of 4 in the left plantar heel (Fig. 1-B).

On physical examination, mild heat and soft tissue swelling were observed in the posterolateral heel. Radiographic findings showed no bony erosion or destructive lesion (Fig.

2-A). Laboratory tests revealed white blood cell count of 9,200 cells/mm³ and C-reactive protein level of 0.91 mg/L.

The AFB stain and culture of the brownish pus came out negative so the only dressing treatment was continued.

Initially, the wound appeared to heal. However, after 1

(3)

Fig. 3. (A) Sagittal and (B) axial T2-weighted magnetic resonance imaging (MRI) of the left foot show heterogeneously mixed sig- nal intensity bone lesion at calcaneal tuberosity (arrows). A sinus tract is also observed (arrowhead).

Fig. 4. Three-phase bone scan demonstrates mildly increased uptake in the left calcaneus with (A) vascular, (B) blood-pool and (C) bone phases (arrows).

months, the pus increased in volume and the patient was observed an antalgic gait pattern. As the pain deteriorated to NRS of 6 and the right scrotal abscess worsened (Fig.

1-C), the patient was referred to the orthopedist and urolo- gist in a tertiary-care hospital. Orchiectomy was performed for radical treatment of right scrotal abscess. Magnetic resonance imaging (MRI) by the orthopedist showed periph- erally enhancing intraosseous lesions (Fig. 3) and three- phase bone scan showed mildly increased uptake in the left calcaneus in all three phases of the scan (Fig. 4). Both ra- diologic findings were compatible with calcaneal osteomyelitis. Surgical drainage and curettage of bone grafts of calcaneus were performed for diagnosis and treatment, and M. tuberculosis was confirmed by TB-PCR using bone specimens. The patient was immobilized by cast for 8 weeks. After 8 weeks, the cast was removed and he started toe touch weight bearing using crutch and gradually in-

creased to full load. Heel pain also improved (NRS reduc- tion ＞ 70%). Six months after the surgery, follow-up ra- diographs showed bone remineralization (Fig. 2-B). He could walk normally without pain and could perform activ- ities of daily living as before surgery.

DISCUSSION

A paradoxical reaction is defined as a clinical or radiological worsening of pre-existing tuberculous lesion or de- velopment of a new lesion in patients receiving appropriate anti-TB treatment.^3,4 Drug discontinuation, drug resistance, secondary infections and side effect of anti-TB treatment should be excluded for the diagnosis of paradoxical reactions.⁵ Since our patient adhered to the medication; was treated with anti-TB drugs based on drug susceptibility test and the PTB, which was initially diagnosed; had negative

(4)

sputum culture results; and showed improvement in radiological findings, the current case is considered to be of a paradoxical reaction rather than of treatment failure. The fact that the CT findings at the beginning of PTB showed no abnormalities other than pulmonary lesions supported this point. Studies have suggested that paradoxical reactions should be considered within 3 months after anti-TB therapy and the possibility of treatment failure should be considered after 4 months.⁶ In our case, since the fact that a new lesion was observed 2 months after treatment ini- tiation also increased the likelihood of paradoxical reaction.

Paradoxical reactions occur in approximately 15% of TB patients, and the pathogenesis is generally accepted as a late hypersensitivity reaction to tuberculoproteins derived from dead bacilli, although the pathogenesis is unclear.⁷ These findings can also explain the rare occurrence of pos- itive AFB stain and PCR test results.

Treatment of a paradoxical reaction has not been estab- lished yet, but 2∼4 weeks of steroid use followed by ta- pering for 6∼8 weeks is common. In our case, the initial heel symptoms were nonspecific, so we could not predict the possibility of the paradoxical reaction. In addition, the diagnosis of the paradoxical reaction was delayed because the patient’s low economic status limited the active examination. The failure to control this rapid progress of the lesion with the proper steroid therapy is thought to be a fac- tor that ultimately led to the decision of surgery.

TB in the foot and ankle occurs mainly in immunocom- promised individuals and mimics the characteristics of other diseases.⁸ To our best knowledge, paradoxical reactions in the calcaneus during anti-TB treatment in a non HIV patient has not been reported before. In one study, 15 patients with TB in foot and ankle were analyzed; only 7 patients were correctly diagnosed by clinical symptoms and imaging studies.⁹ It was suggested that TB osteomyelitis should always be considered when localized and painful swelling and persistent draining sinus of foot and ankle are present.

Our patient had no history of any particular diseases and never received immunosuppressive therapy. However, he underwent anti-HIV-1/HIV-2 screening tests due to the possibility of immunosuppression, considering that he was a heavy smoker (25-pack-year). The screening tests were negative. Further tests were needed when considering the occurrence of multidrug-resistant TB in young age, but these could not be performed because of his poor economic

status. However, as the pus was continuously draining from the calcaneus, additional tests should have been performed earlier for checking the possibility of TB osteomyelitis.

There was a case of calcaneal osteomyelitis associated with nontuberculous mycobacteria;¹⁰ this case was similar to our case in that surgical treatment of calcaneus was performed for chronic osteomyelitis and abscess formation.

However, it was assumed to be contiguous osteomyelitis of nontuberculous mycobacteria caused by repeated steroid in- jections, while in our case, it was considered to be osteomyelitis due to paradoxical reaction of anti-TB treatment.

In addition, in the above case, repeated steroid injection ap- pears to have altered the hypothalamic-pituitary-adrenal (HPA) axis, whereas in our case, adrenal masses formation by M. tuberculosis might have affected the HPA axis.

Moreover, our patient had rare bilateral anorchia due to the progression of testicular TB.

In the current case, the patient showed a significant improvement in pain after surgery and was able to walk without pain. However, delayed diagnosis and treatment due to financial constraints resulted in unexpected operation. It is thus important that in patients with progressive diseases, such as TB, prompt action is taken upon observing abnor- mal findings and tests are appropriately conducted. In particular, if heel pain is currently present in a patient who is recently treated for TB, the possibility that paradoxical reaction is the cause should be considered. Notably, the present case occurred even after appropriate anti-TB therapy. Therefore, the current case could be a reference in identifying the cause of plantar heel pain in a patient treated with the anti-TB drugs in the outpatient clinic.

REFERENCES

1. Gursu S, Yildirim T, Ucpinar H, Sofu H, Camurcu Y, Sahin V, et al. Long-term follow-up results of foot and ankle tuberculosis in Turkey. J Foot Ankle Surg 2014; 53: 557-561 2. Muhamad Effendi F, Ibrahim MI, Rozali KN, Miswan MF.

Chronic heel pain: it could be tuberculosis. Malays Fam Physician 2016; 11: 20-23

3. Robledo-Gil T, Harada K, Ikuta I, Villanueva M. Paradox- ical Reaction in a Patient with Co-Occurring Tuberculous Meningitis and Pott's Disease. Am J Case Rep 2018; 19:

699-704

4. Park JH, Kim YH, Kwon CH, Shin HI. Paralysis develop- ing as a paradoxical response during the treatment for tu-

(5)

berculous spondylitis: a case report. Ann Rehabil Med 2014; 38: 405-409

5. Cheng VCC, Ho PL, Lee RA, Chan KS, Chan KK, Woo PCY, et al. Clinical Spectrum of Paradoxical Deterioration During Antituberculosis Therapy in Non-HIV-Infected Patients. Eur J Clin Microbiol Infect Dis 2002; 21: 803–

809

6. Blumberg HM, Burman WJ, Chaisson RE, Daley CL, Etkind SC, Friedman LN, et al. American Thoracic Society/Centers for Disease Control and Prevention/Infec- tious Diseases Society of America: treatment of tuberculosis. Am J Respir Crit Care Med 2003; 167: 603-662 7. Mert A, Ozaras R. Paradoxical reaction: can it be seen after

completion of the anti-tuberculous therapy? Scand J Infect Dis 2004; 36: 78-9

8. Faroug R, Psyllakis P, Gulati A, Makvana S, Pareek M, Mangwani J. Diagnosis and treatment of tuberculosis of the foot and ankle-A literature review. Foot (Edinb) 2018; 37:

105-112

9. Choi WJ, Han SH, Joo JH, Kim BS, Lee JW. Diagnostic dilemma of tuberculosis in the foot and ankle. Foot Ankle Int 2008; 29: 711-715

10. Yi TI, Ha SA, Choe YR, Kim JS, Kwon KW. Calcaneal Osteomyelitis due to Non-tuberculous Mycobacteria: a Case Report. Ann Rehabil Med 2016; 40: 172-176
