Characterization of the Ohmic-contact Properties of an InAs Nanowire by Using the Transmission Line Model

Characterization of the Ohmic-contact Properties of an InAs Nanowire by Using the Transmission Line Model

Min Hyeok Jo · Chan Ho Choi · Jae Cheol Shin

Department of Physics, Yeungnam University, Gyeongsan 38541, Korea (Received 26 June 2015 : revised 17 August 2015 : accepted 17 August 2015)

In this paper, we examined the metal contact resistance of an InAs nanowire by using the trans- mission line model (TLM). The InAs nanowires were grown via a catalyst-free, self-assembled growth method using metal-organic chemical-vapor deposition (MOCVD). The heights of the InAs nanowires exceeded 20 µm, but their diameters were very uniform along the growth axis. The metal contact resistance of the InAs nanowire was dramatically reduced by using a rapid thermal annealing (RTA) process. In a nanowire-based device, minimizing the metal contact resistance is es- sential because of the very small metal-semiconductor contact area. The transmission line model for semiconductor nanowires demonstrated here can contribute to improving the electrical properties of nanowire-based devices.

PACS numbers: 73.40.Cg

Keywords: InAs nanowire, Contact resistance, Transmission line model, Ohmic contact

Transmission Line Model ù p § T “ Ó Þ” X ¢ InAs
x ¢Ñ ÷T # a8 ý ~ ¾Ã k ı n É •  × — ¤V R Ë Ž ì ŏ Œ

‚

Ð * > 0 ² ? · L |¾ ҇ 6 Ú · , > < Œ ‰ x

%ò

zŒ™@/†<Ɠ§ Óüto†<Æõ, âíߖ 38541

(2015¸ 6Z4 26{9 ~ÃÎ6§, 2015¸£  8Z4 17{9 ú&ñ‘:r~ÃÎ6£§, 2015¸ 84 17{Z 9 >FSX‰&ñ)

‘:

r 7HëH\"fH Áº8ú¤B µ1Ï+þA$í ~½Ód”ܼ–Ð InAs
”¸ü<s#Q\¦ $큩œ “¦, transmission line model (TLM)~½ÓZO`¦s6 x #Œ $큩œ)aInAs
”¸ü<s#Qü< Bj»1Ï çߖ_ ]X8ú¤$†½Ó x9
”¸ü<s#Q_ „l&h :£¤

$í

`¦ ìr$3 %i. InAs
”¸ü<s#Q $큩œ`¦0AK o†<Æl©œ7£x‚ÃÌ ©œu s6 x÷&%3ܼ 9, $큩œ)aInAs


”

¸ü<s#QHúz sß¼–Ðp'_ U´st $큩œ÷&#Q•¸ U´s\  {9&ñôÇ f”`â¦tH :£¤fç`¦˜Ð

%

i. {9&ñôÇ f”â`¦tH
”¸ü<s#QH TLM~½ÓZ_O 8£¤&ñ\"f Bj»1Ï_ ]X½+ˀ&h`¦çߖéߖ > \V8£¤

½

+É Ãº e”#Q, ìø͕¸^‰-Bj»1Ï ]8Xú¤$†½Ó`¦ 7á§8 &ñS‰X > 8£¤&ñ½+É Ãº e”. ¢¸ôÇ Ãºz sß¼–Ðp' U´s t

 $큩œ)aInAs
”¸ü<s#QH ŸížÐo™èÕªx /BN&`ñ¦ :ŸxôÇ TLM J‡ ]jŒ•`¦0px > %i. Œ•

“ É

rBj»1Ï ]X8ú¤€&hܼ–Ð “K š¸b” ]X½+Ës :£¤y ×æכ¹ôÇ
”¸ü<s#Q ™è\"f ]X8ú¤$†½Ó`¦çߖéߖ “¦ &ñ SX

‰ > 8£¤&ñ½+É Ãº e”HÓZ½~O“Ér
”¸ü<s#Q\¦lìøÍܼ–Ð H„l x9Fg„™è_ :£¤$í`¦†¾Ó©œ rvH X

< l#Œ½+É Ãº e”.

PACS numbers: 73.40.Cg

Keywords: InAs
”¸ü<s#Q, ]X8ú¤$†½Ó, Transmission line model, š¸b”]X8ú¤

∗E-mail: [email protected]

This is an Open Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/by-nc/3.0) which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.

I. " e  ] Ø

ì

ø͕¸^‰ „™è_ ß¼l t5Åq&hܼ–Ð Œ•f”\

"

f l”>r_ ¨î€ Bj»1Ï-íߖoÓüt-ìø͕¸^‰ „> ´òõ àÔ½™t Û

¼' (MOSFETs)_ âĺ Âúª“ÉrGV,´òõ (short-channel effects),>sàÔ íߖoÓüt_ ¿ºa x9 ™èq „§4_ 7£xH ë

H]j&hs ÂÒyŒ•÷&“¦ e” [1,2]. ìø͕¸^‰
”¸ü<s#QHÂúª

“ É

r GV,´òõ\¦ ´òõ&hܼ–Рצ{9 ú e”ܼ 9 ™èq„§4`¦ ]

j#Q½+É Ãº e”l M:ëH\ [j@/ ìø͕¸^‰ Ùþ˜d”™èF–Ð"f þj



H ´ú§“Érƒ½¨ ”'÷Ÿ&“¦ e” [1]. Õª ×æ\"f•¸ InAsü<

° ú

 “Éro½+ËÓtüìø͕¸^‰
”¸ü<s#QH„_ Ä»´ò |9|¾Ós Œ•



"f s1lx5Åq•¸ Bĺ ØÔl M:ëH\ [j@/ œí“¦5Åq


”

¸„™è_ F«Ñ–Ð 6x| ¨cú e” [3–5]. ÕªQ

”¸ ü

<s#Q_ âĺ a%v“Ér Bj»1Ï-ì͕ø¸^‰ ]X8ú¤€&hܼ–Ð “ #Œ Z

}“ÉrBj»1Ï ]X8ú¤$†½Ó`¦t“¦ e”ܼ 9, sH
”¸ü<s#Q l

ìøÍ_ „l& ™hè:£¤$í`¦¼>ß $ rvH "¶é“s)a [6]. 8¹¡¤s, Z}“ÉrÂÒx @/q €&h qÖ¦–Ð “ôÇ
”¸ü<s

#

Q ³ð€_ ´ú§“Ér /BN€9%ò%“iÉr
”¸ü<s#Qü< Bj»1Ïçߖ_ š¸ b”

 ]X8ú¤`¦8¹¡¤#Q§>> ôÇ [6,7]. s\ , €ªœôÇ 7áx À

Ó_ Bj»1Ï`¦s6 x
, Bj»Ï 71£x‚ÃÌ „ o†<Æ&h
”¸ü<s

#

Q ³ð€%ƒo\¦ :Ÿx #Œ
”¸ü<s#Q-Bj»1Ï_ š¸b” ]X½+Ë :£¤

$í

`¦ Z}sl 0AôÇ ƒ½¨ š¸Ï@1?lxîߖ ”'Ÿ÷&#QM®o [7–9].

”¸ü<s#Q_ š¸b” ]X½+Ë :£¤$\í @/ôÇ ƒ½¨\¦ 0AK"fH

”¸ü<s#Q-Bj»1Ï çߖ_ ]X8ú¤$†½Ó\ @/ôÇ &ñS‰XôÇ 8£¤&ñs

€9

כ¹ . Transmission line model (TLM)“ÉrBj»1Ï-ìø͕¸

^

‰çߖ_ ]X8ú¤ †$½Ó`¦ 8£¤&ñ l 0AK š¸Ï?@1lx– îß 6 x÷&#Q

“

:r ~½ÓZOܼ–Ð,
”¸ü<s#Q-Bj»1Ïçߖ_ ]X8ú¤ $†½Ó`¦ צsl 0

AK"f s ~½ÓZO`¦s6 xôÇ ƒ½¨ þjH´ú§s ”'Ÿ÷&%3 [10–12]. ¢¸ôÇ l”>rìø͕¸^‰
”¸ü<s#Q\¦]jŒ• HX< e”

#

Q"fH, Bj»1Ï 8ú¤B\¦s6 x #Œ vapor-liquid-solid (VLS)

~

½Ód”ܼ–Ð
”¸ü<s#Q\¦$큜 ©H~½ÓZOs ©œ ´ú§s 6 x

÷

&#Q M®o [13]. ÕªQ
 VLS ~½Ódܔ¼–Ð $큩œ÷&H
”¸ü<

s

#Q_ âĺ
”¸ü<s#Q_ f”âs U´s\  &h &h Ü

¼–Ð  l M:ëH\
”¸ü<s#Q-Bj»1Ï_ ]X½+ˀ&hs 0A u

\  7 > ÷&“¦, "f TLM J‡ܼ–Ð 8£¤&ñôÇ

”¸ü<s#Qü< Bj»1Ïçߖ_ ]X8¤ú $†½Ós ß¼> ²ú˜|9 ú e”



 [14]. l”>r TLMJ‡ܼ–Ð 8£¤&ñ)a
”¸ü<s#Q-Bj»1Ïçߖ _

 ]X8ú¤$†Ó 8½ £¤&ñ~½Ód”“Ér sQôÇ ú “¦9÷&t ·ú§€Œ¤

%

3 [10–12]. ‘:rƒ½¨\"fHo†<Æl©œ7£x‚ÃÌ ©œu\¦s6 x

#Œ Áº8ú¤B µ1Ï+þA$í $í©œ~½Ód”ܼ–Ð InAs
”¸ü<s#Q\¦ z

´o–BH (111)lóøÍ\ $큩œ %“i¦, $큩œ)aInAs
”¸ü<s

#

Q_ „l&h :£¤$í`¦ ìr$3 %i. Áº8ú¤B ~Ód½”ܼ–Ð $큩œ

)

a InAs
”¸ü<s#QH úz sß¼–Ð U´st $큩œ÷&

#

Q•¸ Z}s\  {9&ñôÇ f”`â¦tH :£¤fç`¦˜Ð%i.

8¹¡¤s Áº8ú¤B µ1Ï+þA$í $í©œ~½Ód”_
”¸ü<s#QHU´s

\


”¸ü<s#Q_ „•¸•¸  t ·ú§Ü¼Ù¼–Ð 88

¹

¡

¤&ñSX‰Ç ]ôX8ú¤$†½Ó 8£¤&ñs 0px  [15]. ¢¸ôÇ Ãºz  s

ß¼–Ðp' U´s_
”¸ü<s#QH„c”-o™èÕªx\¦



6 xÙþ¡~ l”r>~½Ód”õ ²ú˜o ŸížÐo™èÕªx /N&Bñ`¦s6 x ô

Ç TLM J‡ ]jŒ•`¦0px > %i.

II. ÷ m Ç] M ö U ê s0 n É

‘

:rƒ½¨\ s6 x)aInAs
”¸ü<s#QHo†<Æl©œ7£x‚Ã́©œ u

\¦ s6 xK 2-inch ß¼l_ z´o–BH (111) lóøÍ (ρ = 1 - 10 Ω·cm)\ Áº8ú¤B $큩œ~½Ód”`¦ :Ÿx #Œ $큩œs ÷&%3ܼ 9, s\¦ :ŸxK &ñ$ís ĺúôÇ InAs
”¸ü<s#Q\¦ %3

%

3.
”¸ü<s#Q_ ½¨›¸&h :£¤$í`¦ 8£¤&ñ l 0AK"fH Å

Ò„‰&³pâ (Hitachi-S4800)õ ÈÒõ„‰&³pâ (Ti- tan 80-300)s 6 x÷&%3. TLM J‡ /BN&ñ`¦0AK"f €

$

 InAs
”¸ü<s#Q $큩œ)a ´oz–BH lóøÍ ›¸yŒ•`¦ iso- propyl alcohol 6 xӐo\ V,“Ér Êê\ œí6£§ [j'‘©œq\¦ :Ÿx

#ΠInAs
”¸ü<s#Q\¦lóøÍ\"f ìroK Z~€Œ¤. sÊê

”¸ü<s#Q [O#Œe”H isopropyl alcohol 6 xӐo`¦ SiO2 7

£

x‚Ã̝)alóøÍ\ Y> ~½ÓÖ¦#bQ伏2; Êê |9™è|` ¦s6 xK 6 x Ӑ

o`¦ ]jÙþ¡. sÊê
”¸ü<s#Q lóøÍ\ YJ“¦ÀÒ ìríߖ

÷&#Q e”6£§`¦ gF†<Ɖ&³pâ`¦ :xŸ #ŒSX‰ “ %i.
”¸ü<

s

#Q ìríߖ)alóøÍ\ ŸížÐYUtÛ¼àÔ\¦ïhA “¦ o™è/BN

&

ñ`¦ :Ÿx #Œ TLM J‡`¦ +þA$í %i. sÊê InAs
”¸ ü

<s#Q ³ð€_ ïߖ#Œ ŸížÐYUtÛ¼àÔ\¦ ]jK ÅÒl 0AK

"

f oxygen plasma /BN&ñ`¦ 800 mTorr_ ·úš§4, 18 W_ ئ

§

4ܼ–Ð 5ìrçߖ z´'Ÿ %i. Õªo“¦ HCl:DI water (1:1) 6 x Ӑ

o\ Ґre¦`¦€• 40œí 1lx– {îߌ™½¨#Q InAs
”¸ü<s#Q ³ð€ _

 íߖo}Œ•`¦ ]j %i. sÊê „c”7£x‚Ã́©œu\¦ s6 x

#Œ Ti/Au\¦ 20 nm/200 nm 7£xÌ r† Êê lift-off /BN&ñ

`

¦Ãº'Ÿ %i. /BN&ñ Êê Bj»1Ï-ìø͕¸^‰çߖ_ ]X8¤ú$†½Ó`¦ צ s

l 0A #Œ rapid thermal annealing (RTA)\¦s6 xK"f Ґ

re¦`¦ 380^◦C\"f 30œí1lxîߖ |9™è ìr0Al 5Åq\"f \P%ƒo

%i.
”¸ü<s#Q_ „l& :h £¤$í“Ér ©œ“:r\"f param- eter analyzer (4156B, Agilent Inc.)ü< four-point probe station`¦s6 x #Œ 8£¤&ñ %i.

III. + s ÇÊ Ý õ m Í ‚ º8 ý

Fig. 1“ÉrÁº8ú¤B µ1Ï+þA$í $큩œ~½Ód”`¦ :xŸ #Œ z´o–BH l

óøÍ\ $큩œ)aInAs ”
¸ü<s#Q\¦˜Ð#Œïr. Fig. 1(a)- (c)\ ˜ÐsH ÅÒ„‰&³pâ spt\¦ :ŸxK z´o–BH (111) lóøÍ\
”¸ü<s#Q úf”ܼ–Ð $큩œ÷&%36£§`¦ ·ú˜

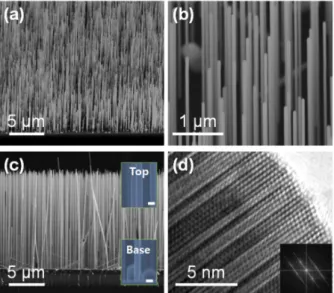

Fig. 1. (Color online) InAs nanowires grown on Si (111) substrate via catalyst-free, self-assembled growth method. (a), (b) 45^◦tilted scanning electron microscope (SEM) images with different magnifications. (c) Side- view SEM image. Enlarged nanowire near top and base is shown in inset and scale bar in insets represents 100 nm. (d) Transmission electron microscope image and electron diffraction pattern (inset).

Ã

º e”. Áº8ú¤ Bµ1Ï+þA$í
”¸ü<s#QH¿º Óüt|9çߖ_ 



 s\"f š¸H Û¼àÔYU“`¦ s6 x #Œ z´o–BH lóøÍ 0A

\

 III-V o½+ËÓütìø͕¸^‰
”¸ü<s#Q\¦ $큩œ H~½Ód”s



 [16]. Fig. 1(d)H „ÈÒõ‰&³pâܼ–Ð 8£¤&ñ)a
”¸ ü

<s#Q ½¨›¸\¦˜Ð#ŒÅÒ 9,
”¸ü<s#Q zinc-blende



½¨›¸\¦ t“¦ e”tëߖ, ´ú§“Ér stacking fault\¦ t

“

¦ e”6£§`¦˜Ð#Œïr. ¢¸ôÇ Õªa>\ˁ ¶úš{9)a „r]X“Ér"î SX

‰y ìroa &)h +þAI m &h[þts\ âìaÅ@ôÇ

‚

s ”>rF HX< sH zinc-blendü< wurtzite ½¨›¸ /BN

”

>r “¦ e”6§`£¦
·p [17]. Áº8ú¤B µ1Ï+A$þí $큩œ~½Ó d”

_ ©œ&h“Ér Bj»1Ï8ú¤B
 J‡_ •¸¹¡§ \Os
”¸ü<s#Q

 $큩œ)aH&hs. l”>r
”¸ü<s#Q ]jŒ•`¦0AK"f



H VLS ~½Ód”`¦s6 xôÇ $큜~©½Ód”s V,> 6 x÷&#QM®o [18]. ÕªQ
 VLS ~½Ód”“Ér Bj»1Ï`¦ 8ú¤B–Ð 6 x #Œ
”¸ ü

<s#Q\¦ $큩œ > ÷&H<, sX  âĺ Bj»1Ï"é¶ ìø͕¸^‰

?

/ÂÒ\ ìrŸí÷&“¦ deep YU6\š`¦A$+þí #Œ"f
”¸ü<s#Q_

„

l&h Õªo“¦ Fg†<Æ&h :¤$£í`¦ ß¼> b#Q伏2;“¦ ˜Ð“¦

÷

&%3 [19]. 8¹¡¤s Bj»1Ï 8ú¤B\¦ s6 x H
”¸ü<s#Q

$í

©œ ~½Ód”_ âĺ úf”~½Ó†¾Ó_ VLS ~½Ód”õ 8£¤€~½Ó†¾Ó_ vapor-solid (VS) ~½Ód”_ $큩œs 1lxr\ {9#Q
l M:ëH

\


”¸ü<s#Q U´s\  f”âs ß¼>  H :£¤fçs e”

 [14]. TLM ~½Ód”“ÉrU´s\ Érìø͕¸^‰ $†½Ós {9&ñ

“¦, ìø͕¸^‰ü< Bj»1Ïçߖ_ ]X8¤€ú&h•¸ {9&ñ “¦ &ñ

#

Œ ìø͕¸^‰-Bj»1Ïçߖ_ ]X8ú¤$†Ó`½¦ 8£¤&ñ H ~½Ód”s. Õª

Fig. 2. (Color online) (a) Illustration and (b) SEM image of a TLM pattern formed on an InAs nanowire. Insert:

a cross-section SEM image of the InAs nanowire after metal deposition.

Q
 Bj»1Ï 8ú¤B\¦ 6 x #Œ $큩œ)a
”¸ü<s#QH U´s

\

 "f f”âs ß¼> o l M:ëH\ TLM ~½Ód” s 6

xK
”¸ü<s#Q-Bj»1Ï ]X8ú¤$†Ó`½¦ 8£¤&ñ HX< ´ú§“Ér š¸

 ÒqtU´ ú e”ܼ
, l”>rƒ½¨\"fHsQôÇ ëH]j&hs

“

¦9÷&t ·ú§€Œ¤ [12]. 8¹¡¤s •¸iç )aìø͕¸^‰
”¸ü<s

#

Q_ âĺ Bj»1Ï 8¤úB\¦ 6 x #Œ $큩œa)
”¸ü<s#QH 0

Au\ Ér$†½Ós ß¼> ôǍHõ ˜Ð“¦÷&“¦ e” l

 M:ëH\ &ñSX‰Ç Bôj»1Ï ]X8ú¤$†½Ó 8£¤&ñ`¦8¹¡¤#Q§>> ëߖ

Ž

H [20–22]. s\ ìøÍK Áº8ú¤B µ1Ï+þA$í ~½Ód”ܼ–Ð $큩œ

)

aInAs
”¸ü<s#Q_ âĺ VS ~½Ód”\ _K"fëߖ
”¸ü<

s

#Q $큩œs sÀÒ#Q tl M:ëH\
”¸ü<s#Q U´s\



 f”âs {9&ñ  9 (Fig. 1(c)),
”¸ü<s#Q •¸içs
”¸ ü

<s#Q Z}s\   t ·ú§6§`£¦ z´+«>&hܼ–ÐSX‰“

#

Œ ˜Ð“¦ôÇ  e” [15].
”¸ü<s#Q U´s\ Ér {9&ñôÇ f”

âõ $†½Ó“Ér TLM ~½Ód”`¦ s6 xôÇ
”¸ü<s#Q-Bj»1Ïçߖ _

 ]X8ú¤$†½Ó`¦8¹¡¤Sñ&X‰ > \V8£¤½+É Ãº e”.

Fig. 2H TLM J‡s +þA$í)a InAs
”¸ü<s#Q\¦ ˜Ð

#

ŒÅғ¦ e”. TLM~½ÓZ`O¦ s6 x #Œ contact resistance R_C\¦6£§ °õú s ½¨½+É Ãº e”.

RT = 2RC+ ρ_sl πr² ≈ ρ_s

πr²(l + 2LT) (1)

#

Œl"f ρ^sH InAs
”¸ü<s#Q_ q$†½Ó, r“Ér
”¸ü<s

#

Q_ ìøÍt2£§, l“Ér Bj»1ÏJ×¼ ÂÒìr`¦ ]jü@ôÇ ]X8ú¤Bj»1Ï  s

_
”¸ü<s#Q_ U´s, R^CH]X8ú¤$†½Ó, L^TH transfer length\¦
·p. Fig. 2(b) \"f ˜ÐsHÅÒ„‰&³p

â

”“Ér
”¸ü<s#Q\ Bj»1Ïs 7£x‚Ã̝)a ÒìÂr`¦ ˜Ð#ŒÅÒ 9, s ”`¦ :Ÿx #Œ Bj»1Ï-
”¸ü<s#Q_ ]X8ú¤€&h`¦> í

ߖ %i.
”¸ü<s#Q_ f”âs
”¸ü<s#Q\  {9

&

ñ Ù¼–Ð ]X8ú¤€&h“Ér ¸¿—º {9&ñ “¦ &ñ %i. 8

¹

¡

¤s Áº8ú¤B µ1Ï+þA$í $큩œ ~½Ód”_ InAs
”¸ü<s#QH q

$†½Ós U´s\  {9&ñ l M:ëH\ 8£¤&ñ_ &ñSX‰$í

`

¦8¹¡¤ Z}{9 ú e” [15].

Fig. 3(a)H Fig. 2(b)\"f ˜ÐsH
”¸ü<s#Q %ò%i 1õ 2, 2ü< 3, 3õ 4 ½¨çߖ\"f 8£¤&ñôÇ I-V õ\¦ ˜Ð#Œïr.

Fig. 3. (Color online) (a), (c) I-V curves of the InAs nanowire with different nanowire length. (b), (d) elec- trical resistance of the InAs nanowrie as a function of nanowire length. The electrical resistance in (b) and (d) is calculated from the I-V curve in (a) and (c), respec- tively. (a) and (b) are obtained from the TLM-patterned InAs nanowires before annealing while (c) and (d) are obtained after annealing.

Õ

ªAáÔ\"f „·úš\  „ÀÓ ‚+þA&hܼ–Ð &h &hܼ–Ð 7

£

x Hכ `¦SX‰“½+É Ãº e”. 3(b)HlÖ¦l_ %iú°úכ

“

 R_T °úכ`¦>íߖ #Œ
”¸ü<s#Q_ U´s\ Ér RT_



o|¾Ó`¦ ³ðlôÇ ÕªAáÔs.
”¸ü<s#Q_ U´s U´

#

Qf”\  R^TH‚+þA&hܼ–Ð 7£x Hכ `¦SX‰“½+É Ãº e”

. RT_ °úכ`¦‚+þA&Üh¼–Ð
?/#Q ÕªAáÔ_ y]X¼# õ

 x]X¼#ܼ–ÐÂÒ' RCü< LT\¦`%3¦ ú e”. s\¦ :ŸxK y

Œ

•yŒ•_ ]X8ú¤q$†½Ó ρ^c¦\6£§õ °ú s ½¨ %i.

ρc= RC2πrLT (2)

ρc\¦>íߖ½+É M: Fig. 2(b)\ ¶úš{9)across-section SEM

”

\ _ #Œ InAs
”¸ü<s#Q "é¶ÅÒ_ €• 80% &ñ•¸ Bj

»

1Ïs 7£x‚ÃÌ÷&#Q e”“¦ &ñ %i. ¢¸ôÇ Fig. 3(c)H 380

◦C\"f 30œíçߖ \P%ƒo\¦ Ç +ô '_ r 8£¤&ñôÇ I-V8£¤&ñ Õ

ªAáÔs“¦, Fig. 3(a), (c)"f I-V curve  ‚+A“þ כ `¦H

–Ð š¸b” ›¸| `¦ëߖ7á¤ôÇ כ ܼ–Ð «Ñ)a. s  õ\¦ :Ÿx K

 \P%ƒo\¦†<Êܼ–Ð+‹ ]X8ú¤$†½Ós צ#Q×¼Hכ `¦SX‰“½+É Ã

º e”%3. Fig. 3(d)H RTo|¾Ó ÕªAáÔs. \P%ƒo\¦ Ùþ

¡`¦M:_ RC 31.3k–Ð"f \P%ƒo\¦ t ·ú§€Œ¤`¦M: RC

5.1 MΩ˜Ð €• 163C ±ú“Érõ\¦SX‰“½+É Ãº e”%3. ¢¸ ô

Ç \P%ƒo\¦Ùþ¡`¦M:ü< t ·ú§€Œ¤`¦M: ρ^c yŒ•yŒ• 188 × 10⁻³ Ω ü< 1.157 × 10⁻³ Ωe”`¦ SX‰ “%i. sH \P%ƒ o

\¦ †<Êܼ–Ð+‹ InAsü< Ti >€\"f Ti_ ìøÍ6£x$í\ _K InAs ìro÷&“¦ ìøÍ6£x #Œ Ti> o½+ËÓüts +þA$í÷&“¦ s M

: ?/ÂҖÐSX‰–ßí)aTi"é¶ In&ñ/BNõ uŠ8¨†<Ê\  n+þA

InAs_ ³ð€ •¸iç0lx•¸\¦ 7£xr& ]X8ú¤$†½Ó`¦yŒ™™èr(” Ü

¼–Ð+‹ š¸b” † ×þ˜s +þA$í÷&%63£§`¦·ú˜ ú e”%3. ìø͕¸^‰

”¸ü<s#QH {9ìøÍ&hܼ–Ð 380^◦C\"f Âúª“Ér\P%ƒo–ЍH Ó

üt$ío {9#Q
t ·§lú M:ëH\ InAs
”¸ü<s#Q ^‰ _

 „•¸$í“Ér o t ·ú§H“¦ çߖÅÒ %i. s\¦ :ŸxK

\P

%ƒo õ&ñs Bj»1Ïõ ìø͕¸^‰çߖ_ ]X8ú¤$†½Ó`¦ צ#ŒÅҍH X

< ìøÍ×¼r €9כ¹ôÇ /BN&ñe”`¦‰XS“ %i. l”>rÉr‚ÃГ¦



7HëH\"f_ InAs-Bj»1Ï (Ti/Au, 10 nm/150 nm) ]X8ú¤$

†

½Ó, RCH€• 5.75 kΩ–Ð+‹ ‘:r Hë7H\"f_ õ\ qK ±ú

“ É

r]X8ú¤$†Ó`½¦˜ÐsHX<, sHBj»1Ï 7£xÌ „ ÆÒ&h“ o

†

<Æ&h %ƒo\¦ :ŸxK
”¸ü<s#Q ³ð€_ íߖo}Œ•`¦ ´òõ&h Ü

¼–Ð ]j %il M:ëHs“¦ \V©œôÇ [23].

IV. + s Ç Â ] Ø

‘

:r 7HëH\"fH TLM~½ÓZO`¦ s6 x #Œ InAs
”¸ü<s

#

Qü< Ti/Au Bj»1Ïçߖ_ š¸b”]X8¤ú$†½Ó :£¤$í\ @/K ƒ½¨

%i. TLM ~½ÓZO“Érìø͕¸^‰-Bj»Ï_1 ]X8ú¤$†½Ó`¦ 8£¤&ñ



HX< 6 xsôÇ ~½ÓZOs. z´+«>`¦ :ŸxK \P%ƒo\¦ôÇ +' 8£¤&ñ ô

Ç ]X8ú¤$†½Ós t ·ú§€Œ¤`¦M:_ ]X8ú¤$†½Ó ˜Ð €• 163C

± ú

“Ér õ\¦ %3`¦ ú e%”3. s–Ð+‹ \%Pƒo /BN&ñs Bj

»

1Ï-ìø͕¸^‰çߖ_ „l&h :£¤$í`¦ 8£¤&ñ H X< ×æכ¹ôÇ /BN&ñ s

Hכ `¦‰XS“½+É Ãº e”%3. ‘:rƒ½¨7HëH\"f ]jr)a

~

½ÓZO`¦ s6 x #Œ Bj»1Ï_ 7xáÀÓ\¦ 7€"f ]X8ú¤ :£¤$í

`

¦†¾Ó©œrvHƒ½¨\¦ ”'Ÿ½+É >S\‰s. ¢¸ôÇ ³ð€ %ƒo /

BN&ñ`¦ :Ÿx ìKø͕¸^‰ ™è\ #Q*‹ôÇ %ò†¾Ó`¦puHt ƒ

½

¨½+É >S\‰s. ‘:r ƒ½¨\¦ :ŸxK ]jr)a j»B1Ï-ìø͕¸^‰ ]X 8

ú

¤$†½Ó :£¤$í ƒ½¨Hš¸b” ]½X+Ë :£¤$ís :£¤y ×æכ¹ôÇ
”¸ ü

<s#Q lìøÍ_ „l x9Fg†<ƙè_ :£¤$í`¦Ó†¾©œ rvH X

< ß¼> l#Œ½+É Ãº e”.

P

c p 8 ý ò k >

‘

:rƒ½¨H 2005¸ ôDzDGƒ½¨Féߖ_ {9ìø̓½¨ t"é¶

\O

 (NRF-2013R1A1A2065935) ƒ½¨q\ _ #Œ ú'Ÿ÷&

% 3

_þvm.

REFERENCES

[1] J. Goldberger, A. I. Hochbaum, R. Fan and P. Yang, Nano Lett. 6, 973 (2006).

[2] J. A. del Alamo, Nature 479, 317 (2011).

[3] J. Y. Lee and B. S. Lee, KMPS 19, 75 (2012).

[4] A. C. Ford, J. C. Ho, Y. L. Chueh, Y. C. Tseng and Z. Fan et al., Nano Lett.9, 360 (2008).

[5] J. C. Shin, A. Lee, H. J. Kim, J. H. Kim and K. J.

Choi et al., J. Korean Phys. Soc. 62, 1678 (2013).

[6] F. L´eonard and A. A. Talin, Phys. Rev. Lett. 97, 026804 (2006).

[7] B. Bercu, W. Geng, O. Simonetti, S. Kostcheev and C. Sartel et al., Nanotechnology 24, 415202 (2013).

[8] D. B. Suyatin, C. Thelander, I. Maximov and L.

Samuelson, Nanotechnology 18, 105307 (2007).

[9] A. Chaudhry, V. Ramamurthi, E. Fong and M. S.

Islam, Nano Lett. 7, 1536 (2007).

[10] J. H. He, P. H. Chang, C. Y. Chen and K. T. Tsai, Nanotechnology 20, 135701 (2009).

[11] H. Park, R. Beresford, R. Ha, H. J. Choi and H Shin et al., Nanotechnology 23, 245201 (2012).

[12] G. Ye, K. Shi, R. Burke, J. M. Redwing and S. E.

Mohney et al., Nanomater. 2011, 876287 (2011).

[13] R. S. Wagner and W. C. Ellis, Appl. Phys. Lett. 4, 89 (1964).

[14] J. C. Shin, D. Y. Kim, A. Lee, H. J. Kim and J. H.

Kim et al., J. Cryst. Growth. 372, 15 (2013).

[15] J. Hwang and J. Shin, J. Korean Phys. Soc. 64, 1621 (2014).

[16] J. C. Shin, K. H. Kim, K. J. Yu, H. Hu and L. Yin et al., Nano Lett. 11, 4831 (2011).

[17] J. M. Zuo, M. Gao, B. Q. Li, R. Twestern and I.

Petrov, Microscopy Research and Technique 64, 347 (2004).

[18] H. W. Shin, J. C. Shin and J.-W. Choe, J. Korean Vac. Soc. 22, 105 (2013).

[19] S. Breuer, C. Pfuller, T. Flissikowski, O. Brandt and H. T. Grahn et al., Nano Lett. 11, 1276 (2012).

[20] S. Engels, A. Epping, C. Volk, S. Korte and B.

Voigtlander et al., Appl. Phys. Lett. 103, 073113 (2013).

[21] C. Gutsche, A. Lysov, I. Regolin, K. Blekker and W.

Prost et al., Nanoscale Res. Lett. 6, 65 (2011).

[22] C. Gutsche, I. Regolin, K. Blekker, A. Lysov and W.

Prost et al., J. Appl. Phys. 105, 024305 (2009).

[23] J. W. Whang, B. K. Kim, S. J. Lee, M. H. Bae and J. C. Shin et al., Curr. Appl. Phys. 15, S35 (2015).
