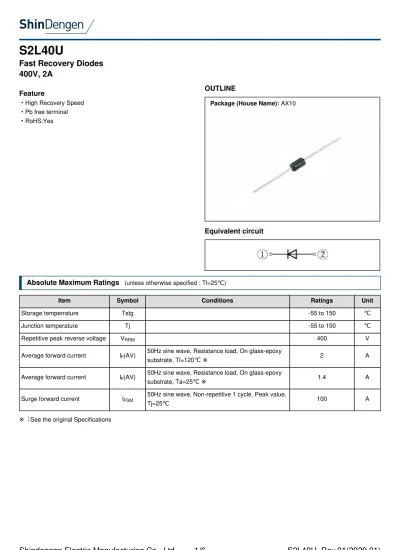

S2L40U
Fast Recovery Diodes 400V, 2A
Feature
・High Recovery Speed
・Pb free terminal
・RoHS:Yes
OUTLINE
Package (House Name): AX10
Equivalent circuit
Absolute Maximum Ratings
(unless otherwise specified : Tl=25℃)Item Symbol Conditions Ratings Unit
Storage temperrature Tstg -55 to 150 ℃
Junction temperature Tj -55 to 150 ℃
Repetitive peak reverse voltage V 400 V
Average forward current I (AV) 50Hz sine wave, Resistance load, On glass-epoxy
substrate, Tl=120℃ ※ 2 A
Average forward current I (AV) 50Hz sine wave, Resistance load, On glass-epoxy
substrate, Ta=25℃ ※ 1.4 A
Surge forward current I 50Hz sine wave, Non-repetitive 1 cycle, Peak value,
Tj=25℃ 100 A
※︓See the original Specifications
RRM
F
F
FSM
Shindengen Electric Manufacturing Co., Ltd. 1/6 S2L40U_Rev.01(2020.01)
Electrical Characteristics
(unless otherwise specified : Tl=25℃)Item Symbol Conditions Ratings
Unit MIN TYP MAX
Forward voltage V IF=2A, Pulse measurement 1.25 V
Reverse current I VR=400V, Pulse measurement 10 μA
Reverse recovery time trr IF=0.5A, IR=1.0A, 0.25IR 35 ns
Total capacitance Ct f=1MHz, VR=10V 22 pF
Thermal resistance Rth(j-l) Junction to lead, On glass-epoxy substrate ※ 12 ℃/W
Thermal resistance Rth(j-a) Junction to ambient, On glass-epoxy substrate ※ 83 ℃/W
※︓See the original Specifications
F R
Shindengen Electric Manufacturing Co., Ltd. 2/6 S2L40U_Rev.01(2020.01)
CHARACTERISTIC DIAGRAMS
Shindengen Electric Manufacturing Co., Ltd. 3/6 S2L40U_Rev.01(2020.01)
Shindengen Electric Manufacturing Co., Ltd. 4/6 S2L40U_Rev.01(2020.01)
Outline Dimensions
unit:mm
Shindengen Electric Manufacturing Co., Ltd. 5/6 S2L40U_Rev.01(2020.01)
