Se Thin Films by Using a Vacuum Evaporation Method and Temperature Dependences of the Physical Properties

(1)

Growth of p-Zn

_0.51

Cd

_0.49

Se Thin Films by Using a Vacuum Evaporation Method and Temperature Dependences of the Physical Properties

Dong Hun Han · Eun Jeong Yoon · Jeoung Ju Lee

^∗

Department of Physics and Research Institute of Natural Science, Gyeongsang National University, Jinju 660-701, Korea

Kwang Yong Kang

Institute for Soft and Biomaterials, Changwon National University, Changwon 641-773, Korea (Received 29 April 2015 : revised 18 June 2015 : accepted 19 June 2015)

Zn0.51Cd0.49Se thin films with thicknesses of about 430 nm were deposited on indium-tin-oxide (ITO)-coated glass substrates by using thermal evaporation of high-purity ZnSe and CdSe mixed tablets in high vacuum. X-ray diffraction spectra showed that the Zn0.51Cd0.49Se thin films had mixed ZnSe and CdSe cubic zincblende structures with a lattice constant a = 6.077 ˚A and that the crystals were preferentially grown with a (111) orientation. From the results of X-ray photoelectron spectroscopy, the intensities of the binding energies of the Zn 2p core levels were found to be increased with increasing annealing temperature and those of the Cd 3d and the Se 3d core levels to be decreased. The optical energy band gap of the as-deposited Zn0.51Cd0.49Se thin film was 2.32 eV.

Especially, the optical energy band gaps of Zn0.51Cd0.49Se thin films annealed in a vacuum electric furnace at temperatures from 200^◦C to 500^◦C were about 2.30 eV ∼ 2.08 eV. From measurements of the photoinduced discharge characteristics, the hole drifts in the Zn0.51Cd0.49Se thin films and the hole concentrations were found to increase with increasing annealing temperature but the hole mobilities were found to decrease.

PACS numbers: 81.15.-z, 81.05.Hd

Keywords: Zn0.51Cd0.49Se thin film, Annealing effect, Energy band gap, Surface roughness, PIDC

à Ã

Å « Ö «Y c l0 n É; c 8 ý X ¢ p-Zn

0.51

Cd

_0.49

Se U c lT c l8 ý V ËX R ê s õ m Í ö n ÚP X ì Ä ¤V R Ë8 ý Æ X Øy ¢8 ýÇ X ØV R Ë

Â 6

Ò ò 6 Bg Y @ · * × <ª <+ ä · T + ä ® £

^∗

â

©@/<Æ§ õ<Æ@/<Æ Óüto<Æõ x9 líõ<Æ½¨è, ÅÒ 660-701

~ ç

¡ ¢ 9 ÷ 7 B

½Ó"é¶@/<Æ§ $í x9 Òqt^Ót|ü9 Ö6x½+ËõÆ<½¨è, ½Ó"é¶ 641-773

(2015¸ 4Z4 29{9 ~ÃÎ6§, 2015¸£ 6Z4 18{9 Ãº&ñ:r~ÃÎ6£§, 2015¸ 64 19{Z 9 >FSX&ñ)

/BN7£xÃÌZOÜ¼Ð ITO (indium-tin-oxide) lóøÍ 0A\ ¿ºa 430 nm_ Zn0.51Cd0.49SeÌ}Ã~`¦]j

%i. X- r]X ìr$\3 _ # Zn^0.51Cd0.49Se~ÃÌ}Ér CdSeü< ZnSe D¥½+Ë)a &¹ñ¢¤^ $3Fg

½

¨¸\¦ ¦ e%3Ü¼ 9, Õª $í©~½Ó¾ÓÉr (111)~½Ó¾ÓÜ¼Ð Äº $í© %i. X-gF ìrFg õÐÂÒ '

, \P%o :r¸ 7x£\ Zn 2p\ @/ôÇ ½Ë\+-t_ xß¼ &hìr y©¸H 7£x ¦, Cd 3dü< Se

This is an Open Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/by-nc/3.0) which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.

(2)

3d\ @/ôÇ ½+Ë\-t_ xß¼ &hìr y©¸H yè %i. 7£xÃÌ)a Zn0.51Cd0.49SeÌ}Ã~_Fg<Æ&h \

-t { çßÉr 2.32 eVs%3. :£¤y, 200 ^◦C ∼ 500^◦CÐ /BN\P%oôÇ ~ÃÌ}_ Fg<Æ&h \-t { ç

ßÉr 2.30 eV ∼ 2.08 eVs%3.gFÄ»l ~½Ó :£¤$íÜ¼Ð ìr$3ôÇ Zn0.51Cd0.49SeÌ}Ã~Ér p-+þA (ª/BN³ð À

Ó)s 9, \P%o :r¸ 7£x\ ª/BN_ s1lx¸Hyè ¦, ª/BN_ 0lx¸H 7£x<Ê`¦ Ð%i.

PACS numbers: 81.15.-z, 81.05.Hd

Keywords: Zn0.51Cd0.49Se~ÃÌ}, \%Po ´òõ, \-t { çß, ³ð }9l,FgÄ»l ~½Ó :£¤$í

I. " e Â ] Ø

\

-t { çßs H II-VI7á¤o½+ËÓütìøÍ¸^HrFg

%ò%i\"f Z}Ér f¨Ãº>Ãº, Z}Ér 4¤ F½+Ë :£¤$í x9 {

çß ¸]X 0px$í M:ëH\ gF èÐ ÅÒ3lq`¦ ~ÃÎ

M®o [1–3]. II-VI7á¤ o½+ËÓtü ìøÍ¸^[þt MX[IIb7á¤ FK 5

Åq (metal); M = Zn, Cd, Hg ü< VIa7á¤ºúïp (chalco- gen); X = S, Se, Te]H½¨¸&h :£¤$í÷rëß m, l x9 F

g<Æ&h :£¤$í M:ëH\ g#F30A > ½¨÷&#Q M®o. MX_ CdSeH z´:rõ @/l·ú \"f ¹¢¤~½Ó, ÄºØÔsàÔ (hexag- onal, wurtzite)[/BNçßçH; P63mc(C_6v⁴ )]½¨¸Ð &ño÷& 9, ï

rîß&ñ ©I (metastable state)s & ñ¹¢¤^, $3 F

g (cubic, zincblende)[/BNçßçH; F¯43m(T_d²)] ½¨¸Ð &ñ

o|¨c Ãº e [4]. ZnSeH ^, $3Fg (tetrahe- dral, zincblende)[/BNçßçH; F¯43m(T_d²)] ½¨¸Ð"f d &ñ

¹

¢¤^ (face centered cubic, FCC) &ñ½¨¸\¦ ¿º

"

é

¶\¦ "fÐ ½+Ër ½¨¸Ð &ño|¨c Ãº e [5, 6].

CdSe(E_g = 1.9 eV)H Fglo<Æ t (photoelectro- chemical cells)ü<Fg¸ t (photoconductive cells)_ f

¨Ãº8£xÜ¼Ð 6 x|¨c Ãº eHìøÍ, ZnSe(Eg = 2.7 eV)H V,

Ér{ çß`¦°úHµ1ÏgFè x9 ¦´òÖ¦Íòør Iªt _

FgÈÒõ8£xÜ¼Ð 6 x|¨c Ãº e. ÕªQ CdSe Fg l

o<Æ t\ &6h x|¨c âÄºgFÂÒds µ1ÏÒt qHX< ìøÍK, ZnSeHV,Ér{ çß M:ëH\Fg Ö¸$í (photo-active)s &h

#

Q îß&ñôÇ כ Ü¼Ð ·ú94R e [7,8]. s©_ ëH]j\¦>h

¦ II-VI7á¤ s"é¶o½+ËÓtü\ II7á¤ ¢¸H VI7 á¤ "é¶è\¦ '

# o<Æ|¾Ó:r¸$íq (stoichiometric ratio) ¸&ñ

)

a "é¶o½+ËÓüt\ @/ôÇ ½¨ Ö¸µ1Ïy '÷&¦e [9, 10]. CdSeü< ZnSe o½+ËÓüts ½+Ë # Zn`¦lìøÍÜ¼Ð

H a-e7á¤ "¶éo½+ËÓüts c¨|M:, ¿º o½+ËÓüt_ ©&h`¦t m

H ZnCdSe "é¶o½+ËÓüt`¦ ]j½+É Ãº e. o½+ËÓüt_

¸$íq\ \-t { çß`¦¸]X , IªFg_ f¨ Ã

º\¦ 7£xrv 9gF ÂÒd`¦ }H %i½+É`¦ ½+É Ãº e [9, 11]. þjH\H II-VI7á¤o½+ËÓütìøÍ¸^ ÷rëß m @/ÂÒ ì

r_ ìøÍ¸^ lìøÍ è >hµ1Ï â¾ÓÉr¦, Z>¦, ·ûªÜ¼

"f $í0pxs ÄºÃºôÇ è\¦]j 9HÆÒ[j\ ~ÃÌ

∗E-mail: [email protected]

}

\ @/ôÇ 'ads &t¦ e. "f a-e7á¤ o½+ËÓüt ì

øÍ¸^ ~ÃÌ}Éro<Æ6 xl7£xÃÌ (chemical bath deposition, CBD) [12],Û¼ß¼2; W (screen printing) [13], `OÛ¼ YUs

$

7£xÃÌ (pulsed laser deposition, PLD) [14], `OÛ¼ ¸FKl Õ

üt (pulse plating technique) [9], l7£xÃÌ (electrodepo- sition) [15], ìrÁº \PìrK ~½ÓZO (spray pyrolysis method) [16], Ä»lFK5Åq o<Æ l©7£xÃÌ (metal organic chemical vapor deposition, MOCVD) [17], Ä»lFK5Åql© \x×þ r

(metal organic vapor phase epitaxy, MOVPE) [18], ìr

¶ú \x×þr (molecular beam epitaxy, MBE) [10], /

B

N7£xÃÌ (vacuum evaporation) [19] 1px_ ªôÇ lÕütÐ ]

j÷&#QM®o.

s

ü< 8Ô¦#Q II-VI7á¤ "é¶o½+ËÓüt ìøÍ¸^ ]j ~½Ó ZO

_ èHÂÒ µ1Ï\ _K Zn^xCd1−xSe \x8£xõ Zn_xCd_1−xSe/ZnSe s7áx]X½+Ë½¨¸ (heterostructures) 8

£

x~ÃÌ}_ $í©¸ 0px . sü< °ú s ªôÇ \x8£xõ

8£x~ÃÌ} ]j ~½ÓZO_ >hµ1ÏÐ ½¨¸&hÜ¼Ð îß&ñ 9, l

&h, Fg<Æ:¤$£ís ÄºÃºôÇ "é¶o½+ËÓüt ~ÃÌ}`¦ ]j ¦ e

[20]. Li 1pxÉrÄ»lFK5ÅqoÆ l<©7£xÃÌ ZO\ _K"f

$í

©)aZnSe/Zn_xCd_1−xSeíÐÂÒ' ×æí7Hëß í

ßêøÍ (multiphonon Raman scattering)`¦¸ # ©#4 8

£

x\"f ¿º 7áxÀÓ_ ZnSe-like [jÐFg<Æ (longitudinal optical) í7H`¦ SX %i [17]. Tamargo 1pxÉr InP l ó

øÍ 0A\ ZnCdSe/ZnCdMgSe_ ªÄºÓüt (quantum well, QW)½¨¸_ µ1ÏgFs¸×¼\¦j] %i¦,gF<Æ&h :£¤$í

¸ ¸ %i [21]. Guan 1pxõ Shubina 1pxÉr ìr¶ú \ x

×þr\ _K"f $í©a)ZnxCd1−xSe/ZnSeíÐÂÒ '

ÍtFg(photoluminescence, PL)`¦¸ #Fg<Æ&h © î

ß&ñ$í_ l"é¶`¦ µ1ß+ÀI¦ [22, 23], Liu 1pxÉr CdZnS/ZnS core/shell ª&h (quantum dot, QD)`¦]j # s_ :

£¤$í`¦¸ %iÜ¼ 9, ª& xh9 ªÄºÓüt ½¨¸\¦°úH

è Fg íßo6 x, ¨8 xâ 9 o<Æ&h o\ ÄºÃºôÇ ?/

$í

`¦Ðe`¦ Ð¦ %i [24,25]. sQôÇ ½¨[þtÉr¦

_

©q\¦6 xK Héß&hs e.

s

\ :r½¨\"fHs©_ ~ÃÌ} ]j¸ ~½ÓZO[þt ×æ\"f

@

/&h 7£xÌ xÃ9 o<Æ|¾Ór: ¸$íq_ ]j#Q 0px½+É ÷rëß

m, ]j¸ /BN&ñ éß $§ 4 9 Ä»t'ao ÄºÃºôÇ

/BN7£xÃÌZO`¦s6 x # "é¶o½+ËÓt Znü 0.51Cd0.49Se~ÃÌ}

(3)

`

¦ ]j %i. 7£xÃÌ)aZn0.51Cd0.49Se~ÃÌ}`¦ /BNl

Ð 5Åq\"f 200^◦C, 300^◦C, 400^◦C, 500^◦CÐ 10ìr 1lxîß

\P

%o ¦, Êê5Åq%P\o :r¸\ Ér½¨¸&h,gF<Æ&h :£¤

$í

÷rëß mFgÄ»l ~½Ó :£¤$í [26]\ _ôÇ @/)aîr ì

øÍ_ 1lx%i<Æ&h 1lx (dynamical behavior) [27]`¦¸

%i.

II. ÷ m Ç ] M ö

1. Zn0.51Cd0.49Se UclTcl8ý <gº

Zn0.51Cd0.49Se ~ÃÌ}Ér ITOlóÍ 0ø A\ \P7£xµ1Ï ~½ÓZOÜ¼

Ð 100^oC\"f 7£xÌ÷Ã&%3. ~ÃÌ} çH{9¸ ¾Ó©`¦0AK l ó

øÍÉr 8r/ìr¼ÜÐ rr(. ¿ºaü< 7£xµ1ÏÖ¦rÉÃº&ñ&ñ

¿

ºa ¸&ñ©u (quartz crystal thickness monitor)Ð ¸ ]X

%i. 7£xÃÌÖ¦Ér :r¸]j#Q ©u_ èÛ¼ÀÓ (source current)ü< èÛ¼:r¸ (source temperature) ©'a'a>ÐÂÒ '

¨8íß # Ð&ñ %i. $í©r þj&h èÛ¼:r¸H 1000

◦Cs%3. 9כ¹ôÇ ¸$í_ ~ÃÌ}`¦ 7£xÃÌ l 0A # 5 N (99.999%) íH¸_ ZnSe (Aldrich)ü< CdSe (Aldrich) ìr´ú

`

¦ 1:1 ]tq (molar ratio)Ð gA|Óô¾Ç Êê ^¦x9 (ball mill)Ð

D¥½+Ër(. sÊê ·ú»¤¡©u\"f 1 g_ &ñ]j (tablet)Ð ëß [

þ

t#Q Û¼Ö¿ (basket) +þAI_ [jb`¦ {92³ )íÛ¼J$ (W)

¸m 5Åq\ V,#Q Øæìry \V\`P¦ ôÇ Êê 7£xÌ Ã%i. Õþ

!

Q (chamber) ?/_ íl/BN¸H 2.0 × 10⁻⁶ torrs%3

. ~ÃÌ}`¦ 7x£ÃÌ l lóøÍÉrí6£§ [j'l\"f [j

:rõ sèáÔÐ9·úï`¦Ð [j' ¦ r 7£xÀÓÃºÐ 'çH Ê

ê |9è Û¼Ð | ¸r(. 7£xÌ\Ã èכ¹)açrßÉr\V\P

`

¦í<Ê # 30ìr?/ü@s%3.

2. UclTcl ¤VËR ÄZØV Ä Uês0nÉ 7

£

xÃÌ Êê\ r«Ñ[þtÉr /BNlÐ 5Åq\"f 200 ^◦C, 300

◦C, 400 ^◦C, 500 ^◦CÐ 10ìr 1lx \îß P%o %i. r«Ñ

H \P%o :r¸ 7x£\ °úÒo (dark brown)Ü¼Ð

%i. 7£xÃÌ)aZn0.51Cd0.49Se~ÃÌ}_ ¿ºaü< ³ð+þA

©Ér>~½ÓØ¦ÅÒ &³pâ (field emission scanning electron microscopy, FESEM, JSM-7610F)Ü¼Ð 'a8£¤

%

iÜ¼ 9, o<Æ|¾Ór: ¸$íqH >~½ÓØ¦ ÅÒ &³pâ

\

ÂÒÃÌ)a \-t ìríß X- ìr$3l (energy dispersive X-ray analysis, EDX)Ð ìr$3 %i. ¢¸ôÇ 7 £xÃÌ)a ~ÃÌ} _

³ð+þA©, {9 ß¼l, ½¨¸ x ³9 ð }9lH "é¶çß

§ 4

&³pâ (atomic force microscopy, AFM, Parks Sys- tems XE-100)Ü¼Ð 8£¤&ñ %i. 7£xÌÃ)a ~ÃÌ}_ &ñ½¨

¸H X- r]X> (X-ray diffractometer, XRD, Siemens D5005)\¦ s6 x # ¸ %i¦, 6 x)a X-_ ©Ér 1.5418 ˚As%3. ÅÒ%ò%iÉr 2θ 20^◦ ∼ 80^◦ s. 7£x

Ã

Ì)a Zn0.51Cd0.49Se ~ÃÌ}_ ³ð\"f o<Æ&h &ñÐ\¦

%

3l 0A # CLAM (combined lens and analyser mod- ule) 4 ×æGV, ìøÍ½¨+þA \-t ìr$3l (multichan- nel hemispherical electron analyser, 23.4 eV_ ¦&ñ)a :

xõ \-t) ©ÃÌ)a Mg-Kα source (FWHM: 0.826 eV)\¦ °úH X- gF ìrFgl (X-ray photoelectron spectroscopy, XPS, VG Microtech ESCA 2000)Ð 8£¤&ñ

%

i. UV-Vis-NIR (ultraviolet-visible-near infrared) ìr F

gFg¸> (spectrophotometer, Shimadzu MPS-5000)\¦ s

6 x # z´:r\"f Fgf¨Ãº\¦ 8£¤&ñôÇ Êê gF<Æ&h \

-t { çß`¦ &ñ %i. îrìøÍ_ +þAI, ÅÒ '

rçß, îrìøÍ 0lx¸ Õªo¦ s1lx¸H FgÄ»l ~½Ó

:£¤$íÜ¼Ð ¸ %i. FgÄ»l ~½Ó :£¤$í ìr$3Ér glass/ITO/Zn0.51Cd0.49Se/ITO/glass½¨¸_ !sq (cell)`¦ ]

j # ü@ÂÒ l&h ¸ú6§`£¦ `r ·úÀÒp³ou (Al)

j7HÏþáÔ_gF"é¶`¦éß5Åq # %3%3¦, s\¦ÈÒ"îFG}

`

¦ :x # r«Ñ\ |95Åqr(. r«Ñ ?/\ ¸a) Fg `O Û

¼_ ;¤Ér µss %i.Fg `OÛ¼\ _K Òqt$ía ) îrìøÍ

[þts r«Ñ_ ìøÍ@/¼#\ ¸²ú H 1lxîß_ õ¸·ú :£¤

$í

ÉráÔoÓráÔ (pre-amplifier)Ð pèl ñ\¦ 7£x;¤ôÇ Ê

ê ¸z´ÐÛ¼ïáÔÐ 8£¤&ñ %i. ¸z´ÐÛ¼ïáÔ ©\"f ª _

õ¸·ú`¦?/HÄâº ª/BN³ðÀÓ (hole drift)\¦_ p

9, 6£§_ õ¸·úÉr³ðÀÓ (electron drift)\¦_ p

ôÇ.

III. + s ÇÊ Ý õ m Í w ² o

7

£

xÃÌ)a Zn0.51Cd0.49Se ~ÃÌ}Ér >~½ÓØ¦ ÅÒ &³ p

â`¦ s6 x# 'a¹1ÏôÇ õ L:FMôÇ ³ð©õ éß©

`

¦ Ð%iÜ¼ 9, Õª ¿ºaH 0.43 µms . \-t ìríß X- ìr$3lÐ 8¤&£ôñÇ 7£xÃÌa) ~ÃÌ}_ oÆ|<¾Ó:r ¸$í q

H Zn:Cd:Se = 25.42:24.33:50.25 at.%s%3. 7£xÃÌ)a Zn0.51Cd0.49Se ~ÃÌ}õ 200 ^◦C, 300^◦C, 400 ^◦C, 500 ^◦C

Ð \P%o)a ~ÃÌ}_ oÆ|<¾Ó:r¸$íqH Table 1\

?

/%3. 500^◦Ct \P%oôÇ ~ÃÌ}_ VI/FK5ÅqqH 1.00

∼ 1.04s 9, o<Æ|¾Ó:r ¸$qí\"f II7á¤_ 9\ _K p-+þA l¸¸\¦°úH [28].

Zn0.51Cd0.49Se ~ÃÌ}_ &½ñ¨¸\¦ ½©"î l 0A # X- r]X>Ð 8£¤&ñôÇ, Zn _0.51Cd_0.49Se ~ÃÌ}_ X- r ]X

Û¼&7àÔ!3[þt`¦ Fig. 1\ ?/%3. Zn0.51Cd0.49Se

(4)

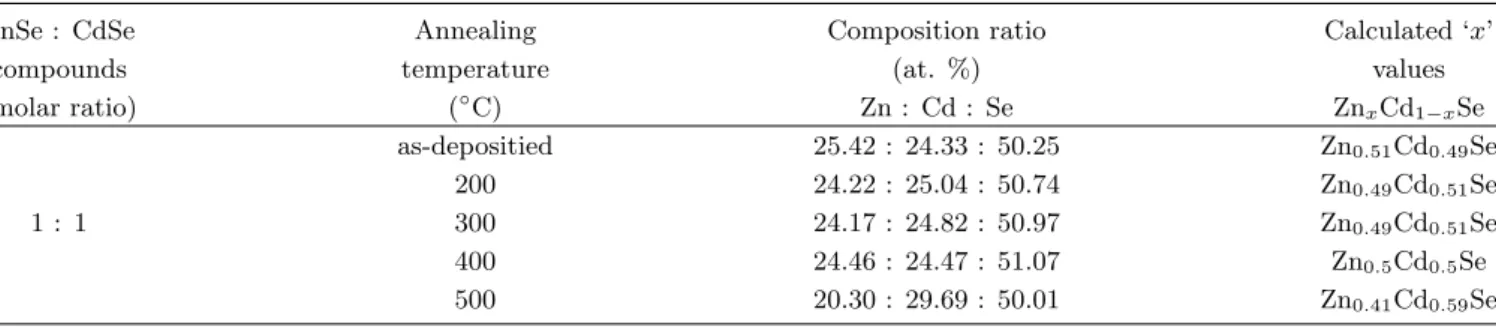

Table 1. Measured composition ratio and calculated ‘x’ values for the Zn0.51Cd0.49Se thin films.

ZnSe : CdSe Annealing Composition ratio Calculated ‘x’

compounds temperature (at. %) values

(molar ratio) (^◦C) Zn : Cd : Se ZnxCd1−xSe

as-depositied 25.42 : 24.33 : 50.25 Zn0.51Cd0.49Se 200 24.22 : 25.04 : 50.74 Zn0.49Cd0.51Se

1 : 1 300 24.17 : 24.82 : 50.97 Zn0.49Cd0.51Se

400 24.46 : 24.47 : 51.07 Zn0.5Cd0.5Se

500 20.30 : 29.69 : 50.01 Zn0.41Cd0.59Se

Fig. 1. (Color online) X-ray diffraction patterns of the Zn_0.51Cd_0.49Se thin films for (a) as-deposited sample and annealed samples at (b) 200 ^◦C, (c) 300 ^◦C, (d) 400^◦C, and (e) 500^◦C for 10 min in vacuum: Cubic (•).

~ Ã

Ì}Ér CdSeü< ZnSe_ D¥½+Ë &¹ñ¢¤^ $3Fg½¨¸

\

¦ Ð%i¦, Äº $í©~Ó½¾ÓÉr (111)s%3. II-VI7á¤ ºúï

>

s×¼ ìøÍ¸^ F«Ñ é#Qo (bulk) Zn^xCd1−xSeH 0.5 < x < 0.7 âÄº\H &ñ¹¢¤^ $3Fg ½¨¸ü< ¹¢¤

~

½Ó ÄºØÔsàÔ ½¨¸ Ñüt 0px ¦, x > 0.7ü< x < 0.5

â

Äº\H &ñ¹¢¤^ $3Fg ½¨¸ ¢¸H ¹¢¤~½Ó ÄºØÔs à

Ô ½¨¸ Ñüt ×æ \¦ &¦ ·ú94R e [29]. ôÇ

¼

# CdSe ~ÃÌ}_ Äº&h ~Ó½¾ÓÉr CdSe_ ±úÉr +þA$í Ö

¦õ ÙþÒqt$í õ&ñ\ _K &ñ)a¦ ·ú94Re [30].

Zn0.51Cd0.49Se ~ÃÌ}_ âÄºH Fig. 1 \"f SX½+É Ãº e

Hü< °ú s 2θ 26.2^◦"\f :£¤&ñ CdSe(111)

\

@/ôÇ y©ôÇ r]X xß¼ z`¦ ^¦Ãº e¦, ¢¸ôÇ y©

¸H p të 2θ 42.3ß ^◦\"f CdSe(220), 50.6^◦\

"

f CdSe(311), 46.4^◦\"f ZnSe(220)\ @/ôÇ r]X x ß

¼'a¹1Ï÷&%3. 2θ 30.6^◦ü< 34.5^◦HlóøÍ Óüt|9 ITO l

óøÍ_ ¸$í In₂O3(222)õ In2O3(400)\ @/ôÇ x ß

¼s. \P%o :r¸ 7£x\ CdSe(111)\ @/ôÇ x

ß¼ &&. sכ Ér Cd "é¶[þt_ ÂÒx Zn "é¶[þt _

ÂÒxÐ s` ß¼l M:ëH\, Zn "é¶H CdSe s

\ [þt#Q X-\ @/ôÇ íßêøÍ×æds 7£x H כ Ü¼Ð s

K½+É Ãº e [3,31]. 8£¤&ñ)aX- r]X Û¼&7àÔ!3_ x ß

¼\ @/K tÃº (hkl) °úכ`¦&ñ l 0A # ©Ãº,

çßo, tÃº s_ a'>dÜ¼Ð ÅÒ#QtH d(1)õ

½

¨¸ èY>ZOg: [32]`Ë ¦6 x %i.

1

d² = h²+ k²+ l²

a² (1)

s

M:, èY>ZOgË:`¦ &h6 x # >íßôÇ ©ÃºH CdSe(111)\ @/ # a = 6.077 ˚A s¦, CdSe(220) õ

CdSe(311)\ @/ #H yy a = 6.049 ˚A õ a = 5.969 ˚As%3¦, ZnSe(220)\ @/ #H a = 5.515 ˚A s

%3. sH CdSeü< ZnSe_ éß&ñ`¦ 6 x # 8£¤&ñ ô

Ç ìr´ú X- r]X>_ ©Ãº °úכ [33]õ çßoH

¸ ú

{9u %i. sQôÇ õÐÂÒ' Zn0.51Cd_0.49Se ~ÃÌ }

s $3Fg ½¨¸e`¦Ð#ïr. "f /N 7B£xÃÌ)a Zn_0.51Cd_0.49Se ~ÃÌ}Ér %P\o :r¸ 7£x\ (111), (220), (311) ~½Ó¾ÓÜ¼Ð $í©)a &ñ (polycrystalline) +þ

AI\¦?/H Üכ¼Ð Òqty)a.

Fig. 2H \P%o _ Zn^0.51Cd0.49Se ~ÃÌ}õ 200^◦C, 300 ^◦C, 400^◦C, 500 ^oCÐ \P%oôÇ r«Ñ_ Zn 2p, Cd 3d Õªo¦ Se 3d\ @/ôÇ XPS Û¼&à7Ô!3`¦ ·p.

Fig. 2(a)H Zn 2p\ @/ôÇ Û¼&7àÔ!3Ü¼Ð, \P%o _ Zn0.51Cd0.49Se~ÃÌ}õ 200^◦C, 300^◦C, 400^◦CÐ \P%o ô

Ç r«Ñ_ âÄº ½+Ë\-t yy 1052.6 eVü< 1029.5 eV\"f Zn 2p1/2ü< Zn 2p3/2\ @/ôÇ xß¼[þt`¦'a¹1Ï %i

¦, 500^◦CÐ \P%oôÇ âÄº_ xß¼[þtÉr 0.2 eV &ñ¸ _

±úÉr½+Ë\-t A¤áÜ¼Ð s1lx %i. Fig. 2(b)H Cd 3d\ @/ôÇ Û¼&7àÔ!3Ü¼Ð, ½+Ë\-t yy 420.9 eVü<

414.2 eV\"f Cd 3d3/2ü< Cd 3d5/2\ @/ôÇ xß¼[þt`¦'a

¹

1Ï %i¦, 300^◦Cü< 400^◦CÐ \P%oôÇ âÄºH s xß¼ [

þ

ts 0.1 eV ±úÉr½+Ë\-t Aá¤Ü¼Ð s1lx %i. 500^◦C

Ð \P%oôÇ âÄºH Cd 3d3/2ü< Cd 3d5/2\ @/ôÇ xß¼[þt s

_'a¹1Ï÷&t ·ú§¤. Fig. 2(c)H Se 3d_ Û¼&7àÔ!3 Ü

¼Ð, \P%o õ 200^◦C, 300^◦C, 400^◦CÐ \P%oôÇ r

(5)

Fig. 2. (Color online) XPS spectrum of the Zn0.51Cd0.49Se thin films for (a) Zn 2p, (b) Cd 3d and (c) Se 3d core levels.

«

Ñ_ âÄº ½+Ë\-t yy 63.7 eVü< 63.4 eV\"f Se 3d_3/2ü< Se 3d5/2\ @/ôÇ xß¼[þt`¦'a¹1Ï %i¦, 500^◦CÐ

\P

%oôÇ âÄºHs xß¼[þts _'a¹1Ï÷&t ·ú§¤. Zn 2p, Cd 3d Õªo¦ Se 3d xß¼[þt\ @/ôÇ &hìr y©¸H\P

%

o õ Êê\ "fÐ ©ìøÍ÷&H õ\¦ Ð%i. Zn 2p_ x

ß¼ &hìr y©¸H %P\o :r¸\¦ 200 ^◦C, 300 ^◦C, 400

◦C, 500 ^◦CÐ 7£xr(\ 7£x %i¦, Cd 3dHy

è %i. s õÐÂÒ' Zns ~ÃÌ} µ1ÚÜ¼ÐSXíß÷&#Q ~ÃÌ }

³ðÉr Zn-rich©IÐ ÷&%36§`£¦·ú Ãº e¦, CdÉr~ÃÌ }

5ÅqÜ¼Ð gË>ÈÒ÷&#Q ~ÃÌ} 5ÅqÉr Cd-rich©IÐ ôÇכ Ü¼

Ð sK)a. Se 3d_ xß¼ &ìhry©¸H 200^◦C, 300^◦C, 400 ^◦CÐ \P%oôÇ âÄº yè<Ê`¦·ú Ãº e¦, 500^oCÐ

\P

%oôÇ âÄºHxß¼[þtsa'¹1Ï÷&t ·ú§¤. sH\P% o

:r¸ 7£x\ ³ðÜ¼ÐÂÒ' ½+Ës =åS#Q4R s»1Ï ô

Ç כ Ü¼Ð Òqty)a. \%Po _ Zn^0.51Cd0.49Se~ÃÌ}_

&

h

ìr y©¸\¦ >íßôÇ õ Se\¦ ½©or(`¦ M: Zn:Cd

= 51%:49%Ð EDS õü< {9u<Ê`¦·ú Ãº e.

Fig. 3(A)H 7£xÃÌ)aZn0.51Cd0.49Se~ÃÌ}õ 300^◦C, 400

◦C, 500 ^◦CÐ \P%oôÇ ~ÃÌ}_ >~½ÓØ¦ÅÒ &³p

â

Ü¼Ð'a8£¤Ç ³ôð+þA© s. 7£xÃÌôÇ ~ÃÌ} (a)H½¨ +þ

A_ {9[þts Óüæ5g"f "é¶+þA¸ª (circular shaped) ½¨¸

\

¦ ¦ eÜ¼ 9, ³ð+þA© x9 }9l ¦Ér ìríÐ ³ð

\

êøÍ > $í© %i. (b)H 300^◦CÐ \P%oôÇ r«Ñ

Fig. 3. (A) FESEM and (B) AFM images of the Zn0.51Cd0.49Se thin films for (a) as-deposited sample and annealed samples at (b) 300^◦C, (c) 400^◦C, and (d) 500

◦C for 10 min in vacuum.

_

³ð+þA©`¦ ?/HÕªaË>Ü¼Ð (a)_ \P%o t ·ú§

É

rr«Ñü< °ú s ³ð\ êøÍ > $í© %i¦, ³ð }9 l

H¦Ér ìríÐ >h÷&%3. (c)H 400 ^◦CÐ \P%oôÇ r

«Ñ\ @/ôÇ כ Ü¼Ð "é¶+þA¸ª ½¨¸ q§&h çH{9 > ì

rí # SXíß÷&¦ e6£§`¦ ·ú Ãº e. (d)H 500 ^◦CÐ

\P

%oôÇ âÄº_ ³ð+þA©`¦?/HªaÕË>Ü¼Ð \P%o

t ·ú§Érr«Ñü< ²oú 50 nm ∼ 100 nm ß¼l_ óøÍ©

&ñwns'a¹1Ï÷&%3¦, ³ð }9l¸ 7£x %i. XRD x9

FESEM ìr$3Ü¼ÐÂÒ' 500^◦CÐ \P%o½+É âÄº Äº

$í

©~½Ó¾Ós (111) &ñ¹¢¤^ $3Fg½¨¸\¦°úH,óøÍ

©¸ª_ Zn0.51Cd0.49SeÌ}Ã~s $í©÷&%3.

Fig. 3(B)H 7£xÃÌ)aZn0.51Cd0.49Se~ÃÌ}õ 300^◦C, 400

◦C, 500^◦CÐ \P%oôÇ ~ÃÌ}\ @/ôÇ "é¶çß§4 &³pâ

s. "é¶ç§ß4 &³pâ ¸¿º\"f 2[/åLÇ ô&hÉr 3

× 3 µm²s. ]jYL¨çîH]jYLH (root mean square, RMS)

}9lH 0.5 µm U´s ½©\"f 8¤&£ñ)a Y>Y> ÅÒ[þt (scans)_ ¨îçH}9l\¦2[ # %3%3. Fig. 3(B)\

p · ü< °ú s, (a) 7£xÃÌa) Zn_0.51Cd_0.49Se ~ÃÌ}õ (b) 300 ^◦C, (c) 400 ^◦C Õªo¦ (d) 500 ^◦CÐ \P%oôÇ ~ÃÌ }

_ ]jYL¨îçH]jYLH }9lH yy 55.8 nm, 44.8 nm, 76.5 nmÕªo¦ 116.5 nms%3. ôÇ¼#, 7x£ÃÌ)a~ÃÌ}_ ¨î

(6)

Fig. 4. (Color online) Optical absorption spectra of the Zn0.51Cd0.49Se thin films. The inset shows the transmis- sion spectra obtained for the Zn0.51Cd0.49Se thin films.

ç

H{9_ ß¼l (mean grain size)H 14.0 nms%3¦, 300

◦C, 400 ^◦CÕªo¦ 500^◦CÐ \P%oôÇ ~ÃÌ}\ @/ #H y

y 10.0 nm, 12.5 nm Õªo¦ 48.0 nms%3. \P%o :r

¸ 7£x\ ¨îçH{9_ ß¼l 7£x Hכ Ér 7£xÃÌ

)

a~ÃÌ}_ çH{9ôÇ {9[þts Zn_SXíß\ _ôÇ &ño

s

ÀÒ#Q4R"f Ô¦çH{9ôÇ {9[þtÐ 7 ¦ ÂÒÃÌ>Ãº 0\

îr Zns óøÍ© ¸ªÜ¼Ð Óæü5g"f ³ð\"fH [þtä¼H

כ

Ü¼Ð Òqty)a.

7

£

xÃÌ)a Zn_0.51Cd_0.49SeÌ}~Ãõ 200^◦C, 300 ^◦C, 400^◦C, 500^◦CÐ \P%oôÇ r«Ñ[þt\ @/ #Fgf¨º ÛÃ¼&7àÔ!3`¦ 8

£¤&ñ %i.gfF¨Ãº Û¼&7àÔ!3Ü¼ÐÂÒ' r«Ñ[þtÉr\P%o

:r¸ 7£x\ 674 nm ∼ 704 nm\"f /åLôÇFgf¨Ãº

\

¦Ð%i. sQôÇFgf¨º_Ã 7£xH f]Xs \-t {

½

¨¸\¦ ìøÍ¸^_ líf¨ºéÃß\"fFgf¨Ãº\ _ôÇ כ s

[34]. Fgf¨Ãº >Ãº αHlíf¨ÃºéßH%Fgf¨Ãº Û¼

&

7àÔ!3[þtÐÂÒ' {9Fgª \-t hν_ <ÊÃºÐ >íß½+É Ã

º e. Fig. 4H Fgf¨Ãº >Ãº_ ]jYLõ {9Fg\-t

s_'a>\¦·p כ s. f]Xs{9 M:Fgf¨Ãº > Ã

ºü< {9Fgª \-t s_'a>\¦6£§ d(2)ü< °ú

[34].

(αhν)²∼ (hν − E_g) (2)

#

l"f h H Planck©Ãºs¦, νH {9Fgª_ 1lxÃº s

. Fg<Æ&h \-t { çß (Eg)Ér Fig. 4\ ·p

ü< °ú s (αhν)²= 0\ @/ôÇ ¸³ð_ f`¦ü@¶ú<ÊÜ¼Ð

"

f %3H. f]XFgsHs ÕªaË>\"f f\ _KSX

÷

&¦, 7£xÃÌ)aZn_0.51Cd_0.49Se~ÃÌ}õ 200^◦C ∼ 500^◦CÐ

\P

%oôÇ ~ÃÌ}[þt_ FgÆ&<h \-t { çßÉr 2.08 eV

∼ 2.32 eVt %i. s °úכ[tþÉrÉr II-VI7á¤s"é¶o

Fig. 5. (Color online) (a) Oscilloscope trace of the pho- toexcited carrier and (b) dV/dt of the Zn0.51Cd0.49Se thin films.

½

+ËÓütìøÍ¸^ Zn^0.44Cd0.56Se~ÃÌ} (2.23 eV ∼ 2.31 eV)õ q

§|¨cÃº e¦, CdSe &ñ¹¤¢^ $3Fg½¨¸ (1.90 eV) ü

< ZnSe &ñ¹¢¤^ $3Fg½¨¸ (2.70 eV ∼ 2.93 eV)_

\

-t { çß s°úכ`¦Ð%i [35,36].

>

éß+þA Fg`OÛ¼ (step pulse) ¸|¨cM: r«Ñ_

³

ð\"f îrìøÍ ©s µÏÒ1qt 9, s[þt_ SXíß\ _ K

+þA$í)a 0A Ð îrÍøìH¿º FGs\¦³ðÀÓ

>)a. Fig. 5(a)H 7£xÃÌa)Zn0.51Cd0.49Se~ÃÌ}õ 200

◦C ∼ 500 ^◦CÐ \P%oôÇ r«Ñ\Fg `OÛ¼ ¸÷&"f r

«Ñ ³ð\"f Òqt$í)a îrìøÍ ìøÍ@/ FGÜ¼Ð ³ð À

Ó "f tÃº <ÊÃº&hÜ¼Ð Ôæ õH1lx`¦Ð#ÅÒH¸ z

´ÐÛ¼ïáÔ_ 'a8£¤õ (²DG; trace)\¦ Ð#ÅÒ¦ e.

Å

Ò'rçß (transit time)Ér rçß\ Ér ·ú_ oÖ¦ s

l r½+É M:t_ rçßÜ¼Ð &ñ_÷&Ù¼Ð s\¦

&

ñSX > &ñ l 0A # rçß\ Ér ·ú_ oÖ¦ (dV /dt)`¦·ú ôÇ [37,38]. Fig. 5(b)H Fig. 5(a)\¦ p

ìr # ·p כ Ü¼Ð"f x»¡¤Ü¼Ð ·p rçß_ l ï

rÉr Fg FG¼ÜÐ Òqt$í)a îrìøÍ\ _K +þA$í÷&H

íl0A þj@/ r&hÜ¼Ð %iÜ¼ 9, ìøÍ@/¼# FGÜ¼

Ð s1lx # »¡¤&h)a îrìøÍ[þtÐ ôÇ (dV /dt) ¿º

(7)

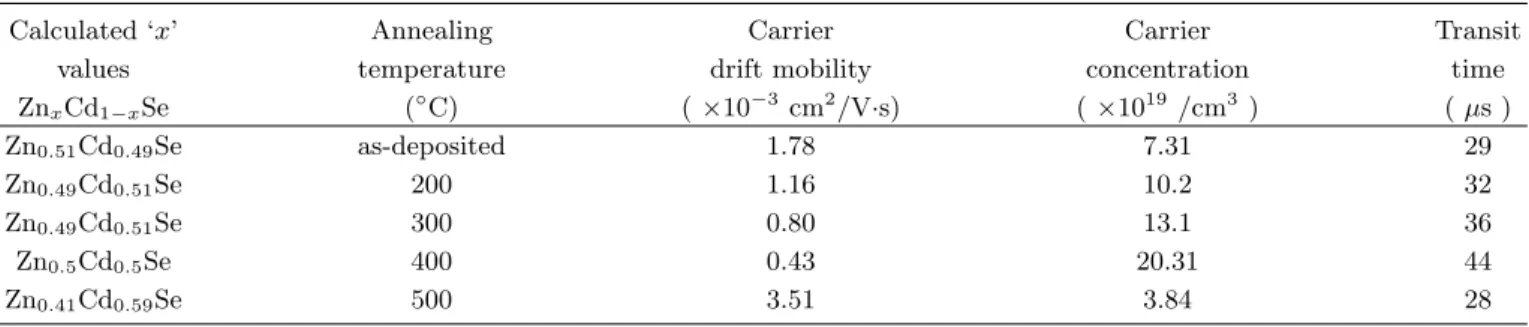

Table 2. Calculated values of drift mobility and concentration of charge carrier for the Zn0.51Cd0.49Se thin films.

Calculated ‘x’ Annealing Carrier Carrier Transit

values temperature drift mobility concentration time

ZnxCd1−xSe (^◦C) ( ×10⁻³cm²/V·s) ( ×10¹⁹ /cm³ ) ( µs )

Zn0.51Cd0.49Se as-deposited 1.78 7.31 29

Zn0.49Cd0.51Se 200 1.16 10.2 32

Zn0.49Cd0.51Se 300 0.80 13.1 36

Zn0.5Cd0.5Se 400 0.43 20.31 44

Zn0.41Cd0.59Se 500 3.51 3.84 28

×

¼Qt> l r½+É M:t_ rçß`¦ÅÒ'rçßÜ¼Ð

%i. 7£xÃÌ)aZn_0.51Cd_0.49Se~ÃÌ}õ 200^◦C ∼ 500^◦C

Ð \P%oôÇ r«Ñ[þt_ ÅÒ'rçßÉr 28 µs ∼ 44 µst

%i. ¢¸ôÇ ³ðÀÓ s1lx¸ü< îrìøÍ 0xl¸H Óüto

&

h ¸4Sqõ Batra 1px [39]_ s:r`¦s6 x # >íß½+É Ãº e

Ü¼ 9, îrìøÍ_ ÅÒ'rçß tT ü< #Qïr·ú V s

_'a>H

tT =dD

µV (3)

s

. #l"f d H r«Ñ_ ¿ºa, DH ¿º FG (top and bottom electrodes)s_ o, µHðÀ³Ó s1lx¸ Õªo¦ V H#Qïr·ús. rçß\ @/ôÇ dV /dt_ ÕªAáÔ\"f 8

£¤&ñ)a t_Tü< d (3)Ü¼ÐÂÒ' 0.43 µm ¿ºa_ 7£xÃÌ)a Zn0.51Cd0.49Se~ÃÌ}õ 200^◦C, 300^◦C, 400^◦C, 500^◦CÐ

\P

%oôÇ ~ÃÌ}\ @/ # >íßa) ª/BN_ s1lx¸ü< 0lx¸

H Table 2\ ?/%3. ª/NB_ s1lx¸H Li 1px [40]s

Ð¦ôÇ p-+þA Zn_0.7Cd_0.3Se¸ (nanowires)\ @/ôÇ ª /

B

N_ s1lx¸ 12.8 cm²/V·s\ q§÷& 9, Ér°úכ`¦ %3%3

. #l"f îrÍøì 0lx¸_ >íß [39]Ér

n(d, t) = (κ/4πqµ)t⁻¹ (4)

`

¦ s6 x %iÜ¼ 9, κH qÄ»Ö¦Ð"f CdSe éß&ñ_ Ä»

px [40]s Ð¦ôÇ p-+þA Zn_0.7Cd_0.3Se¸\ @/ôÇ ª/BN _

0lx¸ 1.0 × 10¹⁷ cm⁻³ ÐH H כ`°ú¦%3%3. 7£xÃÌ

)

a Zn0.51Cd0.49Se~ÃÌ}õ 200^◦C ∼ 500^◦CÐ \P%oôÇ

~ Ã

Ì}Ér ª_ õ¸·úsl M:ëH\ ª/BN³ðÀÓs. sH Ref. [28]\"f VI7á¤_ Ses II7á¤_ Znõ CdÐ ´ú§Érª Ü

¼Ð ºúïp ìøÍ¸^\"fü< ° sú p-+þA ¸\¦ ?/H

כ

õ {9uôÇ. ª/BN_ 0lx¸H 400^◦CÐ \P%oôÇ r«Ñ

\

¸^_ îrÍøì 0lx¸H Ô¦íHÓüt_ 0xl¸ü< °ú tëß, 400

◦CÐ \P%oôÇ r«Ñ_ âÄº Ô¦íHÓüt 0lx¸ ÉrâÄº[þt

Ð ß¼. Ô¦íHÓüt 0lx¸ 9þt Äâº\H >h>h Ô¦íHÓüt "é¶

[þt (dopant atoms)s îrìøÍ_ íßêøÍ"é¶s ÷&l M: ë

H\ sÐ K s1lx¸ [41]. "f, 500^◦C

Ð \P%oôÇ âÄº\¦ ]jü@ , 400^◦CÐ \P%oôÇ r«Ñ

\

z´`¦¸ú [O"î ¦ e.

IV. + s Ç Â ] Ø

/BN7£xÃÌ ZOÜ¼Ð ITO lóøÍ 0A\ Zn0.51Cd0.49Se~ÃÌ}

`

¦]j # 10ìr 1lxîß /BNlÐ 5Åq\"f 200^◦C ∼ 500

◦CÐ \P%oôÇ Êê X- r]X>, >~½ÓØ¦ÅÒ &³p

â

, UV-Vis-NIR ìrFg>, X- Fg ìrFg>, "é¶çß§4

&

³pâ 8£¤&ñ x9gFÄ»l ~½Ó :£¤$í`¦½¨ôÇ õH6£§ õ

ºH a = 6.077 ˚A &ñ¹¢¤^ $3Fg½¨¸Ð (111) ~½Ó

¸$íq Zn:Cd = 0.51:0.49Ð Zn0.51Cd_0.49Se~ÃÌ}s ¸ú

$í

\

)

a +þAIÐ ¦, {9ß¼l 7£x "f &ño÷&

Hכ Ü¼Ð z¤. Zn^0.51Cd0.49Se~ÃÌ}_ ]jYL¨îçH]j Y

LH³ð }9lü< ¨îçH {9ß¼lH \P%o :r¸ 7£x

\

7£x %i. 8£¤&ñ)a Fg<Æ&h \-t { çßÉr 7

£

xÃÌ)aZn_0.51Cd_0.49Se Ì}Ã~õ 200^◦C ∼ 500^◦CÐ \P% o

ôÇ r«Ñ\ @/ # 2.08 eV ∼ 2.32 eVt %i. Õª o

¦ Zn^0.51Cd0.49Se~ÃÌ}_ ÅÒ'rçßÉr 28 µs ∼ 44 µss

%

3¦, ª/BN³ðÀÓÐ"f p-+þA ¸\¦?/%3. ¢¸ >íß)a

ª/BN_ s1lx¸H 4.30 × 10⁻⁴ cm²/V·s ∼ 3.51 × 10⁻³ cm²/V·ss%3¦, ª/BN_ 0lx¸H 3.84 × 10¹⁹/cm³ ∼ 2.03

× 10²⁰/cm³s%3. "f &ñ Zn_0.51Cd_0.49Se ~ÃÌ}

É

rrFg %%òi\"f_Fg x9Fgl$í è 6£x6 x

`

¦0AôÇ F«ÑÐ"f s6 x0px ¦ II-VI7á¤s"é¶o½+ËÓütìøÍ

¸^\ II7á¤¢¸H VI7á¤`¦ ' <ÊÜ¼Ð"f \-t { çß

`

¦8¹¡¤&ñx 9> ]j#Q½+É Ãº e.

(8)

P

c p 8 ý ò k >

s

K½¨t"é¶q\ _ # Ãº'÷&%3_þvm.

REFERENCES

[1] S. J. Pearton, Wide Bandgap Semiconductors:

Growth, Processing and Applications (Noyes Pub- lications, Park Ridge, New Jersey, 2000), Chap. 2.

[2] P. Gupta, B. Maity, A. B. Maity, S. Chaudhari and A. K. Pal, Thin Solid Films 260, 75 (1995).

[3] V. Kishore, V. K. Saraswat, N. S. Saxena and T. P.

Sharma, Bull. Mater. Sci. 28, 431 (2005).

[4] S. Ninomiya and S. Adachi, J. Appl. Phys. 78, 4681 (1995).

[5] J. M. Park, H. D. Kim and D. Y. Yoon, J. Korean Electrochem. Soc. 14, 145 (2011).

[6] R. W. G. Wyckoff, Structural Inorganic Chemistry (Interscience, London, 1987).

[7] G. H. Schoemaker, E. P. A. M. Bakkers and J. J.

Kelly, J. Electrochem. Soc. 144, 2329 (1997).

[8] K. Singh and R. K. Pathak, Electrochim. Acta 39, 2693 (1994).

[9] D. Hariskos, S. Spiering and M. Powalla, Thin Solid Films 10, 734 (2010).

[10] H. C. Wen, C. S. Yang and W. C. Chou, Appl. Surf.

Sci. 256, 2128 (2010).

[11] T. Yoshida, J. Electrochem. Soc. 142, 3232 (1995).

[12] D. Hariskos, S. Spiering and M. Powalla, Thin Solid Films 10, 734 (2010).

[13] V. Kumar, S. K. Sharma and D. K. Dwivedi, J. Al- loy. Compd. 512, 351 (2012).

[14] S. Singhal, A. K. Chawla, H. O. Gupta and R. Chan- dra, Thin Solid Films 518, 1402 (2009).

[15] C. Natarajan, G. Nogami and M. Sharon, Thin Solid Films 261, 44 (1995).

[16] M. C. Baykul and N. Orhan, Thin Solid Films 518, 1925 (2010).

[17] W. S. Li, Y. B. Chi, Y. M. Li, X. W. Fan and B. J.

Yang et al., Thin Solid Films 266, 307 (1995).

[18] P. I. Kuznetsov, G. G. Yakushcheva, V. A. Jitov, L. Yu. Zakharov and A. P. Chernushich, J. Cryst.

Growth 173, 57 (1997).

[19] M. M. Ivashchenko, A. S. Opanasyuk, N. M.

Opanasyuk, S. M. Danilchenko and V. V. Starikov, Semicond. Phys. Quantum Electron. Optoelectron.

14, 157 (2011).

[20] S. D. Chavhan, S. Senthilarasu and S. H. Lee, Appl.

Surf. Sci. 254, 4539 (2008).

[21] M. C. Tamargo, W. Lin, S. P. Guo, Y. Guo and Y.

Luo et al., J. Cryst. Growth 214/215, 1058 (2000).

[22] Z. P. Guan, Z. H. Zheng, Y. M. Lu, B. J. Yang and X. W. Fan, Thin Solid Films 263, 203 (1995).

[23] T. V. Shubina, A. A. Toropov, S. V. Sorokin, S. V.

Ivanov and P. S. Kopev et al., Thin Solid Films 336, 377 (1998).

[24] X. Liu, Y. Jiang, F. Fu, W. Guo and W. Huang et al., Mat. Sci. Semicon. Proc. 16, 1723 (2013).

[25] D. H. Han, Ph. D. thesis, Gyeongsang National Uni- versity, 2015.

[26] I. P. Batra, K. K. Kanazawa, B. H. Schechtman and H. Seki, J. Appl. Phys. 42, 1124 (1971).

[27] I. P. Batra, K. K. Kanazawa and H. Seki, J. Appl.

Phys. 41, 3416 (1970).

[28] R. Noufi, R. Axton, C. Herrington and S. K. Deb, Appl. Phys. Lett. 45, 668 (1984).

[29] Y. Al-Douri, Mater. Chem. Phys. 82, 49 (2003).

[30] S. A. Al Kuhaimi and Z. Tulbah, J. Electrochem.

Soc. 147, 214 (2000).

[31] E. J. Yoon, D. H. Han, J. J. Lee, J. D. Lee and K.

Y. Kang et al., J. Korean Phys. Soc. 66, 270 (2015).

[32] B. D. Cullity, Element of X-ray Diffraction, 2nd ed.

(Addison-Wesley Publishing Company, Inc., 1978), Chap. 4.

[33] JCPDS-International Centre for Diffraction Data, No.190191, No.020479, No.050522, No.760152 (2000).

[34] J. I. Pankove, Optical Processes in Semiconductors (Dover, New York, 1971), Chaps. 1-3.

[35] R. Poerschke, Data in Science and Technology (Springer-Verlag, Berlin, 1992).

[36] S. C. Choi, E. J. Yoon, D. H. Han, J. D. Lee and C. Y. Park et al., New Phys.: Sae Mulli 62, 1222 (2012).

(9)

[37] C. Manfredotti, A. Rizzo, L. Vasanelli, S. Galassini and L. Rugieri, J. Appl. Phys. 44, 5463 (1973).

[38] J. J. Lee, B. H. Sung, J. D. Lee, C. Y. Park and K.

H. Kim, J. Korean Vacuum Soc. 18, 459 (2009).

[39] I. P. Batra and H. Seki, J. Appl. Phys. 41, 3409 (1970).

[40] S. Li, X. Liu, Haipengzhao and D. Tian, Mater. Lett.

83, 165 (2012).

[41] B. Kumar, P. Vasekar, S. A. Pethe, N. G. Dhere and G. T. Koishiyev, Thin Solid Films 517, 2295 (2009).

Se Thin Films by Using a Vacuum Evaporation Method and Temperature Dependences of the Physical Properties

Growth of p-Zn

Cd

Se Thin Films by Using a Vacuum Evaporation Method and Temperature Dependences of the Physical Properties

Dong Hun Han · Eun Jeong Yoon · Jeoung Ju Lee

Kwang Yong Kang

à Ã

Å   « Ö «Y c l0 n É; c 8 ý X ¢ p-Zn

Cd

Se U c lT c l8 ý V ËX R ê s õ m Í ö n ÚP X ì Ä ¤V  R Ë8 ý Æ X Øy ¢8 ýÇ X ØV R Ë

Â 6

Ò ò 6 Bg Y @ · * × <ª <+ ä  · T + ä ® £

~ ç

¡ ¢ 9 ÷ 7 B

I. " e Â ] Ø

II. ÷ m Ç ] M ö

III. + s ÇÊ Ý õ m Í w ²  o

IV. + s Ç Â ] Ø

P

c p 8 ý ò k >

REFERENCES

Å « Ö «Y c l0 n É; c 8 ý X ¢ p-Zn

Se U c lT c l8 ý V ËX R ê s õ m Í ö n ÚP X ì Ä ¤V R Ë8 ý Æ X Øy ¢8 ýÇ X ØV R Ë

Ò ò 6 Bg Y @ · * × <ª <+ ä · T + ä ® £

¡ ¢ 9 ÷ 7 B

III. + s ÇÊ Ý õ m Í w ² o

c p 8 ý ò k >
