V ê s V R Ë T Æ X Ø8 ý ÇÊ Ý

(1)

SmBa

₂

Cu

₃

O

_y

8 ý ¾ ¹ Åy ¢ ¤V R ËV ê s ¤; c 6 X ¢ Sm

³⁺

V ê s V R Ë T Æ X Ø8 ý ÇÊ Ý

T

+Ö<Ú · -> )o · Dawood Ahmad · »ZÌ x · z@B · »*åx^∗

Â

Òíß@/<Æ§ Óüto<Æõ, ÂÒíß 609-735 (2008¸ 8Z4 25{9 ~ÃÎ6£§)

¦:r í¸^ SmBa2Cu3Oy\"f gË>ÈÒU·s (λ) , çß[O$í U´s (ξ), ÂÒ e>l©õ °ú Ér í¸

\ P

%i<Æ&h :£¤$í©Ãº[þt\ @/ôÇ Sm³⁺s:r_ ´òõ\¦ ½¨ %i. Hao-Clem¸4Sqõ Bulaevskii-Ledvij- Kogan (BLK) ¸4SqÐ ÂÒ' κ=53.7, λab(0)=69.4 nm, Hc1(0)= 988.1 Oe _ %ò%i\ eH כ `¦ ·ú¤

. z´+«>õü< © ¸ú ´úH BCS dirty-limit s:rÜ¼Ð ÂÒ' >íß)a Hc2(0)°úכÉr 119.40 ± 6.9T %iÜ¼ 9 ξab(0) H 16.6 ± 0.5 ˚A%iHX< sכ Ér Y1Ba2Cu3Oy_ °úכõ q5pw %i. sכ Ü¼Ð ÂÒ' Sm³⁺s:r Ü

¼Ð sÀÒ#Q ©$í[þtÉr λab_ yè\H l# %itëß ξab\H _ o \O%36£§`¦ SX %i

.

PACS numbers: 74.72.Jt

Keywords: SmBa2Cu3Oy, Sm³⁺´òõ, í¸ ©Ãº

I. "e Â]Ø

BÐÀÓ í¸^ RBa2Cu3Oy (R-123, R : BÐÀÓ "é¶

è)H "é¶½¨¸ü< e>:r¸ (Tc) YBa2Cu3Oy(Y-123) ü

< q5pwôÇכ Ü¼Ð ·ú94R e [1,2]. ¸Ï?@1lxîß BÐÀÓ í

¸^Ð Y-123 \¦ @/^ l 0AK R-123 _ ~ÃÌ}s ´ú§s

½¨÷&%3HX< [3,4] :£¤y D¥½+Ë BÐÀÓ í¸ ~ÃÌ} (Nd, Eu, Gd) Ba2Cu3Oy [5]\ @/ôÇ ½¨\¦ :xK &ñ§>=÷&t ·ú§

É

r (mismatch) éß0A[jí\ lôÇ ÂÒ&h pinning B

m7£§s BÄº Z}Ér e>ÀÓx9¸\¦ 0px > ôÇ °úכs

Ð¦)a e [5].

R-123 _ âÄº Tc s \"f í¸$íõ ©$íÉr /BN

>

rôÇ. Y-123 _ ©$íH"é¶ ©`¦ sÀÒt ·ú§Ér Cu²⁺

\

_ôÇ ©$íÉr BÄº tëß, 4f C¸\ eH R³⁺_

©

`¦ sÀÒt ·ú§Ér s:rÉr ` y© > R-123 \

"

f ©$í ñ_ ÅÒכ¹ôÇ ÂÒìrÉr R³⁺ s:r\"f èß

[6]. "f R-123 \"f &hÜ¼Ð %3#QtH e± &hÉr R-123_ ©$í ñ R³⁺s:r_ ×þõ &ñ© s _

\

@/ôÇ R³⁺s:r_ ´òõH 7£x)a ²DGè© (local field)\ _

K Tc \¦ ]jü@ôÇ gË>ÈÒU·s (λ), çß[O$í U´s (ξ)ü< °ú

É

r í¸ :£¤$í©Ãº\ %ò¾Ó`¦ z}9כ Ü¼Ð #.

:

rëH\"fH R-123 í¸ ×æ\ SmBa2Cu3Oy \¦ ½+Ë$í

# \;¤r 5Åq\"f &ñ§>=r& Hao-Clem ¸4Sq [7]õ BLK

∗E-mail: [email protected]

¸4Sq [8]`¦ s6 x # í¸ :£¤$í©Ãº\¦ ½¨ %i. sכ Ü

¼Ð ÂÒ' í¸ :£¤$í©Ãº\ @/K Sm³⁺\ puH ´òõ

\

¦ 7H_ %i.

II. ÷mÇ]Mö Uês0nÉ

:

r½¨\ 6 xôÇ SmBa2Cu3OyH ³ðïr¦©ìøÍ6£xZOÜ¼

Ð ½+Ë$í %i. Sm2O3, BaO2, CuOìr´ú_ ílÓüt|9`¦

¸ ú

[OÉr 6£§ pelletÜ¼Ð $í+þA # 940^◦C\"f 48rçß1lx î

ß

èôÇ Êê r ìr´úÐ °ú 300 kgf/cm²_ ·ú§4

\

"f $í+þA %i. Õªo¦ s ìr´ú`¦ 940^◦C\"f 24rçß 1

l

xîß 475^◦C\"f 10rçß1lxîß íßè\¦ fË9ÅÒ"f \P%o

%i. sXO> ½+Ë$íôÇ r«Ñ\¦ &ñ§>=rvl 0A # é#Q o

r«Ñ\¦ ¸ú°ú ìr´úr«ÑÐ ëßHÊê 45 µm seiveÐ 5g

"

f sכ `¦ ©\O6 x \;¤rü< ¸ú [O#Q ©:r\"f 5T_ l

Ð z´:r\"f SmBa2Cu3OyH c»¡¤õ ab ~½Ó¾Ó\ @/ôÇ ½¨

¸&h s~½Ó$íÜ¼Ð # y ~½Ó¾Ó\ Ér l ¸F'p à

Ô\¦ °úl M:ëH\ &ñ§>=s 0px . ¦l© \"f ìr

´ ú

_ &ñ§>=)a &ñ¸\¦ ·úÐl 0AK X- r]XÁº](\¦ ¸

K Ð¤HX< sM: s6 x)a targetÉr Cu_ Kα `¦ 6

x %i. s X ©u_ âÄº scaning 5Åq¸H 4^◦/ìr s

¦ 5Åq·úÉr 30 kV, ÀÓH 10 mA Ð %iÜ¼ 9 8£¤&ñ

# 3

0AH 10 ∼ 90^◦s.

-402-

(2)

Fig. 1. (a) X-ray diffraction data for aligned grains of SmBa2Cu3Oy. (b) Zero field cooled (ZFC) and field cooled (FC) dc susceptibility versus temperature curves of the aligned SmBa2Cu3Ox measured under the mag- netic fields applied parallel to c axis (H||c) and ab plane (H||ab).

#

Qt :r¸ü< l© \"f í¸ ©IÐ_ s

:

r¸, o 1px`¦ %3l 0A # SQUID (Superconducting Quantum Interferece Device) §4>\¦ 6 x %i. 8£¤

&

ñ

:r¸H 5 K \"f 300 K ts¦ l©Ér 6.5 T t

%i. 8£¤&ñr r«Ñ\ KtH l©_ çH|9$í

`

¦ 0.05 % s?/Ð l 0A # r«Ñ4x_ scan U´sH 2-3 cm Ð %i. ¢¸ôÇ l©`¦ l \ 8£¤&ñ½+É :r¸

\

¦ ±0.05 Ks Ð îß&ñr(. Õªo¦ y l©\"f l

©`¦ 7£xr Êê 10í Êê\ l ¸F'pàÔ\¦ 8£¤&ñ

#

Õª l©\"f l¸F'pàÔ_ /åL5ÅqôÇ creep s 0px

>

%i.

III. +sÇÊÝ õmÍ ÀXØ8ý

Fig. 1(a)H &ñ§>=)a SmBa₂Cu₃O_y_ &ñ§>=)a &ñ¸

\

¦ ·úÐl 0A # X- r]X z´+«>`¦ 'ôÇ õs.

SmBa₂Cu₃O_y_ (00l)\ @/6£x H ñëß Ù¼Ð s

z´+«>\ 6 x)a ìr´úr«Ñ c»¡¤ ~½Ó¾ÓÜ¼Ð ¸ú &ñ§>=÷&%3 6

£

§`¦ ·ú Ãº e. l s~½Ó$í`¦ ·úÐl 0A # c»¡¤õ ab\ êøÍ > yy l©`¦ "f ìøÍ$í o

Fig. 2. (a) Magnetization curves of the aligned SmBa2Cu3Oy, measured in the temperature region of 10-300 K and under the fields of 1-6 T, with a step of 0.5 T. (b) Magnetic susceptibility versus C/(T − Θ) curves above Tc in the field of 1-6 T, where C and Θ are con- stants. Here, the unit of susceptibility is emu/(cm³ Oe).

Ö

¦ χ\¦ 8£¤&ñ %i. Fig. 1(b)H &ñ§>=)a SmBa2Cu3Oy_ c»¡¤õ ab\ ¨î' > 5 Oe_ l©`¦ Ùþ¡`¦ âÄº ZFCü< FC_ oÖ¦\ @/ôÇ ÕªaË>s. s ÕªaË>Ü¼ÐÂÒ'

&

ñ

§>=)a í¸^_ c»¡¤\ ¨î' > (H||c) 8£¤&ñ)a o

H ab\ ¨î' > (H||ab) 8£¤&ñ)a o°úכÐ 2C&ñ

¸ ß¼> z`¦ ·ú Ãº e.

Fig. 2(a)H c»¡¤\ ¨î'ôÇ #Q l©\"f :r¸\

É

r o°úכ`¦ 8£¤&ñôÇכ s. Tc0A\"f ÷rëßm Tc A

_ :r¸\"f¸ y©ôÇ ©$í ñ\¦ ^¦ Ãº e. sQ ô

Ç 7áxÀÓ_ M(T)/BGÉr íl_ BÐÀÓ í¸^ ½¨\

"

f¸ Ð¦÷&#Q& [9]. T > Tc\"f :r¸\ Ér ©$í

`

¦ %3Ér Êê sכ `¦ s6 x # T < Tc\"f ©$í ñ\¦ ]

jôÇ Êê íHÃºôÇ í¸ ñ\¦ %3%3.

Fig. 2(b)\"f ÐH ü< °ú s T > Tc \"f :r¸\

É

r oÖ¦ (χ = M/H) `¦ 6£§õ °ú Ér dÜ¼Ð ?/%3

.

χ(T ) = χ0+ C

T − Θ (1)

#

l"f χ0 (=5.81 × 10⁻⁶ ±6.45 × 10⁻⁷ emu/cm³ Oe)

H Ùþd ìøÍ$í (core diamagnetic), Pauliü< Van Vleck

(3)

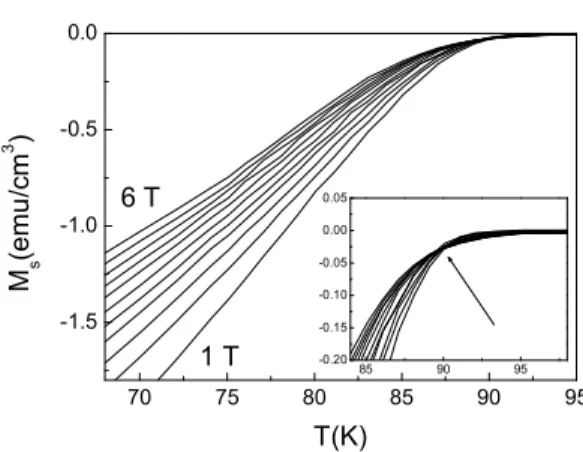

Fig. 3. Magnetization versus temperature curves after the paramagnetic signals are eliminated and Ms(T ) measured in the fields of 1-6 T with a step of 0.5 T. The inset shows the crossover of the Ms(T ) curves near Tc.

l

# 1px_ ½+Ës¦, C (=1.16 × 10⁻³ ± 6.10 × 10⁻⁵ K emu/cm³ Oe) H Curie-Weiss ©Ãº, Θ (=-58.98 ± 11.16 K) H Curie-Weiss :r¸s. Curie-Weiss ZOgË:Ér Ér

BÐÀÓ í¸^\¸ ¸ú ´úH כ Ü¼Ð ·ú94R e.

Fig. 3Ér íHÃºí¸ o Ms(T )(= M (T )−Mp(T ))_

:

r¸_>r$í`¦ ?/HX< Mp(T ) H e>:r¸ s©\"f _

©$í o°úכÜ¼Ð d(1)ÐÂÒ' %3#Q&. Fig. 3_

¶ ú

{9)a ÕªaË>\"f ÐH ü< °ú s Ér l© \"f ¸

H z´+«>°úכ[þts 5g"f § H ôÇ &hs e. § &h\

"

f H Ms ü< T _ °úכ[þtÉr 4π M^∗ ≈-0.35 G s

¦ T^∗≈ 89.98 K s. sQôÇ 7áxÀÓ_ § H Tl ¢¸H Bi

í¸^ [10,11]ü< °ú Ér 2Dí¸^\"f Ð Ìº§Â >

'

a8£¤÷&%3HX< sכ Ér BLKs:rÜ¼Ð [O"î÷&#Q&. ¸o

HZO (harminic approximation)`¦ s6 x # Lawrence- Doniach ¸+þAÜ¼ÐÂÒ' D¥½+Ë©I_ Ä»\-t\¦ >íß

½ +

É Ãº e. >íß)a Ä»\-tH London ½Óõ pancake vortices _ כ¹1lx\ _ôÇ ½Ó_ ½+ËÜ¼Ð sÀÒ#Q. Hcr≈ φ0/s²γ² ¿ H ¿ Hc2 âÄº\ M Ér 6£§õ °ú s ÅÒ#Q

.

M (T, H) = − φ0

32π²λ²lnηHc2

eH +kBT

φ0s ln16πkBT κ² αφ₀sH√

e (2)

#

l"f φ0=2.0678 × 10⁻⁷ gauss cm², e = 2.718, η =1.4 [7, 12, 13], γ²Ér l¸F'pàÔ_ q mc/mab, sH s _

"

f ab\ @/ôÇ gË>ÈÒU·s (λab). 'Í P: ½ÓÉr §êøÍ÷&

t

·ú§Ér line vortexÐ ÂÒ' Ä»¸)a כ s 9 ¿ºP: ½ÓÉr pancake vortices_ 0Au כ¹1lxÜ¼Ð ÂÒ' Ä»¸)a כ s.

§ &h (M^∗, T^∗)Ér ∂M/∂(ln H)=0Ü¼Ð ÂÒ' ½¨½+É Ãº e

.

M^∗(T^∗) = −kBT φ0s ln ηα

√e (3)

#

l"f ln ηα/√

e H Tesanovic [14]\ _K 1Ð ¿º%3HX<

+

'\ Koshelev [15]\ _K 0.346Ü¼Ð Ãº&ñ÷&%3. Y-123

¢

¸H Sm-123 ü< °ú Ér s~½Ó$í 3Dí¸^H BLKs:r\ _

Ä»\-t ~½Ó&ñd\ í<Ê)a ln(λJ/ξab)H Òqt|ÄÌ

÷

&#Q4R tëß, sכ õ 'a>\Os þj7áx&h d (3)_ +þA I

H t ·ú§H. ÕªQÙ¼Ð d (3)Ér Sm-123 \ &h6 x

|

¨

c Ãº e`¦ כ s. d (3)Ü¼ÐÂÒ' ½¨ôÇ s_ °úכÉr 74.18

˚A s¦ sכ Ér "é¶½¨¸ [16]\"f %3#Q s=11.73 ˚A\ q

É

r Ä»´ò í¸ q\¦ ¦9½+É 9כ¹ e. 8Ér Ä»´ò

í¸q\¦ ½¨&³ l 0AK ¿º t\¦ ¦9½+É Ãº e.

H r«Ñ_ ß¼l\ 'a>÷&H o M_ »¡¤è\¦ ¦9

½ +

É Ãº e. :r ½¨\ 6 x)a r«ÑH 20 ∼ 30 µ m ß¼ l

_ &ñ§>=)a ìr´úX< sכ Ér Ér %il&h :£¤$í

½

¨\ s6 x)a éß&ñÐ s` . Ér ß¼l_ r«Ñ

H Hc_ 7£x [17]ü< gË>ÈÒU·s λ M:ëH\ M s t>

)

a. Ér ôÇ tH Sm³⁺s:r\ _ôÇ M _ ÆÒ&h

»

¡

]

j)a °úכs. ÕªQ Sm³⁺ s:rÉr Õª[þt s 2 ˚A

"

· ú

x

. ÕªQÙ¼Ð s=11.73 ˚As ÷&¸2¤ 16 %_ í¸ Ö

¦`¦ ×þ 9 Meff(T )(= Ms/0.16)\¦ s6 x %i. &ñ§>=)a Sm-123 _ í¸ :£¤$í©Ãº\¦ ½¨ l 0A # Meff(T )\ Hao-Clem ¸+þA [7]`¦ &h6 x %i.

Hao-Clem s:r_ "é¶oH r'1lx<ÊÃº\¦ 6 x #

÷

&t ·ú§¤tëß 7áx7áx ´ú§Ér ¦:r í¸^\ &h6 x÷&#Q

. κ ü< Hc_ :r¸_>r$í`¦ s ¸+þA`¦ s6 x # ½¨½+ÉÃº e

. s ¸+þA_ [jôÇ [O"îÉr ÃÐ¦ ëH³ [7]õ [13]\ Å

Ò#Q4R e. y :r¸\"f ÃÐ¦ëH³ [7]_ d20 õ d21

\

z´+«> °úכ`¦ @/{9 # q§<ÊÜ¼Ð"f κ(T ) ü< Hc(T ) \¦

½

¨½+É Ãº e.

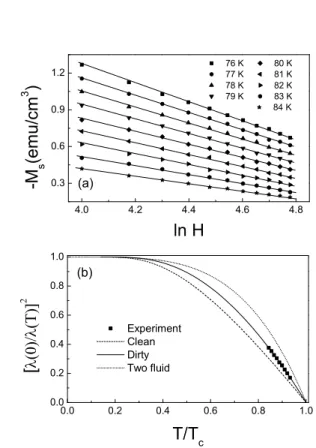

Fig. 4(a)H Hao-Clem ìr$3Ü¼Ð ÂÒ' ½¨ôÇ κ(T )\¦ Ð

#

V ê s V R Ë T Æ X Ø8 ý  ÇÊ Ý

SmBa

Cu

O

8 ý  ¾ ¹ Åy ¢  ¤V R ËV ê s ¤; c 6  X ¢ Sm

V ê s V R Ë T Æ X Ø8 ý  ÇÊ Ý

V ê s V R Ë T Æ X Ø8 ý ÇÊ Ý

8 ý ¾ ¹ Åy ¢ ¤V R ËV ê s ¤; c 6 X ¢ Sm

V ê s V R Ë T Æ X Ø8 ý ÇÊ Ý
