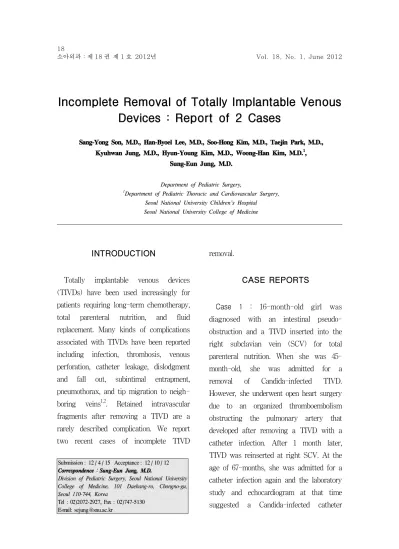

Incomplete Removal of Totally Implantable Venous Devices : Report of 2 Cases
Sang-YongSon,M.D.,Han-ByoelLee,M.D.,Soo-HongKim,M.D.,TaejinPark,M.D., KyuhwanJung,M.D.,Hyun-YoungKim,M.D.,Woong-HanKim,M.D.1,
Sung-EunJung,M.D.
DepartmentofPediatricSurgery,
1DepartmentofPediatricThoracicandCardiovascularSurgery, SeoulNationalUniversityChildren’sHospital
SeoulNationalUniversityCollegeofMedicine
Submission:12/4/15 Acceptance:12/10/12 Correspondence：Sung-EunJung,M.D.
DivisionofPediatricSurgery,SeoulNationalUniversity College of Medicine,101 Daehang-ro, Chongno-gu, Seoul110-744,Korea
Tel:02)2072-2927,Fax:02)747-5130 E-mail:sejung@snu.ac.kr
INTRODUCTION
Totally implantable venous devices (TIVDs)havebeen used increasingly for patientsrequiringlong-term chemotherapy, total parenteral nutrition, and fluid replacement.Many kindsofcomplications associatedwithTIVDshavebeenreported including infection, thrombosis, venous perforation,catheter leakage,dislodgment and fall out, subintimal entrapment, pneumothorax,andtipmigrationtoneigh- boring veins1,2. Retained intravascular fragments afterremoving a TIVD are a rarely described complication.We report two recent cases of incomplete TIVD
removal.
CASE REPORTS
Case 1 : 16-month-old girl was diagnosed with an intestinal pseudo- obstruction and aTIVD insertedintothe right subclavian vein (SCV) for total parenteralnutrition.When she was 45- month-old, she was admitted for a removal of Candida-infected TIVD.
However,sheunderwentopenheartsurgery due to an organized thromboembolism obstructing the pulmonary artery that developedafterremoving aTIVD with a catheter infection.After 1 month later, TIVD wasreinsertedatrightSCV.Atthe ageof67-months,shewasadmittedfora catheterinfectionagainandthelaboratory study and echocardiogram at that time suggested a Candida-infected catheter
B
A C
Fig. 1-A. Remained TIVD with vegetation within RA after TIVD removal operation on echocardiogram
Fig. 1-B. TIVD inserted through Rt. SCV before a removal operation Fig. 1-C. Incomplete removed TIVD
A B
Fig. 2-A. TIVD inserted through left IJV before a removal operation.
Fig. 2-B. Remained TIVD after the operation with vegetation atthetip (Fig.1a).The removal of TIVD was attempted, but completeremovalwasimpossibleduetoa severeadhesion between thecatheterand the right SCV. Intraoperative trans- esophagealechocardiogram suggested an adhesion with a thrombus along the superior vena cava (SVC), and the catheter was eventually fractured inside the SVC during the operation (Fig.1b, 1c). After unsuccessfully removing the residual catheter in the SVC by radiological intervention, the patient
underwent open heart surgery and the residualcatheter,organized thrombiand vegetation in the SVC and rightatrium wereremovedclearly.
Case 2 :A 79-month-old girlvisited theoutpatientclinicwithaTIVD thathad been unused for2 years.Sheunderwent abdominalwallrepairand a smallbowel segmental resection for gastroschisis, smallbowelatresia,and microcolon after birthandseveralreoperationsforrecurrent ileus until the age of 13-months.The TIVD was inserted through the leftIJV
for total parenteral nutrition when she was 42-months during an episode of pneumoniaandileus,thenthepatientwas lost to follow-up for 2 years.Elective removal operation of the TIVD was attempted,butretraction ofthe catheter wasimpossibleevenafterafulldissection ofthecatheterandexplorationoftheneck around the insertion site due to severe adhesion ofthe catheterto the leftIJV.
The catheter was cut abruptly just proximalto the vein insertion site.After 12 months of follow-up, the catheter remainsintheSVC withoutcomplications (Fig.2).
DISCUSSION
Few reports have considered the complications thatoccur atthe time of TIVD removalsuch as a retained fixed catheter fragment. The incidence of retained intravascular fragments after elective removalis 2% of the patients with centralvenous catheters (CVCs)in somereports3,butthereisstillalackof consensusregarding theoptimalmanage- mentofthiscomplication.
Little is known about the underlying causeofthiscomplication.Suojanenetal. reportedthatitseemstoberelatedtothe formation of a scar, often with calci- ficationortheso-called“fibrinsheath”.It seems to be precipitated by an initial
injury with an occasionalthrombus and subsequent overlapping of tissue around the length of the catheter. Vein wall thickeningalongthelengthofthecatheter and bridging from the vein wallto the catheter is observed with long-term catheters.Thevenouswallcontainsboth cellularandacellularcomponentsincluding fibrin,collagen,and endothelialcells4.In patient1,vegetation atthe catheter tip was observed at the preoperative echocardiogram, but a histopathological review ofthe removed cathetertip was notperformed,unfortunately,sowecould not determine if the vegetation on the cathetertip wassurrounded by a “fibrin sheath”.
CVC fractures are often caused by mechanicalproblems.In1984,Aitkenetal. firstdescribedthattheso-calledpinch-off sign ofthecatheterbetween theclavicle and firstrib could lead to late fracture and embolization of the distal segment intotheheartandgreatvesselsovertime
5. Some radiologists suggest a radio- graphic scale for the typical pinch-off sign,andinsiston removing thecatheter system within 6 months based on that radiologicalscale6,7.In ourcase2,TIVD wereinsertedintotheIJV,soneithercase might be related to this mechanical problem.
Distalembolization may occurand lead to fatal complications if a fractured
catheter migrates to the heart or other organs8. The options for removing a fragmentedcatheteraretoeitherleavethe catheterfragmentinsituorattempteither an intravascularretrievaloropen surgical removal.
Percutaneoustranscatheterretrievalofa fragmented catheterhas become standard treatment, because this technique is simple, quick, and effective. This technique can be used in very small babies and avoids open surgicalremoval inhighriskpopulations9.Inpatient1,we attempted intravascular retrievalat first, but we could not remove the retained catheter,so the patientunderwentopen surgicalremoval.Inpatient2,theparents of the patient refused a radiological intervention or surgicalremoval,so we followed her regularly through the outpatientclinic.
Ifthe catheters are wellfixed to the vein wall,the risk ofmigration may be smalland the fragmented cathetercould beleftin situ,yetthelong-term riskof thrombusformationisunknown10.Todate, there are few reports about significant complications from leaving these lines;
however,onemortalitycaseduetosepsis duringfollow-upforafragmentedCVC in situ has been reported11.Thus,a larger study isneeded toidentify thesafety of catheterfragmentsinsitu.
