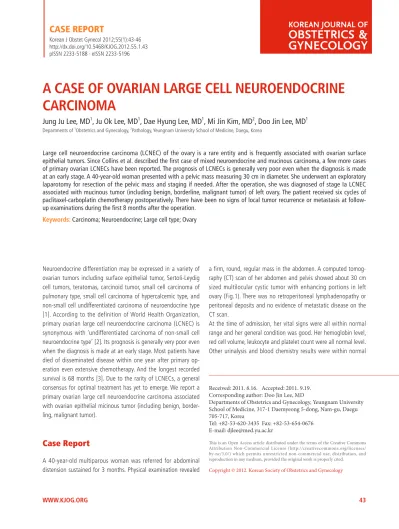

A CASE OF OVARIAN LARGE CELL NEUROENDOCRINE CARCINOMA
Jung Ju Lee, MD 1 , Ju Ok Lee, MD 1 , Dae Hyung Lee, MD 1 , Mi Jin Kim, MD 2 , Doo Jin Lee, MD 1
Departments of
1Obstetrics and Gynecology,
2Pathology, Yeungnam University School of Medicine, Daegu, Korea
Large cell neuroendocrine carcinoma (LCNEC) of the ovary is a rare entity and is frequently associated with ovarian surface epithelial tumors. Since Collins et al. described the fi rst case of mixed neuroendocrine and mucinous carcinoma, a few more cases of primary ovarian LCNECs have been reported. The prognosis of LCNECs is generally very poor even when the diagnosis is made at an early stage. A 40-year-old woman presented with a pelvic mass measuring 30 cm in diameter. She underwent an exploratory laparotomy for resection of the pelvic mass and staging if needed. After the operation, she was diagnosed of stage Ia LCNEC associated with mucinous tumor (including benign, borderline, malignant tumor) of left ovary. The patient received six cycles of paclitaxel-carboplatin chemotherapy postoperatively. There have been no signs of local tumor recurrence or metastasis at follow- up examinations during the fi rst 8 months after the operation.
Keywords: Carcinoma; Neuroendocrine; Large cell type; Ovary
CASE REPORT
Received: 2011. 8.16. Accepted: 2011. 9.19.
Corresponding author: Doo Jin Lee, MD
Departments of Obstetrics and Gynecology, Yeungnam University School of Medicine, 317-1 Daemyeong 5-dong, Nam-gu, Daegu 705-717, Korea
Tel: +82-53-620-3435 Fax: +82-53-654-0676 E-mail: [email protected]
Th is is an Open Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/
by-nc/3.0/) which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.
Copyright © 2012. Korean Society of Obstetrics and Gynecology Korean J Obstet Gynecol 2012;55(1):43-46
http://dx.doi.org/10.5468/KJOG.2012.55.1.43 pISSN 2233-5188 · eISSN 2233-5196
Neuroendocrine differentiation may be expressed in a variety of ovarian tumors including surface epithelial tumor, Sertoli-Leydig cell tumors, teratomas, carcinoid tumor, small cell carcinoma of pulmonary type, small cell carcinoma of hypercalcemic type, and non-small cell undifferentiated carcinoma of neuroendocrine type [1]. According to the definition of World Health Organization, primary ovarian large cell neuroendocrine carcinoma (LCNEC) is synonymous with ‘undifferentiated carcinoma of non-small cell neuroendocrine type’ [2]. Its prognosis is generally very poor even when the diagnosis is made at an early stage. Most patients have died of disseminated disease within one year after primary op- eration even extensive chemotherapy. And the longest recorded survival is 68 months [3]. Due to the rarity of LCNECs, a general consensus for optimal treatment has yet to emerge. We report a primary ovarian large cell neuroendocrine carcinoma associated with ovarian epithelial micinous tumor (including benign, border- ling, malignant tumor).
Case Report
A 40-year-old multiparous woman was referred for abdominal distension sustained for 3 months. Physical examination revealed
a fi rm, round, regular mass in the abdomen. A computed tomog- raphy (CT) scan of her abdomen and pelvis showed about 30 cm sized multilocular cystic tumor with enhancing portions in left ovary (Fig.1). There was no retroperitoneal lymphadenopathy or peritoneal deposits and no evidence of metastatic disease on the CT scan.
At the time of admission, her vital signs were all within normal range and her general condition was good. Her hemoglobin level, red cell volume, leukocyte and platelet count were all normal level.
Other urinalysis and blood chemistry results were within normal
WWW.KJOG.ORG 44
KJOG Vol. 55, No. 1, 2012
rages. Serum level of the tumor markers CA-125 and CA19-9 were 88.95 U/mL and 3.49 U/mL, the CA-125 was slightly increased.
The patient underwent an exploratory laparotomy and was found to have a 30 cm diametered multilocular cystic and solid left ovarian mass. Frozen section was done during operation showed ‘adeno- carcinoma’. So total abdominal hysterectomy, bilateral salpingo- oophorectomy, omentectomy and appendectomy were done along with both pelvic and para-aortic lymph node dissection. There was no gross visible lesion on any other abdominal or pelvic organs.
Pathologic examination confi rmed a LCNEC associated with mu- cinous tumor component (incluing benign, borderline, and malig- nant tumor). The tumor had two discernable morphologic features:
neuroendocrine carcinoma composing approximately 10% of the tumor mass (Fig 2A), and the remaining being ovarian mucinous carcinoma type associated with benign and borderline mucinous tumor (Fig 2C). The LCNEC cells were positive for synaptophysin, chromogranin, CD56 (Fig 2B). The ovarian epithelial component of the tumor was positive cytokeratin 7 and CA-125 (Fig 2D). The uterus, right ovary, appendix and lymph nodes were all free of tumor, so the tumor was classifi ed as International Federation of Gynecology stage Ia.
She have been received six courses of chemotherapy. After che- motherapy, she got a positron emission tomography-computed tomography to evaluate the response to chemotherapy. After 8 months a follow-up, there was no evidence of metastatic disease.
Discussion
Neuroendocrine tumors are neoplasms with a broad range of mor- phologic patterns, grade of differentiation and biologic behavior that share common features of neuroendocrine programming.
Neuroendocrine tumors contain various amount of molecules in- volved in regulated release of neuropeptide, neurotransmitters and hormones. Most neuroendocrine tumors are of endodermal deri- vation and rare entities of rare entities of true neural crest origin.
They may occur in every topographic location, with a predilection of lung, intestine and pancreas. Other primary organs include the skin, salivary gland, prostate and various sites in the urinary, geni- tal and biliary tracts [4].
Ovarian LCNECs are very rare tumor [3]. Neuroendocrine cells have been identified in normal epithelium of the female genital tract. Ovarian neuroendocrine tumors may develop from non- neuroendocrine cells in which there has been activation of genes that promote neuroendocrine differentiation [5].
On the diagnosis of the LCNEC, some other tumors as primary or metastatic carcinoid tumor, small cell carcinomas of pulmonary type, small cell carcinoma of hypercalcemic type and some kinds of specific ovarian tumors should be differentiated. Primary or metastatic carcinoid tumors can be differentiated from LCNECs by their lower mitotic activity, cytological uniformity, organoid archi- tectural patterns, and absence of necrosis. Small cell carcinomas of pulmonary type are distinguished by their smaller cell size and less-intense immunohistochemical reactivity for cytokeratin and chromogranin. Also small cell carcinomas of hypercalcemic type are distinguished by their large neoplastic cells. In addition, the large neoplastic cells in these tumors often display pale intracyto- plasmic hyaline globules, which is not a feature of LCNECs [6].
Specifically, teratomas, Sertoli-Leydig cell tumors may all show neuroendocrine differentiation. These biphasic tumors can be dis- tinguished from LCNEC by recognising the non-neuroendocrine component [7].
The neuroendocrine differentiation of the tumors can be confi rmed by immunohisochemical stainings that is positive for chromo- granin, synaptophysin or other neuroendocrine markers [8].
The LCNEC component in this case had morphological character- istics typical of neuroendocrine differentiation and an immunohis- tochemical profi le that was positive for neuroendocrine differen- tiation and negative for epithelial markers. The ovarian epithelial tumor consisted of mucinous adenocarcinoma, borderline and benign mucinous tumor.
Given the rarity of the condition, there are limited data to guide Fig. 1. About 30 cm sized multilocular cystic lesion with enhancing por-
tions is seen in left ovary.
WWW.KJOG.ORG 45 Jung Ju Lee, et al. Large cell neuroendocrine carcinma
treatment of LCNECs of ovary. Most published reports contain a few patients, and there are no prospective trials. Thirty cases have been reported so far in the literature. Almost patients were taken primary surgery, that was required for defi nitive tissue diagnosis, staging and tumor debulking. Follow-up was available in 26 of the 31 reported cases (incluing this case). Twenty fi ve patients were taken chemotherapy.
The optimal chemotherapy regimen for LCNECs has not been established. Regimens used for LCNECs are cisplatinum-based chemotherapy or paclitaxel-carboplatin based chemotherapy [9,10]. Patients usually follow an extremely lethal outcome. Most patients (18 of the 26) died of disease within 1 year of diagnosis despite extensive surgery and adjuvant chemotherapy [3]. Only one patient was taken radiation therapy, so the effect of radiation therapy has not proven. Also due to the rarity of LCNECs, the ef-
fect of chemotherapy on long term survival has not yet to emerge.
To establish optimal therapeutic guidelines on these tumors, addi- tional cases have to be collected and analyzed inter-institutionally.
In summary, LCNEC of the ovary is rare, under-recognised and is associated with a poor prognosis. Our patient received postopera- tive paclitaxel and carboplatin chemotherapy and is alive without any evidence of disease for 8 months after operation.
References
1. Eichhorn JH, Young RH. Neuroendocrine tumors of the genital tract. Am J Clin Pathol 2001;115 Suppl:S94-112.
2. Eichhorn JH, Young RH, Scully RE. Primary ovarian small cell carcinoma of pulmonary type. A clinicopathologic, immuno- Fig. 2. The tumor consists of large cell neuroendocrine carcinoma component (A) and mucinous adenocarcinoma component (C) (H&E, ×100). Immuno- histochemically, two components are positive for CD56 (B) and CK7 (D), respectively (Immunohistochemistry, ×200).
C D
A B
WWW.KJOG.ORG 46
KJOG Vol. 55, No. 1, 2012
histologic, and fl ow cytometric analysis of 11 cases. Am J Surg Pathol 1992;16:926-38.
3. Draganova-Tacheva RA, Khurana JS, Huang Y, Hernandez E, Zhang X. Large cell neuroendocrine carcinoma of the ovary as- sociated with serous carcinoma with mucin production: a case report and literature review. Int J Clin Exp Pathol 2009;2:304-9.
4. Schwab M. Encyclopedic reference of cancer. New York (NY):
Springer; 2001.
5. Collins RJ, Cheung A, Ngan HY, Wong LC, Chan SY, Ma HK.
Primary mixed neuroendocrine and mucinous carcinoma of the ovary. Arch Gynecol Obstet 1991;248:139-43.
6. Young RH, Oliva E, Scully RE. Small cell carcinoma of the ova- ry, hypercalcemic type. A clinicopathological analysis of 150 cases. Am J Surg Pathol 1994;18:1102-16.
7. Veras E, Deavers MT, Silva EG, Malpica A. Ovarian nonsmall cell neuroendocrine carcinoma: a clinicopathologic and im- munohistochemical study of 11 cases. Am J Surg Pathol 2007;
31:774-82.
8. Roth LM, Tsubara A, Dietel M, Senzaki H. Miscellaneous tu- mors and tumor-like conditions of the ovary. In: Tavassoli FA, Devilee P, editors. Patholoty and genetics of tumors of the breast and female genital organs. World Health Organization Classifi cation of Tumors. Lyon: IARC Press; 2003. p.182-90.
9. Tsuji T, Togami S, Shintomo N, Fukamachi N, Douchi T, Taguchi S.
Ovarian large cell neuroendocrine carcinoma. J Obstet Gynae- col Res 2008;34:726-30.
10. Lindboe CF. Large cell neuroendocrine carcinoma of the ovary.
APMIS 2007;115:169-76.
난소의 대세포신경내분비암종 1예
영남대학교 의과대학 1산부인과학교실, 2병리학교실 이정주1, 이주옥1, 이대형1, 김미진2, 이두진1
난소의 대세포신경내분비암종은 30예가 보고된 매우 드문 질환이다. 대부분 난소의 대세포신경내분비암종은 난소의 상피세포암종과 동반되어 발생하는 것으로 알려져 있다. 이 종양을 가지고 있는 환자들은 대부분 1년 이내에 사망하는 나쁜 예후를 보이며 현재까지 이 종양을 가지고 있는 환자들에게서 수술 후 최장 생존 기간은 68개월이라고 보고되었다. 종양의 발생 빈도가 극히 낮기 때문에 아직까지 이 종양에 대한 항암화학요법의 장기간의 효과에 대하여 보고된 적이 없다. 저자들은 8개월 전 대세포신경내분비난소암종으로 자궁절제 술, 양측난소난관절제술, 충수돌기절제술망절제술, 부 대동맥 및 양측골반림프절절제술을 시행하고 6차 항암화학요법을 시행한 후 8개월 의 추적 positron emission tomography-computed tomography에서 아직 전이가 발견되지 않은 사례를 경험하였기에 간단한 문헌 고찰과 더불어 증례를 보고하는 바이다.
중심단어: 신경내분비암종, 대세포성, 난소
