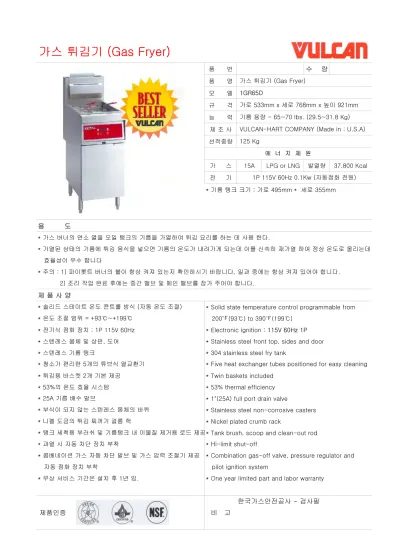

가스 튀김기 (Gas Fryer) 품 번

(1)

가스 튀김기 (Gas Fryer)

품 번 수 량

품 명 모 델 규 격 능 력 제 조 사 선적중량

가 스 15A LPG or LNG 발열량 37,800 Kcal 전 기

* 기름 탱크 크기 ; 가로 495mm * 세로 355mm

용 도

제 품 사 양

* Solid state temperature control programmable from 200℉(93℃) to 390℉(199℃)

* 전기식 점화 장치 ; 1P 115V 60Hz * Electronic ignition : 115V 60Hz 1P

* 스텐레스 몸체 및 상판, 도어 * Stainless steel front top, sides and door

* 스텐레스 기름 탱크 * 304 stainless steel fry tank

* 튀김용 바스켓 2개 기본 제공 * Twin baskets included

* 53%의 온도 효율 시스템 * 53% thermal efficiency

* 1"(25A) full port drain valve

* Stainless steel non-corrosive casters

* Nickel plated crumb rack

* Tank brush, scoop and clean-out rod 1GR65D

가로 533mm x 세로 768mm x 높이 921mm 기름 용량 - 65~70 lbs. (29.5~31.8 Kg) VULCAN-HART COMPANY (Made in : U.S.A) 125 Kg

에 너 지 제 원 가스 튀김기 (Gas Fryer)

1P 115V 60Hz 0.1Kw (자동점화 전원)

* 가스 버너의 연소 열을 오일 탱크의 기름을 가열하여 튀김 요리를 하는 데 사용 한다.

* 가열된 상태의 기름에 튀김 음식을 넣으면 기름의 온도가 내려가게 되는데 이를 신속히 재가열 하여 정상 온도로 올리는데

* 주의 : 1) 파이롯트 버너의 불이 항상 켜져 있는지 확인하시기 바랍니다, 일과 중에는 항상 켜져 있어야 합니다.

2) 조리 작업 완료 후에는 중간 밸브 및 메인 밸브를 잠가 주어야 합니다.

효율성이 우수 합니다

* 콤베네이션 가스 자동 차단 발브 및 가스 압력 조절기 제공 자동 점화 장치 부착

* 무상 서비스 기간은 설치 후 1년 임.

* 솔리드 스테이트 온도 콘트롤 방식 (자동 온도 조절)

* 부식이 되지 않는 스텐레스 몸체의 바퀴

* 온도 조절 범위 = +93℃~+199℃

* 25A 기름 배수 발브

* 니켈 도금의 튀김 찌꺼기 걸름 랙

* 청소가 편리한 5개의 튜브식 열교환기

* Combination gas-off valve, pressure regulator and

* Hi-limit shut-off

* Five heat exchanger tubes positioned for easy cleaning

* 탱크 세척용 부러쉬 및 기름탱크 내 이물질 제거용 로드 제공

* 과열 시 자동 차단 장치 부착

제품인증

pilot ignition system

* One year limited part and labor warranty

비 고

한국가스안전공사 - 검사필

(2)

VULCAN-HART COmpANy, p.O. BOX 696, LOUISVILLE, Ky 40201, TEL. 1-800-814-2028 502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602

A2780ISO9001Vulcan-Hart Co.

Item # __________________________

C.S.I. Section 11420

F-32631 (6-07)

M O D E L : 1 G R 65 S E R IE S F R E E S TA N D IN G F R Y E R

1GR65 SERIES

FREE STANDING GAS FRYER

1GR65M: Behind the door millivolt thermostat control adjusts from 200 to 400 F.

1GR65D: Solid state temperature control programmable from 200 to 390 F. Completely programmable with single digital 4 character display. User selectable fat melt modes. Automatic and manual select boil out modes.

Electronic ignition standard.

1GR65C: Computer control with digital character display.

Completely programmable with 10 product keys.

Adjusts from 200 to 390 F. User selectable fat melt modes. Automatic and manual select boil out modes.

Programmable Celsius and Fahrenheit temperature scales. Electronic ignition standard.

STANDARD FEATURES

Stainless steel fry tank, 65 - 70 lb. capacity. Includes limited 12 year tank warranty.

1" full port ball type drain valve.

Stainless steel front top, sides and door.

Set of four 6" adjustable casters (2 locking).

Twin fry baskets with plastic coated handles.

150,000 BTU/hr. input.

Five heat exchanger tubes positioned for easy cleaning.

Hi-limit shut-off.

Combination gas shut-off valve and pilot ignition system.

Tank brush, stainless steel crumb scoop and clean-out rod.

One year limited parts and labor warranty.

ACCESSORIES

FRYMATE-VX21MS or VX21S add-on frymate.

Stainless steel tank cover.

Grease protector strips.

1¹/4" Rear Gas Manifold Pipe with Shutoff Valves to connect single fryers in the field - up to three.

Single large basket - 18³/4"w x 13¹/4"d x 5¹/2"h.

Set of twin baskets - 9¹/4"w x 13¹/4"d x 6"h.

Set of tri-baskets - 5¹/2"w x 11"d x 4¹/2"h.

³/4" Flexible gas hose with quick disconnect.

SPECIFICATIONS:

65 - 70 lb. capacity free standing gas fryer, Vulcan-Hart Model No. (1GR65M) (1GR65D) (1GR65C). Stainless steel front top, sides and door. Set of four 6" adjustable casters (2 locking).

Stainless steel fry tank with five heat exchanger tubes and a "V"

shaped cold zone. 1" full port ball type drain valve. Twin fry baskets with plastic coated handles. 150,000 BTU/hr. input. Millivolt(M), programmable solid state(D), or programmable computer(C) control system. Electronic ignition standard with solid state and computer control models. Tank brush, stainless steel crumb scoop and clean-out rod.

Overall dimensions: 21"w x 30¹/⁴"d x 47¹/⁸"h.

Working height 36¹/⁴".

CSA design certified. NSF listed.

SPECIFY TYPE OF GAS WHEN ORDERING.

SPECIFY ALTITUDE WHEN ABOVE 2,500 FT.

Model 1GR65C

OPTIONS

Second year extended limited parts and labor warranty.

C E R T I F I E D

(3)

VULCAN-HART COmpANy, p.O. BOX 696, LOUISVILLE, Ky 40201, TEL. 1-800-814-2028 502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602

NOTE: In line with its policy to continually improve its products, Vulcan-Hart Company reserves the right to change materials and specifications without notice.

F-32631 (6-07)

1GR65 SERIES

FREE STANDING GAS FRYER

IMPORTANT

1. A combination valve with pressure regulator is provided with this unit.

Natural Gas 4.0" (102 mm) W.C.

Propane Gas 10.0" (254 mm) W.C.

2. An adequate ventilation system is required for Commercial Cooking Equipment. Information may be obtained by writing to the National Fire Protection Association, Batterymarch Park, Quincy, MA 02269. When writing refer to NFPA No. 96.

3. All models require a 6" (152 mm) clearance at both sides and rear adjacent to combustible construction.

OVERALL WORKING TANK FRY COMP. APPROX.

MODEL WIDTH DEPTH HEIGHT HEIGHT SIZE BTU/HR. CAPACITY SHP.WT.

1GR65M

1GR65D 21" 30¹/4" 47¹/8" 36¹/4" 19¹/2" x 14" 150,000 65 - 70 lbs. 275 lbs.

1GR65C

4. All models require a 16" (407 mm) minimum clearance to adjacent open top burner units.

5. This appliance is manufactured for commercial installation only and is not intended for home use.

SERVICE CONNECTIONS:

P1 ¹/2" (13 mm) rear gas connection (single units).

E1 115 volt cord & plug supplied on GRD and GRC fryers.
