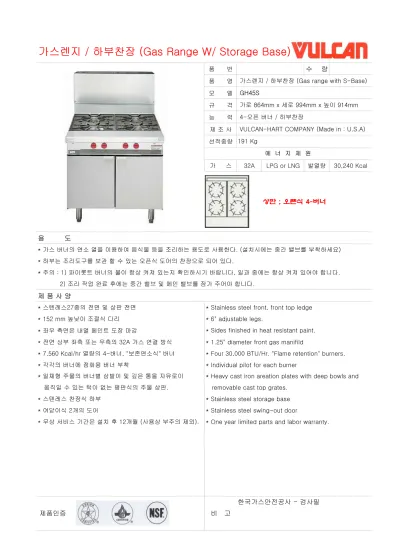

가스렌지 / 하부찬장 (Gas Range W/ Storage Base)
품 번 수 량
품 명 모 델 규 격 능 력 제 조 사 선적중량
가 스 32A LPG or LNG 발열량 30,240 Kcal
상판 ; 오픈식 4-버너
용 도
제 품 사 양
* 좌우 측면은 내열 페인트 도장 마감
* 전면 상부 좌측 또는 우측의 32A 가스 연결 방식 * 1.25" diameter front gas manifild
* 7,560 Kcal/hr 열량의 4-버너, "보존연소식" 버너 * Four 30,000 BTU/Hr. "Flame retention" burners.
* 각각의 버너에 점화용 버너 부착 * Individual pilot for each burner GH45S
가로 864mm x 세로 994mm x 높이 914mm 4-오픈 버너 / 하부찬장
VULCAN-HART COMPANY (Made in : U.S.A) 191 Kg
에 너 지 제 원
가스렌지 / 하부찬장 (Gas range with S-Base)
* 가스 버너의 연소 열을 이용하여 음식물 등을 조리하는 용도로 사용한다. (설치시에는 중간 밸브를 부착하세요)
* 하부는 조리도구를 보관 할 수 있는 오픈식 도어의 찬장으로 되어 있다.
* 주의 : 1) 파이롯트 버너의 불이 항상 켜져 있는지 확인하시기 바랍니다, 일과 중에는 항상 켜져 있어야 합니다.
2) 조리 작업 완료 후에는 중간 밸브 및 메인 밸브를 잠가 주어야 합니다.
* 스텐레스27종의 전면 및 상판 전면
움직일 수 있는 턱이 없는 평판식의 주물 상판.
* Stainless steel front, front top ledge
removable cast top grates.
* 152 mm 높낮이 조절식 다리
* 일체형 주물의 버너별 삼발이 및 깊은 통을 자유로이
* 6" adjustable legs.
* One year limited parts and labor warranty.
* Sides finished in heat resistant paint.
* Heavy cast iron areation plates with deep bowls and
제품인증 비 고
한국가스안전공사 - 검사필
* 스텐레스 찬장식 하부
* 여닫이식 2개의 도어 * Stainless steel swing-out door
* 무상 서비스 기간은 설치 후 12개월 (사용상 부주의 제외).
* Stainless steel storage base
Item # __________________________
C.S.I. Section 11420
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. 1-800-814-2028 502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602
A2780ISO9001Vulcan-Hart Co.
F-31511 (10-03)
MODEL GH45
OPEN BURNER HEAVY DUTY GAS RANGE
MODEL: GH45 Open Burner Hea vy Duty Gas Rang e
■
■ GH45 Standard Oven
■
■ GH45C Convection Oven
■
■ GH45S Storage Base
STANDARD FEATURES
■ Stainless steel front, front top ledge and 6" adjustable legs.
Sides finished in heat resistant paint.
■ 11⁄4" diameter front gas manifold.
■ Four 30,000 BTU/hr. "Flame Retention" burners. Individual pilot for each burner.
■ Heavy cast iron aeration plates with deep bowls and removable cast top grates.
■ Oven controls located in the cool zone.
■ Oven interior measures 26"w x 28"d x 14"h. Porcelain enamel on steel hearth, door and side liners. One oven rack and two rack positions. 50,000 BTU/hr. "Flame Retention"
burner with pilot ignition. Thermostat adjusts from 150° to 500°F.
■ One year limited parts and labor warranty.
OPTIONS
■
■ SnorkelTM convection oven in place of standard oven. Add suffix “C” to the model number. Porcelain enamel on steel interior measures 261/8"w x 223/32"d x 141/8"h. Three oven racks and five rack positions. 32,000 BTU/hr. burner with pilot ignition. Thermostat adjusts from 200° to 500°F. 1⁄4 H.P.
blower motor with 7 foot power cord and plug. 120/60/1, 5 amps.
■
■ Cabinet storage base in place of standard oven. Add the suffix “S” to the model number.
■
■ Stainless steel side(s).
■
■ Stainless steel back finishing panel.
■
■ Common front top ledge up to 68" wide. (Not for use on griddle tops, spreader plates and deep fat fryers.)
■
■ Cap and cover manifold end(s). (No charge.)
■
■ 15⁄8" stainless steel toe base - 315⁄8" working height.
■
■ Set of four 5" diameter casters, two locking.
■
■ Stainless steel dolly frame with casters, up to 102" wide.
■
■ Cooling fan for SnorkelTM convection oven motor. Required when unit is installed with a back finishing panel or a toe base.
■
■ Rear gas connection, 3⁄4" (single unit) or 11⁄4" (batteries up to 600,000 BTU/hr.)
■
■ Second year extended limited parts and labor warranty.
SPECIFICATIONS:
Heavy duty four burner gas range with oven, Vulcan-Hart Model No. GH45. Stainless steel front, front top ledge and 6" adjustable legs. Sides finished in heat resistant paint. 11⁄4" diameter front gas manifold. Four 30,000 BTU/hr. heavy cast two piece “Flame Retention” burners with individual pilots and control valves.
Heavy cast iron aeration plates with deep bowls and removable cast top grates. Oven interior measures 26"w x 28"d x 14"h.
Porcelain enamel on steel hearth, door and side liners. One oven rack and two rack positions. 50,000 BTU/hr. heavy cast
“Flame Retention” burner with pilot ignition. Thermostat adjusts from 150° to 500°F. Controls located in the cool zone.
Exterior dimensions: 34"w x 391⁄8"d x 36" working height on 6" legs.
CSA design certified. NSF listed.
SPECIFY TYPE OF GAS AND FINISH WHEN ORDERING.
SPECIFY ALTITUDE WHEN ABOVE 2,000 FT.
Model GH45
Shown with 17" backguard and casters
Printed On Recycled Paper
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. 1-800-814-2028 502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602
NOTE: In line with its policy to continually improve its products, Vulcan-Hart Company reserves the right to change materials and specifications without notice.
F-31511 (10-03)
MODEL GH45
OPEN BURNER HEAVY DUTY GAS RANGE
ACCESSORIES
■
■ 17" high stainless steel backguard. (Common backguards available up to 102" wide.)
■
■ 23" high stainless steel single deck high shelf. (Common high shelves available up to 72" wide.)
■
■ 35" high stainless steel double deck high shelf. (Common high shelves available up to 72" wide.)
■
■ Additional oven rack(s).
■
■ Gas pressure regulator (specify size and type of gas).
■
■ Flexible gas hose with quick disconnect and restraining device. Consult price book for available sizes.
IMPORTANT
1. A gas pressure regulator suitable for battery or single unit application must be furnished and installed. Natural gas 6.0"
W.C., propane gas 10.0" W.C.
2. An adequate ventilation system is required for commercial cooking equipment. Information may be obtained by writing to the National Fire Protection Association, Batterymarch Park, Quincy, MA 02269. When writing refer to NFPA No. 96.
3. These units are manufactured for installation in accordance with ANSZ223.1a (latest edition), National Fuel Gas Code.
Copies may be obtained from the American Gas Association, 1515 Wilson Blvd., Arlington, VA 22209.
4. All models require a 6" (152 mm) clearance at both sides and rear adjacent to combustible construction.
5. For proper flueing a backguard or high shelf must be installed with each unit. Please refer to spec sheet F31537 for specific styles and sizes.
6. This appliance is manufactured for commercial installation only and is not intended for home use.
GH45C SIDE VIEW GH45 & GH45C
FRONT VIEW
LESS LEGS
TOP VIEW GH45 SIDE VIEW
GH45S FRONT VIEW
MODEL GAS RATED INPUT BTU/hr. WIDTH DEPTH WKG. HEIGHT APPX. SHP. WT.
GH45 TOP: 120,000 OVEN: 50,000 TOTAL: 170,000 570 lbs./299 kg
GH45C TOP: 120,000 OVEN: 32,000 TOTAL: 152,000 34" 391⁄8" 36" 630 lbs./326 kg
GH45S TOP: 120,000 — TOTAL: 120,000 420 lbs./191 kg
