Fabrication of CO<sub>2</sub> Gas Sensors Using Graphene Decorated Au Nanoparticles and Their Characteristics

(1)

pISSN 1225-5475/eISSN 2093-7563

Au ™Î‘⁄° ⁄√» ◊°… ‚› CO

²

^°∫æ≠«

¶¤˙ ◊ Ø∫

ËÛ¯1^• Ë≠Í2^• §ÕÛ1,+

Fabrication of CO

2

Gas Sensors Using Graphene Decorated Au Nanoparticles and Their Characteristics

Sang-Jin Bae¹, Kang-San Kim², and Gwiy-Sang Chung^1,+

Abstract

This paper describes the fabrication and characterization of graphene based carbon dioxide (CO²) gas sensors. Graphene was synthesized by thermal decomposition of SiC. The resistivity CO²gas sensors were fabricated by pure graphene and graphene decorated Au nanoparticles (NPs). The Au NPs with size of 10 nm were decorated on graphene. Au electrode deposited on the graphene showed Ohmic contact and the sensors resistance changed following to various CO²concentrations. Resulting in resistance sensor using pure graphene can detect minimum of 100 ppm CO²concentration at 50ôC, whereas Au/graphene can detect minimum 2 ppm CO² concentration at same at 50ôC. Moreover, Au NPs catalyst improved the sensitivity of the graphene based CO²sensors. The responses of pure graphene and Au/graphene are 0.04% and 0.24%, respectively, at 50ôC with 500 ppm CO²concentration. The optimum working temperature of CO²sensors is at 75ôC.

Keywords : Carbon dioxide, Gas sensors, Graphene, Au nanoparticle

1. ≠ –

÷Ÿ ≠Æ¨·« ÁÎ ı°Œ Î‚ ¿∞∞˙« œ™Œ ÃÍ≠∫

“

(CO

2

)

« Ë‚ÆÃ ı°«Ì ÷Ÿ

.

^˚Û≠

,

ˆ∏ ¬≠≠ ◊ Á˜È

« «≠ª ˜‘— ŸÁ— ¿Î ¡Œ◊•Ã ‰∏«Á

CO

2°∫ Ûμ

« ˆ”˚Œ œÕμª ßÿ ˙≈œÌ Û¬°≠ ø¤Ã °…— æ

≠° ‰œŸ

[1].

ˆÁ ÛÎ≠»

CO

2 °∫æ≠¬ Ò–Í ˚‹± Êƒ

,

^{›μº Êƒ}

,

Ìº¸ÿ˙ Êƒ Ó« ©Ø æ˘° ÷Ÿ

.

Ò–Í ˚‹± Êƒ∫

4.25

^≠«

CO

2°∫° Ìˆœ¬ ƒÂ μ™°≠ Ìˆ §μ¶ Îÿ Ûμ¶ ØÍœ¬ ÊƒÃŸ

.

^◊Ø™

,

ﬂ§“⁄ ◊ À‚“⁄

,

^§Œ«

“¸≠° ÓΔŸ¬ ‹°Ã ÷Ÿ

.

Ìº¸ÿ˙∫ Ã¬¸μºŒ Ìº

¸ÿ˙ª ÃÎœ© °∫ ––« Ø≠¶ À‚œ¬ ÊƒÃÁ °∫ ±

√∫Ã ™⁄Ÿ

.

^—Ì

,

^›μºƒ

CO

2°∫æ≠¬ Í≠∫

,

^{Ø¯∫ °}

∫° Î— Ù∫ ›¿∫

,

^{¸• ›¿”μ}

,

˙ÒÎ˙ “¸≠ Ó« Â°

ßÆ° ˆ›Óˆ ›”Í≠∞ ›μº« ™Î∏∂∞¶ ÷Œ Àˆ∞˙

Œ ÁÎœÌ ÷ˆ∏

,

Â√£ ÁÎ√ ﬂ˝œ¬ ˙◊Ø≠Œ Œ— »§

∫Ã ™¸ˆÌ ¸‚˚ Ø∫ Ø≠° ﬂ˝œ¬ ‹°Ã ÷Ÿ

[2].

ˆ≠ Ó ‚ ø»° ∫“™Î©Í

(CNT)

^¬

COx

^{« ˙Ûμ}

(ppb

^¸ß

)

¸ßÓˆ Àˆ“ ˆ ÷¬ Ø¡— Àˆ ∞˙Œ £÷«˙Ÿ

. CNT

^‚

› °∫æ≠« Ù∫ μ¬ Ïˆ— ¸‚˚ Ø∫

,

^{¤∫ ©‚}

,

^{Ù∫ •}

È˚ Œ« Ò≤˙

CNT

« ÎÎÆ °∫Ì¯Ã °…œˆ∏

,

^{°∫ À}

‚ ƒ ∏π√£Ã ¿ÆŸ

[3, 4].

^{÷Ÿ ∫“¯⁄«}

2

^˜¯

(2D)

^∏∂Œ

◊°…∫

CNT(1D)

∏Ÿ ∂ØœÌ ı Ïˆ— ¸‚˚

,

^{‚Ë˚ ∫˙ª}

°ˆÌ ÷‚ ßÆ° Ø¡—

CO

²°∫Àˆ ∞˙Œ ÆŒ«˙∏Á ‚ Ë˚ ⁄Æ˝ª ÃÎ— Ì∫…

CO

2°∫æ≠° ∏Ì«˙Ÿ

[5].

^◊°

…∫

2D

ÚÈ∏∂Œ Œÿ Ù∫ •È˚ Œ« Ò≤

,

^≠–

/

^{≠ »§∫}

, N/MEMS

« ›μº ¯§Ã °…œ‚ ßÆ° °∫æ≠° Î‹˜ ˚

’œŸ

.

^«—

,

Ù∫ ¸‚¸μμ Ø∫∏Œ

CNT

^{”∏ ΔœÛ Í≠∞}

™Î∏∂∞¶ ÃÎœ¬ ÊÏ∏Ÿ °∫æ≠ ≈£ ‚ΩÃ ˚‚ ßÆ°

‹œ ¯⁄ «¬ –⁄ ˆÿ« ÛμÓˆ Àˆ° °…œŸ

.

^{◊°… ‚›}

1ÔÍÎ–≥ ¸‚¯–Œ(School of Electrical Engineering, University of Ulsan)93 Daehak-ro, Nam-gu, Ulsan 680-749, Korea

2μ´Ã ´ª ⁄ÆΔ(Tokai Carbon Korea) Anseong, Gyeonggi-do, 456-843, Korea

+Corresponding author : [email protected]

(Received : Jan. 10, 2013, Revised : Feb. 4, 2013, Accepted : Feb. 19, 2013)

This is an Open Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License(http://creativecommons.org/licenses/by- nc/3.0)which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.

(2)

°∫æ≠« Àˆ ≈øœÚ∫ œ›˚∏Œ μ Õ ˜¡Õ« ™“ª œ¬ °∫ –⁄° ◊°… •È° Ì

/

ª¯ª Îÿ ◊°…« ¸μ∫

« Ø≠Œ ™∏≠Ÿ

[3].

^÷Ÿ

,

^{◊°… •È°}

Pt, Pd

^Õ

Au

^{Ó« ›}

” À≈¶ ⁄√œ© Àˆ°∫« °∫ ±√∫˙ μ‚Ûª ß— °

∫æ≠° ∞ﬂ˜ ¨∏«Ì ÷Ÿ

.

◊°…° À≈Œ· ⁄√» ›” ™ Î‘⁄¬ •È˚ª ø≤˚∏Œ ı°√∞Ì œ‘ˆ¶ Ø≠√¥∏Œ

· °∫æ≠« μÕ °∫ ±√∫ª ‚Û√≥ ˆ ÷Ÿ

[6, 7].

ª ¨∏°≠¬ •È˚ ı°° ˚• μ« ‚Ûª ßÿ

10 nm Au

™Î‘⁄¶ ◊°… •È° ı¯œ© ¸‚˙◊ƒ

CO

2æ≠¶ ¶

¤œ© Ø∫ª Ò≥ –Æœ¥Ÿ

.

2. ¨∏Ê˝

ª ¨∏°≠¬ Û–≠–‚Ûı¯˝

(APCVD)

^{ª Îÿ Ò§˙}

3C-SiC

¶ Ãæ·§∫Âﬂ∏Á ∫¤Õμ˙ ﬁ” ≠≥Æ¯§∏Œ

¸∫» ◊°…ª

SiO

2‚«∏Œ ¸Áœ© ∫¤Õμª Îÿ

Au

^¸

ÿª ı¯œ¥Ÿ

[8].

^{μ ‚Ûª ßÿ}

Au colloid (10 nm, 752584 Aldrich)

¶ ◊°… •È° μ˜ﬂ∏Á

,

^©‚≠

PLL (Poly-L- Lysine solution, P6282 Sigma)

^{∫ ◊°…˙}

Au

^{« ¢’È∏Œ·}

ÁÎœ¥Ÿ

.

^{◊°… •È˙}

Au

‘⁄« ¢¯¬ª ‚Û√∞‚ ßÿ

400

^o

C

^°≠

30

–£ ﬁ”≠≥Æ¶ «√ﬂŸ

. Au/

^◊°…˙

Au

^{° ⁄}

√«ˆ ∫ ◊°…ª ÃÎœ© ¸‚˙◊ƒ

CO

2æ≠¶ ¶¤œ¥

Ì

, Keithely probe station (4200 scs)

^∏Œ

CO

2°∫ æ≠« Ø∫

ª ¯§œ¥Ÿ

.

3. ·˙ ◊ Ì˚

Fig. 1

^{∫ ◊°… •È°}

Au

™Î‘⁄« ı¯ ¸ƒ° Î— ¸‚˙

◊ƒ

CO

2°∫æ≠«

I-V

Ó±∏Œ ¯ˆ ◊°…˙

Au/

^◊°…∫

±¸˚Œ »Õ¢’ Ø∫ª ™∏¬Ÿ

.

^{‚ ˙◊∫ ¢¢}

165

^Õ

144

Ÿ∏Œ ◊°…° ⁄√»

Au

^{™Î‘⁄¬}

2

˜ §ŒÃ ¸∫«Ó ¸⁄

« Ãøª ‚Û√— ˙◊Ã “«¬ Õ∏Œ Á·»Ÿ

.

«—

, Au

° ⁄√» ◊°…∫ •È« ⁄Ø¸⁄¶ Æ°Œœ© ◊

°… •È°

O

2«¬ ¿μ« Ì¯ª Êˆœ¬ ∏£∑ ™“ª œ‚

ßÆ° ºŒ« ¸μ∫Ã ı°» Õ∏Œ Á·»Ÿ

[9].

Fig. 2(a)

^¬

SiO

2 ‚«∏Œ ¸Á» ◊°…« Û∏ ∫ÂÆ≥ª ™

∏Ω Õ∏Œ ◊°…« ·‘ª ™∏ª¬

D

ÍÂÕ Ø∫ª ™∏ª¬

G

ÍÂ ◊ÆÌ ˛ˆÕ ¸√»

2D

ÍÂ« «©Œ ∏∫«Á

1350 cm

^-1

, 1584 cm

^-1^◊ÆÌ

2700 cm

^-1^{°≠ ¢¢ ¸∫»Ÿ}

[10].

^{ª ¨}

∏°≠ ÁÎ» ◊°…∫

D

ÍÂ ©‚° ÛÎ˚∏Œ ¤Δ ·‘Ã ˚ Ì

,

◊°…« ·§∫ «©Œ

G

ÍÂ° ©‘ ™∏μŸ

. I

G

/I

D« ™∫

‡

2.25

^¥∏Á

,

^{‚∏° ∏Ì»}

raphene oxide (GO)

^Õ

Reduced Graphene Oxide (RGO)

° Òÿ Ù∫ ˆ°¶ ∏¥Ÿ

[11].

◊°… •È°

Au

^{° ⁄√» ÊÏ}

, G

^{ÍÂ¶ ‚ÿ∏Œ}

D

^{ÍÂ Ò}

≤∫ ı°œÌ

, G

^{ÍÂ° Òÿ}

2D

ÍÂ« Ò≤∫ “œ¥Ÿ

. D

^Í

Â« Ò≤Ã ÙΔ¯ ÃØ¬ ´ª∏∂°≠ Û⁄Æ° ﬂ˝«Ì

, Au

™Î‘⁄° ı¯«¬ ø» ◊°…« ∞¢ ∏∂° ‹Œ« ∫ÆπŒ (a)

(b)

Fig. 1. I-V curves of resistivity CO2sensors using pure graphene and Au/graphene, respectively.

Fig. 2. (a) Raman spectra of graphene with and without AuNPs, respectively and (b) XRD spectra of Au metal catalyst decorated on grap.

(3)

∏Œ Œÿ œ◊Ø≥‚ ßÆ∏Œ Á·»Ÿ

[12, 13]. Fig. 2(b)

^¬

Au

° ⁄√» ◊°…«

XRD

^·˙Œ

Au (JCPDS 01-071-4615)

^«

(111), (200), (220)

^◊ÆÌ

(311)

^·§È∫

2

^Ë

= 38.09

^o

, 44.36

^o

, 64.56

^o^◊ÆÌ

77.67

^o° ¢¢ ™∏μ∏Á ◊°…

(JCPDS 03-065- 6212)

^«

(002), (101)

^·§È∫

2

^Ë

= 26.67o, 44.36o

^{°≠ ¢¢ ™∏}

μŸ

.

^{◊°…° ⁄√»}

Au

^{™Î‘⁄« ÷·§È}

(111)

^∫

2

^Ë

= 38.09

^o

°≠ ™∏≠ Õª ÆŒœ¥Ÿ

.

Fig. 3

^∫

10 nm Au

° ⁄√» ◊°…« •Èª

FE-SEM

^ÃÃˆ

Œ À≈Œ≠ ÁÎ»

Au

° ◊°… •È° ¨Ø∫Õ¶ ÃÁˆ Ì

10 nm

« ©‚Œ ÌÁ –˜«˙Ωª ÆŒ“ ˆ ÷Ÿ

.

Fig. 4

^{¬ ¸‚˙◊ƒ}

CO

2°∫æ≠¶

50

^o

C, 500 ppm

^{–ß‚°≠}

Ì¯° «— ›¿ ◊ ª¯° «— ∏π ¿‰ Ø∫ª ›π˚∏Œ ™

∏Ω ÕÃŸ

.

^÷‘»

CO

2¶ ˜‹œ¥ª ÊÏ

, 25

^Ãª°

CO

2° ª¯«˙Ωª À ˆ ÷Ÿ

.

^μ¬

CO

2Ûμ∞ æ≠‚¬ª À ˆ ÷

∏Á ŸΩ« ƒ∏Œ §«œ¥Ÿ

.

©‚≠

, RCO

2¬

CO

2°∫ ÷‘ ƒ« ˙◊ÃÁ

Ra

^¬

CO

2°∫¶

÷‘œˆ ∫ Î‚ﬂ°≠« ˙◊ª ™∏ΩŸ

.

^{¯ˆ ◊°…° Òœ}

©

10nm Au

™Î‘⁄° ⁄√» ◊°…« μ¬ ‡

5

^{Ë §μ Ù∫}

0.24%

^¥Ÿ

. CO

2°∫æ≠« ◊°…∫ §¯Ã Ÿˆ≥ÆÓŒ

p

^∏‘

∏Œ

CO

2° ◊°… •È° Ì¯œÈ

,

Δ°« ›¿ƒ° «ÿ ¸⁄°

ﬂ˝«Ó ˙◊Ã “œ‘ »Ÿ

[3, 14].

Fig. 5

^¬

50

^o

C

^°≠

CO

2Ûμ Ø≠° ˚• ¿‰Ø∫ª ™∏ª¬ Õ

∏Œ ¯ˆ ◊°…˙

Au

° ⁄√» ◊°… Œ

CO

2Ûμ« “° ˚

• ◊°¡« Ø≠¬ —«œ‘ ÆŒ“ ˆ ÷˙∏™

, 10 nm Au

^{° ⁄√}

» ◊°…∫ ‚™∏Œ« Ãø∫ ∏Ãˆ “‚ ßÆ° Ì¯»

CO

2

« œ¸— ª¯∫ ÃÁÓ ˆˆ ∫ Õ∏Œ Á·»Ÿ

. 500 ppm

^°≠

« ¯ˆ ◊°…˙

10 nm Au

° ⁄√» ◊°…« ¿‰√£

(

^÷Î˙◊

«

90%

^{° μﬁœ¬ √£}

)

^{∫ ¢¢}

9

^Õ

28

Œ À≈¶ ÁÎ— ÊÏ°¬

›¿∫« ı°Œ Œÿ ¿‰√£Ã ˆ¨» Õ∏Œ Á·»Ÿ

.

^«—

, 10 nm Au

^{¶ ÁÎ— ÊÏ}

, 2 ppm

« ˙ÛμÓˆ Àˆ °…œ¥Ÿ

.

^˚Û

≠

,

◊°…∫ ≈£« ‚ΩÃ ˚‚ ßÆ° μ¬ ∑ˆ∏

,

^{Í≠∞ Àˆ}

∞˙∏Ÿ∑∫Ûμ«

CO

2Àˆ°°…œŸ

[15].

Fig. 6

∫ Û¬°≠ ¯ˆ ◊°…˙

10 nm Au

° ⁄√» ◊°…° Î

—μ¶™∏ΩÕ∏Œ‚∏°∏Ì»¨∏«ÊÏ°

SnO

2

, ZnO

^Ó

ª ÃÎ—

CO

2°∫æ≠¬ Û¬°≠ ˆ° ÓΔˆ∏

,

^{◊°… ‚›}

CO

2 °∫æ≠¬

500 ppm

^°≠

0.02%

« ∑∫ Ø≠Æª ™∏¬Ÿ

.

›È

, 10 nm Au

° ⁄√» ◊°…« μ¬ øœ Ûμ°≠ ¯ˆ ◊°

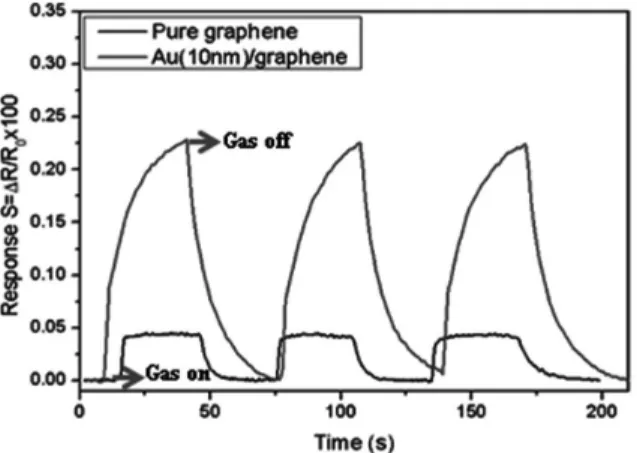

Fig. 4. Repeatabilities of response of pure graphene and Au/graphene CO2gas sensors with 500 ppm CO2at 50^oC, respectively.

Fig. 5. Response of CO2sensors with various CO2concentrations at 50^oC.

Fig. 3. SEM image of 10nm Au catalyst decorated on graphene surface.

Response S(%) = R

^CO²

-R

air ^ø

100 (1) R

air

(2) (3) CO

2

(gas) +e-

^Ê

CO

2

-(ads)

CO

2

-(ads) +O-(ads) + 2e-

^Ê

CO(gas) + 2O

2

-(ads)

(4)

…° Òÿ ı°ﬂ∏Á μ« Ø≠Æ∫

500 ppm

^{°≠ ‡}

0.065%

^Œ

¯ˆ ◊°…° Òÿ

3

^{Ë Ù“Ÿ}

.

ÃÕ∫ ¯ˆ ◊°…˙

CO

2« ≠–˚

›¿Ã ≠œˆ ∏Á

Au

^{° «ÿ}

CO

2›¿Ã ‚Û«˙Ωª «Ã—Ÿ

[16].

Fig. 7

∫ ¬μ° ˚• ¯ˆ ◊°…˙

10 nm Au

^{° ⁄√» ◊°…}

« μ¶ ™∏Ω Õ∏Œ ¯ˆ ◊°…« μ¬

100

^o

C

^{œß ‡}

0.182%

Œ °Â Ù∫ μ¶ ∏¥∏Á

, 10 nm Au

^{° ⁄√» ◊°…}

« μ¬

75

^o

C

^{œß ‡}

0.437%

Œ °Â Ù∫ μ¶ ∏ŒŸ

.

^‚∏

SnO

2

, ZnO

Ó Àˆ∞˙ª ÃÎ—

CO

2°∫æ≠¬ ¬μ° ÙΔ˙ˆ œ μ° ÙΔˆ¬ Ê‚ª ∏Ãˆ∏

,

^{◊°… ‚›}

CO

2°∫æ≠¬

Ø§¬μ°≠

CO

2« Ì¯ ›¿ª œˆ∏

,

^{¬μ¶ Ùªˆœ}

CO

2« Ì¯ ›¿Ã ¡ˆ ∫ Õ∏Œ Á·»Ÿ

[5].

4. ·–

ª ¨∏¬ Ò§˙

3C-SiC

≠≥Æ˝∏Œ ’∫— ◊°…¶ ¸Á

— ◊°…˙

Au

™Î‘⁄° ⁄√» ◊°…°

Au

^{¸ÿ¶ ¸∫œ©}

CO

.

^{¯ˆ ◊°… ⁄}

ºŒμ

CO

2Àˆ° °…ﬂˆ∏

,

‡— ›¿∏Œ Œÿ ∑∫ μ

,

^›

¿ ◊ ∏π√£ª ∏¥Ÿ

.

^◊Ø™

, Au

™Î‘⁄ À≈° ⁄√» Ê Ï° μ¬

75

^o

C

^°≠

500 ppm

^«

CO

2μ¶ ‡

4

^{Ë §μ ‚Û}

«˙Ÿ

.

^Ø˜

, Au

À≈¬ ™Î‘⁄ ∏∂Œ ¯ˆ ◊°…∏Ÿ ›¿“

ˆ ÷¬ •È˚Ã –‚ ßÆ° Ù∫ ¿‰ª ∏¥Ÿ

.

˚Û≠

,

ª ¨∏°≠ ¶¤» ◊°… ‚›

CO

2°∫æ≠¬ ‚∏

«

CO

2°∫æ≠« ø¤¬μŒ

200-400

^o

C

« ¸ß° Òÿ ∑∫ ¬

°≠μ ˙Ûμ ¸ß« Àˆ° °…œ‚ ßÆ° ØÊ¿∞ ◊ Ë‚°

∫ Ó« –ﬂ° ¿Î… ˆ ÷ª Õ∏Œ ‚Î»Ÿ

.

Á« ¤

ª ¨∏¬

2012

‚μ Í–˘øÁ‹« Í–˘¬Á˜˙ ﬂ“‚˜

ª« Í–¨¯ø‚˙≥ﬂ Á˜∏Œ ˆ‡«˙¿œŸ

.

REFERENCES

[1] A. E. Hoyt, A. J. Ricco, J. W. Bartholomew, and G.

C. Osbourn, “SAW sensors for the room-temperature measurement of CO2and relative humidity”, Anal.

Chem., Vol. 70, pp. 2137-2145, 1998.

[2] G. F. Fine, L. M. Cavanagh, A. Afonja, and R.

Binions, “Metal oxide semiconductor gas sensors in environmental monitoring”, Sensors, Vol. 10, pp.

5469-5502, 2010.

[3] F. Schedin, A. K. Geim, S. V. Morozov, E. W. Hill, P. Blake, M. I. Katsnelson, and K. S. Novoselov,

“Detection of individual gas molecules adsorbed on graphene”, Nat. Mater., Vol. 6, pp. 652-655, 2007.

[4] J. Kong, N. R. Franklin, C. Zhou, M. G. Chapline, S.

Peng, K. Cho, and H. Dai, “Nanotube molecular wires as chemical sensors”, Science, Vol. 287, pp.

622-625, 2000.

[5] H. J. Yoon, D. H. Jun, J. H. Yang, Z. Zhou, S. S.

Yang, and M. M.C. Cheng, “Carbon dioxide gas sensor using a graphene sheet”, Sens. Actuator B- Chem., Vol. 157, pp. 310-313, 2011.

[6] M. G. Chung, D. H. Kim, D. K. Seo, T. Kim, H. U.

Im, H. M. Lee, J. B. Yoo, S. H. Hong, T. J. Kang, and Y. H. Kim, “Flexible hydrogen sensors using graphene with palladium nanoparticle decoration”, Sens. Actuator B-Chem., Vol. 169, pp. 387-392,

Fig. 6. Response of pure graphene and Au catalyst decorated graphene with CO2concentrations at room temperature.

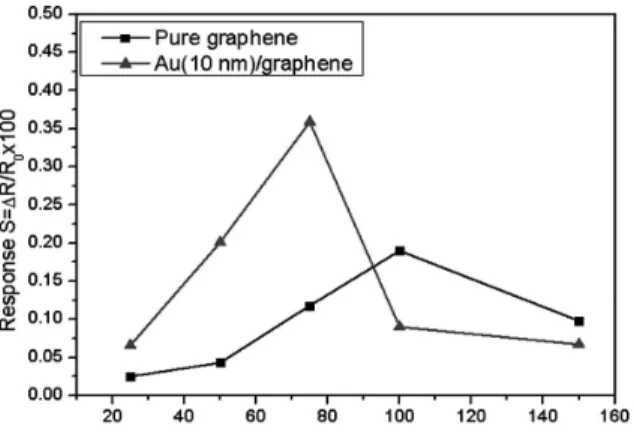

Fig. 7. Response of graphene and Au catalyst decorated graphene at 500 ppm CO2with various temperatures.

(5)

2012.

[7] M. Gautam and A. H. Jayatissa, “Ammonia gas sensing behavior of graphene surface decorated with gold nanoparticles”, Solid-State Electron., Vol. 78, pp. 159-165, 2012.

[8] S. Kim and G. S. Chung, “Synthesis of graphene using 3C-SiC thin films with thermal annealing conditions”, J. Sensor Sci. & Tech., Vol. 21, No. 5, pp. 385-388, 2012.

[9] B. H. Chu, C. F. Lo, J. Nicolosi, C. Y. Chang, V.

Chen, W. Strupinski, S. J. Pearton, and F. Ren,

“Hydrogen detection using platinum coated graphene grown on SiC”, Sens. Actuator B-Chem., Vol. 157, pp. 500-503, 2011.

[10] A. Das, S. Pisana, B. Chakraborty, S. Piscanec, S. K.

Saha, U. V. Waghmare, K. S. Novoselov, H. R.

Krishnamurthy, A. K. Geim, A. C. Ferrari, and A. K.

Sood, “Monitoring dopants by Raman scattering in an electrochemically top-gated graphene transistor”, Nat. Nanotech., Vol. 3, pp. 210-215, 2008.

[11] S. Stankovich, D. A. Dikin, R. D. Piner, Kevin. A.

Kohlhaas, A. Kleinhammes, Y. Jia, Y. Wu, S. T.

Nguyen, and R. S. Ruoff, “Synthesis of graphene- based nanosheets via chemical reduction of exfoliated graphite oxide”, Carbon, Vol. 45, pp.

1558-1565, 2007.

[12] A. N. Sidorov, G. W. Stawinski, A. H. Jayatissa, F.

P. Zamborini, and G. U. Sumanasekera, “A surface- enhanced Raman spectroscopy study of thin graphene sheets functionalized with gold and silver nanostructures by seed-mediated growth”, Carbon, Vol. 50, pp. 699-705, 2012.

[13] Y. K. Kim, H. K. Na, Y. W. Lee, H. Jang, S. W. H, and D. H. Min, “The direct growth of gold rods on graphene thin films”, Chem. Commun., Vol. 46, pp.

3185-3187, 2010.

[14] K. Wetchakun, T. Samerjai, N. Tamaekong, C.

Liewhiran, C. Siriwong, V. Kruefu, A. Wisitsoraat, A.Tuantranont,and S.Phanichphant “Semiconducting metal oxides as sensors for environmentally hazardous gases”, Sens. Actuator B-Chem., Vol.

160, pp. 580-591, 2011.

[15] S. Basu and P. Bhattacharyya, “Recent developments on graphene and graphene oxide based solid state gas sensors”, Sens. Actuator B- Chem., Vol. 173, pp. 1-21, 2012.

[16] B. Bahrami, A. Khodadadi, M. Kazemeini, and Y. Mortazavi, “Enhanced CO sensitivity and selectivity of gold nanoparticles-doped SnO2

sensor in presence of propane and methane”, Sens. Actuator B-Chem., Vol. 133, pp. 352-356, 2008.
