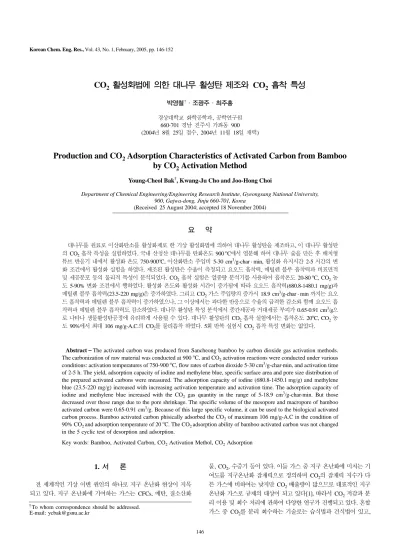

Korean Chemical Engineering Research
7
0
0
전체 글
(2) J Ú §à~¯ Ù í-J U « ~æÉ. CO Zô Y×o ùO
(3) ~Dõ ÄGñ Zô5 20-80 C, CO. 5-90% ¡d ÆQÑ }G. l d 5Q l d QÑ« ÍöÑ ¶ ®1Ã Zôt(680.8-1480.1 mg/g)ê èW P Zôt(23.5-220 mg/g)o ÍG. -Ê CO Í) ?½
(4) ÍQ 18.9 cm /g-char · min b(2 ®1 à Zôtê èW P Zôt« ÍGk÷, « Ñ2 êK äk³ ¤S K ÝQ Wÿ ®1à Z ôtê èW P Zôt ÝG. ¬÷å l ! U ~Ñ Oѧàê M¬§à z)Í 0.65-0.91 cm /gk ³ ÷ ÷ @íl !à_Ñ K-Gj Äî ¤ À. ¬÷å l ! CO Zô Y×Ñ2 Zô5 20 C, CO. 90%Ñ M¬ 106 mg/g-A.C. CO õ í-Zô G. 5¡ äÞ Y×Q CO Zô U ¡d2 ÇÉ. o. 2. o. 3. o. 2. 2. 3. 2. 3. o. 2. 2. 2. 2. Abstract − The activated carbon was produced from Sancheong bamboo by carbon dioxide gas activation methods. The carbonization of raw material was conducted at 900 oC, and CO2 activation reactions were conducted under various conditions: activation temperatures of 750-900 oC, flow rates of carbon dioxide 5-30 cm3/g-char·min, and activation time of 2-5 h. The yield, adsorption capacity of iodine and methylene blue, specific surface area and pore size distribution of the prepared activated carbons were measured. The adsorption capacity of iodine (680.8-1450.1 mg/g) and methylene blue (23.5-220 mg/g) increased with increasing activation temperature and activation time. The adsorption capacity of iodine and methylene blue increased with the CO2 gas quantity in the range of 5-18.9 cm3/g-char·min. But those decreased over those range due to the pore shrinkage. The specific volume of the mesopore and macropore of bamboo activated carbon were 0.65-0.91 cm3/g. Because of this large specific volume, it can be used to the biological activated carbon process. Bamboo activated carbon phisically adsorbed the CO2 of maximum 106 mg/g-A.C in the condition of 90% CO2 and adsorption temperature of 20 oC. The CO2 adsorption ability of bamboo activated carbon was not changed in the 5 cyclic test of desorption and adsorption. Key words: Bamboo, Activated Carbon, CO2 Activation Methol, CO2 Adsorption. 1.. C «. í, CO , ¤D Ù« À. «Ë ÍA O (g 5ûdÑ Âj2 D ñõ (g5ûd Ùétk³ _G CO Ùét (¤Í ñ ÍAÑ WGñ2 (O CO
(5) « Qk³ ¬,J¯ (g 5ûd ÍA³ äf ¬ « æÊ À[1]. !¶ CO IÝê ~ - «Ä Ú ¡¤ s-Ñ îGñ K õgÍ ,}æÊ À. HY ÍA O CO õ ~- ¡¤G2 D¬³2 Srê Qr« ÀÊ, 2. M §ªJ¯ D «¡ ò¯ G÷³ (g 5ûd « (I æÊ À. (g 5ûdÑ DñG2 ÍA2 CFCs, è!, 0d. 2. 2. 2. † To. whom correspondence should be addressed. E-mail: [email protected]. 2. 146.
(6) ¬÷å l fÆ3 CO Zô. 147. 2. Qro l !÷ f1¶«T Ù ôfõ «ÄK PSA à_ Ù 5 à_ê Ê5 ôfÑ K ô ~- à_, K·åD ~ -Ls «ÄK L~- à_ Ù Ê5 à_k³ g~ê. MgO, CaO, <PÂ÷ Ùo Ê5ôf³ ÄæÊ[2], !ª ôfQ f9¶«Tª ôf2 250 C «GÑ Äê[3]. ! ª ôf³2 l !« Q« ÄæÊ À. l !o KD í 0s !dGñ Ê_!õ »Ê @ ê Dàs l d ê_s G ñ Ý e¬ à !«. ÄÄÑ !¶ ¤s-, U %+ Ú _fõ .K U Äê D ôÑ JYK D Ä k³ ~Íî ¤ ÀÊ, ½É ¿D Ú Ñ !¶ ½ , ~S, , l K Ùk³ g~O ¤ À[4]. l !« o ôts Í( D .g2 o ,
(7) Jê Ñ èê §àz)Í ®gê. ³ä Jk³ D Äl !o §§à« èæ´ Àk ¯X³1 ~k³ «P´, í0« ? ò0³ Äê. ä
(8) Ñ U Ä l !o !«÷ íõ ò0³ Gñ fÆK õ ~GK á Y fQ HY á l d à_s Mj³ D ÄÑ WGñ OÑê M¬§à«
(9) Ï èæ´ À. Lee Ù[5]ê Yoon Ù[6]o åõ!s ò0³ l !s fÆGÊ, KoQ Ahn[7]o gõ « ÄGñ l !s fÆG. K ÷å[8], tÉùkô0[9], K -÷å[10] Ù ñ6 Í( ò0õ ÄGñ l !s fÆG. l !o ò0 !d Ú l d ê_s Gñ fÆæ2), l dörk³2 d D¯ ¤D[5, 11], «d![11, 12] Ùs «ÄG2 ÍAl drê KOH, ZnCl , H PO Ùs ÄG2 u\ l dr[8]« À. á õgÑ2 IéÑ WGñ @Í Ê !ªÑ WGñ k¸ @« ÍDK à«1 kA Éò« h Éò lÄ«¶ 2 +
(10) Ñ K-K h ¬÷åõ ò0³ Gñ (g 5ûd Í A¯ CO õ «ÄGñ l !s fÆG2 ×ê fÆê ¬÷å l ! CO ô U Ñ îK Dð×s G. o. 2. 3. 4. 2. 2. 2.. / . | l ! fÆõ .Gñ h (öÑ É@G2 ¬÷åõ ò0³ ÄGk, àÆ~ Ú ò~ êõ Table 1Ñ ÷ É. ñD ¬÷å ! W
(11) o 50% «G³ !ª l ! ò0 ! W
(12) (70% « )Ý J2 as < ¤ À. G( O, ¬÷å 2 §¯ ¿DÍ ¿Ê Ñ« ´ Qo às Í0 ¤ ÀÊ, l ! fÆ DÑ 5s Âj2 ak³ <s, ¡ ~s 4? Jj ¯WGÊ À´ l !s fÆGDÑ K-K Yk³ ÊÄGj ê. 2-2. /#ð£ Z /#tà 2-2-1. ¬÷å l ! fÆ ¬÷å õ l dÿ2 ßj³ ¡~ Ê_@ äDõ Ä 2-1.. Gk, ßjõ Fig. 1Ñ ÷ É. l ! fÆ äD2 43 mm, L« 1,100 mm STS 304 é0 îs ÄGñ fÊ G. 4 z2 3 kW Lindberg 4 MD³(LHTF322C)Í jæ´ 5Í ÆQæÉÊ, 0Í D2 àA9o 60 mesh Aº¯-A ías ÄGñ (ý 30 mm, L« 160 mm¯ 1
(13) k³ OËÉ. ÏI, 900 C 0ÍA ~.DÑ ¬÷åõ ¬
(14) k³ 2Ñ 8 !dE !dÆQ« ³K ¬÷å õ fÆ G. ¬÷å õ 0.5-3 mm³ ²GGñ 0 àA9Ñ u 30 g s £,E l d äÑ ÄG. Í H àA9s äD Ñ ?½GÊ, l ~.Dõ OËD .Gñ 3 cm /g-char· min 0 õ s?
(15) _ê l d 5Ñ O Ab( MD³õ 10 C /min³ ÍùG. l d 5Ñ Gj æ
(16) , CO D õ àGñ 0õ l dZ. l d K( Ñ« êK á CO DQ ùò às OGÊ, d ö(õ .Gñ 0õ ? ½G
(17) 200 C «G³ -ÎE l !s fÆG. -Îê l !s äDÑ â á )%«T Ñ 5k³ -Î á l ! D×[13] Ú U ~s G. l d ä ÆQ × o l d 5 750-900 C, CO D ?½ 5-30 cm /g-char·min, l d K(Ñ 2-5Ñ p.Ñ }G. 2-2-2. l ! CO ô ×Ñ2 Du Pont f\¯ TGA-2050 ùO
(18) w« ÄæÉ . åj +_ Kª p.2 0.2 µgb(« 0Q 0[õ Y K åj 1,000 mgb( +_O ¤ À. ×Ñ Äê D2 ~.D D³ He(99.99%), äD³ CO (99.99%)« ÎÎ 0
(19) K
(20) ªõ M° W HY á äD ³ Ë´Ñ. Â
(21) ¤~fMõ .Gñ Drierite(CaSO )õ K
(22) ª K½ MÑ jG. W ×Ñ gK ðD ä ¡dÍ Ç2 × p.¯ ½ 100/200 mesh ¬÷å l ! 0 u 10 mgs 0 [ Ñ 9sÊ 5Ñ äD DÊ àDõ ~.D D¯ He ê GGD .Gñ He Dõ 100 cm /min Kk³ 1ÑÍ
(23) o. 3. o. 2. 2. o. o. 3. 2. 2. 2. 4. Table 1. Analysis of raw material Proximate analysis, wt.% (as received basis) F. C. V. M. ash moisture 38.7 46.1 1.2 14.0. Fig. 1. Schematic diagram of experimental apparatus. 1. Furnace 17. Water bottle 2. Adiabatic block 18. Heating mantle oil bath 3. Sample basket 19. N2 cylinder 4. Reactor 10. CO2 cylinder 5. Heating tape 11. N2 cylinder 6. Flow meter 12. Vent. Ultimate analysis, wt.% (dry basis) C H O N 45.5 6.9 47.2 0.4. Oxygen by difference(F. C.: Fixed Carbon, V. M.: Volatile Matter). 3. Korean Chem. Eng. Res., Vol. 43, No. 1, February, 2005.
(24) á{öÆ ?öM?Z. 148. sÝ,. 0 8_dQ ~.D D GÍ ³÷
(25) Í5 10 C/min³ 250 Cb( WÙ5k³ Íù á, 250 CÑ 90~ Ñ K(E l ! ¤~«÷ ô0s fMG. He D ~.D Ñ 5k³ -Î á äD 5 õ ô × 5b( 9-D ÊGñ × 5b( UM¾ G
(26) × CO ÍAõ ?½Gñ ôs ÊGÊ 0 Í ]
(27) Ñ O Ab( Ù5Ñ ×s ªG. ôÑ ä 5 s oÝD.Gñ ³_K CO ÆQÑ 20, 40, 60, 80 CÑ Ù5ô ׫ }GñÊ, CO. Ñ ¬K o ³_K ô5 ÆQÑ CO 5, 10, 15, 20, 30, 50, 70, 90% ¡d ÆQÑ ×G. ·%ô äÞ × Î He ~.DÑ 250 C b( WÙ 5 %ô äê CO 30%, ô5 60 C ÆQÑ Ù5 ô×s õJk³ 5¡ }G. 2-3. §| |ð Ïhtà 0 ?½ åjQ l d á åjõ «ÄGñ l ! ¤S s ªG. ¬÷å ò~Ñ2 ò~D(FISONS, EA 110)Í ÄæÉ. l ! U ~Ñ KS M1802[13] l ! × örÑ !¶ ®1à ôt(adsorption capacity of iodine, Iodine number, Iodine No.) ×ê èW P ôt(adsorption capacity of methylene blue, Methylene Blue number, MB No.) ×s G . §àU o W,
(28) J +_D(Micromeritics, ASAP-2010)õ « ÄGñ 77 KÑ 0 ô×Ñ Gñ BET W,
(29) J(BET specific surface area, Surface area), § §àz)(pore volumes) Ú §à~¯(pore size distribution)õ +_G. OÑ Ú M¬ §à Î mercury porosimetry(Micromeritics, AutoPore 9500)õ «ÄGñ +_G. ,
(30) §à o ? MÉ Â (JEOL, JSM-6400)s «ÄGñ +_G. o. o. o. 2. 2. o. 2. 2. o. o. 2. Fig. 2. Effect of activation time on the adsorption capacity.. o. 3.. ûG Z +{. Kã§| g» Ñ !d ¬÷å 2 ,
(31) J 90-100 m /g às Í . « ¬÷å õ 0³ Gñ 850 CÑ «d! à
(32) o 7.8 cm /g-char ·min³ Ê_GÊ l dÑo 2-5Ñ ¡dE l ! U ¡dõ ×G. Fig. 2ÑQ ç« l d Ñ« ÍG2 8 ®1Ã ôtê èW P ôto H& ÍG . U¾ 4Ñ « l dO Î ®1Ã ôt 1,400 mg/g « kÎ Ã ,
(33) Js Í, l !« »´. 6÷ l ! ¤S Î2 2Ñ(68.9%), 3Ñ(59.7%), 4 Ñ(53.7%), 5Ñ(43.0%)³ ÷ ÷ l d Ñ« êO¤´ ¤S o ÝG. !¶ l d ¤Ss ÊsGñ MJ l d Ñ o 3Ñ «³ G2 a« fJk³ K- O a«. l ! ¤Ss èl d ä³ hG
(34) 0.11-0.16 g/g·h ³ ÷
(35) . «2 Vicente Ù[11]« TGAÑ CO õ «ÄK l d ä 0.3 g/g·hÝ2 o à«É. á ×Ñ2 j =³ l dõ Ñ !¶ CO [ñ I]« (³ l d äÍ j ÷ û ak³ « ê. l d 5Ñ ¬K ×o 7.8 cm /g-char·mink³ «d! õ ³_Gj ?½G
(36) l d 5 750-900 C p.Ñ Ù5k 3-1. 900 oC. 2. o. 3. 2. 2. 3. o. ¤@¤ C43× C1 2005 2 . Fig. 3. Effect of activation temperature on the adsorption capacity.. ³ 3Ñ 8 l dÿ2 ÆQÑ }G. Fig. 3Ñ l d 5Ñ !ñ @ l ! ®1Ã ôtê è W P ôt Ú ,
(37) J ¡dõ ÷ É. ñD l d 5Í ÍO¤´ ®1Ã ôto 750 C(680.8 mg/g), 800 C (915.6 mg/g), 850 C(1135.1 mg/g), 900 C(1183.9 mg/g)³ ÍG . èW P ôto 750 C(23.5 mg/g), 800 C(62.2 mg/g), 850 C(122.6 mg/g), 900 C(127.3 mg/g)³ ÍG. BET ,
(38) Jo 750 C(666.1 m /g), 800 C(858.7 m /g), 850 C(1028.5 m /g), 900 C(1072.0 m /g)³ ÍG2 s Ý. ®1Ã ôtê ,
(39) Js WGG
(40) ®1Ã ôt Í2 ,
(41) J ÍÑ D ¯K as < ¤ À. «2 l d ê_s Gñ OË´, Qo § §àË @ « W,
(42) J Í ò¯« æÉD Aé«. ä 5Í WWÑ !¶ W,
(43) J ÍÍ UOg2s å ¤ À É2), «ao §à e¬Q ³Y « Wÿ ³´÷D Aé«. Kimê Hong[14]o Oh Dandong!ê Fushun!s ò0³ G ñ l !s fÆG2), «A M¬ ®1à ôto 880 CÑ ÎÎ 1,069 mg/gê 1,030 mg/gk³ ÷
(44) . , Lee Ù[5] ¤ D l drk³ l !s fÆG2) M¬ W,
(45) J àk³ 800 CÑ 1,100 m /g¯ l !s fÆG. l d 5 ¡dÑ !ñ ¤S ¡dõ oÝ
(46) 750 C(83.4%), 800 C(74.2%), 850 C(59.6%), 900 C(47.6%)³ l d 5Í WO¤´ ¤So ÝG2 s Ý. CO D K
(47) « l ! fÆÑ Âj2 s <4ÝD .Gñ o. o. o. o. o. o. o. o. o. o. 2. o. 2. o. 2. 2. o. o. 2. o. o. o. 2. o.
(48) ¬÷å l fÆ3 CO Zô 2. 149. Fig. 4. Effect of CO2 amount on the adsorption capacity.. «d! K
(49) s 5-30 cm /g-char·min p.Ñ ¡dÿ
(50) 850 CÑ 3Ñ 8 ¬÷åõ l d Z. Fig. 4ÑQ ç « CO D à
(51) « ÍO¤´ l ! ¤So 71.9-39.5%k³ (Jk³ ÝGk÷ èW P ôto ´. _ WK á s K(G2 s Ý. ®1Ã ôt Î CO ?½
(52) 20 cm /g-char·minÆQÑ M¬à 1331.7 mg/gk³ ÷
(53) . 3-2. §|£ @ ·» | Fig. 52 ñ6 Í( l d 5Ñ »o l !Ñ ¬K 0 ôÙ5«. §§às Q« Í(Ê À2 l !o 0 ô ×Ñ Ñ G2) WGJ Qo Ñ« U1. ¬Ft(P/P ) « 0.1 zÑ K ô
(54) ¡dÍ @H ao §§à« è K as ÂGÊ, l d 5Í ÍO¤´ 0 ô
(55) « ¾ ÍG. Fig. 6o l d 5 ¡dÑ !ñ BJH Ñ K Oѧàê M ¬§à J ,
(56) J ¡dõ ÷ a«. ñD 0 ôÑ K OÑ§à « ,
(57) J ¡d2 ) « u 100 Å «GÑ ? ³ ³´
(58) k «áÑ2 M ¡dÍ Ç{s Ýñ?Ê À. BJH Ñ Gñ gK Oѧà J,
(59) Jo 800 C(58.8 m /g), 850 C (77.9 m /g), 900 C(100.2 m /g)k³ ÷
(60) . 3. Fig. 6. Cumulative pore volume of activated carbon measured by N2 adsorption at 77 K.. o. 2. 2. 3. O. o. 2. o. 2. Fig. 7. Pore volume distribution by mercury porosimetry.. o. 2. Fig. 8. Pore surface area distribution by mercury porosimetry.. Fig. 5. Isothermal plot of activated carbon measured by N2 adsorption at 77 K.. 0ôrÑ K §àgÆ U o §§àê Oѧà U s ÷ ³, l d 5õ -K l ! 0Ñ ¬K Oѧàê M¬§à U ¡dõ mercury porosimetryrÑ Gñ gK êÍ Fig. 7ê Fig. 8ê ç. mercury porosimetry +_j O 60 psi «G Korean Chem. Eng. Res., Vol. 43, No. 1, February, 2005.
(61) á{öÆ ?öM?Z. 150. Table 2. Pore volume and pore surface area Temperature (oC) 800 850 900. N2 adsorption Surface area (m2/g) Pore volume (cm3/g) Micropore Mesopore Micropore Mesopore 743.4 114.6 0.354 0.05 875 153.2 0.415 0.07 842 230.4 0.400 0.09. FtÑ +_K ào 0 <« « J ૳ fG . MJk³ 100-1,000 Å « ¿D §à« Ñ èæ´ À 2 as < ¤ Àk÷ §à,
(62) Jo 100 Å «G §àËÑ K DñÍ Ã ak³ ÷
(63) Ê, l d 5Í 40¤´ 100 Å «G §àË ,
(64) J« (2 as < ¤ À. ñ6 ~ÍÉÑ !¶ §§à, Oѧà, M¬§à ~ÍÍ ó« Í ÷(O IUPAC(international union of pure and applied chemistry)Ñ _K àÑ G
(65) M¬§ào §à) « 500 Å « , Oѧ ào 20-500 Å, §§ào 20 Å «G³ ~Íê[15]. !¶ « ~ÍrÑ Gñ 0ôrê mercury porosimetry rÑ Gñ + _K §à ,
(66) Jê §àz)õ _-G
(67) Table 2Q ç. ñD N adsorption §§àê Oѧào t-plot rÑ Gñ gGñ , à«[16]. l d 5Í ÍO¤´ M¬§à« ó(G2 z 2. Mercury porosimetry Surface area (m2/g) Pore volume (cm3/g) Mesopore Macropore Mesopore Macropore 178.4 6.58 0.4408 0.2097 177.4 8.2 0.4525 0.2509 232.0 10.34 0.5147 0.3982. ) ~So 32.2%Ñ 43.6%³ ÍG÷ ,
(68) JÑ DñG2 M¬§ à ~So 3.6%Ñ 4.3%³ à ó«õ Ý«( :I. Lee Ù[17] o !ê ÷å Ú ô0 l !Ñ ¬K §à ~ ê mercury porosimetry +_Ñ K OÑ Ú M¬§à z)2 0.19-0.50 cm /g às Ík÷ ¬÷å l ! Î 0.65-0.91 cm /g à s Í. ¬÷å Q ¬÷å l ! §à ,
(69) Ñ ¬K SEM. ,« Fig. 9Ñ À. ñD ¬÷å Î H gás Q« Í , =õ ÷ l d ê_s Mj
(70) « H gá« e¬ æ2 as < ¤ À. «: U k³ ¯Gñ ¬÷å l !o OÑ §àê M¬§à z)Í Ã as < ¤ À. «: ¬÷å l ! U s «ÄG
(71) @íl ! à_[8]Ñ K-Gj Äî ¤ À s a«. 3-3. §|£ CO ¬J | Fig. 10Ñ2 CO 20% Ñ ô5 ¡dÑ !¶ CO ô U s ÷ É. u 1~ «Ñ CO ôo àÑ M æ2 as å ¤ À. 5Í s¤´ CO ô
(72) « ÍG2 MJ¯ í- ô U s ÷ 20 C Î l ! åj u 5% åj CO õ ôG. 1ª ôfõ ÄK Bak Ù[18] Ê5 CO ô ×Ñ @¡ ôf Î ôf åj 46.4% åj CO õ ôG2 dH ô U s ÷ 2 aÑ WGñ o CO ô U s ÷ 2 as < ¤ À. Î ô5Q ô0 ¡d ×Ñ gK ¯d ô
(73) s «ÄGñ »o CO Ù5 ô Ës Fig. 11Ñ ÷ É. Ft« ÍO¤´ ô
(74) « ÍWs Ý«Ê ÀÊ, ô 5Í WWÑ !¶ ¯dô
(75) o Ý G2 as < ¤ À. 20 CÑ CO Ft 684 mmHg(CO. 3. 3. 2. 2. 2. 2. 2. o. 2. 2. 2. 2. 2. o. 2. Fig. 9. The SEM photograph of bamboo char surface (a) and activated carbon surface (b).. ¤@¤ C43× C1 2005 2 . 2. Fig. 10. Effect of adsorption temperature on the CO2 adsorption capacity at various temperatures..
(76) ¬÷å l fÆ3 CO Zô. 151. 2. DCk³ Gñ 3%b( ô« «P´(Ê, %ôê ô« 5¡ õ k³ ,}æ2 8 CO ô
(77) ¡d2 Ç2 ak³ ÷
(78) . 1ª ôfõ ÄK Bak Ù[18] Ê5 CO õ·%ô × Ñ @¡ ôf Î õ·%ô« 10¡ ,}öÑ !¶ ôÁS« 68%b( ©´Ê, MhS 1¡ Ä 0.63Ñ Yó Ýæ´ 10¡ Ä 0.25b( ©´. CO %ô §à k³ õ «Ç ×Ñ k «Ç ¢ 10-25% _ CO dHôäS« ÝG2 ak³ ÷
(79) . «Ñ WGñ ¬ ÷å l ! CO ôo í-ôk³ õ Ä o ΤK a k³ ¶ê. 2. 2. 2. 2. 2. 4. Fig. 11. Adsorption isotherm of CO2.. 90%)Ñ 106 mg/g CO (l ! åj 10.6% åj CO ) õ ôG. Han[19]« BPL l !s ÄGñ 20 CÑ CO ô × Ñ gK ¯dô
(80) o 76.6 mg/g«. Na Ù[20]« ¶ l !s ÄK CO ô×Ñ2 20 C, 1DFÑ 110 mg/g CO õ ôG2 ak³ ÷
(81) . CO ô× ê2 ôÙ5 ¬,J¯ 6Í( = O type I Ñ ÍbÒ êõ Ý2), «6K ê2 zeolite÷ l ! Ùê ç« ôê §à« Â§§à«´ o FtÑ ôê ~É ËÑ g §à« î(2 ÎÑ å ¤ À2 Ù5«. á × êõ ñ6 Í( ô H1Ñ JÄE ÝI. KP - Î, q =163.4 mg/g, K=0.0027 Langmuir ôÙ5 q = q ----------------1 + KP às ÍÊ, Freundlich ôÙ5 q=KP Ñ n=2.19, K=5.1642 às Í. Dubinin-Astakhov equation q=q ee , A=RTln -----PP Ñ 2 n=2.48, q =130.57 mg/g, E=14.68 kJ/mol às ÷ É. ñD q: CO ô
(82) , q : CO ¯dô
(83) , K: Freundlich ô Ù5 ¤, n: × ¤, P : CO ~F(mmHg), P : CO ¯dFt (mmHg), E2 characteristic energy of adsorption «ao KawazoeQ Kawai[21]Í MSCõ 0³ Gñ CO Ñ ¬K ô×Ñ gK n=2.3, E=11.34 kJ/mol àê WGê. CO 30% Ñ ô5 60 CÑ CO ôê 250 CÑ CO %ô ê_s 5¡ õJk³ }Gñ Fig. 12Q ço ê õ »É. ñD 1¡ × ê ðD ¬÷å l ! 0 åjõ 2. 2. o. 2. o. 2. 2. 2. A. m. m 1/n A. A. m. A n – --- E. S. A. m. 2. m. 2. A. 2. S. 2. 2. o. 2. o. 2. 2. û «. (g 5ûd D¯ CO õ l d D³ «ÄGñ h ¬÷ åõ ò0³ K l ! fÆ ×s GÊ, « ¬÷å l ! CO ô fM U ×Ñ {ê ço ·s »É. l d ÑÑ K o l d Ñ« 2-5Ñk³ ÍO¤ ´ ¤So 68.9%Ñ 43%³ ©´k÷ ®1à ôto 1,0001480.1 mg/g èW P ôto 70-220 mg/gk³ ÍG. l d 5 750-900 CÑ l d 5Í ÍO¤´ ®1à ôto 680.8-1183.9 mg/gê èW P ôt 23.5-127.3 mg/g Ú ,
(84) Jo 666.1-1072.0 m /gk³ ÍG2 s ÷ Ék÷ l ! ¤So ÝG. 850 C³ A ¤S 60% « , ®1Ã ôt 1,100 mg/g « s ÷ ´ MJ l d 5«É. CO ÍA à
(85) Ñ !¶2 CO ÍA
(86) « ÍO¤´ ¤So ÝGÊ, ®1à ôtê èW P ôto ´. _ Í GÍ M¬às Í, á ÝG. 850 C, 3Ñ, CO à
(87) 18.9 cm /g-char ·min³ A M¬ Ds Í. l d 5Í ÍO¤´ ¬÷ål ! §àJ O M¬§à « ó(G2 z) ~So ÍG÷ ,
(88) JÑ DñG2 M¬§à ~So à ó«õ Ý«( :I. 20 CÑ CO Ft 684 mmHg(CO 90%)Ñ 106 mg/g CO (l ! åj 10.6% åj CO )õ ôG. 5¡ äÞ × CO ô U ¡d2 Ý«( :I. 2. 2. o. 2. o. 2. 2. o. 2. 3. o. 2. 2. 2. 2. 2. [ ÷ á õg2 ODÆ Hõ
(89) Ä Æê ¬HG z àHõgò H¬õgé õgW (òÑ Gñ ¤}æÉk « Ñ Ý Ã?n.. +S. Fig. 12. 5 cyclic test of adsorption and desorption of CO2.. 1. Halmann, M. M., Chemical fixation of carbon dioxide-Methods for recycling CO2 into useful products, CRC Press, Boca Raton (1993). 2. Yong, Z., Matta, V. and Rodrigues, A. E., “Adsorption of Carbon Dioxide at High Temperature-a Review,” Separation Purification Technology, 26, 195-205(2002). 3. Chue, K. T., Kim, J. N., Yoo, Y. J. and Cho, S. H., “Comparison of Activated Carbon and Zeolite 13x for CO2 Recovery from Flue Gas by PSA,” Ind. Eng. Chem. Res., 34(2), 591-598(1995). Korean Chem. Eng. Res., Vol. 43, No. 1, February, 2005.
(90) 152. á{öÆ ?öM?Z. 4. Hassler, J. W., Activated Carbon, Chem. Pub(1963). 5. Lee, S. W., Na, Y. S., Kim, D, H., Ryu, D. C., Choi, R. H., Ryu, B. S. and Song, S. K., “Pore Characteristics of Anthracite-Based Activated Carbon According to Granulation Process,” HWAHAK KONGHAK, 40(1), 128-132(2002). 6. Yoon, H. S., Sung, J. S. and Park, J. H., “The Effect of Properties of China Coals on the Activated Carbon Characteristics,” HWAHAK KONGHAK, 34(3), 263-269(1996). 7. Ko, Y. S. and Ahn, W. S., “Preparation and Adsorption Characteristics of Activated Carbon from Korean Rice Hull,” HWAHAK KONGHAK, 31(6), 707-714(1993). 8. Choi, J. I., Lee, S. B. and Kim, D. Y., “A Study on the Preparation of GAC (Granular Activated Carbon) for BAC (Biological Activated Carbon) Process using Oak Wood,” J. of KSEE, 22(6), 1037-10444(2000). 9. Satya, P. M. and Krishnaiah, J. A. K., “Production of Activated Carbon from Coconut Shell Char in a Fluidized Bed Reactor,” Ind. Eng. Chem. Res., 36(9), 3625-3630(1997). 10. Tancredi, N., Cordero, T., Rodriguez-Mirasol, J. and Rodriguez, J. J., “CO2 Gasification of Eucalyptus Wood Chars,” Fuel, 75(B), 1505-1508(1996). 11. Vicente, G., Francisco, S. and Cristobal, V., “Penetration of Sodium Catalysts in Activated Carbon: Effect on the Porous Structure and Reactivity in Air, Carbon Dioxide and Steam,” FUEL, 70(9), 10831090(1991). 12. Lee, S. H., Chang, Y. H., Cho, B. R. and Kim, K. H., “Change in Pore Structure of Char by CO2 Gasification,” HWAHAK KONG-. ¤@¤ C43× C1 2005 2 . HAK, 25(6), 539-545(1987). 13. Korea Industrial Standard, KS M-1802, Test methods for activated carbon(1993). 14. Kim, S. C. and Hong, I. K., “Manufacturing and Physical Properties of Coal Based Activated Carbon,” J. of KSEE, 20(5), 745754(1998). 15. Barrett, E. P., Joyner, L. S. and Halenda, P. P., “The Determination of Pore Volume and Area Distribution in Porous Substances. I. Computation from Nitrogen Isotherm,” J. Am. chem. soc., 73(1), 373-380(1951). 16. Lowell, S. and Shields, E., Powder surface area and porosity, 3rd. ed., Chapman & Hall(1991). 17. Lee, S. W., Moon, J. C., Lee, C. H., Ryu, D. C., Choi, D. H., Ryu, B. S. and Song, S. K., “Analysis of Pore Characteristics Between Eommercial Activated Carbon and Domestic Anthracite-Based Activated Carbon,” J. of KSEE, 23(7), 1211-1218(2001). 18. Bak, Y. C., Cho, K. J. and Kim. S. B., “Reaction Characteristics of Calcium-Based Adsorbents for Bulk Separation of CO2 in High-Temperature,” J. of KSEE, 25(5), 595-601(2003). 19. Han, N. W., “Correlation of Adsorption Equilibria of CO2 on Activated Carbon,” Korea J. Chem. Eng., 2(1), 63-68(1985). 20. Na, B. K., Koo, K. K., Eum, H. M., Lee, H. and Song, H. K., “CO2 Recovery From Flue Gas by PSA Process using Activated Carbon,” Korea J. Chem. Eng., 18(2), 220-227(2001). 21. Kawazoe, K. and Kawai, T., “Correlation of Adsorption Equilibrium Data of Various Gases and Vapors on Molecular-Sieving Carbon,” J. of Chemical Engineering of Japan, 7(3), 158-162(1974)..
(91)
관련 문서
capacity with respect to freeze-thaw cycles···26 Figure 4: Particle size, PDI and zeta potential value ···27 Figure 5: Western blotting showed the expression of specific
This tender notice relates to the subject area Transport Systems and Railway Engineering and is a re-tender of the framework agreement in the subject area Railway
웹 표준을 지원하는 플랫폼에서 큰 수정없이 실행 가능함 패키징을 통해 다양한 기기를 위한 앱을 작성할 수 있음 네이티브 앱과
이하선의 실질 속에서 하악경의 후내측에서 나와 하악지의 내측면을 따라 앞으로 간다. (귀밑샘 부위에서 갈라져 나와
depends on the size and shape of the drainage area, type of surface, slope of the drainage area,. rainfall intensity, and whether the flow is entirely over land
1 John Owen, Justification by Faith Alone, in The Works of John Owen, ed. John Bolt, trans. Scott Clark, "Do This and Live: Christ's Active Obedience as the
"Policy Analytical Capacity as a Source of Policy Failure." Paper Prepared for the Workshop on Policy Failure, Annual Meeting of the Canadian
Micro- and nano-sized pores were formed on the surface of the alloy using PEO and anodization methods, and the pore shape change according to the Zr
