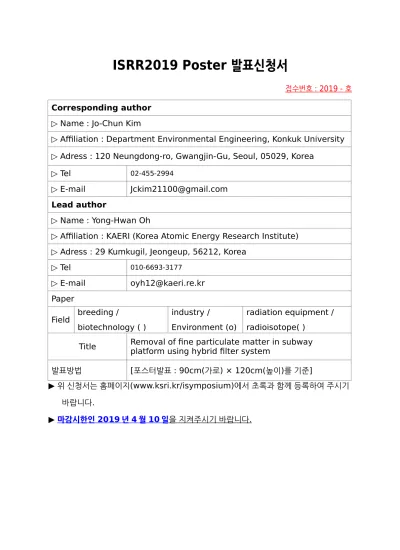

ISRR2019 Poster 발표신청서

ISRR2019 Poster 발표신청서

접수번호 : 2019 - 호

Corresponding author

▷ Name : Jo-Chun Kim

▷ Affiliation : Department Environmental Engineering, Konkuk University

▷ Adress : 120 Neungdong-ro, Gwangjin-Gu, Seoul, 05029, Korea

▷ Tel

▷ E-mail [email protected] Lead author

▷ Name : Yong-Hwan Oh

▷ Affiliation : KAERI (Korea Atomic Energy Research Institute)

▷ Adress : 29 Kumkugil, Jeongeup, 56212, Korea

▷ Tel

▷ E-mail [email protected] Paper

Field breeding /

biotechnology ( )

industry /

Environment (o)

radiation equipment / radioisotope( )

Title Removal of fine particulate matter in subway platform using hybrid filter system

발표방법

[포스터발표 : 90cm(가로) × 120cm(높이)를 기준]

▶ 위 신청서는 홈페이지(www.ksri.kr/isymposium)에서 초록과 함께 등록하여 주시기

▶ 마감시한인

[붙임 2] 초록제출 양식

Removal of fine particulate matter in a subway platform using hybrid filter system

Yong-Hwan Oh

, Sang-Hee Jo

, Tae-Hun Kim

, Tak-Hyun Kim

, Youn-Suk Son

, Jo-Chun Kim

1 Korea Atomic Energy Research Institute

2 Department of Environmental Engineering, Pukyoung National University

3* Department of Environmental Engineering, Kunkuk University [email protected]

As the importance of ultrafine particle control emerged, this study investigated the reduction of the number concentration of subway platform by particle size using magnetic hybrid filter (magnet - magnet, magnet - cascade) system. The particle size was set from 0.4 μm to 10 μm and the parameters were set according to the flow rate. The larger the particle size, the higher the removal efficiency of both M-M and M-C filters. The M-C filter showed a maximum removal rate of 30.5% at the ultrafine particle less than PM1. In the M-C filter, it was confirmed that the removal efficiency of weight concentration below the PM10 was 48.2% at the maximum, and that the removal efficiency of the summing up number concentration was 14.4%. It was confirmed that most of the materials collected in the magnet and the cascade filter have iron oxide form. Based on this study, it was found that a large number of fine particles exist in the subway platform environment. Hybrid filter system is effective to control fine particulate matter in subway environment compared with single dust collector.

Keywords : Fine particulate matter, Magnet filter, Removal efficiency
