Evaluation of Clubroot Resistance in Chinese Cabbage and Its Inheritance in the European Turnip Line 'IT033820', a New Genetic Resource

Evaluation of Clubroot Resistance in Chinese Cabbage and Its Inheritance in the European Turnip Line ‘IT033820’, a New Genetic Resource

Kang Hee Cho

, Ki Taek Kim

, Suhyung Park

, Su Kim

, Kyung Ran Do

, Jong Gyu Woo

, and Hee Jae Lee

1

National Institute of Horticultural and Herbal Science, Rural Development Administration, Wanju 55365, Korea

2

Foundation of Agricultural Technology Commercialization and Transfer, Suwon 16429, Korea

3

Department of Plant Science, Seoul National University, Seoul 08826, Korea

4

Research Institute for Agriculture and Life Sciences, Seoul National University, Seoul 08826, Korea

*Corresponding author: [email protected]

Abstract

Clubroot caused by the protist Plasmodiophora brassicae is one of the most destructive diseases of Brassica crops. Developing Chinese cabbage cultivars with durable clubroot resistance (CR) is an important goal of breeding programs, which will require new genetic resources to be identified and introduced. In this study, we evaluated resistance to P. brassicae race 4 using 26 Chinese cabbage ( B. rapa ssp. pekinensis ) cultivars compared to the clubroot-susceptible Chinese cabbage inbred line ‘BP079’ and the clubroot-resistant European turnip ( B. rapa ssp.

rapifera ) inbred line ‘IT033820’. No symptoms of clubroot disease were found in ‘IT033820’

infected with P. brassicae race 4, whereas the Chinese cabbage cultivars exhibited disease symptoms to various degrees. The Chinese cabbage cultivars that were reported to be clubroot- susceptible were susceptible to P. brassicae race 4; however, seven of the 20 cultivars reported to be clubroot-resistant were susceptible to this race of P. brassicae to varying degrees. Resting spores of P. brassicae were abundant within the infected root tissues of ‘BP079’, as revealed by light microscopy and scanning electron microscopy (SEM), but they were not detected in root tissues of ‘IT033820’. Although resting spores were not detected by light microscopy in root tissues of the clubroot-resistant Chinese cabbage cultivar ‘Kigokoro 75’, a few spores were observed by SEM. The F

hybrids from a cross between ‘IT033820’ and ‘BP079’ showed no disease symptoms, and all BC

P

progenies from a cross between the F

hybrid and ‘IT033820’

exhibited a resistance phenotype. In the BC

P

population from a cross between the F

hybrid and ‘BP079’, this trait segregated at a ratio of 3(R):1(S) (χ

= 1.333, p = 0.248) at a 5%

significance level. Inoculated BC

P

plants were either highly resistant or highly susceptible to the pathogen, indicating that the CR to race 4 of P. brassicae carried by ‘IT033820’ is dominant.

In the F

population, this trait segregated at a ratio of 15(R):1(S) (χ

= 0.152, p = 0.696) at a 5% significance level, suggesting that CR in ‘IT033820’ is mainly controlled by two dominant genes. Therefore, ‘IT033820’ represents a promising genetic resource for developing durable CR breeding lines in Chinese cabbage.

Additional key words: inoculation, microscope, pathotype, Plasmodiophora brassicae , Received: October 30, 2015

Revised: January 5, 2016 Accepted: June 12, 2016

Copyrightⓒ

2016 Korean Society for Horticultural Science.

This is an Open-Access article distributed under the terms of the Creative Commons Attribution NonCommercial License which permits unrestricted non- commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.

Korean J. Hortic. Sci. Technol. 34(3):433-441, 2016 http://dx.doi.org/10.12972/kjhst.20160044

pISSN : 1226-8763 eISSN : 2465-8588

OPEN ACCESS

Introduction

Clubroot disease in Brassica crops, which is caused by Plasmodiophora brassicae, was first reported in Korea in 1928 and occurred in a mild form until the 1980s (Kim et al., 2003). Since the 1990s, this disease has become an important limiting factor for Chinese cabbage production in Korea (Kim et al., 1999).

Clubroot resistance (CR) in B. rapa has been found only among European turnip cultivars such as ‘Debra’, ‘Gelria R’,

‘Milan White’, and ‘Siloga’, in which at least eight CR genes were identified (Crute et al., 1980; Yoshikawa, 1993; Hirai, 2006; Diederichsen et al., 2009; Piao et al., 2009). Most of the known resistance of B. rapa to the clubroot pathogen is under dominant monogenic control (Strandberg and Williams, 1967; Kuginuki et al., 1997; Suwabe et al., 2003; Hirai et al., 2004;

Piao et al., 2004; Cho et al., 2008). However, Yoshikawa (1981) reported that CR in European turnips is controlled by a major gene and several minor genes. Two independent major genes and one quantitative trait locus for CR have also been identified in ‘Siloga’ (Suwabe et al., 2003, 2006). To date, CR in B. rapa has been shown to be independently controlled by several genes (Piao et al., 2009).

Many CR cultivars of Chinese cabbage have been bred by introducing CR genes from European turnips (Yoshikawa, 1981; Hirai, 2006). However, most of these CR cultivars have become susceptible to clubroot in some regions (Tanaka et al., 1998; Kuginuki et al., 1999; Hirai et al., 2004; Piao et al., 2004), while the European turnips remain highly resistant to field isolates of P. brassicae from the same area (Kuginuki et al., 1999). This discrepancy might be due to the evolution of pathotypes or the loss of CR genes during the breeding of Chinese cabbage CR cultivars (Kuginuki et al., 1999; Hirai et al., 2004). To breed durable CR lines, other CR genes for introgression into Chinese cabbage cultivars must be identified from European turnips. The inheritance patterns of CR genes must also be elucidated prior to Chinese cabbage breeding programs.

Interactions between P. brassicae and its host have been studied using various host genotypes (Crute et al., 1980; Voorrips, 1995), such as Williams’ differential cultivar set (1966) and the European clubroot differential set (Buczacki et al., 1975).

Multiple pathotypes of P. brassicae can co-exist in the same infected fields (Jones et al., 1982; Kim et al., 2003; Xue et al., 2008) or even a single root gall (Jones et al., 1982). The race specificity of CR genes is difficult to define using genetic analyses of resistance to field isolates due to the heterozygosity of the pathogen races themselves (Manzanares-Dauleux et al., 2000). Single-spore isolates (SSI), i.e., homozygous pathogen isolates, are required for precise genetic analysis and breeding programs for CR. Of all known sixteen physiological races of P. brassicae, fourteen races except races 10 and 12 are known to be present in the Chinese cabbage cultivation areas in Korea, and races 4, 5, and 8 of P. brassicae are widely distributed (Cho et al., 2003; Kim et al., 2003; Jang et al., 2007). Among these, race 4 has the highest pathogenicity for all four members of Williams’ differential cultivar set (Kang, 2005).

In the present study, we evaluated the resistance of Chinese cabbage (B. rapa ssp. pekinensis) cultivars to race 4 of P.

brassicae by comparing them to the clubroot-susceptible Chinese cabbage inbred line ‘BP079’ and the clubroot-resistant European turnip (B. rapa ssp. rapifera) inbred line ‘IT033820’. We compared infected root tissues of ‘BP079’ and ‘IT033820’

by both light microscopy and scanning electron microscopy (SEM). We investigated the inheritance of CR to P. brassicae

race 4 in ‘IT033820’ to examine whether this line could be used as a new genetic resource for breeding Chinese cabbage

cultivars with durable CR, because ‘IT033820’ was also found to be resistant to races 2 and 9 of P. brassicae (data not

shown).

Materials and Methods

Plant and Pathogen Materials

Along with European turnip line ‘IT033820’ and cultivar ‘Debra’, one Chinese cabbage line, ‘BP079’, and 26 commercially available F

cultivars were evaluated for CR (Table 1). Seeds of ‘BP079’ and ‘IT033820’ were obtained from the National Agrobiodiversity Center of the Rural Development Administration, Suwon, Korea. ‘BP079’ is highly susceptible to diverse races of P. brassicae, whereas ‘IT033820’ is highly resistant (Kang, 2005). Using the two lines as pollen and seed parents, respectively, ‘IT033820’ and ‘BP079’ were crossed to produce F

hybrids, and F

plants were obtained by self-bud pollination of an F

plant. The F

hybrids were backcrossed with each parental line to produce BC

F

populations. An SSI of P. brassicae (SSI79-2-1) identified as race 4 based on Williams’ classification (Williams, 1966) was used for CR evaluation.

Table 1. Degree of resistance of Chinese cabbage line ‘BP079’ and 26 cultivars to race 4 of Plasmodiophora brassicae compared to European turnip line ‘IT033820’ and cultivar ‘Debra’.

Clubroot resistance

Line or cultivar Disease incidence (%)

Susceptible BP079 100

Bulam #3 100

Charming 100

Gangryeokyeoreum 100

Noranja 100

Samjin 100

Satnorang 100

Resistant IT033820 0

Debra 0

Bulam Plus 0

Chorus 0

CR Anshim 0

CR Green 0

CR Hwanggeum 0

CR Mat 7.1

CR Nongshim 7.1

CR Power 12.0

CR Saerona 88.0

CR Satokaze 0

CR Shinki 0

CR Tongil 20.0

CR Yosimasa 0

Kigokoro 65 0

Kigokoro 75 0

Kigokoro 80 100

Kigokoro 85 100

Kukai70 0

MSH-128 0

T-611 0

z

Clubroot-resistant or -susceptible, as reported by private seed companies or in the literature.

CR Evaluation

Inoculum preparation of P. brassicae and evaluation of CR were performed using the root dip inoculation method (Johnston, 1968) with some modifications. Seeds were sown in a Petri dish (9.5 cm × 4.5 cm × 4.5 cm, W × L × H) containing moistened filter paper. When the seedlings in the dish were 1 week old, they were inoculated with a spore suspension of race 4 of P. brassicae at 1 × 10

spores/mL by soaking their roots for 20 min. The inoculated seedlings were transplanted into pots containing commercial horticulture nursery medium (Plant World, Nongwoo Bio, Yeoju, Korea). To ensure infection, after soaking the roots the remaining suspension was distributed around the inoculated seedlings so that the spore concentration in the soil was high. Pots containing the inoculated seedlings were saturated with water for the first week to maintain an optimum environment for infection. The seedlings were grown in a greenhouse maintained at a minimum temperature of 25°C under natural daylight conditions. Four weeks after inoculation, clubroot disease symptoms in the seedlings were evaluated using the grading system described by Suwabe et al. (2003): disease index (DI) 0, no symptoms; 1, a few small, separate globular clubs on lateral roots; 2, intermediate symptoms; 3, severe clubs on main roots (Fig. 1).

Microscopic Observation of Infected Root Tissues

The infected main root tissues of clubroot-susceptible ‘BP079’ and clubroot-resistant ‘IT033820’ and ‘Kigokoro 75’ were observed under a light microscope as described by Luft (1973). The root samples (approximately 1 mm

) were fixed with 2.5% glutaraldehyde in 0.1 M sodium phosphate buffer (pH 7.2) at 4°C for 2 h. The specimens were rinsed, post-fixed with 1% osmium tetroxide at 4°C for 2 h, and held overnight in the same sodium phosphate buffer. After fixation, the specimens were dehydrated in a graded series of ethanol (40, 60, 80, 90, 95, and 100% in distilled water [v/v]). To ensure complete dehydration, the specimens were processed through three changes of propylene oxide for 15, 15, and 30 min per change and gradually infiltrated for 3 h each with 30, 50, and 100% Epon embedding medium in propylene oxide. The specimens were incubated overnight in 100% Epon before polymerization at 60°C for 72 h. The specimens were sectioned (1.5 µm), stained with periodic acid-Schiff staining, and viewed under a light microscope (Axioskop 2; Carl Zeiss Inc., Oberkochen, Germany).

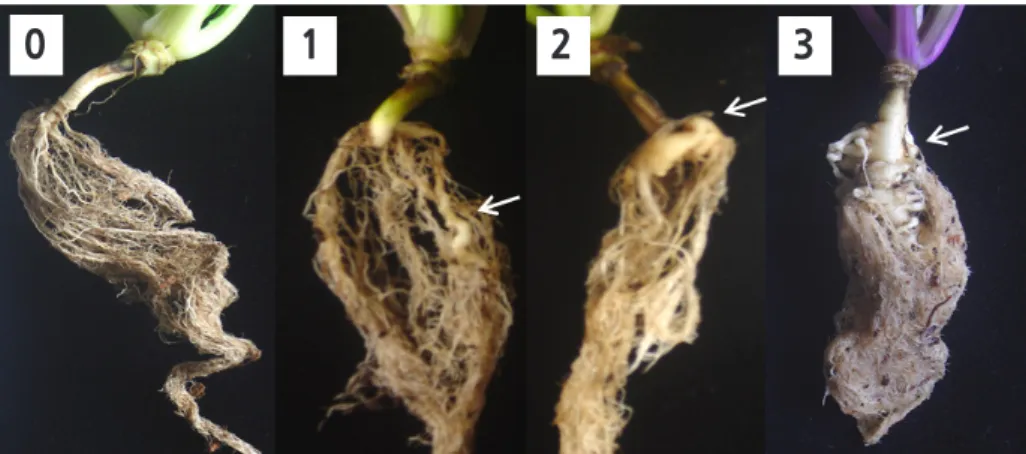

Fig. 1. Clubroot disease index based on gall development. 0, no symptoms; 1, a few small, separate globular clubs on lateral roots; 2, intermediate symptoms; 3, severe clubs on main roots. Arrows indicate globular clubs.

0 1 2 3

For SEM examination, root tissues (main root, lateral root, and boundary tissues between main and lateral roots) were cut in median sections (2.0 mm × 2.0 mm × 2.0 mm), adhered onto stubs using carbon tape, and sputter-coated with gold using an ion coater (K-450 Sputter Coater; Emitech Ltd., Ashford, UK) to approximately 15 nm in thickness. The specimens were examined and photographed in natural mode with a Hitachi S-2460 (Hitachi Co., Tokyo, Japan).

Results and Discussion

CR Evaluation in Chinese Cabbage Cultivars

Upon infection with race 4 of P. brassicae, no symptoms of clubroot disease were found in the European turnip cultivar

‘Debra’, but many of the Chinese cabbage cultivars exhibited disease symptoms to varying degrees (Table 1 and Fig. 2).

The Chinese cabbage cultivars that were reported to be clubroot-susceptible were susceptible to race 4 of P. brassicae;

however, seven of the 20 Chinese cabbage cultivars reported to be clubroot-resistant were suceptible to race 4 of P. brassicae to some extent. In particular, all ‘Kigokoro 80’ and ‘Kigokoro 85’ plants were severely infected (Table 1). Similary, Jo et al.

(2011) examined 25 CR Chinese cabbage cultivars bred in Korea for their resistance to isolates of P. brassicae collected from ten different regions in Korea and found that the cultivars exhibited various responses to pathogens of the same race.

This suggests that only a limited number of CR genetic resources might have been used for CR breeding of Chinese cabbage cultivars in Korea, and that the CR of these cultivars might have been lost during cultivation (Jo et al., 2011). To increase the durability of CR cultivars, different CR genes should be combined into a single line, as suggested by Piao et al.

(2009). Thus, more CR genes from Brassica germplasm need to be identified.

A

B

Microscopic Comparison of Infected Root Tissues of Clubroot-Resistant and -Susceptible Lines We compared the infected root tissues of clubroot-susceptible ‘BP079’ and clubroot-resistant ‘IT033820’ and ‘Kigokoro 75’ by light microscopy and SEM. Resting spores of P. brassicae were abundant within the main root tissues of ‘BP079’

(Fig. 3A), but were not observed within root tissues of ‘IT033820’ (Fig. 3B) or ‘Kigokoro 75’ using light mincroscopy (Fig.

3C). Furthermore, many resting spores were observed under SEM in root tissues of ‘BP079’ (Fig. 4A, B, and C), but no resting spores were found in root tissues of ‘IT033820’ (Fig. 4D, E, and F). More resting spores were found in the boundary tissues between the main and lateral roots than within these roots. A few resting spores were also observed in the root tissues of ‘Kigokoro 75’ (Fig. 4G, H, and I) under SEM, although they were not detected by light microscopy. The cell walls of the main root tissues of ‘Kigokoro 75’ were intact (Fig. 4G), while those of ‘BP079’ had collapsed (Fig. 4A). Similarly, upon examination of CR in B. oleracea, Donald et al. (2008) observed no degradation of the secondary thickenings and cell walls of the xylem in the resistant host. Little or no cell wall breakage may have restricted the movement of P. brassicae in amoeboid form, but not in the resistant host. In the present study, symptoms of root galling were not observed in ‘Kigokoro 75’, despite the presence of some resting spores. However, the precise mechanism underlying CR remains unknown.

Fig. 3. Main root tissues of Brassica rapa lines ‘BP079’ (clubroot-susceptible, A) and ‘IT033820’ (clubroot-resistant, B) and cultivar ‘Kigokoro 75’ (clubroot-resistant, C) at 4 weeks after inoculation with race 4 of Plasmodiophora brassicae. Dots are starch granules and arrows indicate resting spores of P. brassicae. The tissues were observed under light microscopy at ×200

A

B

C

Inheritance of CR in the F

, F

, and BC

F

Populations

Following root dip inoculation of race 4 of P. brassicae, the clubroot-susceptible parental line ‘BP079’ exhibited large globular clubs on its roots (DI of 3, Fig. 2A), while the clubroot-resistant parental line ‘IT033820’ and the F

hybrids produced by crossing ‘IT033820’ and ‘BP079’ showed no disease symptoms (DI of 0, Fig. 2B). All seedlings of Chinese cabbage cultivars ‘Bulam #3’ and ‘Charming’, which were used as susceptible controls for CR evaluation, also exhibited large globular clubs on their roots (data not shown). All members of the BC

P

population from the cross between the F

hybrid and ‘IT033820’ exhibited a resistant phenotype (Table 2). In the BC

P

population from the cross between the F

hybrid and ‘BP079’, 80 out of 100 plants were resistant (R), but 20 plants were susceptible (S). The segregation ratio was 3(R):1(S) (χ

= 1.333, p = 0.248) at a 5% significance level. Inoculated plants showed either a highly resistant or highly susceptible phenotype, indicating that CR carried by ‘IT033820’ to race 4 of P. brassicae is dominant. By contrast, of the 112 F

plants, 104 were highly resistant and eight were highly susceptible, with a segregation ratio of 15(R):1(S) (χ

= 0.152, p = 0.696) at a 5% significance level, suggesting that CR in ‘IT033820’ is mainly controlled by two dominant genes, as reported by Kang (2005). Inheritance of CR to SSI of race 4 of P. brassicae, identified based on Williams’ differential hosts, is thought to be controlled by one or two dominant genes depending on the susceptible parent (Kang, 2005). When resistant lines ‘ECD04’ or ‘IT033820’ were crossed with the susceptible line ‘ECD05’, the segregation ratio in the subsequent F

generation was 3(R):1(S). When these lines were crossed with the susceptible parental line ‘BP079’, however, the segregation ratio in the F

generation was 15:1. Otani et al. (1981) also reported that CR inheritance varies depending on the susceptible parents. European turnip cultivars ‘Gelria R’ and ‘Milan White’ were each crossed with Chinese cabbage and Chinese Fig. 4. Root tissues of Brassica rapa lines ‘BP079’ (clubroot-susceptible, A, B, C) and ‘IT033820’ (clubroot-resistant, D, E, F) and cultivar ‘Kigokoro 75’ (clubroot-resistant, G, H, I) at 4 weeks after inoculation with race 4 of Plasmodiophora brassicae. (A), (D), and (G), main root tissues; (B), (E), and (H), lateral root tissues; (C), (F), and (I), boundary tissues between main and lateral roots. Arrows indicate the resting spores of P. brassicae. The tissues were observed under SEM at ×1,000 magnification.

A D G

B E H

C F I

completely dominant gene. When ‘Milan White’ was crossed with Chinese mustard, CR inheritance was shown to be completely dominant; however, when it was crossed with Chinese cabbage, the resulting plants were completely or moderately resistant, depending on the susceptible parents.

Monogenic inheritance of CR genes in Chinese cabbage has often been reported (Strandberg and Williams, 1967; Hirai et al., 2004; Piao et al., 2002, 2004; Cho et al., 2008). Strandberg and Williams (1967) first reported monogenic inheritance of CR in Chinese cabbage cultivar ‘Michihili’ to races 6 and 7 of P. brassicae. Matsumoto et al. (1998) and Piao et al. (2002, 2004) identified single dominant genes, including CRa in ‘T136-8’ derived from ‘ECD02’ for CR to race 2 and CRb in the doubled haploid line ‘CR Shinki’ derived from ‘Gelria R’ for CR to races 2, 4, and 8. Two independent major genes, Crr1 and Crr2, were also derived from ‘Siloga’ (Kuginuki et al., 1997; Suwabe et al., 2003, 2006). CR is stronger when the Crr1 and Crr2 loci are homozygous for resistant alleles than when they are heterozygous (Suwabe et al., 2003). These findings indicate that CR in B. rapa is under oligogenic control and that the cooperation of these loci is necessary to generate resistance. Another dominant gene, Crr3, was derived from ‘Milan White’ (Hirai et al., 2004). Segregation analysis of the CR gene in Chinese cabbage cultivar ‘CR Saerona’ against SSI race 4 of P. brassicae revealed that the resistant parental line has a single, dominant gene (Cho et al., 2008).

In this study, we identified two dominant CR genes in a new CR resource, ‘IT033820’. This line can be used to develop durable CR breeding lines in Chinese cabbage, although the genetic behavior of CR is not completely understood. Further studies are needed to investigate the inheritance of CR in ‘IT033820’ more precisely and to determine the relationships between CR genes derived from ‘IT033820’ and previously reported CR genes.

Acknowledgments: This work was carried out with the support of the Cooperative Research Program for Agriculture Science & Technology Development (Project No. PJ004489200801), Rural Development Administration, Republic of Korea.

Literature Cited

Buczacki ST, Toxopeus H, Mattusch P, Johnston TD, Dixon GR, Hobolth LA (1975) Study of physiologic specialization in Plasmodiophora brassicae : proposals for attempted rationalization through an international approach. Trans Br Mycol Soc 65:295- 303. doi:10.1016/S0007-1536(75)80013-1

Cho KS, Hong SY, Han YH, Yoon BK, Ryu SR, Woo JG (2008) Genetic analysis of clubroot resistance in Chinese cabbage using single- spore isolates of Plasmodiophora brassicae and development of RAPD markers linked to its resistance gene. J Crop Sci Biotechnol 11:101-106

Cho WD, Kim WG, Takahashi K (2003) Occurrence of clubroot in cruciferous vegetable crops and races of the pathogen in Korea.

Plant Pathol 19:64-68. doi:10.5423/PPJ.2003.19.1.064

Table 2. Inheritance of clubroot resistance in F

, F

, and BC

F

populations from a cross between Brassica rapa lines ‘IT033820’ and ‘BP079’

following inoculation with race 4 of Plasmodiophora brassicae using the root dip inoculation method.

Population Generation No. of plants

Expected ratio (R:S) χ

Probability Resistant (R) Susceptible (S)

IT033820 P

20 0 1:0 - -

BP079 P

0 20 0:1 - -

IT033820 × BP079 F

20 0 1:0 - -

(IT033820 × BP079) selfed F

104 8 15:1 0.152 0.696

(IT033820 × BP079) × IT033820 BC

P

100 0 1:0 - -

(IT033820 × BP079) × BP079 BC

P

80 20 3:1 1.333 0.248

and allied crops: a critical review. Plant Breed 50:91-104

Diederichsen E, Frauen M, Linders EGA, Hatakeyama K, Hirai M (2009) Status and perspectives of clubroot resistance breeding in crucifer crops. J Plant Growth Regul 28:265-281. 10.1007/s00344-009-9100-0

Donald EC, Jaudzems G, Porter IJ (2008) Pathology of cortical invasion by Plasmodiophora brassicae in clubroot resistant and susceptible Brassica oleracea hosts. Plant Pathol 57:201-209. doi:10.1111/j.1365-3059.2007.01765.x

Hirai M (2006) Genetic analysis of clubroot resistance in Brassica crops. Breed Sci 56:223-229. doi:10.1270/jsbbs.56.223

Hirai M, Harada T, Kubo N, Tsukada M, Suwabe K, Matsumoto S (2004) A novel locus for clubroot resistance in Brassica rapa and its linkage markers. Theor Appl Genet 108:639-643. doi:10.1007/s00122-003-1475-x

Jang SJ, Heo SH, Jang CS, Kang SW, Lim YP, Kim HG (2007) Races and dominant population of Chinese cabbage clubroot pathogen, Plasmodiophora brassicae in Korea. Res Plant Dis 13:45-49. doi:10.5423/RPD.2007.13.1.045

Jo SJ, Shim SA, Jang KS, Choi YH, Kim JC, Choi GJ (2011) Resistance of cultivars of Chinese cabbage to Plasmodiophora brassicae isolates of several races collected in Korea. Korean J Hortic Sci Technol 29:610-616

Johnston TD (1968) Clubroot in Brassica : a standard inoculation technique and the specification of races. Plant Pathol 17:184-187.

doi:10.1111/j.1365-3059.1968.tb00452.x

Jones DR, Ingram DS, Dixon GR (1982) Factors affecting tests for differential pathogenicity in populations of Plasmodiophora brassicae . Plant Pathol 31:229-238. doi:10.1111/j.1365-3059.1982.tb01273.x

Kang HJ (2005) Classification of Plasmodiophora brassicae and breeding of clubroot resistance in Chinese cabbage ( Brassica rapa L.).

PhD Diss, Univ of Seoul, Seoul, Korea, pp 36-54

Kim CH, Cho WD, Lee SB (2003) Review of researches on clubroot disease of Chinese cabbage in Korea and future tasks for its management. Res Plant Dis 9:57-63. doi:10.5423/RPD.2003.9.2.057

Kim CH, Cho WD, Yang JM (1999) Survey of field conditions of clubroot disease incidence of Chinese cabbage in major production areas and ecology of root gall development. Plant Dis Agric 5:77-83

Kuginuki Y, Ajisaka H, Yui M, Yoshikawa H, Hida K, Hirai M (1997) RAPD markers linked to a clubroot-resistance locus in Brassica rapa L. Euphytica 98:149-154. doi:10.1023/A:1003147815692

Kuginuki Y, Yoshikawa H, Hirai M (1999) Variation in virulence of Plasmodiophora brassicae in Japan tested with clubroot-resistant cultivars of Chinese cabbage ( Brassica rapa L. ssp. pekinensis ). Eur J Plant Pathol 105:327-332. doi:10.1023/A:1008705413127 Luft JH (1973) Compounding of Luft’s epon embedding medium for use in electron microscopy with reference to anhydride: epoxide

ratio adjustment. Mikroskopie 29:337-342

Manzanares-Dauleux MJ, Delourme R, Baron F, Thomas G (2000) Mapping of one major gene and of QTLs involved in resistance to clubroot in Brassica napus . Theor Appl Genet 101:885-891. doi:10.1007/s001220051557

Matsumoto E, Yasui C, Ohi M, Tsukada M (1998) Linkage analysis of RFLP markers for clubroot resistance and pigmentation in Chinese cabbage ( Brassica rapa ssp. pekinensis ). Euphytica 104:79-86. doi:10.1023/A:1018370418201

Otani F, Maruyama S, Matsumoto E, Nagase Y, Serizawa M (1981) Studies on the breeding of clubroot (caused by the fungus, Plasmodiophora brassicae ) resistance in Chinese cabbage and Chinese mustard. 1. Inheritance on the resistance and characters of resistant sources for clubroot-resistance. Bull Nagano Veg Ornam Crops Exp Stn Jpn 1:1-8

Piao Z, Ramchiary N, Lim YP (2009) Genetics of clubroot resistance in Brassica species. J Plant Growth Regul 28:252-264.

doi:10.1007/s00344-009-9093-8

Piao ZY, Deng YQ, Choi SR, Park YJ, Lim YP (2004) SCAR and CAPS mapping of CRb , a gene conferring resistance to Plasmodiophora brassicae in Chinese cabbage ( Brassica rapa ssp. pekinensis ). Theor Appl Genet 108:1458-1465

Piao ZY, Park YJ, Choi SR, Hong CP, Park JY, Choi YS, Lim YP (2002) Conversion of an AFLP marker linked to clubroot resistance gene in Chinese cabbage into a SCAR marker. J Kor Soc Hort Sci 43:653-659

Strandberg JO, Williams PH (1967) Inheritance of clubroot resistance in Chinese cabbage. Phytopathology 57:330

Suwabe K, Tsukazaki H, Iketani H, Hatakeyama K, Fujimura M, Nunome T, Fukuoka H, Matsumoto S, Hirai M (2003) Identification of two loci for resistance to clubroot ( Plasmodiophora brassicae Woronin) in Brassica rapa L. Theor Appl Genet 107:997-1002.

doi:10.1007/s00122-003-1309-x

Suwabe K, Tsukazaki H, Iketani H, Hatakeyama K, Kondo M, Fujimura M, Nunome T, Fukuoka H, Hirai M, et al (2006) Simple sequence repeat-based comparative genomics between Brassica rapa and Arabidopsis thaliana : the genetic origin of clubroot resistance. Genetics 173:309-319. doi:10.1534/genetics.104.038968

Tanaka S, Fujiyama S, Shigemori S, Nakayama A, Ito S, Kameya IM (1998) Pathogenesis of isolates of Plasmodiophora brassicae from Japan. 1. Race and pathogenesis in clubroot resistant cultivars. Proc Assn Plant Protec Kyushu 44:15-19.

10.4241/kyubyochu.44.15

Voorrips RE (1995) Plasmodiophora brassicae : aspects of pathogenesis and resistance in Brassica oleracea . Euphytica 83:139-146.

doi:10.1007/BF01678041

William PH (1966) A system for the determination of races of Plasmodiophora brassicae that infect cabbage and rutabaga.

Phytopathology 56:624-626

Xue S, Cao T, Howard RJ, Hwang SF, Strelkov SE (2008) Isolation and variation in virulence of single-spore isolates of Plasmodiophora brassicae from Canada. Plant Dis 92:456-462. doi:10.1094/PDIS-92-3-0456

Yoshikawa H (1981) Breeding for clubroot resistance in Chinese cabbage. In NS Talekar, TD Griggs, eds, Chinese cabbage. Asian Veg
