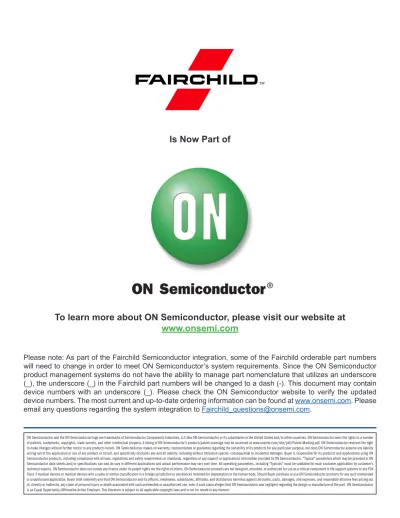

To learn more about ON Semiconductor, please visit our website at www.onsemi.com

Please note: As part of the Fairchild Semiconductor integration, some of the Fairchild orderable part numbers will need to change in order to meet ON Semiconductor’s system requirements. Since the ON Semiconductor product management systems do not have the ability to manage part nomenclature that utilizes an underscore (_), the underscore (_) in the Fairchild part numbers will be changed to a dash (-). This document may contain device numbers with an underscore (_). Please check the ON Semiconductor website to verify the updated device numbers. The most current and up-to-date ordering information can be found at www.onsemi.com. Please email any questions regarding the system integration to [email protected].

ON Semiconductor and the ON Semiconductor logo are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of ON Semiconductor’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent-Marking.pdf. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products and applications using ON Semiconductor products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information provided by ON Semiconductor. “Typical” parameters which may be provided in ON Semiconductor data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. ON Semiconductor does not convey any license under its patent rights nor the rights of others. ON Semiconductor products are not designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use ON Semiconductor products for any such unintended

November 2013

— N-Channe l QFET

MOSFET

FQPF12N60C

N-Channel QFET ^® MOSFET

600 V, 12 A, 650 mΩ Description

These N-Channel enhancement mode power field effect transistors are produced using Fairchild’s proprietary, planar stripe, DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode.

These devices are well suited for high efficient switched mode power supplies, active power factor correction, electronic lamp ballast based on half bridge topology.

Features

• 12 A, 600 V, R_DS(on) = 650 mΩ (Max.) @ V_GS = 10 V, ID = 6 A

• Low Gate Charge (Typ. 48 nC)

• Low Crss (Typ. 21 pF)

• 100% Avalanche Tested

Absolute Maximum Ratings

TO-220F

G

S D

*Drain current limited by maximum junction temperature

Thermal Characteristics

Symbol Parameter FQPF12N60C / FQPF12N60CT Unit

V_DSS Drain-Source Voltage 600 V

I_D Drain Current - Continuous (T_C = 25°C)

- Continuous (T_C = 100°C) 12*

7.4* A

A

I_DM Drain Current - Pulsed ^{(Note 1)} 48* A

V_GSS Gate-Source voltage ± 30 V

E_AS Single Pulsed Avalanche Energy ^{(Note 2)} 870 mJ

I_AR Avalanche Current ^{(Note 1)} 12 A

E_AR Repetitive Avalanche Energy ^{(Note 1)} 22.5 mJ

dv/dt Peak Diode Recovery dv/dt ^{(Note 3)} 4.5 V/ns

P_D Power Dissipation (T_C = 25°C)

- Derate above 25°C 51

0.41 W

W/°C

T_J, T_STG Operating and Storage Temperature Range -55 to +150 °C

T_L Maximum Lead Temperature for Soldering Purpose,

1/8” from Case for 5 Seconds 300 °C

Symbol Parameter FQPF12N60C / FQPF12N60CT Unit

R_θJC Thermal Resistance, Junction-to-Case, Max. 2.43 °C/W

R_θJA Thermal Resistance, Junction-to-Ambient, Max. 62.5 °C/W

— N-Channe l QFET

MOSFET

Part Number Top Mark Package Packing Method Reel Size Tape Width Quantity

Tube N/A N/A 50 units

Package Marking and Ordering Information

Electrical Characteristics

NOTES:

1. Repetitive rating: pulse-width limited by maximum junction temperature.

2. L = 11 mH, I_AS = 12 A, V_DD = 50 V, R_G = 25 Ω, starting T_J = 25°C.

3. I_SD ≤ 12 A, di/dt ≤ 200 A/µs, V_DD ≤ BV_DSS, starting T_J = 25°C.

4. Essentially independent of operating temperature typical characteristics.

TO-220F Tube N/A N/A 50 units

FQPF12N60C FQPF12N60CT

FQPF12N60C FQPF12N60CT

TO-220F

Symbol Parameter Conditions Min Typ Max Unit

Off Characteristics

BV_DSS Drain-Source Breakdown Voltage V_GS = 0 V, I_D = 250 µA, T_J = 25°C 600 -- -- V

∆BV_DSS

/ ∆T_J Breakdown Voltage Temperature

Coefficient I_D = 250 µA, Referenced to 25°C -- 0.5 -- V/°C

I_DSS Zero Gate Voltage Drain Current V_DS = 600 V, V_GS = 0 V

V_DS = 480 V, T_C = 125° --

-- --

-- 1

10 µA

µA

I_GSSF Gate-Body Leakage Current, Forward -- -- 100 nA

I_GSSR Gate-Body Leakage Current, Reverse V_GS = -30 V, V_DS = 0 V -- -- -100 nA On Characteristics

V_GS(th) Gate Threshold Voltage V_DS = V_GS, I_D = 250 µA 2.0 -- 4.0 V

R_DS(on) Static Drain-Source

On-Resistance V_GS = 10 V, I_D = 6 A -- 0.53 0.65 Ω

g_FS Forward Transconductance V_DS = 40 V, I_D = 6 A -- 13 -- S

Dynamic Characteristics

C_iss Input Capacitance V_DS = 25 V, V_GS = 0 V,

f = 1.0 MHz -- 1760 2290 pF

C_oss Output Capacitance -- 182 235 pF

C_rss Reverse Transfer Capacitance -- 21 28 pF

Switching Characteristics

t_d(on) Turn-On Delay Time V_DD = 300 V, I_D = 12 A

R_G = 25 Ω

(Note 4)

-- 30 70 ns

t_r Turn-On Rise Time -- 85 180 ns

t_d(off) Turn-Off Delay Time -- 140 280 ns

t_f Turn-Off Fall Time -- 90 190 ns

Q_g Total Gate Charge V_DS = 400 V, I_D = 12 A V_GS = 10 V

(Note 4)

-- 48 63 nC

Q_gs Gate-Source Charge -- 8.5 -- nC

Q_gd Gate-Drain Charge -- 21 -- nC

Drain-Source Diode Characteristics and Maximum Ratings

I_S Maximum Continuous Drain-Source Diode Forward Current -- -- 12 A

I_SM Maximum Pulsed Drain-Source Diode Forward Current -- -- 48 A

V_SD Drain-Source Diode Forward Voltage V_GS = 0V, I_S = 12 A -- -- 1.4 V

t_rr Reverse Recovery Time V_GS = 0V, I_S = 12 A

dI_F/dt = 100 A/µs -- 420 -- ns

Q_rr Reverse Recovery Charge -- 4.9 -- µC

V_GS = 30 V, V_DS = 0 V

— N-Channe l QFET

MOSFET Typical Performance Characteristics

Figure 1. On-Region Characteristics Figure 2. Transfer Characteristics

Figure 3. On-Resistance Variation vs. Figure 4. Body Diode Forward Voltage Drain Current and Gate Voltage Variation vs. Source Current

and Temperatue

Figure 5. Capacitance Characteristics Figure 6. Gate Charge Characteristics

10^{0 1}

10⁰ 10¹

V_GS Top : 15.0 V

10.0 V 8.0 V 7.0 V 6.0 V 5.5 V 5.0 V Bottom : 4.5 V

※ Notes : 1. 250µs Pulse Test 2. TC = 25℃

ID, Drain Current [A]

10

V_DS, Drain-Source Voltage [V]

2 4 8 10

10^-1 10⁰ 10¹

150^oC

25^oC -55^oC

※ Notes : 1. V_DS = 40V 2. 250µs Pulse Test

ID, Drain Current [A]

6

V_GS, Gate-Source Voltage [V]

0 5 10 15 20 25 30 35

0.5 1.0 1.5

V_GS = 20V V_GS = 10V

※ Note : T_J = 25℃

RDS(ON) [Ω], Drain-Source On-Resistance

I_D, Drain Current [A]

0.2 0.4 0.6 0.8 1.0 1.2 1.4

10^-1 10⁰ 10¹

150℃

※ Notes : 1. VGS = 0V 2. 250µs Pulse Test

I, Reverse Drain Current [A]DR 25℃

V_SD, Source-Drain voltage [V]

10^{-1 0} 10¹

0 500 1000 1500 2000 2500 3000

3500 C_iss = C_gs + C_gd (C_ds = shorted)

C_oss = C_ds + C_gd C_rss = C_gd

※ Notes ; 1. V_GS = 0 V 2. f = 1 MHz C_rss

C_oss C_iss

Capacitance [pF]

10

V_DS, Drain-Source Voltage [V]

0 10 20 30 40 50

0 2 4 6 8 10 12

V_DS = 300V V_DS = 120V

V_DS = 480V

※ Note : I_D = 12A

VGS, Gate-Source Voltage [V]

Q_G, Total Gate Charge [nC]

— N-Channe l QFET

MOSFET Typical Performance Characteristics

Figure 7. Breakdown Voltage Variation Figure 8. On-Resistance Variation

vs. Temperature vs. Temperature

Figure 9. Maximum Safe Operating Area Figure 10. Maximum Drain Current vs. Case Temperature

-100 -50 0 50 100 150 200

0.8 0.9 1.0 1.1 1.2

※ Notes : 1. V_GS = 0 V 2. ID = 250 µA

BVDSS, (Normalized) Drain-Source Breakdown Voltage

T_J, Junction Temperature [^oC]

-100 -50 0 50 100 150 200

0.0 0.5 1.0 1.5 2.0 2.5 3.0

※ Notes : 1. V_GS = 10 V 2. I_D = 6.0 A

RDS(ON), (Normalized) Drain-Source On-Resistance

T_J, Junction Temperature [^oC]

10⁰ 10¹ 10² 10³

10^-2 10^-1 10⁰ 10¹ 10²

100 ms

10 µs

DC 10 ms1 ms

100 µs Operation in This Area

is Limited by R _DS(on)

※ Notes : 1. T_C = 25 ^oC 2. T_J = 150 ^oC 3. Single Pulse

ID, Drain Current [A]

V_DS, Drain-Source Voltage [V]

25 50 75 100 125 150

0 2 4 6 8 10 12 14

ID, Drain Current [A]

T_C, Case Temperature [℃]

Figure 11 . Transient Thermal Response Curve

1 0^-5 1 0^-4 1 0^-3 1 0^-2 1 0^-1 1 0⁰ 1 0¹

1 0^-2 1 0^-1 1 0⁰

※ N o te s :

1 . Z_{θ J C}(t) = 2 .4 3 ℃/W M a x . 2 . D u ty F a c to r, D = t₁/t₂ 3 . T_{J M} - T_C = P_{D M} * Z_{θ J C}(t)

s in g le p u ls e D = 0 .5

0 .0 2 0 .2

0 .0 5 0 .1

0 .0 1

t₁, S q u a re W a v e P u ls e D u ra tio n [s e c ] t1

PDM

t₂ ZθJC(t), Thermal Response [oC/W]

— N-Channe l QFET

MOSFET

Figure 12. Gate Charge Test Circuit & Waveform

Figure 13. Resistive Switching Test Circuit & Waveforms

Figure 14. Unclamped Inductive Switching Test Circuit & Waveforms V

V

V V

10 10%%

90%

90%

tt_d(d(onon)) tt_rr

tt_onon tt_ofofff tt_d(d(ooffff)) tt_ff

V V

V

V

R R

DU DUTT R

R

V V

Cha Charrge ge V

V

Q Q

Q

Q

Q Q

V

V

DU DUTT

V V

300n 300nFF 50K

50KΩΩ 200n 200nFF 12V

12V

Sam Samee TTyype pe

as as DU DUTT

===

E E E

-- -- -- --

2 1 2 1 2 1

2 1--- LLL III

BV BV

222

--- --- BV

BV

- V - V

V V

V V

BV BV

t t _pp

V V

II

V V

(t) (t) II

(t) (t)

Ti Tim mee DUT

DUT R

R

LLL III

t t _pp

I

= const.

V V

V

V

— N-Channe l QFET

MOSFET

Figure 15. Peak Diode Recovery dv/dt Test Circuit & Waveforms

••

DUT DUT

V V

++

__

Driv Driver er R

R

Sam Samee TTyyppee

as as DUTDUT

V

V

•• ddvv//dt dt ccoont ntrroolllleed d bbyy R R

II

ccon onttrrol ollled ed by by pu pullsse e pe perriiod od

V V

LLL II

10 10V V VV

( ( Driv Driver er ))

II

( ( DUT DUT ))

VV

( ( DUT DUT ))

V V

Bo

Body dy D Diiooddee For

Forw ward ard V Vol olttag age e Dr Drop op V

V

II

, , Bo Body dy Di Diod ode e FFoorrw waarrd d C Cuurr rren entt

II

Bo

Body dy D Diiod ode e R Reevveerrssee C Cuurrrren entt Bo

Body dy Di Diod ode e R Reecov coveerryy dv dv/d /dtt di di/d /dtt D

D

D === --- Gate Gate Gate --- --- --- P P Pul ul ulsss --- --- --- e e e W W Wiiiddd --- --- --- ttthhh Ga

Ga

Gate te te Pu Pu Pulllssseee Pe Pe Perrriiiod od od

--- ---

Mechanical Dimensions

Figure 16. TO220, Molded, 3-Lead, Full Pack, EIAJ SC91, Straight Lead

Package drawings are provided as a service to customers considering Fairchild components. Drawings may change in any manner without notice. Please note the revision and/or date on the drawing and contact a Fairchild Semiconductor representative to verify or obtain the most recent revision. Package specifications do not expand the terms of Fairchild’s worldwide terms and conditions, specif- ically the warranty therein, which covers Fairchild products.

Always visit Fairchild Semiconductor’s online packaging area for the most recent package drawings:

http://www.fairchildsemi.com/package/packageDetails.html?id=PN_TF220-003
