UUnnuussuuaall AAoorrttiicc DDiisssseeccttiioonn MMiimmiicckkiinnggPPeenneettrraattiinngg AAtthheerroosscclleerroottiicc UUllcceerr aafftteerr BBlluunntt CChheesstt TTrraauummaa

A 73-year-old man was referred for multiple blunt trauma after an automobile accident with drowsy mentality. At the time of impact, he sat unstrained in the back seat behind the driver. To evaluate the organ damages, brain and chest computed tomography (CT) scans were performed. The chest CT with sagittal reconstruction showed 2 separate contrast-filled false lumens composed of ruptured intimal flaps in aortic arch and descending thoracic aorta. The lesions communicated directly with the aortic lumen. The proximal lesion in aortic arch, occurred just above the left subclavian artery, had 8 mm-depth ulceration into the aortic media and the distal lesion in descending aorta had 5mm- depth ulceration into the aortic media, mimicking penetra- ting atherosclerotic ulcer. Also, multiple atherosclerotic plaques were found in the whole thoracic aortic wall (Fig. 1).

Transesophageal echocardiography (TEE) of the aorta showed similar findings with chest CT. The continuity of endothelium was completely disrupted and 2 separate false lumens were made due to endothelial detachment. The ruptured endothelium of proximal lesion was highly movable.

During systole, it disturbed the aortic flow (Fig. 2A). The distal lesion didn’t disturb the aortic flow (Fig. 2B).

Dissection of the aorta after blunt chest trauma usually occurs at the level of ligamentum arteriosum just distal to the left subclavian artery. However, in our case, the lesions occurred at unusual sites. We suggest that the decelerating force propagated through the aortic wall may cause underly- ing atherosclerotic plaques breakage forming endothelial detachment and rupture at unusual sites.

110

pISSN 1975-4612/ eISSN 2005-9655 Copyright © 2009 Korean Society of Echocardiography www.kse-jcu.org

•Received: July 28, 2009 • Revised: August 18, 2009 • Accepted: August 21, 2009

• Address for Correspondence: Joon-Han Shin, Department of Cardiology, Ajou University School of Medicine, San 5 Woncheon-dong, Yeongtong-gu, Suwon 443-721, Korea Tel: +82-31-219-5712, Fax: +82-31-219-5708, E-mail: [email protected]

U

Un nu us su ua al l A Ao or rt tiic c D Diis ss se ec ct tiio on n M Miim miic ck kiin ng g P

Pe en ne et tr ra at tiin ng g A At th he er ro os sc cl le er ro ot tiic c U Ul lc ce er r a

af ft te er r B Bl lu un nt t C Ch he es st t T Tr ra au um ma a

J

Jiinn--SSuunn PPaarrkk,, MMDD¹¹,, SSaanngg--HHyyuunn LLiimm,, MMDD²² aanndd JJoooonn--HHaann SShhiinn,, MMDD¹¹

1Department of Cardiology, ²Department of Thoracic and Cardiovascular Surgery, Ajou University School of Medicine, Suwon, Korea

K

KEEYY WWOORRDDSS:Aortic dissection∙Transesophageal echocardiography∙Chest blunt trauma.

J Cardiovasc Ultrasound 2009;17(3):110-111

I

IMMAAGGEESS IINN CCAARRDDIIOOVVAASSCCUULLAARR UULLTTRRAASSOOUUNNDD

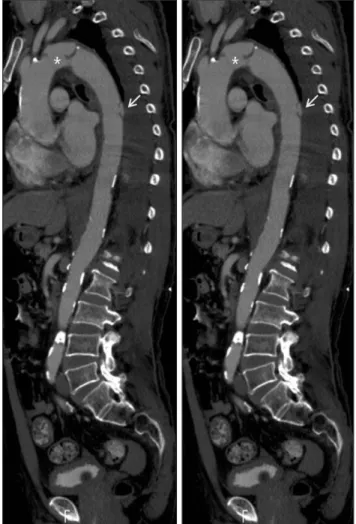

Fig. 1. The chest CT with sagittal reconstruction. The proximal dissection (*). The distal dissection (arrow).

DOI: 10.4250/jcu.2009.17.3.110 online ©^{ML Comm}

Unusual Aortic Dissection^|| Jin-Sun Park, et al.

111 Fig. 2. Transesophageal echocardiography, color Doppler. Proximal dissection (A), distal dissection (B).

B A
