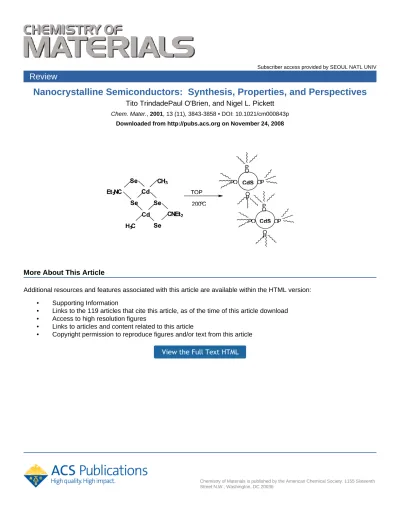

Nanocrystalline Semiconductors: Synthesis, Properties, and Perspectives

Tito TrindadePaul O'Brien, and Nigel L. Pickett

Chem. Mater., 2001, 13 (11), 3843-3858 • DOI: 10.1021/cm000843p Downloaded from http://pubs.acs.org on November 24, 2008

More About This Article

Additional resources and features associated with this article are available within the HTML version:

• Supporting Information

• Links to the 119 articles that cite this article, as of the time of this article download

• Access to high resolution figures

• Links to articles and content related to this article

• Copyright permission to reproduce figures and/or text from this article

(2)

Reviews

Nanocrystalline Semiconductors: Synthesis, Properties, and Perspectives

Tito Trindade*

Department of Chemistry, University of Aveiro, 3810 Aveiro, Portugal Paul O’Brien*^,†and Nigel L. Pickett

Department of Chemistry and The Manchester Materials Science Centre, University of Manchester, Oxford Road, Manchester, M35 9PL U.K.

Received October 24, 2000. Revised Manuscript Received May 8, 2001

The synthesis and study of so-called “nanoparticles”, particles with diameters in the range of 1-20 nm, has become a major interdisciplinary area of research over the past 10 years.

Semiconductor nanoparticles promise to play a major role in several new technologies. The intense interest in this area derives from their unique chemical and electronic properties, which gives rise to their potential use in the fields of nonlinear optics, luminescence, electronics, catalysis, solar energy conversion, and optoelectronics, as well as other areas.

The small dimensions of these particles result in different physical properties from those observed in the corresponding macrocrystalline, “bulk”, material. As particle sizes become smaller, the ratio of surface atoms to those in the interior increase, leading to the surface properties playing an important role in the properties of the material. Semiconductor nanoparticles also exhibit a change in their electronic properties relative to that of the bulk material; as the size of the solid becomes smaller, the band gap becomes larger. This allows chemists and material scientists the unique opportunity to change the electronic and chemical properties of a material simply by controlling its particle size. Research has already led to the fabrication of a number of devices. This review aims to highlight recent advances in the synthesis of compound semiconductor nanoparticle materials and their potential use in areas such as catalysis and electronic device fabrication.

1. Introduction

Recently there has been substantial interest in the preparation and characterization of materials consisting of particles with dimensions in the order of a few nanometers so-called “nanocrystalline materials”.^1-8 The aim of this article is to overview and highlight recent work in this area. One factor driving current interest in nanoparticle research is the perceived need for the further miniaturization of both optical and electronic devices.^9,10 There are practical constraints associated with current technologies; lithographic methods cannot at present be used with a resolution much less than ca. 200 nm. Most semiconducting materials, such as the II/VI or III/VI compound semiconductors, show quantum confinement behavior in the 1-20 nm size range, a smaller size than can be achieved using present lithographic methods. Herein we describe and discuss the current use of chemical methods to prepare semiconductor nanoparticle material.

The preparation of nanoparticles dates back to the 19th century, with Faraday reporting the preparation of colloids of relatively monodispersed gold nanoparticles. However, until recently most research has been concerned with relatively large particles (>100 nm) outside the size range at which interesting effects, on the intrinsic properties of semiconductor nanoparticles, are observed. Although some earlier examples appear in the literature,¹¹Matijevic, among others, developed reproducible synthetic methods for a wide range of near monodispersed colloidal particles.^12,13In the past decade significant progress in the synthesis of semiconductor nanoparticle materials showing quantum size effects has been achieved.

2. Theoretical Considerations

Typically for the 1-20 nm size range semiconductor nanocrystallites show optical, electronic, and mechanical properties distinct from those of the corresponding bulk material.

Bulk Semiconductors. Macrocrystalline semicon- ductors, free of defects, consist of three-dimensional

* To whom correspondence should be addressed.

†E-mail address: paul.obrien@man.ac.uk.

(3)

networks of ordered atoms. The translational periodicity of the crystal imposes a special form on the electronic wave functions. An electron in the periodic potential field of a crystal can be described using a Bloch type wave function (eq 1), where u(r) represents a Bloch func- tion modulating the plane wave φ(kr) of wave vector k.

In a bulk semiconductor the large number of atoms leads to the generation of sets of molecular orbitals with very similar energies which effectively form a con- tinuum. At 0 K the lower energy levels, or valence band, are filled with electrons, while the conduction band consisting of the higher energy levels is unoccupied.

These two bands are separated by an energy gap (E_g), the magnitude of which is a characteristic property of the bulk macrocrystalline material (at a specific temperature). Materials normally considered as semiconductors typically exhibit band gaps in the range 0.3- 3.8 eV (Table 1).

At temperatures above 0 K, electrons in the valence band may receive enough thermal energy to be excited across the band gap into the conduction band. An excited electron in the conduction band together with the resulting hole in the valence band forms an “elec- tron-hole pair”. The conductivity (σ) of the semiconduc- tor is governed by the number of electron-hole pairs, the charge carrier concentration (n, normally expressed in terms of the number of particles per cubic centime- ter), and their mobility (µ). Thus conductivity can be expressed as the sum of the electrical conductivities of

electrons and holes, eq 3 (q is the charge of the carrier).

In conventional semiconductors electrons and holes are the charge carriers. They exist in small numbers as compared to conductors. However, the carrier mobilities in semiconductors are substantially larger than in many conductors.

The charge carriers in a semiconductor can form a bound state when they approach each other in space.

This bound electron-hole pair, known as a Wannier exciton, is delocalized within the crystal lattice and experiences a screened Coulombic interaction. The Bohr radius of the bulk exciton is given by eq 4 ( represents the bulk optical dielectric coefficient, e the elementary charge, and me* and mh* the effective mass of the electron and hole, respectively).

Nanocrystalline Semiconductors. Two fundamen- tal factors, both related to the size of the individual nanocrystal, distinguish their behavior from the corresponding macrocrystalline material. The first is the high dispersity (large surface/volume ratio) associated with the particles, with both the physical and chemical properties of the semiconductor being particularly sensitive to the surface structure. The second factor is the actual size of the particle, which can determine the electronic and physical properties of the material. The absorption and scattering of incident light in larger

Table 1. Properties and Applications of Group IV and Compound Semiconductors (Adapted from Ref 14) effective masses

compd band gap^a/eV type^b me* mh* structure lattice spacing/Å applications IV Materials

Si 1.11 i 0.98 (ml) 0.52 diamond 5.43 integrated circuits,

0.19 (mt) power electronics

Ge 0.67 i 1.58 (ml) 0.3 diamond 5.66

0.08 (mt)

III/V Materials

GaP 2.25 i 0.13 0.67 zinc blend 5.450 LED

GaAs 1.43 d 0.07 0.5 zinc blend 5.653 high-speed integrated circuits, displays

GaSb 0.69 d 0.045 0.39 6.095 thermal imaging devices

InP 1.28 d 0.07 0.40 zinc blend 5.8687 transistor devices

InAs 0.36 d 0.028 0.33 zinc blend 6.058

InSb 0.17 d 0.0133 0.18 6.4787

II/VI Materials

CdS 2.53 d 0.20 5 // wurtzite a: 4.136 photovoltaic cells

0.7⊥ c: 6.713

CdSe 1.74 d 0.13 2.5 // wurtzite a: 4.299 photovoltaic cells

0.4⊥ c: 7.010

CdTe 1.50 d 0.11 0.35 zinc blende 6.477 photovoltaic cells,

electrooptic modulators

ZnS 3.8 d 0.28 >1 // wurtzite a: 3.814 phosphors, infrared windows

0.5⊥ c: 6.257

ZnS 3.6 d 0.39 zinc blend 5.406

ZnSe 2.58 d 0.17 zinc blend 5.667 infrared windows, LED

ZnTe 2.28 d 0.15 zinc blend 6.101

IV/VI Materials

PbS 0.37 d 0.1 0.1 sodium chloride 5.936 infrared sensors

PbSe 0.26 d 0.07 (m_l) 0.06 (m_l) sodium chloride 6.124 infrared sensors 0.039(mt) 0.03 (mt)

PbTe 0.29 d 0.24 (ml) 0.3 (ml) sodium chloride 6.460 infrared sensors

0.02(mt) 0.02 (mt)

aAt 300 K.^bd, direct; i, indirect.

ψ(r) ) φ(kr) u(r) (1)

u(r + n) ) u(r) n integer (2)

σ ) qn_eµ_e+ qn_hµ_h (3)

aB) p²

e²

[

^m¹^e^*^{+ 1}^m^h^*

]

⁽⁴⁾

(4)

colloidal particles is described by Mie’s theory. However the optical spectra of nanocrystalline compound semiconductors^1-8which show blue shifts in their absorption edge as the size of the particle decreases cannot be explained by classical theory.^15-18Such size dependent optical properties are examples of the size quantization effect which occurs¹⁵when the size of the nanoparticle is smaller than the bulk-exciton Bohr radius, a_B(eq 4), of the semiconductor. Equation 5 defines, for a spherical crystallite of radius R, the region of intermediate character between that of a “molecule” and that of the bulk material (l is the lattice spacing)

Charge carriers in semiconductor nanocrystallites are confined within three dimensions by the crystallite. In the case of ideal quantum confinement the wave function in eq 1 has to satisfy the boundary conditions of

For nanoparticles the electron and hole are closer together than in the macrocrystalline material, and as such the Coulombic interaction between electron and hole cannot be neglected; they have higher kinetic energy than in the macrocrystalline material. On the basis of the effective mass approximation, Brus showed^2,16,17for CdE (E ) S or Se) nanocrystallites that the size dependence on the energy of the first electronic transition of the exciton (or the band gap shift with respect to the typical bulk value) can be approximately calculated using

Equation 7 is an analytical approximation for the first electronic transition of an exciton, which can be described by a hydrogenic Hamiltonian,

In eq 7 the Coulomb term shifts the first excited electronic state to lower energy, R^-1, while the quantum localization terms shift the state to higher energy, R^-2. Consequently, the first excitonic transition (or band gap) increases in energy with decreasing particle diameter.

This prediction has been confirmed experimentally for a wide range of semiconductor nanocrystallites,^1-8with a blue shift in the onset of the absorption of light being observed with decreasing particle diameter. Moreover, the valence and conduction bands in nanocrystalline materials consist of discrete sets of electronic levels and can be viewed as a state of matter between that of molecular and the bulk material.

Equation 7 does not account for a number of other important effects observed in real nanocrystallites,¹⁸ such as the coupling of electronic states and effects attributable to surface structure. The constants used in the model (the effective masses and the dielectric constants) are those for macrocrystalline solids. The model is not quantitatively accurate with calculations deviating from experimental values, especially for very

smaller nanocrystallites. In such particles the first electronic transition is located in a region of the energy band in which the normal effective mass approximation is not valid. Although eq 7 is not valid for all types of semiconductors, from a practical point of view this model is particularly useful and the size-dependent energy shift for a number of nanocrystalline semiconductors can be estimated. Furthermore, the model also provides a useful qualitative understanding of the quantum confinement effects observed in semiconductor nanocrystallites.

Other theoretical methods have been used to explain the size-dependent electronic properties of nanoparticle semiconductors.^19-24Descriptions of the different theoretical methods can be found in the published work of Brus,^16-18 Weller et al.,^19,20 Nosaka,²¹ and Wang and Herron,²²among others. These models provide reason- able estimates for the band gap shifts observed experimentally for nanoparticles (e.g. II/VI semiconductors), provided that the particles are not too small (typically

>4 nm). The empirical pseudopotential method, described by Krishna and Friesner,²⁴correlate well with experimental values over a wide range of particle sizes.

Some properties which are not explained by the effective mass model, such as the dependence of optical properties of CdS nanoparticles on the crystal structure, can be understood by the Krishna-Friesner model.²⁴A large number of studies have dealt with quantum size effects on the lowest excitonic transition. An understanding of the higher energy transitions has been addressed more recently.²⁵

Optical Properties. Quantum size effects have been observed experimentally for many nanocrystalline semiconductors.^1-8The optical absorption spectrum of a nanocrystalline semiconductor provides an accessible and straightforward method for the evaluation of quantum size effects. The absorption of a photon, leading to excitation of an electron from the valence band to the conduction band, is associated with the band gap energy (Eg). The absorption of photons with energy similar to that of the band gap, hν g Eg, leads to an optical transition producing an electron in the conduction band of the semiconductor along with a hole in the valence band. Absorption of photons with energy much greater than Egleads to excitations above the conduction band edge; these electrons can lose the excess energy by radiation-less processes.

The absorption (A) of light by a semiconductor mate- rial with thickness l can be expressed by an expression analogous to the Beer law (eq 9), where R represents the absorption coefficient of the solid and is a function of the radiation frequency.

All electronic transitions are subject to selection rules;

for semiconductors the requirements (besides hν g Eg) is that the wave vector, k, should be conserved. kphoton

is small when compared with the wave vectors of the electron before (ke) and after excitation (k′e).

l , R e aB (5)

ψ(r g R) ) 0 (6)

∆E =p²π²

2R²

[

^m¹^e^/^{+ 1}^m^h^/

]

^{- 1.8e}^R² ⁽⁷⁾

Hˆ ) -p² 2m_e^/∇e

2- p² 2m_h^/∇h

2- e²

|re- r_h| (8)

A ) Rl (9)

k_e+ k_photon) k′e (10)

k_e) k′e (11)

(5)

The absorption coefficient for a photon of a given energy is proportional to the probability (Pif), the density of states in the initial state (ni), and the density of available final states (nf). This process must be summed for all possible transitions between states separated by an energy difference equal to the energy of the incident photon

Semiconductors in which there is conservation of the wave vector for optical transitions are referred to as direct band gap semiconductors (Figure 1) and have large absorption coefficients. A useful expression relat- ing the absorption coefficient and the photon energy of a direct transition near the threshold is¹⁴given by eq 13. Semiconductors where the lowest electronic transition, between the valence band and the conduction band, is formally forbidden are said to have an indirect band gap (Figure 1) and normally have small absorption coefficients.

The “band gap” energy of a nanocrystalline semiconductor can be experimentally estimated from its optical spectrum and by using eq 13. Experimentally quantum size effects are observed as a shift toward higher energy values for the band edge (a blue shift), as compared to the typical value for the corresponding macrocrytalline material. Nanocrystalline samples often show a peak(s) in the optical spectra at room temperature. The oscil- lator strength (directly proportional to the absorption coefficient) increases as particle size decreases, due to strong overlapping of the wave functions of confined charge carriers.^1-8 Such effects were clearly demon- strated in a study of CdS nanocrystallites with different and well-defined size distributions.²⁶Decreasing the size of the CdS particles leads not only to a shift in the excitonic peak to higher energy but also to an increase in the molar absorption coefficient (Figure 2).

The absorption of electromagnetic radiation by nanocrystallite material is relatively straightforward; to understand, however, the luminescent behavior of such particles is more complicated, and the ideas that have emerged for explaining these phenomena illustrate an

interesting interplay between experiment and theory.

In a keynote paper, Brus explained, on the basis of theoretical and experimental studies,²⁷ the features expected in the luminescence spectra of quantum confined semiconductors and successfully anticipated the results of many subsequent experiments. However, the understanding of the photophysics of these systems is still far from complete, and further studies on high- quality samples are needed. In particular studies on the photophysics of nanocrystalline samples possessing narrow size distributions have been scarce.²⁷Lumines- cence studies on nanodispersed systems have focused mainly on CdS and CdSe.^27,28Cadmium selenide is of interest since light emission can range across the visible region simply by varying the mean diameter of the nanocrystals.

To develop an understanding of quantum dots, it is useful to develop an appreciation of the luminescence behavior of bulk CdS. Cadmium sulfide is typically sulfur deficient, with the sulfur vacancies possessing a high electron affinity, with acquired electrons making the material n-type in nature. Charge-hole pairs generated in CdS are well-separated, with the electrons being highly localized; this leads to excited states with long lifetimes, having little or no overlap between their wave functions. The electrons are located at different sites, spaced apart; therefore even a shallow trap at low temperature (e.g. 10^-2 eV) can localize an electron.

Emission is a complex process, involving the capture of long-lived charge separated species by both shallow and deep traps followed by radiation-less processes, with the final emission from a deep trap leading to a broad red emission.

In early studies on quantum dot luminescence their behavior resembled that of the bulk material.²⁷Brus and co-workers suggested that sulfur vacancies, located at the surface of the material, might be important in mediating low-energy emissions. There are several reasons for this, one of which is the considerable size of Figure 1. Excitation across the band gap by photon absorp-

tion: (a) direct process; (b) indirect process. (Adapted from H.

M. Rosenberg, The solid state; Oxford University Press:

Oxford, U.K.).

R(hν)∝

∑

^P^ifⁿⁱⁿ^f ⁽¹²⁾

R(hν)∝(E_g- hν)^1/2 (13)

Figure 2. Electronic spectra of samples consisting of CdS nanocrystals with different mean diameters (Å): (a) 6.4, (b) 7.2, (c) 8.0, (d) 9.3, (e) 11.6, (f) 19.4, (g) 28, and (h) 48. The excitonic transition shifts to higher energy values along with an increase in the molar absorption coefficient, as the particle size decrease.²⁶

(6)

such shallow traps. Moreover, as the size of these traps approaches that of the nanoparticle, the wave functions of the trap and excited state overlap. Transfer to these levels, in the form of a separate event, should subsequently be minimized, and the possibility of electron- hole recombination, with emission close to the absorption peak of the bound exciton, can become the predomi- nant event. Electronic states important in determining emission are illustrated in Figure 3. The lifetimes of the various species are also considered important in explaining the observed spectra.

These suggestions have been confirmed by a number of experiments, which show the effects on the luminescence properties of nanodispersed II/VI materials to be dependent on surface derivatization. For the surface derivatization of nanoparticles, two main approaches have been outlined, the growth of a second phase on the surface of colloidally prepared material,²⁹ sometimes referred to as an activation step, with examples including the post-treatment of CdS with hydroxy groups to form Cd(OH)2, or the use of ligands such as thiolates (Figure 4).^30,31Surface derivatization has the effect of minimizing surface defects and may enhance the possibility of electron-hole recombination. The second approach centers around the derivatization of nanoparticulates with solvent molecules, e.g. when preparing nanoparticles from organometallic precursors, using tri- n-octylphophine oxide as the solvent,³² which may subsequently be exchanged for alternative ligands such as pyridine.

3. Preparative Methods for the Synthesis of Nanoparticles

Many synthetic methods for the preparation of nanodispersed material have been reported; several routes involve colloidal chemistry, with others involving the kinetically controlled precipitation of nanocrystallites, using organometallic compounds.^1-8The use of clusters, as building blocks to nanocrystallites, will be dealt with in another section.

Ideally, the synthetic method employed should lead to samples of crystalline nanoparticulates of high purity, with a narrow size distribution, that are surface de- rivatized. Particles satisfying such criteria may be useful in the fabrication of semiconducting devices.

Herein, we focus on synthetic methods for the preparation of compound semiconductor nanocrystallites. The syntheses of elemental nanoparticle semiconductors and metals such as Ag,^1,33 Pd,³⁴Au,³⁵and Cu³⁶have been the subject of a number of other reviews, but will be briefly mentioned. The preparation and properties of nanocrystalline refractory compounds, such as carbides, borides, nitrides, and oxides, have been reviewed by Andrievskii³⁷and will not be considered any further in this article.

Arrested Precipitation in Solution. Controlled precipitation reactions can yield dilute suspensions of quasi monodispersed particles. This synthetic method sometimes involves the use of seeds of very small particles for the subsequent growth of larger ones.^38,39 The first report correlating semiconductor particles size with optical properties was made in 1967 by Berry who studied both CdS and AgI particles.¹¹ Recently more extensive studies have been undertaken by Brus on CdS and ZnS,^40,41Henglein on silver,^1,42and Gra¨tzel on TiO2

particles.^6,43

Brus et al.⁴⁰ described a synthetic process for the preparation of CdS nanoparticles which involves the controlled nucleation of CdS on mixing of dilute aqueous solutions of CdSO4 and (NH4)2S. The stability of the initially small crystallites formed is influenced by the dynamic equilibrium illustrated in

Small crystallites are less stable than larger ones and tend to dissolve into their respective ions. Subsequently, the dissolved ions can recrystallize on larger crystallites, which are thermodynamically more stable (Ostwald Figure 3. Spatial electronic state correlation diagram for a

macrocrystalline and nanocrystalline semiconductor.²⁷

Figure 4. Two major routes for surface chemical passivation of nanocrystals.

(CdS)_crystalrs (Cdf ²⁺)_solv+ (S^2-)_solv (14)

(7)

ripening). The use of acetonitrile, as a solvent, or the addition of styrene/maleic anhydride copolymer allowed the preparation of stable CdS nanoparticles, with an average size of 34 and 43 Å, respectively.⁴⁰Cubic ZnS and CdS nanocrystallites were synthesized in aqueous and methanolic solutions without organic surfactant (capping agent).⁴¹

Henglein, Weller, and co-workers made significant insight into the photochemistry of CdS semiconductor nanocrystallites,^1,4,5 using CdS colloids prepared by controlled precipitation methods.^29,44-48To obtain highly monodispersed nanoparticles, postpreparative separation techniques such as size exclusion chromatography⁴⁶ and gel electrophoresis were employed.⁴⁷ Gel electrophoresis was found to be superior to other separation techniques. Similarly, Boxall and Kelsall^49-51 have published work on the electrophoresis of TiO2colloids.

Weller et al. synthesized nanocrystallites of Zn3P2and Cd₃P₂by the injection of phosphine (PH₃) into solutions containing metal salts;^44,52control of particle size was achieved by varying the phosphine concentration and the temperature of the reaction. Samples of both Zn3P2

and Cd₃P₂showed remarkable quantum size effects, as observed by changes in the color of the products. Bulk Cd3P2 is black, whereas a solution containing small nanocrystallites (15 Å in diameter) of this material are colorless with an excitonic maximum in the optical spectrum at around 310 nm. Moreover, the color of Cd3P2changes from black, macrocrystalline (band gap of 0.53 eV) through brown (30 Å particle) red, orange, and yellow to white, (15 Å band gap ranging from 0.8 to 0.95 eV). Hexametaphosphate was used as a stabi- lizer to prevent particle aggregation. The sample fluo- resced when excited at 300 nm.⁵²The preparation of materials for infrared applications is currently an active area of research, with Cd₃P₂, PbS, and Ge being potential candidates for such purposes (Table 1).

The preparation of elemental nanoparticles of both silicon^53,54and germanium,^55,56is also of interest since both have indirect band gaps in the near-infrared region (Table 1). Precipitation methods such as those used in the synthesis of II/VI semiconductors are not suitable for Ge or Si particle synthesis due to crystallization problems. Weller et al.⁵⁵ described the synthesis of germanium nanocrystallites by a wet-chemical method, which involved stirring GeCl4with lithium naphthalide in tetrahydrofuran,

Germanium tetrachloride was added to a solution containing an excess of naphthalide; this led to the formation of germanium clusters. Laser illumination of hexane solutions containing these clusters enhanced growth and improved the crystallinity of the resulting particles. Germanium nanocrystallites (>200, 110, and 60 Å) have also been obtained by Alivisatos et al.⁵⁶via an ultrasonic mediated reduction of chlorogermanes and organochlorogermanes with a sodium/potassium (NaK) alloy, in heptane. The crystallinity of the particles was improved by annealing, in a closed vessel at 270 °C.

Fojtik and Henglein⁵⁷ described the synthesis and luminescence properties of colloidal oxide-coated silicon particles, obtained from the combustion of silane. Re- cently a composite silica sol-gel incorporating lumines-

cent Si nanoparticles has been reported.⁵⁸The sol-gel monolith was prepared by hydrolysis of tetraethoxysi- lane in the presence of a range of amino acids, which confers stability to the Si nanoparticles and passivate their surfaces.⁵⁸

Surface modification of semiconductor nanocrystallites can lead to electro- or photoluminescent systems, which may have applications in light emitting devices.

One possibility for the preparation of this type of material is the growth of a solid, A, on the surface of a second solid, B, with the latter acting as a seed for the heterogeneous nucleation of the former. Examples of the use of this method include TiO2/Cd3P2,⁵⁹ HgS/CdS,⁶⁰ PbS/CdS,^61,62CdS/HgS,⁶³ZnS/CdSe,⁶⁴ZnSe/CdSe,⁶⁵and CdSe/ZnS.⁶⁶However, there are constraints in the use of this technique, in relation to both the relative solubility of the solids as well as lattice mismatch between phases A and B. The preparation of structures termed “quantum dot quantum well systems” (A/B/A) such as CdS/HgS/CdS,^67,68has also been reported such as in the case of CdS/HgS/CdS consisting of a CdS core, a HgS quantum well of 1-3 monolayers, capped by 1-5 monolayers of CdS. The synthesis (eq 16) involves the growth of HgS on CdS (52 Å diameter) by ion replace- ment, which is achieved by adding aqueous solutions of Hg(ClO4)2to solutions of CdS particles. Substitution of Cd²⁺ for Hg²⁺ ions is thermodynamically favored, since the solubility products of CdS and HgS are 5× 10^-28and 1.6× 10^-52, respectively. Also, there is a good match between the lattice constants for cubic CdS (5.818 Å) and cubic HgS (5.851 Å), eq 16. Finally the repre- cipitation of displaced Cd²⁺ions, on the surface of CdS/

HgS particles, is achieved by the dropwise addition of a dilute solution containing H₂S, with the final particle diameter being estimated at 77 ( 12 Å. The authors reported fluorescence measurements in which the band edge emission for CdS/HgS/CdS is shifted to lower energy values with increasing thickness of the HgS layer.⁶⁸

Other examples of the preparation of semiconductor nanocrystallites by solution methods can be found in the literature.^1-8 Solution methods provide a cheap route to many nanoparticle materials. However, the low temperatures typically used in those methods mean that any defects formed in the early stages of the preparation are likely to be trapped and the crystallinity of the material will be low. Also several important semiconductors are not easily obtained using this preparative method, with some being air and/or moisture sensitive, e.g. GaAs and InSb.

Synthesis in a Structured Medium. A number of matrices have been used for the preparation of semiconductor nanoparticles including: zeolites,⁶⁹ layered solids,⁷⁰ molecular sieves,^71-73 micelles/microemulsions,^74-78gels,^79-81polymers,^82-86and glasses.⁸⁷These matrices can be viewed as nanochambers which limit the size to which crystallites can grow. The properties of the nanocrystallites are determined, not only by the confinements of the host material but also by the properties of the system, which include the internal/

external surface properties of the zeolite and the lability of micelles. As a consequence of the confinements of the nGeCl₄+ 4nLi[C₁₀H₈] f Gen+ 4nC₁₀H₈+ 4nLiCl (15)

(CdS)_m+ nHg²⁺f (CdS)m-n(HgS)_n+ nCd^{2 +} (16)

(8)

medium used, the range of particle sizes possible is limited; e.g. in zeolites the nanocrystallites diameter is limited by the pore size of the zeolite (typically smaller than 20 Å).

Wang and Herron⁶⁹have studied the optical properties of both CdS and PbS clusters encapsulated in zeolites. The nanocrystallites were prepared in two different zeolites; modernite (unidirectional channels of 7 Å diameter) and zeolite Y (13 Å diameter channels with cages of tetrahedral symmetry interconnected by 8 Å windows and 5 Å cages interconnected by 3 Å windows). For the preparation of CdS in zeolite Y, the sodium cations in the zeolite were first ion-exchanged with cadmium cations, by treatment with aqueous Cd- (NO3)2at pH 5. This was followed by passing hydrogen sulfide (H2S) gas over the sample.⁶⁹Depending on the loading level of cadmium ions within the zeolite, different sizes of CdS clusters could be obtained. At low loading levels (1:1 metal/sulfide) CdS clusters with an average size less than 13 Å were obtained. These gave an absorption peak at around 280 nm in their optical spectra. When an excess of cadmium was used, the individual clusters aggregated into an extended structure, modulated by the internal cavities of the zeolite.

These produced optical spectra showing an excitonic shoulder near 350 nm corresponding to CdS clusters of approximately 28 Å in diameter. The small dimensions reported in this work⁶⁹ are typical of nanoparticles obtained when zeolites are used as the host structure.

Stable, cubic-phase, PbS nanoparticles were prepared in a polymeric matrix by exchanging Pb²⁺ ions in an ethylene-15% methacrilic acid copolymer followed by reaction with H2S.⁸²The size of the PbS nanoparticles was dependent on the initial concentration of Pb²⁺ions and have diameters ranging from 13 to 125 Å. The smallest particles (13 Å) are reported to be molecular in nature and exhibit discrete absorption bands in their

optical spectra. Two theoretical models, which take into account the effect of nonparabolicity, were proposed in order to explain the observed size-dependent optical shifts for PbS nanocrystallites.⁸²The authors reported that the effective mass approximation fails for PbS nanocrystallites. However, Nosaka²¹showed that calculations using an effective mass approximation model could be improved on for PbS nanocrystals. Lead chal- cogenides are unusual semiconductors in that their optical band gaps decrease as the temperature decreases. Due to their large bulk exciton radius, strong quantum size effects have been observed for particles larger than 10 nm in diameter.⁸²

Steigerwald et al. prepared capped CdSe, ZnS, ZnS/

CdSe, and CdSe/ZnS nanocrystallites from inverse micelar solutions.^64,88 Silylchalcogenide reagents were added to microemulsions containing the appropriate metal ions. The particle surfaces were subsequently capped; for example with phenyl groups or with other semiconductor materials such as ZnS.

Silylorganochalcogenides react readily with metal salts or simple metal alkyls to form metal-chalcogenide bonds as in eqs 17-19.⁸⁹Micelle stabilized CdSe nanocrystallites, with Cd²⁺rich surfaces, react similarly with R[(CH3)3Si]2Se to give larger CdSe crystallites encapsulated by a layer of organic ligands (R). These surface passivated crystallites can be isolated as powders, which are soluble in organic solvents such as pyridine.⁷⁷Se NMR spectra of three size distributions of organic- capped CdSe particles were reported, with each giving different spectra,⁹⁰consisting of broad lines corresponding to bulk material along with additional peaks ap- pearing at higher field and becoming more intense with decreasing particle size.

Several types of nanoparticles prepared from synthesis involving biological related processes, biomimetic, have been reported.^91-93 For example, using empty polypeptide cages found in the iron storage protein ferritin; bio-inorganic nanocomposites of CdS-ferritin can be synthesized (Figure 5).⁹¹ Another approach to nanocrystallite synthesis in a matrix was developed by Choi and Shea,^79,80who report using porous inorganic- organic xerogel (polysilsesquioxanes) to produce CdS (60 and 90 Å)⁷⁹and chromium particles (10-100 Å).⁸⁰The chromium precursor used was a zerovalent arene tri- carbonyl chromium complex, introduced as a component of the xerogel matrix, which after heating under vacuum produced chromium nanoparticles. By first doping CdS into the starting material, two different phases of chromium and CdS are reported to be obtained.⁸⁰

Molecular Precursor Methods. A powerful method for the preparation of semiconductor nanocrystallites has been described by Murray, Norris, and Bawendi;³² solutions of (CH₃)₂Cd and tri-n-octylphosphine selenide (TOPSe) are injected into hot tri-n-octylphosphine oxide (TOPO) in the temperature range 120-300 °C. This produced TOPO capped nanocrystallites of CdSe.³²The Figure 5. Reaction scheme for the synthesis of CdS-ferritin

nanocomposites.⁹¹

CdCl₂+ Se(SiMe₃)₂98

-2Me3SiCl CdSe (17)

ZnEt₂+ Se(SiMe₃)₂98

-2SiEtMe3 ZnSe (18)

CdMe₂+ Te(SiⁱPrMe₂)₂98

-2SiⁱPrMe3

CdTe (19)

(9)

size distribution of the particles is controlled mainly by the temperature at which the synthesis is undertaken, with larger particles being obtained at higher temper- atures. The combination of tri-n-octylphosphine/tri-n- octylphosphine oxide (TOP/TOPO) allowed for slow steady growth conditions above 280 °C. The TOPO method has advantages over other synthetic methods, including, near monodispersity (σ = 5%) and scale - grams of material can be produced. The surface nature of CdSe/TOPO nanocrystallites has been studied by nuclear magnetic resonance spectroscopy⁹⁴and X-ray photoelectron spectroscopy.⁹⁵For these methods surface coverage, the percentage of surface sites bound to TOPO molecules, through a metal-oxygen dative bond, in- creases from 30% (d≈ 60 Å) to 60% (d ≈ 18 Å) as the particle size decreases. Variations in surface coverage with particle size can be explained⁹⁵by steric effects;

interactions between surface bound bulky neighboring capping molecules (TOPO) predominates in larger particles; moreover, smaller particles can accommodate higher percentage levels of surface coverage, due to less steric hindrance. More detailed studies on the surface nature of passivated nanocrystalline are needed; in fact, it has been reported that the surfaces of nanocrystallites are faceted with preferred crystallographic directions of growth producing nonspherical particles, which in turn leads to the formation of particles with distinct physical properties.^8,96

One of the limitations of the TOPO method is the use of hazardous compounds such as dimethylcadmium, (CH₃)₂Cdsespecially at high temperatures. An approach for overcoming this problem involves the use of single molecule precursors, a single compound containing all elements required within the nanocrystallite, such as alkyldiseleno- or alkyldithiocarbamato complexes, Fig- ure 6.^97,98 The fabrication of semiconductor nanocrystallites from single molecule precursors is a one step process, typically carried out at temperatures in the range 200-250 °C. A similar approach in which non- air-sensitive lead(II) alkyldithio- or alkyldiselenocar- bamates were thermally decomposed, under controlled conditions, led to the synthesis of cubic phase PbS⁹⁹and PbSe¹⁰⁰nanocrystallites, respectively.

The use of single source precursors in the deposition of thin film compound semiconductors by MOCVD techniques has been extensively studied.^101-104 How- ever, related compounds can be used to prepare compound semiconductor nanoparticles, such as oligomeric Cd(Se(C2H5))2105or metal dithiocarbamates¹⁰⁶in 4-eth- ylpyridine. Another approach, which has been success-

fully investigated in our laboratories, is to replace (CH3)2Cd with a more stable compound such as the amine adduct, Cd(CH3)2‚N(C2H5)3.¹⁰⁷

The conventional TOPO method was recently used¹⁰⁸ by Alivisatos et al. in the synthesis of capped InP nanocrystals (20-50 Å in diameter). The reaction involved dissolving InCl3 in hot TOPO followed by addition of P(Si(CH₃)₃)₃, with annealing of the resulting InP nanocrystals, eq 20. The band gap for bulk InP is 1.28 eV, whereas the InP nanocrystallites produced exhibit values ranging from 1.7 to 2.4 eV.¹⁰⁸ The percentage coverage of the InP particles with TOPO was found¹⁰⁸to range from 30 to 70%, depending on the size of the particles. Values for the band edge and deep trap emissions were reported to shift with the mean size of the nanocrystallites, with stronger emissions observed for smaller InP particles and when oxidation of the surface had occurred. For InAs, prepared by a similar TOPO method, using the dehalosilylation reaction between As[Si(CH3)3]3and InCl3, surface oxidation did not change the properties of the resulting particles.¹⁰⁹ III/V semiconductors exhibit less ionic character than their II/VI analogues and thus do not crystallize as readily. Kaner et al.¹¹⁰ used solid-state metathesis involving the reaction of sodium pnictides with group III halides, at high temperature, in a closed vessel, to produce III/V nanoparticles. A relatively low-temperature method involving similar reactions in organic solvents has been reported for the preparation of GaP and GaAs nanoparticles, using gallium (III) halides and (Na/K)3E (E ) P, As).¹¹¹This method avoids the use of hazardous phosphines or arsines. Nanocrystallites of InAs and InP were also synthesized¹¹²from the reaction of InX3 (X ) Cl, Br, I) with As(SiMe3)3 or P(SiMe3)3, respectively. Other analogous chemical routes to indium pnictides have also appeared in the literature.¹¹²

GaAs nanocrystallites have been prepared by reacting GaCl₃with As(SiMe₃)₃in boiling quinoline; however, as yet unidentified species were found to mask the optical properties of the resulting particles, and hence quantum size effects could not be properly determined.^113,114The alcoholysis or thermolysis of silylated single molecule precursors is one of several processes used for nanoparticle synthesis of III/V and II/V semiconductor materials. Another preparative method for the syntheses of GaAs¹¹⁵ and InP¹¹⁶ is by the methanolysis of organometallic compounds such as [Cp*(Cl)In(µ-P(Si- Me3)2]2. The chemical route, eq 21, led^117,118 to bulk, amorphous, Cd3P2 after rapid flocculation of Cd3P2

nanoparticles. To control the kinetics, a single molecule precursor with bulkier substituents was used, Cd- [P(SiPh3)2]2(eq 22).^118,119The methanolysis gave soluble nanoparticles of Cd₃P₂with diameters ranging from 30 to 40 Å; however, the particles were not crystalline.

Other chemical routes to metal phosphides include phosphinolysis reactions and reactions between metal- loorganics and P(SiMe3)3; all involve elimination and condensation processes. Buhro¹¹⁸reported the synthesis Figure 6. Single-source approach for preparing semiconduc-

tor nanocrystallites in TOPO.

InCl₃+ TOPO 98^{100 °C,12h} In-TOPO 98^P(Si(CH³⁾³⁾³,265 °C,days

InP/TOPO InP/TOPO 98surfactant(S),100 °C,days

InP/(TOPO + S) (20)

(10)

of several binary phosphide semiconductors along with ternary phases (e.g. ZnGeP2), using solution-phase metallo-organic routes. Table 2 presents a representa- tive, although not an exhaustive, summary of synthetic methods for several nanocrystalline semiconductors.

4. Processability

One of the major goals in research on nanocrystallites is to make use of their unique properties in novel electronic devices. The production of any such devices will require the assembly and manipulation of semiconductor nanoparticles without loss of their unique properties. Nanoscale processes can be achieved using lithographic methods and/or scanning probe microscopy.^150-152A general chemical approach to the fabrication of nanostructured devices would be advantageous.

To date the area is not well-developed, although there has been considerable progress in recent years.⁷ One promising method for the assembly of nanocrystallite- based devices is the use of Langmuir-Blodgett (LB) films.^7,153,154 LB structures can be formed during the synthesis of inorganic nanocrystallites, and several examples have been reported.^7,136,137 Using an amphiphilic polymer, poly(maleic acid)octadecanol, and a cadmium or lead salt, ordered LB structures can be prepared and, when treated with H2S, result in CdS and PbS nanoparticle layers in an ordered organic matrix.¹³⁰ A similar approach¹⁵⁵has been used in the preparation of films consisting of CdS nanostructures on a substrate.

The substrate was obtained by the selective removal of a fatty acid matrix from LB films of cadmium arachidate, which were then exposed to H₂S. Scanning tun- neling microscopy images showed¹⁵⁵ that the films consist of closely interconnected CdS particles. With the resulting particle dimensions depended on the initial number of cadmium arachidate layers. It was suggested that a mechanism involving particle aggregation is responsible for film formation. Another report describes the synthesis of CdS using LB calyxarene and LB stearate, smaller particles (1.5 ( 0.3 nm) were obtained when LB calyxarene films were used, although in this case the particle size appears independent both of the type of calyxarene used or the number of LB layers involved.¹⁵⁶

Nanostructures can also be prepared by the assembly of preformed nanocrystallites, as in the formation of molecular deposition (MD) films via electrostatic attrac- tions between opposite-charged species.¹⁵⁷ Figure 7 shows a schematic structure obtained by the assembly of anionic PbI2nanocrystallites using bipolar pyridinium

salt as the cationic species. Self-assembled monolayers have been used to attach CdS nanocrystals to metal substrates via carboxylate or alkanedithiol molecules.¹⁵⁸ The assembly of nanodispersed CdS or CdSe into a nanocomposite containing molecular bridging ligands, such as pyrazine or 2,2′-bipyrimidine, between particles give near band edge luminescence for the original nanocrystallites as well as when in the final composite.⁹⁸ Most studies on surface modification of nanocrystals deal with effects associated with optical properties.

Surface derivatization studies and their effects on other physical properties are needed. On the basis of electron diffraction studies, it was reported that, under ambient conditions, changes in the crystalline phase could occur in nanocrystalline ZnS. Moreover, depending on the coordinating molecules used to surface derivatize the particle (capping agent), a phase change within the particle can occur; thus, when C6F5SH is used to surface derivatize hexagonal ZnS nanoparticles, a transition to cubic phase can occur.¹⁵⁹

Other authors have used polymer molecules attached to the nanocrystallites surface to assemble nanoparticulates into larger structures. For example CdS¹²⁹and GaAs¹²³ particles embedded in poly(vinyl)alcohol film were obtained using a gas-aerosol reactive electrostatic deposition technique. The nanoparticles were initially obtained by the reaction of metal ions in the aerosol droplets, containing the polymer, with H₂S or arsine generated in situ. The semiconductor/polymer particles produced are driven under the electric field toward and subsequently deposited onto a substrate.

A sequential polymerization was used to prepare ZnS clusters of sizes up to 30 Å,¹⁴⁰ with the particle size depending mainly on the temperature and the strength of the polymer-particle interaction. Other molecular species such as Lewis bases can be used to bind to the surface of nanoparticulates, and by cross-linking a novel organic/inorganic structure can be obtained; this method has been used for ZnS¹³⁸and CdS particles.^30,160,161

In favorable circumstances the synthesis and assembly of nanocrystallites can be achieved simulta- neously; Kimizuka and Kunitake reported¹⁶²the use of superlattices to produce organized nanostructures using different methodologies. Figure 8 depicts the synthesis/

assembly scheme for Cd4Br12S clusters in a bilayer ligand.¹⁶² CdBr3-

in the bilayer ligand is posttreated with H2S. This method is somewhat similar to that described by Wang and Herron for the preparation of CdS.⁶⁹

Novel three-dimensional ordered structures have been obtained by the selective crystallization of capped CdSe/

TOPO nanocrystallites dispersed in organic solvents.¹⁶³ These structures were characterized by diffraction techniques and high-resolution electron microscopy and shown to consist of quantum dot superlattices. The optical properties displayed by macroscopic assemblies of nanostructered material depend on both the properties of the individual nanocrystallites and the interactions existing between them. There are still problems in understanding how nanoparticulate physical properties develop when a macrocrystalline material is built up from these smaller units. The synthesis and characterization of clusters having structural similarities to larger nanocrystallites^164,165may allow for an improved

(11)

Table 2. Routes for the Preparation of Semiconductor Nanocrystallites

semiconductor synthetic method particles size range/nm refs

Si (silica coated) combustion of silane, followed by HF etching 2-10 57

Ge thermal treatment of a silica xerogel doped with Me3GeS(CH2)3Si(OMe)3

6.8 120

nGeCl4+ 4nLi[C10H8] in THF, followed by laser illumination

2-60 55

ultrasonic reduction of germane derivatives in the presence of Na/K alloy.

6-20 56

GaN thermolysis of [H₂GaNH₂]₃in supercritical ammonia 3 121

GaP (Na/K)3As + GaCl3in organic solvents 11-21 111

thermal treatment of [Cl2GaP(SiMe3)2]2in a TOPO + TOP mixture

2-6.5 122

GaAs gas-aerosol reactive electrostatic deposition 13-14 123

vapor-phase nucleation from organometallic precursors 10-20 124

(Na/K)3As + GaCl3in organic solvents 6-36 111

GaCl₃+ As[Si(CH3)]₃in quinoline (240 °C) 4.5 113

InP InCl3+ P(Si(CH3)3)3in hot TOPO 2-5 108

methanolysis of single molecule precursors (e.g. [R2InP(SiMe3)2]2

116 phase solution reaction: InX3(X ) Cl, Br, I) + P[Si(CH3)3] 2.5-4 112

MOCVD inside MCM-41 3.4-4.3 125

thermal treatment of a chloroindium oxalate complex + P(SiMe₃)₃in TOPO + TOP mixture

2-6.5 122

InAs InCl3+ As[Si(CH3)3]3in TOP at 240-260 °C 2.5-6 109

phase solution reaction: InX₃(X ) Cl, Br, I) + As[Si(CH₃)₃] 9-16 112

Cd3P2 thermolysis of [MeCdP^tBu2]3in TOPO 3 126

treatment of aqueous Cd(II) with PH3in the presence of (NaPO3)6

1-2 44, 52

alcoholysis of Cd[P(SiPh3)2]2 3-4 118, 119

Cd₃As₂ treatment of aqueous Cd(II) with arsine in the presence of (NaPO3)6

127 Zn₃P₂ treatment of aqueous Zn(II) with PH₃in the

presence of (NaPO3)6

1-2 52

alcoholysis of Zn[P(SiPh3)2]2 1.5-2.5 118

CdS arrested precipitation within amphiphilic systems 2-6 77

(AOT)

arrested precipitation in the presence of polyphosphates 2-3.6 48

thermolysis of single molecule precursors in TOPO 3-7 98, 128

gas-aerosol reactive electrostatic deposition 4.5 129

growth inside zeolite pores <1.3 69

exposure of Langmuir-Blodgett films containing cadmium to HS

130 formation inside porous silica-pillared layered

metal(IV) phosphates

2.5 70

formation within polymer matrices using ionomers 1.8-2.3 86

treatment of a xerogel matrix (polysilsesquioxane) with Cd²⁺and S^2-

6-9 79

hydrolysis of P₂S₅in an ethanol solution of Cd(NO₃)₂‚4H2O e6 131

arrested precipitation in aqueous and methanolic media 3 41

CdSO4+ (NH4)2S in aqueous/acetonitrile solutions 2.1-7.5 40

using copolymers as stabilizers

arrested precipitation within surfacttant vesicles (DODAC) 2.2-5 74 precipitation in nonaqueous solvents without added stabilizers 2.2-3.8 27

CdMe2+ [(Me3Si)2S] in hot TOPO 2-3 32

methatesis of Cd[N(Me3Si)2]2+ SCNR in the presence of TOPO 1.5-2 134 solventothermal reaction of CdC2O4+ S (120-180 °C) 20-60× 200-4800 (rods) 135

CdSe solution-phase thermolysis of [Cd(SePh)2]2 3 105

thermolysis of single-molecule precursors in TOPO 3-8 97, 98, 128

exposure of Langmuir-Blodgett films of cadmium arachidate to H₂Se

2.2-2.6 136

CdMe2+ (TOP)Se in hot TOPO 1.2-11.5 32, 141

methatesis of Cd[N(Me₃Si)₂]₂+ SCNR in the presence of TOPO

1.5-2 134

solventothermal reaction of CdC2O4+ Se (120-180 °C) 6-20× 100-500 (rods) 135

CdTe CdMe2+ (TOP)Te in hot TOPO 2-3 32

solventothermal reaction of CdC2O4+ Te (120-180 °C) 20× 100-1000 (rods) 135

ZnS solutions of polymeric aducts of zinc alkyls + H₂S 2-4 138

arrested precipitation in aqueous and methanolic solutions <2 41 photodegradation of 3 nm particles or precipitation

in phosphate containing solution

1.7 139

treatment of zinc containing copolymers with H2S <3 140

thermolysis of single molecule precursors in TOPO 128

ZnSe thermolysis of single molecule precursors in TOPO 3.5-4.2 128

PbS growth inside zeolite pores <1.3 69

exposure of LangmuirBlodgett films containing lead(II) to H₂S

130, 133

formation within polymer matrices using ionomers 1.8-2.3 86
