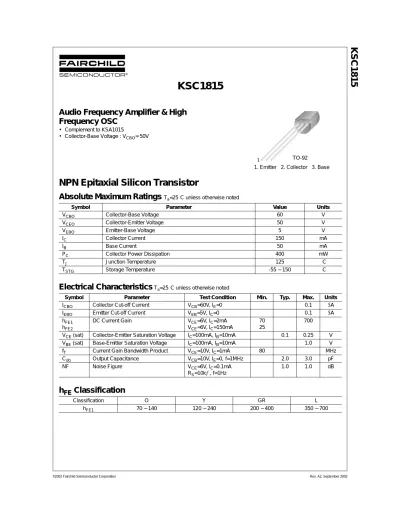

©2002 Fairchild Semiconductor Corporation Rev. A2, September 2002
KSC181 5
NPN Epitaxial Silicon Transistor
Absolute Maximum Ratings
Ta=25°C unless otherwise notedElectrical Characteristics
Ta=25°C unless otherwise notedh FE Classification
Symbol Parameter Value Units
VCBO Collector-Base Voltage 60 V
VCEO Collector-Emitter Voltage 50 V
VEBO Emitter-Base Voltage 5 V
IC Collector Current 150 mA
IB Base Current 50 mA
PC Collector Power Dissipation 400 mW
TJ Junction Temperature 125 °C
TSTG Storage Temperature -55 ~ 150 °C
Symbol Parameter Test Condition Min. Typ. Max. Units
ICBO Collector Cut-off Current VCB=60V, IE=0 0.1 µA
IEBO Emitter Cut-off Current VEB=5V, IC=0 0.1 µA
hFE1 hFE2
DC Current Gain VCE=6V, IC=2mA VCE=6V, IC=150mA
70 25
700
VCE (sat) Collector-Emitter Saturation Voltage IC=100mA, IB=10mA 0.1 0.25 V VBE (sat) Base-Emitter Saturation Voltage IC=100mA, IB=10mA 1.0 V
fT Current Gain Bandwidth Product VCE=10V, IC=1mA 80 MHz
Cob Output Capacitance VCB=10V, IE=0, f=1MHz 2.0 3.0 pF
NF Noise Figure VCE=6V, IC=0.1mA
RS=10kΩ, f=1Hz
1.0 1.0 dB
Classification O Y GR L
hFE1 70 ~ 140 120 ~ 240 200 ~ 400 350 ~ 700
KSC1815
Audio Frequency Amplifier & High Frequency OSC
• Complement to KSA1015
• Collector-Base Voltage : VCBO= 50V
1. Emitter 2. Collector 3. Base TO-92 1
©2002 Fairchild Semiconductor Corporation
KSC181 5
Rev. A2, September 2002

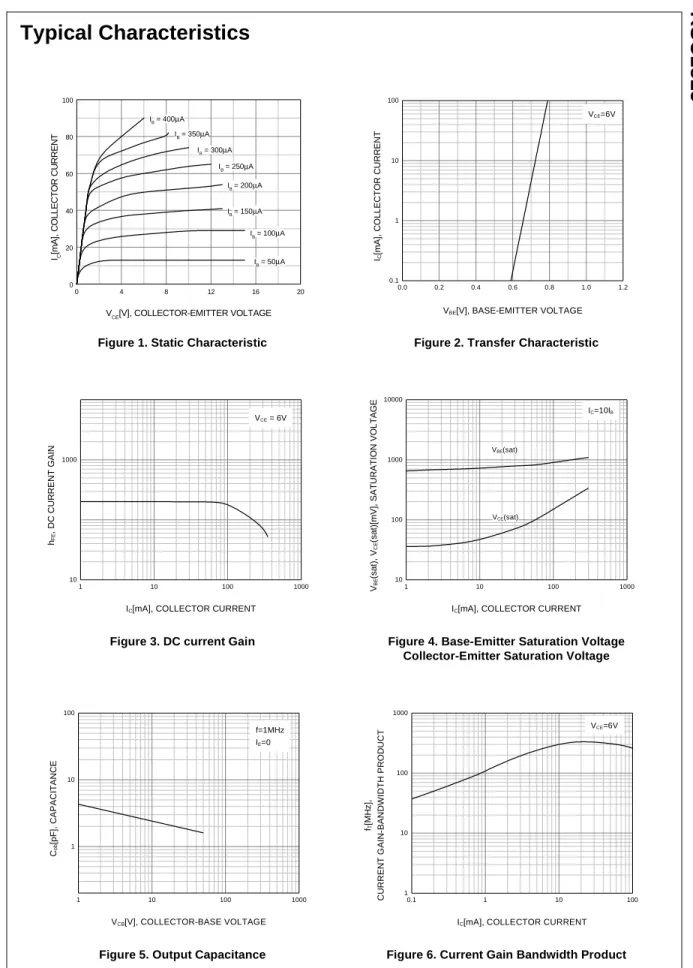

Typical Characteristics
Figure 1. Static Characteristic Figure 2. Transfer Characteristic
Figure 3. DC current Gain Figure 4. Base-Emitter Saturation Voltage Collector-Emitter Saturation Voltage
Figure 5. Output Capacitance Figure 6. Current Gain Bandwidth Product
0 4 8 12 16 20
0 20 40 60 80 100
IB = 400µA IB = 350µA
IB = 300µA IB = 250µA
IB = 200µA
IB = 150µA IB = 100µA
IB = 50µA IC[mA], COLLECTOR CURRENT
VCE[V], COLLECTOR-EMITTER VOLTAGE
0.0 0.2 0.4 0.6 0.8 1.0 1.2
0.1 1 10 100
VCE=6V
IC[mA], COLLECTOR CURRENT
VBE[V], BASE-EMITTER VOLTAGE
1 10 100 1000
10 1000
VCE = 6V
hFE, DC CURRENT GAIN
IC[mA], COLLECTOR CURRENT
1 10 100 1000
10 100 1000 10000
IC=10IB
VCE(sat) VBE(sat)
VBE(sat), VCE(sat)[mV], SATURATION VOLTAGE
IC[mA], COLLECTOR CURRENT
1 10 100 1000
1 10 100
f=1MHz IE=0
Cob[pF], CAPACITANCE
VCB[V], COLLECTOR-BASE VOLTAGE
0.1 1 10 100
1 10 100 1000
VCE=6V
fT[MHz], CURRENT GAIN-BANDWIDTH PRODUCT
IC[mA], COLLECTOR CURRENT
0.46 ±0.10
1.27TYP
(R2.29)
3.86MAX
[1.27 ±0.20]
1.27TYP [1.27 ±0.20]
3.60 ±0.20
14.47 ±0.40
1.02 ±0.10 (0.25)4.58 ±0.20
4.58+0.25–0.15
0.38+0.10–0.05
0.38+0.10 –0.05
TO-92
Package Dimensions
KSC181 5
Dimensions in Millimeters
