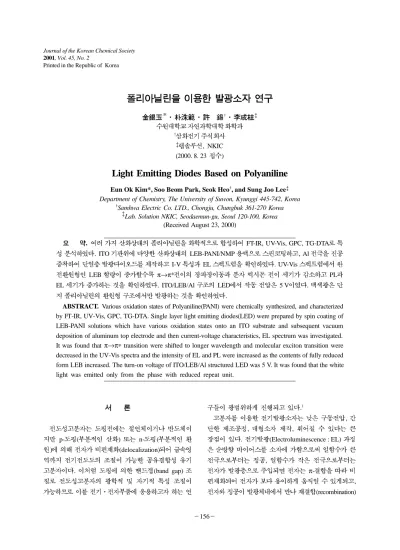

Light Emitting Diodes Based on Polyaniline

(1)

Printed in the Republic of Korea

* ^†^‡

†

‡, NKIC (2000. 8. 23 )

Light Emitting Diodes Based on Polyaniline

Eun Ok Kim*, Soo Beom Park, Seok Heo^†, and Sung Joo Lee^‡ Department of Chemistry, The University of Suwon, Kyunggi 445-742, Korea

†Samhwa Electric Co. LTD., Chongju, Chungbuk 361-270 Korea

‡Lab. Solution NKIC, Seodaemun-gu, Seoul 120-100, Korea (Received August 23, 2000)

. !"# $%& '() FT-IR, UV-Vis, GPC, TG-DTA& * ( +,)-.. ITO /01 .23 LEB-PANI/NMP 45%& 6789):, Al ;# <=

>?) @AB CD.EFGH IJ): I-V *( EL 6KLM# NO)-.. UV-Vis 6KLM1P Q RSO LEB TUE >VW π→π*E XYXEZ + [\] E ^ _`): PL

EL ^ >)a b# NO)-.. ITO/LEB/Al cd LED1P JZ ef 5 VEg.. hiDf @

!" RS cd1Pj CD)a b# NO)-..

ABSTRACT. Various oxidation states of Polyaniline(PANI) were chemically synthesized, and characterized by FT-IR, UV-Vis, GPC, TG-DTA. Single layer light emitting diodes(LED) were prepared by spin coating of LEB-PANI solutions which have various oxidation states onto an ITO substrate and subsequent vacuum deposition of aluminum top electrode and then current-voltage characteristics, EL spectrum was investigated.

It was found that π→π∗ transition were shifted to longer wavelength and molecular exciton transition were decreased in the UV-Vis spectra and the intensity of EL and PL were increased as the contents of fully reduced form LEB increased. The turn-on voltage of ITO/LEB/Al structured LED was 5 V. It was found that the white light was emitted only from the phase with reduced repeat unit.

k(:+a kl1a mnEop qknE

j p-kl(r+$O ) sa n-kl(r+$O R

)1 t uvw (delocalization)xy z{|

}~ kk dmE 3 ='( :+E.. EM kl1 3 G(band gap) d m& k(:+ D$ $ *( dmE

)& EH r1 4): )a

cE D0) <x: ..¹

:+H E43 CD`a f cZe,

@3 Id=, S` IJ, y .a XE .. CD(Electroluminescence : EL)

f Ey6H `1 T%& AT ;%&ra =, AT Jf ;%&ra CDB%& x a π-'# u vw xy . 4E) ¡¢A x:, £ =E CDn¤1P jp w'(recombination)

(2)

) DCD1P£ ¥f ¦ [\]# S() x

§, E [\]E CD `¨# V © ¦ 1ª

«1 t¬)a # C®)a bE..

) 1 |# a ¯&a ;

AT, °±²³0, E´ 1ª, =5cdH µa : + ¶ k ·j ¸, ; :+E

¹ ( º ..

k(:+a r+ »$, ¼(E ½y

§, Aq$%& 4¾1 ¿ Àa @E .. Á

p !"f .Â :+£ uV © ' ( knS(E Ã:, 4¾1 3 4t k u$ Ä§, u R kl(non-redox doping) 1 t kkH 10⁻¹⁰S/cm&r 10²S/cm ~

12 orderk dmV %§, s3 kl Å ÆÇ »$ ¼(E Èyp.a XE ..

!"# E43 LED c&a É

!"# kl) ÊË;^2-4%&, sa É

H )ÌB^5-6%& 4) *(# \

Ía bE CÎxg%p, Ï c1Pa ITOH =

;%&, Al# ;%& 4):, C DB%&a QRSO leucoemeraldine base(LEB)1 P É SO emeraldine base(EB) & ¯ \ Ð§ ¯ 1 Â CD .EFG CD

^ YX EZ# ÑÒ)-..

EB(emeraldine base) . 0^oC 1 M HCl 45

¤1P aniline monomer(Aldrich)1 I ammonium peroxydisulfate(Junsei Chemicals)H Ó3 Å 90+

Z¼ É') emeraldine salt(ES)H Ôg.. E b# .\ 1M HCl45 ¤1P 15\ Z¼ protonation

\ÐP 50% protonatedÕ ESH Ôg.. E ESH 0.1 M NH4OH451 Öy 15\ Z¼ deprotonation \Í:

<=O Õ ×dØÙ(drying tube)¤1P ×d ) EB +Ú# Ôg..

LEB(leucoemeraldine base) . ÛÜÝ1 EB +Ú RI hydrazine# Öf .Þ `)1P 48\ q Å <= ×d\Ð i LEB +Ú

# Ôg..

UV-Vis . '(Õ :+H 4¾O NMP1 ¿E: Î³41 Öf Å Spectrophotometer

(Hewlett-Packard 8453)& 279ß800 nm|}1P à

)-..

FT-IR . $%& '(Õ :+

J41 Ñ3 H Ô 0) \á# âf KBr ãä%& jå Å FT-IR(Perkin Elmer System 2000)# 4000ß400 cm⁻¹|}1P à)-..

PL(Photoluminescence) . '(Õ \ á PL 6KLMf NMP1 \áH ¿(0.001%) Î³ 41 Ö: Luminescence spectrometer(Perkin Elmer LB-50B)& à)-..

 . EB£ LEBH ææ NMP1 ¿ 1 wt%

45%& jy ITO/ 01 :+ç# Id)a 6789è# 4é.. Al; >?f ITO / 0 1 89Õ :+E ê%& ) 3 Å N

ëìH 4) <= íî{# 6ï10⁻⁶torr~ _e )-.. E© ðH PPñ =ò) ó 10ß18A1 P Al# NtP ;# ñ:, silver paste& c

ô# ) `H jg..

I-V . CD` I-V*(# õ 0)

0ö(V)£ ð ^(I)H ÷ø$%& à)a

@ ¢ðè(Four-probe d.c. method)# E4)-.. I

£ VH Source Measurement Unit(KEITHLEY 236)

& à)-..

EL(Electroluminescence) . CD`

CD*(# õ 0t source& DC power supply(DRP-505D), ELùú&a Fluorescence Spectropho- tometer(Hitachi F-1500)H 4)-.. à ef 5.4 V& ITO;1 2e, Al;1 Þe# ûy y à)-.. ùú {ka 1500 nm/min Eg..

!" É'qf .Þ ¥..

4C6H5NH2+ 5(NH4)2S2O8ü Polyaniline + 5(NH4)2SO4+ 5H2SO4

0^oC1P !" '( \ !" 451(NH⁴)2S2O8

45# ýýñ ) 5+ k þ Å 45E ÿf

¿i# \J):, \E 1 c DE 45 Î1 p.. q<1 Â e

¯ a IH Ê) ò«ñ >). 5+

(3)

År 8+~a A)§ 19+~ ò«ñ _`):

Á EÅ ýýñ _`)a þ# p¤: .. s3 q<1 Â ´k¯ a IH Ê) ¯ o : 8+r ò«ñ >) 11+1 :

´k Õ Å ýýñ _`) 40+ EÅ1a o ¯ ya þ# p¤: .. E qf 40+1 Õ b# V %p q# ¼

\Í 0t 90+ Z¼ q# <\.. UV-Vis, FT-IR+D& '(Õ !"# NO)-..

Fig. 11 UV-Vis spectrum# p¤g.. E

&r EB£ LEB# V g..^7-9 LEB

UV-Vis 6KLM1P Ôf Gf 3.15 eVE..

s3 (LEB£ EB TU)H ¯ \Ð à3 UV-Vis 6KLM# Fig. 21 p¤g: πüπ* E

λmax£ +[\] E λmax uH Fig. 31 p

¤g.. E &r EB TUE >VW πü π* E @YX%& EZ):, πüπ* E λ^max£ +[\] E λmax ua EB TUE >VW

¢ô$%& >)a b# NO)-.. Ebf EB T UE >VW 327 nm1 É# S :

πüπ* E ^ >): S : πüπ*

E ^ _`) @YX%& EZ)a bE:, +[\] E ^ s3 S : >

1 ut p..

'(Õ EB£ LEB FT-IR 6KLM# Fig. 4£

51 p¤g.. Fig. 4a EB 6KLM%&

3100ß3400 cm⁻¹ r1P N-H <Z1 3 Ä pp§, 1304 cm⁻¹1P ppa ÉÕ Ä a -C=N -C-NH- <Z1 3 b%&

: 1591 cm⁻¹, 1497 cm⁻¹1P Äa ææ S :£ S : C=C <Z1 3 b%&P

S :1 3 Ä ) p.. Eb

%& '(Õ !"E EB# V g.. Fig. 51Pa Fig. 4£ u3 ÄH p¤

j 1497 cm⁻¹ S : C=C <Z Äj Fig. 1. UV-Vis spectra of emeraldine base. (−−−) and leu-

coemeraldine base(---).

Fig. 2. UV-Vis spectra of PANI for the contents of LEB in NMP solution.

Fig. 3. Correlation diagram for the contents of LEB and λmax

of molecular exciton(A) ratio π→π*(B).

(4)

p¤: 1591 cm⁻¹ S : C=C <Z

Äa pp À.. 1304 cm⁻¹Äa -C-NH-j

w)& Éx À.. E '(Õ \áa LEB& V g..

LEB£ EB u # ¯ \Ð à3 PL 6KLM

# Fig. 61 p¤g:, LEB TU¯ £ PL^ Ñ!H Fig. 71 p¤g.. λmaxa LEB TU "

Ñ) 411 nmr 417 nmE1P p:, ^a LEB TUE >VW ¢ô$%& >)a b# õ

.. s3 # 6KLM u) πüπ*E1 P 60 nm k Stoke EZE a b# õ g..

Eb%& LEB TUE >T1 : _

`): : >)& f :(RS) 1Pj úÕ.a b# õ ..

'(Õ EB !" +Uf Î³$&

polystyrene# 4) à3 Mw(weight average molecular weight)a 51,000E: Mn(number average molecular weight)a 22,000Eg:, :+ \á1P +U +% kH p¤a .+(poly- dispersity)a Mw/Mn=2.32Eg.. Ea E1 :Õ 0^oC, 1 M HCl)1P '(Õ !" &'+U Fig. 4. FT-IR spectrum of emeraldine base.

Fig. 5. FT-IR spectrum of leucoemeraldine base.

Fig. 6. PL spectra of PANI for the contents of LEB in NMP solution.

Fig. 7. Correlation diagram for PL intensity vs. the contents of LEB.

(5)

u3 (# : .¹⁰.

'(Õ !" »$¼(# NO) 0t TG-DTAH E4)-.. CD:+ `& IJxg

# © ¹E )*%& O) ¬ñ +f »#

C®V %& `IJ1 yP '(Õ :+

¤»(E ` Ë , 1 É-3 }V# V bE.. EB£ LEB\á1 3 TG-DTA EB

þ. 100ôC E)1P "_Uf \á { +E Ioxa bE:, 100ôC1P 385ôC~a o "

¯ ., 385^oC1P 630^oC~ PPñ "

_`)§ #» # p¤g.. Eb%& :+ /E 0 xa b# õ .. Ebf 1 :+1P ppa *2E.. LEB þ.a EB£

u) 100ôCE)1Pa +E Iox:, 380ôC 1P 640ôC~ PPñ " _`Õ.. 380ôC~

"¯ %& CD`4%& 3+3 »$ ¼

(# µa..

Ey6H ûy³ Å à3 !CD`

 Î$O ð4k-e*(# Fig. 81 p¤g..

CDB# LEB& jå ` JZef 1 V1P P Pñ >). 5 V1P ò5)a I-V *( 6ô

# p¤g.. EB£ LEBH ææ NMP1 ¿ EB

£ LEB TU# ¯ ( ¯ )\Ð 7'3 Å, Î)*( 6.5Ω/8H µa 9 ^:Õ ITO / 01 6789): Al# <=>?) `H IJ) -.. 89Õ :+ Ç; >VW 1ªX<

E =& * ð4kH Ô 0tPa XE

>xy> )§, AÇ; EE x ?@ ,

_`x& ` JZ) À Õ.. q1 ª"

âx Jf cA(pinholes)E ®B CL C®)

& 700ß1200 Dk Ç; $¬).. P IJ 3 ` :+ B Ç;a ó 1000 D k& à

xg.. <=>?\ 10⁻⁶ torrE1P EF) >?

xj 10⁻⁵ torrE)1Pa z{E G a 1P íî¤ a = |%& Ayp&

>?Õ z{ E ùfi%& Õ..

Al;1 Þ;# ITO ;1 2;# ):

Fig. 8. I-V characteristics of the ITO/LEB/Al structured LED.

Fig. 9. EL spectrum of the ITO/PANI/Al structured LED at the applied voltage 5.4 V.

Fig. 10. Correlation diagram for EL intensity vs. the contents of LEB.

(6)

DC Power supply& 5.4 V e# ) EL# à

) Fig. 91 p¤g:. LEB TU1 Â EL

^a Fig. 101 p¤g.. LEB£ EB TUE .Â ` EL 6KLM ÆÇ 380 nm1P 650 nm

~ hiD# p¤g: λmax EZf LEB TU

"Ñ) 435 nm1P 437 nmE1P p¤g:

LEB TUE 1001P 80%~ ^ ¯ a ¾.

ò«ñ _`)-: 80%E)1Pa o A) p

¤g.. E a PL à\ LEB TU PL ^ ¢ôÑ!O b ¾. .Â þ# p¤: .. Ea RS(S:)1P hiCD# )a b EH1 S:£ EI3 ` p-Jk K LEx: π uvw xy Õ £ M E w'V + ©N1 LEB TUE >

VW EL ^ ò«ñ >) xa bE..

Áp PL EL S .± ppa E1

tPa OËE P)-..

Ï c1Pa !"# 0^oC 1 M HCl 45¤

1P IH 4) '() 51,000(Mw) +

U# Ôg:, E #6KLM1P G(3.15 eV)# NO)-%§, LEB TUE >VW(

_`) πüπ* E XYX%& EZ):, +[\]

^ _`)a b# NO)-.. TG-DTA à

EB£ LEBa Qf »$ ¼((R380^oC)# S

%& CD`&P 4(# NOV g..

PL à LEB TUE >VW PL^ ¢ô

$%& >)-.. E& RS(S :)1Pj CD)a b# àV g.. ITO/LEB/Al cd&

IJÕ `a 5 V f JZe# -:, 380 nm 1P 650 nm~ \Dô |} hiDE Þ#

NO)-.. CDB1 LEBj 43 ` X T f PL EL *(# p¤g..

1. MacDiarmid, A. G.; Chiang, J. C.; Richter, A. F.; Epstein, A. J. Synth. Met. 1987, 17, 285.

2. Eckhardt, H.; Shacklette, L. W.; Jen, K. Y.; Elsen- baumer, R. L. J. Chem. Phys. 1989, 91, 1303.

3. Antoniadis, H.; Abkowitz, M. A.; Heish, B. R. Appl.

Phys. Lett. 1994, 65, 2030.

4. Blom, D. W. M.; Dejong, M. J. M.; Vleggaar, J. J. M.

Appl. Phys. Lett. 1996, 68, 3308.

5. Burn, P. L.; Holmes, A. B.; Kraft, A.; Bradley, D. D.

C.; Brown, A. R.; Friend, R. H.; Gymer, R. W. Nature, 1992, 356, 47.

6. Chiang J. C.; MacDiarmid, A. G. Synth. Met. 1986, 13, 193.

7. Roe, A. G.; Ginder, J. M.; Wiger, P. E; Epstein, A. J.

Angelopoulos, M.; MacDiarmid, A.G. Phys. Rev. Lett.

1988, 6, 2789.

8. Duke, C. B.; Conwell, E. M.; Paton, A. Chem. Phys.

Lett. 1986, 131(1,2), 82.

9. Conwell, E. M.; Duke, C. B.; Jeyadev, S. J. Chem.

Phys. 1988, 88(5), 3331.

10. Oh, E. J.; Min, Y. G.; Manohar, S. K.; MacDiarmid, A.

G.; Epstein, A. J. Bull. Am. Phys. Soc. 1992, 37(1), 711.

Light Emitting Diodes Based on Polyaniline  

  

Light Emitting Diodes Based on Polyaniline

Light Emitting Diodes Based on Polyaniline
