HS-1200 Overcomes the Resistance Conferred by Bcl-2 in Human Leukemic U937 Cells

*Correspondence to: Hyun-Ho Kwak, Department of Oral Anatomy, School of Dentistry, Pusan National University, Yangsan 626-870, Korea. Tel: +82-51-510-8244, Fax: +82-51-510-8241, E-mail: [email protected]

HS-1200 Overcomes the Resistance Conferred by Bcl-2 in Human Leukemic U937 Cells

Jun-Young Park, Jeong-Bon Moon, In-Ryoung Kim, Gyoo-Cheon Kim, Bong-Soo Park, and Hyun-Ho Kwak*

Department of Oral Anatomy, School of Dentistry, Pusan National University, Yangsan 626-870, Korea (received July 9, 2012 ; revised August 22, 2012 ; accepted September 11, 2012)

Bcl-2 protects tumor cells from the apoptotic effects of various anti-neoplastic agents. Increased expression of Bcl-2 has been associated with a poor response to che- motherapy in various malignancies, including leukemia.

Hence, bypassing the resistance conferred by anti-apoptotic factors such as Bcl-2 represents an attractive therapeutic strategy against cancer cells, including leukemic cells.

This study was undertaken to examine whether the anti- cancer drug, cisplatin and the synthetic chenodeoxycholic acid (CDCA) derivative, HS-1200 show anti-tumor activity in U937 and U937/Bcl-2 cells. Viability assays revealed that HS-1200 overcomes the resistance conferred by Bcl-2 in human leukemic U937 cells. Various apoptosis asses- sment assays further demonstrated that HS-1200 overcomes the resistance conferred by Bcl-2 in human leukemic U937 cells by inducing apoptosis. In addition HS-1200, but not cisplatin, overcomes the anti-apoptotic effects of Bcl-2 in Bcl-2 over-expressing human leukemic cells (U937/Bcl-2 cells). Notably, we observed that the HS-1200-induced forma- tion of mature promyelocytic leukemia (PML) nuclear bodies (NBs) correlates with a suppression of the anti-apoptotic effects of Bcl-2 in human leukemic cells over-expressing this protein (U937/Bcl-2 cells). Furthermore, HS-1200 was found to induce the association between PML and SUMO-1, Daxx, Sp100, p53 or CBP in the aggregated PML-NBs of U937/Bcl-2 cells. Thus, PML protein and the formation of

mature PML-NBs could be considered as therapeutic targets that may help to bypass the resistance to apoptosis conferred by Bcl-2. Elucidating the exact mechanism by which PML regulates Bcl-2 will require further work.

Key words: HS-1200, PML, bcl-2, apoptosis, U937 cells

Introduction

Bcl-2 functions as an anti-apoptotic protein [1]. Bcl-2, in general, regulates mitochondrial outer membrane permea- bilization and thereby determines the cellular commitment to apoptosis [1,2]. The anti-apoptotic function of the Bcl-2 protein depends, at least in part, on its ability to dimerize with another member of the Bcl-2 family, Bax [3]. Overex- pression of Bcl-2 has been reported in a wide variety of cancers.

In some preclinical systems, Bcl-2 overexpression has been shown to attenuate apoptosis, or to restore the clonogenic potential of malignant progenitor cells [4,5]. On the other hand, anti-apoptotic factors, including Bcl-2, impair the ability to achieve remission and cure with chemotherapy, protecting the tumor cells from the apoptotic effects of various anti- neoplastic agents [6-8]. Therefore, overcoming the resistance conferred by anti-apoptotic factors such as Bcl-2 represents an attractive therapeutic strategy against leukemia cells [3].

Recent study demonstrated that overexpression of Bcl-2

91

attenuates resveratrol-induced apoptosis in U937 cells by inhi- bition of caspase-3 activity and sustained expression of the IAP caspase inhibitors [5].

Cisplatin is one of the most potent anticancer agents sho- wing significant clinical activity against a variety of solid tumors belonging to a class of platinum containing anti-can- cer compounds [9]. It is a representative of anticancer drug used to treat certain types of head and neck cancer, cer- vical carcinoma, lung cancer, neurologic cancers, and a wide variety of other cancers. However, its resistance remains a significant barrier to the survival of cancer patient.

Bile acids are polar derivatives of cholesterol essential for the absorption of dietary lipids and regulate the trans- cription of genes that control cholesterol homeostasis. Dif- ferent bile acids exhibit distinct biological effects. Impor- tantly, natural bile salts were reported to inhibit cell proli- feration and induce apoptosis in various cells [10,11]. Im et al. [12,13] developed several ursodeoxycholic acid (UDCA) and chenodeoxycholic acid (CDCA) derivatives, and it have been reported that they had apoptosis-inducing effect in various cancer cells [14-19].

The promyelocytic leukemia protein (PML) is a tumor suppressor that distinctly localizes to a nuclear substructure called the PML nuclear body (PML-NB). Many proteins re- side in PML-NBs. Consequently, PML-NBs are implicated in the regulation of various cellular functions, such as the induction of apoptosis and cellular senescence [20].

This study was undertaken to determine whether the synthetic chenodeoxycholic acid (CDCA) derivative, HS-1200, treatment can bypass the anti-apoptotic effects of Bcl-2 in human leukemia cells with a specific focus on the invol- vement of PML-NBs. For this study, we employed Bcl-2- overexpressing human leukemic cells (U937/Bcl-2 cells). As will be shown, the synthetic chenodeoxycholic acid (CDCA) derivative, HS-1200, treatment overcomes the resistance con- ferred by Bcl-2 and is associated with the formation of mature PML nuclear bodies in U937/Bcl-2 cells.

Materials and Methods

Reagents

The synthetic bile acid derivative, HS-1200 was kindly provided by Professor Young-Hyun Yoo (Department of Anatomy, College of Medicine, Dong-A University, Busan,

Korea). 5,5',6,6'-tetrachloro-1,1',3,3'-tetraethylbenzimidazol carbo- cyanine iodide (JC-1) was from Molecular Probes (Eugene, OR, USA). ApoScreenTM Annexin V-FITC Apoptosis Kit was from Beckman coulter (Fullerton, CA, USA). Dulbec- co's modified Eagle's medium (DMEM) and FBS were from Gibco (Gaithersburg, MD, USA). Dimethyl sulfoxide (DMSO), cisplatin, Hoechst 33342, RNase A, proteinase K, aprotinin, leupeptin, PMSF, thiazolyl blue tetrazolium bromide and propidium iodide (PI) were from Sigma (St. Louis, MO, USA); SuperSignal West Femto enhanced chemilumines- cence Western blotting detection reagent was from Pierce (Rockford, IL, USA).

Antibodies

Mouse monoclonal anti-human caspase-3, caspase-7, cas pase-9, poly(ADP-ribose) polymerase (PARP), β-actin anti- bodies, and FITC-conjugated goat anti-mouse and anti- rabbit IgGs, and rabbit polyclonal anti-human Bcl-2, p53 (full length), Sp100, PML, CBP, SUMO-1, Daxx and mouse monoclonal anti-human PML and CBP antibodies were obtained from Santa Cruz Biotechnology (Santa Cruz, CA, USA). Fluorescein isothiocyanate (FITC)-conjugated goat anti- rabbit and horse anti-mouse IgG antibodies were obtained from Vector (Burlingame, CA, USA). Texas Red-conjugated horse anti-mouse and goat anti-rabbit IgG antibodies were obtained from Molecular Probes (Eugene, OR, USA). HRP- conjugated sheep anti-mouse and anti-rabbit IgGs were from Amersham GE Healthcare (Little Chalfront, UK).

Cell culture and establishment of Bcl-2-overexpressing U937 cells

Human leukemia U937 cells were obtained from the Ame-

rican Type Culture Collection (ATCC; Rockville, MD). The

culture medium used throughout these experiments was

RPMI-1640 medium, containing 10% fetal bovine serum

(FBS; Gibco), 20 mM HEPES buffer and 100 µg/ml gen-

tamicin. Bcl-2-overexpressing U937 cells were generated using

a pMAX vector containing the human Bcl-2 gene (pro-

vided by Dr. Rakesh Srivastava, NIH/NIA). U937 cells

(400 µl) in RPMI 1640 (2×10

cells/ml) were transfected

by pre-incubating with 15 µg Bcl-2 plasmid for 10 min at

room temperature and then electroporating at 500 V, 700

µF. The sample was immediately placed on ice for 10

min, then 10 ml of complete medium was added, and the

cells were incubated at 37

C for 24 h. The cells were se-

lected in a medium containing 0.7 µg/ml geneticin (G418;

Calbiochem) for 4 weeks. Single cell clones were obtained by limiting dilution and subsequently analyzed for an inc- rease in Bcl-2 protein expression relative to identically cloned empty vector controls.

HS-1200 and cisplatin treatment and assessment of cell viability

U937/vector and U937/bcl-2 cells were placed in a 96- well plate and were incubated for 24 h. Then cells were treated with 50 µM HS-1200, and 5 µg/ml cisplatin for 24 h.

After cells were treated with 500 µg/ml of thiazolyl blue tetrazolium bromide (MTT solution), they were incubated at 37

C with 5% CO

for 4 h. And then the medium was aspi- rated and formed formazan crystals were dissolved in DMSO. Cell viability was measured by an ELISA reader (Tecan, Männedorf, Switzerland) at 570 nm excitatory emission wavelength.

Hoechst staining

Cells were harvested and cell suspension was centrifuged onto a clean, fat-free glass slide with a cytocentrifuge. Cells were stained in 4 µg/ml Hoechst 33342 for 10 min at 37

C in the dark and fixed for 10 min 4% paraformaldehyde.

DNA electrophoresis

Cells (2×10

) were resuspended in 0.5 ml of lysis buffer [10 mM Tris (pH 7.5), 10 mM EDTA (pH 8.0), 10 mM NaCl and 0.5% SDS] into which proteinase K (200 μg/ml) was added. After samples were incubated overnight at 55

C, 200 µl of ice cold 5 M NaCl was added and the super- natant containing fragmented DNA was collected after cen- trifugation. The DNA was then precipitated overnight at -20

C in 50% isopropanol and RNase A-treated for 1 h at 37

C.

The DNA from 10

cells (15 µl) was equally loaded on each lane of 2% agarose gels in Tris-acetic acid/EDTA buffer containing 0.5 g/ml ethidium bromide at 100 mA for 0.5 h.

Quantification of DNA hypoploidy by flow cytometry After treatment for 24 h, cells were harvested by trypsinization and ice cold 95% ethanol with 0.5% Tween 20 was added to the cell suspensions to a final concen- tration of 70% ethanol. Fixed cells were pelleted, and washed in 1% BSA-PBS solution. Cells were resuspended in 1 ml PBS containing 20 µg/ml RNase A, incubated at 4

C

for 30 min, washed once with BSA-PBS, and resuspended in PI solution (10 µg/ml). After cells were incubated at 4

C for 5 min in the dark, DNA content were measured on a CYTOMICS FC500 flow cytometry system (Beckman Coul- ter, FL, CA, USA) and data was analyzed using the Mul- ticycle software which allowed a simultaneous estimation of cell-cycle parameters and apoptosis.

Western blot analysis

Cells (2×10

) were washed twice with ice-cold PBS, resuspended in 100 µl RIPA buffer [300 mM NaCl, 50 mM Tris-HCl (pH 7.6), 0.5% TritonX-100, 2 mM PMSF, 2 µl/

ml aprotinin and 2 µl/ml leupeptin] and incubated at 4

C for 1 h. The lysates were centrifuged at 14,000 revolutions per min for 15 min at 4

C. Protein concentrations of cell lysates were determined with Bradford protein assay (Bio- Rad, Richmond, CA, USA) and 25 µg proteins were loaded onto 7.5-15% SDS/PAGE. The gels were transferred to PVDF membrane (Millipore Corporation, Bedford, USA) and reac- ted with each antibody. Immunostaining with antibodies was performed using SuperSignal West Femto maximum sen- sitivity substrate and detected with Alpha Imager HP (Alpha Innotech, Santa Clara, CA, USA).

Measurement of mitochondrial membrane potential (MMP)

Cells were plated in a standard 6-well plate at a density of 5×10

cells/ml. CGM treated cells were incubated for various time points. The cells were harvested and then JC-1 was added directly (1 µM final concentration) and incuba- ted for 15 min at 37

C. Flow cytometry to measure MMP (ΔΨm) was performed on a CYTOMICS FC500 flow cyto- metry system (Beckman Coulter, Brea, CA USA). The fluo- rescence emission were collected through a 530/30 band pass filter (FL-1) and through a 585/42 band pass filter (FL-2), both on a log scale. Data were acquired and analyzed using CXP software version 2.2. The analyzer threshold was adjus- ted on the FSC channel to exclude noise and most of the subcellular debris.

Immunofluorescent staining and confocal microscopy

A cell suspension was cytospun onto a clean fat-free glass

slide. Cells were incubated with each primary antibody for

2 h at 37

C, washed 3 times for 5 min each and then

incubated with FITC-conjugated or Texas Red-conjugated

secondary antibodies for 1 h at room temperature. Fluo- rescent images were visualized and analyzed with a Zeiss LSM 700 laser-scanning confocal microscope (Zeiss, Göet- tingen, Germany). Cells were co-stained with DAPI for 10 min at 37

C to observe nuclear morphology.

Co-immunoprecipitation assay

Cells were collected and lysed in 1 ml of immunopre- cipitation lysis buffer (300 mM NaCl, 50 mM Tris Cl [pH 7.6], 0.5% Triton X-100, protease inhibitors, 10 mM Na

P

O

, 1 mM Na

VO

, 25 mM NaF and 1mM ß-glycerophos- phate). Protein concentrations of cell lysates were deter- mined using the Bradford method and 500 μg of protein was precleared and then incubated with PML or p53 anti- body in extraction buffer at 4

C overnight. The immune com- plexes were precipitated with protein A/G-agarose beads (Sigma) for 2 h and washed 5 times with extraction buffer prior to boiling in SDS sample buffer. Immunoprecipitated proteins were separated by SDS-polyacrylamide gel electro- phoresis and Western blot analysis was performed as desc- ribed above.

Statistical analysis

Three independent experiments were performed for each experimental group and each experiment was performed in triplicate. The results of the experimental and control groups were cpmpared for statistical significance (p<0.01 and 0.05) using paired T-test statistical method by SPSS for Win 12.0 for summary data.

Results

HS-1200 reduces cell viability to a similar extent in both U937/vector and U937/Bcl-2cells.

Treatment with 1~10 µg/ml cisplatin efficiently reduced the viability of U937/vector cells in a dose-dependent manner, while overexpression of Bcl-2 significantly attenuated cis- platin-induced cell death. In contrast, treatment with 10~

100 µM HS-1200 reduced cell viability to a similar extent in both U937/vector and U937/Bcl-2 cells (Fig. 1A). These data suggest that HS-1200 overcomes the resistance conferred by Bcl-2 in human leukemic U937 cells.

HS-1200 overcomes the resistance conferred by Bcl-2 in U937 cells by inducing apoptosis.

Since the dose required for half-maximal inhibition of viability in U937/vector cells was 50 µM for HS-1200 and 5 µg/ml for cisplatin, these concentrations were utilized for further study. To prove that HS-1200 reduced the viability of U937/Bcl-2 cells by inducing apoptosis, cells were exa- mined for the presence of abnormalities in cell cycle status, and atypical nuclear morphology, all of which can indicate that the cells are apoptotic. DNA electrophoresis indicated DNA fragmentation in both HS1200-treated U937/vector and U937/Bcl-2 cells (Fig. 1B). Hoechst staining showed that both U937/vector and U937/Bcl-2 cells treated with HS-1200 had fragmented atypical nuclei (Fig. 1C). A si- multaneous estimation of cell cycle parameters and apop- tosis by flow cytometry demonstrated that HS-1200 increa- sed the proportion of sub-G1 hypoploid cells in both U937/

vector and U937/Bcl-2 cells (Fig. 1D).

HS-1200-induced apoptosis is mediated by caspase-3 and Bcl-2 in U937/Bcl-2 cells.

Western blot analysis of HS-1200-treated U937/vector and U937/Bcl-2 cell lysates showed that both pro-caspase-3 and PARP were cleaved and Bcl-2 was down-regulated.

This was also observed in cisplatin-treated U937/vector cells but not in cisplatin-treated U937/Bcl-2 cells. It is not able that HS-1200 substantially down-regulated Bcl-2 in U937/

Bcl-2 cells and in U937/vector cells, while down-regu- lation of Bcl-2 was not observed in cisplatin-treated U937/

Bcl-2 cells (Fig. 2A). Flow cytometry revealed an increase in the portion of cells with depolarized MMP in both U937/

vector and U937/Bcl-2 cells (Fig. 2B). cisplatin also indu- ced these apoptotic manifestations in U937/vector cells, but they were substantially attenuated in cisplatin-treated U937/

Bcl-2 cells.

Aggregated or mature PML-NBs are formed in U937 cells undergoing apoptosis.

We next asked whether PML-NBs are involved in the

resistance to apoptosis conferred by Bcl-2 in human leu-

kemic U937 cells. Visualization of the PML-NBs by con-

focal microscopy after HS-1200 treatment demonstrated morp-

hological alterations in the nuclear bodies. Whereas PML-

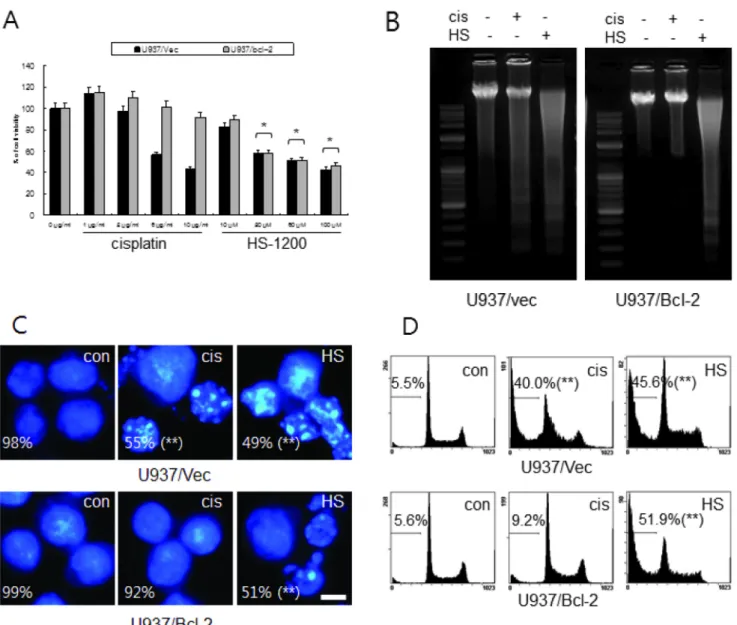

Fig. 1. HS-1200 overcomes the resistance conferred by Bcl-2 in U937 cells via inducing apoptosis. (A) Cell viability assay 24 h after treatment with cisplatin or HS-1200 shows that the overexpression of Bcl-2 significantly attenuated the cisplatin-induced reduction of viability whereas HS-1200 reduced the viability to a similar extent in both the U937/vector and U937/Bcl-2 cells. Statistical significance: *P<0.05. Three independent assays were performed. Values are means ± SD of triplicates of each experiment. (B) DNA electrophoresis conducted on the cells harvested 24 h after treatment. DNA ladder was demonstrated in 50 μM HS-1200-treated U937/vector and U937/Bcl-2 cells and 5 µg/ml cisplatin-treated U937/vector cells but not in 5µg/ml cisplatin-treated U937/Bcl-2 cells. cis, cisplatin 5 μg/ml. HS, HS-1200 50 µM. (C) Hoechst staining showing nuclear morphology of U937 cells 24 h after cisplatin or HS-1200 treatment. Numbers represent the percentage of apoptotic cells having condensed nuclei. Nuclear condensation or fragmentation was observed in HS-1200 or cisplatin-treated U937/vector and HS-1200-treated U937/Bcl-2 cells but not in cisplatin-treated U937/Bcl-2 cells. Statistical significance: **P<0.01. Bar, 10 µm. (D) Representative histograms showing cell cycle progression and induction of apoptosis. Apoptotic population was increased in 50 µM HS-1200-treated U937/vector and U937/Bcl-2 cells, and 5 µg/ml cisplatin-treated U937/vector cells but not in 5 μg/ml cisplatin-treated U937/Bcl-2 cells. Statistical significance:

**P<0.01.

NBs were microspeckled in untreated U937/vector or U937/

Bcl-2 cells, HS-1200 induced the formation of mature or aggregated PML-NBs in all three cell types. Although the

aggregation of PML-NBs was also observed in cisplatin-

treated U937/vector cells, this was not observed in cisplatin-

treated U937/Bcl-2 cells (Fig. 3).

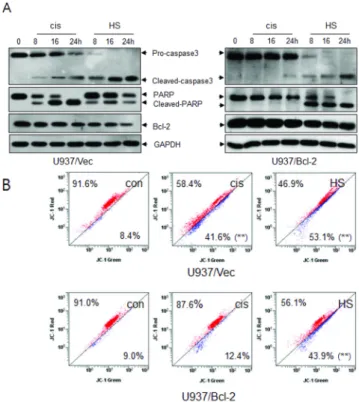

Fig. 2. HS-1200-induced apoptosis was mediated by caspase-3 and Bcl-2 in U937/Bcl-2 cells. (A) Western blots of caspase-3, PARP and Bcl-2. Cleavage of pro-caspase-3 and PARP, and down-regulation of Bcl-2 was demonstrated in HS-1200 or cisplatin-treated U937/vector and HS-1200-treated U937/Bcl-2 cells but not in cisplatin-treated U937/Bcl-2 cells. GAPDH was used as a loading control. (B) Flow cytometry data showing the reduction of mitochondrial membrane potential in cells under- going apoptosis. Mitochondrial retention of JC-1 decreased in HS-1200 or cisplatin-treated U937/vector and HS-1200-treated U937/Bcl-2 cells but not in cisplatin-treated U937/Bcl-2 cells.

Statistical significance: **P<0.01.

Fig. 3. Aggregated or mature PML-NBs are formed in U937 cells undergoing apoptosis. Confocal microscopy images showing the morphology of PML-NBs after 24 h treatment. Nucleus was stained with DAPI (blue) which is highly specific for DNA.

Microspeckled PML-NBs are demonstrated in HS-1200 or cisplatin-treated U937/vector and HS-1200-treated U937/Bcl-2 cells but not in cisplatin-treated U937/Bcl-2 cells.

HS-1200 induces the co-localization between PML and SUMO-1, Daxx, or Sp100 in the aggregated PML-NBs of U937/Bcl-2 cells.

Confocal images showed that SUMO-1, Daxx and Sp100 displayed a diffuse nuclear localization pattern in the con- trol cells, although they also co-localized with PML in dis- crete microspeckled PML-NBs. However, enhanced co- localization of PML with SUMO-1, Daxx and Sp100 was observed in the aggregated PML-NBs of both HS-1200 treated U937/vector and U937/Bcl-2 cells. Although this enhanced co-localization was also observed in cisplatin- treated U937/vector cells, it was not observed in cisplatin- treated U937/Bcl-2 cells (Fig. 4A, 5A and 5C). The profile of PML and PML-NB components showed that SUMO-1, Daxx, and Sp100 proteins are concentrated within PML- NBs in HS-1200- or cisplatin-treated U937/vector and HS- 1200-treated U937/Bcl-2 cells, but not in cisplatin-treated U937/Bcl-2 cells (Fig. 4B, 5B and 5D). Co-immunopre- cipitation assays showed that PML physically interacts with SUMO-1, Daxx, and Sp100 in HS-1200- or cisplatin- treated U937/vector and HS-1200-treated U937/Bcl-2 cells but not in cisplatin-treated U937/Bcl-2 cells (Fig. 4C and 5E).

As a control, we examined whether SC35 protein, which is known to be a constituent not of PML-NB but of another nuclear body SC35 speckle, associated with mature PML- NBs. Confocal images and the profile of PML and SC35 showed that SC35 protein was not concentrated on PML- NBs (Fig. 4D and E).

HS-1200 induces the co-localization of PML with p53 and CBP in the aggregated PML-NBs of U937/Bcl-2 cells and the formation of p53-PML-CBP trimeric complex.

Confocal images of PML, p53, and CBP showed that p53 and CBP display a diffuse nuclear localization pattern in the control cells. Noticeably, both p53 and CBP co- localized with PML in the aggregated PML-NBs of HS- 1200-treated U937/Bcl-2 as well as in U937/vector cells.

Although these interactions were also observed in cisplatin- treated U937/vector cells, they were not observed in cisplatin- treated U937/Bcl-2 cells (Fig. 6A, B, C and D) Co- immunoprecipitation experiments were completed to exa- mine the physical interactions between p53, PML and CBP.

Results showed that a p53-PML-CBP trimeric complex was

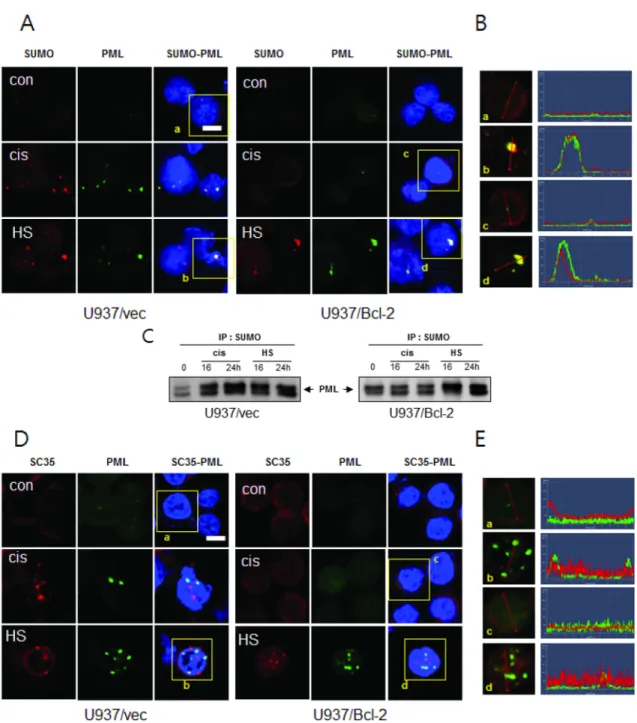

Fig. 4. HS-1200 induces the co-localization between PML and SUMO-1. (A) Confocal microscopy images showing the co-

localization of PML and SUMO-1. The enhanced co-localization is demonstrated in HS-1200 or cisplatin-treated U937/vector and

HS-1200-treated U937/Bcl-2 cells but not in cisplatin-treated U937/Bcl-2 cells. (B) The profile of SUMO-1 and PML fluorescence

intensity is depicted. The intensity of SUMO-1 is shown in red, and that of PML is shown in green. In contrast to untreated

U937/vector cells, SUMO-1 protein is concentrated within PML-NBs in HS-1200 or cisplatin-treated U937/vector and HS-

1200-treated U937/Bcl-2 cells but not in cisplatin-treated U937/Bcl-2 cells. (C) Co-immunoprecipitation assay data showing the

interaction of PML and SUMO-1. Interaction of PML and SUMO-1 is demonstrated in HS-1200 or cisplatin-treated U937/vector and

HS-1200-treated U937/Bcl-2 cells but not in cisplatin-treated U937/Bcl-2 cells. (D) Confocal microscopy images showing that SC35

does not associate with PML. (E) The profile of SC35 and PML fluorescence intensity is depicted. The intensity of SC35 is shown in

red, and that of PML is shown in green. SC35 protein is not concentrated within PML-NBs.

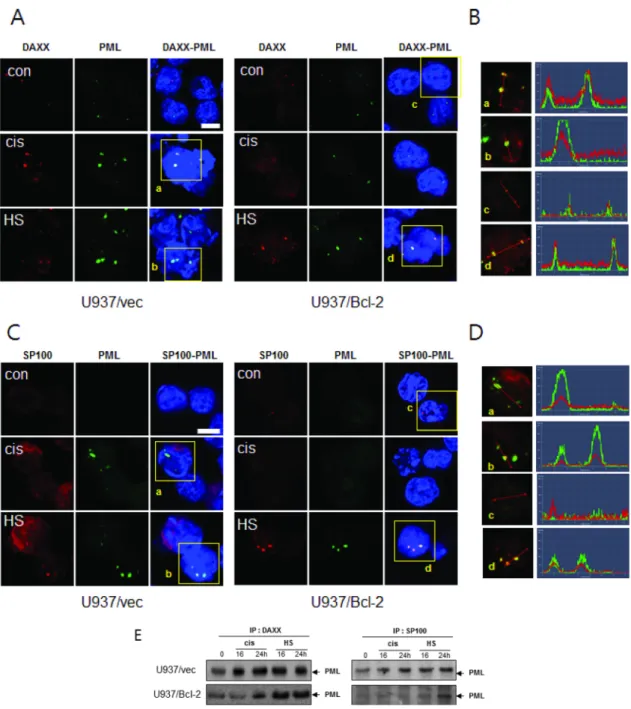

Fig. 5. HS-1200 induces the co-localization between PML and Daxx or sp100 (A, C) Confocal microscopy images showing the

co-localization of PML and Daxx or sp100. The enhanced co-localization is demonstrated in HS-1200 or cisplatin-treated

U937/vector and HS-1200-treated U937/Bcl-2 cells but not in cisplatin-treated U937/Bcl-2 cells. (B, D) The profiles of Daxx or

sp100 and PML fluorescence intensity are depicted. The intensity of Daxx is shown in red, and that of PML is shown in green. In

contrast to untreated U937/vector cells, Daxx or sp100 proteins are concentrated within PML-NBs in HS-1200 or cisplatin-treated

U937/vector and HS-1200-treated U937/Bcl-2 cells but not in cisplatin-treated U937/Bcl-2 cells. (E) Co-immunoprecipitation assay

data showing the interaction of PML and DAXX. (left panels) or sp100 (right panels) Interaction of PML and DAXX or sp100 is

demonstrated in HS-1200 or cisplatin-treated U937/vector and HS-1200-treated U937/Bcl-2 cells but not in cisplatin-treated

U937/Bcl-2 cells.

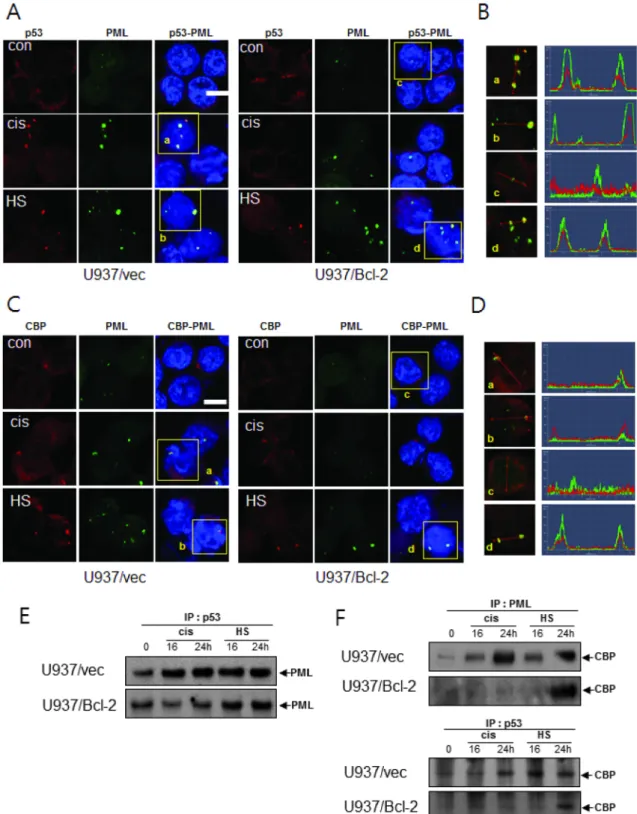

Fig. 6. HS-1200 induces the co-localization between PML and p53 or CBP. (A, C) Confocal microscopy images showing the

co-localization of PML and p53 or CBP. The enhanced co-localization is demonstrated in HS-1200 or cisplatin-treated U937/vector

and HS-1200-treated U937/Bcl-2 cells but not in cisplatin-treated U937/Bcl-2 cells. (B, D) The profiles of p53 or CBP and PML

fluorescence intensity are depicted. The intensity of p53 or CBP are shown in red, and that of PML is shown in green. In contrast to

untreated U937/vector cells, p53 or CBP proteins are concentrated within PML-NBs in HS-1200 or cisplatin-treated U937/vector and

HS-1200-treated U937/Bcl-2 cells but not in cisplatin-treated U937/Bcl-2 cells. (E, F) Co-immunoprecipitation assay data showing

the formation of p53-PML-CBP trimeric complex. Formation of p53-PML-CBP trimeric complex is demonstrated in HS-1200 or

cisplatin-treated U937/vector and HS-1200-treated U937/Bcl-2 cells but not in cisplatin-treated U937/Bcl-2 cells.

formed in both HS-1200-treated U937/vector and U937/

Bcl-2 cells. Although the formation of the trimeric complex was also observed in cisplatin treated U937/vector cells, it was not observed in cisplatin-treated U937/Bcl-2 cells (Fig. 6E and F).

Discussion

The present study has demonstrated that HS-1200 at 50 μM induces apoptosis to a similar extent in both U937 and U937/Bcl-2 cells. These data indicate that HS-1200 at the usual dose overcomes the resistance to apoptosis con- ferred by Bcl-2-overexpressing human U937 cells. Although the information provided by the present study is still frag- mentary and contradictory, these data raise the possibility that HS-1200 could be an effective strategy against Bcl-2-over- expressing human leukemia that have acquired resistance to standard chemotherapeutic agents. Since the mechanism by which the synthetic chenodeoxycholic acid (CDCA) deri- vative, HS-1200, bypasses the anti-apoptotic effects of Bcl-2 in human leukemic cells remains to be determined, decip- hering the molecular mechanism of their actions is an impor- tant and challenging task. Arguably, the most intriguing finding of my study is the formation of the mature prom- yelocytic leukemia (PML) nuclear bodies in HS-1200- treated Bcl-2-overexpressing U937 cells. PML-NBs, which are macromolecular nuclear domains are present in virtually every mammalian cell, proteinaceous structures that are found predominantly in the nucleus [21]. Under normal growth conditions, each cell usually harbors several dozen PML-NBs [22]. PML protein is a major constituent of PML-NBs. PML protein was originally identified in leuke- mic blasts from patients suffering from acute promyelocytic leukemia (APL) [23]. In APL blasts, the expression of the oncogenic PML-RARα fusion protein, the product of a reciprocal chromosomal translocation t(15;17), disrupts the structural integrity of PML-NBs [24]. The formation of PML-NBs is known to be associated with a large number of function of fundamental cellular processes [25].

The assembly of PML into PML-NBs is frequently accom- panied by dynamic changes in the structure of PML-NBs and PML gene expression. PML-NB formation is also asso- ciated with modifications of PML protein and changes in the association of PML with other proteins [26]. To date,

numerous have been reported to be resent in, or associated with, PML-NBs. One group of proteins is constitutively present in PML NBs and includes PML itself, Sp100, and members of the Small Ubiquitin-like Modifier (SUMO) family.

Other group of proteins may be readily detected in, or associated with, PML NBs only after specific treatments, which includes p53 [26-28].

Various dynamic changes in the molecular structures of PML-NB constituents and their interactions are associated with the regulation of apoptosis. Sumo is an important role in the assembly. The assembly of PML into macromo- lecular PML-NBs depends on its covalent post-translational modification with SUMO-1. Sumoylation pathway also play an important roles in the assembly of PML-NBs in cells undergoing apoptosis. The covalent post-translational modi- fication of PML with SUMO-1 regulates the interaction between PML and other PML-NB components such as Sp100, Daxx, p53 and CBP [29]. SUMO-conjugated PML recruits Daxx from the chromatin into the PML-NBs [30].

Daxx participates in other apoptosis pathways as a trans- criptional co-repressor or co-activator [31]. The interaction between PML and p53 in PML-NBs is also biologically important. PML directly interacts with the DNA-binding domain of p53 and recruits p53 to PML-NBs, which leads to p53 transcriptional activation and apoptosis [32,33]. PML is also involved in the phosphorylation and acetylation of p53 [26,34]. Besides p53 itself, multiple factors that regulate p53, including CBP, are found within, or in association with, PML-NBs [35].

Although previous descriptions of the morphology of PML-

NBs are not consistent and morphological characteristics are

presumed to be cell specific, PML-NBs are mostly mic-

rospeckled in control cells and aggregated in cells under-

going apoptosis. An elaborate study demonstrated that depho-

sphorylation targets PML to the nuclear matrix which

results in the formation of primary PML-NBs. Sumoylation

then induces the maturation to secondary, or mature, PML-

NBs. In mature PML-NBs, PML forms the outer shell of the

structure, and many of the proteins described above are found

within the electron clear core of PML [35,36]. The pre-

sence of these factors in mature PML-NBs seems to affect

cellular sensitivity to apoptosis. Furthermore, SUMO-depen

dent recruitment of proteasome components into mature

PML-NBs was shown to coincide with PML degradation,

which plays a key role in the induction of apoptosis [37].

In the study presented here, we observed the formation of mature PML-NBs in all experimental groups of cells undergoing apoptosis after HS-1200 treatment. Importantly, these data show that HS-1200-induced formation of mature PML-NBs correlates with overcoming the anti-apoptotic effects of Bcl-2-overexpressing U937 cells. These findings suggest that PML and the formation of mature PML-NBs could represent therapeutic targets that could overcome the resis- tance to apoptosis that is conferred by Bcl-2. However, the mechanism by which PML bypasses the anti-apoptotic effects of Bcl-2 still remains to be elusive. Although some previous studies have shown that proteins localized within the nuclear bodies are implicated in the regulation of tran- scription, only a few published sources provide information on the regulation of the Bcl-2 gene by PML-NB cons- tituents. One study showed that Daxx protein that is loca- lized to PML-NBs can downregulate Bcl-2 [37]. Based on these studies, we propose that HS-1200 induces the loca- lization of PML-NB protein constituents to the PML-NBs and that the interactions between these proteins affect Bcl-2 expression. We believe that future investigations may pro- vide important information for understating the underlying mechanism.

In conclusion, HS-1200-induced apoptosis in overcoming the resistance conferred by Bcl-2 is associated with the forma- tion of mature PML nuclear body in human leukemic U937 cells. The exact molecular mechanism by which PML regu- lates Bcl-2 remains an open question. It may be antici- pated that the answer to the question will yield further insights into the mechanism of the resistance conferred by Bcl-2 and the development of therapeutic strategies to over- come this resistance.

Acknowledgement

This work was supported by for two years Pusan National University research grant.

References

1. Tsujimoto Y, Croce CM. Analysis of the structure, transcripts and protein products of bcl-2, the gene involved in human follicular lymphoma. Proc Natl Acad Sci USA.

1986;83:5214-8.

2. Dasmahapatra G, Almenara JA, Grant S. Flavopiridol and histone deacetylase inhibitors promote mitochondrial injury and cell death in human leukemia cells that ove- rexpress Bcl-2. Mol Pharmacol. 2006;69:288-98.

3. Yin XM, Oltvai ZN, Korsmeyer SJ. BH1 and BH2 domains of Bcl-2 are required for inhibition of apoptosis and heterodimerzation with Bax. Nature. 1994;369:321-3.

4. Yin DX, Schimke RT. BCL-2 expression delays drug- induced apoptosis but does not increase clonogenic survival after drug treatment in HeLa cells. Cancer Res.

1995;55:4922-8.

5. Park JW, Choi YJ, Suh SI, Baek WK, Suh MH, Jin IN, Min DS, Woo JH, Chang JS, Passaniti A, Lee YH, Kwon TK. Bcl- 2 overexpression attenuates cisplatin-induced apop- tosis in U937 cells by inhibition of caspase-3 activity.

Carcinogenesis. 2001;22:1633-9.

6. Campos L, Rouault JP, Sabido O, Oriol P, Roubi N, Vasselon C, Archimbaud E, Magaud JP, Guyotat D. High expression of bcl-2 protein in acute myeloid leukemia cells is associated with poor response to chemotherapy. Blood.

1993;81:3091-6.

7. Lowenberg B, Downing JR, Burnett A. Acute myeloid leukemia. N Engl J Med. 1999;341:1051-62.

8. Smith M, Barnett M, Bassan R, Gatta G, Tondini C, Kern W.

Adult acute myeloid leukaemia. Crit Rev Oncol Hematol.

2004;50:197-222.

9. Wang G, Reed E, Li QQ : Molecular basis of cellular response to cisplatin chemotherapy in non-small cell lung cancer (Review). Oncol Rep. 2004;12: 955-65.

10. Blake J, Roberts PJ, Faubion WA, Kominami E, Gores GJ:

Cystatin A expression reduces bile salt-induced apoptosis in a rat hepatoma cell line. Am J Physiol. 1988;275:

723-30.

11. Martinez JD, Stratagoules ED, LaRue JM, Powell AA, Gause PR, Craven MT, Payne CM, Powell MB, Gerner EW, Earnest DL: Different bile acids exhibit distinct biological effects: the tumor promoter deoxycholic acid induces apoptosis and the chemopreventive agent urso- deoxycholic acid inhibits cell proliferation. Nutr Cancer.

1998;31:111-8.

12. Im EO, Lee S, Suh H, Kim KW, Bae YT, Kim ND: A novel ursodeoxycholic acid derivative induces apoptosis in human MCF-7 breast cancer cells. Pharm Pharmacol Commun. 1999;5:293-8.

13. Im EO, Choi YH, Paik KJ, Suh H, Jin Y, Kim KW, Yoo YH, Kim ND: Novel bile acid derivatives induce apoptosis via a p53-independent pathway in human breast carcinoma cells. Cancer Lett. 2001;163:83-93.

14. Choi YH, Im EO, Suh H, Jin Y, Yoo YH, Kim ND:

Apoptosis and modulation of cell cycle control by synthetic derivatives of ursodeoxycholic acid and cheno- deoxycholic acid in human prostate cancer cells. Cancer Lett. 2003;199:157-7.

15. Jeong JH, Park JS, Moon B, Kim MC, Kim JK, Lee S, Suh

H, Kim ND, Kim JM, Park YC, Yoo YH: Orphan nuclear

receptor Nur77 translocates to mitochondria in the early

phase of apoptosis induced by synthetic chenodeoxycholic acid derivatives in human stomach cancer cell line SNU-1.

Ann N Y Acad Sci. 2003;1010:171-7.

16. Seo SY, Jun EJ, Jung SM, Kim KH, Lim YJ, Park BS, Kim JK, Lee S, Suh H, Kim ND, Yoo YH: Synthetic che- nodeoxycholic acid derivative HS-1200-induced apoptosis of p815 mastocytoma cells is augmented by co-treatment with lactacystin. Anticancer Drugs. 2003;14:219-25.

17. Park SE, Choi HJ, Yee SB, Chung HY, Suh H, Choi YH, Yoo YH, Kim ND: Synthetic bile acid derivatives inhibit cell proliferation and induce apoptosis in HT-29 human colon cancer cells. Int J Oncol. 2004;25:231-6.

18. Im EO, Choi SH, Suh H, Choi YH, Yoo YH, Kim ND:

Synthetic bile acid derivatives induce apoptosis through a c-Jun N-terminal kinase and NF-kappaB-dependent pro- cess in human cervical carcinoma cells. Cancer Lett.

2005;229:49-57.

19. Kim ND, Im E, Yoo YH, Choi YH: Modulation of the cell cycle and induction of apoptosis in human cancer cells by synthetic bile acids. Curr Cancer Drug Targets. 2006;

6:681-9.

20. Hofmann TG and Will H. Body language: the function of PML nuclear bodies in apoptosis regulation. Cell Death Differ. 2003;10:1290-9.

21. Muratani M, Gerlich D, Janicki SM, Gebhard M, Eils R, Spector DL. Metabolic-energy-dependent movement of PML bodies within the mammalian cell nucleus. Nat Cell Biol 2004;4:106-10.

22. Chelbi-Alix MK, Pelicano L, Quignon F, et al. Induction of the PML protein by interferons in normal and APL cells. Leukemia. 1995;9:2027-33.

23. Kakizuka A, Miller HW Jr, Umesono K, et al. Chro- mosomal translocation t(15;17) in human acute promye- locytic leukemia fuses RAR alpha with a novel putative transcription factor, PML. Cell. 1991;66:663-74.

24. Bernardi R, Pandolfi PP. Role of PML and the PML- nuclear body in the control of programmed cell death Onco- gene. 2003;22:9048-57.

25. Salomoni P, Pandolfi PP. The role of PML in tumor suppression. Cell. 2002;108:165-70.

26. Pearson M, Pelicci PG. PML interaction with p53 and its role in apoptosis and replicative senescence. Oncogene.

2001;20:7250-6.

27. Negorev D, Maul GG. Cellular proteins localized at and interacting within ND10/PML nuclear bodies/PODs sug- gest functions of a nuclear depot. Oncogene. 2001;20:

7234-42.

28. Li H, Chen JD. PML and the oncogenic nuclear domains in regulating transcriptional repression. Curr Opin Cell Biol. 2000;12:641-4.

29. Lehembre F, Muller S, Pandolfi PP, Dejean A. Regulation of Pax3 transcriptional activity by SUMO-1-modified PML. Oncogene. 2001;20:1-9.

30. Zhong S, Müller S, Ronchetti S, Freemont PS, Dejean A, Pandolfi PP. Role of SUMO-1-modified PML in nuclear body formation. Blood. 2000;95:2748-52.

31. Son SH, Yu E, Ahn Y, Choi EK, Lee H, Choi J. Retinoic acid attenuates promyelocytic leukemia protein-induced cell death in breast cancer cells by activation of the ubiquitin-proteasome pathway. Cancer Lett. 2007;247:

213-23.

32. Fogal V, Gostissa M, Sandy P, Zacchi P, Sternsdorf T, Jensen K. Regulation of p53 activity in nuclear bodies by a specific PML isoforms. EMBO J. 2000;19:6185-95.

33. Bode AM, Dong Z. Post-translational modification of p53 in tumorigenesis. Nat Rev Cancer. 2004;4:793-805.

34. Lallemand-Breitenbach V, Zhu J, Puvion F, et al. Role of promyelocytic leukemia (PML) SUMOlation in nuclear body formation, 11S proteasome recruitment, and As

O

- induced PML or PML/retinoic acid receptor alpha degradation. J Exp Med. 2001;193:1361-72.

35. LaMorte VJ, Dyck JA, Ochs RL, Evans RM. Localization of nascent RNA and CREB binding protein with the PML-containing nuclear body. Proc Natl Acad Sci USA.

1998;95:4991-6.

36. Zhu J, Koken MH, Quignon F, et al: Arsenic induced PML targeting onto nuclear bodies: implications for the trea- tment of acute promyelocytic leukemia. Proc Natl Acad Sci USA. 1997;94:3978-83.

37. Gongora R, Stephan RP, Zhang Z, Cooper MD. An

essential role for Daxx in the inhibition of B lymp-

hopoiesis by type I interferons. Immunity 2001;14:727-37.
