Luminescent Properties of Four-Band White Light Emitting Diodes
6
0
0
전체 글

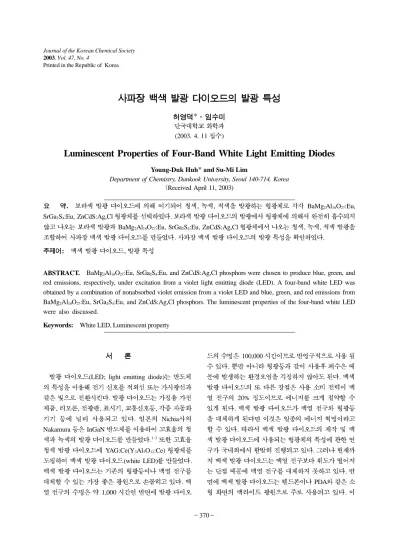

(2) * (2003. 4. 11 ). Luminescent Properties of Four-Band White Light Emitting Diodes Young-Duk Huh* and Su-Mi Lim Department of Chemistry, Dankook University, Seoul 140-714, Korea Received April 11, 2003). .
(3)
(4) ,
(5) ,
(6) !" ## BaMg Al O :Eu, SrGa S :Eu, ZnCdS:Ag,Cl !$ %& '.
(7) ( ! ( )*+ , ./ 0
(8) BaMg Al O :Eu, SrGa S :Eu, ZnCdS:Ag,Cl !( 0
(9) ,
(10) ,
(11) 12 345 6
(12) $ 789. 345 6
(13) :; <= '. : 6
(14) , :; 2. 16. 27. 2 4. 2. 16. 27. 2 4. ABSTRACT. BaMg2Al16O27:Eu, SrGa2S4:Eu, and ZnCdS:Ag,Cl phosphors were chosen to produce blue, green, and red emissions, respectively, under excitation from a violet light emitting diode (LED). A four-band white LED was obtained by a combination of nonabsorbed violet emission from a violet LED and blue, green, and red emissions from BaMg2Al16O27:Eu, SrGa2S4:Eu, and ZnCdS:Ag,Cl phosphors. The luminescent properties of the four-band white LED were also discussed. Keywords: White LED, Luminescent property. (LED; light emitting diode) >?! :; @ * AB$ C% D EF% GH IJ" *KFL. EM@ E* NO, PQR, *S, TF, UABV, #W XY V ZP 3@/ [. \] Nichia3 Nakamura VH InGaN >?!$ @ /^_
(15)
(16) $ 789. D` /^_
(17) YAG:Ce(Y Al O :Ce) !$ ?a 6
(18) (white LED)$ 789. 6
(19) b V0 6c *d$ !e [ E5 fH gJ" hi+/ [. 6 c *d jH k 1,000 Fl= >m 1-3. 3. 5. 12. jH 100,000 Fln" >od J" 3@ p [. q7 rs V G 3@t u H v w x Kyz {M - .r? |. 6
(20) D } 5~H 3@ * 6 c *d 20% M?n" -$ ke [ |. 6
(21) E 6c *d V ! |m H \W - j / e [. ( 6
(22) N 6
(23) 3@ ! :; ` dE C( + / [. 0 - 6
(24) 6c *d ?E ~ vw 6c *d$ ! - / [. > m 6
(25) 0 PDA GH m 6 gJ" " 3@/ [. 370.
(26)
(27) . G Q
(28) E` ¡¢£ 5¤ 6 gJ" 6
(29) $ 3@ /X ¥m X E¦ 6
(30) §d |. ¨@ / [ 6
(31)
(32) YAG:Ce !$ ?a 6
(33) © ª« @ '.
(34) ¬ YAG:Ce !$ ?a m
(35) ( YAG:Ce ! ®¯
(36) |. ( )*+ ! , / ./ 0
(37)
(38) !( 0 ®¯
(39) 12 ( °P ±²J" 6
(40) |. 6
(41) ` dE C( + / [. ( YAG:Ce !$ ³\ / ` ´µ ¶ 7 · ¸ / [. ] dH Y Al O :Ce ! Gd Ga \¹ ¤KFL(Y Gd ) (Al Ga ) O :Ce !$ 3@ 6
(42)
(43) º?(color temperature)$ 1 ª« d '. D`
(44)
(45)
(46) !$ »¼ ½45 12 ` 6
(47) ` d? '. - /?
(48) E ZP. ¾ [ >m
(49) ¿ ¾ / [ ¨À. H
(50) ?E ¨ J" k vw. 0 ÁÂ · ¸ Ã?" ÄÅ m Æt Ç È /?
(51) E ¨@ p / *É|. ( ] Êw( 345 6
(52) N ˧`
(53) ,
(54) ,
(55) ! $ ÄP Ìr(
(56) $ @` 345 6
(57) :; <= /X `. 4,5. 6. 3. 5. x 3. 12. 1-y. 1-x. y 5. 12. 7. 8. !:;H Í ?Î(photoluminescence $ 3@ <= '. 3@| gH 500 W Xe ÏÐ. FÑ Tm ÒJ " Ó 9JÔ, ÕÖ ¤ ( 45 " '. 3@|
(58) 5¤ 0.275 m
(59) 5¤(triple grating monochromator, Acton Research Co)$ 3@ '/, ×Ø(photomultiplier tube)H PHV 400 3@ '.
(60) (λ =405 nm) FÙ( ¨@/ [ dÚ 3@ '. . 371.
(61) ,
(62) ,
(63) !"## BaMg Al O :Eu, SrGa S :Eu, !$ 3@ '. BaMg Al O :Eu ZnCdS:Ag,Cl ! Kasei3 NO 3@ 'J Ô, SrGa S :Eu ! Ò 2; 3@ '. 6
(64) $ 7 ÛMH ÜÝ >?! Þ ß(
(65) ¬ ` ¸$ ÛJ" à r á t, >3 â(reflector cup) ã2(die bonding) $ /, >3 â rä ¹Í H åF(silver epoxy) FL. P/ æç èç ã 6éJ" ã2(wire bonding) ` è, /ÍX - êµ [ !$ + ëP ?a M `. ÁW J" åF -" ìí À$ 7 t î( ï¥ ; ð. ] dñH G $ 7 ÛM e [ òó ô E-/ [- vw Fig. 1 G
(66) ìí Tm
(67) ,
(68) ,
(69) !$ »¼ ª« & '. ] òó( ## !$ PVA[poly(vinyl alcohol)] @õ 1:4 ö" ÷2 '. PET[poly (ethylene terephthalate)] Ëø ù »¼ '. ! ú? »¼| ´µ û |. D` »¼ | Ëü 5 3@ m ! æ ×EFý [. ( ] d( 3@| M<` ! æ þ ÿ-7 »¼| Ëø 5 3@ ! æ 1 '. ] d( ! æ } 6
(70) :;
(71) T :; <= '. 6
(72) $ N ÛM 5¤E ÿ( Tm ! $ »¼ ª« 3@ '-7, ` ª«J" 7 6
(73) :; d wNE ÿ/ x#|. q7 rs , G ©H 2. ZnCdS:Ag,Cl. 16. 27. 2 4. 2. 16. 2 4. spectroscopy). o. em. 2003, Vol. 47, No. 4. Fig. 1. Schematic structure of four-band LED.. 27. 9.
(74) . 372. ã òN" 6
(75) N ÛM ˧ ` Ù§` XÑE p ..
(76) ] òóH 405 nm
(77) ìí Tm
(78) ,
(79) ,
(80) !$ »¼ 345 $ 789. ( 405 nm ( (
(81) ,
(82) ,
(83) !$ 3@ `.
(84) ,
(85) ,
(86) !" ## BaMg Al O :Eu, SrGa S :Eu, ZnCdS:Ag,Cl !$ %& '. BaMg Al O :Eu, SrGa S :Eu, ZnCdS:Ag,Cl ! ¡ Fig. 2 09 . ¡ m BaMg Al O :Eu, SrGa S :Eu, ZnCdS:Ag,Cl ! Q´ 405 nm( ` , E [ . P/ ¡J"¹ BaMg Al O :Eu, SrGa S :Eu, ZnCdS:Ag,Cl ! ## 455 nm, 535 nm, 620 nm( Á 45 <= '. ( BaMg Al O :Eu, SrGa S :Eu, ZnCdS:Ag,Cl ! ## 405 nm `
(87) ,
(88) ,
(89) !"
(90) . ,
(91) ìí Tm BaMg Al O :Eu, SrGa S :Eu ZnCdS:Ag,Cl 2. 16. 27. 2 4. 2. 16. 27. 2 4. 2. 16. 27. 2 4. 2. 16. 27. 2 4. 2. 16. 27. 2 4. 2. 16. 27. 2 4. ! æ ## + 1 7 Ëø »¼ m )*+ , - .H
(92) !( 0
(93) ,
(94) ,
(95) Q´ © [ |. P/ ! æ 1 m
(96) ,
(97) ,
(98) ,
(99) Q´ [ 345 6
(100) $ 78 [ |. Fig. 2 G ¹Í ö ! ¡ oH ß[. Fig. 2(B) SrGa S :Eu ! oH BaMg Al O :Eu ! Á 45= 455 nm$ ê`. ,
(101) ìí Tm BaMg Al O :Eu, SrGa S :Eu ZnCdS:Ag,Cl !$ YF »¼ m BaMg Al O :Eu ( 0
(102) \¹$ SrGa S :Eu !E , F
(103) e [ |. Fig. 2(C) ZnCdS:Ag,Cl ! oH 510 nm- ß [Jn" BaMg Al O :Eu( 0
(104) SrGa S :Eu( 0
(105) \¹Í F , |. ` ¨ Á ¥m 405 nm  ( %å H ` , YF ##
(106) ,
(107) ,
(108) o( %å H ` [ ¨ = !E ˧ . 0 G %å H ö ! b - . . ] d( ! > , ` 6
(109) -7 6
(110) :; d -5 ÿ. ( BaMg Al O :Eu, SrGa S :Eu ZnCdS:Ag,Cl !$ ## 405 nm `
(111) ,
(112) ,
(113) !" 3 @ '. Fig. 3H ## BaMg Al O :Eu, SrGa S :Eu ZnCdS: Ag,Cl !$
(114) ìí Tm »¼ ©H ´ ¸ 45 ¡ BaMg Al O :Eu, SrGa S :Eu, ZnCdS:Ag,Cl !$ Q´ ÷2`
(115) ìí Tm »¼ ©H 6
(116) ¡. Fig. 3(A)
(117) ìí Tm BaMg Al O :Eu !$ »¼ ©H ¡. !E »¼- .H y° .
(118) ¡ Y\ . , 405 nm(7 °PE [.
(119) ìí ¹Í BaMg Al O :Eu !E »¼ (
(120) \¹$ BaMg Al O :Eu !E ,
(121) vw, 405 nm( YF 455 nm( "¦ °PE 2 4. 2. 16. 27. 2. 16. 27. 2 4. 2. 16. 27. 2 4. 2. 16. 27. 2 4. 2. 16. 27. 2 4. 2. 2. 16. 16. 27. 2. 16. 2. 16. 27. 2 4. 2 4. 27. 27. 2. Fig. 2. Excitation and emission spectra of (A) BaMg2Al16O27:Eu, (B) SrGa2S4:Eu, and (C) ZnCdS:Ag,Cl phosphors.. 16. 27. Journal of the Korean Chemical Society.
(122)
(123) . 373. nm( °P E ×E M?E ° r. =. 0 òN" ! æ 1 405 nm °P 620 nm °P $ J" 1 H ¥¦ \ rs. Fig. 3(D) .
(124) ìí Tm BaMg Al O :Eu, SrGa S :Eu ZnCdS:Ag,Cl ! æ ## + 1 7 Ëø »¼ ©H 6
(125) ¡ . Fig. 3(D)( <= e [ 405 nm, 455 nm, 535 nm, P/ 620 nm 4¸ °PE [. H ##
(126) 45 BaMg Al O :Eu, SrGa S :Eu ZnCdS:Ag,Cl ! ## ¡
(127) |. ( 8 °P $ 1 m EF% Q
(128) ¨ © [ |. q7 rs , 4¸ °P $ 1 m Fig. 3(D) G 6
(129) © [è þ [. Fig. 4 Fig. 3 ¡
(130) T" 0 9.
(131) »¼| BaMg Al O :Eu ! æ ×Ee 405 nm( YF 455 nm E ×E '. !$ 3@ - .H gä
(132) ¡
(133) T x=0.17, y=0.01. Fig. 4(A) ( »¼| BaMg Al O :Eu ! æ ×Ee
(134) T x=0.14, y=0.08J" Y þ [. (
(135) TE
(136) o(
(137) o
(138) ¤" Y þ [. E-" Fig. 4(B) 4(C)( ## »¼| SrGa S :Eu ZnCdS:Ag,Cl ! æ ×Ee
(139) T ## x=0.28, y=0.68 2. 16. 27. 2 4. 2. Fig. 3. The photoluminescence spectra of (A) violet and blue emitting LEDs, (B) violet and green emitting LEDs, and (C) violet and red emitting LEDs, where BaMg2Al16O27:Eu SrGa2S4:Eu, and ZnCdS:Ag,Cl phosphors film are coated onto the outer sphere of a violet LED, respectively. (D) The photoluminescence spectra of four-band white LED.. 16. 27. 2 4. 2. 0 |. BaMg Al O :Eu ! æ ×E ê ( 405 nm °P YF 455 nm( °P ×Eê <= '. H \W Beer-Lambert « GH gP. Fig. 3(A)H ´ ¸ °P m 2 \M ? T FL . 405 nm( x °P .
(140) ( Ò x n" °P %å . > 455 nm( 0 ° P ! ¡ GJn" ¨ J" °P %å . ( BaMg Al O :Eu ! æ ×E e 405 nm °P E M? ( ¨ J" 455 nm( °P E ×E M?E r =. E-" Fig. 3(B) 3(C)
(141) ìí Tm ## SrGa S :Eu ZnCdS:Ag,Cl !$ »¼` . y°? SrGa S :Eu ZnCdS: Ag,Cl !$ »¼ ( 535 nm 620 nm ( "¦ °PE x/, ! æ ×Eê ( 405 nm °P YF 535 nm 620 nm( °P ×Eê <= '. :+,
(142) != ZnCdS:Ag,Cl ¡ %å ° Jn" Fig. 3(C) ( 405 nm °P E ( ¨ J" 620 2. 16. 27. 2. 16. 2. 16. 16. 27. 27. 2 4. 27. 2 4. 2 4. 2003, Vol. 47, No. 4. Fig. 4. The CIE chromaticity coordinates of (A) violet and blue emitting LEDs, (B) violet and green emitting LEDs, (C) violet and red emitting LEDs, and (D) four-band white LED..
(143) . 374. ªÆJ" Y|.
(144) »¼| ## SrGa S :Eu, ZnCdS:Ag,Cl ! æ ×Ee
(145)
(146)
(147) T ¤(
(148)
(149)
(150)
(151) T" ## Y |. Fig. 3(D)(
(152) BaMg Al O : Eu, SrGa S :Eu, ZnCdS:Ag,Cl !$ êµ »¼ m 405 nm, 455 nm, 535 nm, P/ 620 nm 4¸ °P$ © [è <=!. Fig. 4(D) Fig. 3(D) ¡
(153) T. v
(154) T x= 0.34, y=0.34 n" 6
(155)
(156) Ô,
(157) º? 5190 C . ¨@ / [ 6
(158) 470 nm(D 450 nm)
(159) YAG:Ce !$ ?a 6
(160) © ª« @`. H
(161) !( 0 ®¯
(162) 12( °P ±²J" 6
(163) . Fig. 5(A) 470 nm
(164) ?a | YAG:Ce ! æ ( " ¡
(165) T$ 09.
(166) T
(167) ¤ ®¯
(168) ¤ \Ò% ¨ [è þ [. P/ \ Ò% Ù x=0.31, y=0.31
(169) 6
(170) © [. 470 nm
(171) YAG:Ce !$ ?a 6
(172) © ª«H \W ´E
(173) 12 6
(174) © y°. GH ª« J" 78 6
(175) $ #` 6
(176) g J" 3@e y° wNE ÿ. 0, 6 gJ" 3@( EF% Q
(177) $E Ô, :+
(178) o %& © ÿ |. D } ¥' ~H
(179) º?E } 6
(180) ©/X `m Y Al O :Ce ! Gd Ga \ ¹ ¤KFL (Y Gd ) (Al Gay) O :Ce "¦ 1; !$ 3@7 `. ( (" }
(181) º? 6
(182) ` 1; !$ 2; ~ [. ` ~ ) ` ½45 6
(183) ` dE + / [. ¹Í ½45 6
(184) 470 nm
(185)
(186)
(187) !$ ?aF(( © y °. y°
(188) ,
(189) ,
(190) ÷2n"
(191) T" T m Fig. 5(B) G |.
(192) ,
(193) ,
(194)
(195)
(196) T ¤$ ( 7 ½# |. y°
(197) ,
(198) ,
(199) 8 x=0.61, y=0.39. 2 4. 2. 16. 27. 2 4. o. 3. 1-x. x 3. 5. Fig. 5. The CIE chromaticity coordinates for (A) blue LED with Y3Al5O12:Ce phosphor for two-band white LED, (B) blue LED with SrGa2S4:Eu, and ZnCdS:Ag,Cl phosphors for threeband white LED, and (C) violet LED with BaMg2Al16O27:Eu, SrGa2S4:Eu, ZnCdS:Ag,Cl phosphors for four-band white LED.. $ 1 6
(200) © [. D` "¦ 1; !$ 2;e ˧E ÿ
(201) !
(202) ! æ 1 (" }
(203) º? 6
(204) ? ) © [. > ] d( .
(205) ,
(206) ,
(207) ,
(208) 345 @ 6
(209) ©9.
(210) ,
(211) ,
(212) ,
(213) 345
(214) T üJ" 0m Fig. 5(C) G |.
(215) T ü ( 345 6
(216) * H
(217) T$ ê / [Jn" ½45 6
(218) fH 6
(219) © [. ( Æt /?
(220) E ¨@ m ] d ã$ @ 345 6
(221) $ N E p ..
(222) . 12. 1-y. 5. 12. 7. 8,10-12.
(223) (
(224) ,
(225) ,
(226) !" ## BaMg Al O :Eu, SrGa S :Eu, ZnCdS:Ag,Cl !$ %& '. ! ( )*+ , - .H
(227) !( 0
(228) ,
(229) ,
(230) 2+( 34 5 6
(231) ©9. 345 6
(232) " b 6
(233) :; * fH 6
(234) © [è <= '. 2. 16. 27. 2 4. d 2003È? d gJ" d9è. Journal of the Korean Chemical Society.
(235)
(236) . 1. Nakamura, S.; Senob, M.; Iwasa, N.; Nagahama, S.; Yamada, T.; Mukai, T. Jpn. J. Appl. Phys. 1995, 34, L1332. 2. Nakamura, S.; Senob, M.; Iwasa, N.; Nagahama, S. Appl. Phys. Lett. 1995, 67, 1868. 3. Nakamura, S.; Mukai, T.; Senob, M. Appl. Phys. Lett. 1994, 64, 1687. 4. Shimizu, Y.; Sakano, K.; Noguchi, Y.; Moriguchi, T. U.S. Pat. 1997, 5,998,925. 5. Tamura, T.; Setomo, T.; Taguchi, T. J. Lumin. 2000, 87, 1180. 6. Yum, J. H.; Seo, S. Y.; Lee, S.; Sung, Y. E. J. Electro-. 2003, Vol. 47, No. 4. 375. chem. Soc. 2003, 150, H47. 7. Huh, Y. D.; Cho, Y. S.; Do, Y. R. Bull. Kor. Chem. Soc. 2002, 23, 1435. 8. Huh, Y. D.; Shim, J. H.; Kim, Y.; Do, Y. R. J. Electrochem. Soc. 2003, 150, H57. 9. Huh, Y. D.; Shim, J. H.; Do, Y. R. J. Kor. Chem. Soc. 2002, 46, 164. 10. Schlotter, P.; Schmidt, R.; Schneider, J. Appl. Phys. 1997, A64, 417. 11. Sato, Y.; Takahashi, N.; Sato, S. Jpn. J. Appl. Phys. 1996, 35, L838. 12. Sato, Y.; Takahashi, N.; Sato, S. Jpn. J. Appl. Phys. 1998, 37, L129..
(237)
관련 문서
LED(Light Emitting
Department of Naval Architecture and Ocean Engineering, Seoul National University of College
χ is the fraction of the emitted light flux absorbed in the water Ф OH is the quantum yield for generation of ·OH radicals... <Example 1>. We assume that for
• LED, Light Emitting Diode embedded GFRP, Glass Fiber
Organic Light Emitting Display (OLED)의 원리 및 구성. OLED의
Light-Emitting Diodes) (Organic solar cell) 유기 메모리 유기 , , 전계 효과 트랜지스터 (organic field-effect transistors), 유기라디오파 인식장치
¾ Optical Properties - A material’s response to exposure to electromagnetic radiation, particularly to visible light.. ¾ Light is energy, or radiation, in the form of
Department of Naval Architecture and Ocean Engineering, Seoul National University of College
