A Study on Effect of Plasma Treatment for Waste Wood Application

J. of Korean Inst. of Resources Recycling Vol. 22, No. 2, 2013, 18-21

ଫ 㮩㌙㑌㜇 ପ

18

http://dx.doi.org/10.7844/kirr.2013.22.2.18 pISSN : 1225-8326 eISSN : 2287-4380

䈳㛓㹦 䎣㲭 ‪⺂ ⸲Ⴂ⊮ዮ 䂘㘯 䏜㊞Ỷ ద⺂ 㮩㌙

㎘㜟㜟Á 㷺㿅㮔*

㔇㌭㒳䊓㋧ ㎿㉁㊐䊓㊠

*

㔇㌭㒳䊓㋧ ㎿㉁ᆂᘭỶਮ⋦㊐䊓㊠

A Study on Effect of Plasma Treatment for Waste Wood Application

MiMi KimG and Joong Yeon Lim*

Department of Mechanical Engineering, Dongguk University

*Department of Mechanical, Robotics and Energy Engineering, Dongguk University

Ὰ ả

ᘞ ᰊ⻾Ỷᩂ஺ ᧧ṻ⸲Ⴂ⊮ዮỶ ⁾⺂ Ꮟᚪ⁾ ⶂ᎚Ղ⋮Ỷ ద⺚ ↖᧒⹾ἦఊ. ᘛ⺏⃒஺ Ꮟᚪآ ⴚዒ⸪ᆂ⹪ᄲ ₚ῏⹾ἒ ⅂₷ാỮఊ ( Ꮟᚪ : ⴚዒ⸪ᆂ⹪ᄲ = 55 wt% : 45 wt%). ᧧ṻ⸲Ⴂ⊮ዮ஺ carrier gasᆂ ⼒኎آ HMDSOኢ Ꮞઞ፞ᆂ ᧒῏⹾ἦ؆ 3 KV, 17 ± 1 KHz, 2 g/min ⁾ ↖֚Ỷᩂ ▾ዒ⹾ἦఊ. ⳶Ꮟᚪ⁾ ₞⃋Ի೪஺ ᧧ṻ⸲Ⴂ⊮ዮ ▾ዒኢ ⫛⺚ 18.5 MPaỶᩂ 21.2 MPaᆂ 14.6% ⋃Ԧ⹾ἦ؆ ఎ₢

ᬾ↫Ꮟᚪ⁾ ףῖỶ೪ 21.5 MPaỶᩂ 23.4 MPaᆂ 8.8% ⋃Ԧ⹾ἦఊ. ₚ֩⁢ᆂ ᧧ṻ⸲Ⴂ⊮ዮ ▾ዒ஺ Ꮟᚪ⁾ ⶂ᎚ Ղ⋮⹾ἒ ⴚዒ⸪

ᆂ⹪ᄲآ⁾ ת᎚ז⺏ᅋ ⋃Ԧᰂ⡂∢஺ ֩ ⽻₞⹾ἦఊ.

∢⅂Ớ  ⳶Ꮟᚪ, ⶂ᎚Ղ⋮, ᧧ṻ ⸲Ⴂ⊮ዮ, Ꮟᚪ ᘛ⺏⃒ᇲ

Abstract

In this study, surface modification of wood powder by atmospheric pressure plasma treatment was investigated. The com- posites were manufactured using wood powder and polypropylene(wood powder : PP = 55 wt% : 45 wt%). Atmospheric pres- sure plasma was treated as condition of 3KV, 17 ± 1KHz, 2 g/min. Helium was used as carrier gas and monomer such as hexamethyl-disiloxane(HMDSO) was used to modify surface property by plasma polymerization. The tensile strength of untreated waste wood powder(W3) and homogeneous wood powder(H3) were about 18.5 MPa, 21.5 MPa while the tensile strength of plasma treated waste wood powder(PW3) and homogeneous wood powder(PH3) were about 21.2 MPa, 23.4 MPa, respectively. And tensile strength of W3 and H3 were improved by 14.6% and 8.8%, respectively. From the results for mechan- ical property, morphological analysis, we obtained improved interfacial bonding of polypropylene and wood powder modified by plasma treatment.

Key words : Waste wood powder, Surface modification, Atmospheric pressure plasma, WPCs

* Received : August 20, 2012 Á1st Revised : October 15, 2012Á2nd Revised : February 15, 2013ÁAccepted : March 4, 2013 Corresponding Author : Joong Yeon Lim (E-mail: [email protected])

Department of Mechanical, Robotics and Energy Engineering, 26 Pil-dong 3-ga, Jung-gu, Seoul, 100-715, Korea Tel : +82-2-2260-3810 / Fax : +82-2-2263-9379

;The Korean Institute of Resources Recycling. All rights reserved. This is an open-access article distributed under the terms

of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/by-nc/3.0/), which permits

unrestricted non-commercial use, distribution and reproduction in any medium, provided the original work is properly cited.

䈳㛓㹦 䎣㲭 ‪⺂ ⸲Ⴂ⊮ዮ 䂘㘯 䏜㊞Ỷ ద⺂ 㮩㌙ 19

₶ῶዒᰞₚ⦚ዧ ⅂ 22 ڲ ⅂ 2 ⽞ , 2013

1. ᩂ ᆆ

K ᩞת℧⁢ᆂ ⽾ףᑞ⅂Ỷ ద⹾ἒ ԧړ⁾ ℻ᚦỶ ద

⺂ ܂⅂Ԧ Ի⽺ാ؆ ₚỶ ద⺂ ₞ᰃₚ ℶ╎℧⁢ᆂ ⋃Ԧ

⺎Ỷ ๖Ⴂ ⽾ף➂⽺ᩗ ⃒᪲Ỷ ద⺂ Ղᕂآ ئᰒₚ ⋃Ԧ

⹾؆ ₮ఊ.¹⁾ܞ∷ ⼪⃒ ⽾ף➂⽺ᩗ ⃒᪲ᆂᩂ Ԧ⃋ ⾂ᕂ ギ ἖ڒാ؆ ₮஺ ֩ₚ ᔺₚὊᘛ⺏⃒ᇲₚఊ.²⁾ᔺₚὊᘛ

⺏⃒ᇲ஺ ₢ᔾ℧⁢ᆂ ᔺₚὊᩒ⁆ ⽟⁦ ◂἖ᩒ⁆ኢ Ի⽺

⃒ᆂ ᧒῏⹾؆ ጊ⯞ዓᯊᆂᩂ ᨃᚪ⺚ᩗ ؆ᚪ₶ ༶஺ ᝪ ᨃᚪ⺚ᩗ ؆ᚪ₶ᆂ ڒᩗാ஺ ⃒ᇲᆂᩂ ݖ↚⁾ ᩃ⁆₶ῶ దᰆ ₶἖Ỷᩂ ỡ ᬾ ₮஺ ◂἖₶ῶ ₚ῏⹾ἒ ዲช

ᬾ ₮ఊ.³⁾ܞ∷ Ꮟ⃒ኢ ݖᔾ⁢ᆂ ⹾஺ ᘛ⺏⃒ኢ wood plastics composites, WPCsᆂ ᎫᎫ⹾؆ ₮ఊ. composite

஺ ൶ ↫ቾ ₚ᧧⁾ ⃒᪲ኢ ᘛ⺏⽺⺂ ⿪Ỷ ᑢዒÁ⽺⹿

℧⁢ᆂ ԧԧ⁾ ⃒᪲Ԧ ῶႾ⁾ ᧧ ⁆⋦⹾᎚ᩂ ῶႾ⁾

⃒᪲ᘚఊ ῖᬾ⺂ ᩗோ Լ೪ᆃ ⺂ ⃒ᇲኢ ዶ⺂ఊ.⁴⁾ܞ ᄒা WPCs ⅂₷Ỷ஺ ➂ᬾᩗ₞ Ꮟᚪآ ᪲ᬾᩗ₞ ⸲Ⴂ ᯊⰗԪ⁾ ؆⁆⁾ ᝪ➂⽺ᩗ⁢ᆂ ₞⹾ἒ ൶ ᑢ⋮⁾ ז⺏

 ₚሎݖ ‪⺂ ⠊⸲ዧ⅂⁾ ▾ዒԦ ⹪ᬾ℧ₚఊ. ᩒ⁆ὦ ጊ⯞ዓᯊ ᧒ₚ⁾ Ի⺂ ת᎚ז⺏⁦ ᘛ⺏⃒ᇲ⁾ સ⁦ ݖ ת℧ ⯟ᩗ ỡ஺ಖ ጊῖ ∷Ὰ⹾ఊ. ༶⺂ biomass ₶ῶ

⁢ᆂᚦ⩖ ➂⽾ף℧₞ ᑢ⋮ช ⁆೪⹾ݖ ‪⺂ ᧮ᆂῚ ݖᭆชₚ ՂᕂാỚ⋦؆ ₮ఊ. ₚỶ ᘞ ἖ڒỶᩂ஺ ᧧ṻ

⸲Ⴂ⊮ዮ ⃋❾ኢ ⫛⺚ ➂ᬾᩗ₞ Ꮟᚪ⁾ ⶂ᎚ Ղ⋮⹾

ἒ ᪲ᬾᩗ₞ ἚԦ᪲ᩗ ⴚዒὒᄮ⹦ת؆ᚪ₶⁾ ⴚዒ⸪ᆂ

⹪ᄲآ⁾ ת᎚ז⺏ᅋ ⋃Ԧᰂ⡂ ᔺₚὊᘛ⺏⃒ኢ ዲช

؆₶ ⺂ఊ. ₚ๲ Ꮟᚪ⁾ ↫ቾỶ ๖Ⴂ ⸲Ⴂ⊮ዮ ▾ዒԦ ᔞ❾஺ ⿎آኢ ṲṪᘚݖ ‪⹾ἒ ⳶Ꮟᚪآ ఎ₢ᬾ↫Ꮟ ᚪ⁢ᆂ ڒᚪ⹾ἒ ᰊ⻾ ⋪⺯⹾ἦ؆, ⳶Ꮟᚪ ⶂ᎚Ղ

⋮⹾ἒ ⴚዒ⸪ᆂ⹪ᄲآ⁾ ת᎚ז⺏ᅋₚ ⻋᧧ാỚ Ի೪ Ԧ ⋃Ԧ⺂ఊ᎚ ఎ₢ᬾ↫Ꮟᚪآ⁾ ᝪٶኢ ⫛⺚ ₶ῶ⃒

⾂῏ₚႢ஺ ₚℶ ⽻ᘚ⺆ᬾ ₮֩⁢ᆂ Ἦ᧧ൂఊ. ༶

⺂, ᧧ṻ ⸲Ⴂ⊮ዮኢ ₚ῏⺂ ؆ᚪ₶ Ԧ؛ᖻ⁦ ֚ᰃ؛

℻⁢ᆂ ⽾ףὊἢₚ ℧؆ Ỷਮ⋦ ℮ả⼻ ؛℻ₚ᎖ ؆ᚪ

₶⁾ ݖᘞ ᑢᩗ⁦ ᘚ⽞⹾᎚ᩂ ⶂ᎚Ỷዲ ᑢዒ-⽺⹿℧

⯟ᩗ⽺ ᔾ⁷ ₢⁢⡂ ⶂ᎚ ℷ╏ᅋ ⻋᧧ ᔵ ᚮᭂᑢ

⅂֖ ท⁾ ⿎آኢ ỡ ᬾ ₮ఊ஺ ⃋ℶ Ԧ⋦؆ ₮ ఊ.⁵⁾ܞዒ؆ ⋪؛Ỷᩂ ᧧῏⽺ാỮ౾ ⸲Ⴂ⊮ዮ ▾ዒ ؛

℻ దݖṻỶᩂ೪ Ԧோ⹾ֲ ⹾ἒ ⅂↖ ῶԦኢ ℮Զ⹾

؆ ؛℻▾ዒ᪳೪ኢ ⻋᧧ᰂ⧊஺ ԧطᕁ஺ ݖᭆᆂ ⚂ܢ Ỷ ⁷῏ᩗ ⽻దኢ ‪⺂ ઞᅋชₚ ⾂ᕂギ ₚሎỚ⋦؆

₮஺ ᰊ℻ₚఊ.

2. ᰊ ⻾

ᘞ ᰊ⻾Ỷ ⴚዒ⸪ᆂ⹪ᄲ⁦ 5 mm ₚ৚⁾ ⋧ף, 0.9 g/cm³

⁾ ᔦ೪, 17 g/10min⁾ ῏⁛⋦ᬾ(melt index)ኢ Լ஺ L ᧒⁾ ⅂ⶮ ᚪặᕁṪ ᧒῏⺮⁢᎖, Ꮟᚪ⁦ ᯊ⸪ᄒᯊ ఎ

₢ᬾ↫آ ⳶Ꮟ⃒➏ ᨃ᧖ ừ◚₞ A᧒⁾ ⳶Ꮟ⃒➏ ᚪ

᫪ݖᆂ ⰲ᫪ ⿪ 60 ~ 80 meshᆂ ᚪቾ⹾ἒ ᧒῏⹾ἦఊ.

ᚪዒൂ Ꮟᚪ⁦ ⸲Ⴂ⊮ዮ ▾ዒ ᰂỶ஺ ᬾᚪ⺎⁆ჯ 1%

ₚ⹾ᆂ ⋪؛ ֚↖ ⿪ ᰊ⻾Ỷ ᧒῏⹾ἦఊ. ⸲Ⴂ⊮ዮ ⃋

❾ኢ ⫛⺂ ⶂ᎚Ղ⋮⁦ ⸲Ⴂ⊮ዮ ৚Ỷᩂ ₢Ớা஺ K₶

ὦ ݖ◚ ᚪ₶⁾ ⛏ೲᆂᚦ⩖ ᩊᎫാỚ⋪ఊ. ᚪ₶ XYỶ K₶ eԦ ⛏ೲ⹾஺ ףῖ, ⛏ೲ⹾஺ K₶⁾ Ỷਮ⋦Ԧ K

₶⁾ ڒ᪳ Ỷਮ⋦ᘚఊ સֲ ാ᎚ ᚪ₶৚⁾ K₶ eԦ ᔼ

⁢ᆂ ឆ⅞াὊֲ ാỚ ₚ὎⽺Ԧ ₢Ớূఊ. ༶⺂ ᚪ₶

XY⁾ ז⺏ₚ ॰Ớ⅞, Xὦ Yᆂ ᚪዒാ஺ ףῖ೪ ₮ఊ.

ₚὦ Կₚ Xὦ Y஺ ז⺏ാ⋦ Ṱ⁦ K₶ኢ Լ؆ ₮ݖ

๲ᑞỶ ⽺⹿ ᔾ⁷ ₢⁢⧊ݖ ᮣఊ. ₚኢ ⽺⹿ ⾂ᩗ↫

༶஺ Ⴂฺ➢(Radical)ₚႢ ᚦኞఊ. ₚᄒ⺂ ⸲Ⴂ⊮ዮ ৚

⛏ೲآ℻Ỷᩂ ₚ὎⽺ൂ K₶⁾ ⽺⹿ᔾ⁷Ỷ ⁾⺚ Ꮟᚪₚ

⡺ⰫാỚ ⶂ᎚⁾ ᚪ᧖ᩗᚪₚ ⋃Ԧ⹾ἒ ᪲ᬾᩗ⁢ᆂ Ղ⋮

ൂఊ. ᧧ṻ ⸲Ⴂ⊮ዮ ⃋❾Ỷᩂ ⼒኎⁦ ⸲Ⴂ⊮ዮ ᕂᨃ ᚪ

‪ݖ ↖ᩗآ carrier gasᆂ ₚ῏ാỮ⁢᎖, Hexamethyl- disiloxane(HMDSO)⁦ ⸲Ⴂ⊮ዮ ∷⺏Ỷ ⁾⺚ Ꮟᚪ⁾ ⶂ

᎚⯟ᩗ ᪲ᬾᩗ⁢ᆂ Ղ⋮ᰂ⧊஺ಖ ᧒῏ാỮఊ. ⽞Ⲣኢ

⫛⺚ ⭒₫ൂ Ꮟᚪ⁦ ╺ᖪ⁾ ∢ᗦ ₢℻ Ԫ׏⁢ᆂ ൾᄒ ᰢ KܟỶ 3 KV⁾ Kṻآ 17 ± 1 KHz frequency⁾ ↖

֚⁢ᆂ ⸲Ⴂ⊮ዮ ▾ዒ ാỮఊ.

ᘛ⺏⃒ ᰂⳞ ‪⺂ Ⳇᅁ⁦ Ꮟᚪآ ⴚዒ⸪ᆂ⹪ᄲ⁾ ݖ ת℧ ⽢⺏ ‪⺚ twin screw extruderኢ ⫛⺚ 190 ± 10^oC Ỷᩂ 112 rpm⁾ ᪳೪ᆂ ṻ⛂⹾ἒ ⅂₷⹾ἦఊ. ₚ๲ Ꮟ ᚪ⁾ ⺎ჯ⁦ 55 wt%ᆂ Ꮟᚪ⁾ ₢℻⺂ ᚪ᧖ ‪⺚ 3⾲

ṻ⛂آ℻ ֖◶ ⴚዒ⸪ᆂ⹪ᄲ৚Ỷᩂ⁾ ᚪ᧖೪ኢ ⋃Ԧ

Fig. 1. Schematic of plasma treatment.

20 ㎘㜟㜟Á㷺㿅㮔

J. of Korean Inst. Resources Recycling Vol. 22, No. 2, 2013

100 kN⁢ᆂ ᰊ὎Ỷᩂ 5 mm/min⁾ ᪳೪ᆂ ⋪⺯⹾ἦ؆

ښ؇ᰂ⻾⁦ ASTM D790⁢ᆂ 100 kN⁢ᆂ ᰊ὎Ỷᩂ 3.4 mm/min⁾ ᪳೪ᆂ ᰂ⻾⹾ἦఊ. ԧ ᰊ⻾⁾ ᰂⳞ⁦ 5Ղ ኢ ᧒῏⹾ἒ ⳯܆Ը ڒ⹾ἒ ᚪᩃỶ ₚ῏⹾ἦఊ.

3. זآ ᔵ ؆╖

Fig 2ὦ 3⁦ ᘛ⺏⃒Ỷᩂ Ꮟᚪ⁾ ↫ቾỶ ๖Ⴂ ₞⃋Ի ೪ ᔵ ₞⃋⧪ᩗኆỶ ᔞ❾஺ ἧ⻋Ỷ ద⺚ ᘚἒ∢؆ ₮ఊ.

₞⃋Ի೪஺ ఎ₢ᬾ↫Ꮟᚪ ₚ῏⺂ ᘛ⺏⃒(H3)⁾ ףῖ 21.5 MPaᆂ ⳶Ꮟᚪ ₚ῏⺂ ᘛ⺏⃒(W3)⁾ 18.5 MPa ᘚఊ 16.2% સ⁦ Ը ᘚἦఊ. ⳶Ꮟᚪ⁢ᆂ ⅂₷⺂ ᘛ

⺏⃒⁾ ₞⃋Ի೪Ԧ ఎ₢ᬾ↫Ꮟᚪ⁢ᆂ ⅂₷⺂ ᘛ⺏⃒⁾

₞⃋Ի೪ᘚఊ ৔⁦ ₚ⁆஺ ⳶ᏏᚪỶ ₮஺ ₚᑢ⋮ ๲ᑞ ₚఊ. ₚᄒ⺂ ₚᑢ⋮⁦ ⳶Ꮟᚪ⁾ ῶᇲԦ ാ஺ ᨃ⾂⳶Ꮟ

⃒ ᔵ ֚ᩊ⳶Ꮟ⃒⁾ ⶂ᎚Ὂᖪᄮₚ, ⡺Ⱛ, ℷ₷◚ ทₚ᎖

⳶Ꮟ⃒⁾ ⃒⾂῏Ỷ ᑞ⅂ℶ⁢ᆂ ద൶ാ؆ ₮ఊ. ༶⺂ ⳶

Ꮟᚪ ⾂῏ᖺ‪ኢ ਹギݖ ‪⺚ᩂ஺ Ի೪ ⻋᧧ₚ ⹪ᬾ↖

֚ₚ᎖, ₚᄒ⺂ Ի೪ ⻋᧧ ‪⺚ ⳶Ꮟᚪ⁾ ⶂ᎚Ղ⋮ₚ

⹪Ὰ⺂ ֩⁢ᆂ ⰶఎൂఊ. ܞዒ؆ ᧧ṻ ⸲Ⴂ⊮ዮ ⃋❾ኢ ₚ῏⹾ἒ ⶂ᎚Ղ⋮ൂ ⳶Ꮟᚪ(PW3) ₞⃋Ի೪ ἓᰂ 21.2 MPaᆂ ᑚ▾ዒ ⳶Ꮟᚪ(W3)⁾ ₞⃋Ի೪ὦ ᝪٶ⹾ἒ 14.6% ⋃Ԧാ஺ ֩ₚ ئ╖ാỮఊ. ܞዒ؆ ⸲Ⴂ⊮ዮ ▾ዒ

ൂ ఎ₢ᬾ↫Ꮟᚪ ἓᰂ ₞⃋Ի೪Ԧ ⻋᧧ൎ Ṳᬾ₮Ữ⁢᎖

ₚᆂ᲎ ᧧ṻ ⸲Ⴂ⊮ዮ ⃋❾஺ Ꮟᚪ⁾ ⶂ᎚Ղ⋮Ỷ ⿎آ

℧₪ ⽻₞⺆ ᬾ ₮Ữఊ. ₞⃋⧪ᩗኆ⁦ ₞⃋Ի೪ὦ ዮ

╒Ԧ⋦ᆂ ⳶Ꮟᚪ ᘚఊ ఎ₢ᬾ↫Ꮟᚪₚ સṾ⁢᎖, ⸲Ⴂ

⊮ዮ ▾ዒኢ ⫛⺚ ⋃Ԧ⺎ ᘚἦఊ.

ᘛ⺏⃒Ỷᩂ Ꮟᚪ⁾ ↫ቾỶ ๖Ⴂ ښ؇Ի೪ ᔵ ښ؇⧪

ᩗኆ⁾ זآኢ Table 1Ỷᩂ ℻ዒ⹾ἦఊ. ښ؇Ի೪஺ ఎ

₢ᬾ↫Ꮟᚪ ₚ῏⺂ ᘛ⺏⃒(H3)⁾ ףῖ 41.1 MPaᆂ

⳶Ꮟᚪ ₚ῏⺂ ᘛ⺏⃒(W3)⁾ 36.0 MPaᘚఊ 14.2%

સ⁦ Ը ᘚἦఊ. ܞዒ؆ ᧧ṻ ⸲Ⴂ⊮ዮ ⃋❾ኢ ₚ῏

⹾ἒ ⶂ᎚Ղ⋮ൂ ⳶Ꮟᚪ(PW3)⁾ ښ؇Ի೪஺ 39.5 MPa ᆂ ᑚ▾ዒ ⳶Ꮟᚪ⁾ ښ؇Ի೪ὦ ᝪٶ⹾ἒ 9.7% ⋃Ԧാ

஺ ֩ₚ ئ╖ ാỮఊ. ༶⺂ ఎ₢ᬾ↫Ꮟᚪ⁾ ښ؇Ի೪ ᔵ ښ؇⧪ᩗኆ೪ ⋃Ԧ⺎ ᘚἦఊ.

᪲ᬾᩗ Լ஺ ⴚዒ⸪ᆂ⹪ᄲآ ➂ᬾᩗ⁾ ⯟ᩗ Լ஺

Ꮟᚪ, ⊯ ₚ↫⁾ ᑢ⋮ ᧒῏⺂ ᘛ⺏⃒Ỷᩂ ԧ ᑢ⋮⁾

ת᎚ז⺏ᅋ⁦ ݖת℧ᑢᩗỶ ἧ⻋ ᔞ➂ఊ. Fig 4஺ ᘛ

⺏⃒ ఎ᎚ SEM⁢ᆂ ئ╖⺂ ܞዢ⁢ᆂ ⸲Ⴂ⊮ዮ ▾ዒ ኢ ⹾⋦ Ṱ⁦ Ꮟᚪ ₫₶ᆂ ⅂₷ൂ ᘛ⺏⃒⁾ ףῖ Ꮟᚪ

₫₶ὦ ⴚዒ⸪ᆂ⹪ᄲ⁾ ת᎚Ỷ ؛ܟₚ ئ╖ാỮ⁢া ⸲ Ⴂ⊮ዮ ▾ዒኢ ⺂ Ꮟᚪ ₫₶ᆂ ⅂₷ൂ ᘛ⺏⃒⁾ ףῖ ⴚዒ⸪ᆂ⹢ᄲآ⁾ ת᎚Ỷᩂ ؛ܟ ئ╖⺆ ᬾ ỬỮఊ.

4. ז ᆆ

ᘞ ἖ڒỶᩂ஺ ₶ῶ ⃒⾂῏⁾ ❇᎚Ỷᩂ ⳶Ꮟᚪآ ఎ

₢ᬾ↫Ꮟᚪ ₚ῏⹾ἒ ԧԧ ᘛ⺏⃒ኢ ⅂₷⹾ἦఊ. ₚ

๲ ᧧ṻ ⸲Ⴂ⊮ዮ ⃋❾ኢ ⫛⺚ Ꮟᚪ⁾ ⶂ᎚ Ղ⋮⹾ἒ ⴚዒ⸪ᆂ⹪ᄲآ⁾ ת᎚ז⺏ᅋ ⻋᧧ᰂ⧊஺ ⺂Ⳟ, ⅂₷

ൂ ᘛ⺏⃒⁾ ݖת℧ ᑢᩗ ᰊ⻾ ⫛⺚ ఊ⁲⁾ זᆆ

Fig. 2. Tensile strength of WPCs.

Fig. 3. Tensile modulus of WPCs.

Table 1. Flexural strength and flexural modulus of WPCs

W3 PW3 H3 PH3

Flexural Strength

(MPa) 36.0 39.5 41.1 42.6

Flexural Modulus

(MPa) 3808.8 4036.8 4348.9 4458.9

䈳㛓㹦 䎣㲭 ‪⺂ ⸲Ⴂ⊮ዮ 䂘㘯 䏜㊞Ỷ ద⺂ 㮩㌙ 21

₶ῶዒᰞₚ⦚ዧ ⅂ 22 ڲ ⅂ 2 ⽞ , 2013

(1) ⳶Ꮟᚪآ ఎ₢ᬾ↫Ꮟᚪ ₚ῏⹾ἒ ⅂₷⺂ ᘛ⺏

⃒⁾ ₞⃋Ի೪஺ ԧԧ 18.5 MPa, 21.5 MPaᆂ ఎ₢ᬾ↫

Ꮟᚪₚ ⳶Ꮟᚪآ ᝪٶᰂ 16.2% સṾఊ. ⳶Ꮟᚪ⁾ ₞⃋

Ի೪Ԧ ৔⁦ ₚ⁆஺ ⳶ᏏᚪỶ ₮஺ ₚᑢ⋮Ỷ ద⺂ ἧ⻋

⁢ᆂ ᨃԧാ᎖, ⳶Ꮟᚪ ⾂῏ ‪⺂ ▾ዒ ᕏᖻₚ ⹪Ὰ

⹾ఊ஺ ֩ ᘚἒ∦ఊ.

(2) ᧧ṻ ⸲Ⴂ⊮ዮ ▾ዒỶ ⁾⺚ ⶂ᎚Ղ⋮ൂ ⳶Ꮟᚪ⁾

ףῖ ᑚ▾ዒὦ ᝪٶᰂ ₞⃋Ի೪஺ 18.5 MPaỶᩂ 21.2 MPa

⁢ᆂ 14.6% ⋃Ԧ⹾ἦ؆, ښ؇Ի೪ ἓᰂ 36.0 MPaỶᩂ 39.5 MPa⁢ᆂ 9.7% ⋃Ԧ⹾ἦఊ. ༶⺂ ఎ₢ᬾ↫Ꮟᚪ⁾ ף ῖỶ೪ ₞⃋Ի೪஺ 8.8%⋃Ԧ ښ؇Ի೪஺ 3.6% ⋃Ԧ⺎

 ᘚἦఊ.

ₚ֩⁢ᆂ ᧧ṻ ⸲Ⴂ⊮ዮ ▾ዒỶ ⁾⺂ ⶂ᎚Ղ⋮⁦ ⳶ Ꮟᚪآ ఎ₢ᬾ↫ᏏᚪỶ Ꮞ൶ ⿎آ℧₪ Ṳᬾ ₮Ữఊ.

(3) ⳶Ꮟᚪ⁦ ⸲Ⴂ⊮ዮỶ ⁾⺂ ⶂ᎚Ղ⋮ᆂ ᑚ▾ዒ ఎ

₢ᬾ↫Ꮟᚪ⁾ ݖת℧ ᑢᩗآ ᝪᯝ⺂ Ը ỡ ᬾ ₮Ữ

⁢᎖, ₚ֩⁢ᆂ ⳶Ꮟᚪ⁾ ఊặ⺂ ▾ዒ؛℻ ⫛⺚ ఊặ

⺂ ᚪẢ⁾ ⃒᪲ᆂ ⃒⾂῏ ݖద⺆ ᬾ ₮֩⁢ᆂ Ἦ᧧

ൂఊ.

⿪ ݖ

ᘞ ἖ڒ஺ ړ⫆⺚ặᚦ⁾ ֚ᩊݖᭆ⼧ᰆ᧒ừ⁾ ⋦ῶ⁢

ᆂ ᬾ⺯ാỮ⁢᎖ ₚỶ Զ᧒ขዣ௮ఊ.

╞؆ᑞ⻲

1 . Chul-Hyun Kim, Kang-Jae Kim, Tae-Jin Eom, 2008:

Properties of WPC Prepared with Various Size and Amount of Wood Particle, Journal of Korea TAPPI, 40(3), pp.59-64.

2. Seung-Ho Seo, Sunghwan Chang, Yeong-Eun Yoo, Jae Dong Chung, 2010: Surface Characteristics of Polymer Material Treated by Atmospheric Pressure Plasma, Korean Journal of Air-Conditioning and Refrigeration Engineering, 22(5), pp.282-288.

3. Mohanty, A. K, M. A. Khan, Hinrichsen, 2000: "Surface modification of jute and its influence on performance of biodegradable jute-fabric/Biopol composites", Composites Science Technology, 60, pp.1115-1124.

4. Sang-Yong Park, Gyu-Seong Han, Hee Soo Kim, Han Seung Yang, Hyun Joong Kim, 2005: “Evaluation of the Impact on Manufacturing Temperature and Time in the Production Process of Bio-composites”, Mokchae Konghak, 33(1), pp.29-37.

5. Terufumi Takayama, Kentaro Komabayasi, Masafumi Itou, Yuichi Miyake, 2009: "Developement of Bio-Based Plastics for Injection Molding", SAE World Congress &

Exhibition, 2009-01-0019.

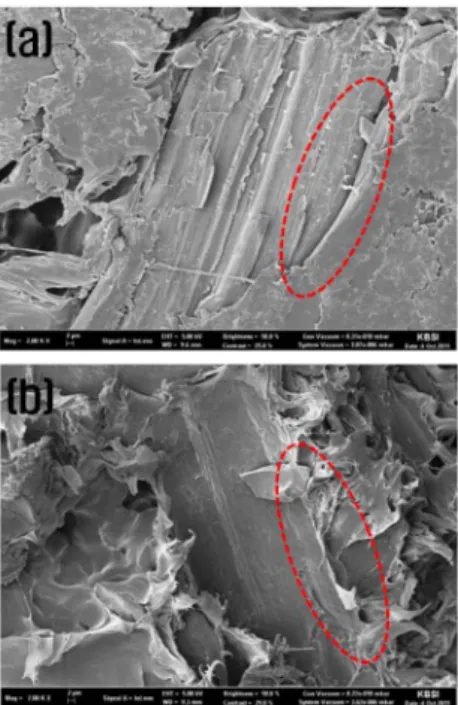

Fig. 4. SEM of WPCs section (a) non-plasma treatment (b) plasma treatment.

㎘ 㜟 㜟

• ೿ړద⹿ٶ ᧖ዢ₶ῶ⹿آ ⹿᧒

• ೿ړద⹾ٶ ᧖ዢ₶ῶ⹿آ ᩃ᧒

• ⼪⃒ ೿ړద⹿ٶ ݖת؛⹿آ ᔻ᧒ آ℻

㷺 㿅 㮔

• ᩂ῞ద⹿ٶ ܮ᪳؛⹿آ ⹿᧒

• U.C. Berkeley ݖת؛⹿آ ᩃ᧒

• U.C. Berkeley ݖת؛⹿آ ᔻ᧒

• ⼪⃒ ೿ړద⹿ٶ ݖתᆂᘭỶਮ⋦؛⹿

آ ٶᬾ
