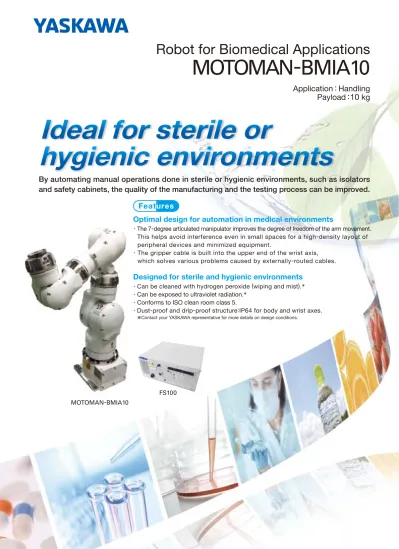

MOTOMAN-BMIA10

FS100

Application : Handling Payload : 10 kg

Robot for Biomedical Applications

MOTOMAN - BMIA10

By automating manual operations done in sterile or hygienic environments, such as isolators and safety cabinets, the quality of the manufacturing and the testing process can be improved.

Ideal for sterile or

hygienic environments

The 7-degree articulated manipulator improves the degree of freedom of the arm movement.

This helps avoid interference even in small spaces for a high-density layout of peripheral devices and minimized equipment.

The gripper cable is built into the upper end of the wrist axis, which solves various problems caused by externally-routed cables.

Optimal design for automation in medical environments Features

Can be cleaned with hydrogen peroxide (wiping and mist). *

Can be exposed to ultraviolet radiation. *

Conforms to ISO clean room class 5.

Dust-proof and drip-proof structure:IP64 for body and wrist axes.

Designed for sterile and hygienic environments

*

Contact your YASKAWA representative for more details on design conditions.

(2)

Model Type Controlled Axis Payload

Mass Clean Class*2 Protective Enclosure

MOTOMAN-BMIA10 YR-BMIA010-A00 7 (Vertically articulated)

10 kg

±0.1 mm

170°∼+170°

110°∼+110°

170°∼+170°

135°∼+135°

180°∼+180°

110°∼+110°

180°∼+180° 2.97 rad/s, 170°/s 2.97 rad/s, 170°/s 2.97 rad/s, 170°/s 2.97 rad/s, 170°/s 3.49 rad/s, 200°/s 3.49 rad/s, 200°/s 6.98 rad/s, 400°/s

31.4 Nm 31.4 Nm 19.6 Nm 1.0 kgm2 1.0 kgm2 0.4 kgm2 60 kg ISO class 5 Base : IP54, Body and Wrist: IP64

0˚C to 40˚C 20 to 80 max. (non-condensing)

4.9 m/s2 or less Floor, wall, ceiling

1.0 kVA

MOTOMAN - BMIA10

Manipulator Specifications

Robot for Biomedical Applications

Range of Motion

Maximum Speed

Allowable Moment Allowable Inertia (GD2/4)

Ambient Conditions

S-axis (lifting) L -axis (lower arm) E-axis (elbow twist) U-axis (upper arm) R-axis (upper arm twist) B -axis (wrist pitch/yaw) T-axis (wrist twist) S-axis (lifting) L -axis (lower arm) E-axis (elbow twist) U-axis (upper arm) R-axis (upper arm twist) B -axis (wrist pitch/yaw) T-axis (wrist twist) R-axis (upper arm twist) B -axis (wrist pitch/yaw) T-axis (wrist twist) R-axis (upper arm twist) B -axis (wrist pitch/yaw) T-axis (wrist twist)

Ambient Temperature Relative Humidity Vibration Acceleration Mounting*3 Others Repeatability*1

Power Requirements*4

Manipulator

Items Specifications

Dimensions Units: mm : P-point Maximum Envelope

Items Specifications

Configuration Dimensions Mass Cooling System Ambient Temperature Relative Humidity Power Supply Grounding Digital l/Os Positioning System Programming Capacity Expansion Slots LAN (Connection to Host) Interface Control Method

Drive Units

Painting Color

Standard: IP20 (open structure) 470 (W)×420 (D)× 200 (H) mm (Does not include protruding parts.) (Possible to control two external axes.) 20 kg

Direct cooling

During operation : 0 ˚C to +40 ˚C During storage : 10 ˚C to +60 ˚C 90% max. (non-condensing)

Three-phase 200/220 VAC (+10% to 15%), 50/60 Hz Grounding resistance: 100 Ω or less

Specialized signals: 10 inputs and 1 output General signals: 28 inputs and 28 outputs Max. I/O (optional): 1024 inputs and 1024 outputs By serial encoder

JOB: 10,000 steps, 1,000 instructions CIO ladder: 1,500 steps max.

MP2000 bus × 5 slots 1 (10BASE-T/100BASE-TX) RS-232C: 1ch

Software servo control

For robot axes: One drive unit for AC servo with 4 to 6 axes (depend on the type)

For external axes: Two more axes can be added.

(Can be installed in the controller.) Munsell notation N9.7

Type Dimensions Mass Material

Operation Device

Display

IEC Protection Class Cable Length

JZRCR-YPP03-1

169W)×50D)×314.5H mm (Does not include protruding parts.) 0.990 kg

Reinforced plastics Select keys, axis keys (8 axes),

numerical/application keys, Mode switch with key (mode: teach, play, and remote), emergency stop button, enable switch, compact flash card interface device (compact flash is optional.), USB port (1 port) 640×480 pixels color LCD, touch panel (Alphanumeric characters, Chinese characters, Japanese letters, others) IP65

Standard: 8 m, optional: 20 m max.

A programming pendant or a dummy connector is required with the FS100. (Sold separately.)

Programming pendant (model: JZRCR-YPP03-1) For maintenance, the programming pendant is required. One programming pendant can be used with more than one controller.

Dummy connector (model: CBL-FRC063-2) The dummy connector must be inserted when the programming pendant is not connected or when the software pendant is used.

Note:

FS100 ControllerProgramming Pendant

( optional

)

Specifications are subject to change without notice for ongoing product modifications and improvements.

© 2016 YASKAWA ELECTRIC CORPORATION

LITERATURE NO. CHEP C94035107A <0>-0 Published in Japan December 2016

In the event that the end user of this product is to be the military and said product is to be employed in any weapons systems or the manufacture thereof, the export will fall under the relevant regulations as stipulated in the Foreign Exchange and Foreign Trade Regulations. Therefore, be sure to follow all procedures and submit all relevant documentation according to any and all rules, regulations and laws that may apply.

Sales Department HEAD OFFICE

2-1 Kurosaki-Shiroishi, Yahatanishi-ku, Kitakyushu, Fukuoka 806-0004, Japan Phone: +81-93-645-7703 Fax: +81-93-645-7802

YASKAWA America, Inc. (Motoman Robotics Division) 100 Automation Way, Miamisburg, OH 45342, U.S.A.

Phone: +1-937-847-6200 Fax: +1-937-847-6277

YASKAWA Europe GmbH (Robotics Division) Yaskawastrasse 1, 85391, Allershausen, Germany Phone: +49-8166-90-100 Fax: +49-8166-90-103 YASKAWA Electric Korea Corporation

35F, Three IFC, 10 Gukjegeumyung-ro, Yeongdeungpo-gu, Seoul, Korea 07326 Phone: +82-2-784-7844 Fax: +82-2-784-8495

Note: SI units are used for specifications.

*

1: Conforms to ISO 9283.

*

2: Conforms to ISO 14644 standards.

*

3: Wall and ceiling mounting is optional.

*

4: Varies in accordance with applications and motion patterns.

Free from corrosive gas or liquid, or explosive gas or liquid Free from excessive electrical noise (plasma)

P-POINT T

B

U

L S

E R

0 1255 1203

P-POINT

7200

0 R702

R276

R360
