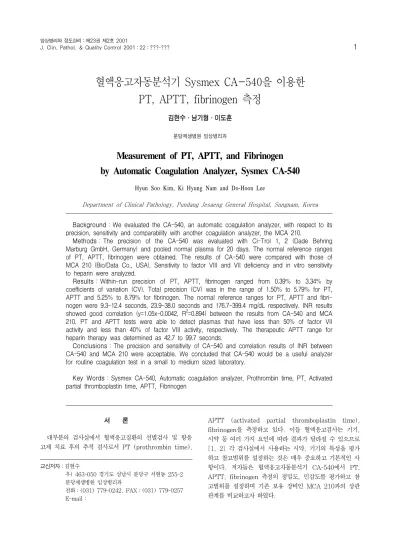

혈액응고자동분석기 Sysmex CA-540을 이용한 PT, APTT, fibrinogen 측정
김현수․남기형․이도훈
분당제생병원 임상병리과
Measurement of PT, APTT, and Fibrinogen by Automatic Coagulation Analyzer, Sysmex CA-540
Hyun Soo Kim, Ki Hyung Nam and Do-Hoon Lee
Department of Clinical Pathology, Pundang Jesaeng General Hospital, Sungnam, Korea
Background:We evaluated the CA-540, an automatic coagulation analyzer, with respect to its precision, sensitivity and comparability with another coagulation analyzer, the MCA 210.
Methods:The precision of the CA-540 was evaluated with Ci-Trol 1, 2 (Dade Behring Marburg GmbH, Germany) and pooled normal plasma for 20 days. The normal reference ranges of PT, APTT, fibrinogen were obtained. The results of CA-540 were compared with those of MCA 210 (Bio/Data Co., USA). Sensitivity to factor VIII and VII deficiency and in vitro sensitivity to heparin were analyzed.
Results:Within-run precision of PT, APTT, fibrinogen ranged from 0.39% to 3.34% by coefficients of variation (CV). Total precision (CV) was in the range of 1.50% to 5.79% for PT, APTT and 5.25% to 8.79% for fibrinogen. The normal reference ranges for PT, APTT and fibri- nogen were 9.3-12.4 seconds, 23.9-38.0 seconds and 176.7-399.4 mg/dL respectively. INR results showed good correlation (y=1.05x-0.0042, R
2=0.894) between the results from CA-540 and MCA 210. PT and APTT tests were able to detect plasmas that have less than 50% of factor VII activity and less than 40% of factor VIII activity, respectively. The therapeutic APTT range for heparin therapy was determined as 42.7 to 99.7 seconds.
Conclusions:The precision and sensitivity of CA-540 and correlation results of INR between CA-540 and MCA 210 were acceptable. We concluded that CA-540 would be a useful analyzer for routine coagulation test in a small to medium sized laboratory.
Key Words:Sysmex CA-540, Automatic coagulation analyzer, Prothrombin time, PT, Activated partial thromboplastin time, APTT, Fibrinogen
교신저자:김현수
우) 463-050 경기도 성남시 분당구 서현동 255-2 분당제생병원 임상병리과
전화:(031) 779-0242, FAX:(031) 779-0257 E-mail:
서 론
대부분의 검사실에서 혈액응고질환의 선별검사 및 항응 고제 치료 후의 추적 검사로서 PT (prothrombin time),
APTT (activated partial thromboplastin time),
fibrinogen을 측정하고 있다. 이들 혈액응고검사는 기기,
시약 등 여러 가지 요인에 따라 결과가 달라질 수 있으므로
[1, 2] 각 검사실에서 사용하는 시약, 기기의 특성을 평가
하고 참고범위를 설정하는 것은 매우 중요하고 기본적인 사
항이다. 저자들은 혈액응고자동분석기 CA-540에서 PT,
APTT, fibrinogen 측정의 정밀도, 민감도를 평가하고 참
고범위를 설정하며 기존 보유 장비인 MCA 210과의 상관
관계를 비교하고자 하였다.
Table 1. Precision of PT, APTT, and fibrinogen measurement by CA-540 and its reagents
Mean Within-run CV(%)
Total CV(%)
PT(sec) Ci-Trol 1 12.01 1.27 2.86
Ci-Trol 2 36.89 1.62 5.79
Pooled
plasma 10.24 0.79 3.01
APTT(sec) Ci-Trol 1 36.70 0.39 1.78
Ci-Trol 2 65.02 0.51 1.50
Pooled
plasma 32.63 1.03 4.27
Fibrinogen Ci-Trol 1 247.0 3.34 6.31
(mg/dL) Ci-Trol 2 217.8 2.75 8.79
Pooled
plasma 330.3 1.71 5.25
재료 및 방법 1. 기기 및 시약
Sysmex CA-540 (Sysmex Co., Japan)은 광학적 응 고법(photo-optical clotting method)의 원리를 이용한 기기로 검체와 시약의 혼합액에 파장 660 nm의 빛을 투과 시켜 fibrinogen이 fibrin으로 변하는 과정에서 산란되는 빛의 양의 변화를 감지함으로써 PT, APTT, fibrinogen을 측정한다. CA-540의 PT, APTT, fibrinogen 검사용 시 약은 Thromborel S (ISI=1.05, Dade Behring Mar- burg GmbH, Germany), Actin (Dade Behring Mar- burg GmbH, Germany), Thrombin reagent (Dade Behring Marburg GmbH, Germany)를 이용하였다. 기 존에 사용하고 있는 장비인 MCA 210 (Bio/Data Co., USA)과 PT, APTT, fibrinogen 결과를 비교하였는데 MCA 210의 PT, APTT 시약으로 Plastinex (ISI=
1.61, Bio/Data Co., USA), Cephalinex (Bio/Data Co., USA)를 사용하였고, fibrinogen은 PT 유도법(PT-deri- ved method, kinetic fibrinogen assay)[3]으로 측정하 였다.
2. 검사 및 평가 1) 정밀도 평가
CA-540으로 측정되는 PT, APTT, fibrinogen의 정밀 도를 평가하기 위하여 정상혼주혈장(pooled normal pla- sma)과 정도관리물질 Ci-Trol level 1, 2 (Dade Behr- ing Marburg GmbH, Germany)를 이용하였다. 오전, 오후 2회(two separate run), 각각 2번씩 반복 검사하여 20일간 측정 후 NCCLS EP5-A[4]에 따라 검사내 정밀 도(within run precision) 및 총 정밀도(total preci- sion)를 구하였다.
2) PT, APTT, fibrinogen의 검사실 참고치 설정
검사실 직원 20명과 건강검진환자 120명의 혈장으로 PT, APTT, fibrinogen의 정상참고범위를 구하였다. 측정 성적의 하한치 2.5%와 상한치 2.5%를 제외한 95%의 성 적으로 참고범위를 산정하였으며 Microsoft Excel 프로그 램을 이용하였다.
3) 혈액응고인자 결핍의 검출 한계 측정
제 7혈액응고인자 결핍혈장(Dade Behring Marburg GmbH, Germany)을 정상혼주혈장과 혼합하여 혈액응고 인자의 활성도가 100%, 90%, 80%, 70%, 60%, 50%, 40%, 30%, 20%, 10%가 되도록 한 후, 각 농도에서의 PT를 1회씩 측정하였다. 같은 방법으로 제 8혈액응고인자 결핍혈장(Dade Behring Marburg GmbH, Germany)을 정상혼주혈장과 혼합한 후 APTT를 측정하였다. 혈액응고
인자 결핍의 검출 한계는 PT와 APTT 결과가 참고범위를 벗어날 때의 혈액응고인자 활성도로 정하였다.
4) 헤파린에 대한 민감도 측정
헤파린 농도가 0 U/mL에서 1.0 U/mL까지 0.1 U/mL 간격이 되도록 정상혼주혈장에 헤파린을 첨가한 후 각 농도 에서의 APTT를 1회씩 측정하였다.
5) MCA 210과의 상관관계 비교
PT, APTT, fibrinogen 검사가 의뢰된 검체 중 정상과 비정상 결과가 골고루 포함되도록 140검체를 선별하여 측 정하였다. CTAD (0.109M sodium citrate, theophy- lline, adenosine, dipyridamole) 항응고제가 들어 있는 진공채혈관(Becton Dickinson Vacutainer Systems, USA)에 혈액을 채혈, 상층의 혈장을 분리하여 MCA 210 및 CA-540 두 기기로 거의 동시에 측정하였다.
결 과 1. 정밀도 평가
검사내 정밀도는 변이계수가 0.39%에서 3.34% 범위로 비교적 양호한 결과를 보였다. 총 정밀도는 PT, APTT가 1.50%에서 5.79%, fibrinogen은 5.25%에서 8.79% 범 위로 나타났다(Table 1).
2. PT, APTT, fibrinogen의 검사실 참고치 설정
정상인 140명을 대상으로 측정한 참고치는 PT 9.3-
12.4 초, INR 0.84-1.14, APTT 23.9-38.0 초, fibri-
nogen 176.7-399.4 mg/dL 이었다.
Table 2. Factor VII sensitivity of PT measurement by CA-540 and its reagents Factor VII
activity (%) 100 90 80 70 60 50 40 30 20 10
PT (sec) 11.4 11.6 11.8 12.1 12.4 13.0 13.8 14.6 15.9 19.8
Table 3. Factor VIII sensitivity of APTT measurement by CA-540 and its reagents Factor VIII
activity (%) 100 90 80 70 60 50 40 30 20 10
APTT (sec) 30.4 31.2 32.2 33.8 35.2 37.1 40.3 43.3 49.2 58.6
Table 4. In vitro heparin sensitivity of APTT measurement by CA-540 and its reagents
Heparin conc.(U/mL) 0.0 0.1 0.2 0.3 0.4 0.5 0.6
APTT (sec) 32.7 33.9 42.7 60.0 99.7 159.2 >180
Fig. 1. Comparison of PT, APTT and fibrinogen by CA-540 and MCA 210
y = 1.8518x - 9.8737R2 = 0.8992
0 10 20 30 40 50 60
0 10 20 30 40
PT (sec; MCA 210)
P T (se c ; CA-540)
y = 1.0518x - 0.0042 R2 = 0.894
0 1 2 3 4 5 6
0 1 2 3 4 5 6
INR (MCA 210)
INR (CA-540)
y = 0.8098x + 6.482 R2 = 0.8075
0 20 40 60 80 100
0 20 40 60 80 100 120
APTT (sec; MCA 210)
AP TT ( s e c ; CA- 540)
y = 0.7748x + 77.639 R2 = 0.8092
0 100 200 300 400 500 600 700
0 200 400 600 800
Fibrinogen (mg/ dL; MCA 210)
