4.5 등조성선 연구
4.5.1 등조성선 연구의 예 1(공정점)

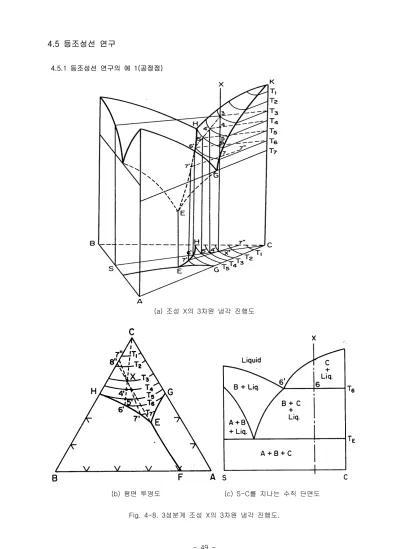

(a) 조성 X의 3차원 냉각 진행도
㉮ T3~T6 범위
① T4 ② T5 ③ T6
상의 비 상의 조성
상의 비 상의 조성
상의 비 상의 조성
액상 고상 액상 고상 액상 고상
㉯ T6~ E 범위
④ T7 ⑤ T8+
상의 비
상의 조성
상의 비
상의 조성
액상 결정상 액상 결정상
㉰ E ~ 상온 범위
⑥ T8- ⑦ 상온
상의 비
상의 조성
상의 비
상의 조성
공정조성
→결정상 결정상 결정상
냉각진행 : X→4'→5'→6'→7'→E
4.5.2 알케메이드선
Fig. 4-9. 3성분계의 알케메이드선.
Alkemade line : 공통경계선을 가진 두 영역들의 초정들의 조성점을 연결한 직선
A-B B-C : 영역 b와 c가 이웃하지 않으므로 A-C 공통경계선 조건에 만족치 않음
Alkemade Line
In a ternary phase diagram a straight line connecting the composition points of two primary phases whose areas are adjacent and the intersection of which forms a boundary curve.
Alkemade (Van Rijn van Alkemade) Theorem
The direction of falling temperature on the boundary curve of two intersecting primary phase areas is always away from the Alkemade line. If the Alkemade line intersects the boundary curve, the point of intersection represents a temperature maximum on the boundary curve. If the Alkemade line does not intersect the boundary curve, then the maximum on the boundary curve is represented by that end which if prolonged would intersect the Alkemade line.
Fig. 4-10. A-B-C 3성분계의 알케메이드선.
4.5.3 등조성선 연구의 예2 (공정점-미세구조)
Fig. 4-11. Di-An-Fo 3성분계 상평형도
