Modified Gaussian Filter based on Fuzzy Membership
Function for AWGN Removal in Digital Images
Bong-Won Cheon1 and Nam-Ho Kim2* , Member, KIICE
1Department of Smart Robot Convergence and Application Engineering, Pukyong National University, Busan 48513, Republic of Korea 2Department of Control and Instrumentation Engineering, Pukyong National University, Busan 48513, Republic of Korea
Abstract
Various digital devices were supplied throughout the Fourth Industrial Revolution. Accordingly, the importance of data processing has increased. Data processing significantly affects equipment reliability. Thus, the importance of data processing has increased, and various studies have been conducted on this topic. This study proposes a modified Gaussian filter algorithm based on a fuzzy membership function. The proposed algorithm calculates the Gaussian filter weight considering the standard deviation of the filtering mask and computes an estimate according to the fuzzy membership function. The final output is calculated by adding or subtracting the Gaussian filter output and estimate. To evaluate the proposed algorithm, simulations were conducted using existing additive white Gaussian noise removal algorithms. The proposed algorithm was then analyzed by comparing the peak signal-to-noise ratio and differential image. The simulation results show that the proposed algorithm has superior noise reduction performance and improved performance compared to the existing method.
Index Terms: Image processing, Fuzzy membership function, Noise removal, AWGN
I. INTRODUCTION
Image noise occurs for various reasons during data acqui-sition and transmission processes. This noise affects the sys-tem performance; image processing techniques are combined for various purposes. Image processing is widely used in areas such as image analysis, computer vision, and autono-mous driving vehicles. Filtering is used as a preprocessing technique to remove the noise in images for better image recognition or to improve image quality [1-6].
Additive white Gaussian noise (AWGN) is a typical noise type generated during a data communication process, named that for the characteristic that thermal noise ruins cation systems [7-9]. AWGN is generated in most communi-cation systems and all frequency bandwidths; it is the most considered noise in the noise removal process. Various
stud-ies have been conducted to remove AWGN using approaches such as the average filter (AF), edge detection wiener filter (EDWF), and fuzzy logic-based filter (FLBF) [10-12]. How-ever, existing filters have a drawback in that information is damaged when noise is removed if there are too many edge components [13-16].
This study proposes a modified Gaussian filter algorithm that calculates its output using an estimate according to the standard deviation of pixels inside the filtering mask, the input image, and fuzzy membership function [17-20]. The proposed algorithm determines a Gaussian filter coefficient according to the standard deviation, and an estimate is calcu-lated according to the membership degree after setting the fuzzy membership function. The final output is calculated by adding or subtracting the Gaussian filter output, and an esti-mate is obtained using the fuzzy membership function.
weight according to the pixel value. The membership func-tion classifies images into VD (very dark), DK (dark), MD (mid), BR (bright), and VB (very bright) according to the pixel value based on an 8-bit gray image.
The membership function in fuzzy logic refers to the membership grade for each element of the fuzzy set. The proposed algorithm calculates the fuzzy membership func-tion using a quadratic funcfunc-tion based on the maximum, min-imum, and mean values of all pixel values in the image.
(2)
(3)
(4)
(5)
(6)

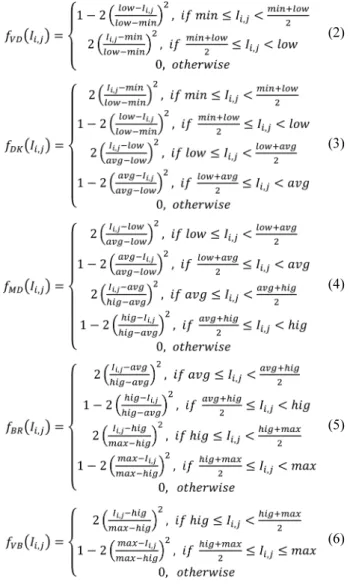

Fig. 1 shows the membership function in the proposed algorithm.
The membership function is expressed as fα(Ii,j) and fβ(Ii,j). Here, α and β refer to the membership functions to which Ii,j belongs.
An estimate is calculated using the pixel values of the fil-tering mask and membership function. When the member-ship functions of the input pixel values are fα(Ii,j) and fβ(Ii,j), the estimates and βi,j of the functions can be obtained by the convolution of the filtering mask and fuzzy member-ship function as follows:
(7)
(8)
(9)
(10)
Here, ai,j and bi,j refer to the sums of the membership functions used in the convolution.
The fuzzy output hi,j, which is calculated using the esti-mate of the membership function, is as follows:
(11) αˆi j,
Fig. 2 shows the fuzzy membership function value, and Fig. 3 presents an example of the calculation of an estimate of the fuzzy membership function.
To determine the final outcome, the standard deviation of the filtering mask was calculated. The standard deviation θai,j of the filtering mask, which is set in coordinates i,j is as follows:
(12)
Here, Mi,j refers to the mean of filtering mask Mi,j. When filtering is progressed up to the coordinate i,j, assuming that the mean of the standard deviations calculated up to that coordinate is δi,j, the weight Gi,j(x, y) of the Gaussian filter is calculated as follows:
(13) (14)
The output gi,j of the Gaussian filter is calculated by the convolution of the filtering mask and Gaussian filter weight
as follows:
(15) The weight was calculated to compute the final output of the filter. The weight ωi,j is calculated by comparing θi,j and δi,j as follows:
(16)
Here, the function max[A, B] compares A and B and out-puts the larger of the two. γ is a constant that determines weight. Because the value of γ is larger, it shows better noise removal performance in images with strong noise.
The final output Oi,j is calculated by adding or subtracting the fuzzy output and Gaussian output according to the weight.
(17) Fig. 4 shows the flowchart of the proposed algorithm.
III. SIMULATION AND RESULTS
In this study, the Baboon, Barbara, and Goldhill images, which are 512 × 512 sized 8-bit gray images damaged by AWGN with σ = 10, as shown in Fig. 5, were simulated using MATLAB. Additionally, the performance of the pro-posed algorithm was compared with the existing AF, EDWF, and FLBF using different images and PSNR [21-23].
Each filter was processed with a 3×3 mask with n = 1, and Fig. 2. Example of fuzzy membership function.
Fig. 3. Membership function output calculation.
based on the simulation results under various conditions, the proposed algorithm showed the best performance when γ = 0.8. The differential image was calculated by applying the absolute value and multiple of four to the pixel value dif-ference between the two images to distinctively compare the filtering results with the original image.

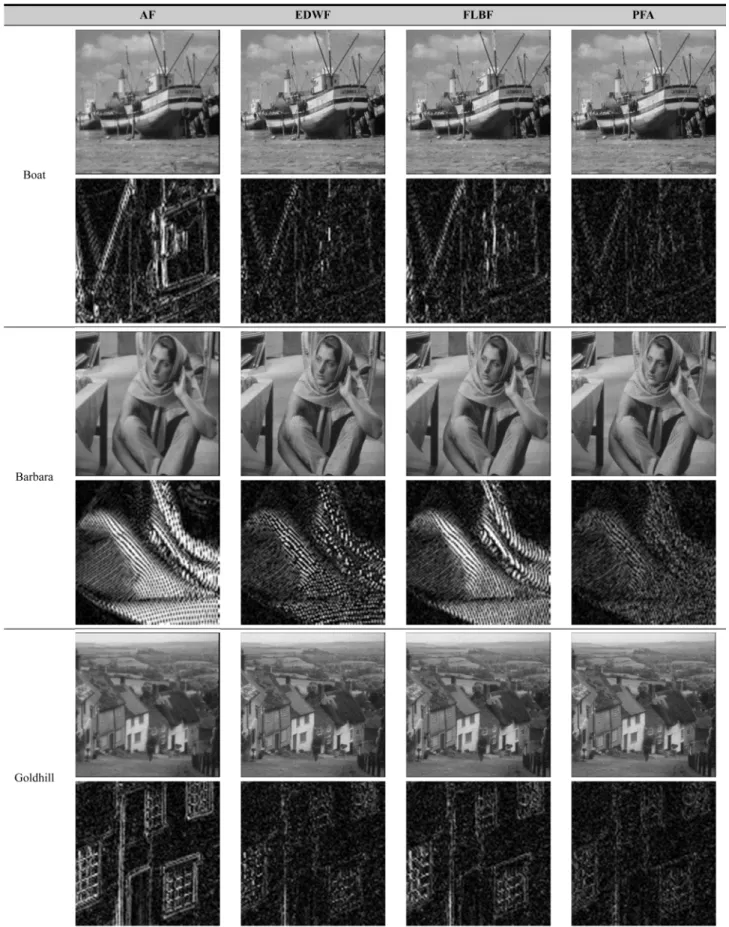

Fig. 6 shows the results processed with AF, EDWF, FLBF, and the proposed filter algorithm (PFA) on the Boat, Bar-bara, and Goldhill images as well as the differential images. Tables 1 to 3 present the PSNR of the simulation results according to the standard deviation of AWGN.
The results processed with AF showed that a differential image was significantly displayed in the boundaries of the image, particularly in the mast and boundaries of the boat image and stripe areas in the Barbara image, resulting in poor performance.
The results processed with EDWF demonstrated that supe-rior performance was displayed in the images for which the
standard deviation of AWGN was relatively low; however, the PSNR comparison results showed that as the standard deviation increased, the noise removal performance was sig-nificantly degraded.
The results processed with FLBF demonstrated that excel-lent noise removal performance was displayed in images where the image pixel value was not significantly changed, but a differential image was displayed in areas where the edge components were strongly displayed, resulting in rela-tively poor performance.
The results processed using the proposed algorithm showed that a sharp picture was verified compared to other existing methods, and the differential image was smaller even in the edge components where the pixel value was sig-nificantly changed, removing the AWGN.
The proposed algorithm produced 31.75 [dB] in the Boat image damaged by AWGN whose standard deviation was σ = 10, and the noise was improved by 2.79 [dB], 0.85 [dB], and 2.55 [dB] compared to AF, EDWF, and FLBF, respec-tively. The proposed algorithm produced 29.07 [dB] in the Barbara image, which improved the noise by 4.09 [dB], 2.43 [dB], and 4.15 [dB] compared to each existing method, respectively. In the Goldhill image, the noise was 31.95
AWGN [σ] Barbara image [dB] AF EDWF FLBF PFA 5 25.16 27.00 25.10 30.32 10 24.98 26.64 24.92 29.07 15 24.69 26.00 24.61 27.80 20 24.35 25.00 24.24 26.57 25 23.91 23.50 23.79 25.38
Table 3. PSNR comparison of Goldhill image AWGN [σ] Goldhill image [dB] AF EDWF FLBF PFA 5 30.84 31.96 31.01 33.57 10 30.21 31.03 30.25 31.95 15 29.36 29.62 29.28 30.26 20 28.35 27.54 28.20 28.56 25 27.40 25.22 27.20 27.12

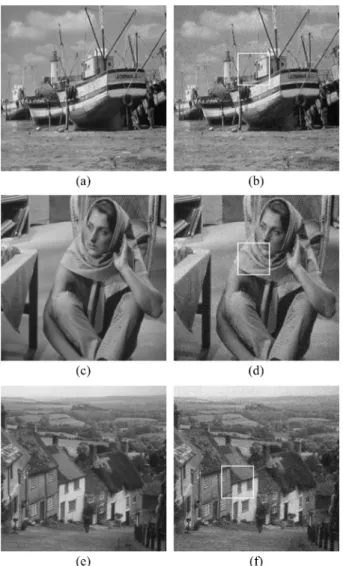

Fig. 5. Test image: (a) boat image, (b) noisy boat image, (c) barbara image, (d) noisy barbara image, (e) goldhill image, (f) noisy goldhill image.
values. The final output was obtained by adding or subtract-ing the output of the space weight filter and estimation.
The simulation results demonstrated that the proposed algorithm showed excellent performance, and the compari-son results of the differential image and PSNR verified its superior characteristics.
The proposed algorithm is expected to be implemented effectively in areas that require precise noise removal.
