Two New Records of Histerid Beetles (Coleoptera: Histeridae) from Korea

Genus Niponius Lewis, 1885 is a monotypic genus belonging to subfamily Niponiinae Fowler, 1912. They are known as predators of bark beetles (Ôhara, 1994; Caterino and Vogler, 2002; Khanday et al., 2018). Lewis (1885) firstly erected the genus Niponius as one of genera of family Histeridae. Fowler (1912) separated them from Histeridae as family Niponiidae, however Gardner (1935) regarded them as a subfamily of Histeridae, based on morphology of adults and larvae. A total of 24 species present worldwide, most of them are distributed in Oriental and Palaearctic region, including four Japanese species (Mazur, 2011; Lackner et al., 2015). Only one species, Niponius osorioceps Lewis, is known from Korea (Lee et al.,

2012).

Genus Gnathoncus Jacquelin du Val, 1858 is one of genera belonging to subfamily Saprininae Blanchard, 1845. They are known as inquiline group, especially living in nests of birds and eating larvae of fleas (Kryzhanovskij and Reichardt, 1976;

Lackner, 2010). Gnathoncus was firstly classified as a member of saprinine histerids by Marseul (1862) and consistently treated as a genus of Saprininae (Bickhardt, 1910; Reichardt, 1941; Kryzhanovskij and Reichardt, 1976; Vienna, 1980;

Ôhara, 1994; Lackner, 2010). This group is mainly distributed in Holarctic region, including three Japanese species (Mazur, 2011; Lackner et al., 2015). Until now, no species have been reported from Korea.

In this study, we recognized two new records of histerid beetles: Niponius impressicollis Lewis, 1885 and Gnathoncus

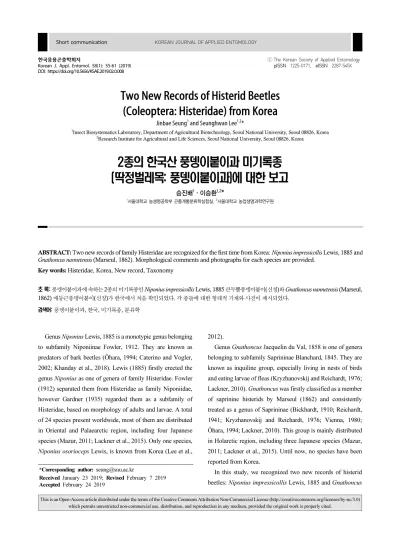

Short communication KOREAN JOURNAL OF APPLIED ENTOMOLOGY

한국응용곤충학회지 ⓒ The Korean Society of Applied Entomology

Korean J. Appl. Entomol. 58(1): 55-61 (2019) pISSN 1225-0171, eISSN 2287-545X

DOI: https://doi.org/10.5656/KSAE.2019.02.0.008

Two New Records of Histerid Beetles (Coleoptera: Histeridae) from Korea

Jinbae Seung

and Seunghwan Lee

*

1

Insect Biosystematics Laboratory, Department of Agricultural Biotechnology, Seoul National University, Seoul 08826, Korea

2

Research Institute for Agricultural and Life Sciences, Seoul National University, Seoul 08826, Korea

2종의 한국산 풍뎅이붙이과 미기록종 (딱정벌레목: 풍뎅이붙이과)에 대한 보고

승진배

ㆍ이승환

*

1서울대학교 농생명공학부 곤충계통분류학실험실, ²서울대학교 농업생명과학연구원

ABSTRACT: Two new records of family Histeridae are recognized for the first time from Korea: Niponius impressicollis Lewis, 1885 and Gnathoncus nannetensis (Marseul, 1862). Morphological comments and photographs for each species are provided.

Key words: Histeridae, Korea, New record, Taxonomy

초 록 : 풍뎅이붙이과에 속하는 2종의 미기록종인 Niponius impressicollis Lewis, 1885 큰두뿔풍뎅이붙이(신칭)와 Gnathoncus nannetensis (Marseul, 1862) 애둥근풍뎅이붙이(신칭)가 한국에서 처음 확인되었다. 각 종들에 대한 형태적 기재와 사진이 제시되었다.

검색어: 풍뎅이붙이과, 한국, 미기록종, 분류학

*Corresponding author: [email protected]

Received January 23 2019; Revised February 7 2019

Accepted February 24 2019

nannetensis (Marseul, 1862). We present diagnoses for genera and species, photographs for diagnostic characters.

Materials and Methods

Most specimens examined for this study were collected by flight intercept traps and pitfall traps between 2016 and 2018.

All collected samples were preserved in 95% alcohol and made into dried specimens for exact identification. Photographs for each species were taken by a digital camera (EOS-600D, CANON, Japan) through MP-E 65 mm lens. Several taken layers of pictures were stacked by the software (Zerene Stacker 1.04, Zerene Systems, USA). All specimens used in this study are deposited in the insect collection of the College for Agriculture and Life Sciences, Seoul National University (CALS, SNU, Seoul, Korea). Terminology and morphological concepts used in present study mostly follows Ôhara (1994).

Systematic accounts

Family Histeridae Gyllenhal, 1808 Subfamily Niponinae Fowler, 1912 Genus Niponius Lewis, 1885

Niponius Lewis, 1885: 333. Type species: Niponius impressicollis Lewis, 1885: 333.

Arunus Sengupta and Pal, 1995: 142. Type species: Arunus magnus Sengupta and Pal, 1995: 144.

Diagnosis. Head: epistomal projection well-developed, stout, carinate at apex with 1-2 subapical carinae; mandible bidentate, with two small teeth in middle; antennae with apical 4-segmented club. Prothorax: pronotum parallel-sided, truncate at anterior margin; procoxal cavities narrowly closed posteriorly;

prosternal process broad, with a pair of longitudinal grooves or striae. Pterothorax: elytra truncate at apex, exposing propy- gidium and pygidium; meso- and metaventrite with broad median groove. Abdomen: propygidium and pygidium foveolate, usually with 2-4 foveae (Lewis, 1885; Fowler, 1912; Gardner, 1935).

Niponius impressicollis Lewis, 1885 큰두뿔풍뎅이붙이(신칭) (Fig. 1A-P)

Niponius impressicollis Lewis, 1885: 333.

Diagnosis. Body: 4.5-6.6 mm long and 1.2-1.8 mm wide;

elongate, cylindrical; mostly black with ferruginous antennae, epistomal projections, tibial apex, and tarsi; surface strongly glossy (Fig. 1A-D). Head: surface (Fig. 1E) rugose with two transverse carinae at epistomal projections, evenly punctate;

antennal grooves (Fig. 1F) deeply excavate under eyes; ventral plates with a distinct median groove; antennal scape elongate, almost two-thirds as long as funicle-club segments combined;

antennomere VII with several long pubescence near apex;

antennomeres VIII-XI (club segments) densely setose apically.

Prothorax: pronotum (Fig. E) covered with irregular-sized and scattered punctures, densely pubescent along anterior margin, with a pair of distinct dimples medio-laterally; prosternal lobe transverse, bisinuate at anterior margin with dense pubescence;

prosternal keel (Fig. 1F) broad, abruptly widened posterad from apical one-third, broadly rounded at apex. Pterothorax:

elytra covered with irregular-sized punctures; marginal epipleural stria short, present on basal one-tenth; marginal elytral stria complete, its apical end attaining elytral apex;

dorsal stria I present basal on one-fourth; dorsal striae II-V mostly obsolete; sutural stria present on basal two-thirds with deep and large punctures; meso-metaventral suture complete;

metaventrite with a wide median longitudinal groove; lateral metaventral stria strongly carinate, abruptly curved at apical end, not united with posterior margin; lateral disc coarse, covered with large punctures, gradually finer posterad (Fig.

1G). Abdomen: propygidium (Fig. 1H) with four large, round and shallow dimples in a row, sometimes fused in two, interspace covered with irregular-sized punctures; pygidium with a pair of large and round dimples laterobasally, interspace punctate as propygidium; intercoxal disc of abdominal ventrite I with a pair of lateral striae on basal three-fourths. Protibia with two denticles on outer margin near apex (Fig. 1P). Male genitalia shown as Fig. 1 (Fig. 1I-N). Female genitalia shown as Fig. 1 (Fig. 1P).

Specimens examined. 1 ♀, Gwidun-ri, Inje-eup, Inje-gun,

Gangwon-do, 23.v.-04.v.2018, leg. Seung et al., by flight

intercept trap; 1 ♂, ditto, 04-19.vi.2018, leg. Seung et al., by

flight intercept trap; 1♂2♀, Yongdae-ri, Buk-myeon, Inje-gun, Gangwon-do, 08-23.v.2018, leg. Seung et al., by flight intercept trap; 5 ♂7♀, ditto, 23.v.-04.vi.2018, leg. Seung et al., by flight intercept trap; 5♂7♀, ditto, 05-18.vi.2018, leg. Seung et al., by flight intercept trap; 4♂3♀, ditto, 18.vi.-04.vii.2018, leg.

Seung et al., by flight intercept trap; 1♂1♀, Osaek-ri, Seo-myeon, Yangyang-gun, Gangwon-do, 08-23.v.2018, leg.

Seung et al., by flight intercept trap; 1 ♀, ditto, 05-19.vi.2018, leg. Seung et al., by flight intercept trap; 2♂1♀, ditto, 19.vi.-05.vii.2018, leg. Seung et al., by flight intercept trap;

Fig. 1. Niponius impressicollis Lewis, 1885. A, C-N, P, male; B, O, female. A, B, dorsal habitus; C, ventral habitus; D, lateral habitus; E, frons and

pronotum; F, head (ventral) and prosternum; G, meso- and metaventrite; H, propygidium and pygidium; I-K, male genitalia (dorsal-ventral-

lateral); L-N, aedeagus (dorsal-ventral-lateral); O, female genitalia (dorsal); P, protibia (scale bar for A-H: 1 mm; I-P: 0.5 mm).

1♂, Seorim-ri, Seo-myeon, Yangyang-gun, Gangwon-do, 23.v.-08.vi.2018, leg. Seung et al., by flight intercept trap.

Distribution. Korea (New record), China, Japan, Russia, Taiwan.

Remarks. N. impressicollis can be easily distinguished from N. osorioceps Lewis, 1885 by following characters: body size larger; head with rather short and deep antennal groove, not extending posterior tentorial pit; submentum of head with a deep medio-longitudinal groove; pronotum with a pair of deep foveae medio-laterally. They are thought to be predators of scolytid beetles (Ôhara, 1994).

Subfamily Saprininae Blanchard, 1845 Genus Gnathoncus Jacquelin du Val, 1858

Gnathoncus Jacquelin du Val, 1858: 112. Type species: Hister rotundatus Kugelann, 1792: 305.

Diagnosis. Head: frons without frontal stria and supraorbital stria; antennae with apical 3-segmented club. Prothorax:

pronotum narrowed anterad, weakly emarginate at anterior margin, punctures often forming longitudinal rugae laterally;

prosternal keel with striae, strongly convergent anteriorly;

lateral prosternal stria shortened. Pterophorax: elytra with two marginal epipleural stria; dorsal elytral stria IV never connected to sutural stria. Abdomen: abdominal ventrite I with lateral stria; male tergite IX divided longitudinally (Jacquelin du Val, 1858; Kryzhanovskij and Reichardt, 1976; Lackner, 2010).

Gnathoncus nannetensis (Marseul, 1862) 애둥근풍뎅이붙이 ( 신칭) (Fig. 2A-T)

Saprinus nannetensis Marseul, 1862: 499.

Gnathoncus suturalis Ganglbauer, 1899: 380.

Gnathoncus urganensis Reitter, 1896: 307.

Diagnosis. Body: 2.4-3.7 mm long and 1.1-1.7 mm wide;

oval, fairly convex; mostly black with red-brown antennae, elytral apex, tibiae, and tarsi; surface strongly glossy (Fig.

2A-D). Head: frons (Fig. 2E) sparsely covered with round punctures, interspace scattered with finer punctures, becoming larger and coarser posterad; epistomal apex almost straight;

labrum broadly rounded at anterior margin. Prothorax:

pronotum narrowed anterad, weakly emarginate at anterior

margin; surface (Fig. 2E) sparsely and evenly punctate at middle, becoming larger and coarser along posterior margin and lateral regions; marginal pronotal stria complete;

prosternum (Fig. 2F) rounded at anterior margin; prosternal keel gradually widened posterad, emarginate at apex, with a distinct excavation near base. Pterothorax: elytra covered with fine punctures on basal two-fifths, fairly largely punctate on apical two-thirds and basal margin of elytra, becoming coarser laterally; marginal epipleural stria complete, internal marginal epipleural stria complete; marginal elytral stria complete, its apical end extending along apical margin of elytron, reaching sutural line, then shortly extending anterad; oblique humeral stria impressed on basal one-third, with densely crossed rugae;

dorsal elytral stria I well impressed, nearly complete; dorsal stria II and IV deeply impressed on basal half; dorsal stria III slightly longer than II and IV; dorsal stria V shortly impressed basally, nearly arched; sutural stria usually well impressed on basal one-fifth, more or less variable; mesoventrite (Fig. 2H) bisinuate at anterior margin, coarsely punctate; marginal mesoventral stria complete; meso-metaventral suture accom- panied by crenate line; metaventrite sparsely punctate at middle, becoming larger laterally and posteriorly; lateral metaventral stria extending latero-posterad, not united with posterior margin; lateral disc covered with large, irregular-sized punctures. Abdomen: propygidium (Fig. 2G) evenly covered with fine and rounded punctures on basal half, rather larger and coarser posterad; pygidium wholly covered with rounded and regular punctures, slightly finer along margin; intercoxal disc of abdominal ventrite I with a pair of lateral striae, not reaching posterior margin. Protibia deeply emarginate on outer margin near apex (Fig. 2I). Male genitalia shown as Fig. 2 (Fig. 2J-S).

Female genitalia shown as Fig. 2 (Fig. 2T).

Specimens examined. 2 ♂1♀, Myeonggae-ri, Nae-myeon, Hongcheon-gun, Gangwon-do, 06-18.vi.2018, leg. Seung et al., by flight intercept trap; 1 ♀, ditto, 19.vi.-06.vii.2018, leg. Seung et al., by flight intercept trap; 1♀, Gwidun-ri, Inje-eup, Inje-gun, Gangwon-do, 17.iv.-08.v.2018, leg. Seung et al., by flight intercept trap; 1 ♂1♀, ditto, 04-19.vi.2018, leg. Seung et al., by flight intercept trap; 2 ♂, Hangye-ri, Buk-myeon, Inje-gun, Gangwon-do, 06-30.vi.2018, leg.

Seung et al., by flight intercept trap; 2♂1♀, Yongdae-ri,

Buk-myeon, Inje-gun, Gangwon-do, 08-23.v.2018, leg. Seung

Fig. 2. Gnathoncus nannetensis (Marseul, 1862). A, C-S, male; B, T, female. A, B, dorsal habitus; C, ventral habitus; D, lateral habitus; E, frons

and pronotum; F, prosternum; G, propygidium and pygidium; H, meso- and metaventrite; I, protibial; J-L, male genitalia (dorsal-ventral-

lateral); M-O, aedeagus (dorsal-ventral-lateral); P, Q, genital tergite 8 and ventrite 8 (dorsal-lateral); R, S, genital tergites 9, 10 and ventrite 9

(dorsal-lateral); T, female genitalia (dorsal) (scale bar for A-H: 1 mm; I-T: 0.5 mm).

et al., by flight intercept trap; 5 ♂3♀, ditto, 23.v.-04.vi.2018, leg. Seung et al., by flight intercept trap; 1 ♀, ditto, 05-18.vi.2018, leg. Seung et al., by flight intercept trap and pitfall trap; 1♂1♀, Hoenggye-ri, Daegwallyeong-myeon, Pyeongchang-gun, Gangwon-do, 20.iv.-17.v.2017, leg. Seung et al., by flight intercept trap; 1 ♂, Nodong-ri, Yongpyeong- myeon, Pyeongchang-gun, Gangwon-do, 24.v.-06.vi.2018, leg. Seung et al., by flight intercept trap; 2♂1♀, ditto, 07-20.vi.2018, leg. Seung et al., by flight intercept trap; 1 ♂ 3 ♀, ditto, 20.vi.-06.vii.2018, leg. Seung et al., by flight intercept trap; 1♂, Osaek-ri, Seo-myeon, Yangyang-gun, Gangwon-do, 08-23.v.2018, leg. Seung et al., by flight intercept trap; 2 ♀, ditto, 19.vi.-05.vii.2018, leg. Seung et al., by flight intercept trap and pitfall trap; 2 ♂3♀, Beopheung-ri, Mureungbeopheung-ro, Mureungdowon-myeon, Yeongwol-gun, Gangwon-do, 15.v.-05.vi.2016, leg. Seung and Jung, by flight intercept trap.

Distribution. Korea (New record), Japan, nearly whole Palaearctic region.

Remarks. Gnathoncus species are morphologically very similar to each other. G. nannetensis can be distinguished from other relative species by following characters: pygidium covered with rounded punctures; prosternal keel with a distinct excavation near base; protibia deeply emarginate near apex of outer margin; male tergite X truncate at apex. They are observed from various habitats such as cadavers and excrements of animals, nests of birds (Ôhara, 1994; Altunsoy et al., 2017).

Acknowledgements

We are very thankful to Dr. Boohee Jung (Korean Entomo- logical Institute, Korea University, Korea), Mr. Seunghyun Lee, and Mr. Min Hyeuk Lee for assistance to collect samples for this study. This work was supported by a grant from the National Institute of Biological Resources (NIBR), funded by the Ministry of Environment (MOE) of the Republic of Korea (NIBR201701203, NIBR201801103).

Literature Cited

Altunsoy, F., Turan, Y., Fırat, S., Sert, O., 2017. Differences in succession of Coleoptera species attracted to pig carcasses in rural and urban habitats in Eski şehir Province, Turkey. Türk. Entomol.

Derg. 41(2), 177-195.

Bickhardt, H., 1910. Histeridae, in: Junk, W., Schenkling, S. (Eds.), Coleopterorum Catalogus, volume 24. Junk W., Berlin, 137 pp.

Blanchard, C.É., 1845. Histoire des insectes, traitant de leurs moeurs et de leurs métamorphoses en général, et comprenant une nouvelle classification fondée sur leurs rapports naturels. Vol. 1.

Hyménoptères et coléoptères. Paris: Didot, 396 pp.

Caterino, M.S., Vogler, A.P., 2002. The phylogeny of the Histeroidea (Coleoptera: Staphyliniformia). Cladistics 18(4), 394-415.

Fowler, W.W., 1912. The Fauna of British India including Ceylon and Burma. Coleoptera. General Introduction and Cicindelidae and Paussidae, in: Shipley, A.E. (Ed.), Taylor and Francis, London, pp. 93- 94.

Ganglbauer, L., 1899. Die Käfer von Mitteleuropa. Die Käfer der österreichisch-ungarischen Monarchie, Deutschland, der Schweiz, sowie des französischen und italienischen Alpengebietes. III, 1.

Familienreihe Staphylinoidea. 2 Theil: Scydmenidae, Silphidae, Clambidae, Leptinidae, Platypsyllidae, Corylophidae, Sphaeriidae, Trichopterygidae, Hydroscaphidae, Scaphidiidae, Histeridae.

Wien: Carl Gerold’s Sohn, 408 pp.

Gardner, J.C.M., 1935. Fam. Histeridae, subfam. Niponiinae, in:

Wytsman, P. (Ed.), Genera Insectorum, fasc. 202. Bruxelles: L.

Desmet-Verteneuil, pp. 1-6.

Gyllenhal, L., 1808. Insecta Suecica. Classis I. Coleoptera sive Eleuterata. Tomus I. Scaris: F.J. Leverentz, 572 pp.

Jacquelin du Val, P.N.C., 1858. Genere des coléoptères d’Europe comprenant leur classification et familles natutelles, la description de tous les genres, des tableaux synoptiques destinés a faciliter l’étude, le catalogue de toutes les espèces de nombreux dessins au trait ce caracteres. II. Paris, A. Deyrolle, pp. 1-168.

Khanday, A.L., Buhroo, A.A., Singh, S., Ranjith, A.P., Mazur, S., 2018. Survey of predators associated with bark beetles (Coleoptera:

Curculionidae: Scolytinae) with redescription of Platysoma rimarium Erichson, 1834 from Kashmir, India. J. Asia-Pac. Biodiversity 11(3), 353-360.

Kryzhanovskij, O.L., Reichardt, A.N., 1976. Zhuki Nadsemeystva Histeroidea (semeystva Sphaeritidae, Histeridae, Synteliidae).

Beetles of the superfamily Histeroidea (families Sphaeritidae, Histeridae, Syntelidae). Fauna SSSR, Zhestokrylye, Vyp. 4.

Nauka, Leningrad, 434 pp (in Russian).

Kugelann, J.G., 1792. Verzeichniss der in einigen Gegenden Preussens bis jetzt entdeckten Käfer-Arten, nebst kurzen Nachrichten von denselben. Neustes Magazin für die Liebhaber der Entomologie, herausgegeben von D.H. Schneider 1(3), 257-306.

Lackner, T., 2010. Review of the Palaearctic genera of Saprininae

(Coleoptera: Histeridae). Acta Entomol. Musei Natl. Pragae 50,

1-254.

Lackner, T., Mazur, S., Newton, A.F., 2015. Family Histeridae, in:

Löbl I., Löbl, D. (Eds.), Catalogue of Palaearctic Coleoptera Vol.

2/1. Revised and Updated Edition, pp. 76-130.

Lee, H.A., Han, T., Lee, Y.B., Park, H.C., Park, I.K., Shin, S.C., Lyu, D., Park, S., 2012. Three Species of Histerid Beetles (Coleoptera: Histeridae) New to Korea. Korean J. Appl. Entomol.

51(4), 313-316.

Lewis, G., 1885. On a new genus of Histeridae. Trans. Entomol.

Soc. London 1885, 331-334.

Marseul, S.A., 1862. Supplement à la monographie des Histérides.

(Suite). Ann. Soc. Entomol. Fr. 4(3), 83-165, 327-506, 677-758.

Mazur, S., 2011. A Concise Catalogue of the Histeridae (Insecta:

Coleoptera), in: Warsaw University of Life Sciences-SGGW

Press, pp. 1-332.

Ôhara, M., 1994. A revision of the superfamily Histeroidea of Japan (Coleoptera). Insecta Matsumurana 51, 1-283.

Reichardt, A., 1941. Semeystva Sphaeritidae i Histeridae (Vol. 1).

Families Sphaeritidae and Histeridae. Fauna SSSR, Nasekomye Zhestokrylye, V, 3. Nauka, Moskva-Leningrad, 419 pp.

Reitter, E., 1896. Uebersicht der mir bekannten Gnathoncus Arten der palearktischen Fauna. Entomol. Nachr. 22, 306-308.

Sengupta, T., Pal, T.K., 1995. Further observations on the family Rhizophagidae with descriptions of seven new genera. Mitt. Zool.

Mus. Berl. 71(1), 129-146.

Vienna, P., 1980. Fauna d’Italia. Vol. XVI. Coleoptera Histeridae.

Edizioni Calderini Bologna, 386 pp.
