Pb € ¾U c lT c l; c ] k ùV R Ëc Ü R Au-Pb ¶  ¥ Œ £ ?; c 6 ” X ¢ — ¤ ' [, f Ç S Ë Ø° Ä Z Ë Ñ] K ¡ Ž ì ŏ Œ

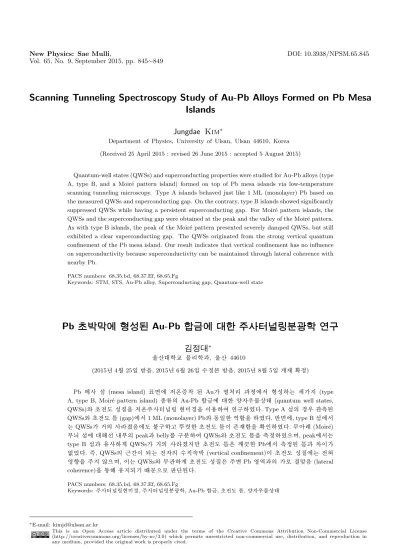

Scanning Tunneling Spectroscopy Study of Au-Pb Alloys Formed on Pb Mesa Islands

Jungdae Kim

Department of Physics, University of Ulsan, Ulsan 44610, Korea (Received 25 April 2015 : revised 26 June 2015 : accepted 5 August 2015)

Quantum-well states (QWSs) and superconducting properties were studied for Au-Pb alloys (type A, type B, and a Moir´e pattern island) formed on top of Pb mesa islands via low-temperature scanning tunneling microscopy. Type A islands behaved just like 1 ML (monolayer) Pb based on the measured QWSs and superconducting gap. On the contrary, type B islands showed significantly suppressed QWSs while having a persistent superconducting gap. For Moir´e pattern islands, the QWSs and the superconducting gap were obtained at the peak and the valley of the Moir´e pattern.

As with type B islands, the peak of the Moir´e pattern presented severely damped QWSs, but still exhibited a clear superconducting gap. The QWSs originated from the strong vertical quantum confinement of the Pb mesa island. Our result indicates that vertical confinement has no influence on superconductivity because superconductivity can be maintained through lateral coherence with nearby Pb.

PACS numbers: 68.35.bd, 68.37.Ef, 68.65.Fg

Keywords: STM, STS, Au-Pb alloy, Superconducting gap, Quantum-well state

Pb € ¾U c lT c l; c ] k ùV R Ëc Ü R Au-Pb ¶  ¥ Œ £ ?; c 6 ” X ¢ — ¤ ' [, f Ç S Ë Ø° Ä Z Ë Ñ] K ¡ Ž ì ŏ Œ

™ »+ ä 6 0

Ö

¦íߖ@/†<Ɠ§ Ótüo†<Æõ, Ö¦íߖ 44610

(2015¸ 4Z4 25{9 ~ÃÎ6§, 2015¸£  6Z4 26{9 ú&ñ‘:r~ÃÎ6£§, 2015¸ 84 5{Z 9 >FSX‰&ñ)

Pb Bj $3 (mesa island) ³ð€\ $“:r7£x‚ÃÌ )a Au \P%ƒo õ&ñ\"f +þA$í H [jt (type A, type B, Moir´e pattern island) 7áxÀÓ_ Au-Pb ½+ËFK\ @/ôÇ €ªœĺÓüt©œI (quantum well states, QWSs)ü< œí„•¸ $í|9`¦“$:rÅÒ'V,aA ‰&³pâ`¦s6 x #Œ ƒ½¨ %i. Type A $3_ âĺ›'a8£¤)a QWSsü< œí„•¸ :£§ (gap)\"f 1 ML (monolayer) Pbü< 1lx{9ôÇ %i½+É`¦ %i. ìø̀\, type B $3\"f



H QWSs _ &’6£§\•¸ Ô¦½¨ “¦ ̺§Â ôÇ œí„•¸ :£§s ”>rF†<Ê`¦SX‰“ %i. ÁºYU (Moir´e) Á

º]( $3\ @/K‚ ?/ÂÒ_ peakõ belly\¦½¨ìr #Œ QWSsü< œí„•¸ :£§`¦ 8£¤&ñ %iܼ 9, peak\"fH type B $3õ Ä» > QWSs _ &’tëߖ œí„•¸ :£§“rÉ L:FMôÇ Pb\"f 8¤&£ñ)a :£§õ s

\O

%3. 7£¤, QWSs_H–sçß ÷&H„_ úf”5Åq~ÃÌ (vertical confinement)s œí„•¸ $í|9\H „)€

%ò

†¾Ó`¦ ÅÒt ·ú§Ü¼ 9, sH QWSsü< Áº›'a > œí„•¸ $í|9“ÉrÅҁ Pb %ò%iõ_ –Ð ´ú6£§ (lateral coherence)`¦ :ŸxK Ä»t÷&l M:ëHܼ–Ð óøÍéߖ)a.

PACS numbers: 68.35.bd, 68.37.Ef, 68.65.Fg

Keywords:ÅÒ'V,aA‰&³p, Åâ Ò'V,aAìrFgÆ, Au-Pb ½†< ËF+K,œí„•¸ :£§,œ€ªĺÓüt©œI

∗E-mail: [email protected]

This is an Open Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/by-nc/3.0) which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.

`

¦0AK, "é¶úïr\"f ¨î¼#ôÇ FK5Åq~ÃÌ}Œ•`¦
”¸p' <Ê

“ É

rÕª s _ ¿ºa–Ð ]jŒ• 9H§“ú´Ér”¸§4s e”#QM®o.

s

QôÇ ”¸§4_ õ–Ð ±úš, “Ér, FK,·ú˜ÀÒp³ouõ °ú “Ér FK5Åq

`

¦ ìø͕¸^‰ lóøÍ 0A\ €ªœ %i†<Æ&h ´òõ

H ú

”¸p'_ ¿ºa\¦tHœí~ÃÌ}Œ• (ultra-thin film) +þAI

–

Ð ]jŒ•½+É Ãº e”H~½ÓZsO >hµ1Ï÷&%3 [1–5]. FK5Åqœí~ÃÌ }

Œ

•\"fH ¿ºa ~½Ó†¾Ó\ @/ #Œ „ ½¨›¸_ €ªœo s À

Ò#Q4R €ªœĺÓtü©œI[þt (quantum well states, QWSs)s +þ

A$í÷& 9, s–Ð “K ~ÃÌ}Œ•_ îߖ&ñ$í (film stability) [2,6–

8], {9†<Êú (workfunction) [9, 10], œí„•¸„s“:r•¸ (TC, superconducting transition temperature) [11–14]ü< °ú “Ér



€ªœôÇ Óüt$í[þts ~ÃÌ}Œ•_ ¿ºa\ _”>rôǍH ƒ½¨ õ [

þ

ts ˜Ð“¦÷&%3. sQôÇ ‰³&©œ[þt`¦€ªœß¼l´òõ (quan- tum size effect, QSE) ÂÒØÔ 9 þjH §“ú´Ér ƒ½¨ ”'Ÿ

÷&“¦ e”H ÅÒ]js. :£¤y z´o–BH lóøÍ 0A\ $í©œ)a ±úš (Pb)_ âĺ |9×æ&h“ ƒ½¨ ÷&%3HX<, „_ `…ØÔp 

©œ (Fermi wavelength)õ ~ÃÌ}Œ•¿ºa s\ ìøÍ&ñúC\ K

{©œ H 1lq:£¤ôÇ 0Aœ ´© ú»¡§Ü¼–Ð QSE ~ÃÌ}Œ•_ ¿ºa\

@

/ôÇ ¿º8£x ”1lx (bilayer oscillation) ‰³&©œsSX‰“÷&%3



 [5,7,15,16,18].

þ

jHƒ½¨\"fHjB (mesa) +þAI_ Pb $3 ³ð€\ $

“

:r 7£x‚ÃÌ )a Au \P%ƒo õ&ñ`¦ :ŸxK +þA$í H Au-Pb

½

+ËFK\"f QSE ”>rF†Ês< ˜Ð“¦÷&%3 [19]. Pb Bj $3

\

 +þA$í)aQWSs\  Y> t Ér+þAI_ Au-Pb ½+Ë F

Ks ³ð€\ +þA$í÷& 9, s[þt ËF+½K“Ér ÅÒ'V,aAìrFg†<Æ (scanning tunneling spectroscopy, STS) ~½ÓZOܼ–Ð 8£¤&ñ

)

a QWSs\ _K "îSX‰ > ½¨ìrs 0px %i. ˜Ð“¦)a Au-Pb ½+ËFK_ 7áxӍÀHÁºYU (Moir´e) Áº]( $3, type A, type Bs 9, Pb œí~ÃÌ}Œ• ³ð€\ Au\¦ $“:r 7£x‚ÃÌ ôÇ Êê

›'

a8£¤)a ÁºYU Áº]( $3_ âĺ ›¸$íq AuPb³ü< Ä»

½

+É כ ܼ–Ð ]jîߖ÷&%3 [19]. sÊê \P%ƒo\¦ ôÇ Êê\H type Aü< type B ½+ËFKs Pb Bj $3 ³ð€\"f›'a8£¤÷&%3 Ü

¼ 9, QWSs ›'a&h\"f ˜Ð€Œ¤`¦ M: type A_ âĺ 1 ML (monolayer) Pbü< 1lx{9ôÇ :£¤$í`¦˜Ð#ŒÅÒ%3~ ìø̀, type B_ âĺ QWSss _ t
 ©œ{©œy €•K4R e” 6

£

§s SX‰“÷&%3. ‘:r ƒ½¨\"fH$“:r STS\¦Ö¸6 x #Œ 0

A\"f µ1Ï|)a [j 7áxÀÓ_ Au-Pb ½+ËFK[þt (Moir´e pattern island, type A, B)\ @/ôÇ œí„•¸ :§`£¦ 8£¤&ñ #Œ s\¦ í

HúôÇ Pbü< q“§ %i. s\¦ :ŸxK QWSs_Hçߖs ÷&



H úf”5Åq~ÃÌ (vertical confinement)õ œí„•¸ $í|9 s _

 ›'a>\¦›¸ %Üi¼ 9, Õª õ QWSs _ ”



©œS!\"f•¸ ̺§Â ôÇ œí„•¸ :£§s +A$þíH†d`¦‰SX“ %i.

Fig. 1. (Color online) STM images of 0.2 ML Au de- posited on top of Pb mesa island on Si(111) substrate (V_sample= 2 V and I_tunneling = 100 pA). (a) Light shad- ing view of STM topographic image shows various types of Au-Pb alloys on top of Pb mesa island. The left side inset is a schematic showing the cross-section of flat-top Pb island on Si(111) substrate. The right side inset is a 200 nm × 200 nm high resolution image of the dashed box in (a). (b) dI/dV mapping image taken at 2.0 V presents the contrast of thickness dependent QWS show- ing bilayer oscillation.

II. ÷ m Ç] M ö U ê s0 n É

$

“:r STM/STSü< °ú s ƒ÷&#Q e”H r¼#ïrq©œu

\

¦ Ö¸6 x# Œ ƒ½¨ ”'Ÿ÷&%3ܼ 9, —¸ŽH 8¤&£ñ“Ér “:r•¸ 4.2 K, œí“¦”/BN (< 10⁻¹¹ Torr) Š8¨â\"f sÀÒ#Q&’.

STM tip“Ér„lo†<Æ&h ~½Ód”ܼ–Ð ÂÒd”)a (electrochemi- cal etching) )íÛ¼J$™ ü<s#Q\¦œí“¦”/BN\"f „c” \P%ƒ o

 (E-beam cleaning)ôÇ Êê\ 6 x %i. PbH \P7£x‚ÃÌ

~

½ÓZO`¦ s6 x #Œ ©œ“:r\"f Si(111) 7×7 ³ð€ 0A\ 7£x‚ÃÌ

÷

&%3. ©œ“:r\"f z´o–BHlóøÍ 0A\ 7£x‚Ã̝)aPbH (111)

~

½Ó†¾Ó_ ³ð€s ¼#¨îôÇ Bj +þAI_ 2 "é¶ $3 (2D flat-top island)½¨›¸–Ð $큩œ÷& 9, s âĺ z´o–BHlóøÍ\ ”>rF



H "é¶ >éߖ[þt\ _K
_ Pb Bj $3\ ƒ5Åq&h“

#

ŒQ ¿ºa 8£x`¦Ÿí†<Ê >a) [9]. z´o–BHlóøÍ_ miscut angle x9 Pb Bj $3_ ß¼l\
_ $3\ ”>rF



H ¿ºa ìrŸí_ #30A\¦ ¸&›ñ½+É Ãº e”ܼ 9, sQôÇ ½¨›¸



H Óüt$í_ ¿ºa\ @/ôÇ _”>r$`í¦ ƒ½¨ HX< s©œ&hs



 (Fig. 1 ‚ÃГ¦). sÊê, ïrq)a Pb Bj $3_ “:r•¸\¦ 90 K–Ð ±úðr Êê 0.2 ML Au\¦ 7x£‚ÃÌ ôÇ +', 180 Kt “:r•¸

\

¦ `¦9 \P%ƒo\¦Ç Êôê $“:r STM stage–Ð s1lx %i.

QWSsü< œí„•¸ :£§“r lock-in amplifier\É ¦ s6 xôÇ dI/dV Û

¼&7˜àÔ!3`¦ :ŸxK %3`¦Ãº e”%3ܼ 9, yŒ•yŒ• 10 mVü< 8 V _

 s#QÛ¼ (bias) ›¸\¦6 x %i.

Fig. 2. (Color online) STM topography images and STS spectra on a type A island. (a) and (b) are STM topog- raphy and dI/dV mapping images obtained at Vsample= 2 V and Itunneling= 100 pA, respectively. (c) and (d) are QWS and superconducting gap spectra measured at 4.2 K, respectively. The spectrum of type A is obtained at the position marked as A in (a).

III. + s ÇÊ Ý õ m Í À X Ø8 ý

þ

jH\ ˜Ð“¦)a ½ƒ¨\‚ Pb Bj $3 0A\ 90 K\"f 0.2 ML Au\¦ 7£x‚ÃÌ ôÇ Êê Pb Bj $3 ³ð€\ ÁºYU Áº](

\

¦°úH[3$þts +þA$í÷& 9 s\¦ÁºYU Áº]( $3ܼ–Ð "î"î

%i [19]. sÊê r¼#_ “:r¸\•¦ 180 Kt `¦9"f \P

%

ƒo %i`¦M: ÁºYU Áº]( $3[þt_ ÕüwH צ#QŽHìø̀ D

h–Ðîr type Aü< type B $3[þts µÏ|1÷&%3ܼ 9, s[þt\

@

/ôÇ STS ›¸\¦ :Ÿx Pb BK j $3_ QWSs yŒ•yŒ• type A, B $3 +þA$í\ f]”X&hܼ–Ð %ò†¾Ó`¦ ïrH sכ µ1ß)€&’



 [19]. Fig. 1(a)H \P%ƒo Êê Pb Bj $3 ³ð€\"f µ1Ï

|

)aÁºYU Áº](, type A, type B $3[þt`¦˜Ð#ŒÅғ¦ e”H STMspt–Ð light shading view\¦ :Ÿx ³Kð€\ +þA$í)a



Œ

•“Ér$3[þt_ â>€`¦œ›©y¸ %i.¢,aAá¤A_ ¶úš{9 Õª aË

>“Ér Si(111)lóøÍ 0A\ ³ð€s ¨î¼#ôÇ Pb Bj $3s +þA

$í

)a éߖ€`¦ ˜Ð#ŒÅҍH ÕªaË>s 9, Si(111) lóøÍ_ "é¶> é

ߖ[þt–Ð “K
_ Bj $3 îߖ\ ƒ5Åq&hܼ–Ð Ér¿ºa

 ìrŸí >a). š¸ÉrAá¤A_ ¶úš{9 ÕªaË>“rÉ&h‚©œ

–

Ð ³ðr)a %ò%i\ @/ôÇ ©œ[jôÇ STM spt–Ð Pb Bj

$

3 ³ð€\ #ŒQ 7áxÀÓ_ $3[þts ”>rF†<Ê`¦˜Ð#ŒÅғ¦ e”.

Fig. 1(b)H Vsample = 2 V\"f 1lxr\ 8£¤&ñôÇ dI/dV ‘:r ä

¼l (mapping) spt–Ð yŒ• ¿ºa_ QWSs 0Au\  µ

1ߓ¦ #Q¿ºîrҐoܼ–Ð ³ð‰&³÷&#Q yŒ• ¿ºa_ â>\¦½¨ìr



HX< Ä»6 x >¸6ց x|¨cú e”.

Fig. 3. (Color online) STM topography images and STS spectra on a type B island. (a) and (b) are STM topog- raphy and dI/dV mapping image obtained at V_sample= 2 V and I_tunneling= 100 pA, respectively. (c) and (d) are QWS and superconducting gap spectra measured at 4.2 K, respectively. The spectrum of type B is obtained at the position marked as B in (a).

Fig. 2(a)H 10 ML Pb ³ð€ 0A\ +þA$í)a type A $3

\

 @/ôÇ STM spts. Pb Bj $3 ?/ÂÒ\ ”>rF H y

Œ

• ¿ºa_ â>H 1lxr\ 8£¤&ñôÇ dI/dV ‘:rä¼l spt (Fig. 2(b))\¦ :ŸxK ¹1Ô`¦Ãº e”%3. Type A $3õ “]XôÇ Pb %ò%i\"f 8£¤&ñôÇ dI/dV Û¼&7˜àÔ!3[þt“Ér Fig. 2(c)\"f SX

‰“½+É Ãº e”ܼ 9,›'a8£¤)apeak“ÉryŒ• %ò%_i ¿ºa ~½Ó†¾Óܼ

–

Ð +þA$í)aQWSs\¦
·p. yŒ• QWSs_ \-t 0Au



H {9ìøÍ&hܼ–Ð ~ÃÌ}Œ•_ ¿ºa\ _”>r  9 Pb(111)/Si(111) r

Û¼%7›_ âĺ Pb_ ¿ºa vs. QWSs\ @/ôÇ ƒ½¨ s p

 ˜Ð“¦)a e” [9,18–20]. ·ú¡"f ˜Ð“¦)a 7HëH\"fü< °ú  s

 type A $3_ âĺ QWSs_›'a&h\"f ˜Ð€Œ¤`¦M: 1 ML Pbü< °ú “Ér½i%+É`¦†<Ê`¦SX‰“½É Ã+º e”%3. 7£¤, 10 ML Pb 0

A\ +þA$í)atype A $3_ QWSs 11 ML Pb_ QWSsü<

&

ñSX‰y {9u†<Ê`¦ Fig. 2(c)\"f ˜Ð#ŒÅғ¦ e”. sH type A $3s ÅҖРPb–Ð ½¨$í|¨c0px$sí Z}H `כ¦_p  9, sHœí„•¸ :£§ 8£¤&ñ\"f•¸SX‰“÷&%3. Fig. 2(d)H 1

lx{9ôÇ 0Au\"f 8£¤&ñ)a œí„•¸ :£§ Û¼&7˜àÔ!3[þt`¦ ˜Ð#Œ Å

ғ¦ e”ܼ 9, type A $3\"f 8£¤&ñ)adI/dV Û¼&7˜àÔ!3“Ér

\

V©œ@/–Ð 11 ML Pb_ œí„•¸ :£§ &õñSX‰y {9uôÇ. —¸

Ž

H :£§Û¼&7˜àÔ!3“Ér 4.2 K “_:r•¸\"f 8£¤&ñ÷&%3.

Fig. 3(a)ü< (b)H 14 ML Pb³ð€ 0A\ +þA$í)atype B

$

3\ @/ôÇ STM topography sptü< dI/dV ‘:rä¼l s p

ts. Fig. 3(c)\"f ·ú˜ ú e1”pw type B $3_ ©œ H :

£¤fç“Ér dI/dV Û¼&7˜àÔ!\3"f QWSs\¦
?/H peak[þt

Fig. 4. (Color online) STM topography images and STS spectra on a Moir´e pattern island. (a) and (b) are STM topography and dI/dV mapping image obtained at V_sample = 2 V and I_tunneling = 100 pA, respectively.

(c) and (d) are QWS and superconducting gap spectra measured at 4.2 K, respectively. The location of peak and belly in Moir´e pattern is marked in (c).

s

 _ 4R, ·ú¡"f 7H_ôÇ type A $3õ "îSX‰y ½¨ìr

)

a. sH l”>r_ ƒ½¨õü<•¸ {9u  9, type B $3 s

 Auü< Pb Áº|9"f > ™D¥½+Ë÷&#Q +þA$í)a ½+ËFK{9  0

px$ís ]jîߖ÷&%3 [19]. QWSs ¿ºa ~½Ó†¾Ó_ y©œôÇ 5Åq

~ Ã

Ì (confinement)\"f l“†<Ê`¦ “¦9½+É M: type B $3õ Pb³ð€ s\ ©œ{©œy •2; >â€s +þA$í ÷&#Q e”`¦כ Ü

¼–Ð ÆÒ8£¤)a. <ɪp–Ðîr &h“Ér QWSs _ ”>rF t

· ú

§H type B $3\"f•¸ ̺§Â ôÇ œí„•¸ :£§s 8£¤&ñ÷&%3.

Fig. 3(d)H type B $3õ L:FMÇ Pb ³ô ð€\"f 8£¤&ñôÇ œí

„

•¸ :£§`¦"f–Ð q“§ôÇ õs 9, type B $3\"f 15 ML Pbü< _ Ä»ôÇ œí„•¸ :£§ ”s>rF†<Ê`¦˜Ð#ŒÅғ¦ e”.

s

H QWSs_ ”>rF#ŒÂÒü< Áº›'a > œí„•¸ $í|9“ÉrÅҁ _

 Pb %ò%iõ_ –Ð ´ú6£§ (lateral coherence)`¦ :ŸxK

¸ ú

˜ Ä»t|¨cú e”Hכ `¦_pôÇ.



t}Œ•Ü¼–Ð 12 ML ¿ºa_ Pb Bj $3 ³ð€ 0A\ +þA$í

÷

&#Q e”HÁºYU Áº]( $3\ @/ôÇ STM topography sp t

ü< 1lxr\ 8£¤&ñ)adI/dV ‘:rä¼l sptH Fig. 4(a)ü<

(b)\"f ˜Ð#ŒÅғ¦ e”. Fig. 4(c)\"fH Fig. 4(a)\ ³ð r

÷&#Q e”H ÁºYU Áº]( $3 ?/ÂÒ_ peakõ belly %ò%i

\

 @/K yŒ•yŒ• 8£¤&ñ)a QWSs Û¼&7˜àÔ!3`¦ L:FMôÇ Pb ³ð

€

\"f 8£¤&ñôÇ QWSsü< q“§ K˜Ð€Œ¤. ÁºYU Áº](_ belly\‚ QWSs ̺§Â ôÇ Û¼&7˜àÔ!3s›'a8£¤÷&%3ܼ 9, 12 ML Pb_ QWSsü< Ä» të– yߌ•yŒ•_ QWSs 0Au\"f

8

£¤&ñ)aœí„•¸ :£§`¦L:MFôÇ Pb ³ð€\"f 8£¤&ñ)a :£§õ q

“

§ôÇ õs 9 —¸ŽH 8£¤&“ñÉr 4.2 K\"f sÀÒ#Q&’. ·ú¡_ type B $3 âĺü< 1lx{9 > QWSs _ ”>rF t ·ú§



HÁºYU Áº](_ peak\"f•¸ ̺§ ôÂÇ œí„•¸ :£§s 8£¤&ñ

÷

&#Q, r ôǁ úf” 5Åq~ÃÌs œí„•¸ $í|9\ H %ò†¾Ó`¦

×

¦Ãº \O6£§`¦SX‰“ %i. sH QWSsü< Áºa›' > œí„

•

¸ $í|9“Ér Åҁ Pb %ò%iõ_ –Ð ´ú6£§`¦ :ŸxK Ä»t

|¨

cú e”l M:ëH¼–ÜÐ óøÍéߖ)a.

IV. + s Ç Â ] Ø

Pb jB $3 ³ð€\ $“:r7£x̂Ý)a Au \P%ƒo õ&ñ\

"

f +þA$í H[jt (type A, type B, ÁºYU Áº]( $3) 7áx À

Ó_ Au-Pb ½+ËFKs ”>rF  9 s[þt_ +þA$íõ&ñ\"f QSE

 ”>rF†<Ês þjH ˜Ð“¦÷&%3 [19]. ‘:r 7HëH\"fHs[þt [

jt Au-Pb ½+ËFK\ @/ôÇ ©œ[jôÇ STS ƒ½¨\¦Ãº'Ÿ %i



. Type Aü< type B_ âĺ l”>r_ ƒ½¨õü< {9u



H QWSs $í|9`¦˜Ð%i. 7£¤, dI/dVÛ¼&7˜àÔ!3\"f type AH&ñSX‰y 1 ML Pbü< °ú “rÉ%i½+É`¦ %iܼ 9, type B_

â

ĺ QWSs _ 4R H s\¦˜Ð%i. tëߖ œí

„

•¸ $í|9`¦ 8£¤&ñôÇ õ type Aü< type B —¸¿º ̺§Â ôÇ :

£

§`¦˜Ð#Œ ÅÒ%3ܼ 9, sH QWSs ”_>rF#ŒÂÒ <ʓÉrúf” 5

Å

q~Ã̓Érœí„•¸ $í|9\H)„€ %ò†¾Ó`¦ ÒtÅ ·ú§6£§`¦_p ô

Ç. ÁºYU Áº]( $3_ âĺ ?/ÂÒ_ peakõ belly\¦ ½¨ ì

r #Œ dI/dV Û¼&7˜àÔ!3`¦ 8£¤&ñ %i. bellyH –Ð  A

\ 0AuôÇ Pb Bj $3õ Ä»ôÇ QWSs\¦˜Ð#ŒÅÒ%3t ë

ߖ, peak\"fH QWSs ]j@/–Ð +þA$í÷&t 3lw %i. 1lx {9

ôÇ %ò%i\ @/K 8£¤&ña)œí„•¸ $í|9\‚ type B $3õ Ä

» > peakõ belly —¸¿º\"f ̺§Â ôÇ œí„•¸ :£§s 8£¤

&

ñ÷&%3ܼ 9, sH QWSsü< Áºa'› > œí„•¸ $í|9s ÅÒ



 Pb %ò%iõ_ –Ð ´ú6£§¼–ÜÐ “K %ò†Ó`¾¦ ~ÃÎt ·ú§ 6

£

§`¦·ú˜ ú e”.

P

c p 8 ý ò k >

‘

r: ƒ½¨H DzôDGƒ½¨Féߖ_ ’”ƒ½¨t"é¶\O (2013 R1A1A1008724)õ @/†<Æ×æ&hƒ½¨™è t"é¶\O (2009- 0093818)ܼ–Ð ú'Ÿ÷&%3ܼ 9, ƒ½¨\ ´ú§“Ér ›¸ƒ`¦ ÅҒ Chih-Kang Shih (Univ. of Texas at Austin)“§Ãº_”a yŒ™



×¼wnm.

REFERENCES

[1] Z. Y. Zhang, Q. Niu and C. K. Shih, Phys. Rev.

Lett. 80, 5381 (1998).

[2] M. H. Upton, C. M. Wei, M. Y. Chou, T. Miller and T. C. Chiang, Phys. Rev. Lett. 93, 026802 (2004).

[3] A. R. Smith, K. J. Chao, Q. Niu and C. K. Shih, Science 273, 226 (1996).

[4] H. Oughaddou, C. Leandri, B. Aufray, C. Gi- rardeaux and J. Bemardini et al., Appl. Surf. Sci.

212, 291 (2003).

[5] S. H. Chang, W. B. Su, W. B. Jian, C. S. Chang and L. J. Chen et al., Phys. Rev. B 66, 245401 (2002).

[6] D. A. Luh, T. Miller, J. J. Paggel, M. Y. Chou and T. C. Chiang, Science 292, 1131 (2001).

[7] P. Czoschke, H. Hong, L. Basile and T. C. Chiang, Phys. Rev. B 72, 075402 (2005).

[8] S. M. Lu, M. C. Yang, W. B. Su, C. L. Jiang and T. Hsu et al., Phys. Rev. B 75, 113402 (2007).

[9] J. Kim, S. Qin, W. Yao, Q. Niu and M. Y. Chou et al., Proc. Natl. Acad. Sci. USA 107, 12761 (2010).

[10] X. C. Ma, P. Jiang, Y. Qi, J. F. Jia and Y. Yang et al., Proc. Natl. Acad. Sci. USA 104, 9204 (2007).

[11] S. Y. Qin, J. Kim, Q. Niu and C. K. Shih, Science 324, 1314 (2009).

[12] M. M. Ozer, Y. Jia, Z. Y. Zhang, J. R. Thompson and H. H. Weitering, Science 316, 1594 (2007).

[13] Y. Guo, Y. F. Zhang, X. Y. Bao, T. Z. Han and Z.

Tang et al., Science 306, 1915 (2004).

[14] D. Eom, S. Qin, M. Y. Chou and C. K. Shih, Phys.

Rev. Lett. 96, 027005 (2006).

[15] C. M. Wei and M. Y. Chou, Phys. Rev. B 66, 233408 (2002).

[16] P. S. Kirchmann, M. Wolf, J. H. Dil, K. Horn and U. Bovensiepen, Phys. Rev. B 76, 075406 (2007).

[17] Y. Jia, B. Wu, H. H. Weitering and Z. Y. Zhang, Phys. Rev. B 74, 035433 (2006).

[18] T. Schmidt and E. Bauer, Phys. Rev. B 62, 15815 (2000).

[19] J. Kim, S. Qin, Y. Zhang, W. Zhu and C.-K. Shih, Surf. Sci. 632, 174 (2015).

[20] V. Yeh, L. Berbil-Bautista, C. Z. Wang, K. M. Ho and M. C. Tringides, Phys. Rev. Lett. 85, 5158 (2000).
