Hybrid laparoscopic myomectomy: A novel technique Yunseok Yang, Chanhee Jin, Kwoanyoung Oh, Joonsuk Park

Short Communication

Obstet Gynecol Sci 2015;58(5):401-404 http://dx.doi.org/10.5468/ogs.2015.58.5.401 pISSN 2287-8572 · eISSN 2287-8580

www.ogscience.org 401

Introduction

Although the feasibility of laparoendoscopic single-site surgery (LESS) myomectomy has been confirmed in selected patients [1,2], laparoscopic myomectomy through a single-port ap- proach remains technically difficult. Isobaric laparoscopic myomectomy is a suitable option for the surgical treatment of symptomatic myomas and offers advantages over open sur- gery or conventional laparoscopic myomectomy [3-5]. How- ever, in isobaric laparoscopic myomectomy, visible scars remain at the suprapubic incision site [5] or the other trocar sites [3,4].

We introduced a new surgical technique, hybrid laparoscopic myomectomy, which integrates the advantages of LESS with a pneumoperitoneum and those of isobaric LESS using conven- tional laparotomy instruments. More recently, Kang et al. [6]

have demonstrated the feasibility of a surgical technique that combined single-port laparoscopy and laparotomy, although the technique differs from hybrid laparoscopic myomectomy and not all of the steps are completed using LESS. Hybrid lap- aroscopy for myomectomy is a new type of surgery and this represents the first described cases of myomectomy using this novel technique.

Materials and methods

In this study, 14 consecutive patients underwent hybrid lapa-

roscopic myomectomy performed at Eulji University Hospital between April 2014 and December 2014. All of the proce- dures were performed by a single surgeon (YS Yang) who has over 18 years of experience in conventional laparoscopic, gen- eral, and vaginal surgery, and 4 years of experience in LESS.

The surgical indication for hybrid laparoscopic myomectomy was determined on the basis of the presence of subserosal or intramural myoma with symptoms. A history of pelvic surgery or the presence of multiple myomas (≥3 per patient), or large myoma measuring 8 cm or more on ultrasonographic exami- nation were not considered a contraindication for hybrid lapa- roscopic myomectomy. However, women who had a submu- cosal myoma were excluded. This study was approved by the institutional review board of Eulji University Hospital (2015-02- 006-001).

Hybrid laparoscopic myomectomy: A novel technique

Yunseok Yang, Chanhee Jin, Kwoanyoung Oh, Joonsuk Park

Department of Obstetrics and Gynecology, Eulji University Hospital, Daejeon, Korea

The objective of this study was to report on a new surgical technique, hybrid laparoscopic myomectomy that integrates the advantages of transumbilical laparoendoscopic single-site surgery and those of isobaric laparoscopy, and the initial experience with 14 cases. All of the procedures were performed by a single surgeon who has over 18 years of experience in laparoscopic surgery and 4 years of experience in laparoendoscopic single-site surgery. All cases of hybrid laparoscopic myomectomy were completed safely and effectively without conversion to conventional laparoscopic procedure. The median operative time was 75 minutes (range, 30 to 100 minutes). No postoperative complication was observed. The findings show that hybrid laparoscopic myomectomy is a safe and feasible surgical technique, and therefore can be a feasible, minimally invasive alternative to either abdominal or laparoendoscopic single-site surgery myomectomy.

Keywords: Hybrid laparoscopic myomectomy; Laparoendoscopic single-site surgery; Uterine myoma

Received: 2015.2.8. Revised: 2015.3.18. Accepted: 2015.4.6.

Corresponding author: Yunseok Yang

Department of Obstetrics and Gynecology, Eulji University Hospital, 95 Dunsanseo-ro, Seo-gu, Daejeon 35233, Korea

Tel: +82-42-611-3293 Fax: +82-42-611-3379 E-mail: [email protected]

Articles published in Obstet Gynecol Sci are open-access, distributed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.

org/licenses/by-nc/3.0/) which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.

Copyright © 2015 Korean Society of Obstetrics and Gynecology

www.ogscience.org 402

Vol. 58, No. 5, 2015

1. Operative techniques

Hybrid laparoscopic myomectomy was designed by integrating the surgical techniques of the LESS removal of a myoma and those of isobaric laparoscopic suturing by using conventional laparotomy instruments. For the LESS removal of a myoma (Fig.1A), the use of a homemade glove port laparoscopic sys- tem and the glove port technique was established in previous reports by our group [6,7], through a 2- to 2.5-cm transumbili- cal incision. The homemade [7,8] glove port system was estab- lished as described in previous reports [9,10]. For the isobaric laparoscopic suturing with a conventional laparotomy needle holder, a simple abdominal wall-lifting method was conducted through the same 2- to 2.5-cm transumbilical incision. The abdominal wall around the umbilical incision was lifted by us- ing a Richardson retractor (Fig. 1B, C). Hybrid laparoscopic myomectomy was performed with the following steps. The LESS removal of a myoma was performed using conventional, rigid, straight instruments in the same fashion as multiport laparoscopic myomectomy (Fig. 1A). The isobaric laparoscopic suturing was achieved by use of a large curved needle with the

conventional laparotomy long needle holder and a laparoscopic traumatic grasper (Fig. 1B, C). Introducing the surgeon’s index finger through the umbilical wound allows an extracorporeal or intracoporeal knot tying with the similar accuracy and strength as in laparotomy (Fig. 1C–E). The myomas were extracted through the umbilical wound, and then the incision was closed.

2. Statistical analysis

Patients’ demographic and physical characteristics were ob- tained preoperatively. The number of removed myomas, weight of the removed myomas, location and type of the largest myoma, total operative time, estimated blood loss, hemoglobin concentration on postoperative day 1, length of postoperative hospital stay, and intraoperative and postoperative complica- tions were also obtained. All statistical analyses were performed by using commercially available software SPSS ver. 17 (SPSS Inc., Chicago, IL, USA). Descriptive statistics were used to summarize the patient’s demographics and operation results. All data were analyzed and reported as number (%) or median (range).

Fig. 1. Enucleation performed by applying traction on the myoma with two conventional laparoscopic clamps (A). Suturing of the uterine defect by using a conventional laparotomy needle holder under isobaric laparoscopic observation (B). Intracorporeal knot tying with the aid of the surgeon’s index finger introduced through the transumbilical wound (C, D). Uterine defect closed by two- to three-layered suturing (E). The umbilical incisions at 3 months after hybrid laparoscopic myomectomy (F).

A B C

D E F

www.ogscience.org 403 Yunseok Yang, et al. Hybrid laparoscopic myomectomy

Results

The characteristics and surgical outcomes of the patients are listed in Table 1. The median age of the patients was 43.5 years (range, 33 to 50 years), and the median body mass index was 23.4 kg/m2 (range, 15.5 to 28.3 kg/m

). The median weight and number of the removed myomas were 75.5 g (range, 8 to 218 g) and 1 (range, 1 to 5), respectively. All hybrid laparoscopic myomectomy procedures were completed successfully without conversion to the standard laparoscopic approach. No intraop- erative complications occurred. The median operative time was 75 minutes (range, 30 to 100 minutes).

Discussion

Isobaric laparoscopic myomectomy for the removal of large myomas is feasible and safe [11]. Moreover, isobaric laparo-

scopic suturing with a conventional laparotomy needle holder with a conventional curved needle is easy and quick to per- form [5,11]. Isobaric two-port laparoscopic myomectomy [5]

still leaves visible scars at the suprapubic incision site. There- fore, LESS myomectomy may offer better cosmetic satisfaction than isobaric two-port laparoscopic myomectomy. In contrast, LESS myomectomy can result in operative difficulty when at- tempted in large myoma measuring >8 cm [2].

In this study of hybrid laparoscopic myomectomy, the me- dian operative time and hemoglobin change were 75 minutes (range, 30 to 100 minutes) and 0.9 g/dL (range, 0.0 to 2.4 g/

dL), respectively. In recent studies on LESS myomectomy, the mean reported operating times and hemoglobin change were 81 to 100 minutes and 1.1 to 1.5 g/dL, respectively [1,2,12].

As was expected, the median operative time was shorter and the hemoglobin change was less in comparison with previous reports on LESS myomectomy [1,2,12]. Previous studies have shown that multiple myomectomies (more than 3) through LESS myomectomy with a pneumoperitoneum were rarely performed [1,2,12]. Therefore, large intramural (larger than 8 cm) or multiple (more than 3) myomas are usually removed by means of open myomectomy. However, hybrid laparoscopic myomectomy allows the removal of very large myomas (10 cm) and multiple myomas (n=5) with satisfactory results. In this study, we were not limited by the size, number, location, and type of myoma in patients, and we did not use special- ized instruments. Nevertheless, 14 hybrid laparoscopic myo- mectomies were completed without requiring conversion to laparotomy and without increased complication rates.

Our results show that hybrid laparoscopic myomectomy could enable a shorter operative time owing to its convenient suturing, and better anatomical reconstruction of uterine de- fects than that of LESS, with the similar strength and accuracy as laparotomy. In addition, the advantages of hybrid laparo- scopic myomectomy are its better cosmetic outcome because LESS needs no additional incision except for a small umbilical incision that can be concealed (Fig. 1F). However, the clinical limitations of this study include the limited number of patients and its noncomparative design.

In conclusion, hybrid laparoscopic myomectomy can be a feasible, minimally invasive alternative to either LESS or ab- dominal myomectomy in the surgical treatment of patients with symptomatic intramural and subserosal myomas. Further prospective controlled studies are necessary to determine its clinical application.

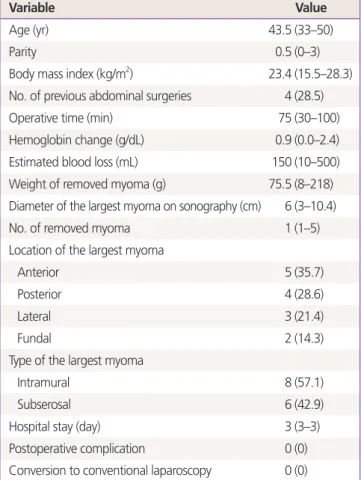

Table 1. Characteristics of 14 patients and operative outcomes

Variable Value

Age (yr) 43.5 (33–50)

Parity 0.5 (0–3)

Body mass index (kg/m

) 23.4 (15.5–28.3)

No. of previous abdominal surgeries 4 (28.5)

Operative time (min) 75 (30–100)

Hemoglobin change (g/dL) 0.9 (0.0–2.4)

Estimated blood loss (mL) 150 (10–500)

Weight of removed myoma (g) 75.5 (8–218)

Diameter of the largest myoma on sonography (cm) 6 (3–10.4)

No. of removed myoma 1 (1–5)

Location of the largest myoma

Anterior 5 (35.7)

Posterior 4 (28.6)

Lateral 3 (21.4)

Fundal 2 (14.3)

Type of the largest myoma

Intramural 8 (57.1)

Subserosal 6 (42.9)

Hospital stay (day) 3 (3–3)

Postoperative complication 0 (0)

Conversion to conventional laparoscopy 0 (0)

Values are presented as median (range) or number (%).

www.ogscience.org 404

Vol. 58, No. 5, 2015

Conflict of interest

No potential conflict of interest relevant to this article was reported.

References

1. Kim YW, Park BJ, Ro DY, Kim TE. Single-port laparoscopic myomectomy using a new single-port transumbilical mor- cellation system: initial clinical study. J Minim Invasive Gy- necol 2010;17:587-92.

2. Lee JH, Choi JS, Jeon SW, Son CE, Lee SJ, Lee YS. Single-port laparoscopic myomectomy using transumbilical GelPort ac- cess. Eur J Obstet Gynecol Reprod Biol 2010;153:81-4.

3. Sesti F, Capobianco F, Capozzolo T, Pietropolli A, Piccione E. Isobaric gasless laparoscopy versus minilaparotomy in uterine myomectomy: a randomized trial. Surg Endosc 2008;22:917-23.

4. Palomba S, Zupi E, Falbo A, Russo T, Marconi D, Zullo F. New tool (Laparotenser) for gasless laparoscopic myomectomy:

a multicenter-controlled study. Fertil Steril 2010;94:1090-6.

5. Takeda A, Imoto S, Mori M, Yamada J, Nakamura H. Isobaric two-port laparoscopic-assisted myomectomy by combined approach through umbilical and suprapubic mini-incisions with hidden scar: a technique and initial experience. Eur J Obstet Gynecol Reprod Biol 2012;160:88-92.

6. Kang JH, Lee DH, Lee JH. Single-port laparoscopically as- sisted transumbilical ultraminilaparotomic myomectomy. J Minim Invasive Gynecol 2014;21:945-50.

7. Yang YS, Oh KY, Hur MH, Kim SY, Yim HS. Laparoendo- scopic single-site surgery using conventional laparoscopic instruments and glove port technique in gynecology: a single surgeon’s experience. J Minim Invasive Gynecol 2015;22:87-93.

8. Yang YS, Kim SH, Jin CH, Oh KY, Hur MH, Kim SY, et al.

Solo surgeon single-port laparoscopic surgery with a homemade laparoscope-anchored instrument system in benign gynecologic diseases. J Minim Invasive Gynecol 2014;21:695-701.

9. Han WK, Park YH, Jeon HG, Jeong W, Rha KH, Choi H, et al. The feasibility of laparoendoscopic single-site nephrec- tomy: initial experience using home-made single-port de- vice. Urology 2010;76:862-5.

10. Kim TJ, Lee YY, Kim MJ, Kim CJ, Kang H, Choi CH, et al.

Single port access laparoscopic adnexal surgery. J Minim Invasive Gynecol 2009;16:612-5.

11. Damiani A, Melgrati L, Franzoni G, Stepanyan M, Bonifa- cio S, Sesti F. Isobaric gasless laparoscopic myomectomy for removal of large uterine leiomyomas. Surg Endosc 2006;20:1406-9.

12. Yoshiki N, Okawa T, Kubota T. Single-incision laparoscopic

myomectomy with intracorporeal suturing. Fertil Steril

2011;95:2426-8.
