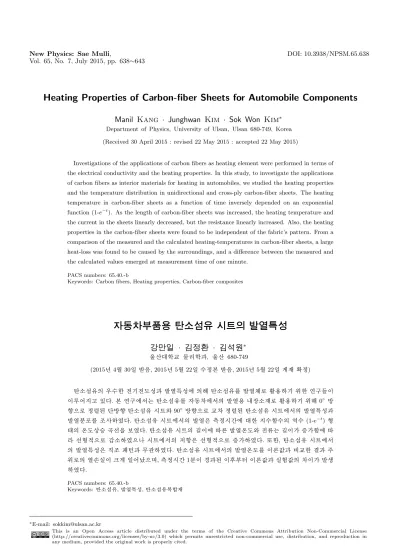

Heating Properties of Carbon-fiber Sheets for Automobile Components

Heating Properties of Carbon-fiber Sheets for Automobile Components

Manil Kang · Junghwan Kim · Sok Won Kim

Department of Physics, University of Ulsan, Ulsan 680-749, Korea (Received 30 April 2015 : revised 22 May 2015 : accepted 22 May 2015)

Investigations of the applications of carbon fibers as heating element were performed in terms of the electrical conductivity and the heating properties. In this study, to investigate the applications of carbon fibers as interior materials for heating in automobiles, we studied the heating properties and the temperature distribution in unidirectional and cross-ply carbon-fiber sheets. The heating temperature in carbon-fiber sheets as a function of time inversely depended on an exponential function (1-e^−t). As the length of carbon-fiber sheets was increased, the heating temperature and the current in the sheets linearly decreased, but the resistance linearly increased. Also, the heating properties in the carbon-fiber sheets were found to be independent of the fabric’s pattern. From a comparison of the measured and the calculated heating-temperatures in carbon-fiber sheets, a large heat-loss was found to be caused by the surroundings, and a difference between the measured and the calculated values emerged at measurement time of one minute.

PACS numbers: 65.40.-b

Keywords: Carbon fibers, Heating properties, Carbon-fiber composites



Ž Ò Þ ” ¼˜  ۓ Ó Þ ’ ˜ m} ºV Ȗ ¥ S ² Ž8 ý ®  o° ‚ Ç — ¤V R Ë

~ ç

¡¹ ÿ › G ž B ·  ™ »+ ä Z 9  ·  ™ ») o  4 w H

Ö

¦íߖ@/†<Ɠ§ Óüto†<Æõ, Ö¦íߖ 680-749

(2015¸ 4Z4 30{9 ~ÃÎ6§, 2015¸£  5Z4 22{9 ú&ñ‘:r~ÃÎ6£§, 2015¸ 54 22{Z 9 >FSX‰&ñ)

ò

ø͙è$3Ä»_ ĺúôÇ „l„•¸$íõ µ1Ï\P:£¤$í\ _K ò͙øè$3Ä»\¦µ1Ï\P^‰–Ð ¸6ց x l 0AôÇ ƒ½¨[þts s

ÀÒ#Qt“¦ e”. ‘:r ƒ½¨\"fH òø͙è$3Ä»\¦ 1lx \"f_ µ1Ï\P6 x ?/©œ™èF–Ð Ö¸6 x l 0AK 0^◦~½Ó

†

¾Óܼ–Ð &ñ§>=)aéߖ~½Ó†¾Ó òø͙è$3Ä» ràÔü< 90^◦ ~½Ó†Óܾ¼–Ð “§  &ñ§>=)aòø͙è$Ä3» ràÔ\"f_ µ1Ï\P:£¤$íõ µ

1Ï\PìrŸí\¦ ›¸ %i. òø͙è$3Ä» ràÔ\"f_ µÏ\1P“Ér 8£¤&ñrçߖ\ @/ôÇ tú†<Êú_ %iú (1-e^−t) +þA I

_ “:r•¸©œ5px /BG‚`¦˜Ð%i. òø͙è$3Ä» ràÔ_ U´s\ Érµ1Ï\P“:r•¸ü< „ÀӍHU´s 7£x†<Ê\



 ‚+þA&hܼ–Ð yŒ™™è %Üi¼
 ràÔ\"f_ $†½Ó“Ér +‚þA&hܼ–Ð 7£x %i. ¢¸ôÇ, òø͙è$3Ä» ràÔ\"f _

 µ1Ï\P:£¤$í“Ér f”›¸ J‡õ Áº›'a %i. òø͙è$3Ä» ràÔ\"f_ µ1Ï\P“:r•¸\¦ s:r°úכõ q“§ôÇ õ ÅÒ 0

A–Ð_ \P’<Hz´s ß¼> {9#QzŒ¤Ü¼ 9, 8£¤&ñrçߖ 1ìrs âõ)asÊêÂÒ' s:rכõú° z´+«>°úכ_ s µ1ÏÒqt

%i.

PACS numbers: 65.40.-b

Keywords:òø͙è$3Ä», µ1Ï\P:£¤$í, òø͙è$3Ä»4Ÿ¤½+ËF

∗E-mail: [email protected]

This is an Open Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/by-nc/3.0) which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.

I. " e  ] Ø

ò

ø͙è$3Ä» (carbon fiber)Hòø͙è_ †<ÊÄ»|¾Ós 90% s©œ Ü

¼–Ð sÀÒ#Q” $3Ä»©œ_ òø͙è F«Ñ–Ð y©œ•¸H^o=õ ·ú˜ÀÒ p

³ou qK Z>“¦ y©œ•¸H œ ©y. ¢¸ôÇ, Z}“Ér \P„•¸•¸

\

¦ t“¦ e”ܼ 9 \P؟‚½Ó>ú ±ú`¦ ÷rëߖ m „l

„

•¸$ís ĺúôÇ :£¤$í`¦ t“¦ e” [1]. òø͙è$3Ä»H

$

3Ä»\"f %3#QtH ×æ|9Ä»ü< $3òøÍ\"f %3#QtH c+t Ø

Ô (coal tar) ÅÒ"鶫Ñs 9 YUs“:r, PAN (polyacryloni- trile), xu ¢¸H `…Ztút 1xp\"f•¸ Òqtíߖ÷&“¦ e”. òøÍ

™

è$3Ä»_ “¦òøÍ$“íÉr òø͙è8£x[þts $3Ä» »¡¤ ¨\ î'Ÿ†<Ê\ l

“

 HX< sQôÇ :£¤$í\ _K òø͙è$3Ä»_ òøÍ$í, „l„

•

¸•¸, \P„•¸•¸, \ØPŸ‚½Ó>ú 1px °õú “Ér Óüto&h :£¤$í[þt“Ér

$

3Ä» »¡¤\ úf”ôÇ ~½Ó†¾Ó˜Ð ¨î'ŸôÇ U´s ~½Ó†¾Ó\"f ˜Ð Ä

ºÃºôÇ :£¤$í`¦ ˜Ð“ [2]. òø͙è$3Ä»_ >hµ1ϓÉr 19[jl

´ ú

˜ Edison\ _K „½¨ (€9Fpà'Ô)_ µ1Ï"îܼ–ÐÂÒ' r



Œ

•÷&%3“¦, Õª Êê 1950¸@/ ×æ\PÂÒ' YUs“:r $3Ä»\¦ ئ µ

1ÏF«Ñ (precursor)–Ð Hòø͙è$3Ä» –ÐÖ¿ 6 x½¨›¸F«Ñ ü

< œí“¦“:r éߖ\PF–Ð >hµÏ÷1&%3 [3]. 1960¸\ {9‘:r_ Tsunoda\ _K PANs òø͙è$3Ä»_ „½¨^‰–Ð 6 x÷&

%

3“¦, 1961¸ Shindo, 1964¸ Wattü< Johnson, 1966¸ Prescottü< Strendege\ _K òø͙è$Ä3»_ >hµ1Ïs sÀÒ#Q

&

’ܼ 9, ‰&³FH™èFíߖ\Oõ $3Ä»íߖ\O, l>/BN\O, 1lx  x9

 ĺÅ҆½Ó/BNìr 1px\ sØÔlt €ªœôÇ íߖ\O ìr\

"

f 6 x÷&“¦ e” [4].

þ

jH\H͙øòè$3Ä»_ ĺúôÇ „l„•¸$õí ³ð€ µ1Ï\P :

£¤$í\ _K òø͙è$3Ä»\¦ µ1Ï\P^‰–Ð Ö¸6 x l 0AôÇ ƒ½¨ [

þ

ts sÀÒ#Qt“¦ e”ܼ 9 [5–7], ¢¸ôÇ, 3 lqF`OáÔ
 “¦ìr

—

¸F\ '‘ #Œ òø͙è$3Ä» 4Ÿ¤½+ËF (composites)\¦½¨$í

#Œ s\¦ µ1Ï\^P‰–Ð s6 x “¦ H ƒ½¨[þts Ö¸µ1Ïy

”

'Ÿ÷&“¦ e” [8–12].

‘

:rƒ½¨\"fHòø͙è$3Ä»\¦1lx \"f_ µÏ\1P6 x?/©œ

™

èF–Ð Ö¸6 x l 0AK 0^◦ ~½Ó†Óܾ¼–Ð &ñ§>=)a–~é߽ӆ¾Ó òø͙è

$

3Ä» ràÔü< 90^◦ ~½Ó†¾Óܼ–Ð 1:1 “§  &ñ§>=)aràÔ\¦]jŒ•

%i“¦, ]jŒ•)aòø͙è$3Ä» ràÔ\ f”ÀÓ „ÀÓ\¦ “ #Œ ò

ø͙è$3Ä» ràÔ\"f_ µ1Ï\P:¤$£í`¦ ›¸ %i. ¢¸ôÇ, &h ü

@‚ \Po©œBj\¦s6x  #Œ òø͙è$Ä3» ràÔ\"f_ µ1Ï

\P

ìrŸí\¦›¸ %i.

II. ÷ m Ç] M ö U ê s0 n É

‘

:r ƒ½¨\"fH 0 ^◦ ~½Ó†¾Óܼ–Ð &ñ§>=)a éߖ~ӆ½¾Ó òø͙è$3Ä» r

àÔü< 90^◦ ~½Ó†¾Óܼ–Ð 1:1 “§  &ñ§>=)aràÔ_ ]jŒ•`¦0A K

 7 µm_ f”â`¦°úH Toray_ T-700S 12k òø͙è$3Ä»

Fig. 1. (Color online) (a) Structure and photographs of carbon-fiber sheets prepared for measurements of heating properties.

Fig. 2. (Color online) Schematic diagram of an experi- mental setup for measurements of heating properties in carbon-fiber sheets.

\

¦s6 x %i. òø͙è$3Ä» ràÔ_ ;Ÿ¤“Ér 6 cm–Ð “¦&ñ %i

“

¦, U´s\¦ 10 ∼ 30 cmt 5 cm çߖܼ–Ð orv€"f ò

ø͙è$3Ä» ràÔ\"f_ µ1Ï\P“:r•¸, „ÀÓ, „·úš, $†½Ó`¦ 8£¤&ñ

%i. ¢¸ôÇ, ràÔ_ „ €&\h"f_ rçߖ\ Ér µ1Ï\P ì

rŸí\¦SX‰“ l 0AK &hü@‚ \Po©œBj (Thermalis, LIR203na)\¦ s6 x #Œ ràÔ\"f_ µ1Ï\PìrŸí\¦ ›¸

%

i. Table 1\ µ1Ï\P:£¤$í 8£¤&`ñ¦0AôÇ òø͙è$3Ä» ràÔ_

½

¨›¸ü< 8£¤&ñ ›¸| `¦
?/%3“¦, Fig. 1\ ½¨o „FGs Â

҂Ã̝)aòø͙è$3Ä» ràÔ_ ½¨›¸\¦
?/%3.

ò

ø͙è$3Ä» ràÔ_ µ1Ï\P:£¤$“íÉr Fig. 2_ z´+«> ©œu\¦s 6

x #Œ 8£¤&ñ %i. òø͙è$3Ä» ràÔ_ U´s\¦ 10 cm\

"

f 30 cmt 5 cm çߖܼ–Ð orv€"f „"é¶/BN/åLl (GP-4303D)\¦s6 x #Œ 1 ∼ 3 V_ „·úš`¦ “ %i“¦, 1

l

xr\ nt_O YOwp' (Hp, 34401A)–Ð „ÀÓ°úכ`¦ 30œí ç

ߖܼ–Ð 8£¤&ñ %iܼ 9, 8£¤&ñ)a „ÀÓ°úכõ “ôÇ „·úš

`

¦s6 x #Œ òø͙è$3Ä»_ $†Ó`½¦>íߖ %i. ¢¸ôÇ, \P„

Table 1. Sample structures with unidirectional and cross-ply carbon-fiber sheets and a condition of measurements of heating properties.

Carbon fiber Width (cm) Length (cm) Electrode Voltage (V)

T-700S12k

6.0 10 ∼ 30 Cu plate Both-side attached 1 ∼ 3 V

(Toray, Japan) (5 cm interval) (6 × 1 cm) (1 V interval)

Fig. 3. (Color online) (a)∼(e) Heating properties in unidirectional carbon-fiber sheets with sheet length and applied voltage. (f) Heating properties with sheet length at an applied voltage of 3 V.

Fig. 4. (Color online) (a) Heating temperature, (b) current, and (c) resistance in unidirectional carbon-fiber sheets at a measured time of 240 s and an applied voltage of 3 V.

@

/\¦ s6 x #Œ òø͙è$3Ä» ràÔ ×怩œ ÂÒìr"\f_ µ1Ï\P“:r

•

¸\¦ 8£¤&ñ %i.

III. ÷ m Ç] M ö+ s ÇÊ Ý õ m Í Ä Z ØV Ä

Fig. 3(a)∼3(e)tHéߖ~½Ó†¾Ó òø͙è$3Ä» ràÔ\"f_ “

„·úšõ U´s\ Érµ1Ï\:P£¤$í`¦
·p כ s. “

„

·úš“Ér 1 ∼ 3 Vs“¦, 8£¤&ñrçߖ“Ér 7ìrçߖ 30œí çߖܼ–Ð 8£¤

&

ñ %i. ràÔ\"f “:r¸ 7•£xH 5ìr (300œí) ?/\ —¸¿º s

ÀÒ#Q&’“¦, “„·úšs 7£x†<Ê\  µ1Ï\P“:r•¸H 7£x

Ùþ¡Ü¼ 9 ü@ÂҖÐ_ \P’<Hz´\ _K 8£¤&ñrçߖ\ @/ôÇ t Ã

º†<Êú_ %iú (1-e^−t) +þAI_ “:r•¸ ©œ5px/BG‚`¦˜Ð%i.

3 V_ “„·úš\"f òø͙è$3Ä» ràÔ_ U´s\ Érµ1Ï\P :

£¤$í“Ér Fig. 3(f)\
?/%3. òø͙è$3Ä» ràÔ_ U´s

10 ∼ 30 cmt 7£x½+Ét•¸ ràÔ\"f “:r•¸ 7£xH—¸

¿

º 8£¤&ñrçߖ\ @/ôÇ tú†<Êú_ %iú (1-e^−t) +þAI_ “:r

•

¸ ©œ5px/BG‚`¦˜Ð%iܼ 9, Õª “:r•¸ 7£x;Ÿ¤“ÉrràÔ_ U´s

Fig. 5. (Color online) Temperature distribution, measured by using an infrared thermalburn camera, in unidirectional carbon-fiber sheets with measuring time.

Fig. 6. (Color online) (a)∼(e) Heating properties in cross-ply carbon-fiber sheets with sheet length and applied voltage.

(f) Heating properties with sheet length at an applied voltage of 3 V.

Table 2. Heating temperature, current, and resistance in the unidirectional carbon-fiber sheets at a measuring time of 240 s and an applied voltage of 3 V.

Length Generate heat Current Resistance

(cm) (^◦C) (A) (Ω)

10 16.8 2.79 1.07

15 15.6 2.35 1.27

20 13.0 2.44 1.22

25 12.0 2.16 1.38

30 8.0 1.96 1.52

 7£x†<Ê\  ‚+A&þhܼ–Ð yŒ™™è %i.

Fig. 4(a)H 8£¤&ñrçߖs 240 œís“¦, “„·úšs 3 V {9

 M: éߖ~½Ó†¾Ó òø͙è$3Ä» ràÔ\"f_ µ1Ï\P“:r•¸\¦ U´s\



 q“§ôÇ כ s. ràÔ_ U´s 7£x½+Éú2Ÿ¤µ1Ï\P“:r

•

¸H ‚+þA&hܼ–Ð yŒ™™è (y = 20.1 − 0.38x) %i“¦, Õª °úכ

“

Ér 10 cm U´s_ ràÔ\"fH 16.8 ^◦C%i“¦, 30 cm U´s _

 ràÔ\"fH 8.0^◦C%i. sQôÇ õHòø͙è$3Ä» r à

Ô_ U´s 7£x\ Ér ràÔ_ $†½Ó_ 7£x\ _ôÇ „ À

Ó_ yŒ™™è M:ëHs. éߖ~½Ó†¾Ó òø͙è$3Ä» ràÔ_ U´s\

 É

r„ÀÓü< $†½Ó_ oH Fig. 4(b)ü< 4(c)\
?/%3.

Fig. 4(b)ü< 4(c)\"f ˜Ð#Œ t1pw rsàÔ_ U´s 7£x†<Ê

\

  „ÀӍH‚+þA&hܼ–Ð yŒ™™è %i“¦, ìøÍ@/–Ð $†½Ó“Ér

‚

+þA&hܼ–Ð 7£xÙþ¡. sQôÇ õ[þt`¦ Table 2\


?

/%3. éߖ~½Ó†¾Ó òø͙è$3Ä» ràÔ\"f_ µ1Ï\P“:r•¸, „ÀÓ, $

†

½Ós ‚+þA&h“ yŒ™™è x9 7£x ↾Ó`¦˜ÐsÙ¼–Ð z´+«>&hܼ

–

Ð %3#Q” ‚+þA&h“ †<Êú\¦ s6 x #Œ ˜Ð | U´s\"f _

 °úכ[þt`¦%3`¦ ú e”. Fig. 5H &hü@‚ \Po©œBj

\

¦ s6 x #Œ Œ%OÉòôÇ éߖ~ӆ½¾Ó òø͙è$3Ä» ràÔ_ 8£¤&ñrçߖ

\

 Ér µ1Ï\PìrŸí\¦
·p כ s. s M:, òø͙è$3Ä» r à

Ô_ U´sH 20 cm, “„·úš“Ér 3 V%i. Fig. 5\"f ˜Ð

Fig. 7. (Color online) (a) Heating temperature, (b) current, and (c) resistance in cross-ply carbon-fiber sheets at a measured time of 240 s and an applied voltage of 3 V.

Fig. 8. (Color online) Temperature distribution, measured by using an infrared thermalburn camera, in cross-ply carbon-fiber sheets with measuring time.

Fig. 9. (Color online) Heating properties in carbon-fiber sheets with fabric pattern measured at a length of 30 cm and an applied voltage of 3 V.

#

Œ t1pws 60œí_ rçߖs âìÉrÊê r«Ñ\"f_ µ1Ï\PìrŸí



H„ €&h\ 5g {9#Qèߖ.

Fig. 6(a)∼(f)tH 90^◦ ~½Ó†¾Óܼ–Ð 1:1 “§  &ñ§>=)aòøÍ

™

è$3Ä» ràÔ\"f_ “„·úšõ U´s\ ÉrÏ\1µP:£¤$í`¦

·p כ s. ràÔ\"f “:r¸•o :£¤$í“Ér Fig. 3_ éߖ~½Ó

†

¾Ó òø͙è$3Ä» ràÔ\"f_ õü< ÅÒ Ä» >
zŒ¤



. Fig. 3\"f ðøÍt–Ð “„·úšs 7£x†<Ê\  µ1Ï

\P

“:r•¸H 7£xÙþ¡“¦, ràÔ_ U´s 10 ∼ 30 cmt 7£x

½

+Ét•¸ ràÔ\"f_ “:r•¸ 7£xH—¸¿º 8£¤&ñrçߖ\ @/ôÇ t

ú†<Êú_ %iú (1-e^−t) +þAI_ “r:•¸ ©œ5px/G‚B`¦ ˜Ð%i

Table 3. Heating temperature, current, and resistance in the cross-ply carbon-fiber sheets at a measuring time of 240 s and an applied voltage of 3 V.

Length Generate heat Current Resistance

(cm) (^◦C) (A) (Ω)

10 15.5 2.58 1.16

15 13.0 2.39 1.25

20 10.5 2.06 1.44

25 9.0 1.87 1.59

30 7.6 1.81 1.65

Ü

¼ 9, Õª “:r•¸ 7£x;Ÿ¤“Ér+‚þA&hܼ–Ð yŒ™™è %i. Fig. 7“Ér 8

£¤&ñrçߖs 240 œís“¦, “„·úšs 3 V{9 M: 90^◦ ~½Ó†¾Ó Ü

¼–Ð “§  &ñ§>=)aòø͙è$3Ä» ràÔ\"f_ µ1Ï\P“:r•¸, „ÀÓ,

$

†½Ó`¦U´s\  q“§ôÇ כ s. Fig. 4 _ õ\"fü<



ðøÍt–Ð ràÔ_ U´s 7£x½+Éú2Ÿ¤µ1Ï\P“:r•¸H‚+þA

&

hܼ–Ð yŒ™™è (y = 18.4 − 0.35x) %i“¦, „ÀÓ ¢¸ôÇ ‚+þA

&

hܼ–Ð yŒ™™è %iܼ 9 $†½Ó“Ér U´s 7£x†<Ê\  7£x

 %i. ràÔ\"f_ µ1Ï\P“:r•¸H 10 cm U´s\"f 15.5

◦C%i“¦, 30 cm U´s\"f 7.6^◦C%i. sQôÇ õH éߖ

~

½Ó†¾Ó ràÔ\"fü< ðøÍt–Ð ràÔ U´s_ 7£x\ Ér

$

†½Ó_ 7£x\ _ôÇ „ÀÓ_ yŒ™™è M:ëHs. sQôÇ õ [

þ

t`¦ Table 3 \
?/%3. Fig. 8“Érü&h@‚ \Po©œBj



\¦s6 x #ŒOɌ%òôÇ 90^◦ ӆ½~¾Óܼ–Ð “§  &ñ§>=)aòø͙è$3 Ä

» ràÔ_ 8£¤&ñrçߖ\ ÉrÏ\1µPìrŸí\¦
·p כ s.

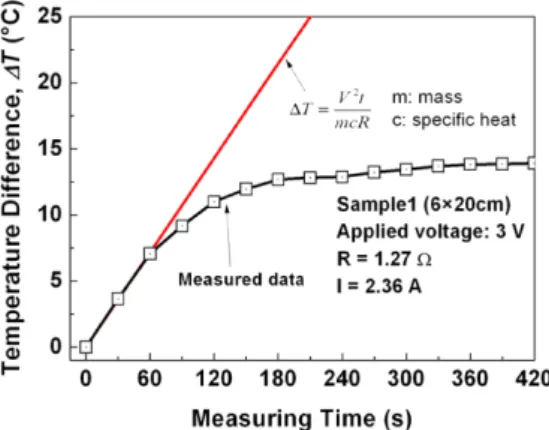

Fig. 10. (Color online) Comparison of measured and cal- culated values of heating temperature in unidirectional carbon-fiber sheet with a length of 30 cm and an applied voltage of 3 V.

Fig. 5\"fü< ðøÍt–Ð 60œí_ rçߖs âìÉrÊê r«Ñ\

"

f_ µ1Ï\PìrŸíH €„&h\ 5g {9#Qèߖ.

Fig. 9H U´s 30 cms“¦, 3 V_ “„·úš\"f 8£¤

&

ñôÇ f”›¸ J‡\ Éròø͙è$3Ä» ràÔ_ µ1Ï\:P£¤$í`¦q

“

§ôÇ כ s. r«Ñ 1“Éréߖ~ӆ½¾Ó òø͙è$3Ä» ràÔs“¦, r«Ñ 2H 90^◦~½Ó†¾Óܼ–Ð “§  &ñ§=>)aòø͙è$3Ä» ràÔs. q“§



õ éߖ~½Ó†¾Ó òø͙è$3Ä» ràÔ (r«Ñ 1)_ “:r•¸ ©œ5pxÒ¦sH

™

è > Z}>
zŒ¤Ü¼
 f”›¸ J‡\ Ér µ1Ï\P:£¤$í“Ér

H s\¦ Ðs˜t ·ú§€Œ¤Ü¼ 9, “:r•¸ 7£xH 240œíH%ƒ\

"

f Ÿío÷&%3.

ò

ø͙è$3Ä» ràÔ_ µ1Ï\P:£¤$ 8í £¤&ñ r ÅÒ0A–Ð_ \P’<Hz´

`

¦ ·ú˜˜Ðl 0AK ràÔ\"f_ “r:•¸ o\¦s:r°úכõ q

“

§ %i. Fig. 10“ÉrU´s 20 cm, 3 V_ “„·úš\"f 8£¤

&

ñôÇ éߖ~½Ó†Ó ò¾ø͙è$3Ä» ràÔ\"f_ µ1Ï\P/BG‚`¦s:r°úכõ q

“§ôÇ כ s. >íߖ\ 6 xa) òø͙è$3Ä»_ q\Põ x9•¸



H yŒ•yŒ• 0.18 cal·g^{−1 ◦}C⁻¹õ 1.80 gcm⁻³ %i. q“§ õ

, ÅÒ0A–Ð_ \P’<Hz´s ß¼> {#9QzŒ™`¦ ^¦Ãº e”ܼ 9, 8£¤

&

ñrçߖ 1ìrs âõ)asÊêÂÒ' s:r°úכõ z´+«>°úכs s

 µ1ÏÒqt†<Ê`¦ ^¦Ãº e”.

IV. + s Ç Â ] Ø

‘

:rƒ½¨\"fHòø͙è$3Ä»\¦1lx \"f_ µÏ\1P6 x?/©œ

™

èF–Ð Ö¸6 x l 0AK 0^◦ ~½Ó†Óܾ¼–Ð &ñ§>=)a–~é߽ӆ¾Ó òø͙è

$

3Ä» ràÔü< 90^◦ ~½Ó†¾Óܼ–Ð 1:1 “§  &ñ§>=)aràԖР]jŒ•

)

a òø͙è$3Ä» ràÔ\ f”ÀÓ „ÀÓ\¦ “ #Œ ràÔ\"f_ µ

1Ï\P:£¤$í`¦›¸ %i“¦, &hü@‚ \Po©œBj\¦s6 x

#

Œ µ1Ï\PìrŸí\¦›¸ %i.

—

¸ŽHòø͙è$3Ä» ràÔ\"f_ µÏ\1P“Ér 8£¤&rñçߖ\ @/ôÇ t Ã

º†<Êú_ %iú (1-e^−t) +þAI_ “:r¸•©œ5px/BG‚`¦˜Ð%iܼ 9,

3ìr?/\ “:r•¸ ©œ5pxs a-¢«Ñ÷&%3. ò͙øè$3Ä» ràÔ_ U´ s

\ Érµ1Ï\P“:r•¸ü< „ÀӍH U´s 7£x†<Ê\  ‚ +þ

A&hܼ–Ð yŒ™™è %iܼ
 ràÔ\"f_ $†½Ó“Ér‚+þA&hܼ–Ð 7

£

x %i. òø͙è$3Ä» ràÔ\"f_ µ1Ï\P:£¤$í“Ér f”›¸ J

‡

õ Áº›'a% i. òø͙è$3Ä» ràÔ\"f_ µ1Ï\“P:r•¸\¦ s



:r°úכõ q“§ôÇ õ ÅÒ0A–Ð_ \P’<Hz´s ß¼> {9#QzŒ¤Ü¼ 9, 8£¤&ñrçߖ 1ìrs âõ)asÊêÂÒ' s:rכõú° z´+«>°úכ_

s µ1ÏÒqt %i. f”›¸ J‡\›'a>\Os òø͙è$3Ä»

^

‰ëߖ`¦“¦9 €, 3 V_ „·úš“ r 3ìr s?/\ 18 ^◦C

&

ñ•¸_ “:r•¸ œ5©px`¦ ˜Ð#Œ l”>r_ µ1Ï\PràÔ (\P‚)\¦ @/

’

½+É Ãº e”`¦ Üכ¼–Ð ÒqtyŒ•)a.

P

c p 8 ý ò k >

s

 7HëH“Ér ×æ&h ƒ½¨G'p' áԖÐÕªÏþ› (2009-0093818)ܼ

–

Рú'Ÿ)a ƒ½¨{9m.

REFERENCES

[1] E. Fitzer, In Carbon Fibers and Their Composites (Springer, Berlin, 1985)

[2] L. T. Drzal and M. Madhukar, J. Mater. Sci. 28, 569 (1993).

[3] R. Bacon, J. Appl. Phys. 31, 283 (1960).

[4] J. B. Donnet and R. C. Bansal, Carbon fibers, 2nd ed. (Marcel Dekker, New York, 1990).

[5] C. Joseph and C. Viney, Compos. Sci. Technol. 60, 315 (2000).

[6] J. Zhang, Q. Guo, M. Huson, I. Slota and B. Fox, Compos. Part A: Appl. Sci. Manuf. 41, 787 (2010).

[7] A. E. Zantout and O. I. Zhupanska, Compos. Part A: Appl. Sci. Manuf. 41, 1719 (2010).

[8] A. Fosbury, S. Wang, Y. F. Pin and D. D. L. Chung, Compos. Part A: Appl. Sci. Manuf. 34, 933 (2003).

[9] S. Wang and D. D. L. Chung, Compos. Part B: Eng.

30, 591 (1999).

[10] N. Athanasopoulos and V. Kostopoulos, Compos.

Sci. Technol. 72, 1273 (2012).

[11] K. Takahashi and H. T. Hahn, Compos. Part B: Eng.

43, 833 (2012).

[12] T. Ogasawara, Y. Hirano and A. Yoshimura, Com- pos. Part A: Appl. Sci. Manuf. 41, 973 (2010).
