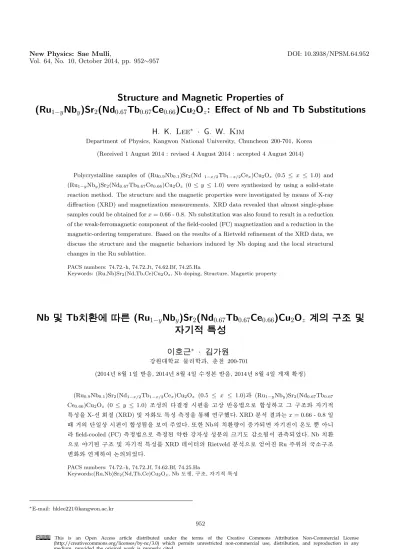

Structure and Magnetic Properties of

(1)

Structure and Magnetic Properties of

(Ru

_1−y

Nb

_y

)Sr

₂

(Nd

_0.67

Tb

_0.67

Ce

_0.66

)Cu

₂

O

_z

: Effect of Nb and Tb Substitutions

H. K. Lee^∗ · G. W. Kim

Department of Physics, Kangwon National University, Chuncheon 200-701, Korea (Received 1 August 2014 : revised 4 August 2014 : accepted 4 August 2014)

Polycrystalline samples of (Ru0.9Nb0.1)Sr2(Nd 1−x/2Tb1−x/2Cex)Cu2Oz (0.5 ≤ x ≤ 1.0) and (Ru1−yNby)Sr2(Nd0.67Tb0.67Ce0.66)Cu2Oz (0 ≤ y ≤ 1.0) were synthesized by using a solid-state reaction method. The structure and the magnetic properties were investigated by means of X-ray diffraction (XRD) and magnetization measurements. XRD data revealed that almost single-phase samples could be obtained for x = 0.66 - 0.8. Nb substitution was also found to result in a reduction of the weak-ferromagnetic component of the field-cooled (FC) magnetization and a reduction in the magnetic-ordering temperature. Based on the results of a Rietveld refinement of the XRD data, we discuss the structure and the magnetic behaviors induced by Nb doping and the local structural changes in the Ru sublattice.

PACS numbers: 74.72.-h, 74.72.Jt, 74.62.Bf, 74.25.Ha

Keywords: (Ru,Nb)Sr2(Nd,Tb,Ce)Cu2Oz, Nb doping, Structure, Magnetic property

Nb õ m Í TbV ò & ÿ; c Â \ ¥ (Ru

^1−y

Nb

_y

)Sr

₂

(Nd

_0.67

Tb

_0.67

Ce

_0.66

)Cu

₂

O

_z

4 8 ý º õ m Í

M X ì Ä ¤V R Ë

T

Ú£Ó ^∗ · »4wH

y©

"é¶@/<Æ§ Óüto<Æõ, ðr; 200-701

(2014¸ 8Z4 1{9 ~ÃÎ6£§, 2014¸ 8Z4 4{9 Ãº&ñ:r~ÃÎ6£§, 2014¸ 8Z4 4{9 >FSX&ñ)

(Ru0.9Nb0.1)Sr2(Nd1−x/2Tb1−x/2Cex)Cu2Oz (0.5 ≤ x ≤ 1.0)õ (Ru1−yNby)Sr2(Nd0.67Tb0.67

Ce0.66)Cu2Oz (0 ≤ y ≤ 1.0)¸$í_ &ñ r¼#`¦ ¦© ìøÍ6£xZOÜ¼Ð ½+Ë$í ¦ Õª ½¨¸ü< l&h :

£¤$í`¦ X- r]X (XRD) x9 o¸ :£¤$í 8£¤&ñ`¦ :xK ½¨Ùþ¡. XRD ìr$3 õH x = 0.66 - 0.8 {9 M

: _ éß{9© r¼#s ½+Ë$íHd`¦Ð# ÅÒ%3. ¢¸ôÇ Nb_ u¨8|¾Ós 7£x÷& ls :r¸ ÷rm

field-cooled (FC) 8£¤&ñZOÜ¼Ð 8£¤&ñ)a ôÇ y©$í $íìr_ ß¼l¸ yèHds'a8£¤÷&%3. Nb u¨8 Ü

¼Ð l)a ½¨¸ x9 l&h :£¤$í\¦ XRDX<s'_ Rietveld ìr$3Ü¼Ð %3#Q Ru ÅÒ0A_ ²DGè½¨¸

oü< > # 7H_÷&%3.

PACS numbers: 74.72.-h, 74.72.Jf, 74.62.Bf, 74.25.Ha

Keywords:(Ru,Nb)Sr2(Nd,Tb,Ce)Cu2Oz, Nb¸iç, ½¨¸, l&h :£¤$í

∗E-mail: [email protected]

952

This is an Open Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/by-nc/3.0) which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.

(2)

I. "e Â]Ø

CuBa₂RCu₂O₇ (Cu-1212, R = Y ¢¸H BÐÀÓ "é¶è)

>

í¸^_ µ1Ï| [1] Êê u¨8\ @/ôÇ ´ú§Ér ½¨ Ãº '

÷&%3Ü¼ 9, Õª õBauernfeind 1px [2]Ér Cu-1212 í

¸^_ Cu-O ^o Cu @/ Ru \¦u¨8 ¦ Ba @/

Sr`¦u¨8ôÇ RuSr₂RCu₂O₈(Ru-1212)í¸^\¦% 6

£

§Ü¼Ð ½+Ë$íÙþ¡. Õª[þtÉr¢¸ôÇ RuSr₂(R2−xCex)Cu2O10

(Ru-1222) > í¸^¸ ½+Ë$íÙþ¡Ü¼ 9, s[þtÉr Ru> í

¸^Ð Ô¦oÄº 9, R s Sm, Eu, x9 Gd {9 âÄº\ëß éß {9

©s +þA$íHds ·ú94R e. s[þt Ru > í¸^H

>

5Åq&h ½¨\ _K 1997¸ Ru-1222 >_ âÄº e>

:r¸ (Tc) 50 K s _ í¸ :£¤$íõ ls :r¸ (T_m) 100 - 180 K ôÇ y©$í:£¤$ís /BN>r<Ê [3]s

Ð¦÷&%3Ü¼ 9, s#Q"f 1999 ¸\ Ru-1212> [4]\"f¸ Ä»

ôÇ í¸ :£¤$íõ y©$í :£¤$ís /BN>rôÇH½¨ õ

¸ ·ú9t"f s[þt$í í¸^\ @/ôÇÖ¸µ1ÏôÇ

½

¨ Ãº'÷&#Q¸¦ e. s[þt $í í¸^_ Rux9 Cuo u¨8 ½¨ õHs >\"f'a8£¤÷&Hy©$íÉr RuO₂8£x\, Õªo¦ í¸ :£¤$íÉr CuO2 8£x\ l H

כ

Ü¼Ð ·ú9t¦ e. "f Ru 8£x_ l½¨¸ :£¤$í_ s

K ×æכ¹ > ÷&%3. l ½¨¸ :£¤$íÉr ×æ$ír]X z

´+«>Ü¼Ð © "îSXy µ1ßn= Ãº eÜ¼ Ru >_ âÄº Õª

½

¨$í"é¶è BÐÀÓ "é¶è ×æ$í f¨Ãº>Ãº BÄº H Sm, Eu, Gd 1px {9 M:ëß _ éß{9©s ½+Ë$í÷&#Q Õª

½

¨ Ö¸µ1Ï t 3lwÙþ¡. Õª!3\¸ Ô¦½¨ ¦ ×æ$í f¨Ãº

>

Ãº &hÉr°úכqøß 1lx0A"é¶è\¦6 xK Ru-1212_ l

½

¨¸½¨ Ãº'÷&%3 [5,6]. Õª õ l:£¤$íÜ¼Ð ìr

$

3÷&H y©$í½¨¸ m ìøÍy©$í_ Û¼2; l ½¨

¸\¦ °úHכ Ü¼Ð ìr$3÷&%3. Õªo # l&hÜ¼Ð'a 8

£

¤÷&H ôÇ y©$í :£¤$íÉr RuÛ¼2; l¸F'pàÔ lÖ¦

#

Q4R (canting) Dzyaloshinsky-Moriya +þA ìøÍy©$í §¨8

. ôÇ¼# Ru-1222>_ âÄºH Ru-1212>ü< Ä» > RuÛ¼2;\ _ôÇ ìøÍy©$í_ l½¨¸ >rFôÇHõ [7]ü< ÕªQôÇ l½¨¸'a8£¤÷&t ·ú§HH©ìøÍ÷&H õ

[8] Ð¦÷&¦ e. ÕªQÙ¼Ð Ru-1222>_ l½¨¸ :

£¤$í_ sKH Ru>_ í¸ x9 y©$í :£¤$í_ /BN>r :£¤

$í

`¦ sK l 0AK BÄº ×æכ¹ ¦ ^¦ Ãº e. l

½

¨¸ :£¤$í`¦sK l 0AK"fH :£¤y ×æ$ír]Xz´+«>s כ

¹½¨÷& 9 "f ×æ$í f¨Ãº>Ãº &hÉrBÐÀÓ "é¶è\¦ s

6 xôÇ Ru-1222 > éß{9© r¼#`¦ ½+Ë$í H כ s Ö¸µ1Ï ô

Ç ½¨\¦Ãº' l 0AK"fHBÄº |כ¹ . sQôÇ 3lq

&

hÜ¼Ð ÄºoHþjH ×æ$í f¨Ãº>Ãº &hÉr Nd\H ô

Ç Ru-1222> ½+Ë$í`¦½¨ # Ruo\ Cu\¦ {9ÂÒ u

¨8

ôÇ (Ru_1−xCux)(Sr,Ba,Nd)(Nd,Ce)Cu2Oz(0.25 ≤ x ≤ 0.5)¸$í\"f éß{9©`¦½+Ë$í½+É Ãº e6£§`¦µ1Ï| [9,10]

¦ ×æ$ír]X z´+«>`¦Ãº'Ùþ¡. ÕªX< s âÄº o¸ 8

£¤&ñõ Ru-1222 >\"f'a8£¤÷&#Q:rôÇ y©$í :£¤$í s

'a8£¤÷&t ·ú§¤Ü¼ 9, Õª "é¶s Nd ¦Ä»_ :£¤$ít Ruo Cu u¨8Ü¼Ð Ru B$3 (dilution)÷&#Q Ruçß ¨î ç

Ho YO#Q4R {9#Qèß &³©t ·ú Ãº \O%3. :r

½

¨\"fH sQôÇ ½¨\ s#Q ×æ$í r]Xz´+«>s 0px

9, ôÇ y©$í :£¤$ís 'a8£¤÷&HDhÐîr Ru-1222> _

½+Ë$í`¦ 3lq³ðÐ ×æ$í f¨Ãº>Ãº &hÉr Tb`¦ Nd o

\ {9ÂÒ u¨8ôÇ r¼#_ ½+Ë$íõ Õª ½¨¸&h Õªo¦ l

&

h

:£¤$í ½¨\¦Ãº'Ùþ¡.

II. ÷mÇ ]Mö

r

¼#Ér ¦©ìøÍ6£xZOÜ¼Ð ½+Ë$íÙþ¡Ü¼ 9, ½+Ë$í M: íH¸ 99.9% s©_ RuO², Nb2O5, SrCO3, Nd2O3, Tb4O7, CeO2x9 CuO ìr´ús s6 x÷&%3. r¼#Ér 1010 ^◦C\"f 7 ∼ 10 rçß |9è ìr0Al\"f \P%o ÷&%3Ü¼ 9, s Êê í

ßèÛ¼\¦ fËo 91050 ^◦C\"f 12 rçß è ¦ s#Q

"

f 1060^◦C\"f 15rçß è Êê ©:rÜ¼Ð "fÍtÙþ¡. B

\P

%o ×æçß\ r¼#Ér ìrW x9 $í+þAõ&ñ`¦'¬I. r¼# _

½¨¸ ìr$3Ér Cu K±`¦ s6 xôÇ X’pert-pro MPD x9 Rigaku, Dmax 2200 X- r]XlÐ 8£¤&ñ)aX<s'\¦

½ÓÜ¼Ð sÀÒ#Q&Ü¼ 9, ²DGè½¨¸ ìr$3 RIETAN-2000áÔ

ÐÕªÏþ`¦s6 xÙþ¡ [11]. r¼#_ o¸H Quantum De- sign _ SQUID©uÐ 8£¤&ñ÷&%3Ü¼ 9, 8£¤&ñ l©Ér 20 Oe %i.

:r ½¨\"fH Nd\ HôÇ Ru-1222 > o½+ËÓüt\

"

f Nd @/ Tb_ u¨8 ´òõ\¦ ¸ l 0AK, \V q

&hÜ¼Ð (Ru^0.5Nb0.5)Sr2(Nd1.34−xTbxCe0.66)Cu2Oz¸

$í

Ü¼Ð r¼#`¦ ½+Ë$í ¦ ©_ íH¸\¦ ¸Ùþ¡. sM: Ru @/ Nb\¦ {9ÂÒ u¨8ôÇ sÄ»H Nb {9ÂÒ u¨8

÷

& ©_ íH¸ ¾Ó©÷&H 7áx_ ½¨õ [12]\

H # Ãº'÷&%3. s z´+«>_ õ ÄºoH Nbü<

÷

&%3. s \Vq&h õ\¦ ½ÓÜ¼Ð :r ½¨\"fH (Ru0.9Nb0.1)Sr2(Nd_1−x/2Tb_1−x/2Cex)Cu2Oz(0.5 ≤ x ≤ 1.0)õ (Ru1−yNb_y)Sr₂(Nd_0.67Tb_0.67Ce_0.66)Cu₂O_z (0 ≤ y ≤ 1.0)¸$í_ r¼#\ @/K Õª :£¤$í`¦½¨Ùþ¡.

(3)

Fig. 1. XRD patterns for (Ru0.9Nb0.1)Sr2(Nd_1−x/2 Tb_1−x/2Cex)Cu2Oz(0.5 ≤ x ≤ 1.0) samples. Peaks due to impurity phases are denoted by asterisk.

III. ÷mÇ]Mö+sÇÊÝ õmÍ º8ý

Figure 1Ér (Ru0.9Nb0.1)Sr2(Nd1−x/2Tb1−x/2Cex)Cu2Oz

(0.5 ≤ x ≤ 1.0) ¸$í r¼#_ X- r]X (XRD) X<s'

\

¦ Ð#ïr. Figure 1\ ³ðr)a ü< °ú s @/ÂÒìr_ r ]X

³

ðr)a Ô¦íHÓüts 'a8£¤÷&%3. s Ô¦íHÓüt xsß¼H x 0.66- 0.8 %ò%i\"fH _ 'a8£¤÷&t ·ú§Ü¼ x 0.9 x9 1.0 {9 M: r'a8£¤Hd`¦Ð#ïr. sÐ"f ÄºoH&h{© ô

Ç Ce_ u¨8 ¸| \"f (Nd,Tb)\HôÇ DhÐîréß{9

Figure 2H Fig. 1_ õ\¦½ÓÜ¼Ð (Ru1−yNb_y)Sr₂ (Nd0.67Tb0.67Ce0.66)Cu2Oz(0 ≤ y ≤ 1.0)¸$íÜ¼Ð ½+Ë$í

)

"

\

¦ `¦o 9 8£¤&ñ÷&%3Ü¼ 9, FC (field-cooled) 8£¤&ñ\"fH

£¤&ñ õ 110 K \"f t Òqtl 9 ¾º#Qf`¦ ^¦ Ã

. ZFC 8£¤&ñ õH 30 K s \"f ìøÍ$í :£¤$ís'a 8

£

¤÷&%3. Nb_ u¨8|¾Ó y°úכs 7£x > ÷& t Òqt

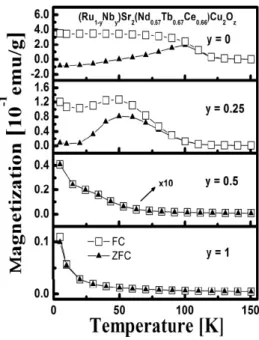

Fig. 2. Temperature dependences of zero-field- cooled (ZFC) and field-cooled (FC) dc magnetization measured at 20 Oe for the (Ru1−yNby)Sr2(Nd0.67

Tb0.67Ce0.66)Cu2Oz (0 ≤ y ≤ 1.0) samples.

l

'a8£¤÷&t ·ú§¦ ZFC 8£¤&ñõ FC 8£¤&ñs _ 5gf`¦

Ð. :£¤y Nb u¨8|¾Ó y 7£x > ÷& FC Ð 8£¤&ñ

÷

¸ :£¤$íÉr y = 0.25 {9 M:¸'a8£¤Hd`¦Ð#ïr. s õ

H 7áxA_ (Ru1−xCu_x)(Sr_1.47Ba_0.2Nd_0.33)(NdCe)Cu₂O_z

>

÷

$í

s'a8£¤÷&t ·ú§Érכ Ér Ruo u¨8\ _ôÇ Ru "é¶ Ã

º_ yè\ _ôÇ éßíHôÇ B$3´òõ(dilution effect)ëßÉr

e

%3Ü¼ 9, Ru o\ Cu\¦u¨8ôÇ âÄº Ru o\ °ú

É

(28.565 ˚A → 28.594 ˚A). Figure 2\"f FC Ð 8£¤&ñ)a

£

x H :r¸\¦ ls:r¸ (T^m)Ü¼Ð çßÅÒ½+É Ãº e Ü

¼ 9, pìrÜ¼Ð ìr$3)als:r¸H y = 0 x9 0.25

â

Äº yy 110 K x9 70 K %i.

Nb u¨8\ Ér l&h :£¤$íoü< ²DGè½¨¸

oü<_ 'a>\¦ sK l 0AK (Ru1−yNb_y)Sr₂(Nd_0.67 Tb0.67Ce0.66)Cu2Oz (0 ≤ y ≤ 1.0) ¸$í r¼#_ XRD X

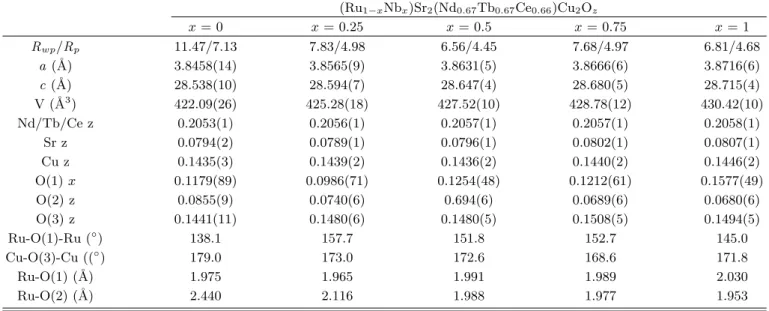

<s\¦ Rietveld ZOÜ¼Ð ìr$3 [13]ôÇ õ Table 1\

e. Figure 3\H y = 0.25 r¼#_ XRD J

Structure and Magnetic Properties of
