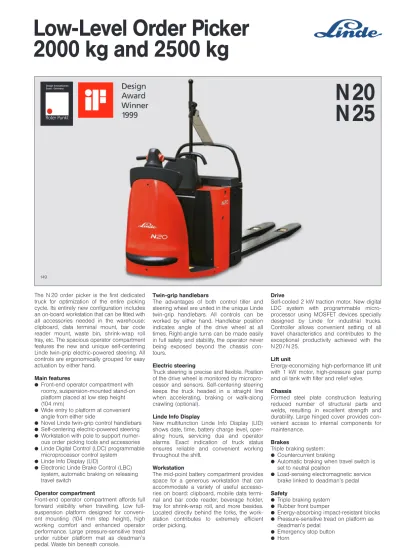

Low-Level Order Picker 2000 kg and 2500 kg
N 20 N 25
The N 20 order picker is the first dedicated truck for optimization of the entire picking cycle. Its entirely new configuration includes an on-board workstation that can be fitted with all accessories needed in the warehouse:
clipboard, data terminal mount, bar code reader mount, waste bin, shrink-wrap roll tray, etc. The spacious operator compartment features the new and unique self-centering Linde twin-grip electric-powered steering. All controls are ergonomically grouped for easy actuation by either hand.
Main features
● Front-end operator compartment with roomy, suspension-mounted stand-on platform placed at low step height (104 mm)
● Wide entry to platform at convenient angle from either side
● Novel Linde twin-grip control handlebars
● Self-centering electric-powered steering
● Workstation with pole to support numer- ous order picking tools and accessories
● Linde Digital Control (LDC) programmable microprocessor control system
● Linde Info Display (LID)
● Electronic Linde Brake Control (LBC) system, automatic braking on releasing travel switch
Operator compartment
Front-end operator compartment affords full forward visibility when travelling. Low full- suspension platform designed for conveni- ent mounting (104 mm step height), high working comfort and enhanced operator performance. Large pressure-sensitive tread under rubber platform mat as deadman's pedal. Waste bin beneath console.
Twin-grip handlebars
The advantages of both control tiller and steering wheel are united in the unique Linde twin-grip handlebars. All controls can be worked by either hand. Handlebar position indicates angle of the drive wheel at all times. Right-angle turns can be made easily in full safety and stability, the operator never being exposed beyond the chassis con- tours.
Electric steering
Truck steering is precise and flexible. Position of the drive wheel is monitored by micropro- cessor and sensors. Self-centering steering keeps the truck headed in a straight line when accelerating, braking or walk-along crawling (optional).
Linde Info Display
New multifunction Linde Info Display (LID) shows date, time, battery charge level, oper- ating hours, servicing due and operator alarms. Exact indication of truck status ensures reliable and convenient working throughout the shift.
Workstation
The mid-point battery compartment provides space for a generous workstation that can accommodate a variety of useful accesso- ries on board: clipboard, mobile data termi- nal and bar code reader, beverage holder, tray for shrink-wrap roll, and more besides.
Located directly behind the forks, the work- station contributes to extremely efficient order picking.
Drive
Self-cooled 2 kW traction motor. New digital LDC system with programmable micro- processor using MOSFET devices specially designed by Linde for industrial trucks.
Controller allows convenient setting of all travel characteristics and contributes to the exceptional productivity achieved with the N 20 / N 25.
Lift unit
Energy-economizing high-performance lift unit with 1 kW motor, high-pressure gear pump and oil tank with filter and relief valve.
Chassis
Formed steel plate construction featuring reduced number of structural parts and welds, resulting in excellent strength and durability. Large hinged cover provides con- venient access to internal components for maintenance.
Brakes
Triple braking system:
● Countercurrent braking
● Automatic braking when travel switch is set to neutral position
● Load-sensing electromagnetic service brake linked to deadman's pedal Safety
● Triple braking system
● Rubber front bumper
● Energy-absorbing impact-resistant blocks
● Pressure-sensitive tread on platform as deadman's pedal
● Emergency stop button
● Horn
149
Design Innovationen Essen · Germany
Roter Punkt
1.1 Manufacturer Linde Linde
1.2 Model designation N 20 N 20
1.3 Power type: Battery, diesel, gasoline, LP gas, AC Battery Battery
1.4 Control type: Manual, pedestrian, rider stand, rider seat, order picker Order picker Order picker
1.5 Load capacity Q (kg) 2000 1) 2000 1)
1.6 Load center c (mm) 600 1200
1.8 Load distance, lowered / raised x (mm) 962 / 895 1762 /1695
1.9 Wheelbase, forks lowered y (mm) 1442 2242
2.1 Service weight including battery kg 840 2) 875 2)
2.2 Axle load with load, front / rear kg 1200 /1640 1200 /1645
2.3 Axle load without load, front / rear kg 695 /160 720 /120
3.1 Tyres, front / rear (R = Solid rubber, PU = Polyurethane) R + PU / PU R + PU / PU
3.2 Tyre size, front (operator side) ø254 x 102 ø254 x 102
3.3 Tyre size, rear (load side) ø85 x 80 ø85 x 80
3.4 Auxiliary wheels (size) ø140 x 60 ø140 x 60
3.5 Wheels, number front / rear (X = driven) 1 x +1/2 1 x +1/2
3.6 Track width, front mm 495 495
3.7 Track width, rear mm 355 355
4.4 Lift h3(mm) 125 125
4.9 Handlebar height, travel position h14(mm) 1140 1140
4.15 Lowered fork height h13(mm) 88 88
4.19 Overall length 1(mm) 2402 3602
4.20 Head length 2(mm) 1252 1252
4.21 Overall width b1/b2(mm) 792 792
4.22 Fork dimensions s/e/ (mm) 60 /165 /1150 3) 60 /165 / 2350 3)
4.25 Fork spread b5(mm) 520 520
4.32 Ground clearance, center of wheelbase m2(mm) 26 26
4.33 Aisle width, 1000 x 1200 pallet crosswise Ast (mm) 2750 3840
4.34 Aisle width, 800 x 1000 pallet lengthwise Ast (mm) 2750 3840
4.35 Turning radius Wa(mm) 2240 / 2295 2940
5.1 Travel speed, with/without load km/h 9.5 /12 9.5 /12
5.2 Lift speed, with/without load m/s 0.036 / 0.052 0.036 / 0.052
5.3 Lower speed, with/without load m/s 0.061/ 0.059 0.061/ 0.059
5.8 Maximum gradeability with/without load, 5 min. rating % 9.5 /15 9.5 /15
5.10 Service brake Electric/hydraulic Electric/hydraulic
6.1 Traction motor, 60 minute rating kW 2.0 2.0
6.2 Lift motor, 15% on time kW 1.0 1.0
6.3 Battery (IEC) – –
6.4 Battery voltage, nominal capacity 5 h rating V/Ah 24/360 24/360
6.5 Battery weight kg 305 305
8.1 Drive controller LDC with microprocessor LDC with microprocessor
8.4 Noise level at operator's ear dB(A) < 69 < 69
1) Load evenly distributed.
2) Battery as Line 6.4.
3) See table on facing page for other fork lengths.
CharacteristicsWeightsWheels/tyresDimensionsPerformanceDrive
Low-level Order Picker
Designation to VDI 3586
ESU
Symbol to V
LINDE
March 2004
Data sheet for Industrial Trucks
Other
Linde N 25 Battery Order picker
2500 1) 600 962 / 895
1442 840 2) 1330/2010
695 /160 R + PU / PU
ø254 x 102
ø85 x 80
ø140 x 60 1 x +1/2
495 355 125 1140 88 2402 1252 792 60 /165 /1150 3)
520 26 2750 2750 2240 / 2295
9 /12 0.030 / 0.052 0.061/ 0.059
8 /15 Electric/hydraulic
2.0 1.0 – 24/360
305
LDC with microprocessor
< 69
U
VDI 3586
VDI 2198
800 x1200 pall. 2 x 800 x1200 pall. 1000 x1200 pall. 1000 x1200 pall. 2 roll 2 roll 3 roll lengthwise lengthwise crosswise lengthwise containers containers containers
Fork length (mm) 1150 2350 1000 1150 1450 1550 2150
Load center c (mm) 600 1200 500 600 700 800 1200
Fork spread b5 (mm) 520 520 680 560 520 520 520
Fork overhang x1 (mm) 188 600 188 188 400 400 600
Aisle width Ast (mm) 2750 3840 2535 2750 2880 3080 3640
Turning radius Wa (mm) 2240 2940 2230 2240 2200 2400 2740
N 20/25
h 14 102 40 104
480 x1
1160698 400835/992
387
x y
m2 h3
h13
c
835
Q
b1
2 6
1
Ast
b5
Wa
e
a/2
a/2
x
ø85 89
h2 h3
s b6
Ast = Wa + (
6– x)
2+ ( b 2
6)
2+ 200
Equipment
Standard equipment
●All safety items listed
●Automatic braking (LBC)
●Load-sensing safety brake
●LDC digital control system with adjustable performance parameters
●Linde Info Display (LID)
●Deadman’s tread incorporated in operator platform
●Waste bin
●Accessory support pole
●Reverse driving support handle
●Operator backrest with storage compart- ment and shrink-wrap roll tray
Batteries and chargers
● 24 V batteries, 360 to 600 Ah capacity
● Battery change from above or either side
● Direct access to battery for routine check Options
● Step for second picking level
● 2500 kg capacity (N 25)
Accessories to mount on central support pole:
● Clipboard, separate waste bin, beverage holder, separate shrink-wrap roll tray
● Clamp mount for data terminal, bar code reader or other devices
Workstation accessories:
● Clipboard, storage compartment, bever- age holder
Truck options:
● Alternative fork lengths
● External crawl speed buttons both sides (adjustable speed)
● Load backrest
● Alternative drive wheel tyres: Polyurethane, wet-grip, non-marking
● Motor brush wear indicator
● Cold store version to – 30 °C Other options available on request.
