R E S E A R C H A R T I C L E
Open Access
A network meta-analysis of therapeutic
outcomes after new image technology-assisted
transurethral resection for non-muscle
invasive bladder cancer: 5-aminolaevulinic
acid fluorescence vs hexylaminolevulinate
fluorescence vs narrow band imaging
Joo Yong Lee
1, Kang Su Cho
2, Dong Hyuk Kang
3, Hae Do Jung
1, Jong Kyou Kwon
4, Cheol Kyu Oh
4,
Won Sik Ham
1and Young Deuk Choi
1,5*Abstract
Background: This study included a network meta-analysis of evidence from randomized controlled trials (RCTs) to assess the therapeutic outcome of transurethral resection (TUR) in patients with non-muscle-invasive bladder cancer assisted by photodynamic diagnosis (PDD) employing 5-aminolaevulinic acid (5-ALA) or hexylaminolevulinate (HAL) or by narrow band imaging (NBI).
Methods: Relevant RCTs were identified from electronic databases. The proceedings of relevant congresses were also searched. Fifteen articles based on RCTs were included in the analysis, and the comparisons were made by qualitative and quantitative syntheses using pairwise and network meta-analyses.
Results: Seven of 15 RCTs were at moderate risk of bias for all quality criteria and two studies were classified as having a high risk of bias. The recurrence rate of cancers resected with 5-ALA-based PDD was lower than of those resected using HAL-based PDD (odds ratio (OR) = 0.48, 95 % confidence interval (CI) [0.26–0.95]) but was not significantly different than those resected with NBI (OR = 0.53, 95 % CI [0.26–1.09]). The recurrence rate of cancers resected using HAL-based PDD versus NBI did not significantly differ (OR = 1.11, 95 % CI [0.55–2.1]). All cancers resected using 5-ALA-based PDD, HAL-based PDD, or NBI recurred at a lower rate than those resected using white light cystoscopy (WLC). No difference in progression rate was observed between cancers resected by all methods investigated.
Conclusions: The recurrence rate of some bladder cancers can be decreased by the implementation of either PDD- and NBI-assisted TUR; in real settings, clinicians should consider replacing WLC as the standard imaging technology to guide TUR.
Keywords: Urinary bladder neoplasms, Photochemotherapy, Narrow band imaging, Meta-analysis, Bayes theorem
* Correspondence:[email protected]
1Department of Urology, Severance Hospital, Urological Science Institute,
Yonsei University College of Medicine, Seoul, Korea
5Department of Urology, Clinical Trial Center for Medical Devices, Severance
Hospital, Urological Science Institute, Yonsei University College of Medicine, 50-1 Yonsei-ro, Seodaemun-gu, Seoul 120-752, Korea
Full list of author information is available at the end of the article
© 2015 Lee et al. This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/4.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly credited. The Creative Commons Public Domain Dedication waiver (http:// creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated.
Background
The conventional therapy for non-muscle invasive bladder cancer (NMIBC) is based on transurethral resection (TUR) combined with post-operational chemotherapy or immunotherapy with Bacille Calmette-Guérin [1]. Con-ventional white light cystoscopy (WLC) has been the standard method for detecting urothelial carcinoma during TUR [2]. However, the sensitivity and specifi-city of WLC is not entirely satisfactory [3]. Flat malig-nant lesions including carcinoma in situ (CIS) are difficult to visualize and distinguish from benign in-flammatory lesions.
New imaging technologies including photodynamic diag-nosis (PDD) and narrow band imaging (NBI) have recently been introduced; these technologies enhance bladder can-cer visualization to improve diagnostic accuracy and the thoroughness of resection. PDD involves the instillation of photoactive porphyrin precursors such as 5-aminolaevulinic acid (5-ALA) or hexylaminolevulinate (HAL), which are metabolized to the photoactive compound intracellularly and then emit red fluorescence under blue light. NBI fil-ters white light into two discrete bands in the blue and green spectrums that penetrate tissue only superficially but are strongly absorbed by hemoglobin. Both PDD and NBI are macroscopic modalities and can thus survey a large area of bladder mucosa in a manner similar to WLC, while providing additional contrast enhancement to high-light suspicious lesions and distinguish them from sur-rounding, noncancerous mucosa. Several studies have demonstrated that PDD and NBI are more sensitive than WLC in detecting small papillary bladder tumors and CIS, thus improving tumor detection rates and decreasing re-sidual tumor rates. This study assessed the therapeutic out-come of PDD- or NBI-assisted TUR in patients with NMIBC via a network meta-analysis of evidence from ran-domized controlled trials (RCTs).
Methods
Inclusion criteria
Published RCTs that met the following criteria were included: (i) a study design that included measurement of the clinical efficacy of PDD or NBI and compared it with that of WLC in patients with suspected or con-firmed NMIBC, (ii) a match between the baseline char-acteristics of patients from two groups, including the total number of subjects and the values of each index, (iii) the performance of the procedure under general anesthesia, spinal anesthesia, or combined spinal–epi-dural anesthesia, (iv) the assessment of at least one of the following outcomes: recurrence rate defined as the number of bladder cancer recurrences after initial TUR, progression rate defined as the number of pa-tients with disease progression into muscle invasive bladder cancer during the follow-up period, or time
until first recurrence, defined as the time until bladder cancer recurrence after initial TUR, and (v) accessibility to the study’s full text in English. When two or more studies reported on a group of patients at the same institution during an overlapping time period, only the study with the longest follow-up period was included. This report was prepared in compliance with Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) state-ment (accessible at http://www.prisma-statestate-ment.org/) [4].
Search strategy
A literature search was performed across all publications prior to 31 December 2013 in PubMed, and EMBASE™ online databases. A cross-reference search of eligible articles was performed to identify additional studies not found by the computerized search. A combination of the following MeSH terms and keywords was used: fluores-cence cystoscopy, photodynamic diagnoses, narrow, im-aging, bladder cancer/tumor, white light cystoscopy, and randomized controlled trial.
Data extraction
One researcher (J.Y.L.) screened the titles and abstracts identified by the search strategy. The other two re-searchers (D.H.K. and K.S.C.) independently assessed each paper’s full text to determine whether a paper met the inclusion criteria. The databases were designed to include the most relevant data with respect to author, year of publication, patient demographics, treatments, recurrence and progression outcomes, and inclusion of a reference standard. Disagreements were resolved by dis-cussion until a consensus was reached or by arbitration employing another researcher (Y.D.C.).
Study quality assessment and publication bias
Once the final group of articles was agreed upon, two researchers (J.Y.L. and D.H.K.) independently examined the quality of each article using the Cochrane’s risk of bias as a quality assessment tool for RCTs. The assess-ment includes assigning a judgassess-ment of “yes,” “no,” or “unclear” for each domain to designate a low, high, or unclear risk of bias, respectively. If one or no domain was deemed “unclear” or “no,” the study was classified as having a low risk of bias. If four or more domains are deemed “unclear” or “no,” the study was classified as having a high risk of bias. If two or three domains were deemed “unclear” or “no,” the study was classified as having a moderate risk of bias [5]. Publication bias was examined using funnel plots. In the absence of publica-tion bias, this method assumes that the largest studies will be plotted near the average and that smaller studies will be spread evenly on both sides of the average, creat-ing a roughly funnel-shaped distribution. Deviation from this shape can indicate publication bias. Quality
assessment and investigation of publication bias were carried out using Review Manager 5 (RevMan 5.2.3, Cochrane Collaboration, Oxford, UK).
Heterogeneity tests
Heterogeneity among the studies was explored using the Q-statistic and Higgins’ I2
statistic [6]. An I2measures the percentage of total variation due to heterogeneity rather than chance across studies and is calculated as follows:
I2¼Q‐df
Q 100%
where “Q” is Cochran’s heterogeneity statistic and “df” indicates the degrees of freedom.
An I2≥ 50 % was considered to represent substantial heterogeneity. For the Q statistic, heterogeneity was deemed to be significant forp less than 0.10 [7]. If there was evidence of heterogeneity, the data were analyzed using a random-effects model. Studies in which positive results were confirmed were assessed with a pooled speci-ficity with 95 % CIs.
Statistical analysis
Outcome variables measured at specific time points were compared in terms of odds ratios (OR) or mean differences with 95 % CIs using a network meta-analysis. Each analysis was based on non-informative priors for effect sizes and precision. Convergence and lack of auto-correlation were checked and confirmed after four chains and a 50,000-simulation burn-in phase; finally, direct probability statements were derived from an add-itional 100,000-simulation phase. Calculation of the probability that each stent has the lowest rate of clinical events was performed using Bayesian Markov Chain Monte Carlo modeling. Sensitivity analyses were per-formed by repeating the main computations using a fixed effect method. Model fit was appraised by comput-ing and comparcomput-ing estimates for deviance and informa-tion criterion. The existence of small study effects or publication bias was assessed by visual inspection of fun-nel plots for pairwise meta-analysis. All statistical analyses were performed using Review Manager 5 and R (R version 3.0.2, R Foundation for Statistical Computing, Vienna, Austria; http://www.r-project.org).
Results
Eligible studies
The database search found 41 articles covering 398 studies for potential inclusion in the meta-analysis. Twenty-six articles were excluded according to the inclusion/exclusion criteria; 21 articles were retrospective models and 5 articles were reported as case series. The remaining 15 articles were
included in the qualitative and quantitative synthesis using pairwise and network meta-analyses (Fig. 1).
Data corresponding to confounding factors derived from each study are summarized in Table 1 [8–22]. These studies covered therapeutic outcomes of TUR assisted by three different types of PDD or NBI versus WLC (Fig. 2).
Quality assessment and publication bias
Figure 3 presents the details of quality assessment, as measured by the Cochrane Collaboration risk-of-bias tool. Seven trials exhibited a moderate risk of bias for all quality criteria and two studies were classified as having a high risk of bias (Table 1). The most common risk fac-tor for quality assessment was risk or insufficient infor-mation concerning allocation concealment and the second most common concerned random sequence gen-eration. Most recently published studies exhibited low risk for quality assessment. In terms of cancer recur-rence and progression rate, little evidence of publication bias was observed on visual or statistical examination of the funnel plots (Fig. 4).
Heterogeneity assessment
Forest plots of pairwise meta-analyses are shown in Figs. 5 and 6. A heterogeneity test for recurrence rate showed the following:χ2= 3.21 with 3 df (P = 0.36) and I2= 7 % in the analysis of TUR assisted by 5-ALA-based PDD versus WLC; χ2= 4.25 with 4 df (P = 0.37) and I2= 6 % in the analysis of TUR assisted by HAL-based PDD versus WLC; andχ2= 0.42 with 3 df (P = 0.94) and I2= 2 % in the meta-analysis of diagnosis by NBI versus WLC. In the meta-analysis of progression rate, a heterogeneity test also demonstrated homogeneity with χ2= 0.08 with 4 df (P = 1.00) and I2= 0 % in TUR assisted by 5-ALA-based PDD versus WLC and χ2= 1.01 with 3 df (P = 0.80) and I2= 0 % in TUR assisted by HAL-based PDD versus WLC. Because there were no heterogeneities in these forest plots, the fixed effect models were applied using the Mantel–Haenszel method (Figs. 5 and 6).
Pairwise meta-analysis of rates of recurrence and progression
The forest plot using the fixed effect model showed an OR of 0.34 (95 % CI [0.22–0.51], P < 0.001) between the recurrence rate of cancers resected using 5-ALA-based PDD versus WLC. Pairwise meta-analysis of cancers resected using HAL-based PDD versus WLC resulted in an OR of 0.58 (95 % CI [0.45–0.74], P < 0.001). Accord-ing to the forest plot for recurrence rate, NBI-guided TUR was also superior to that using WLC, with an OR of 0.47 (95 % CI [0.31–0.72], P < 0.001) (Fig. 5). How-ever, in terms of progression rate, cancers resected using 5-ALA-based PDD, HAL-based PDD, or NBI did not
significantly differ from those cancers resected using WLC (allP > 0.05) (Fig. 6).
Network meta-analysis for rates of recurrence and progression
The recurrence rate of cancers resected using 5-ALA-based PDD was lower than that of those cancers resected using HAL-based PDD (OR = 0.48, 95 % CI [0.26–0.95]) and was not significantly different from those resected using NBI (OR = 0.53, 95 % CI [0.26–1.09]). The recurrence rates of cancers resected using HAL-based PDD versus NBI were also not significantly different (OR = 1.11, 95 % CI [0.55– 2.1]). The use of 5-ALA-based PDD, HAL-based PDD, and NBI all resulted in a lower recurrence rate than WLC (Fig. 7a). Cancers resected using 5-ALA-based PDD occu-pied the highest rank in the rank probability test for recur-rence rate, followed by those resected using NBI (Fig. 8a). No difference in progression rate was observed between cancers resected using 5-ALA-based PDD, HAL-based PDD, or NBI. Notably, TUR assisted by any of these tech-niques did not significantly decrease the rate of progres-sion over WLC-assisted TUR ( Fig. 7b). NBI-assisted TUR
was ranked highest in the rank probability test for progression-free rate, followed by TUR using HAL-based PDD (Fig. 8b); these rankings differed from those for recurrence rate.
Discussion
Patients with tumors associated with CIS have a signifi-cantly greater risk of progression [23]. WLC is the current standard method for initial bladder cancer diag-nosis but it has some disadvantages. These disadvantages can influence the planning and execution of TUR and may even influence the patient’s oncological outcomes. Bladder cancer diagnosis using a new video technology has recently being suggested as an alternative to over-come WLC’s disadvantages. Substantial research has been performed regarding diagnosis using a combination of PDD and NBI with the new video methodology.
PDD requires the instillation of a protoporphyrin derivative, typically a derivative of protoporphyrin IX (PpIX), and its selective uptake by dysplastic cells [24]. Under blue light, abnormal cells containing PpIX fluor-esce red. The two most common agents used for PPD

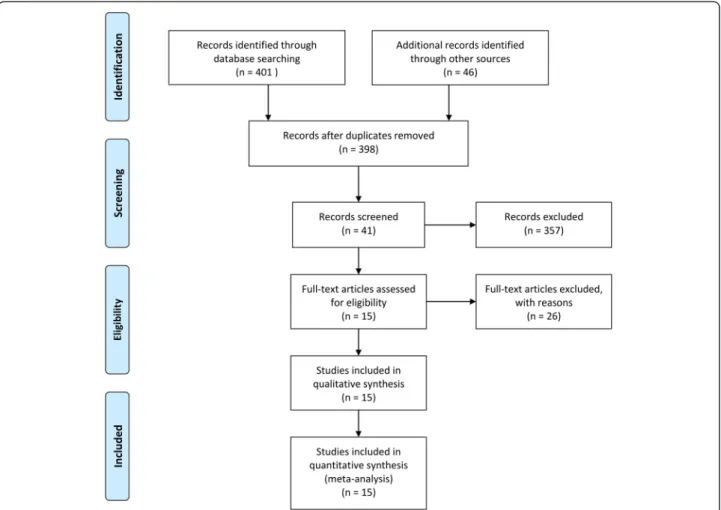

Fig. 1 Flow diagram of evidence acquisition. Fifteen studies were ultimately included in the qualitative and quantitative synthesis using pairwise and network meta-analyses
Table 1 Studies enrolled in this meta-analysis
Study Year Study
design
Method Cases Follow-up (mos.) Recurrence (%) Progression (%) Quality
assessmenta
NIT WLC NIT WLC NIT WLC NIT WLC
Riedl [8] 2001 RCT 5-ALA 51 51 NA NA 22 (45.8) 31 (66) 1 (2) 1 (2) 3 Filbeck [9] 2002 RCT 5-ALA 88 103 21 21 10 (11.4) 29 (28.2) 2 (2.3) 2 (1.9) 3 Kriegmair [10] 2002 RCT 5-ALA 65 64 NA NA 17 (32.7) 26 (53.1) NA NA 2 Babjuk [11] 2005 RCT 5-ALA 60 62 21 22 5 (8.3) 23 (37.1) 5 (8.3) 5 (8.1) 3 Schumacher [12] 2010 RCT 5-ALA 138 141 12 12 NA NA 14 (10.1) 15 (10.6) 1 Stenzl [13] 2011 RCT 5-ALA 271 280 12 21 128 (47.2) 157 (56.1) 5 (1.8) 7 (2.5) 0 Dragoescu [14] 2011 RCT HAL 22 22 9 9 4 (18.2) 10 (45.5) 1 (4.5) 2 (9.1) 3 Hermann [15] 2011 RCT HAL 77 68 12 12 18 (30.5) 35 (47.3) 14 (34.1) 17 (37.8) 3 Stenzl [16] 2010 RCT HAL 183 176 12 12 NA NA 19 (10.4) 19 (10.8) 1 Geavlete [17] 2012 RCT HAL 125 114 24 24 39 (66.1) 52 (70.3) 5 (4) 8 (7) 1 Karaolides [18] 2012 RCT HAL 41 45 18 18 7 (17.1) 18 (40) NA NA 4 Geavlete [19] 2012 RCT NBI 110 110 12 12 7 (6.4) 16 (14.5) NA NA 3 Montanari [20] 2012 RCT NBI 47 45 NA NA 16 (34) 22 (48.9) NA NA 4 Naselli [21] 2012 RCT NBI 76 72 12 12 25 (32.9) 37 (51.4) NA NA 0 Lee [22] 2014 RCT NBI 33 35 16 15 5 (15.2) 8 (22.9) 1 (3) 2 (5.7) 1
NIT new image technology, WLC white light cystoscopy, RCT randomized controlled trial, NA not applicable, 5-ALA 5-aminolaevulinic acid, HAL hexylaminolevulinate, NBI narrow band imaging
aQuality assessment was based on Cochrane’s risk of bias as a quality assessment tool for RCTs. If four or more domains are deemed “unclear” or “no,” the study
was classified as having a high risk of bias. If two or three domains were deemed“unclear” or “no,” the study was classified as having a moderate risk of bias
Fig. 2 Network plots for included studies. Six studies compared TUR using 5-ALA-based PDD versus TUR with WLC. Five trials reported on therapeutic outcomes after TUR with HAL-based PDD versus TUR with WLC. Four studies included two arms of TUR with NBI and WLC were published
are 5-ALA and HAL, prodrugs that exhibit no photoac-tivity until they are metabolized in the cell. After uptake into the urothelial cell, they are incorporated in the con-ventional cellular hemobiosynthesis metabolism. The benefit of PDD to detect more bladder tumors and reduce residual tumors has been proven by previous
meta-analyses [25–27]. The current study compares TUR assisted by PPD using 5-ALA or HAL to TUR assisted by other techniques, but the PpIX precursors’ efficacies were not compared to each other because no RCT has compared 5-ALA-based PDD and HAL-based PDD directly.
NBI, another optical enhancement technology, in-creases the contrast between vasculature and superficial tissue structures of the mucosa by excluding the red spectrum of white light. Early reports suggested that NBI improves detection of bladder tumors including CIS [24]. Two previous meta-analyses of NBI diagnostic accuracy demonstrated that NBI-assisted cystoscopy detects more NMIBC patients and tumors than WLC and that NBI effectively identifies abnormal lesions including CIS [28, 29]. While NBI-guided TUR has been reported to increase imaging quality versus unguided TUR, neither a meta-analysis nor a RCT comparing the two techniques has been performed.
A previous conventional pairwise meta-analysis of the therapeutic outcome in 12 RCTs by Yuan et al. demon-strated a low OR in the recurrence rate (OR = 0.5, 95 % CI [0.40–0.62]) after PDD-guided TUR. PDD-guided TUR also exhibited a low hazard ratio (HR) for recurrence-free survival (HR = 0.69, 95 % CI [0.53–0.77]). However, the authors cautioned that their meta-analysis did not distin-guish TUR using 5-ALA-based PDD from that using HAL-based PDD and that the heterogeneity could affect the outcome [27]. Our study involved a network meta-analysis to overcome the heterogeneity described by Yuan et al. and was able to also analyze the outcome after NBI-guided TUR.
Although the recurrence rate of cancers resected using PDD or NBI has been shown in previous pairwise meta-analyses to be lower than that resected using WLC, a superior outcome in terms of progression rate has not been shown because less data concerning the rate of progression is available than data concerning the rate of recurrence; follow-up periods were relatively short in the enrolled studies. Second, because patients with high-risk tumors undergo adjuvant immunother-apy such as BCG instillation, differences in the rate of progression may be masked. Third, PDD and NBI exhibit high sensitivity and specificity toward the detec-tion of CIS [30, 31], with an high area under curve of 0.939 for NBI [28], but these techniques may increase the rate of unnecessary biopsies.
Our analysis shows that resection using NBI and PDD did not differ significantly in terms of cancer recurrence rate. However, PDD-assisted TUR using 5-ALA was shown superior to that using HAL. In pair-wise meta-analyses, 5-ALA versus WLC showed an OR of 0.34 and 95 % CI of 0.22–0.51; meanwhile, HAL versus WLC showed an OR of 0.58 95 % and a CI of 0.45–0.74. In

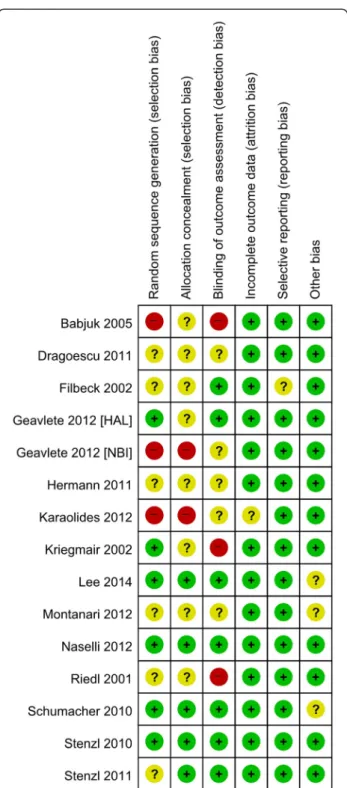

Fig. 3 Risk of bias summary. Review authors’ judgments for each risk of bias item for each included study. Green; low risk of bias, Red; high risk of bias and Yellow; unclear of risk of bias
regards to ORs, that for 5-ALA was lower than that for HAL in conventional analysis. In network meta-analysis, the OR was 0.48, which was similar to that in conventional meta-analysis; however, the 95 % CI was lon-ger than that in conventional meta-analysis. The lonlon-ger 95 % CI for the network meta-analysis was calculated by indirect comparison based on Bayesian networking.
A meta-analysis compared photosensitizing agents (5-ALA in 18 reports, HAL in five reports, and both in two reports) found similar sensitivity and specificity rates in patients (5-ALA versus HAL: sensitivity = 96 % versus 90 % and specificity = 56 % versus 80 %, respect-ively) and biopsies (5-ALA vs. HAL: sensitivity = 95 % versus 85 % and specificity = 57 % versus 80 %,
Fig. 4 Funnel plots on recurrence (a) and progression rates (b). Little evidence of publication bias was demonstrated by visual or statistical examination of the funnel plots

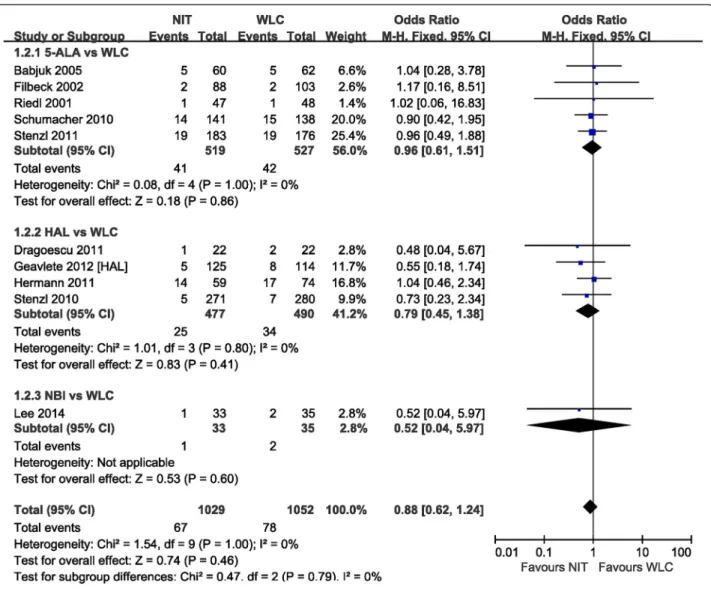

Fig. 6 Pairwise meta-analysis for progression rate. No difference in progression rate was observed between cancers resected by all methods investigated
Fig. 7 Network meta-analysis for recurrence and progression rates. a The recurrence rate of cancers resected using 5-ALA-based PDD was lower than that of those cancers resected using HAL-based PDD and was not significantly different from those resected using NBI. The use of 5-ALA-based PDD, HAL-based PDD, and NBI all resulted in a lower recurrence rate than WLC. b No difference in progression rate was observed between cancers resected by all methods investigated
respectively) [32]. Theoretically, compared to 5-ALA, HAL penetrates tissue more deeply and exhibits better accumulation in neoplastic cells [33]. However, the agent 5-ALA was initially developed for PDD and has therefore been evaluated in more studies than HAL [34]. The data reviewed seems to indicate some difference between the use of 5-ALA and HAL. Although the outcomes after TUR assisted by NBI or PDD do not seem to differ from each other, NBI-guided TUR is preferable to PDD because the specificity of PDD significantly decreases in patients who have undergone a recent instillation [35]. Accord-ingly, patients whose cancers are suspected to have re-curred after intravesical therapy were helpful in evaluating the true specificity of NBI. Whereas PDD requires instilla-tion of photosensitizing agents via a urethral catheter, NBI cystoscopy does not require extra invasive steps [36]. Re-cently, flexible cystoscopy was widely used to detect blad-der tumors and to monitor bladblad-der cancer patients; flexible cystoscopy is convenient in an outpatient setting. Conclusions
Previous RCTs and meta-analyses including the current study have proven PDD and NBI can enhance the diagnosis of bladder lesions, guide an adequate resection, and reduce tumor recurrence. In our network meta-analysis, TUR assisted by 5-ALA-based PDD demonstrated a lower rence rate than resection employing HAL. However, recur-rence after resection using either 5-ALA or HAL was not
significantly different than that after NBI-guided TUR. All new imaging technologies for bladder cancer were super-ior to WLC in lowering the recurrence rate, but did not improve outcome in terms of the progression rate.
Abbreviations
NMIBC:Non-muscle invasive bladder cancer; TUR: Transurethral resection; WLC: White light cystoscopy; CIS: Carcinoma in situ; PDD: Photodynamic diagnosis; NBI: Narrow band imaging; 5-ALA: 5-aminolaevulinic acid; HAL: Hexylaminolevulinate; RCT: Randomized controlled trial; PpIX: Protoporphyrin IX.
Competing interests
The authors declare that they have no competing interests.
Authors’ contributions
Systematic review and meta-analysis JYL, KJK, KSC, HDC, DHK, CKO, WSH, YDC. Identification of studies, critical evaluation and discussion. JYL, KJK, KSC, DHK, YDC. All authors read and approved the final manuscript.
Author details
1
Department of Urology, Severance Hospital, Urological Science Institute, Yonsei University College of Medicine, Seoul, Korea.2Department of Urology,
Gangnam Severance Hospital, Urological Science Institute, Yonsei University College of Medicine, Seoul, Korea.3Department of Urology, Yangpyeong
Health Center, Yangpyeong, Korea.4Department of Urology, Haeundae Paik Hospital, Inje University College of Medicine, Busan, Korea.5Department of
Urology, Clinical Trial Center for Medical Devices, Severance Hospital, Urological Science Institute, Yonsei University College of Medicine, 50-1 Yonsei-ro, Seodaemun-gu, Seoul 120-752, Korea.
Received: 6 March 2015 Accepted: 17 July 2015
Fig. 8 Rank probability test of network meta-analyses. a Cancers resected using 5-ALA-based PDD occupied the highest rank in the rank probability test followed by those resected using NBI. b NBI-assisted TUR was ranked highest in the rank probability test followed by TUR using HAL-based PDD
References
1. Bohle A, Jocham D, Bock PR. Intravesical bacillus Calmette-Guerin versus mitomycin C for superficial bladder cancer: a formal meta-analysis of comparative studies on recurrence and toxicity. J Urol. 2003;169(1):90–5. 2. Oh KJ, Choi YD, Chung HS, Hwang EC, Jung SI, Kwon DD, et al. A novel
transurethral resection technique for superficial flat bladder tumor: grasp and bite technique. Korean J Urol. 2015;56(3):227–32.
3. Jocham D, Witjes F, Wagner S, Zeylemaker B, van Moorselaar J, Grimm MO, et al. Improved detection and treatment of bladder cancer using hexaminolevulinate imaging: a prospective, phase III multicenter study. J Urol. 2005;174(3):862–6. discussion 866.
4. Moher D, Liberati A, Tetzlaff J, Altman DG. Preferred reporting items for systematic reviews and meta-analyses: the PRISMA statement. PLoS Med. 2009;6(7):e1000097.
5. Chung JH, Lee SW. Assessing the quality of randomized controlled urological trials conducted by korean medical institutions. Korean J Urol. 2013;54(5):289–96.
6. Higgins JP, Thompson SG, Deeks JJ, Altman DG. Measuring inconsistency in meta-analyses. BMJ. 2003;327(7414):557–60.
7. Fleiss JL. Analysis of data from multiclinic trials. Control Clin Trials. 1986;7(4):267–75.
8. Riedl CR, Daniltchenko D, Koenig F, Simak R, Loening SA, Pflueger H. Fluorescence endoscopy with 5-aminolevulinic acid reduces early recurrence rate in superficial bladder cancer. J Urol. 2001;165(4):1121–3.
9. Filbeck T, Pichlmeier U, Knuechel R, Wieland WF, Roessler W. Clinically relevant improvement of recurrence-free survival with 5-aminolevulinic acid induced fluorescence diagnosis in patients with superficial bladder tumors. J Urol. 2002;168(1):67–71.
10. Kriegmair M, Zaak D, Rothenberger KH, Rassweiler J, Jocham D, Eisenberger F, et al. Transurethral resection for bladder cancer using 5-aminolevulinic acid induced fluorescence endoscopy versus white light endoscopy. J Urol. 2002;168(2):475–8.
11. Babjuk M, Soukup V, Petrik R, Jirsa M, Dvoracek J. 5-aminolaevulinic acid-induced fluorescence cystoscopy during transurethral resection reduces the risk of recurrence in stage Ta/T1 bladder cancer. BJU Int. 2005;96(6):798–802. 12. Schumacher MC, Holmang S, Davidsson T, Friedrich B, Pedersen J, Wiklund
NP. Transurethral resection of non-muscle-invasive bladder transitional cell cancers with or without 5-aminolevulinic Acid under visible and fluorescent light: results of a prospective, randomised, multicentre study. Eur Urol. 2010;57(2):293–9.
13. Stenzl A, Penkoff H, Dajc-Sommerer E, Zumbraegel A, Hoeltl L, Scholz M, et al. Detection and clinical outcome of urinary bladder cancer with
5-aminolevulinic acid-induced fluorescence cystoscopy : A multicenter randomized, double-blind, placebo-controlled trial. Cancer. 2011;117(5):938–47. 14. Dragoescu O, Tomescu P, Panus A, Enache M, Maria C, Stoica L, et al.
Photodynamic diagnosis of non-muscle invasive bladder cancer using hexaminolevulinic acid. Rom J Morphol Embryo. 2011;52(1):123–7. 15. Hermann GG, Mogensen K, Carlsson S, Marcussen N, Duun S.
Fluorescence-guided transurethral resection of bladder tumours reduces bladder tumour recurrence due to less residual tumour tissue in Ta/T1 patients: a randomized two-centre study. BJU Int.
2011;108(8 Pt 2):E297–303.
16. Stenzl A, Burger M, Fradet Y, Mynderse LA, Soloway MS, Witjes JA, et al. Hexaminolevulinate guided fluorescence cystoscopy reduces recurrence in patients with nonmuscle invasive bladder cancer. J Urol. 2010;184(5):1907–13. 17. Geavlete B, Multescu R, Georgescu D, Jecu M, Stanescu F, Geavlete P.
Treatment changes and long-term recurrence rates after hexaminolevulinate (HAL) fluorescence cystoscopy: does it really make a difference in patients with non-muscle-invasive bladder cancer (NMIBC)? BJU Int. 2012;109(4):549–56. 18. Karaolides T, Skolarikos A, Bourdoumis A, Konandreas A, Mygdalis V, Thanos A,
et al. Hexaminolevulinate-induced fluorescence versus white light during transurethral resection of noninvasive bladder tumor: does it reduce recurrences? Urology. 2012;80(2):354–9.
19. Geavlete B, Multescu R, Georgescu D, Stanescu F, Jecu M, Geavlete P. Narrow band imaging cystoscopy and bipolar plasma vaporization for large nonmuscle-invasive bladder tumors–results of a prospective, randomized comparison to the standard approach. Urology. 2012;79(4):846–51. 20. Montanari E, de la Rosette J, Longo F, Del Nero A, Laguna P. Narrow-band
imaging (NBI) and white light (WLI) transurethral resection of the bladder in the treatment of non-muscle-invasive bladder cancer. Arch Ital Urol Androl. 2012;84(4):179–83.
21. Naselli A, Introini C, Timossi L, Spina B, Fontana V, Pezzi R, et al. A randomized prospective trial to assess the impact of transurethral resection in narrow band imaging modality on non-muscle-invasive bladder cancer recurrence. Eur Urol. 2012;61(5):908–13.
22. Lee JY, Choi JH, Kim IK DJH, KH W, LK S, Yoon YE, et al. Recurrence rate of transurethral resection of bladder tumor using narrow band imaging: A randomized control trial, pilot study. J Urol. 2014;191(Supplement(4S):e240–1. 23. Goh AC, Lerner SP. Application of new technology in bladder cancer
diagnosis and treatment. World J Urol. 2009;27(3):301–7.
24. Ku JH, Lerner SP. Strategies to prevent progression of high-risk bladder cancer at initial diagnosis. Curr Opin Urol. 2012;22(5):405–14.
25. Kausch I, Sommerauer M, Montorsi F, Stenzl A, Jacqmin D, Jichlinski P, et al. Photodynamic diagnosis in non-muscle-invasive bladder cancer: a systematic review and cumulative analysis of prospective studies. Eur Urol. 2010;57(4):595–606.
26. Lerner SP, Liu H, Wu MF, Thomas YK, Witjes JA. Fluorescence and white light cystoscopy for detection of carcinoma in situ of the urinary bladder. Urol Oncol. 2012;30(3):285–9.
27. Yuan H, Qiu J, Liu L, Zheng S, Yang L, Liu Z, et al. Therapeutic outcome of fluorescence cystoscopy guided transurethral resection in patients with non-muscle invasive bladder cancer: a meta-analysis of randomized controlled trials. PLoS One. 2013;8(9):e74142.
28. Zheng C, Lv Y, Zhong Q, Wang R, Jiang Q. Narrow band imaging diagnosis of bladder cancer: systematic review and meta-analysis. BJU Int. 2012;110(11 Pt B):E680–7.
29. Li K, Lin T, Fan X, Duan Y, Huang J. Diagnosis of narrow-band imaging in non-muscle-invasive bladder cancer: a systematic review and meta-analysis. Int J Urol. 2013;20(6):602–9.
30. Shen YJ, Zhu YP, Ye DW, Yao XD, Zhang SL, Dai B, et al. Narrow-band imaging flexible cystoscopy in the detection of primary non-muscle invasive bladder cancer: a“second look” matters? Int Urol Nephrol. 2012;44(2):451–7. 31. Isfoss BL. The sensitivity of fluorescent-light cystoscopy for the detection of carcinoma in situ (CIS) of the bladder: a meta-analysis with comments on gold standard. BJU Int. 2011;108(11):1703–7.
32. Mowatt G, N’Dow J, Vale L, Nabi G, Boachie C, Cook JA, et al. Photodynamic diagnosis of bladder cancer compared with white light cystoscopy: Systematic review and meta-analysis. Int J Technol Assess Health Care. 2011;27(1):3–10.
33. Lee JS, Lee SY, Kim WJ, Seo SI, Jeon SS, Lee HM, et al. Efficacy and safety of hexaminolevulinate fluorescence cystoscopy in the diagnosis of bladder cancer. Korean J Urol. 2012;53(12):821–5.
34. Rink M, Babjuk M, Catto JW, Jichlinski P, Shariat SF, Stenzl A, et al. Hexyl aminolevulinate-guided fluorescence cystoscopy in the diagnosis and follow-up of patients with non-muscle-invasive bladder cancer: a critical review of the current literature. Eur Urol. 2013;64(4):624–38.
35. Grimbergen MC, van Swol CF, Jonges TG, Boon TA, van Moorselaar RJ. Reduced specificity of 5-ALA induced fluorescence in photodynamic diagnosis of transitional cell carcinoma after previous intravesical therapy. Eur Urol. 2003;44(1):51–6.
36. Cheung G, Sahai A, Billia M, Dasgupta P, Khan MS. Recent advances in the diagnosis and treatment of bladder cancer. BMC Med. 2013;11:13.
