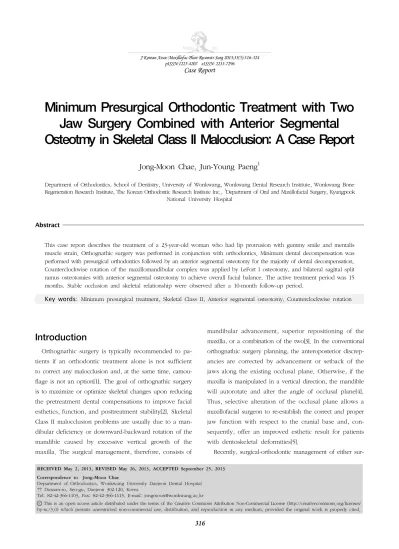

Minimum Presurgical Orthodontic Treatment with Two Jaw Surgery Combined with Anterior Segmental Osteotmy in Skeletal Class II Malocclusion: A Case Report

Case Report

RECEIVED May 2, 2013, REVISED May 26, 2013, ACCEPTED September 25, 2013 Correspondence to Jong-Moon Chae

Department of Orthodontics, Wonkwang University Daejeon Dental Hospital 77 Dunsan-ro, Seo-gu, Daejeon 302-120, Korea

Tel: 82-42-366-1103, Fax: 82-42-366-1115, E-mail: [email protected]

CC

This is an open access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/

by-nc/3.0) which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.

Minimum Presurgical Orthodontic Treatment with Two Jaw Surgery Combined with Anterior Segmental Osteotmy in Skeletal Class II Malocclusion: A Case Report

Jong-Moon Chae, Jun-Young Paeng ¹

Department of Orthodontics, School of Dentistry, University of Wonkwang, Wonkwang Dental Research Institute, Wonkwang Bone Regeneration Research Institute, The Korean Orthodontic Research Institute Inc.,

Department of Oral and Maxillofacial Surgery, Kyungpook

National University Hospital

Abstract

This case report describes the treatment of a 23-year-old woman who had lip protrusion with gummy smile and mentalis muscle strain. Orthognathic surgery was performed in conjunction with orthodontics. Minimum dental decompensation was performed with presurgical orthodontics followed by an anterior segmental osteotomy for the majority of dental decompensation.

Counterclockwise rotation of the maxillomandibular complex was applied by LeFort I osteotomy, and bilateral sagittal split ramus osteotomies with anterior segmental osteotomy to achieve overall facial balance. The active treatment period was 15 months. Stable occlusion and skeletal relationship were observed after a 10-month follow-up period.

Key words: Minimum presurgical treatment, Skeletal Class II, Anterior segmental osteotomy, Counterclockwise rotation

Introduction

Orthognathic surgery is typically recommended to pa- tients if an orthodontic treatment alone is not sufficient to correct any malocclusion and, at the same time, camou- flage is not an option[1]. The goal of orthognathic surgery is to maximize or optimize skeletal changes upon reducing the pretreatment dental compensations to improve facial esthetics, function, and posttreatment stability[2]. Skeletal Class II malocclusion problems are usually due to a man- dibular deficiency or downward-backward rotation of the mandible caused by excessive vertical growth of the maxilla. The surgical management, therefore, consists of

mandibular advancement, superior repositioning of the maxilla, or a combination of the two[3]. In the conventional orthognathic surgery planning, the anteroposterior discrep- ancies are corrected by advancement or setback of the jaws along the existing occlusal plane. Otherwise, if the maxilla is manipulated in a vertical direction, the mandible will autorotate and alter the angle of occlusal plane[4].

Thus, selective alteration of the occlusal plane allows a maxillofacial surgeon to re-establish the correct and proper jaw function with respect to the cranial base and, con- sequently, offer an improved esthetic result for patients with dentoskeletal deformities[5].

Recently, surgical-orthodontic management of either sur-

Jong-Moon Chae: Minimum Pregsurgical Orthodontic Treatment 317

Fig. 1. Pretreatment facial and intraoral photographs.

gery-first or minimum presurgical orthodontic treatment has been proposed to address the issue of facial esthetics from the beginning of treatment. Then again, orthognathic treatment with an anterior segmental osteotomy in compar- ison to conventional orthodontic treatment can markedly reduce the presurgical orthodontic treatment period for the correction of a maxillary protrusion and decompensation of lower dentition[6-8].

The objective of this article was to present the treatment of a skeletal Class II malocclusion in a patient with gummy smile and a high mandibular plane angle. The counter- clockwise rotation of maxillomandibular complex with an- terior segmental osteotomy and genioplasty provided good maxillary incisor exposure and excellent smile arc, and improved the patient’s facial balance.

Case Report

The patient was a 23-year-old woman with chief con- cerns of lip protrusion, gummy smile, and retrognathic mandible. On exam and in facial photographs, the patient’s face revealed good symmetry but had a convex profile with marked protrusion of the lips, mentalis strain, and excessive lower anterior facial height. Intraoral exam re- vealed Class II canine and Class I molar relationships with minor crowding and poor oral hygiene. The patient had a deep overbite of 7.5 mm and a large overjet of 5.5 mm.

The dental midline was coincident with the facial midline (Fig. 1, 2).

The lateral cephalogram (Fig. 3) and its tracing con-

firmed a severe underlying skeletal problem. The skeletal

pattern was deemed hyperdivergent as evidenced by a

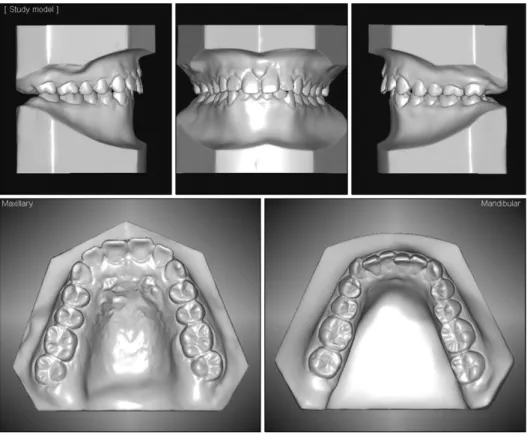

Fig. 2. Pretreatment dental casts.

Fig. 3. Pretreatment radiographs.

Frankfort-mandibularplane angle (FMA) of 37

. The ANB angle of 6.5

(SNA, 83

; SNB, 76.5

) reflected a class-II skeletal problem. The Z-angle of 50.5

quantified the over- all facial imbalance. The angle between Frankfort horizon- tal and the maxillary incisor axis of 106

indicated linguo-

version of the maxillary incisors (Table 1). The lips were incompetent, and the lower lip was strained to compensate for the vertical discrepancy. Consequently, the labiomental sulcus was eliminated by the upward tension (Fig. 1). A panoramic radiograph showed a full complement of denti- tion as well as restoration of several teeth (Fig. 3). On exams as well as imaging studies, there were no significant signs or symptoms of temporomandibular disorders.

In pre-surgical counseling interviews, the patient was

offered two options. The first was that of an orthodontic

intervention with extraction of the four premolars, and di-

rectional force technology with micro-implant anchor-

age[9]. The idea behind this treatment option was that mi-

cro-implants would provide absolute anchorage not only

in the retraction of the anterior teeth of both maxilla and

mandible, but also, in the intrusion of the maxillary anterior

and posterior teeth as well as intrusion of the mandibular

posterior teeth. This would induce a horizontal mandibular

response followed by a more balanced facial profile. A

genioplasty would be necessary to reduce the long lower

facial height and advance the chin. The downside of this

option was that it would take a long period of treatment

and compromise the overall facial esthetics.

Jong-Moon Chae: Minimum Pregsurgical Orthodontic Treatment 319

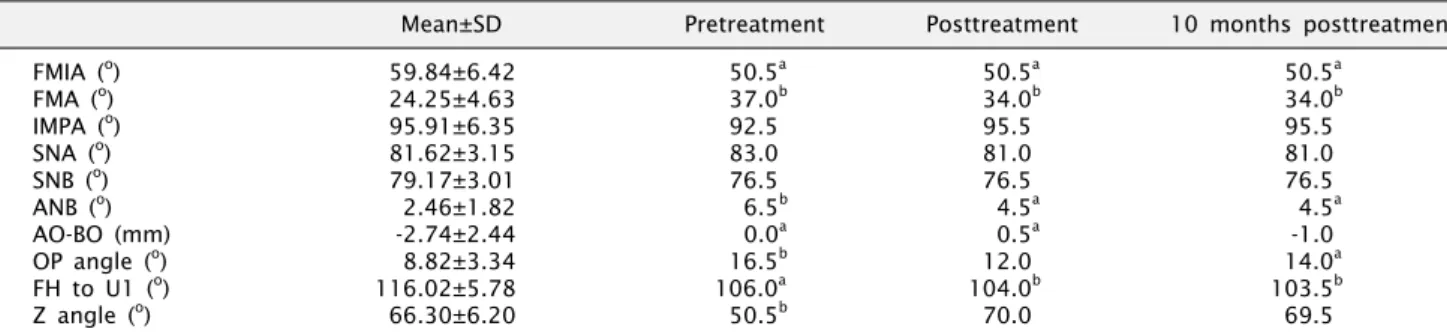

Table 1. Cephalometric measurements

Mean±SD Pretreatment Posttreatment 10 months posttreatment

FMIA (

) 59.84±6.42 50.5

50.5

50.5

FMA (

) 24.25±4.63 37.0

34.0

34.0

IMPA (

) 95.91±6.35 92.5 95.5 95.5

SNA (

) 81.62±3.15 83.0 81.0 81.0

SNB (

) 79.17±3.01 76.5 76.5 76.5

ANB (

) 2.46±1.82 6.5

4.5

4.5

AO-BO (mm) -2.74±2.44 0.0

0.5

-1.0

OP angle (

) 8.82±3.34 16.5

12.0 14.0

FH to U1 (

) 116.02±5.78 106.0

104.0

103.5

Z angle (

) 66.30±6.20 50.5

70.0 69.5

Mean±standard deviation (SD) is based on the data from lateral cephalometrics in Korean with normal occlusion by Korean Association of Orthodontists.

FMIA, angle between Frankfort plane and mandibular incisor axis; FMA, angle between Frankfort plane and mandibular plane; IMPA, angle between lower incisor axis and mandibular plane; SNA, angle between SN and NA; SNB, angle between SN and NB; ANB, difference between the SNA and SNB angles; AO-BO, distance between perpendiculars drawn from point A and point B onto the occlusal plane;

OP, occlusal plane; OP angle, angle between Frankfort plane and OP; FH, Frankfort horizontal plane; UI, maxillary incisor axis; FH to UI, angle between Frankfort plane and maxillary incisor axis; Z angle, angle between FH and profile line tangent to the chin and the vermilion border of both lips.

a

Measurement between 1 and 2 SD;

measurement between 2 and 3 SD.

The second option was an orthognathic surgery. Upon orthodontic decompensation, a single-stage, two-jaw oper- ation would be performed in which the maxilla was differ- entially impacted and the mandibular was advanced. As in the first option, a genioplasty would be necessary to reduce the long lower facial height and to advance the chin along the facial midline.

In the interest of treatment duration and the overall pro- jected esthetic results, the patient wished to undergo the second surgical option. However, she also wanted a mini- mal presurgical orthodontic treatment, so an anterior seg- mental osteotomy was chosen instead of orthodontic de- compensation to reduce the presurgical orthodontic treat- ment time. The usual indications for anterior segmental osteotomy are excessive vertical or antero-posterior devel- opment of the maxillary alveolar process in patients among whom the upper anterior teeth are uprighted with excessive retrusion of mandible by subsequent clockwise rotation of the maxillomandibular complex. This method provides many biological and psychological advantages over the traditional surgical treatments requiring extensive ortho- dontics. This method has the additional benefit of showing immediate immediate and significant improvements in fa- cial heigh and profile early in the course of treatment.

In presurgical orthodontic preparation, 0.022×0.028 inch (in) nontipped, nontorqued edgewise appliances were placed in both arches, and leveling was begun with 0.014-in nickel-titanium and 0.018-in stainless steel archwires. In

the leveling and alignment stage, the archwires were coordinated. Preoperative preparation took 2.5 months and was completed with maxillary and mandibular 0.018

×0.025-in stainless steel archwires.

The operation included bimaxillary procedures with ex- traction of 4 first premolars. A 1-piece LeFort I osteotomy with impaction and counterclockwise rotation of the max- illa, anterior maxillary segemental osteotomy with posterior and superior positioning of anterior maxillary segment, bi- lateral sagittal split osteotomies with advancement and counterclockwise rotation of the mandible, and advance- ment genioplasty were performed to correct the sagittal maxillomandibular skeletal and dental relations, excessive lower facial height, and gummy smile. In these procedures, rigid fixation was used with titanium plates and screws, while surgical splint was used for fixation of anterior maxil- lary segment only.

Ten weeks after the operation, 0.018-in stainless steel archwires were used for finishing and detailing. Vertical intermaxillary and Class-II elastics were used to settle the final occlusion. Fixed lingual retainers were bonded to the lingual sides of the six anterior teeth, and circum- ferential clear retainers were placed on both arches, imme- diately before and after removing the appliances for re- tention, respectively. A repeat, 1-year postoperative detail- ing and finishing were needed before debonding (Fig. 4∼

6). The final occlusal relationship was retained with maxil-

lary and mandibular Hawley retainers. The total treatment

Fig. 4. Posttreatment facial and intraoral photographs.

time was 15 months.

The posttreatment facial photographs show a retraction of the upper and lower lips and a reduction in the strain of mentalis muscle (Fig. 4). The posttreatment casts illus- trate a Class-I occlusion with a good interdigitation of the teeth and acceptable overjet-overbite relationship (Fig. 5).

The panoramic radiograph shows good root parallelism and bone integration (Fig. 6).

The cephalometric superimposition shows a significant increase in mandibular length, not only from the advance- ment genioplasty, but also from the counterclockwise max- illomandibular rotation-all of which contributed to reduced apical base anteroposterior discrepancy, facial profile con- vexity, and excessive gingival display when smiling (Fig.

4, 7). The chin advancement obtained by the genioplasty and the maxillomandibular counterclockwise rotation re-

sulted in a decrease of the Frankfort mandibular plane angle by 3

, a reduction of the ANB angle by 2

, and a decrease of the occlusal plane angle by 4.5

. The Z-angle was improved from 50.5

to 70

(Table 1). All these changes contributed to an overall improvement of the facial profile. The results were stable at 10 months after debond- ing (Fig. 7∼10).

Discussion

The patient had a convex facial profile with a marked

protrusion of upper lips and a retrognathic mandible. For

a skeletally-mature patient with skeletal Class II maloc-

clusions, 2 or 4 premolar extraction to retract the anterior

teeth is a valid treatment choice of orthodontic camou-

flage[10]. However, it is a less desirable option than that

Jong-Moon Chae: Minimum Pregsurgical Orthodontic Treatment 321

Fig. 5. Posttreatment dental casts.

Fig. 6. Posttreatment radiographs.

Fig. 7. Cephalometric superimposition of pretreatment, imme- diate posttreatment, and 10-month posttreatment.

of a combined orthodontic-surgical treatment when consid- ering the overall functional and esthetic outcomes[1].

Surgical-orthodontic treatment of Class II malocclusion in adult patients includes preoperative orthodontic treat- ment to decompensate the malocclusion, followed by sur-

gical detailing and finishing of the occlusion. The pre-

operative dental decompensation dictates the magnitude

and type of surgical management and is a major factor

in the success of treatment[11,12]. The patient in this case

report wished for a rapid correction of the esthetically com-

promised profile, and thus, anterior segmental osteotomies

were performed with orthognathic surgery on both the

upper and lower jaws to reduce upper lip protrusion and

Fig. 8. Ten-month posttreatment facial and intraoral photographs.

decompensate lower dentition. Anterior segmental osteot- omy is indicated in case where substantial movement of the anterior teeth is required, and where tooth reposition- ing by orthodontic treatment alone is impossible because of objective factors such as the amount of tooth movement and periodontal circumstances, and subjective factors such as patient age and treatment duration[13].

Recently, the performance of surgery without ortho- dontic preparation (ie, ‘surgery-first’), followed by regular postoperative dental alignment, was proposed by Nagasaka et al. [14]. In this seminal publication, the treatment duration had been shortened to about 12 months far less than the average time needed for traditional preoperative ortho- dontics alone. Wilcko et al. [15] reported that corticotomy could enhance tooth movement by increasing bone turn-

over and decreasing bone density. Similarly, bone turnover after orthognathic surgery is known to significantly accel- erate orthodontic tooth movement[6,7]. In addition to a significant reduction in treatment time, the surgery-first ap- proach offers a patient immediate gratification in the cor- rection of facial deformities, which promotes improved pa- tient compliance with hardware usage and follow-up appointments. Another reported advantage with this meth- od is the elimination of soft-tissue imbalances that might interfere with orthodontic tooth movements.

Most dentofacial deformities can be corrected by conven-

tional orthognathic treatment, which can also be performed

for patients whose treatment requires a differential im-

paction of the maxilla[16]. The treatment for vertical maxil-

lary excess with greater anterior than posterior vertical max-

Jong-Moon Chae: Minimum Pregsurgical Orthodontic Treatment 323

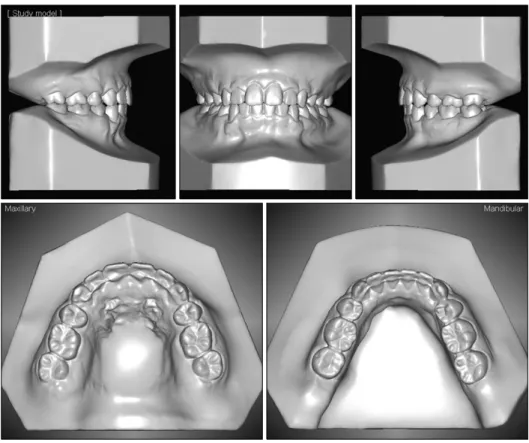

Fig. 9. Ten-month posttreatment dental casts.

Fig. 10. Ten-month posttreatment radiographs.

illary growth requires a LeFort I down-fracture of the max- illa and differential maxillary impaction, moving the ante- rior maxilla superiorly more than the posterior maxilla (anterior impaction). In the case presented here, max- illomandibular advancement with counterclockwise rota- tion and superior repositioning of anterior maxilla was able

to improve the patient’s overall facial balance and smile animation.

Rotation of the occlusal plane has been shown to pro- duce significant modifications of the upper airways[17].

In selected cases of obstructive sleep apnea, counter- clockwise rotation of the occlusal plane is an effective tech- nique for decreasing upper airway resistence while pre- venting deformity[18]. Reyneke et al. [19] and Chemello et al. [20] found that counterclockwise rotation of the max- illomandibular complex had good long-term stability. In our patient, the stable occlusion and skeletal relationship were observed after a 10-month follow-up period (Fig.

7∼10).

Advancement of the maxillomandibular complex with counterclockwise rotation can improve facial balance, max- illary incisor exposure, and smile animation in patients with Class II malocclusion and anterior vertical maxillary excess.

The new orthodontic-surgical protocol (surgery-first or

minimum presurgical orthodontic treatment) can improve

facial esthetics from the early stages of treatment and re-

duce total treatment time.

Acknowledgements

This paper was supported by Wonkwang University in 2012.

References

1. Mihalik CA, Proffit WR, Phillips C. Long-term follow-up of Class II adults treated with orthodontic camouflage: a com- parison with orthognathic surgery outcomes. Am J Orthod Dentofacial Orthop 2003;123:266-78.

2. Bailey LJ, Cevidanes LH, Proffit WR. Stability and predict- ability of orthognathic surgery. Am J Orthod Dentofacial Orthop 2004;126:273-7.

3. Proffit WR, White RP, Sarver DM, editors. Contemporary treatment of dentofacial deformity. St. Louis, Mo: Mosby;

2003. p.312-44.

4. Tsai IM, Lin CH, Wang YC. Correction of skeletal Class III malocclusion with clockwise rotation of the maxilloman- dibular complex. Am J Orthod Dentofacial Orthop 2012;141:

219-27.

5. Wolford LM, Chemello PD, Hilliard FW. Occlusal plane al- teration in orthognathic surgery. J Oral Maxillofac Surg 1993;

51:730-40.

6. Liou EJ, Chen PH, Wang YC, Yu CC, Huang CS, Chen YR.

Surgery-first accelerated orthognathic surgery: postoperative rapid orthodontic tooth movement. J Oral Maxillofac Surg 2011;69:781-5.

7. Liou EJ, Chen PH, Wang YC, Yu CC, Huang CS, Chen YR.

Surgery-first accelerated orthognathic surgery: orthodontic guidelines and setup for model surgery. J Oral Maxillofac Surg 2011;69:771-80.

8. Hernández-Alfaro F, Guijarro-Martínez R, Molina-Coral A, Badía-Escriche C. “Surgery first” in bimaxillary orthognathic surgery. J Oral Maxillofac Surg 2011;69:e201-7.

9. Chae JM. A new protocol of Tweed-Merrifield directional force technology with microimplant anchorage. Am J Orthod Dentofacial Orthop 2006;130:100-9.

10. Janson G, Janson M, Nakamura A, de Freitas MR, Henriques JF, Pinzan A. Influence of cephalometric characteristics on the occlusal success rate of Class II malocclusions treated with 2- and 4-premolar extraction protocols. Am J Orthod Dentofacial Orthop 2008;133:861-8.

11. Sabri R. Orthodontic objectives in orthognathic surgery: state of the art today. World J Orthod 2006;7:177-91.

12. Sarver DM, Sample LB. How to avoid surgical failures.

Semin Orthod 1999;5:257-74.

13. Lee JK, Chung KR, Baek SH. Treatment outcomes of ortho- dontic treatment, corticotomy-assisted orthodontic treatment, and anterior segmental osteotomy for bimaxillary dentoal- veolar protrusion. Plast Reconstr Surg 2007;120:1027-36.

14. Nagasaka H, Sugawara J, Kawamura H, Nanda R. “Surgery first” skeletal Class III correction using the Skeletal Ancho- rage System. J Clin Orthod 2009;43:97-105.

15. Wilcko MT, Wilcko WM, Pulver JJ, Bissada NF, Bouquot JE.

Accelerated osteogenic orthodontics technique: a 1-stage sur- gically facilitated rapid orthodontic technique with alveolar augmentation. J Oral Maxillofac Surg 2009;67:2149-59.

16. Naini FB, Hunt NP, Moles DR. The relationship between maxillary length, differential maxillary impaction, and the change in maxillary incisor inclination. Am J Orthod Dento- facial Orthop 2003;124:526-9.

17. Wolford LM, Chemello PD, Hilliard F. Occlusal plane alter- ation in orthognathic surgery--Part I: effects on function and esthetics. Am J Orthod Dentofacial Orthop 1994;106:304-16.

18. Brevi BC, Toma L, Pau M, Sesenna E. Counterclockwise ro- tation of the occlusal plane in the treatment of obstructive sleep apnea syndrome. J Oral Maxillofac Surg 2011;69:917- 23.

19. Reyneke JP, Bryant RS, Suuronen R, Becker PJ. Postoperat- ive skeletal stability following clockwise and counter-clock- wise rotation of the maxillomandibular complex compared to conventional orthognathic treatment. Br J Oral Maxillofac Surg 2007;45:56-64.

20. Chemello PD, Wolford LM, Buschang PH. Occlusal plane al-

teration in orthognathic surgery--Part II: long-term stability of

results. Am J Orthod Dentofacial Orthop 1994;106:434-40.
