zj Ï Y(As, Nb, P, V)O4:Eu3+ 'ï;7Ú~ W 5 7 ßW ªC

전체 글

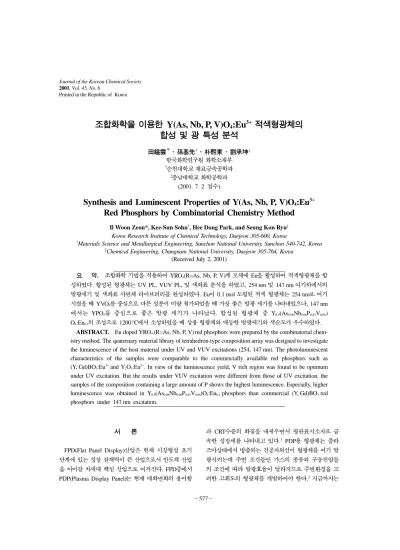

(1)Journal of the Korean Chemical Society 2001, Vol. 45, No. 6 Printed in the Republic of Korea. zj Ï Y(As, Nb, P, V)O4:Eu3+ 'ï;7Ú~ W 5 7 ßW ªC. Àóê*ÁÖ¬V Á:8Á,d †. zö z²Ò¦ BÂ&v Òò.³" ÏÎ&v z" (2001. 7. 2 7>). ‡. †. ‡. Synthesis and Luminescent Properties of Y(As, Nb, P, V)O4:Eu3+ Red Phosphors by Combinatorial Chemistry Method Il Woon Zeon*, Kee-Sun Sohn†, Hee Dong Park, and Seung Kon Ryu‡ Korea Research Institute of Chemical Technology, Daejeon 305-600, Korea † Materials Science and Metallurgical Engineering, Sunchon National University, Sunchon 540-742, Korea ‡ Chemical Engineering, Chungnam National University, Daejeon 305-764, Korea (Received July 2, 2001). º £. z V»j 'Ï~ YRO (R=As, Nb, P, V)ê ÎÚö Euj W~ 'ï;7Ú¢ W~& . WB ;7Úº UV PL, VUV PL, 5 ï² ªCj ~&, 254 nm 5 147 nm V~öB~ B7^V 5 ï² ÒÚ ¢2Ò¢ jW~& . Eu 0.1 mol êwB 'ï ;7Úº 254 nm V Vj r YVO ¢ 7b Wª ï Î&>îj r &Ë ±f B7 ^V¢ ¾æÚîb¾, 147 nm öBº YPO ¢ 7b ±f B7 ^V& ¾æÒ . WB ;7Ú 7 Y (As Nb P V ) O :Eu ~ Wb 1200 CöB ²W~&j r çÏ ;7Úf & B7^Vf ïBê& Ö>~& . 4. 4. 4. 4. 0.1. 0.9. 0.06. 0.06. 0.83. 0.06. o. ABSTRACT. Eu doped YRO4 (R=As, Nb, P, V) red phosphors were prepared by the combinatorial chemistry method. The quaternary material library of tetrahedron-type composition array was designed to investigate the luminescence of the host material under UV and VUV excitations (254, 147 nm). The photoluminescent characteristics of the samples were comparable to the commercially available red phosphors such as (Y, Gd)BO3:Eu3+ and Y2O3:Eu3+. In view of the luminescence yield, V rich region was found to be optimum under UV excitation. But the results under VUV excitation were different from those of UV excitation, the samples of the composition containing a large amount of P shows the highest luminescence. Especially, higher luminescence was obtained in Y0.9(As0.06Nb0.06P0.83V0.06)O4:Eu0.1 phosphors than commercial (Y, Gd)BO3 red phosphors under 147 nm excitation.. B FPD(Flat Panel Display)Öëf *Ò Ë;W .V êö ®º WË ÆÒK ÖëbB >êÚ Öë j Ú. N^& Öëb Îê . FPD7öB PDP(Plasma Display Panel)º *Ò &zz~ Ï. " CRT>&~ zîj Ú^ÖB ï6²¶ / ³ WË^¢ ¾æÚ ® . PDPÏ ;7Úº 2¢ ®îçöB OÂ>º ê¶F ;7Ú¢ V B 7Êº "æ &Ê~ «~f ÿ*{. ~ ö V¢ B7ÎN ¢ææ "æ~ãj J >ê~ ;7Ú¢ BB~¢ . æ.ræº 1. 2. 577.

(2) ÀóêÁÖ¬VÁ:8Á,d. 578. ;7Ú~ W 5 WB~ · ö & B & ê¯>æ pjB þ' O»ö ~~ îÚ ;7Ú¢ W~&, V~ 100B ò~ FÏ ; 7Ú W" G;j >~ >¯~º O»b BB>Ú^ z . ö ;7Ú W 5 ¦ïj &z ÊV * z V»j ê«~V ~& . z V»f *ö ôf >~ bîj W 5 ¦ï > ®º O»bB .Vö ~£ÖëöB £ BBj * ôf >~ FV zb~ W 5 ¦ïö Ï>Ú^ zb, "¾öº .*êÚf ?f ZV b î~ W 5 ;7Ú Wöê 'Ï~ ôf & ê¯7 . ¾, zV»j ;7Ú Wö & 'Ï~Vöº £*~ ^B6 ® . W>Ú ^ ¾N þ2~ · .Z 'Ú, * 7ªCö Ö;W 5 «¶ ; &V ;7 z î¾ «ö & NB ªCj ^¦'b >¯ > ì º 6 ® . V¢B *ö bî ¦ïj >º ®æò, ''~ bîö V¢B ç»b W¢~º ® æ ® . 6j Ö~V * ¶Ú'b n >wV¢ B·~, WB þ2~ >º V~ O» 'æò, 7ßW 5 Ö;W, «¶ ; ~ ¦ >' ªCj ¯ > ®ê ~& . öB ÎÚ ÒÏ>º bî f CRT(Cathode Ray Tube), FED(Field Emission Display)Ï ;7Ú · WB¢ êw~º ôf & Ú^zb¾, ê ¶F'~ B7>ê, ï² 6 ''~ ÎÚ& > w~ ÂBbî B bB W Ö"º ¦ ç . ö öBº V~ z V »j ;7Ú W 5 ï&ö Ï~ê >;~ ;7 Ú¢ W~, PDPÏ 'ï ;7ÚB &ËW ®º ê bîj ¦ï~º Ï'j v, Y(As, Nb, P, V)O :Eu ;7Ú~ · Wö V 147 nmf 254 nm V ~öB~ B7 ^Vf ï² & ¢2Ò¢ ·W ~, FÏ Ö"¢ B~¶ ~& . 3. 3,4,5. 6-11. 4. 3+. þO» >wV 5 .³ *Ú öBº z O» 7 9f º*~ Wj ¦ï~º split-pool O»j 'Ï~, 9f º*~ &Û ' Wj ¦ï~& . ÖF z V»j Ï ;7Ú Wj * 40×80×12(&×^×¸: mm). V¢ &ê r¾ 6ö ¦b& 0.5 ml 18B~ s ®º >wV¢ B·~ ;7Ú¢ B~& . >wVº V~ ;7ªCV Perkin ElmerÒ~ LS 50B plate readerö & 'Ï > ®ê B· © . ÎÚf WB º Y O , As O , Nb O , P O , V O f Eu O º îÖ" "Ö, ®Ö j ÒÏ~ ç b B Êö ¢ ;ï'b ª, b, 5 ª";j ö ;7Ú¢ W~& . Wö ² ªB £ f £ 100 CöB 1N ê *V öB 500 C £ 2*ÿn 2N ~, 1100~1400 C öB 3*ÿn V7öB ²WB ;7Ú¢ W~ & . ªC ²Wê >wVÚ~ ;7Úº ;77êê(Perkin ElmerÒ LS 50B) PDP N6Úf FÒ ~ãöB B7 Ê¿Þ"j G;~V * D Î*f KrÎ*& ËOB z G;Ï VUV PL(Photoluminescence)Ë~¢ ÒÏ~ 254 nmf 147 nm '' VB > 5 B7Ê¿Þ"j ß;~& . ê¶F ' G; ò& Ë*B zªÚ¦¢ TMP(Turbo Molecular Pump) ¢ Ï~ 4×10 torrç~ êb FæV . B B Ö" f " b~ ^V8 jò 550 nm~ 720 nm Úö ®º Î b~ 'j 8 , B *~öB 2® G; Ö"¢ ï8b ¾ æÚîb, V&bîº ¢ KaseiÒöB B (Y, Gd)BO :Eu f Y O :Eu 'ï;7Ú¢ ÒÏ~& . 7ßW ªCêö >wVÚ~ ;7Ú¢ 'ï ª~ , XF ªö².V(RigakuÒ DMAX-33) Ö;Wj {~&, SEMb «¶ ;çj &V~& . Òö ¢2Ò(Quternary combinatorial 2. 2. 5. 2. 3. 2. 3. 2. 5. 2. 5. 3. o. o. o. 2. −5. 3. 3+. 2. 3. 3+. library: QCL). G;Ö"~ ãËWj £² rjV *~, B· >wV 7Bö C 120B~ þ2j W~ quternary combinatorial library(~ ‘QCL’ V)j ·W~& . ~& . VöB ''~ º fº W. ;7Ú¢ ~~, ÒÚº C 121B~ Ú^ ® . ' ~ *~B W Ö;>º O »f * lever ruleö ~ 4ö çï;ê¢ º O »" ? . G;B B7^Vº ' ~ CV ¾æÚ º ïf B7 ^V& ±f ©, ¦;ïf ç& 'b B7 ^V& Ôf ©j ¾æÞ . Ñ ® óî~ Journal of the Korean Chemical Society.

(3) zj Ï Y(As, Nb, P, V)O :Eu 'ï;7Ú~ W 5 7 ßW ªC 3+. 579. 4. Fig. 1. Schematic diagram of combinatorial chemistry method, reactor and quternary combinatorial library.. Sæ6f '' Y AsO :Eu , Y NbO :Eu , Y PO :Eu , ~ W, ©j 7b As, Nb, P, V~ ³ê& Sæ6öB >çb ÿ v 0.06 mol, ÎBÒf öBº 0.2 mol~ ³ê æz¢ "î, V ¢B 120B~ B Wj &ê ;7Ú~ B7^ Vö & ;¢ ;W'b .ö &V > ®ê ~& . Fig. 1ö þ "; 5 ÒÏB >wV 5 QCL j *® ¾æÚî . 0.9. 4. 0.1. 0.9. 4. 0.1. 0.9. 4. 0.1. Y0.9VO4:Eu0.1. Ö" 5 V ;7Ú ßW zj ~V *ö ²W Nêf ÎÚ~ «~ Eu~ êw·ö V B7 >ê 5 ßWj rjV * ~ ÎÚ j ~² >º Y AsO , Y NbO , Y PO , Y VO ö Euj x Öj êw~ 'ï;7Ú¢ W ~&, 254 nm 5 147 nm~ 7öj ÏB ''~ ;7Ú þ2j VB G;~& . Fig. 2º 254 nm VVj r 1100 C, 1200 C, 1300 CöB ''~ Eu ³êö V B7 ^V¢ ¾æ Þ . YAsO ¢ ÎÚ ®j ãÖú 1100 C ²W~ , Eu¢ 0.1 mol êw~&j r Nêö j B 7 ^V& 2V;ê ¸² ¾æÒb, YNbO f YVO º 1200 CöB Nêö j ¸f ^V¢ ¾æÚî . YPO º 1300 CöB ²W~&j r ¾^æ NêöB ¸f B7 ^V¢ & . þöB WB ' 1-x. 4. 1-x. 4. 1-x. 4. 4. o. o. o. o. 4. 4. o. 4. o. 2001, Vol. 45, No. 6. 4. 4. o. 4. 5. YAsO4:Eu3+, YNbO4:Eu3+, YPO4:Eu3+, YVO4:Eu3+. 1-x. ï;7Ú 7 &Ë ±f B7 ^V¢ ¾æÞ bîf ¢ ÎÚ ÒÏ~, Euj 0.05 mol êw ©. . ç&'b YPO ¢ ÎÚ ÒÏ ;7Úº &Ë Ôf B7 ^V 8j ¾æÚî . Fig. 3f ;7Ú¢ 147 nm VVj r ¾æÂ Ö" . Fig. 2f jv~, YPO :Eu¢ B~, B7^V¢ ¾æÚº Nê& :6 ©j " > ®b , YPO ö Euj 0.15 mol êw~, 1300 CöB ² W ;7Ú& &Ë B7 ^V& ¸~ . ©f Ë2Ë Vöj ÒÏ r " > ìî~ D F , D F ~ *ö V~º 590, 700 nm ¦"öB~ ; B7 b ~ ;W r^ . YVO :Euº *;' Eu ~ b & 254 nm 5 147 nmV Îv jÝ ·çj º , ê¶F 'öBê ¶F 'öBf îR& æ D F Ê¿Þ" F~ ^Vº &Ë ² ¾æÂ. . D F , D F , D F ö ~º Ê¿Þ" F~ ç&' ^V8j Table 1ö ¾æÚî . &ç ; 7Ú f Eu¢ 0.1 mol êw~ 1200 CöB 3* ÿn ²W © . B 8 j jv~, 254 5 147 nm V2Ëj ÒÏ r ç&' B7 ^V 8 ¢æº ©j > ® . º ¢« ÒÞ¾ w(radiation trapping)b J« > ®º Òb D F , D F ~ *& D ‘ç*&*’~ *f ö.æ «(energy resonance) >Ú ÒÞ¾w>º *çf ªö òöB z® ®j > ®º Ò . r ^~º ‘ç*&*’& jÚ ®Ú¢ f V' F¯ B . ~æò ‘ç*&*’& jÚ ® YVO4. 4. 0. 7. 1. 5. 7. 0. 7. 0. 0. 7. 4. 3+. 4. 5. 5. 2. 1. 5. 0. 7. 2. 5. 7. 0. 4. o. 5. 0. 7. 1. 5. 0. 7. 4. 5. 0. 12.

(4) 580. ÀóêÁÖ¬VÁ:8Á,d. Fig. 2. Emission intensity of phosphor as a function of Eu3+ concentration and firing temperature under 254 nm excitation.. Fig. 3. Emission intensity of phosphor as a function of Eu3+ concentration and firing temperature under 147 nm excitation.. ºæ~ ¦º Vö~ 2Ëö 'Ë Aj > ®V r ^ö 254 5 147 nm V2Ëj ÒÏ r ç&'. B7 ^V 8 ¢î > ® . Fig. 4ö '' 254, 147 nm V~öB~ B7 Ê¿ Journal of the Korean Chemical Society.

(5) zj Ï Y(As, Nb, P, V)O :Eu 'ï;7Ú~ W 5 7 ßW ªC 3+. 581. 4. Table 1. Relative intensities of emission lines under 254 and 147 nm excitation. 254 nm. λex. 147 nm Eu concentration = 0.1 mol. host materials 5 D0→7F1 5 D0→7F2 5 D0→7F4. YNbO4 26 91 13. YAsO4 15 15 13. YPO4 5 5 <1. YVO4 32 1001 14. YAsO4 22 37 26. YNbO4 11 90 23. YPO4 56 65 80. YVO4 14 1001 26. Fig. 4. Excitation and emission spectra of phosphors under 254 nm, 147 nm excitation. (a) Y0.9AsO4:Eu0.1, (b) Y0.9NbO4:Eu0.1, (c) Y0.9PO4:Eu0.1, (d) Y0.9VO4:Eu0.1.. Þ"j ¾æÚî . V Ê¿Þ"j YPO ¢ Î Ú ®j r¢ B ¾^æ ;7Ú f ê¶F ' º ¶F 'öB ôf >& ¢Ú¾º © j r > ®b, B B ê¶F 5 ¶F ' öB~ Ö"f &7 &W ®rj & . V ö öB C&r *;' Eu ~( D F )~ b ¢ . ''~ bîö &~ 590 nm ( D F ), 615, 619 nm( D F ), 700 nm( D F )~ b B7 ^V& "b &V>î . ¾ 254 nm V~öB~ B7 Ê¿Þ"" jv , YVO f YNbO ¢ ÎÚ 'ï;7Ú~ ãÖ Ê¿Þ "~ Î· jÝ~&æò, YAsO ¢ ÎÚ ®j v 4. 3+. 7. 7. 0. 4. 0. 6. 1,2,3,4. 5. 5. 5. 1. 0. 7. 5. 2. 4. 4. 2001, Vol. 45, No. 6. 0. 7. 4. ¦"~ b~ ^V& ç&'b Ã&®rj r > ®, YPO º " b& D F öB D F :6 ©j " > ® . º Bê C: Ò Þ¾w(radiation trapping)b J« > ® . ''~ Nêö & XRD ªCê JCPDS(Joint Committee on Power Diffraction Standards)~ V jv~ & . YAsO ~ ãÖ 1100f 1200, 1300 CöB YAsO ~ cherovite ¢ç" þ 2θ=30 öB Y O ~ b& &V>î . ©f ;7Úö ÎÚ ÒÏ>º b î . As& Nê& R¢6ö V¢ ïO >B> Ú *Ú'b ïjö æ pj ;W>º ©b . ¾, ;7Ú~ ãÖ 1100 CöB¦V 700 nm. 4. 5. 0. 7. 5. 2. o. 4. o. 7. 4. 4. 2. o. 0. 3.

(6) 582. ÀóêÁÖ¬VÁ:8Á,d. Fig. 5. XRD patterns of phosphor as a function of firing temperature.: (a)Y0.9AsO4:Eu0.1, (b)Y0.9NbO4:Eu0.1, (c)Y0.9PO4:Eu0.1, (d)Y0.9VO4:Eu0.1.. Fig. 6. SEM photographs of phosphor prepared by combinatorial chemistry method.: (a) Y0.9AsO4:Eu0.1, (b) Y0.9NbO4:Eu0.1, (c) Y0.9PO4:Eu0.1, (d) Y0.9VO4:Eu0.1.. ¢ç ;W>îrj r > ®î . Ö"¢ Fig. 5ö ¾æÚî . ¾Ò Nêö V «¶ ;~ &Vj. * "Ò *¶ *ãj Ï~ &V~& . Fig. 6 ö ÎÚö V¢B Î· {® ª>º, Journal of the Korean Chemical Society.

(7) zj Ï Y(As, Nb, P, V)O :Eu 'ï;7Ú~ W 5 7 ßW ªC 3+. 583. 4. Fig. 7. Quaternary combinatorial library: The gray level stands for emission intensity under 254, 147 nm excitation. The samples were fired at 1100 oC, 1200 oC, 1300 oC.. ÎÚö ÒÏB bî~ ö¶®^& Ã&> «¶~ V& æº ãËWj &, Nê& ¸j> «¶ V& Ã&~º ©j " > ® . YAsO ~ ãÖ ï& V Î· "«j , YNbO f YVO ¢ ÎÚ ®j ãÖú ~ ;ç & V& 1 µm Ú , YPO ~ ãÖº 1200 C~öB ²W~ ¢ ê ²÷Î·b «¶ B ïB ~¾~ ÚÒ ¢ ®b¾ 1300 CöB ²W~ «¶~ V & æB ²÷Î· Ò¢r . ÒÚ ¢2Ò(Quternary combinatorial 4. 4. 4. o. 4. o. library). þ Ö"~ ¢&Wj V *~, Eu~ êw>º ·f 0.1 mol ;Ê, 254 nm, 147 nm V 2Ë " Nêö V Î B7 ^V 8j «z~ N ¾ æÚî . QCL~ Ë6f B Þ/ :f ? z Ö"¢ ¾æâ r ÎÚö V B7 ^Vö & ãËW" &Ë ±f Wj ®ö {~º © . Fig. 7~ (a)º 254 nm~ V 2Ëb ;7Ú¢ V Vj r QCL . ÎÚ YVO f YNbO ¢ 7b 1200 CöB B7 ^V& ¸ º ©j " > ®b,. v &æ ÎÚ~ ãÖ ç&'b j" Ôf B7 ^ V¢ &æ ® . 147 nm¢ V 2Ëb ÒÏ®j ãÖú ãË j" ² ¾æÂ . 6f Ö" 3.1.~ V Ê¿Þ"b J« &Ë~ . ¯, ê ¶F 'öB >& ô ¢Ú¾ >ö ¶F 4. o. 2001, Vol. 45, No. 6. 4. '~ >& '² ¢Ú¾º ÎÚ " fº >& ÎÚ j 7b B7 ^V 8 ¢æº © . Fig. 7(b)öBê îR&æ 1200 CöB ²W~&j r *Ú'b ±f B7 ^V 8j ¾æÚî . Fig. 8, 9 º Fig. 7öB Ö"~ Ú¦¢ ¶^~² &V > ®ê ' óîî © . QCLf C 5B~ ó î Ú^ ® . Ñ ® óî~ Sæ6f B> ÎÚf Eu 0.1Ö êw>Ú ®, v ®, ^ ® ó î Ú.> ÒÏ>º ÎÚ& z ô D² B . V¢B, ^¦' ãËWj V *~ ' óî~ S æ6j º ;7Ú ªö~ ;7ßWö & rj ~ . Table 2ö Ñ ®, v ®, ^ ® óî~ ' Sæ 6j º ;7Ú~ V2Ëö V¢ &Ë ¸f B7 ^V 8j 100b ~ ¾^æ 8j &z~ B ~& . 254 nm Vöº B® YVO ~ ãÖ& & Ë ±f ©b C&^ Wj Dj jº & ì º Öj áîb¾ 147 nm¢ Vöb ÒÏ ãÖöº YPO ¦"~ 2® óîöB B7 ^V 8 Ñ ® B> ÎÚ¢r ê B7 ^V8 3V ;ê Ã&~² B . "Ï 6f 8 (Y, Gd)BO :Eu çÏ ;7Ú ªö~ B7 ^V ¸f 8 . *öB Ö"¢ ÝA~V * XRD 5 Nê ö V SEM Òêj Fig. 10, 11, 12, 13ö B~& . Fig. 10j B B XRD Ê¿Þ"öB o. 4. 4. 3. 3+.

(8) ÀóêÁÖ¬VÁ:8Á,d. 584. Fig. 8. Quaternary combinatorial library: fired at 1200 oC, under 254 nm excitation.. Fig. 9. Quaternary combinatorial library: fired at 1200 oC, under 147 nm excitation.. æ p~~ Y O b& ^~² &V>Úê . Fig. 11~ Ê¿Þ"öB ÎÚ~ Dº jN Ã&~B Y O öê YNbO 5 YVO ~ bç &V>î. . Y O ~ Òº ¶F 5 ê¶F 'öB~ B7 ^Vö ÚÆ 'Ëj "ºæº Îæò ò ¢çb Ò~º ãÖ º ±æ pj ©b º; 2. 2. 3. 3. 4. 2. 3. 4. B . ß® ÎÚö YAsO ~ Wª ô F ãÖ ö Y O ~ Ò& *Ï 6ö ~~ ;W ö f r" ? J«F > ® . ÎÚ Ò~º As~ ' n;W jv' ÔjB © ö j ç&' b >B>º · ô, V¢B ;ï' Ö j¢ < º ÎÚ& ;W>æ pj ©, r W>º Ö 4. 2. 3. Journal of the Korean Chemical Society.

(9) zj Ï Y(As, Nb, P, V)O :Eu 'ï;7Ú~ W 5 7 ßW ªC 3+. 585. 4. Table 2. Relative emission intensity of YRO4:Eu (R=As, Nb, P, V) phosphors under 254 and 147 nm excitation. Shell 1st shell. 2nd shell. 3rd shell. Major host. YNbO4. YAsO4. YPO4. YVO4. o. Temp( C). 254. 147. 254. 147. 254. 147. 254. 147. 1100 1200 1300 1100 1200 1300 1100 1200 1300. 43.6 50.3 48.7 53.3 55.6 50.8 56.4 58.4 48.9. 24.8 30.4 26.0 54.8 67.9 44.7 61.2 62.5 40.8. 81.1 86.7 71.6 40.2 46.6 43.1 46.8 52.2 46.3. 48.0 37.8 31.9 20.8 18.5 18.9 25.3 27.0 22.6. 30.7 37.7 37.3 43.4 55.4 51.1 47.6 58.5 51.1. 58.1 64.1 81.5 60.8 100.00 83.1 62.9 82.0 66.3. 71.3 100.00 86.9 76.5 92.2 80.2 74.9 87.1 72.6. 21.6 44.4 38.3 30.3 42.7 45.2 28.3 43.3 35.5. Fig. 10. XRD patterns of phosphors as a function of firing temperature.: (a) Y0.9(As0.83,Nb0.06,P0.06V0.06)O4:Eu0.1, (b) Y0.9(As0.06, Nb0.83,P0.06V0.06)O4:Eu0.1, (c) Y0.9(As0.06,Nb0.06,P0.83V0.06)O4:Eu0.1, (d) Y0.9(As0.06,Nb0.06,P0.06V0.83)O4:Eu0.1.. ö ^~æ pº Yö¶& Ö²f >w~ Y O & W>î " > ® . V&bî ÒÏ çÏ ;7 Ú ªö~ ãÖö 254 nm V~öB~ G; Ö" B 7 >êº YVO f YNbO º Ô YAsO , YPO º ¸~ . V¢B, Y O ç BÒ>º v ® ^ 2. 4. 4. 2. 2001, Vol. 45, No. 6. 4. 3. 3. 4. ® óî~ ãÖö 254öB~ B7 >êº ¶® Ã &~² >, YNbO f YVO & ÎÚ~ "ïj Næ~ º ;7Úº ç&'b B7 ^V& 6²~º ©b J«B . 147 nm VVj rö ¾æ¾º B7 ^ Vº XRD Ö"º &Wj dV& Ö Ú[ . 4. 4.

(10) 586. ÀóêÁÖ¬VÁ:8Á,d. Fig. 11. XRD patterns of phosphors as a function of firing temperature.: (a) Y0.9(As0.67,Nb0.11,P0.11V0.11)O4:Eu0.1, (b) Y0.9 (As0.12,Nb0.67,P0.12V0.12)O4:Eu0.1, (c) Y0.9(As0.12,Nb0.12,P0.67V0.12)O4: Eu0.1, (d) Y0.9(As0.12,Nb0.12,P0.12V0.67)O4:Eu0.1.. Fig. 12. SEM photographs of phosphors.: (a) Y0.9(As0.83, Nb0.06, P0.06V0.06)O4:Eu0.1, (b) Y0.9(As0.06, Nb0.83, P0.06V0.06) O4:Eu0.1, (c) Y0.9 (As0.06, Nb0.06, P0.83V0.06) O4:Eu0.1, (d) Y0.9(As0.06, Nb0.06, P0.06V0.83) O4:Eu0.1. Journal of the Korean Chemical Society.

(11) zj Ï Y(As, Nb, P, V)O :Eu 'ï;7Ú~ W 5 7 ßW ªC 3+. 587. 4. Fig. 13. SEM photographs of phosphors.: (a) Y0.9(As0.67, Nb0.11, P0.11V0.11)O4:Eu0.1, (b) Y0.9(As0.12, Nb0.67, P0.12V0.12)O4:Eu0.1, (c) Y0.9 (As0.12, Nb0.12, P0.67V0.12)O4:Eu0.1, (d) Y0.9(As0.12, Nb0.12, P0.12V0.67)O4:Eu0.1.. Vö~ ö.æ Nö ~(254 nm=4.9 eV, 147 nm=8.9 eV) ßWbB PDPöB Vöb ÒÏ~º VUVöB º ;7Ú ªö~ ßWj J¢ . ¯, W B ;7Ú& ¢~ ^ «¶ ;çj &^¢ jº& ® . öB WB ;7Úº «¶ ; ¾ V .j * " &ç ~ ê¾Ò "; * & ì & Î G;j ¯~&V r^ö «¶~ Vê & 250 µmöB ² 1 µm Ú V& ¢;~æ á~ . ¾, Fig. 6, 12, 13öB B SEM Òêj WB ;7Ú~ Î· ¢;~ ' óîöB W Nê Ã&ö V¢ V& 6N æº ©j " r, «¶ ; 5 Vº Ïª® .F > ® 13. j ©b . çÏ ;7Úf jv B7 ^V¢ 254 nm V~öBº Y VO :Eu çÏ Y O :Eu ;7Ú ±~, 147 nmöBº Y (As ,Nb ,P V ) O :Eu ~ Wb 1200 CöB WB ;7Ú& PDP Ï çÏ ;7Ú (Y, Gd)BO :Eu Ö>~& . Fig. 3öB YPO ~ ãÖ 1300 CöB ²W~&j r B7 ^V& ¸f ©b ¾æÒº, z Ö" YPO ~ Ñ ® Sæ6 v ® óî~ Sæ6 ¯ Y (As ,Nb ,P V )O :Eu ~ Wj ÂB bî ~ W ;7Ú& 1200 CöB &Ë ±f B7 ^V ¢ ¾æÞ ©f P¢ B As, Nb, V ïb Î &>º bî ²Ö B ·Ï~ ;7Ú~ Ö; 0.9. 0.1. 0.9. 4. 2. 0.06. 0.06. 0.83. 3. 0.06. o. 0.1. 3. o. 4. 4. 0.9. 0.06. 0.06. Fig. 14. Quaternary combinatorial library of CIE x, y chromaticity coordinates. 2001, Vol. 45, No. 6. 4. 0.83. 0.06. 4. 0.1. o.

(12) ÀóêÁÖ¬VÁ:8Á,d. 588. W Ëçö ±f 'Ëj & ©b . Fig. 14ö 1300 CöB W ;7Ú~ ï ² Ö "¢ ¾æÚî . PDPÏ (Y, Gd)BO :Eu~ ãÖ ç7 G; Ö" CIE x=0.6507, CIE y=0.349 ¾z . âj r > ® CIE x8f Y VO :Eu & 0.6721 &Ë ¸~, Y PO :Eu º 0.6561 &Ë Ô~ . CIE y8f fº >& Y PO :Eu &0.3436, Y VO :Eu º 0.3277î . *öB &Ë ±f B7 ^V¢ ¾æÞ Y (As ,Nb ,P V )O :Eu ;7Ú º x=0.6603, y=0.3394 8b çÏ ;7Úf jv x8f £ 0.1 ;ê , y8f £ 0.1 ;ê Ô . ©f VUV;7Úö º>º 'ï ;7Ú~ ï ² x=0.67 " y=0.33ö z &rÚ 8b ¸f B7 ^Vf þ ±f ï ² PDPÏ ;7Ú 'Ï~Vö '~ . V¢B, WB~ ³ê, ²W Nê, º7 *, ¢ «¶ ;¢ ò V * þ ê³>Ú ''~ ~ 'z ;7Ú BF Úæ PDPÏ ; 7ÚB~ wÏ &ËW ©b V&B . o. 3. 0.9. 0.9. 4. 0.9. 0.9. 4. 4. 0.1. 0.1. 4. 0.1. 0.1. 0.9. 0.06. 0.06. 0.83. 0.06. 4. 0.1. Ö zj ;7Ú Wö 'Ï~ Y(As, Nb, P, V)O ¢ ÎÚ ;7Ú¢ W~& . WB ;7Úº ¢ &W ®º Ö"¢ &b, G; Ö"¢ :ûb ~ ò ÒÚ ¢2Ò ÎÚö V ;7ß W~ ãËWj jv > ®î . WB ;7Ú f îÚ ~ ¢ç jò bçj " ® îb, VUV(147 nm) V v ® óî~ Sæ6 j º ;7Úº &Ú B7 ßW Ñ ® ó îöB ±~ . ¾, ^ ® ç~ óî. Ú& ¯, z ôf jN B bF röº ï² 5 B7 ^V& 6²~º *ç ¢ÚÒ . ;7Ú ö WB ;7Ú~ ßWf Ñ ® óîö Sæ6j º B> ÎÚ ~ 'Ëj ô A~, ©f ï ² 5 B7 ^Vö ç7' 'Ëj ~º ©b 4. ¾æÒ . WB ;7Ú 7ö 254 nm~ Ë2Ë ¶ Fb V~ö 1100, 1200 CöB 3* ²W YNbO :Eu ;7Ú& WB N~ ³ê 0.1ßEuß0.2 'öB Ò, YVO :Euf 0.03ßEuß0.1 'öB 1200, 1300 C ²W ò çÏ Y O :Euf & ~¾ ¸f B7 ^V¢ ¾æî . *Ò PDP~ V 2Ë 147 nm V Vj rº Ñ ® óîöB Y PO :Eu ¢ V&b ÂBbî~ Wj Y (As , Nb ,P V )O :Eu ~ W~&j r B7 ^ Vf ïBê& V&bî çÏ(Y, Gd)BO :Eu Ö >~& . o. 4. 4. o. 0.9. 0.06. 4. 2. 3. 0.1. 0.83. 0.06. 0.9. 4. 0.06. 0.1. 3. Ï^ò 1. 2.. & ;:Ê2.²æ 2000, 1(1), 25. ^W; ÏJ; î'{; fF'; «F z^ê 1997,. 37(6), 26. 3. Danielson, E.; Golden, J. H.; Mcfarland, E. W.; Reaves, C. M.; Weinberg, W. H.; Wu, X. D. Nature 1997, 389, 944. 4. Wang, J.; Yoo, Y.; Chen, G.; Takeuchi, I.; Sun, X.; Chang, H.; Xiang, X. -D.; Schultz, P. G. Science 1998, 279, 1712. 5. McFarland, W. W.; Weinberg, W. H. Trends in Biotechnology 1999, 17, 107. 6. Osvaldo, A. S.; Simone A. C.; Renata R. I. J. Alloys & Compounds 2000, 303, 316. 7. Dinesh K. A.; William B. W. J. Electrochem. Soc. 1986, 133(6), 1261. 8. Han, C. H.; Kim, H. J.; Chang, H.;Lee, S. K.; Park, H. D. J. Electrochem. Soc. 2000, 147(7), 2800. 9. Blasse, G.; Bril, A. J. Chem. Phys. 1969, 50(7), 2974. 10. Ropp, R. C. J. Electrochem. Soc. 1986, 115(8), 841. 11. Guillot-Noel, O.; Viana, B.; Bellamy, B.; Gourier, D.; ZoboMBoulou, G. B.; Jandl, S. Opt. Mat. 2000, 13, 427. 12. Sumida, D. S.; Fan, T. Y. Opt. Lett. 1994, 19(17), 1343. 13. Zeon, I. W.; Sohn, K.-S.; Jeong, Y. S.; Kim, C. H.; Park, H. D.; Ryu, S. G. The Korean J. Mat., Res. 2001, 11, 227.. Journal of the Korean Chemical Society.

(13)

zj &Iuml; Y(As, Nb, P, V)O4:Eu3+ '&iuml;;7&Uacute;~ W 5 7 &szlig;W &ordf;C

zj Ï Y(As, Nb, P, V)O4:Eu3+ 'ï;7Ú~ W 5 7 ßW ªC
