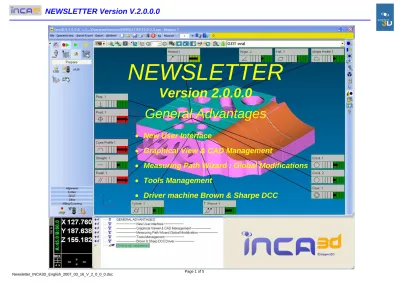

NEWSLETTER
Version 2.0.0.0 General Advantages
• New User Interface
• Graphical View & CAD Management
• Measuring Path Wizard : Global Modifications
• Tools Management
• Driver machine Brown & Sharpe DCC
Page 1 of 5
New User Interface :
The new user interface is using the Windows colors, buttons are updated and user can choose gradient color for background
Example of updated Inca3D buttons :
Tools – Hotline Messenger – Help – Reset measure – Create new measure In the Action Parameters Window :
Etc …
Also, new Inca3D logo
Graphical View & CAD Management :
• Colors management of OPS & CAD elements
OPS element (measured entities) :
- Global color – e.g. All circles will be displayed with same color
- Tolerance color – e.g. Measured circles will be displayed using position according tolerance (Green, Red or Blue)
CAD element :
- Global CAD color – all surfaces with same color - default
- Color of CAD file – all surfaces take color of the CAD file, useful to display several CAD files
- Color of CAD entity – each surface will be displayed with its own color During CAD files import to BGF, Inca3D retrieve colors from original format (only for Iges)
Define Construct Probed Measured
Apply Save Cancel
Ability to define color for printing
Activate or Deactivate gradient color in background
Newsletter_INCA3D_English_2007_03_16_V_2_0_0_0.doc
• Graphical Views Management
Label displaying “View name” is replaced by a drop down list to switch easier active view
• New display of error vectors as arrows
The arrows are always displayed out of the material – arrow direction gives information about error sign.
In shading mode all deviations are visible
• Trends
Graphical labels can display deviations as trends (customizable : gradient color, tolerance zone, …)
User can also insert the trends in labels for measuring report (customizable : gradient color, tolerance zone, …)
Page 3 of 5
• Extract a nominal keyboard point from CAD
User can calculate third coordinate and vector of a point from CAD Example : X=80 Y=20 Z= ??
By clicking "Get from CAD" Inca3D find Z=-12.070 on CAD, vector is also extract from CAD surface
• Extract a geometrical entity from CAD by probing
When activating the button "Calculate keyboard data from CAD and probed points", Inca3D is automatically calculating the nominal value from CAD surfaces
• Others
- Ability to set link line attach point for label to nominal or actual entity - New short cuts :
Ctrl + L : rearrange labels
Ctrl + R : reverse Normal vector in graphic view Ctrl + E : reverse Edge vector in graphic view
Crtl + G : CAD creation available even if not in CADtool view
Ctrl + T : CAD element treeview available even if not in CADtool view
- Ability to display CAD file in section view
- Ability to rename a CAD-action regarding CAD element referenced
Global Modification for Measuring path wizard :
Ability to apply global modifications for Measuring path wizard on several entities (probed & measured)
Can define parameters & apply others modifications in meantime (e.g. tolerance + measuring path + alignment + …)
Newsletter_INCA3D_English_2007_03_16_V_2_0_0_0.doc
Tools Management :
Information about calibration date-time is displayed for each probe and sphere
User can enter “allowed shape deviation” in Tool manager, Inca3D will display a
“warning information” or “cancel the calibration”
Driver Machine Brown & Sharpe DCC :
Inca3D is able to manage a CMM equipped with a Brown & Sharpe DCC controller (contact us for details)
Do not hesitate to contact us for more explanations
