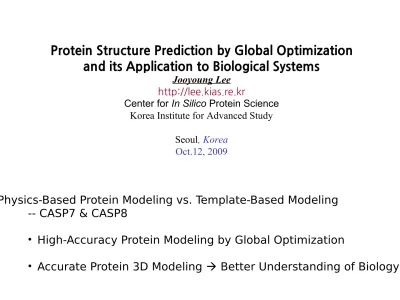

Protein Structure Prediction by Global Optimization and its Application to Biological Systems

Protein Structure Prediction by Global Optimization and its Application to Biological Systems

Jooyoung Lee http://lee.kias.re.kr

Center for In Silico Protein Science Korea Institute for Advanced Study

Seoul, Korea Oct.12, 2009

• Physics-Based Protein Modeling vs. Template-Based Modeling -- CASP7 & CASP8

• High-Accuracy Protein Modeling by Global Optimization

• Accurate Protein 3D Modeling  Better Understanding of Biology???

KIAS Protein Folding Laboratory http://lee.kias.re.kr

Proteins are important

Proteins

sequence

(genome) ^structure

function

(post-genome)

scientific bottleneck

The most challenging problem of this century

Control all cellular processes Enzymes

Anti-bodies

hormones

(Protein Folding Problem)

Human hemoglobin

Protein folding problem

• For a given amino acid sequence (of size find the native structure of the protein.n),

• Total # of protein structures: 10ⁿ

• mathematically NOT well defined problem

sequence structure

function

KIAS Protein Folding Laboratory http://lee.kias.re.kr

Protein folding problem

1. Protein Structure Prediction:

For a given protein sequence, to determine its 3D structure by computation

2. Protein-Folding Mechanisms:

By what process does a protein folds into its native and biologically active conformation?

3. Inverse Folding:

For a given protein structure, to design its 1D sequence

Protein Structure Prediction

1. Physics-based approaches: Principle based-modeling

① Accurate potential energy function

② Powerful global optimization method  what we can do better than others

③ Ab initio, de novo, new fold targets (10-20%)

2. Informatics-based approaches: Template based-modeling

① Map the original problem to a problem with solution

 mapping problem (alignment problem)

② Use templates (problems with solutions) to obtain the solution of the original problem (multiple alignment)

③ Comparative modeling, fold recognition (80-90%)

Narrows the search

while maintaining diversity of sampling.

Annealing in conformational space”.

Conformational Space Annealing

J Comput Chem 18 1222 (1997) Phys Rev Lett 91 080201 (2003)

Examples of successful optimizations

• Optimization of ECEPP/3 for a 20-residue membrane-bound portion of me littin [Biopolymers 46, 103-115 (1998)]

• Unbiased global optimization of Lennard Jones clusters up to N =201 [Ph ys Rev Lett 91, 080201 (2003)]

• Ground state in the frustrated XY model and lattice coulomb gas with f =1 /6, [Physica A 315 314-320 (2002)]

• Conformational space annealing and an off-lattice frustrated model protei n, [J Chem Phys 119 10274-10279 (2003)]

• Structure optimization of an off-lattice AB protein model [Phys Rev E 72 011916 (2005), Submitted]

• Efficient molecular docking using conformational space annealing, [J Co mput Chem 26 78-87 (2005)]

• Ground-state energy and energy landscape of the Sherrington-Kirkpatrick spin glass [Phys. Rev. B 76, 184412 (2007)]

• Successful High Accuracy Template Based Modeling in the CASP7 ex periments [Proteins, Vol. 69, 83-89 Suppl. 8 (2007)]

• Multiple sequence alignment by conformational space annelaing [Biophys ical J. 95 4813-4819 (2008)]:

att532

What is CASP?

• Critical Assessment of Techniques for Protein Structu re Prediction (http://predictioncenter.gc.ucdavis.ed u/).

• Goal is to help advance the methods of identifying pr otein structure from sequence.

• Community-wide experiments held every two years st arting 1994 to prepare the post-genomic era

• Blind prediction (and blind assessment).

• Since CASP1 (1994), there are a total of 514 protein sequences predicted.

• Since CASP5 (2002), ~200 methods have been teste d for each CASP.

Protein Structure Prediction

1. Physics-based approaches: Principal based modeling

① Accurate potential energy function

② Powerful global optimization method

③ Ab initio, de novo, new fold targets (10-20%)

2. Informatics-based approaches: Template based modeling

① Map the original problem to a problem with solution

 mapping problem (alignment problem)

② Use templates (problems with solutions) to obtain the solution of the original problem (multiple alignment)

③ Comparative modeling & fold recognition (80-90%)

HDEA

RMSD=4.2 Å for 61 residues (80%,

residues 25-85)

HDEA Segment RMSD=2.9 Å for 27 residues (36%, residues 16-42)

PNAS 96,5482

CASP6 example: T0199_D3 (FR/A, Nres=82, 145-226)

Native structure Model4

Past CASP Performances of KIAS protein folding lab

- CASP5 (2002): 18^th out of 165 team in new-fold category

- CASP6 (2004): selected as a member of 12 elite teams in new-fold

Physics & Protein Structure Prediction (I)

1. Proteins are polypeptide chains containing many atoms, and the interaction between atoms is con- sidered to be reasonably well described by physics and chemistry.

2. However, there are only a few anecdotal examples of successful physics-based protein modeling

(compared to the informatics-based method).

3. Currently, protein structure prediction methods rely- ing only on physics-based approaches do not work as well as informatics-based methods.

Protein Structure Prediction

1. Physics-based approaches: Principal based modeling

① Accurate potential energy function

② Powerful global optimization method

③ Ab initio, de novo, new fold targets (10-20%)

2. Informatics-based approaches: Template based modeling

① Map the original problem to a problem with solution  mapping problem (alignment problem)

② Use templates (problems with solutions) to obtain the solution of the original problem (multiple alignment)

③ Comparative modeling & fold recognition (80-90%)

Physics & Protein Structure Prediction (II)

1. The goal is to achieve better protein modeling by fusing informatics-based methods with a principle of

physics (global optimization)

2. The task was to map protein modeling using tem- plates into a series of combinatorial optimization problem

3. The reality was to learn TBM (template-based model- ing) by making lots of mistakes in a real situation (CASP7)

CASP7 Experiment

• 2006, May -- August

• About 200 prediction methods are tested

• Total of 104 targets (9 cancelled)

• Three major categories:

– High Accuracy Template Based Modeling (28 domains)

• Use fine resolution measures for backbone assessment

• Side-chains are also assessed

• Only model 1s are considered

– Template Based Modeling (108 domains) – Free Modeling (16 domains)

• Physics-based methods have chances for providing competiti ve protein models

• Official results are available from CASP7 conference hom epage (11/26-11/30/2006) and Proteins CASP7 issue

Homology modeling (template-based modelin g) methods in the literature

• Conventional methods:

– Minimal amount of computing resources

– Human power intensive (several days per target)

– A series of decision making procedures require human expertise.

• More advanced (and successful) methods:

– Requires some/significant computing power – Fragments are reassembled

– Complicated score functions (not available to others) are optimized – TASSER by Zhang and Skolnick & ROSETTA by Baker

• Our approach:

– Problems are all mapped onto combinatorial optimization problems – Computing power intensive (CSA is used)

– Requires no human expertise (this is our first-ever TMB attempt in the CAS P)

– Score functions are made up with those available in public – Goal was to learn TBM by making mistakes in a real situation

We formulate protein modeling as a series of combin atorial optimization problems:

• Multiple Sequence Alignment (MSA)  optimization of a frustrate system [Biophysical J. 95 4813-4819 (2008)]:

– generate pair-wise alignments between all pairs

– from each pair-wise alignment, generate residue-to-residue restr aints  a library of restraints  a frustrated system

• All-atom chain building from MSA  another combinatori al problem of the modeller energy function [Proteins 75 1010-1023 (2009)]:

– modeller energy is a collection of competing terms including dist ant restraint terms from MSA and stereo-chemistry terms  inhe rent frustration when dealing with more than one template

– modeller energy is treated as a black box for optimization

• Side-chain modeling is a combinatorial optimization of ro tamers for a given backbone structure

CASP Strategy

Biophysical J.

95, 4813 (2008) Proteins 75

1010-1023 (2009)

CASP7 High Accuracy

Template Based Modelingz

Proteins 69, Issue S8, 27 – 37 (2007) 0.995

CASP7 High Accuracy

Template Based Modeling

Proteins 69, Issue S8, 27 – 37 (2007)

Group n_HA GDT-HA AL0 1 1/2 n_MR LLG Sum 　

TS556 (LEE) 26 0.995 0.727 1.427 1.290 12 0.842 3.127 TS020 (Baker) 26 0.746 0.684 1.242 1.307 12 0.738 2.792 TS249 (taylor) 6 0.590 0.351 0.348 0.349 4 1.731 2.670 TS186 (CaspIta-FOX) 27 0.349 0.289 1.280 1.311 12 0.874 2.534 TS004 (ROBETTA) 28 0.432 0.382 1.405 1.290 12 0.792 2.515 TS671 (fams-multi) 28 0.654 0.657 0.876 0.933 12 0.616 2.203 TS010 (SAM-T06) 28 0.464 0.562 1.187 1.185 12 0.487 2.136 TS234 (McCormack-

Okazaki)

2 0.414 0.338 0.865 0.672 2 1.028 2.115 TS664 (CIRCLE-FAMS) 28 0.588 0.630 0.907 0.924 12 0.510 2.022 TS209 (NanoDesign) 26 0.447 0.353 0.997 0.687 12 0.883 2.016 TS568 (CHIMERA) 28 0.574 0.636 0.768 0.752 12 0.688 2.015 TS559 (GSK-CCMM) 4 0.448 0.484 0.396 0.449 2 1.105 2.001 TS338 (UCB-SHI) 28 0.604 0.522 0.271 0.333 12 1.016 1.954 TS024 (Zhang) 28 0.838 0.795 0.561 0.679 12 0.411 1.928

• • •

A total of 174 groups

Conclusion of the official CASP7 assessment for HA/TBM tar- gets (Proteins 69, Issue S8, 38 – 56 (2007) reads:

“A number of groups did well in the HA/TBM cate- gory. Group 556 (LEE) stood out as the only

group that performed near the top according to all criteria investigated: fold quality (particularly

GDT-HA), side-chain rotamer quality, and molecular

replacement model quality”.

Template Based Modeling

Proteins 69, Issue S8, 38 – 56 (2007)

(Skolnick)

CASP8

• 2008, May 5 – Aug 23.

• Over 200 prediction methods are tested.

• Total of 128 targets (6 cancelled).

• We tried 2 methods: LEE and LEE-SERVER (server)

• Partial assessment data released during the CASP8 meetin g (Sardinia, Italy, Dec 3-7, 2008).

• Highlights of LEE & LEE-SERVER prediction:

– 50 HA-TBM targets: LEE & LEE-SERVER are 2 best methods

– Binding site prediction: LEE & LEE-SERVER are 2 best methods.

– Refinement category: Best model1 prediction by LEE

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 0

0.5 1 1.5 2 2.5 3 3.5 4 4.5 5

Chi_(1+2 )

Chi_1 HB-score GDT-HA

LEE-SERVER LEE

BAKER-ROBETTA

Zhang-Server keasar-server

Top 20 methods sorted by GDT-HA for HA-TBM targets http://casp.kias.re.kr

SAM-T08 YASARA

Predictor Group Rankings (CASP8 TBM category)

What can one do better with more accu rate protein models?

• Predict protein functions:

– CASP8 performance (best HA-TBM prediction by LEE and LEE-S) – Best Binding site prediction  protein design

• Suggest working mechanism of proteins at atomic resoluti on (insulin analogs collaboration with Prof H Shin)

• Screen natural proteins to find more efficient enzymes:

– Discovery of more efficient amino-transferases by protein modelin g and docking simulation  confirmed by wet experiments where 30-60 folds increased in the reaction rate is validated (collaborati on with Prof BG. Kim)

• Determine a protein complex structure by combining X-ra y diffraction data and protein modeling (Cell 136 85-96 J an 9 2009 in collaboration with Prof BH Oh)

Cell 136 85-96, Jan 9 2009

X-tal structure of condensin complex MukBEF

Cell 136 85-96, 2009

Screening of w-aminotransferase for the asymmetric s ynthesis of chiral amine

Sequence name Lowest distance among 100 docking

poses (Å)

Initial rate for for- ward reaction (U_f, μmol/mg∙min)

Initial rate for re- verse reaction

(U_r, μmol/mg∙min) U_r / U_f Produced (S)-- MBA (mM)

Atu4761 2.87 0.38 0.24 0.63 14.5

SAV2612 3.00 0.32 0.35 1.1 15.5

Atu3407 3.09 0.088 0.058 0.66 6.15

w-ATVf 3.21 3.4 0.062 0.018 9.13

1. Caulobacter w-TA were selected and PSI-BLAST was run: 250 se- quences were selected

2. 250 sequences were multiply-aligned and 4 subgroups were iden- tified.

3. 51 sequences belong to w-TA and all the sequences were used for model building.

4. The models were docked with aminodiphenylmethane(ADPM), and the distance between PLP and the N atom of ADPM was mea- sured.

CASP8 Binding Site Prediction

T0391 (Human/Server)

Accuracy = 9/10 = 90 % Coverage = 9/9 = 100 %

Magenta X-ray (3d89A) Blue LEE

Ligand: FES complex

PDB code: 3d89

HETERO ATOMS: FES

FES 57 59 60 61 62 80 82 83 85

Prediction: FES Binding

GDT-HA: 50.73

CSAPDB

Better Structure qualities

Comparable quality

NMR Protein Structure Determination

Protein Structure Determination

by X-ray crystallography & MR

Conclusions

• We have successfully mapped the template-based protein modeling into three layers of combinatorial optimizatio n problems: MSACSA, ModellerCSA and ROTCSA.

• We have demonstrated that high accuracy protein 3D mod eling can be achieved simply by rigorous optimization of relevant score functions.

• The proposed method requires a large amount of computati onal resources (100 CPU days per 300aa protein), but prod uces significantly better results.

• There are rooms for improvement for better template det ection and loop modeling

• Application to real/experimental systems is in the prelimin ary stage but quite promising.

Acknowledgements

3D modeling: Keehyoung Joo,

Jinwoo Lee, Dept. of Math., Kwangwoon U.

Sung Jong Lee, Dept. of Phys., Suwon U.

Function: Mina Oh

NMR Structure Optimization: Jinhyuk Lee Collaboration with experimental groups:

Byung-Gee Kim, School of Chemical and Biological Engineering, SNU Byung-Ha Oh, POSTECH (moved to KAIST)

H Shin, Soongsil U.

DH Shin, Ewha Wemen’s Univ.

Cluster computers: KIAS

http://casp.kias.re.kr/ for head-to-head comparison between servers

Thank You!
