Preparation of Polystyrene Particles Containing Poly(ethylene glycol) Groups and Their Surface Charge Characterization in Dielectric Medium

Demo


Polymer (Korea), Vol. 28, No. 6, pp 524-530 (2004) /


žVâ, \28Ì \6x, 2004„, pp 524-530

41#™Ý#

¼XA|œ œœ´ ÄÐ ÅÐÔ Ä 8€ Í ´

˜ `”\¼ ìé˜, `” Q©„ ¨|œ¨ û„ X È$.^1,2 `”\¼ è@˜ Š ¼ä¼ ûÔ t`”\

`” Q©€ 1965„ Matsumoto€ Ochi ˜´\ ،

XÔ° \\œ\ , Ø ¼dØ´ø¼ ìé˜, Å Ð ¬p@ ¼˜ ˆUœ ÄÐ ¼ä¼ ©q˜@$.³ 70„@ ´œ t`”\ (emulsifier-free) `” Q© @

œ 0¬@ ”ñ œ\È ÉXô ”Ô°, ÅÐ œ´\

ÅÐ$„ ˆU”äÔ D˜p@ ÄЀ ”™A|œ ð

©Xô Èp Œx œœ´ 踜\ € 0¬@ X

q)+Mu‰#})Ù,­ù#]#q)m‰# Õ#

™í½##a-M™Õ#Ùñ#Õ#6®#

½®-¯½­Ž¯ }ò¯’­Ê^.%#

œÑ@™# ÄÐäœ5™</#^.œ­<™p`0¬# QDÐì# 0¬|p#

+5337„# ;# 6¼# QX/#5337„# 44# 7¼# „,#

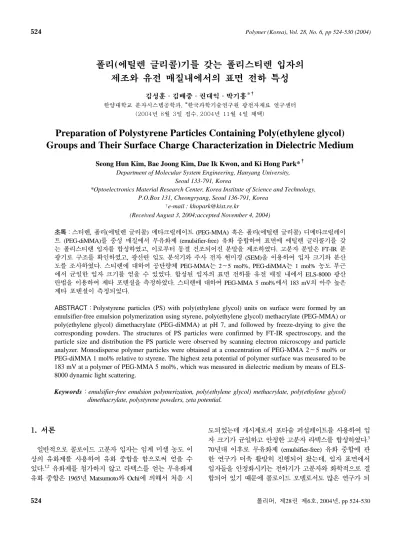

Preparation of Polystyrene Particles Containing Poly(ethylene glycol) Groups and Their Surface Charge Characterization in Dielectric Medium

Seong Hun Kim, Bae Joong Kim, Dae Ik Kwon, and Ki Hong Park*^% Department of Molecular System Engineering, Hanyang University,

Seoul 133-791, Korea

*Optoelectronics Material Research Center, Korea Institute of Science and Technology, P.O.Box 131, Cheongryang, Seoul 136-791, Korea

†e-mail : khopark@kist.re.kr

(Received August 3, 2004;accepted November 4, 2004)

5¨¹ä0L, 4ì(8L @ìœ) ” ¬ôH´ø (PEG-MMA) y€ 4ì(8L @ìœ) T” ¬ôH´

ø (PEG-diMMA)¼ Qq $\ t`”\ (emulsifier-free) `” Q©˜, œ´ 8L @ìœp¼ V Ô 4ìä0L Åм ©q˜@ , ´œÀp ð ´°Xô Ä„ \°˜@$. ÄРĀ FT-IR Ä Qpœ ¬°¼ •¸˜@ , QðÀ Å Ä]p€ <ì DÐ D8ý (SEM)„ ´é˜, ÅÐ ¬p€ Äð

¼ °ì˜@$. ä0L @˜, 5( ô PEG-MMAÔ 2ð5 mol%, PEG-diMMAÔ 1 mol% Í À<

\ ¼œ ÅÐ ¬p¼ û„ X È$. ©q\ ÅИ œ´ D˜¼ `D $ ô\ ELS-8000 Qð ÀՄ ´é˜, \ ,œ„ aU˜@$. ä0L @˜, PEG-MMA 5 mol%\ 183 mV˜ „< Ҁ

\ ,œ´ aUX$.

,-897,.9¹Polystyrene particles (PS) with poly(ethylene glycol) units on surface were formed by an emulsifier-free emulsion polymerization using styrene, poly(ethylene glycol) methacrylate (PEG-MMA) or poly(ethylene glycol) dimethacrylate (PEG-diMMA) at pH 7, and followed by freeze-drying to give the corresponding powders. The structures of PS particles were confirmed by FT-IR spectroscopy, and the particle size and distribution the PS particle were observed by scanning electron microscopy and particle analyzer. Monodisperse polymer particles were obtained at a concentration of PEG-MMA 2ð5 mol% or PEG-diMMA 1 mol% relative to styrene. The highest zeta potential of polymer surface was measured to be 183 mV at a polymer of PEG-MMA 5 mol%, which was measured in dielectric medium by means of ELS- 8000 dynamic light scattering.

Keywords¹emulsifier-free emulsion polymerization, poly(ethylene glycol) methacrylate, poly(ethylene glycol) dimethacrylate, polystyrene powders, zeta potential.

Polymer (Korea), Vol. 28, No. 6, 2004_ Polystyrene Particles Containing PEG Groups _{ }

žVâ, \28Ì \6x, 2004„ 4ì(8L @ìœ)p¼ VÔ 4ìä0L ÅÐ# #

 ,^4,5 „< ¼œ ¬p˜ ÅÐ@ \°\$Ô åP Œ x œ<Œ ø@È 0¬@ X ÈÔ Ä¼´$.^6,7 `

”\ ´ ¼ä@ ˆU˜Ì ´ì  X ÈÔ Ã€ \

\˜ dØ´ø ´h´Ø ´hq 5( ô˜ Œ´h y€

Ñ´h´ ¼ä œ´\ ÅÐD X\e„ `\˜p Œ x´$.⁸H¼ $ô ÅÐ œ´ Œ´h D˜¼ À,˜p D

˜, ” ¬ôð (MA)< Y€ ´hq 5( ô¼ Œ¼ ì $\ Q©˜,¼ ˜ , y€ Ñ´h D˜¼ À ,˜p D´\ N, N’-T”8„8¸8 ” ¬ôH´ø (DMAM)€ Y€ ´hq 5( ô¼ ðq $\ Q©

˜,¼ ˆUœ œœ´ Åм ©q  X È$.⁹ t`

”\ Q©p¬Ô \\€ 5( ôœÀp Uq\ Dì

¼T¼ lì x@ Q©µ„ Uq˜ , ÅМ´„ ˆ U”˜´\, ( ô˜ Ìè€ ¨ \\È qå´Ø@Ô Q©p¬œ ´]X , ´ Œx „A ¼œ ÅÐ@ U qXÔ Ã|œ Œdx È$.^10,11 É `”\¼
Q lŘ

Ô Š˜ , \\Ø 5( ô˜ ´hq |´ ´

œq\Ø œ´ ˆU\ - „ ´<p Œx, ˆUœ œ

ϫ
˜ ÄÐ@ ûô Ô Ã´$. `” Q© 

„¼ D
Q©\ H¼ $ô 4ì(„ Œ”l) ŠИ œ´ ” ¬ô𘠌´h„ Ř, $ ˜ X Ą ¡X˜Ô ˜´œd Åм \°œ 4  È$.¹²

X-\ Xq ظ8p ¬p˜ (Äðq ÄÐ ÅÐ Ô ”E\, àH, ¬œà8Ø|é éD\, Ä
Àìé

( ½ ÅÐ 1 € ļ ‘é` X È$.^13-192œ

(Äðq 4ì(”8 ” ¬ôH´ø) ÅÐ Dq 4 ì„ð„ ”E˜, Då˜\ ÅИ DpA °„

°ìœ 4  È$.²⁰ dØDÀp œ´ D˜¼ @ Ô (Äðq `p Åм œœ´
\ ©q˜Ô €

0¬@ È , ´° ‘´ ¼ôØp ½p Œx ´

œÀp (Äðq `p Ä„ \°˜Ô À ¬ô ¼´

„$. 2œ Xé $\ ÄÐ ÅИ œ´ D˜

@œ 0¬Ô   `D $ ô\ ÄÐ ÅИ œ

´ D˜ @œ 0¬Ô  Š˜$. ùÈ Dp A T äLH´ (DÐ Å´)é ÅÐÔ `D $ô\ Då

˜˜, ´˜,¼ ˜p Œx, ‘5 ͼ  ´Ì ˜ p D´\Ô œ´ D˜@ ° ÅÐ@ „Ô˜Ì \$.²¹ ŠИ œ´ D˜Ô \ ,œ´¼ ˜Ô R|œ œD X°, \ ,œ´ ° ÅÐ@ ÅÐD˜ Uœ X\e|

œ ¸˜, $ô\ ˆUœ Ä𡄠Uq  X È$.

8 0¬Ô `D $ô\ \ ,œ´ ° ÄÐ Åм ûÔ Ã„ éA|œ ˜ , ´hq 5( ô¼ ì é˜ Š , „´hq 5( ô¼ ìé˜, ˆUœ 4ì ä0L Åм ©q˜ Ð ˜@$. „´hq 5( ô¼ ìé˜p Œx pH 7˜ Qq $\ Q©  X ÈÔ

åP´ È$. ìéœ 5( ôÔ 8L @ìœp¼ ¨`

˜Ô 4ì(8L @ìœ) ” ¬ôH´ø (PEG-MMA)€

4ì(8L @ìœ) T” ¬ôH´ø (PEG-diMMA)¼ 5( ôœ ìé˜@$. ùÈ PEG-diMMAÔ ´@åq

„ @ Èô\ @\ -     X Èp Œx

, @\ 4ìä0L Åм \°  X Ȅ Ã|œ

p@˜@$. ©qœ Åм Ä”œ  FT-IRœ ¬° Ä ]˜@ A °q p¸ ÅÐ œ´˜ U¼ <ì DÐ D8ý|œ °ì˜@$. `D $ ô\ PEGp˜ Ý

@ p¸ œ´ D˜˜ ”¼ Œ„4p D´ ELS-8000„

´é˜, ÅИ \ ,œ< ´¼ aU˜@$.

51#=U##

;ú1 è $\ ´h ˜\ 3h ݘX¼ ìé˜

@$. ( ô¸ ä0L (Aldrich, 99%)€ 5% NaOH Xé

¡|œ 1Ì xÙ  P• ݘ˜, Q© H \€ È\

|„ \°˜@$. 8 V˜ ½, 4ì(8L @ìœ) ”

¬ôH´ø (PEG-MMA) (Mn 475), 4ì(8L @ìœ) T” ¬ôH´ø (PEG-diMMA) (Mn 550), T„ä`

(DVB), , Ø ¼dØ´ø (KPS) (99%), 37% <ð Xé

¡ (HCl), Xð” Øø¨ (NaOH) (99%)€ Aldrich˜ ½

„ ˜ U\ <U ´ ìé˜@$.

Žæ#+SP;),1 -™ Xp, ˜˜ Ap, Ì Å

@„ Àiœ 500 mL 3¬ L¼ä¬¼ ­h° d˜œ $

Œ, ´h ˜ ݘX 500 mL¼ c$. |@ 5( ô PEG-MMA¼ L¼ä¬ c Q© h (70 )œ °U Xp¼ p$ì° Ì ÄDp˜\ X Í 250
1 rpm|œ 20ÄD X˜@$. 70  ´´´ ä0L 20 g (0.174 mol)„ c 5ÄD Xœ  \\ 0.7 g„ è@

˜@ 6D ˆ Q©˜@$. PEG-MMA˜ Í p

¸ Aå„ Œ„4p D˜, ä0L< ¨ PEG-MMA 1.65 g (3.48 mmol), 2.48 g (5.22 mmol), 3.30 g (6.96 mmol), 4.13 g (8.70 mmol)„ AA˜ $$ è@˜, AA PM-1, PM- 2, PM-3, PM-4¼ \°˜@$ (Table 1).

Žæ#+SGP#;),1 PM ìȘ Q©< Y€ iÕ

|œ Q©˜@$. PEG-diMMA˜ Í p¸ Aå„ Œ„

4p D˜, ä0L< ¨ PEG-MMA 0.48 g (0.87 mmol), 0.96 g (1.74 mmol), 1.91 g (3.48 mmol), 3.83 g (6.96 mmol)„ AA˜ $$ è@˜, AA PDM-1, PDM-2, PDM-3, PDM-4¼ \°˜@$ (Table 2).

æ®Ù# Õ#’™1 Q©  ûô œœ´ ÅÐÔ ,<˜, 8 ˜ ‘|„ \° ˜@$. 8X‘ ( ô, lì x 1„ \°˜p D˜, Q©  û€ œœ´

`”¡„ l]@ (Membrane Filtration Productsì, Cellu Sep

  Kim et al. Polymer (Korea), Vol. 28, No. 6, 2004/

  €q# 1# žVâ, \28Ì \6x, 2004„/

T4, Mw cut-off 12000ð14000)„ ìé˜, l]p$. ´ h˜Ý˜X¼ $¼ 2Ì H„<´\ Xp (Vision <

™, K.M.C-8480 SFN)¼ ìé˜, 40 \ 7¼D X˜

@$.

MÕ#™í1#U\\ 4ìä0L œœ´ 顀 50 mL , Äìé 4ìDœ„L @ cô HŒLp (Cole- Parmerì, 8853)¼ ìé˜, 2D ˆ Øì  'Tœ ¡ ô ̜ ðœ , ð ´°p (¼ Lab ì, FD 5505S)

¼ ìé˜, 7¼D ´°˜@$.

­­#
š1 Q©|˜ ¬° •¸„ D˜, AA˜ Ä Ð Ä„ Perkin Elmerì˜ spectrum GX FT-IR ÄQp

€ SENS IR technology ì˜ ATR ¡x\ì¼ ´é˜, Ä ]˜@$. ÄРĘ `ì D´ h (Tg)¼ aU˜p D˜, h <ì 4 p (DSC) (Dupontì, DSC 2010)¼ ìé˜@$. Ę ÅÐ Äð
€ ÅÐ ¬p¼ aU

˜p D˜, <ì DÐ D8ý (SEM) (HITACHI ì, S- 2500C)|œ @p˜@$. 2œ `D $ ˆ\˜ Å

Ä]€ Beckman Coulterì˜ LS230„ ìé˜@ , œ´

D˜Ô Otsukaì˜ ELS-8000„ ìé˜, aU˜@$.

61#-y#Œ#Ý##

SHJ0PPD#)Õ#~"1 8 0¬\ PEG-MMA¼

`œ ´`Ô, „´hq `”\˜ |q„ @ p Œx

Qq $\ Q©´ @å˜ , 2œ ( ô˜ - „

˜p Œx ä0L< 5Q©´ ÉX´\, ÅМ´

 PEGp@ ” ´ Ä,äp D¨´$. 8 $

\Ô PEG¼ ¨`˜Ô lì x ( ô Q, ¼@å 5(

ô PEG-MMA€ ´@å 5( ô PEG-diMMA¼ `

˜, ä0L<˜ œA 5Q© °´„ °ì˜@$. ð` ä 0L˜ р U˜ PEG-MMA˜ ф Ý@ä´\

ÅИ ”¼ @p˜@$. PM-1, PM-2, PM-3, PM-4 è

 Q©  l], HŒL Øì, ð ´°˜ \\œ Ä

”˜@$. Table 1 8 ð<¼ Uì˜@ , Ä$˜ SEM ì„ Figure 1 Ø ô$. SEM ì\ 4Ô T€

Y´ PEG-MMA˜ Í@ ä0L @˜, 2ð5 mol%

\Ô ÅÐ ¬p 300ð310 nm¼ @ Ô $𠼜 ÅÐ

¼ û„ X È$. ùÈ PEG- MMA˜ Í 2 mol%˜ °

´\Ô „< ¼œ ÅÐ$´ @ ý´ ðUØ<

‘˜, QðÀ D
 ˜˜, \XÔ ½D˜ 4ϛ

„ @p  X È$. PEG-MMA˜ Í p¼ ÅÐ ¬ p˜ ° ”Ô  , ÅÐ ¬p@ $Ì P̘´\

¼ ½D P̘@|Ø D@œ Aå€ < Š˜$.

Q©€ ° ‘|´ ´ ÉX|°, 8L @ìœ

p˜ 9q< t ìì˜ Åô 堜 ¸´\ ÅÐD˜ X

\e´ éÄÈ ÑéȌ„ •¸  X È$. Figure 2Ô ä0L< PEG-MMA¼ 5Q© ˜, û€ Ę FT-IR ÄQ äÙø<„ Ø ô$. 4ìä0L˜ ¡Q |¬

(iå± C¼C, 1500 cm^-1 À<)¸ PEG-MMA ˜œ |

¬Ô 1727 cm^-1À<\ C¼O |¬€ 1111 cm^-1À<\

C-O-C stretching  ˜œ ¡Q |¬¼ •¸˜@$.

PEG-MMA Í@ Ý@ X C¼O |¬€ C-O-C |¬

˜ ¬p Ý@¨„ •¸  X È , ´Ã|œ PEG- MMA¼ lŜ Ñ @˜, °˜ „€A|œ PEG-MMA qĄ ¨`˜ Ȍ„ Œ X È$.

SHJ0glPPD#)Õ#~"1 ´@åq PEG-diMMAÔ PEGp ˜œ ÅИ ˆUq å
< ä0L<˜ @¼ õ˜,, @\ ÄÐ Åм ©q˜ Ð ˜Ô éA|

œ °ìX$. ð` ä0L˜ р U˜ PEG-diMMA

˜ ф Ý@ä´\ ÅИ ”¼ @p˜@$. PDM-1, PDM-2, PDM-3, PDM-4 è Q©  l], HŒL Øì,

ð ´°˜ \\œ Ä”˜@$. Table 2 8 ð<¼ Uì˜@ , Ä$˜ SEM ì„ Figure 3 Ø ô

$. SEM ì\ 4Ô T€ Y´ ä0L @˜, PEG- diMMA 0.5 mol%\Ô Í@ Ht î„ ˆUœ ÄÐ ÅÐ@ UqX ûÈ , 1 mol%\Àp ÅÐ ¬p 410 nm¼ @ Ô $𠼜 Åм û„ X È$. 8ì 2 mol% ´
Àp dÈd ÅÐ ¬p˜ ¼Ô P̘

@|° ÅÐ UÔ È ¼˜ ÅÐ œ´€ ° ôŒ$.

PEG-diMMA˜ Í@ ҄ ´, ÅÐô˜ @ X‘¸

7DEOH 3RO\PHUL]DWLRQ8VLQJ3(*00$0Q^a S a m p le

C o d e s

S ty re n e (m o l)

P E G -M M A

(m o l% )^b p H D (n m )^c

S .D . (n m )^d P M -1 0 .1 7 4 2 7 3 1 0 6 2 P M -2 0 .1 7 4 3 7 3 0 7 6 1 P M -3 0 .1 7 4 4 7 3 0 6 6 3 P M -4 0 .1 7 4 5 7 3 0 0 7 5

a Polymerization condition: KPS 0.7 g, water 200 g, 6 hours, 250 rpm, 70'1 . ^b mol% relative to styrene. ^c Number-averagediameter of PS powders. ^d Standard deviation.

7DEOH3RO\PHUL]DWLRQ8VLQJ3(*GL00$^a S am ple

C odes

S tyrene (m ol)

P E G -diM M A

(m ol% )^b pH D (nm )^c

S .D . (nm )^d

P D M -1 0.174 0.5 7 - -

P D M -2 0.174 1 7 410 52

P D M -3 0.174 2 7 400 102

P D M -4 0.174 4 7 - -

aPolymerization condition: KPS 0.7 g, water 200 g, 6 hours, 250 rpm, 70'1 . ^bmol% relative to styrene. ^cNumber-average diameter of PS powders. ^dStandard deviation.

Polymer (Korea), Vol. 28, No. 6, 2004_ Polystyrene Particles Containing PEG Groups _{ }

žVâ, \28Ì \6x, 2004„ 4ì(8L @ìœ)p¼ VÔ 4ìä0L ÅÐ# #

ÅÐD (qåµ)˜ @ X‘ ¼ôà X Èp Œx ŠИ ¼@ @˜\ Ã|œ ´]\$. 2œ PEG-diMMA Í Ý@ p¼ ÅÐ ¬pÔ ½ 410\ 400 nm ´˜

œ $Ì P̘@$. ´@åq PEG-diMMA˜ Q©Ô

¼@åq PEG-MMA „˜,
@A|œ A€ ðX@

è@Xp Œx „A ÅÐ ¬p@ ¬ , ¼Ô î€ ð<¼ Ø ô$ Aœ$. ÅИ (Äð

¼ VÔ ˆUœ ÄÐ Åм ©q˜p Dœ PEG- diMMA˜ AHœ ÍÔ ä0L @˜, 1 mol% U

@ AH¨„ Œ X È , 8 AU ÍÔ PEG- MMA „˜, „< Á€ A-´$. Figure 4Ô pH 7

\ ä0L< PEG-diMMA¼ 5Q©˜, û€ Ę

FT-IR ÄQ äÙø<„ Ø ô$. PEG-MMA¼ ìé

œ Figure 2˜ äÙø<˜ ¡Q |¬Ô ° h´@

, PEG-MMA€ l@ œ PEG-diMMA Í@ Ý@

 X C¼O |¬ (1727 cm^-1)€ C-O-C |¬ (1111 cm^-1)

/ / / / / / / / / /

(a) PM-1 (b) PM-2



/ / / / / / / /

(c) PM-3 (d) PM-4

)LJXUH Scanning electron micrographs of poly(styrene-co-PEG-MMA); mol% relative to styrene (a) PEG-MMA 2 mol% (PM-1), (b)  PEG-MMA 3 mol% (PM-2), (c) PEG-MMA 4 mol% (PM-3), and (d) PEG-MMA 5 mol% (PM-4)./

)LJXUH FT-IR spectra of poly(styrene-co-PEG-MMA); mol%

relative to styrene (a) PEG-MMA 0.5 mol%, (b) PEG-MMA 3 mol%, (c) PEG-MMA 4 mol%, and (d) PEG-MMA 5 mol%./

7333# 6833# 6333# 5833# 5333# 4833# 4333#

Wavenumber (cm^-1)

Transmittance (%)

  Kim et al. Polymer (Korea), Vol. 28, No. 6, 2004/

  €q# 1# žVâ, \28Ì \6x, 2004„/

˜ ¬p ¨ Ý@¨„ •¸  X È$.

]
#
MÕ#&ñ#6®y#)#ñ#¥)1 PEG-diMMA

Ô @\ -  ˜p Œx Q© , @@ Xô È Ô °ì˜@$. ÄÐ ÅИ @ U¼ Œ„4p D

˜, PDM ìÈ (ä0L/PEG-diMMA)¼ 1-”8-2-|¤

ìT¼ (NMP) ¹,\ ÅИ é´ ùq„ @p˜@$.

ä0L @˜, PEG-diMMA 0.5 mol% (PDM-1)€ NMP

 ½D é´X|°, PEG-diMMA 1 mol% (PDM-2) ´

Àp NMP °˜ ¹ ŠŒ„ •¸˜@$. 8,Ø Figure 5˜ h <ì 4Ä] ð<¼ 4´ ÄÐ Ä (PDM-2 ðPDM-4)˜ `ì D´ h@ 93ð99  ì´\ @p X$. PEG-diMMA˜ Í@ Ý@¨ p¼ @˜

Ý@ ˜˜, `ì D´ h@ @pX Š°Ø, y€

`ì D´ h@ Ý@˜ì¼ H
˜@ , `ì D´

h@ 99\ 93 œ dÈd PÌ˜Ô ýå„ Ø ô

$. ´,œ D
€ „A î€ Í˜ PEG-diMMA

˜˜, „A î€ @˜ 4ìä0L ÅÐ@ UqX

p Œx´ , 2œ PEG-diMMA˜ Ñ´ Ý@¨ p¼

`0œ 8L @ìœp˜ Ý@œ ¸˜, `ì D´ h

/ / / / / /

(a) PDM-1 (b) PDM-2_



/ / / / / /

(c) PDM-3 (d) PDM-4_

)LJXUH Scanning electron micrographs of poly(styrene-co-PEG-diMMA); mol% relative to styrene (a) PEG-diMMA 0.5 mol% (PDM- 1), (b) PEG-diMMA 1 mol% (PDM-2), (c) PEG-diMMA 2 mol% (PDM-3), and (d) PEG-diMMA 4 mol% (PDM-4)./

)LJXUH FT-IR spectra of poly(styrene-co-PEG-diMMA); mol%

relative to styrene (a) PEG-diMMA 0.5 mol%, (b) PEG-diMMA 1 mol%, (c) PEG-diMMA 2 mol%, and (d) PEG-diMMA 4 mol%./

#7333# 6833# 6333# 5833# 5333# 4833# 4333#

Wavenumber (cm^-1)

Transmittance (%)

Polymer (Korea), Vol. 28, No. 6, 2004_ Polystyrene Particles Containing PEG Groups _{ }

žVâ, \28Ì \6x, 2004„ 4ì(8L @ìœ)p¼ VÔ 4ìä0L ÅÐ# #

@ P̜ ð<œ ´]\$.

]
#
MÕ#Ùñ#Õ1 ÅÐ œ´˜ D˜Ô \ ,

œ„ aU˜, ÔU  X È$. „< 8xœ ф aU˜

p Œx aU iÕ, aU pp p¼ ½D˜ ùq˜ h

´@ Ȅ X È$. ¼XA|œ QðÀ„ ´éœ iÕ<

DÐ Œå„ ´éœ iÕ´ ÈÔ°, 8 $\Ô Qð ÀՄ ´é˜@$. ©q\ ÄÐ ÅÐ$˜ `D $ Q

\˜ \ ,œ„ aU˜p D´\ ð` halocarbon®

0.8 („Q 1.7)< isopar® G („Q 0.8)¼ 1:1.7˜ À|„œ

|©˜, ÅИ „Q (½ 1.13)< ¼˜˜Ô `D $„

\°˜@$. ´,œ `D $ ˆ\ 9Ì ˜ Åм c HŒLœ Ø Äðè , \ ,œ aUp (ELS- 8000)¼ ´é˜, ÅИ \ ,œ„ aU˜@ 8 ð<¼ Table 3 Ø ô$. œ´ D˜p@ °˜ Å X Š€ ¼X ÄÐ ÅÐÔ \ ,œ´ °˜ 30 mV

´˜œ Œdx È$. Table 3\ 4Ô T€ Y´, PEG- MMA˜ Í@ 1\ 5 mol%œ Ý@¨ p¼, \ ,

œ€ 104\ 183 mVœ ¬Ì å
˜@$. PEG- MMA 5 mol% ´
˜ Í\ Q©˜, 4˜|Ø, ÅИ ˆ Uq€ @˜˜@ , ´°  ÅÐD˜ ‘´ ¼ô Ø Äðq´ Ë Š€ Ä„ Uq˜@$. PEG ¨ ´

@å ° PEG-MMA 5 mol%\ @å Ҁ 183 mV, 8ì

2.2110^-5˜ ´@ aUX$. ´Ã€ 8L @ ìœp@ \ ,œ˜ Ý@ ¬Ì Aå„ @$Ô Ã„ ÅÝ˜Ô ð<´$. x œ Dp A TäLH´

ìéXÔ ÅИ \ ,œ€ 100 mVð
´ Ô¬X È , tp Åм ´éœ ýð@ 120ð130 mVœ Œdx Èp Œx, 8 0¬˜ 183 mV˜ R€ „< ðXœ | q„ $Dœ ô$. œø PEG-diMMA¼ ìé˜, ûô

 ÅÐÔ PEG-MMA „˜, „A î€ \ ,

œ„ Ø ô$. @å AU ͸ 1 mol%\ Q©œ

ÄÐ ÅÐ@ 91 mV˜ \ ,œ R„ Ø ô , 1.09210^-5˜ Dp A ´¼ Ø ô$. 8 ͘

D Í\ \ ,œ R€ IéÈ P̘@$.

PEG- diMMA˜ Í@ Ý@¨ Ȭ˜ \ ,œ

R´ P̜ À DÐ D8ý ì\ 4Ô T€ Y´

PEG- diMMA 2 mol% ´
\Àp ÅИ Äð
@

Ë Š˜p Œx|œ A\$. ÅИ \ ,œ„ Ý

@äp D´\Ô ´@åq 5( ô PEG-diMMA4$

¼@åq 5( ô PEG-MMA@ (l è<AĄ Œ X È$. PEG-diMMA˜ ¬°Ô Ñ( ÌXp¼ @ , @ô°Ô œXp¼ V Èp Œx, ´ œq\

- „ ˜p D´\Ô (D (loop)
´ Xô¼ ˜Ô P

Œx, PEG-diMMA˜ œ´ ˆU\˜ è<@ œ è<

A´$ Ôaœ$.

71#-Ý##

„´hq 5( ô (PEG-MMA y€ PEG-diMMA)¼ ì é˜, œ´ „´hq˜ 8L @ìœp¼ VÔ Ä Ð Åм t`” Q©Õ„ ìé˜, ©q˜@$. 5(

ô PEG-MMA˜ ÍÔ ä0L @˜, ½ 2ð5 mol%˜

S€ Í ÔD\ ¼˜ ˆUœ 4ìä0L Åм

©q  X È$. œø @q 5( ô PEG-diMMA¼ ìéœ Q©\Ô PEG-MMA Q©4$ $Ì Èˆ

Uœ œœ´@ UqX , ¼œ Åм ûp Dœ

AUœ ÍÔ ä0L @˜, ½ 1 mol% Ą Œ X È$. 4Ä]„ õ˜, °ì˜,8 T, PEG-diMMA˜

Í@ Ý@¨ p¼ ÄÐ ÅИ @Ô ´(ô  `0œ PEG˜ Aå|œ `ì D´ h@ dÈd P ̨„ Œ X È$. `D $ ô\ œ´ D˜¼ a U´8 ð<, PEG-MMA˜ 5 mol%\ „< Ҁ 183 mV

˜ \ ,œ<, 2.2110^-5˜ ´¼, 8ì PEG- diMMA˜ AU ͸ 1 mol%\ 91 mV˜ \ ,

œ R< 1.0910^-5˜ Dp A ´¼ @„ •¸˜

@$. ´Ã|œ `D $ô\ ÅИ \ ,œ„

Ý@äp D˜, 8L @ìœp@ „< è<AĄ

7DEOH  =HWD 3RWHQWLDO DQG (OHFWURSKRUHWLF 0RELOLW\ LQ

'LHOHFWULF)OXLG

S a m p le C o d e s Z e ta P o te n tia l (m V )

E le c tro p h o re tic M o b ility (c m²/V s)

P M -1 1 0 4 1 .2 4Ý10^-5 P M -2 1 1 9 1 .4 2Ý10^-5 P M -3 1 3 8 1 .6 7Ý10^-5 P M -4 1 8 3 2 .2 1Ý10^-5 P D M -1 4 2 0 .5 1Ý10^-5 P D M -2 9 1 1 .0 9Ý10^-5 P D M -3 5 8 0 .6 9Ý10^-5 P D M -4 5 6 0 .6 2Ý10^-5

)LJXUH  DSC thermograms of polymer powders at a heating rate of 10 ,/min (second heating): (a) PEG-diMMA 1 mol%, (b) PEG-diMMA 2 mol%, and (c) PEG-diMMA 4 mol%./

# ;3# 433# 453# 473#

Temperature (×)

Heat flow (mW) Endo Up

  Kim et al. Polymer (Korea), Vol. 28, No. 6, 2004/

  €q# 1# žVâ, \28Ì \6x, 2004„/

ÅÝ  X È$.

Uhihuhqfhv##

1. F. A. Bovey, Emulsion Polymerization, Interscience, New York, 1965.

2. D. C. Blackley, Emulsion Polymerization, Applied Science, London, 1975.

3. T. Matsumoto and A. Ochi, Kobunshi Kagaku, 22, 481 (1965).

4. J. W. Vanderhoff and H. J. Van den Hul, J. Macromol. Sci.

Chem., A7, 677 (1973).

5. G. Zhang, X. Li, M. Jiang, and C. Wu, Langmuir, 16, 9205 (2000).

6. C. E. Reese and S. A. Asher, J. Colloid Interf. Sci., 248, 41 (2002).

7. X. Chen, Z. Cui, Z. Chen, K. Zhang, G. Lu, G. Zhang, and B.

Yang, Polymer, 43, 4147 (2002).

8. H. B. Sunkara, J. M. Jethmalani, and W. T. Ford, J. Polym.

Sci.; Part A: Polym. Chem., 32, 1431 (1994).

9. K. H. Park, S. S. Im, and C. Y. Kim, Polymer (Korea), 12, 489 (1988).

10. A. R. Goodall, M. C. Wilkinson, and J. Hearn, J. Polym. Sci.;

Polym. Chem., 15, 2193 (1977).

11. L.-J. Liu and I. M. Krieger, J. Polym. Sci.; Polym. Chem., 19, 3013 (1981).

12. J. P. Yun, Y. H. Park, S. Lee, K. H. Park, and C. J. Lee, Polymer (Korea), 27, 159 (2003).

13. Q. Wang, S. Fu, and T. Yu, Prog. Polym. Sci., 19, 703 (1994).

14. R. M. Fitch, M. P. Prenosil, and K. J. Sprick, J. Polym. Sci.;

Part C, 27, 95 (1969).

15. G. Lichti, R. G. Gilbert, and D. H. Napper, J. Polym. Sci.;

Polym. Chem., 21, 269 (1983).

16. P. J. Feeney, D. H. Napper, and R. G. Gilbert, Macro- molecules, 20, 2922 (1987).

17. H. S. Chang and S. A. Chen, J. Polym. Sci.; Polym. Chem., 26, 1207 (1988).

18. C. S. Chern and G .W. Poehlein, J. Polym. Sci.; Polym. Chem., 25, 617 (1987).

19. E. Zurkova, K. Bouchal, J. Kalal, Z. Pelzbauer, F. Svec, and D. Zdenkova, J. Polym. Sci.; Polym. Chem., 21, 2949 (1983).

20. M. S. Cho, Y. H. Cho, H. J. Choi, and M. S. Jhon, Langmuir, 19, 5875 (2003).

21. B. Comiskey, J. D. Albert, H. Yoshizawa, and J. Joseph, Nature, 394, 253 (1998).

/
